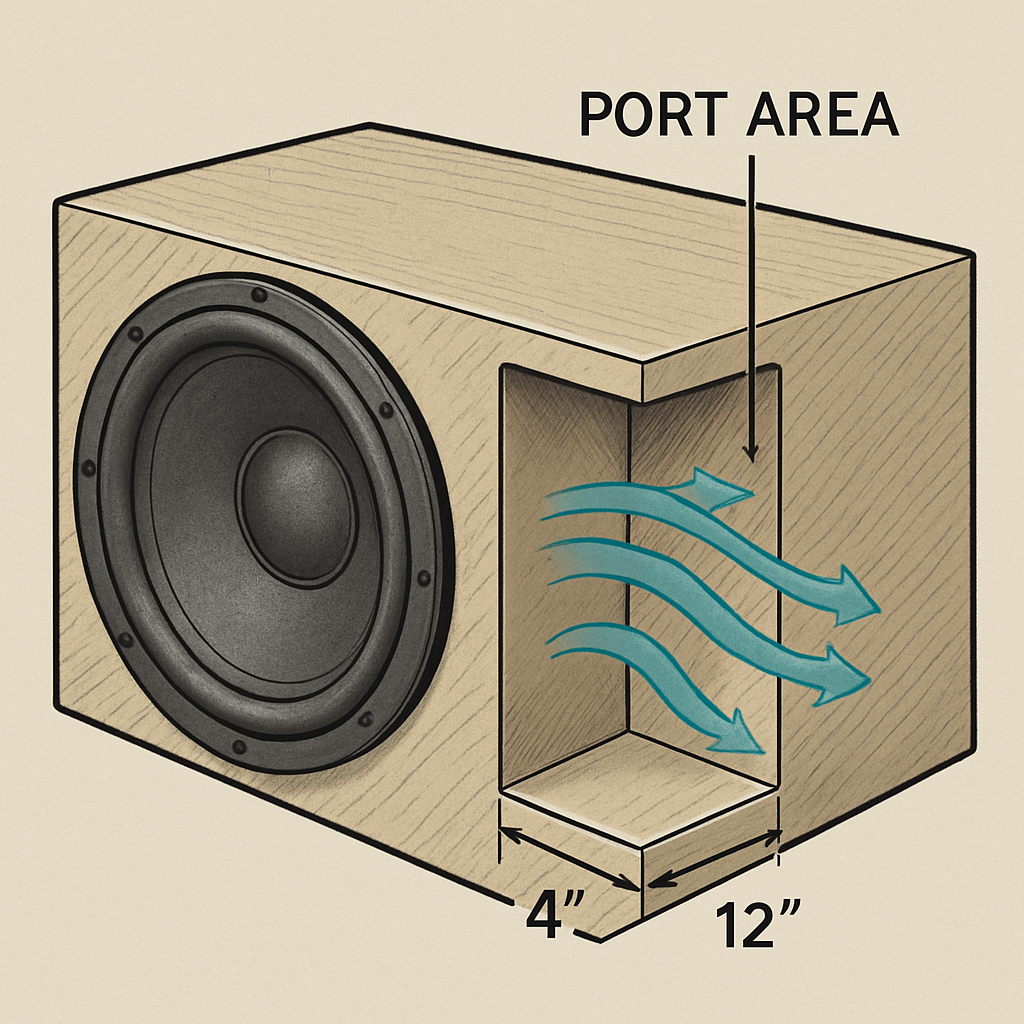

Subwoofer Port Area Calculator: A Complete Guide to Accurate Tuning

Ever stood in your garage, staring at a massive subwoofer box, wondering why the bass sounds thin even though you’ve cranked the amp? You’re not alone.

Most car‑audio enthusiasts hit that wall because the port area – the opening that lets air move in and out of the enclosure – is either too small or way too big. It’s a tiny detail that makes a huge difference, and that’s where a subwoofer port area calculator comes in.

Think about it like this: a port is the throat of a speaker’s lungs. If the throat is cramped, the airflow chokes, and you lose punch. If it’s gaping, the air rushes out too fast, turning the bass into a sloppy wobble. Getting that sweet spot means the sub can hit its tuned frequency cleanly, delivering tight, deep notes that you can feel in the seat.

In our experience at Audio Intensity, we’ve seen installers spend hours guessing port dimensions, only to end up re‑drilling holes or swapping boxes. A quick calculation before you cut any metal saves time, money, and a lot of frustration.

So, what does a subwoofer port area calculator actually do? It takes the driver’s Thiele/Small parameters – mainly the vented box tuning frequency and the desired port length – and spits out the ideal cross‑sectional area. Plug that number into a simple formula or an online tool, and you know exactly how wide to make the port.

Here’s a quick mental check: if you double the port length, you’ll need to halve the area to keep the same tuning. Likewise, a longer port lets you use a narrower opening without sacrificing low‑end response. It’s a balancing act, but the calculator handles the math so you can focus on fit‑and‑finish.

Ready to stop guessing? Grab a piece of paper, jot down your sub’s specs, and run them through a reliable calculator. You’ll walk away with a clean, measured port that lets the bass roar exactly where you want it.

Let’s dive in and explore how to use the calculator step by step, so your next build hits the perfect groove.

TL;DR

Using a subwoofer port area calculator lets you instantly translate driver specs into the perfect port dimensions, eliminating guesswork, re‑drilling, and wasted time.

Just jot down your tuning frequency and desired length, plug them into the tool, and you’ll walk away with a precisely sized port that delivers tight, deep bass every drive.

Step 1: Understanding Port Area Fundamentals

Ever notice that your sub sounds boomy in one song but thin in the next, even though the amp settings haven't changed? That's usually the port whispering to you that its area isn't quite right.

Think of the port as the throat of a singer – if the opening is too narrow, the voice gets strained; if it's too wide, the note loses focus. The same principle applies to a vented subwoofer enclosure. The subwoofer port area calculator takes the mystery out of that math, giving you a clear target for the cross‑sectional size you need.

Why the Area Matters More Than You Think

When the port area is off, two things happen. First, the tuning frequency drifts away from the sweet spot you aimed for, which means the low‑end either rolls off early or turns into a sloppy wobble. Second, the air velocity inside the port can hit the dreaded choke point, causing port noise – that raspy “chuff” you hear at high volume.

Here’s a quick mental check: double the length of your port and you’ll need about half the area to keep the same tuning. That relationship is why many installers spend hours fiddling with different pipe diameters. With a calculator, you plug in the desired length and tuning frequency, and it spits out the exact area – no guesswork.

Gathering the Numbers You Need

Before you fire up the calculator, pull these specs from your driver’s datasheet: the target tuning frequency (usually around 30‑35 Hz for most car subs), the desired port length (which depends on how much space you have in the trunk), and the box volume. If you’re unsure about the box volume, a simple measurement of interior dimensions will do.

Got those numbers? Great. Now you’re ready to let the calculator do the heavy lifting. If you prefer to see the math on paper, the basic formula is:

Port Area = ( ( ( 2.2 × 10⁶ ) × ( Desired Length ) ) / ( Tuning Frequency × ( Box Volume ) ) )

But don’t worry – you don’t have to memorize that. Most online tools let you type in the values and instantly show the area in square inches or centimeters.

Watching the video above, you’ll see a real‑world example of measuring a trunk, entering the numbers, and getting a port size that fits a 12‑inch round pipe. Notice how the presenter points out the importance of checking clearance for the pipe bends – a detail that saves you a costly redo later.

Translating Area to a Physical Port

Once you have the area, you have a few options: a circular pipe, a rectangular slot, or a custom‑shaped port cut into a sheet metal panel. For a circular pipe, simply take the square‑root of (Area ÷ π) to get the radius, then double it for the diameter. For a rectangular slot, divide the area by the height you can accommodate, and you’ll have the width.

Tip: if you’re limited on height, a slit‑style port can give you a large area while staying shallow. Just make sure the slit’s edges are rounded to reduce turbulence.

And remember, the goal isn’t to cram the biggest possible opening – it’s to match the area the calculator tells you, balancing length and airflow for that smooth, punchy bass.

Now you’ve turned a confusing set of numbers into a concrete port size you can actually cut. The next step is to verify the fit in your vehicle and, if needed, fine‑tune the length by adding or trimming a short piece of pipe. With the right area, the sub will breathe easy, and you’ll finally get that tight, room‑shaking bass you’ve been chasing.

Step 2: Gathering Subwoofer Specifications

Alright, you’ve got your box shape in mind and you’re ready to cut that port. Before the saw even touches metal, you need the exact specs of the driver you’re planning to house. Think of it like checking the dimensions of a new sofa before you move the couch‑lift – you don’t want to discover it’s too big after you’ve already cleared the hallway.

First up, pull the Thiele/Small (T/S) data sheet for your subwoofer. If you bought an IDQ12 V4 from our catalog, the spec sheet is tucked right on the product page. The two numbers you’ll be hunting for are the resonant frequency (Fs) and the recommended tuning range (usually given as a frequency band, e.g., 30‑35 Hz). Those values tell the calculator where the sweet spot lives.

1️⃣ Write down the key parameters

Grab a notebook or open a notes app and jot these three items:

• Fs – the driver’s natural resonant frequency.
• Desired tuning frequency (often the centre of the manufacturer’s suggested range).
• Maximum port length you can fit in your vehicle’s trunk or boot.

Why three? Because the subwoofer port area calculator needs a target frequency and a physical length to spit out the ideal cross‑sectional area. Without a realistic length, the calculator will give you a port that simply won’t fit.

2️⃣ Verify the enclosure volume

Even though this step focuses on the driver, the internal air volume of the box still matters. A common mistake is using the “external” dimensions of the chassis, forgetting that the subwoofer itself occupies space. Subtract the driver’s mounting depth and any bracing material from the total internal volume. If you’re not sure, the Principles of Subwoofer Box Design: A Comprehensive Guide walks you through a quick volume calculator.

Real‑world example: A car‑audio installer in Melbourne was working on a 12‑inch dual‑VC sub that called for a 35 Hz tune. The box measured 22 L internally, but after subtracting the driver’s 3 L displacement, the effective volume dropped to 19 L. Plugging 19 L into the calculator prevented an over‑tuned, boomy result.

3️⃣ Decide on port geometry

Ports can be round, rectangular, or even a slot. The shape changes the airflow characteristics, but the calculator only cares about total area. If your car’s trunk only has a narrow slot, you might opt for a 2 in × 5 in rectangle. That gives you 10 in² (≈64.5 cm²). If the calculator returns 75 cm², you know you need to widen one side a touch or add a second slot.

Pro tip: For installations where space is at a premium, a folded or “tuned pipe” layout lets you keep the total length while fitting a tighter footprint. The calculator still uses the unfolded length, so you don’t have to re‑run the numbers for each bend.

4️⃣ Double‑check the power handling

While the port area calculator isn’t a power tool, the driver’s RMS power rating informs how aggressively you’ll tune. A sub rated for 600 W RMS can handle a slightly tighter port (higher Qts) without overheating, whereas a 300 W unit prefers a more relaxed tuning to keep the cone moving comfortably.

In our shop, we saw a customer with a 300 W 10‑inch sub who tried to push a 28 Hz target. The result was a hot cone and distortion. After raising the target to 32 Hz and widening the port by 10 %, the system stayed cool and delivered clean bass.

5️⃣ Record everything in a spec sheet

Before you hit the calculator, create a simple table:

Having this on one page makes the next step – feeding the numbers into the subwoofer port area calculator – painless. It also gives you a reference if you need to tweak dimensions later on.

6️⃣ Run the calculator and sanity‑check the output

Enter your target frequency and total port length. The tool will return an area in cm² or in². Compare that number to the area of your chosen geometry. If you’re off by more than 10 %, you’ll notice a shift in the bass response – either a loose, boomy sound or a thin, under‑powered rumble.

Once you’ve confirmed the numbers, you’re ready to sketch the port on your enclosure layout and move to the cutting stage. Remember, a tiny error in port width can move the tuning several hertz, especially on short ports, so measure twice, cut once.

That’s it – gather the specs, double‑check the volume, decide on shape, and you’re set to let the calculator do the heavy math. The next section will walk you through actually entering the numbers and interpreting the results.

Step 3: Using the Subwoofer Port Area Calculator

Grab the calculator and plug in your numbers

Okay, you’ve already got your target tune, max port length, and net box volume scribbled down. Now it’s time to hand those digits over to the subwoofer port area calculator. Open the tool – a solid example lives at Sub Box’s online calculator – and you’ll see two fields waiting for you: the tuning frequency (in hertz) and the total unfolded port length (in inches or centimetres).

Type in the 32 Hz you settled on, then the 5.5 in port length you can actually fit. Hit “calculate” and the calculator instantly spits out a cross‑sectional area. Most tools give you the result in both cm² and in², so you can compare it to the shape you’ve already chosen.

Match the area to your chosen geometry

Here’s where the rubber meets the metal. If you decided on a 2 in × 5 in slot, that’s 10 in² (≈64.5 cm²). Suppose the calculator returns 75 cm² – you’re a bit shy. You could widen the slot to 2.5 in × 5 in, or add a second slot of the same size. The key is staying within about a 10 % tolerance; beyond that you’ll start hearing the bass drift off‑tune.

And what if you prefer a round port? Use the simple area‑to‑diameter conversion: diameter = 2 × √(area / π). For a 75 cm² result, that works out to roughly a 9.8 cm (≈3.9 in) diameter. Sketch that circle on your layout sheet, then double‑check with a ruler or caliper.

Double‑check the maths before you cut

Even though the calculator does the heavy lifting, a quick sanity check saves you a trip back to the shop. Multiply the chosen width by the height of your slot, or calculate the circle’s area manually, and compare. If the numbers line up within that 10 % window, you’re good to go.

Remember the old carpenter’s rule: measure twice, cut once. A millimetre off on a short port can shift the tuning several hertz, turning a tight thump into a sloppy wobble.

What to do if the numbers feel off

Maybe the calculator gave you a surprisingly large area. That usually means your port length is on the short side – a short port needs a wider throat to move the same amount of air. You have two options: lengthen the port (if you have space) or accept a slightly larger opening and brace the edges to keep turbulence low.

Conversely, an unexpectedly small area suggests you’ve got plenty of length to work with. In that case, you can keep the slot narrow, which often looks cleaner in a tight trunk. Just be sure the walls of the slot are straight; bent or ragged edges will create unwanted turbulence and degrade efficiency.

Record the final dimensions

Before you hand the layout to your saw or router, jot the final numbers into your spec sheet. Something like:

• Target frequency: 32 Hz
• Total port length: 5.5 in
• Calculated area: 75 cm² (≈11.6 in²)
• Chosen geometry: 2.5 in × 5 in slot

This tiny table becomes your reference point when you’re measuring the cutout and later when you’re fine‑tuning the system with a sweep test.

Quick listening test after the cut

Once the port is cut, fire up a low‑frequency sweep (30 – 40 Hz) and listen for a smooth rise in output around the target. If the bass sounds thin, widen the slot a touch; if it booms, shave a millimetre off the width. Small adjustments are far easier than re‑drilling a whole new port.

That’s the whole dance with the subwoofer port area calculator: feed in the specs, compare the output to your chosen shape, verify, and then lock it in. With the numbers nailed down, the next step is all about physically drawing the port on your enclosure layout and getting ready to cut.

Step 4: Interpreting Results & Tuning Options

Alright, you’ve just watched the subwoofer port area calculator spit out a cross‑sectional area. What does that number actually mean for the sound in your car?

First off, think of the area as the “breathing space” for the driver. Too narrow and the air gets choked – you’ll hear a thin, rattly thump. Too wide and the air rushes out too fast – the bass turns boomy and loose. The sweet spot sits somewhere in the middle, and the calculator gives you a target to aim for.

Reading the calculator output

Most tools show the result in both cm² and in². Grab a piece of paper, write the number down, and compare it to the geometry you sketched earlier. If you planned a 2 in × 5 in slot, that’s 10 in² (≈64.5 cm²). If the calculator says 75 cm², you’re about 15 % shy.

That 15 % gap is your first tuning knob. You can either widen the slot, add another slot, or lengthen the port if space permits. Remember the rule of thumb: stay within roughly ±10 % before the audible character starts shifting.

When the numbers don’t match your plan

Picture this: you’ve measured a rectangular opening that gives you 68 cm², but the calculator insists on 80 cm². What now? You have three practical options:

• Widen one side. Add a half‑inch to the width – you’ll gain about 5 cm² instantly.
• Stack a second slot. A twin‑slot layout doubles the area without needing a wider single cut.
• Extend the port length. If you can snake the pipe around a brace, an extra inch of length lets you keep the same area smaller.

Pick the path that fits your trunk layout best. In our workshop, installers often choose the twin‑slot trick because it looks tidy and keeps the port walls straight, reducing turbulence.

Fine‑tuning with a sweep test

Once the cut is done, fire up a low‑frequency sweep from 20 Hz to 40 Hz. Listen for a smooth rise that peaks right around your target frequency – say 32 Hz. If the peak leans lower, the port is too large; if it peaks higher, the throat is too tight.

Here’s a quick checklist you can run while the sweep plays:

Each millimetre of width change moves the tuning by roughly half a hertz on a 5‑inch port, so small tweaks are enough.

Documenting the final dimensions

Before you hand the enclosure to the installer, write down the final numbers in a quick spec table. Something like:

• Target frequency: 32 Hz
• Total unfolded length: 5.5 in
• Calculated area: 75 cm² (≈11.6 in²)
• Chosen geometry: 2.5 in × 5 in slot (or twin‑slot 2 in × 2.5 in each)

This reference saves you from second‑guessing later, especially if you revisit the system after a few months of driving.

Quick tip for installers

If you’re working in a tight boot, consider a folded “tuned pipe” that keeps the total unfolded length the same but fits within a narrower footprint. The calculator doesn’t care about bends – it only cares about the total length – so you can stay within the same area target.

And don’t forget to round your dimensions to the nearest half‑inch or millimetre that your saw can cut cleanly. A ragged edge creates turbulence, which can mute the bass just as much as a mis‑sized port.

Bottom line: the subwoofer port area calculator gives you a numeric goal, but the real art is matching that goal to the physical constraints of your vehicle. Measure, compare, adjust, and then verify with a sweep. When the numbers line up and the sound feels tight, you’ve nailed the tuning.

Step 5: Practical Examples & Common Mistakes

Alright, you’ve got the numbers from the subwoofer port area calculator, but what does that look like in the wild? Let’s walk through a couple of everyday scenarios and flag the traps that trip up even seasoned installers.

Example 1: The compact sedan

Imagine you’re fitting a 12‑inch dual‑VC sub into a 2019 Corolla. You’ve measured a maximum unfolded port length of 4.8 in because the boot floor is already crowded with a spare tyre and a few cables.

Plugging 32 Hz and 4.8 in into the calculator gives you roughly 68 cm² (≈10.5 in²). A simple 2 in × 5 in slot would be 10 in², so you’re a hair short. The easiest fix? Add a half‑inch to the width – 2.5 in × 5 in – which bumps the area to 12.5 in², comfortably inside the ±10 % tolerance.

Once you cut that slot, fire up a low‑frequency sweep. If the peak sits at 31 Hz and the bass feels tight, you’ve nailed it. If it drifts down to 29 Hz, shave a millimetre off the width and re‑test.

Example 2: The ute with a folded pipe

Now picture a rugged ute where space is generous but the trunk shape forces you to route the port around a suspension brace. You decide on a folded “tuned pipe” that’s 7 in total unfolded length but only 2 in high in the final footprint.

The calculator, fed with 30 Hz and 7 in, spits out 82 cm² (≈12.8 in²). Because the pipe is narrow, you choose a circular bore. Using the area‑to‑diameter formula, you get a diameter of about 4 in. That fits nicely inside the 2‑in height once you bend the pipe, because the calculator cares only about total length, not bends.

After installation, you notice a subtle “wobbly” rumble at the low end. That’s a classic sign of turbulence from sharp bends. The quick fix is to add a short choke – a ¼‑in length of narrow tube – right before the exit. It smooths the airflow and brings the sweep peak back to the target frequency.

Common Mistake #1: Forgetting the tolerance window

Many installers treat the calculator output as an exact prescription and cut the port to the nearest millimetre. In reality, a 10 % area variance is usually harmless. Insisting on perfection often leads to unnecessary re‑cuts and wasted time.

Tip: write the calculator result, then round the dimensions to the nearest half‑inch or millimetre that your saw handles cleanly. A clean edge beats a perfectly sized but ragged cut every time.

Common Mistake #2: Over‑looking port shape impact

It’s easy to assume a rectangular slot and a round hole of the same area will behave identically. Not true. Rectangular slots tend to produce a flatter response, while round ports can add a tiny bump in the mid‑bass region. If you’re chasing a dead‑on, ultra‑tight thump, a round bore is usually the safer bet.

Conversely, if you need to hide the port behind a trim piece, a slot blends in better and is less likely to catch dust.

Common Mistake #3: Ignoring the effect of wall thickness

Most calculators assume the port’s cross‑section is measured at the throat opening, not accounting for the material you’ll cut out of. If your enclosure walls are ½ in thick, a 2 in × 5 in slot actually removes a 2.5 in × 5.5 in opening once the material is accounted for. That extra area can shift the tuning lower by a few hertz.

Solution: add the wall thickness to each dimension when you sketch the cutout, then double‑check the final area.

Quick checklist before you cut

• Record the calculator’s area and your chosen geometry.
• Apply wall‑thickness adjustments.
• Round dimensions to the nearest tool‑friendly increment.
• Verify the area stays within ±10 % of the target.
• Plan for a choke or twin‑slot if space forces a non‑ideal shape.

Following this list saves you from the “cut‑it‑again” loop that many installers dread.

Bottom line: the subwoofer port area calculator gives you a solid numeric goal, but the real work is translating that goal into a clean, practical cut that respects your vehicle’s quirks. Embrace the small tolerances, watch for turbulence, and always double‑check your dimensions. When the numbers line up and the bass feels tight, you’ve turned a math problem into a sonic win.

Additional Resources & Tools

After you’ve got the numbers from the calculator, the next step is finding the right tools to turn those figures into a clean cut and a tight‑tuned bass response.

Web‑based subwoofer port area calculators are the easiest place to start. Sites like Sub Box, SpeakerDesign.net, or any reputable car‑audio calculator let you plug in your target frequency and total unfolded length, then instantly spit out the required cross‑sectional area in both cm² and in².

If you prefer a spreadsheet you can pull a ready‑made Excel or Google‑Sheets template from the car‑audio community. These sheets usually contain the same formulae as the online tools, plus a built‑in tolerance checker so you can see at a glance whether your chosen slot or round bore stays within the ±10 % sweet spot.

For visualising the cutout, a quick CAD sketch saves you from guesswork. Free programs such as SketchUp Free or the hobbyist‑friendly Fusion 360 let you draw the exact rectangle or circle, export a PDF layout, and even simulate the unfolded pipe length for folded‑port designs.

Accurate measuring tools are just as critical as the calculator. A digital caliper gives you sub‑millimetre precision on slot width, while a laser distance measurer makes checking long‑run pipe length a breeze. Jot those numbers straight into your spreadsheet to keep the math honest.

Once the port is cut, use a tuning app or measurement software to verify the real‑world result. REW (Room EQ Wizard) is free and lets you run a low‑frequency sweep, pinpoint the peak, and see if you need to shave a millimetre or add a choke.

If you hit a snag, the car‑audio forums and sub‑reddit r/CarAudio are great places to ask for advice. Installers often share their own calculator spreadsheets, custom port‑shape tricks, and real‑world measurements that can save you hours of trial‑and‑error.

Quick checklist: 1️⃣ Pick a reliable online calculator or spreadsheet. 2️⃣ Verify dimensions with a digital caliper or laser measurer. 3️⃣ Sketch the cutout in CAD and export a layout. 4️⃣ Run a REW sweep after installation. Follow these steps and the subwoofer port area calculator becomes a painless part of your build, not a mystery you have to solve on the fly.

FAQ

What is a subwoofer port area calculator and why do I need one?

In simple terms, a subwoofer port area calculator takes the tuning frequency you want and the total unfolded length of the port, then spits out the exact cross‑sectional area needed for that throat. Without it you’re guessing – you might end up with a boomy, loose low end or a thin, airy thump. The calculator removes the maths headache, so you can focus on fitting the port into the car and getting that tight bass you crave.

How do I decide the maximum port length before I feed numbers into the calculator?

First, open the enclosure and measure the straight‑line distance from the driver to the rear wall, remembering any brackets or wiring that eat up space. If the trunk is cramped, think about a folded or “tuned pipe” layout; the calculator only cares about the total unfolded length, not the bends. Write down the longest length you can realistically accommodate – that becomes the second input that drives the area result.

Can the calculator handle both round and rectangular ports?

Absolutely. The tool always returns an area in cm² or in², which you can then translate into whatever shape fits your vehicle. For a round bore you use the formula diameter = 2 × √(area / π). For a slot you simply multiply width by height. So whether you’re cutting a 3‑inch circle or a 2 in × 5 in rectangle, the same calculator gives you the target area to match.

How precise do my measurements need to be for the calculator to give a usable result?

Think of the calculator as a guide, not a scalpel. Most installers find a ±10 % tolerance on the port area is sonically invisible. That means you don’t need sub‑millimetre perfection – a half‑inch or a millimetre off is fine as long as you stay within that window. Use a digital caliper for the width and a laser measurer for long runs; those tools give you the consistency you need without obsessing over tiny fractions.

What tools should I use to double‑check the port dimensions after I cut the opening?

Grab a digital caliper and measure the actual width and height of the slot, or the diameter of a round hole, right after the cut. Then pop the numbers back into a quick spreadsheet to confirm the area is still within the ±10 % range. Finally, run a low‑frequency sweep in REW (Room EQ Wizard) or any free tuning app – a smooth peak at your target frequency tells you the port is doing its job.

My system is still sounding off – the bass peaks lower than the target frequency. What can I tweak?

When the sweep peaks below the intended tune, the port is effectively too large. The quickest fix is to shave a millimetre or two off the width, or add a short choke (a narrow tube about a quarter‑inch long) right before the exit to tighten the airflow. If you have space, you can also lengthen the port a bit; a longer pipe lets you keep the same area while nudging the tuning upward.

Is the subwoofer port area calculator useful for both custom‑built enclosures and off‑the‑shelf boxes?

Yes, the math doesn’t care where the box comes from. For a custom build you’ll be measuring every dimension yourself, so the calculator becomes a planning compass. With a pre‑made box you still need to know the net internal volume and the maximum port length you can fit, then let the calculator tell you whether a round or slot throat will hit the sweet spot. Either way, it saves you from costly re‑drills.

Conclusion

So, you’ve walked through the whole process of gathering specs, feeding numbers into the subwoofer port area calculator, and checking the cutout on the shop floor.

What matters most is the feeling you get when the low‑frequency sweep finally peaks right on your target – that tight, controlled thump that makes a road trip feel like a concert.

Remember the three things that keep the math honest: accurate driver parameters, a realistic maximum port length, and staying within roughly ±10 % of the calculator’s area result.

If you find yourself a millimetre off, don’t panic. A tiny tweak – shaving width or adding a short choke – will nudge the tuning back into place without a full redesign.

For installers and hobbyists alike, the best habit is to write down the final dimensions in a quick spec sheet before you cut, then double‑check with a digital caliper. That habit saves a lot of re‑work.

And finally, when the bass sounds just right, give yourself a pat on the back – you’ve turned a spreadsheet formula into real‑world performance.

Keep testing, keep listening, and keep tweaking.

Need a hand fine‑tuning your next build? Our team at Audio Intensity loves swapping stories and can point you to the right tools.
