Proline X Micro Series 10" Sealed Enclosure - Fits JL 10TW3
SKU: M10-S JL
- Best For: Space-constrained SQ installs (Trucks, Coupes)
- Power: Rated for up to 400W RMS (Woofer Dependent)
- Topology/Class: Sealed / Stack-Fab Construction
- Sonic Character: Tight, Clinical, High-Output for Size
Financing available — choose Shop Pay Installments at checkout.

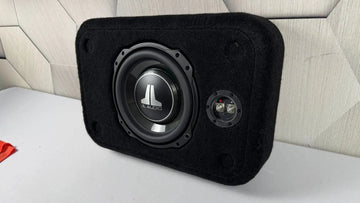

Proline X Micro Series 10" Sealed Enclosure - Fits JL 10TW3
Built Around the JL Audio 10TW3.
Not Adapted to It.
The JL Audio 10TW3-D4 has one of the most precisely engineered shallow-mount motor structures in the industry. That precision only pays off inside an enclosure engineered to match it. The Proline X Micro Series enclosure for the 10TW3 delivers an exact 0.50 cubic foot sealed environment — the volume JL Audio specifies for optimal acoustic damping — in a 5.25" total depth that fits where conventional builds cannot.
Why the Enclosure Matters as Much as the Driver
The JL Audio 10TW3-D4 has a free-air resonance of 32.3 Hz, a Qts of 0.62, and a Vas of 19.82 liters. Those numbers tell you exactly what this driver needs from its enclosure: a sealed box in the 0.50 cubic foot range produces a system Qtc near 0.88 — a slightly elevated damping curve that gives the 10TW3 the extension and transient control it was designed to deliver in compact sealed installs.
Generic "universal" thin-box enclosures are built to an approximate size and sold across multiple driver models. Internal volume tolerances are loose, joints are glued without mechanical locking, and the panel mass is rarely sufficient to stay acoustically inert at high excursion levels. This enclosure is built to a defined spec for one driver. Internal volume is held to within 0.01 cubic foot. Every panel joint is CNC-cut for a mechanical dado fit before adhesive is applied. The result is a box that behaves the way the modeling says it should — consistently, from unit to unit.
Stack Fab Construction — Why Depth Is Not the Enemy

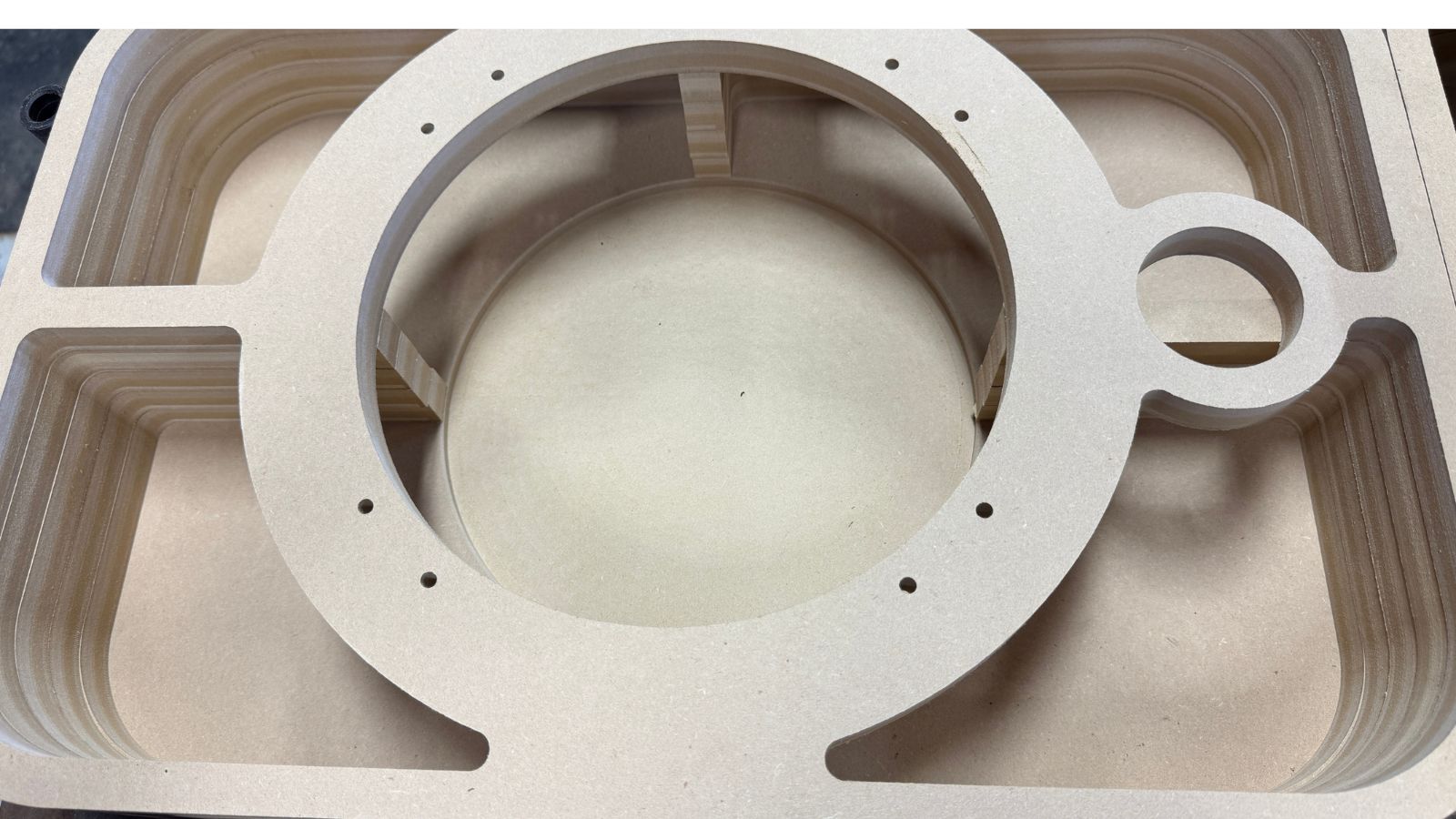

Thin enclosures have a structural problem that standard-depth boxes don't: less panel depth means less rigidity, which means more panel resonance. The Proline X Micro Series addresses this directly through stack-fab layering — CNC-cut MDF panels are layered and bonded in overlapping orientations so that no glue joint runs the full depth of any critical wall. The result is a high-mass, mechanically locked enclosure that resists flex at the panel level, not just at the corners.
Every interior dimension is machined to maintain 0.50 cubic feet of net internal volume after accounting for driver displacement, terminal hardware, and polyfill. Polyfill is pre-installed from the factory — it increases the effective acoustic volume by slowing the speed of sound inside the enclosure, which extends low-frequency performance without adding external size.
Spec-Matched to JL Audio's Published Data
JL Audio publishes an optimum sealed volume of 0.50 cubic feet for the 10TW3. This enclosure delivers exactly that — not approximately, not "up to." Internal volume is machined to tolerance so the driver's Qtc lands where the T/S parameters predict it.
5.25" Total — Driver Clears with Margin
The 10TW3 requires 3.25" of mounting depth. The Micro Series provides 4.5" of usable internal depth — enough for full driver clearance including the rear magnet structure, with no contact risk at full excursion.
Dado Joinery — No Joint Relies on Glue Alone
Every panel-to-panel connection uses CNC-cut interlocking dado slots. The mechanical fit holds the joint in alignment under load. Adhesive seals the joint permanently. Neither alone is sufficient — both together create a connection that will not loosen, shift, or leak under sustained high-excursion use.
Gold-Plated Terminal Cup — Pre-Wired from the Factory
The enclosure ships with a gold-plated spring-loaded terminal cup already installed and pre-wired internally with 12-gauge oxygen-free copper run directly to the driver mounting location. Connect your amplifier run to the terminal cup, mount the driver to the threaded inserts, and you are done. No internal wiring work required.
Factory-Installed Polyfill
Polyfill is packed and installed at the factory. It acoustically increases the effective volume of the enclosure, extending the 10TW3's low-frequency output without changing the external footprint. This is not a cosmetic addition — it is an acoustic tuning step built into the manufacturing process.
9.625" Cutout — Matches JL Audio Tab-Ear Spec
The 10TW3 uses a tab-ear mounting system with a 9.625" cutout diameter — this enclosure is machined to that exact spec. The mounting hole is not a generic 10" cutout trimmed down. The baffle is cut for this driver specifically.
Threaded Inserts — Machine Screw Mounting, Not Wood Screws
The back side of the baffle is fitted with 8/32 threaded inserts. The 10TW3 mounts with machine screws threading into steel inserts — not wood screws biting into MDF. Machine screw mounting does not strip out under repeated removal, maintains consistent clamping force across all mounting points, and holds the driver flush against the baffle gasket without over-torquing any single corner.
Ready to Mount. Ready to Wire.
The Micro Series enclosure ships fully prepped for installation. The gold-plated spring-loaded terminal cup is installed and pre-wired to the driver location with 12-gauge OFC — connect your amplifier run and you are done on the wiring side. The baffle is fitted with 8/32 threaded inserts on the back face — the 10TW3 mounts with machine screws into steel inserts, not wood screws into MDF. No risk of stripped mounting holes on a future driver swap.
A Note on Impedance Options
The JL Audio 10TW3 is available in two impedance configurations: the 10TW3-D4 (dual 4-ohm voice coils) and the 10TW3-D8 (dual 8-ohm voice coils). This enclosure fits both — cutout diameter, mounting depth, and internal volume are identical across D4 and D8 builds.
With a D4: wire parallel for a 2-ohm load or series for an 8-ohm load. With a D8: wire parallel for a 4-ohm load or series for a 16-ohm load. Most amplifier pairings use the D4 wired to 2 ohms. Confirm your amplifier's stable impedance before selecting the driver variant.
Where It Fits
At 21.5" × 14.5" × 5.25", this enclosure fits in spaces that rule out virtually every conventional sealed build. Common install locations:
- Under-seat — extended cab and crew cab trucks
- Trunk corners — compact and mid-size sedans
- Side cargo panels — SUVs and crossovers
- Behind-seat — full-size truck cabs
- Hatch floor — sports cars and hatchbacks
- Under-bed storage — utility and work vehicles
All Proline X Micro Series enclosures are covered by a two-year manufacturer's warranty against defects in materials and workmanship. Enclosures are built in our Tennessee facility and inspected before shipment. Contact Audio Intensity directly for warranty support.
Made in Tennessee
Every Proline X Micro Series enclosure is CNC-cut and hand-assembled in Tullahoma, Tennessee. Panels are cut on ShopSabre CNC routers to maintain dimensional tolerances that manual fabrication cannot achieve consistently. Internal volume, dado joint depth, cutout diameter, and terminal cup placement are all held to spec on every unit — not just on the sample used to generate the product listing. Langboard Elite MDF is used across the full Micro Series build — a named, mill-documented board with published density specifications, not a generic "premium MDF" claim.
| Internal Volume (Net) | 0.50 Cubic Feet |
| Material | 3/4" Premium High-Density MDF |
| Construction | CNC-Cut / Interlocking Dado Joints |
| External Width | 21.5 Inches |
| External Height | 14.5 Inches |
| External Depth | 5.25 Inches |
| Mounting Hole Diameter | 9.625 Inches |
| Max Mounting Depth | 4.5 Inches |
| Terminal Type | Gold-Plated Spring Loaded Cup |
| Finish | Plush Black Automotive Carpet |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Micro Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used across the full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with stack-fab layering and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Micro Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
