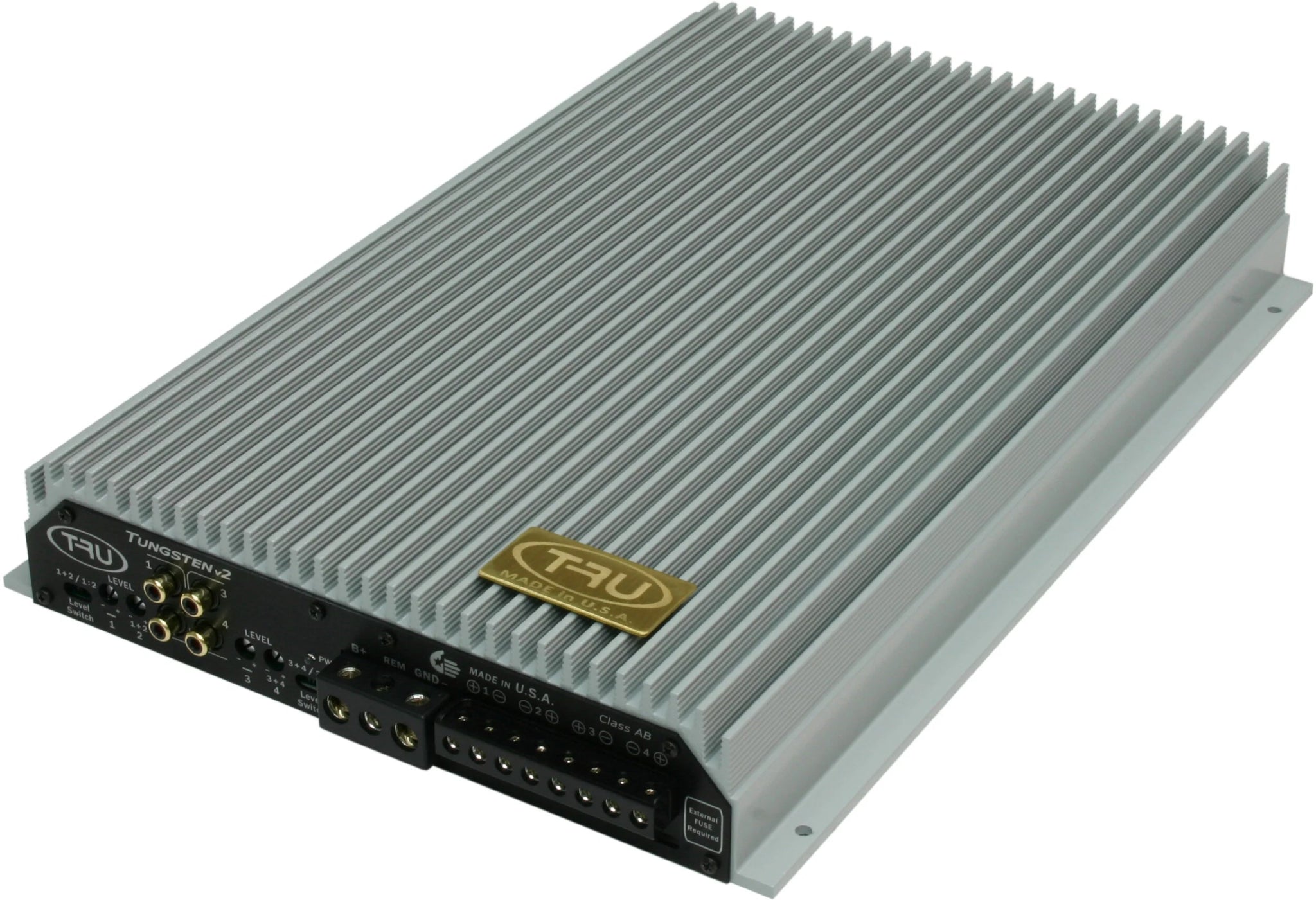

Tru Technologies Tungsten Grande Class AB 4 Channel Amplifier

Premium 4-Channel Class AB Amplifier - Old School Looks with Old School Slam

Tru Technologies Tungsten Grande Class AB 4 Channel Amplifier - Tru Technology Amplifier for car audio systems
Tru Technologies Tungsten Grande Class AB 4 Channel Amplifier - Tru Technology Amplifier for car audio systems

📦 Free Shipping, Fast Delivery

Every order includes:

  • ✅ Free lifetime tech support
  • ✅ 30-day price-drop protection
  • ✅ 30-day returns

Brand: Tru Technology

Availability: ✅ In Stock

Regular price $ 2,199.99
Sale price $ 2,199.99 Regular price
Unit price
Save $ 0.00
Share Compare Get help

Ask a Question

* Required fields

Size guide
Tru Technologies Tungsten Grande Class AB 4 Channel Amplifier - Tru Technology Amplifier for car audio systems

Tru Technologies Tungsten Grande Class AB 4 Channel Amplifier

Regular price $ 2,199.99
Sale price $ 2,199.99 Regular price
Unit price
Overview

The Pinnacle of American Car Audio Engineering

New for 2025, the Tru Technology Tungsten Grande TG-RS4 HV v2.5 represents the ultimate evolution of the renowned Tungsten series, delivering uncompromising sound quality in a meticulously crafted 4-channel Class AB amplifier. Individually hand-built in La Crescenta, California, this amplifier embodies the perfect marriage of old school aesthetics with cutting-edge audio engineering, offering enthusiasts the legendary "slam" that has made Tru Technology a revered name among audiophiles worldwide.

Engineering Excellence Without Compromise

Built upon the foundation of Tru Technology's acclaimed BILLET and STEEL series heritage, the TG-RS4 HV v2.5 incorporates years of research and development to achieve a perfect balance of power, refinement, and cost-effectiveness. The amplifier features a calculated sequence of SMD and through-hole components, optimized for maximum performance while maintaining the company's unwavering commitment to sound quality. Every connection is strategically positioned along one side of the amplifier for ultra-clean installations and effortless adjustments.

Precision Craftsmanship and Thermal Management

The TG-RS4 HV v2.5 showcases a thermally optimized multi-piece heatsink design that combines sleek classic lines with superior heat dissipation. Constructed from locally sourced extruded aluminum—not overseas die-cast materials—each heatsink undergoes black anodization and precision CNC machining for an impeccable fit and finish. The 4-layer circuit board design enhances signal paths to deliver immense detail with incredible dynamics, while the Class AB topology ensures no thermal rollback, maintaining consistent power delivery even under demanding conditions.

The Tungsten Grande Advantage

As the "big brother" of the standard Tungsten amplifier, the Grande series delivers enhanced power, greater dynamics, and a higher level of refinement that satisfies the most discerning audiophiles. With its compact design philosophy, the TG-RS4 HV v2.5 excels in challenging installation scenarios without sacrificing the meticulous sound quality and reliability that define Tru Technology's reputation. This amplifier creates a new standard for both novice and experienced enthusiasts, offering world-class fidelity, amazing sonic transparency, and dynamic power that transforms any audio system into an extraordinary listening experience.

Specifications
Specifications Icon

Specifications

Power & Performance

  • Model:TG-RS4 HV v2.5 (Class AB)
  • Channels:4 Channels
  • Rated Power (14.4V): 4Ω Stereo RMS: 4 × 160W
  • Total Harmonic Distortion:< 0.025% @ Rated Power
  • Signal-to-Noise Ratio:> 100dB (A-weighted)

Audio Characteristics

  • Frequency Response:10Hz ~ 30kHz (±0.5dB)
  • Input Sensitivity:300mV ~ 8.5V (adjustable)
  • Input Impedance:10kΩ
  • Damping Factor:> 200 @ 1kHz
  • Channel Separation:> 70dB @ 1kHz

Electrical & Protection

  • Power Supply Voltage:10-16V DC
  • Operating Voltage:14.4V optimal
  • Current Draw:Idle: < 2A, Full Power: ~60A @ 14.4V
  • Fuse Rating:80A (recommended)
  • Protection: Short circuit, thermal, DC offset, overvoltage

Physical Specifications

  • Dimensions (L×W×H):14.5" × 8.5" × 2.2" (approx.)
  • Weight:12 lbs (5.4 kg)
  • Heatsink: Black anodized aluminum, CNC machined
  • Circuit Board:4-layer PCB design
  • Mounting:4-point mounting system
  • Finish: Diamond head impact printer engraved badges

Features
Features Icon

Features:

Made in USA Excellence

Hand-crafted in La Crescenta, California, using locally sourced materials and precision manufacturing processes that ensure uncompromising quality and reliability.

No Thermal Rollback

Classic Class AB design maintains consistent power output without thermal limiting, delivering uncompromised performance even during extended high-power operation.

4-Layer PCB Design

Advanced circuit board layout optimizes signal paths and reduces interference, enabling immense detail retrieval with incredible dynamics and pristine sound reproduction.

Low ESR Capacitors

Premium low ESR capacitor bank provides exceptional power storage and delivery, ensuring stable operation and enhanced bass response during demanding musical passages.

Installation Friendly

All connections are positioned along one side for ultra-clean installations with easy access for adjustments. Compact design fits challenging installation spaces without compromise.

Grande Series Heritage

Enhanced version of the celebrated Tungsten series, offering increased power, greater dynamics, and refined performance that satisfies the most discerning audiophiles.

Owners Manual Reviews
Related Video

Product Demo Video

Frequently Asked Questions

What makes the TG-RS4 HV v2.5 different from the standard Tungsten series?

How does the "no thermal rollback" feature benefit performance?

What installation considerations are important for the TG-RS4 HV?

What type of speakers work best with this amplifier?

How does Tru Technology ensure consistent quality in manufacturing?

How does the 4-layer PCB design improve audio quality?

What makes Tru Technology amplifiers suitable for sound quality competitions?
