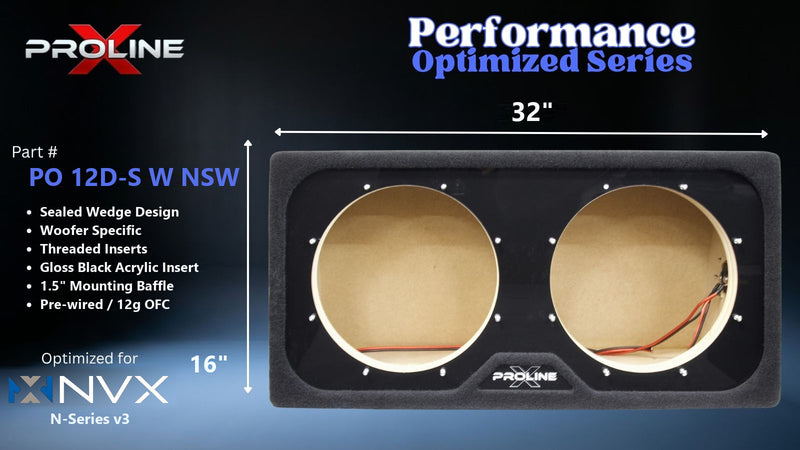

Proline X PO 12D-S W NSW sealed wedge, front baffle with gloss black insert and pre-wired leads, 32 by 16 inches.

Proline X

Performance Optimized Wedge Sealed Dual 12" Enclosure | NVX NSW12v3

Q: Does this fit the NVX NSW12v3, and will any other 12 inch fit?

The NSW12v3, yes, in either coil (NSW122v3 or NSW124v3). The baffle is cut to 10.86 in, NVX's published cutout, under the 12.46 in frame. The 6.00 inch motor clears the cabinet with 7.77 inch to spare. One cabinet serves both coils: the NSW122v3 (D2) reads Qtc 0.659 with half power at 50.4 Hz, and the NSW124v3 (D4) reads Qtc 0.755 at 46.8 Hz. Run two of the same coil so the chambers match.Any other 12, no. The airspace is worked out from the NSW12v3's own Qts and Vas, and a different woofer that happened to drop into the hole would not see the alignment printed on this page.

Q: Why 1.63 cubic feet per chamber, and what alignment does it target?

1.63 cubic feet is split between the coils' Butterworth volumes (1.22 for the D2, 2.25 for the D4) on the D2 figures (Fs 34.7 Hz, Qts 0.49, Vas 37.7 liters): Qtc 0.659, half power at 50.4 Hz. One cabinet serves both coils: the NSW122v3 (D2) reads Qtc 0.659 with half power at 50.4 Hz, and the NSW124v3 (D4) reads Qtc 0.755 at 46.8 Hz.NVX's manual and product pages are the only published source for this driver, so treat the Qtc as good to a few hundredths.

Q: What amplifier power should I run, and how should I wire it?

NVX rates the NSW12v3 at 500 watts RMS per driver, so target 350 to 500 watts RMS per driver at the final load.A pair of NSW122v3 (D2) drivers can land on 0.5 ohm with all four coils in parallel, 2 ohms as series pairs in parallel, or 8 ohms all in series. A pair of NSW124v3 (D4) drivers can land on 1 ohm with all four coils in parallel, 4 ohms as series pairs in parallel, or 16 ohms all in series. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. Confirm your amplifier's minimum stable impedance first.

Q: Why the wedge angle, and why rear-firing into the trunk?

The seat-side face carries a 20 degree rake that matches the lean of a factory rear seat back, so the cabinet sits flush against it and the cargo space in front stays usable. The baffle is the vertical trunk-lid-side face, so the drivers fire rearward into the trunk cavity.The trunk acts as an acoustic extension for the sealed box, and the cabin adds real output below 50 Hz, so in-vehicle response runs deeper than the anechoic 50.4 Hz on this page.

Q: Why two separate chambers instead of one shared volume?

Two drivers sharing one sealed volume load each other: each driver's compression stroke becomes the pressure the other works against, which blurs the alignment either would have alone. A bonded full-height 3/4 inch divider gives each driver its own 1.63 cubic feet and its own polyfill.It also means a failure in one driver does not unload the other, and the alignment on this page is the alignment in each chamber, not an average across a shared box.

Q: What is the expected low-frequency extension?

Anechoic F3 is 50.4 Hz per chamber on the D2, with system resonance at 46.7 Hz. Below Qtc 0.707 the rolloff is gentle and F3 sits above fc, which is what a damped sealed box does.Those figures exclude cabin gain. In a car the cabin's transfer function adds real output below 50 Hz, so in-vehicle response runs deeper than the numbers above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed in both chambers as a light wall lining to control internal reflections, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box with fill makes it behave as though it were larger, which walks the alignment away from the 1.63 cubic feet per chamber this cabinet was built to.

Q: Is the driver included, and are the threaded inserts installed?

No driver. This is an enclosure only. You receive the cabinet finished in plush black carpet with the gloss black acrylic baffle insert, one side-mounted pre-wired terminal cup to both positions, the polyfill lining already in place, and threaded inserts pressed on NVX's published 11.73 inch bolt circle with stainless machine screws.The pair of NVX NSW12v3 is purchased separately, and the cabinet is cut direct fit to it, not a general purpose 12 inch box.

SKU: PO 12D-S W NSW BB

QUICK SPECS

Best For: Dual NVX NSW12v3 Trunk-Fit Builds
Net Volume: 1.63 cu ft per chamber (3.51 cu ft Gross Total)
Driver Match: Pair of NVX NSW12v3 (NSW122v3 D2 or NSW124v3 D4), matched
Construction: Dual Chamber | Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | 1 Shared Terminal Cup | Threaded Inserts

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 399.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Wedge Sealed Dual 12" Enclosure | NVX NSW12v3

More enclosures cut for NVX subwoofers: NVX Subwoofer Boxes

Enclosure Type Sealed

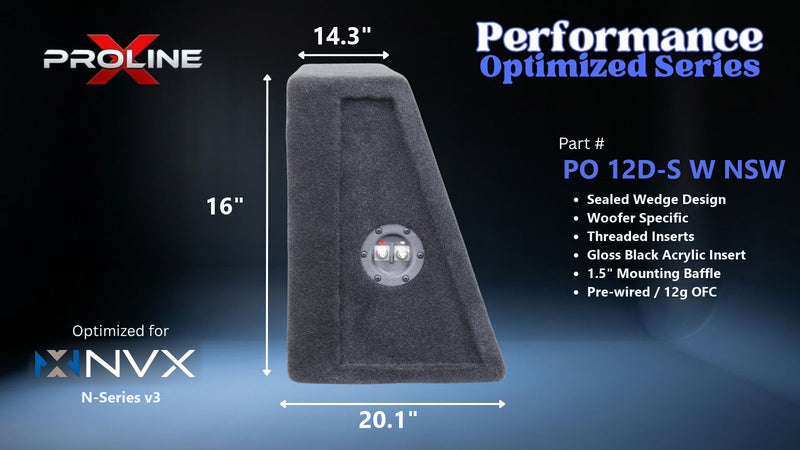

External Dimensions 32.00" W x 16" H x 20.09" D at base tapering to 14.26" D at top

Gross Volume 3.51 cu ft

Net Volume 3.26 cu ft

Shipping Weight 66 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

1.63 cubic feet per chamber, Qtc 0.659 on the D2. One cabinet serves both coils: the NSW122v3 (D2) reads Qtc 0.659 with half power at 50.4 Hz, and the NSW124v3 (D4) reads Qtc 0.755 at 46.8 Hz.

Two chambers at 1.63 each, 32.00 wide, 16 tall, 20.09 at the base. Wire the pair identically.

Cut is 10.86, NVX's own figure, and the inserts are already pressed on their 11.73 bolt circle. It is sealed, so leave the polyfill as it is and run it at 500 watts or under.

Product Details

Performance Optimized Wedge | Dual NVX NSW12v3

Dual 12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design

1.63 ft3 Net per Chamber3.51 ft3 GrossQtc 0.66Two Separate Chambers32.00" x 16" x 14.26/20.09"Built in Tennessee

A Pair of NVX NSW12v3 in a Sealed Wedge

The NSW12v3 is NVX's 12 inch: 500 watts RMS, 12.5 mm of excursion on 511 square centimeters of cone, and 6.00 inches of mounting depth. Every figure comes from NVX's owner's manual and product pages for the NSW122v3 and NSW124v3, including the 0.080 cubic foot driver displacement and the bolt circle, so nothing here is estimated.

1.63 cubic feet net per chamber is split between the coils' Butterworth volumes (1.22 for the D2, 2.25 for the D4) on the D2 figures, Fs 34.7 Hz, Qts 0.49 and Vas 37.7 liters: Qtc 0.659, half power at 50.4 Hz. One cabinet serves both coils: the NSW122v3 (D2) reads Qtc 0.659 with half power at 50.4 Hz, and the NSW124v3 (D4) reads Qtc 0.755 at 46.8 Hz.

Two Fully Separate Chambers

A bonded full-height 3/4 inch MDF divider splits the cabinet into two sealed chambers of 1.63 cubic feet net each, so every driver sees exactly the airspace printed on this page. Two drivers sharing one volume load each other; the divider removes that, and each chamber carries its own polyfill.

The cabinet is 32.00 inches wide, 16 tall, 14.26 inches deep at the top and 20.09 at the base. One shared side-mounted terminal cup feeds both driver positions.

Trunk-Load Wedge Design Explained

The drivers mount on the vertical trunk-lid-side face and fire rearward into the trunk cavity.

Seat-Side Face Matches Seat Lean

Angled face matches the roughly 20 degree factory seat lean.

Trunk-Lid-Side Face Fires the Woofer

Vertical baffle, cone firing rearward into the trunk cavity.

Trunk Cavity Loading

The trunk acts as an acoustic extension for a smoother presentation.

Preserves Trunk Cargo Space

The wedge tucks against the seat back and the space in front stays usable.

Engineered for a pair of NVX NSW12v3

Half power lands at 50.4 Hz anechoic on the D2, before any cabin gain. NVX publishes a driver displacement of 0.080 cubic feet, and it is taken out of the net figure.

Alignment Numbers (Per Chamber)

Driver (per chamber)	System Qtc	fc	F3
NSW122v3 dual 2 ohm	Qtc 0.659	46.7 Hz	50.4 Hz
NSW124v3 dual 4 ohm	Qtc 0.755	49.8 Hz	46.8 Hz

Mounting Geometry

The baffle is cut to 10.86 in, NVX's published cutout, under the 12.46 in frame. The rear panel rakes 20 degrees, so the cavity deepens from 14.26 in at the top to 20.09 in at the base, and the 6.00 in motor clears it with 7.77 in to spare. NVX publishes the 11.73 in bolt circle for the NSW12v3, so the threaded inserts are pressed at the shop and the stainless machine screws are in the box: set the driver in the recess and bolt it down.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every panel intersection, sides and divider seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

NVX's Published Parameters

NSW122v3 (D2): Fs 34.67 Hz, Qts 0.489, Qes 0.534, Qms 5.79, Vas 37.70 L, Sd 511 cm2. NSW124v3 (D4): Fs 36.92 Hz, Qts 0.560, Qes 0.620, Qms 5.75, Vas 37.83 L, Sd 511 cm2.

Wiring a pair of NVX NSW12v3 to Your Amplifier

A pair of NSW122v3 (D2) drivers can land on 0.5 ohm with all four coils in parallel, 2 ohms as series pairs in parallel, or 8 ohms all in series. A pair of NSW124v3 (D4) drivers can land on 1 ohm with all four coils in parallel, 4 ohms as series pairs in parallel, or 16 ohms all in series. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. Confirm the final load against your amplifier's minimum stable impedance before powering the system.

Power handling is 500 watts RMS per driver, 1000 across the pair. Aim for roughly 350 to 500 watts per driver at the impedance you wire.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, one shared pre-wired terminal cup, 12 gauge OFC to both driver positions. Polyfill wall lining installed. Threaded inserts pressed on NVX's published bolt circle, stainless machine screws in the box. 1 year limited warranty. Enclosure only, the drivers are purchased separately. Call or text 931-563-5151.

Dual NVX NSW12v3: Cut for the Driver

1.63 cubic feet net per chamber at Qtc 0.659, F3 50.4 Hz on the D2, cut direct fit and built to order in Tennessee.

Specifications

Specification	Value
Series	Proline X Performance Optimized Wedge
Compatible Driver	NVX NSW12v3 (NSW122v3 D2 or NSW124v3 D4), quantity 2. Direct fit
Configuration	Dual 12 inch, two separate chambers, sealed wedge
Mounting Position	Trunk or cargo area, tall face against the rear seat back
Firing Direction	Rearward into the trunk. Not a down fire design, no feet included
External Width	32.00 in
External Height	16 in at the seat face
External Depth	20.09 in at the base, tapering to 14.26 in at the top
Internal Volume, Gross	3.51 cu ft total
Internal Volume, Net Acoustic	1.63 cu ft per chamber after the divider and the 0.080 cu ft displacement NVX publishes per driver
Driver Mounting Depth	6.00 in required; 7.77 in clearance above the motor against the raked rear panel
Alignment, D2 per chamber	Qtc 0.659, fc 46.7 Hz, F3 50.4 Hz anechoic
Alignment, D4 per chamber	Qtc 0.755, fc 49.8 Hz, F3 46.8 Hz anechoic
Woofer Opening	10.86 in, two, NVX's published cutout
Frame Outer Diameter	12.46 in, NVX published
Bolt Circle	11.73 in, NVX published; threaded inserts pre-installed
Driver Displacement	0.080 cu ft, NVX published
NSW122v3 (D2) Fs / Qts / Qes / Qms / Vas	34.67 Hz / 0.489 / 0.534 / 5.79 / 37.70 L
NSW124v3 (D4) Fs / Qts / Qes / Qms / Vas	36.92 Hz / 0.560 / 0.620 / 5.75 / 37.83 L
Driver Sd	511 cm2, published by NVX
Xmax	12.5 mm, NVX spec; the manual does not state one-way or peak to peak
Driver Power Handling	500 W RMS per driver, NVX spec
Wiring Options	A pair of NSW122v3 (D2) drivers can land on 0.5 ohm with all four coils in parallel, 2 ohms as series pairs in parallel, or 8 ohms all in series. A pair of NSW124v3 (D4) drivers can land on 1 ohm with all four coils in parallel, 4 ohms as series pairs in parallel, or 16 ohms all in series. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default.
Parameter Source	NVX NSW122v3 / NSW124v3 owner's manual and nvx.com product pages
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Full-height 3/4 in divider
Driver Mounting	Threaded inserts pre-installed on the published bolt circle, stainless machine screws included
Terminal Cups	One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC to both driver positions
Acrylic Insert	Gloss black acrylic baffle insert standard; None variant minus $20
Damping	Light polyfill wall lining in both chambers, does not alter acoustic volume
Carpet	Plush black
Shipping Weight	66 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.63

cu ft per chamber

System Qtc

0.66–0.76

sealed

Half power

46.8–50.4

Hz · F3

Xmax at

323

W RMS · no filter

With 25 Hz subsonic

438

W RMS · +36%

Amplifier

500

W RMS recommended

This enclosure holds 1.63 cu ft net per chamber. In it the NVX NSW12v3 runs a system Qtc of 0.66–0.76 with half power at 46.8–50.4 Hz, and the cone reaches its 12.5 mm travel limit at 323 W, below the driver’s 500 W thermal rating, so travel is what stops you here, not heat. Run a subsonic filter at 25 Hz and that becomes 438 W — +115 W, or 36 percent more power for the same 12.5 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 59.5–64.9

dual 2 ohm · EBP 64.9dual 4 ohm · EBP 59.5

At 59.5–64.9 the NSW12v3 sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

1.63 cu ft against a 37.7 L Vas.

α = Vas ÷ Vb = 0.82 · Fc = Fs√(α+1) = 47–50 Hz · Qtc = 0.66–0.76

dual 2 ohm · Qtc 0.66, Fc 47 Hz, F3 50.4 Hzdual 4 ohm · Qtc 0.76, Fc 50 Hz, F3 46.8 Hz

The box lifts resonance from 34.7–36.9 Hz free-air to 47–50 Hz and half power lands at 46.8–50.4 Hz, anechoic, before any cabin gain. Figures are NVX’s published NSW12v3 parameters from its owner’s manual and product pages, displacement included (0.080 cubic feet). One cabinet serves both coils; both are plotted. Each chamber holds 1.63 cubic feet, so these figures are per driver.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 12.5 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 323–361 W unfiltered → 438–459 W with a 25 Hz subsonic

dual 2 ohm · 323 W, no filterdual 4 ohm · 361 W, no filterdual 2 ohm · 459 W with subsonic at 25 Hz, 24 dB/octdual 4 ohm · 438 W with subsonic at 25 Hz, 24 dB/octXmax 12.5 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 12.5 mm. Unfiltered that is 323 W, reached first at 20 Hz. It sits under the 500 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 438 W before hitting the same 12.5 mm. That is 36 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	34.67 / 36.92	Hz	free-air resonance
Qts	0.489 / 0.560		dual 2 ohm / dual 4 ohm
Vas	37.70 / 37.83	L	equivalent compliance
Sd	510.6	cm²	effective piston area
Xmax	12.5	mm	one-way linear travel
Pe	500	W	continuous RMS
SPL	86.5	dB	1 W / 1 m, derived from T/S

Driver parameters as published by NVX NSW12v3 owner’s manual. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
