Performance Optimized Wedge Sealed 12" Enclosure | NVX VCW12v3
SKU: PO 12-S W VCW
- Best For: NVX VCW12v3 Trunk-Fit Daily Driver Builds
- Net Volume: 0.85 cu ft (1.00 cu ft Gross)
- Driver Match: NVX VCW12v3 (VCW122v3 D2 or VCW124v3 D4)
- Construction: Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Inserts
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 12" Enclosure | NVX VCW12v3
Performance Optimized Wedge | NVX VCW12v3
12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the NVX VCW122v3 and VCW124v3
The NVX VCW12v3 in a Purpose-Built Sealed Wedge
The VC-Series v3 is NVX's high-excursion 12: a carbon-fiber-enhanced non-pressed paper cone on a high-roll foam surround, dual progressive-roll spiders with integrated flat-braided leads, and a 3" four-layer high-temperature aluminum voice coil rated 1200 watts RMS. Motor is a 202 oz triple-stacked Y35 ferrite over a one-piece T-yoke with integrated gap venting and a high-velocity pole vent, hung in a die-cast aluminum vented basket. Xmax is 23 mm one-way across 82.15 square inches of cone area, and the driver is CTA-2031 compliant.
1.00 cu ft gross internal volume produces 0.85 cu ft net after the driver's 0.15 cu ft displacement. That is exactly the sealed volume NVX specifies for this driver. The wedge geometry mounts the woofer on the vertical trunk-lid-side face, firing rearward into the trunk cavity for optimum cabin loading.
Trunk-Load Wedge Design Explained
This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box, the side that faces the front of the vehicle, and tucks against the rear seat back.
Seat-Side Face Matches Seat Lean

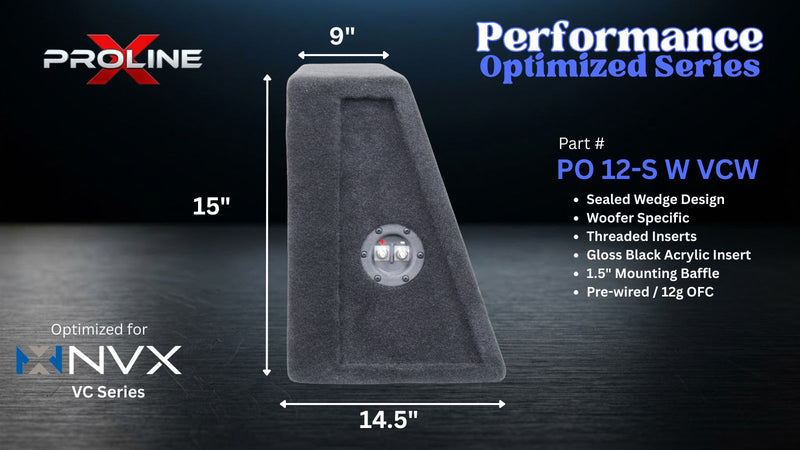

Most factory rear seat backs lean roughly 20 degrees back from vertical. This cabinet runs 9" deep at the top and 14.5" at the bottom over 15" of height, a 20.1 degree rake that matches that lean and tucks against the seat back with no wasted gap.
Trunk-Lid-Side Face Fires the Woofer
The vertical face on the opposite side is where the VCW12v3 mounts. The cone fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber. Classic SQ trunk-load install pattern.
Trunk Cavity Loading
Firing the woofer into the trunk cavity uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries, a smoother, less localized presentation than direct-firing setups.
Preserves Trunk Cargo Space
The wedge tucks against the seat back where cargo can't be stored anyway. The bottom face sits flat and stable on the trunk floor. Cargo space in front stays usable for daily driving.
Engineered for the NVX VCW12v3
NVX publishes 0.85 cubic feet as the recommended sealed volume for this driver, and this cabinet lands there net, not gross. Run against the published Thiele-Small set, 0.85 net puts system Q at 0.67 with a system resonance of 41.8 Hz: near-Butterworth, flat through the passband, no bump at Fc. Going larger walks Q down toward 0.6 and trades midbass authority for a slightly deeper roll-off that a 23 mm Xmax driver does not need help with. Going smaller pushes Fc up and starts stiffening the transient response. 0.85 net is the right answer for this motor, which is why it is the number NVX prints.
Alignment Numbers
Target System Qtc: 0.67 · Fc: 41.8 Hz · F3: 44.4 Hz anechoic. In a sealed trunk-load install, cabin gain typically adds usable output an octave below the anechoic F3.
Mounting Geometry

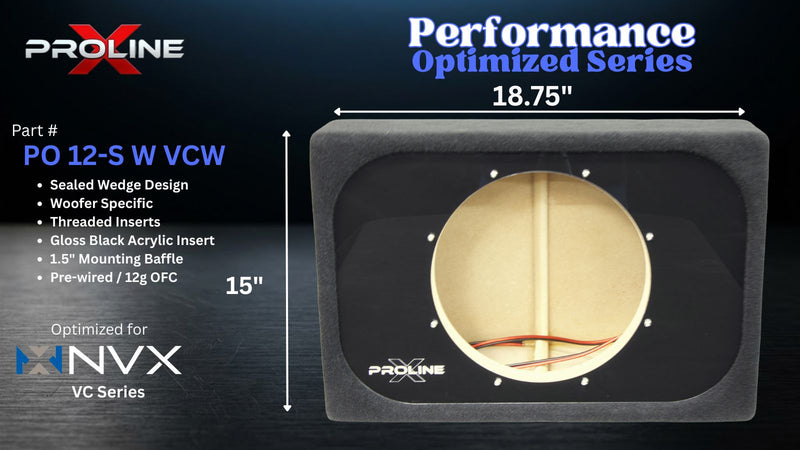

The vertical trunk-lid-side baffle is CNC-cut to 11.25". NVX lists 11.18" on the v3 spec sheet and 11.26" on the product listing; 11.25" clears both and still leaves flange coverage against the driver's 11.63" mounting diameter. Mounting depth required is 7.02", with clearance behind the motor at the cutout centerline for the driver's vented backplate and cooling airflow. 8/32 threaded inserts are pressed into the baffle backside for secure driver retention.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec, denser and more dimensionally stable than commodity MDF. Less panel resonance, tighter joints, longer service life under daily use.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and angled seat-side panel into the side walls.
Double-Layer 1.5" Front Baffle
Two bonded 3/4" MDF sheets at the driver mounting face. A 1200 watt RMS driver at 23 mm of one-way excursion puts real mechanical load into the baffle. 1.5" eliminates flex and gives the motor a rigid, isolated mounting platform.
Side-Mounted Pre-Wired Terminal Cup
Proline X ABS/carbon-fiber composite terminal cup, side mounted per PO Series standard, with 12 gauge OFC pre-wired to the driver position. 3D-printed in-house on Bambu Lab H2S printers. 8/32 threaded inserts installed for secure driver retention.
Customize Your Build
Carpet Finish
Standard finish is charcoal gray trunk liner. Optional plush black carpet finish adds $10 for a slightly more premium look. Both finishes are OEM-quality automotive carpet.
Acrylic Insert Color
Choose from Black, Blue, Red, White, or opt out entirely (-$40). The acrylic insert is a decorative panel on the front of the terminal cup.
Box-Only or Loaded
This listing is box-only, bring your own VCW122v3 or VCW124v3. Contact us for loaded-system pricing.
Wiring the NVX VCW12v3 to Your Amplifier
Both coil versions drop into this baffle. The VCW124v3 (dual 4 ohm) is the easier single-sub match: wire the coils in parallel for a 2 ohm load, which is where most modern monoblocks make rated power. The VCW122v3 (dual 2 ohm) parallels to a 1 ohm load, and plenty of amps are not stable there, so run that version in series for 4 ohms unless your amplifier is specifically rated 1 ohm stable.
Target 850 to 1200 watts RMS at your final wired impedance. The driver is rated 1200 watts RMS continuous with a 2400 watt peak, so a clean 1000 watt monoblock with the gain set by oscilloscope or DD-1 will run this cabinet all day without approaching mechanical limits in 0.85 cubic feet.
Built in Tennessee, Backed by Audio Intensity
Manufactured in Tullahoma, Tennessee on our ShopSabre CNC equipment. Every enclosure is CNC-cut, hand-assembled, glued and clamped, wrapped in carpet, and quality-checked by the same small team. We install this gear ourselves, so the fit and the alignment are the ones we would run in our own vehicles. 1-year limited warranty on the enclosure. Questions on fitment or amplifier matching, call or text 931-563-5151.
NVX VCW12v3: Near-Butterworth in a Trunk-Load Wedge
0.85 cubic feet net, the exact sealed volume NVX specifies, in a 20.1 degree wedge that fires the driver rearward into the trunk cavity. Flat through the passband, no bump at Fc, and it tucks against the seat back where you weren't storing anything anyway.
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.85 cu ft against a 42.9 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 23.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 25.05 | Hz | free-air resonance |
| Qts | 0.400 | D2 / D4 | |
| Vas | 42.90 | L | equivalent compliance |
| Sd | 530.0 | cm² | effective piston area |
| Xmax | 23 | mm | one-way linear travel |
| Pe | 1200 | W | continuous RMS |
| SPL | 83.8 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by the NVX VC-Series v3 owner’s manual and nvx.com product pages. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
