Proline X
Performance Optimized Down Fire Sealed Dual 10" Enclosure | Kicker Solo-Baric L7T
SKU: PO 10D-S DF L7T
- Alignment: 0.60 cu ft net per chamber, Qtc 0.745, Fc 53.9 Hz, F3 51.3 Hz per driver
- Square cutouts: Two 9 5/16 in openings machined to Kicker's own CNC template
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Drivers: Pair of Kicker Solo-Baric L7T 10, 500W RMS each / 1000W combined, 865 cm² total cone area
- Cabinet: 30"W x 15"D x 8.6875"H in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed Dual 10" Enclosure | Kicker Solo-Baric L7T
Proline X Performance Optimized Down Fire Dual 10" Sealed
Cut and tuned for a pair of Kicker Solo-Baric L7T 10
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutouts and the cabinet height all come from the Kicker L7T 10's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Two Square Holes, Cut For Two Square Cones
The Solo-Baric L7T is a square subwoofer, and both baffle positions on this cabinet are machined with a 9 5/16 inch square cutout to match. Not round holes that square drivers sit over. The corners are cut to Kicker's own published CNC template.
The square format is the entire point of the Solo-Baric line. A square cone fits 20 percent more radiating area into the same nominal diameter than a round one. Each L7T 10 measures 432.64 cm² of piston area against roughly 340 to 350 for a typical round 10, so across the pair this cabinet moves 865 cm² of cone. That is more radiating area than two round 11 inch drivers.
Kicker gets there with SoloKon injection-molded polypropylene cones with 360 degree back bracing as a single solid unit, high-roll Santoprene surrounds with patented ribbed corners so the square perimeter can move without binding, and the cone stitched to the surround. UniPlate solid pole pieces and backplates handle heat, and a bumped top plate makes room for 14.2mm of excursion in a 3 3/4 inch mounting depth.
Two Chambers, Not One
This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers divided by a bonded full-height 3/4 inch MDF panel.
Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full divider eliminates that entirely. Each L7T 10 gets its own 0.60 cubic feet net and its own polyfill, which is the same volume the single driver cabinet provides.
That means both products land on the same alignment. Qtc 0.745 per chamber here against 0.746 on the single, with an identical 51.3 Hz F3. The dual gives you roughly 6 dB more maximum output and double the power handling, with no change in character.
Net Volume, Not Gross
Each chamber is 0.60 cubic feet net, 1.20 total, from 1.35 gross. Kicker publishes a sealed range of 0.4 minimum to 1.0 maximum for the L7T 10, so each chamber sits near the middle of their own window.
Going bigger buys nothing with this driver. At 0.60 net per chamber the L7T 10 produces an F3 of 51.3 Hz. At 0.80 net it produces 51.3 Hz. The corner frequency drops but the rolloff shape changes to compensate, so extension is flat across the usable range. Chambers were sized to the alignment rather than inflated to look generous on a spec sheet.
One note on honesty: Kicker does not publish a driver displacement figure for the L7T anywhere in their spec sheet, T/S data or dimension drawings. The 0.07 cubic feet per driver used in the net calculation is our own estimate from the square cutout and mounting depth. If Kicker publishes a figure later we will update this page.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

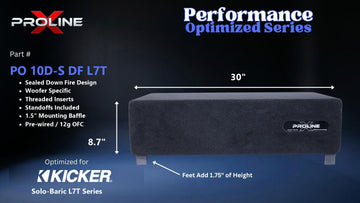

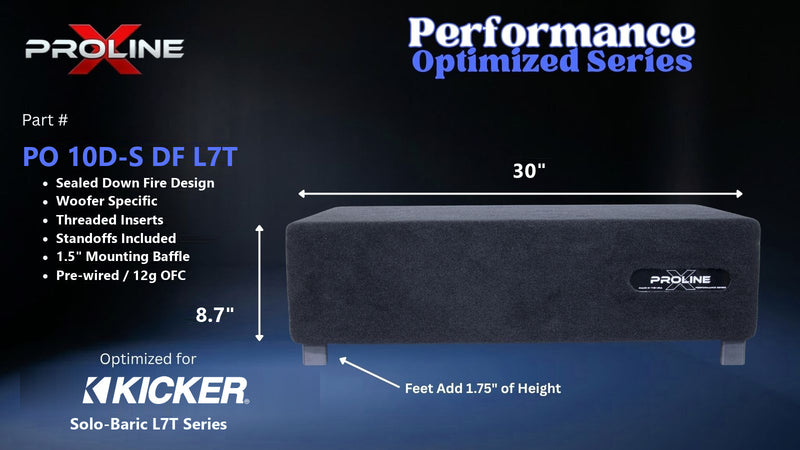

The cabinet measures 30 inches wide by 15 inches deep by 8.6875 inches tall, measured in the down fire position. Feet ship with the enclosure but are not installed, so plan the space around where you intend to mount them.
Square Baffle Cutouts
Two 9 5/16 inch square openings machined to Kicker's published CNC template, with the corner radii the L7T basket expects. A round cutout would leave the corners of the cone unsupported.
Double Baffle, Flush Recess
Front baffles are 1.5 inches at both driver positions, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so each driver bolts to the inner layer.
Separate Chambers
A bonded full-height 3/4 inch divider gives each driver its own 0.60 cubic feet and its own polyfill, so neither driver works against the other.

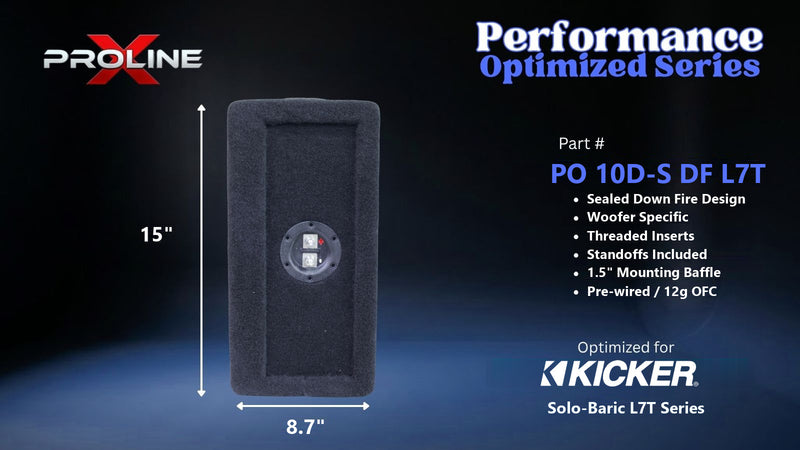

One Shared Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC to both driver positions in parallel.
What 51 Hz Means In A Vehicle
The L7T 10 has a free-air resonance of 30.35 Hz, and a sealed enclosure always raises the system corner above the driver's own Fs. At 0.60 net per chamber that lands the anechoic F3 at 51.3 Hz, which reads high next to a shallow 12 on a spec sheet.
That comparison is fair on a bench and misleading in a car. This cabinet fires down into the floor, so the sealed rolloff meets rising cabin gain below 60 Hz and in-car response extends well below the anechoic number. The L7T was designed to live under a seat at 3 3/4 inches of depth, and across a pair the 865 square centimetres of square cone and 14.2mm of excursion each do the work that a bigger box would otherwise have to.
Power and Wiring
Kicker rates the L7T 10 at 500 watts RMS recommended amplifier power each, 1000 watts RMS combined across the pair, with 1000 watts peak per driver under ANSI/CTA-2031-A. Sensitivity is 85.98 dB by Kicker's published figure; their own Klippel measurement reports 85.645 dB characteristic SPL, so treat mid 85 as the working number.
One side mounted terminal cup serves both chambers, pre-wired in 12 gauge OFC to both driver positions in parallel, so you do not run the chambers separately to the amplifier. Final impedance is set at the drivers. Available in Dual 2-Ohm (46L7T102) and Dual 4-Ohm (46L7T104), and you should use two of the same model wired identically, since mismatched wiring between chambers splits power unevenly. Confirm the resulting load against your amplifier's minimum stable impedance before powering the system.
The alignment figures on this page are calculated from the Dual 2-Ohm parameter set. Bring your own pair of L7T 10 subwoofers. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
Two square cutouts, two separate chambers, one shared cup, built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Kicker Solo-Baric L7T 10, 46L7T102 or 46L7T104, pair required. Direct fit, no other driver |
| Enclosure Type | Sealed, dual driver, down fire, floor coupled |
| Firing Direction | Down firing, both drivers fire toward the floor |
| Chamber Configuration | Two fully separate chambers, full divider, single shared side-mounted terminal cup |
| External Width | 30 in |
| External Depth | 15 in |
| External Height | 8.6875 in |
| Dimension Reference | All external dimensions measured in down fire position |
| Total Internal Volume, Gross | 1.35 cu ft |
| Per-Chamber Net Volume | 0.60 cu ft after displacement |
| Total Net Volume | 1.20 cu ft |
| Kicker Published Sealed Range | 0.4 minimum to 1.0 maximum, per driver |
| Target Qtc Per Chamber | 0.745 |
| Predicted Fc Per Driver | 53.9 Hz |
| Predicted F3 Per Driver | 51.3 Hz anechoic |
| Comparison, Single L7T Cabinet | 0.60 cu ft net, Qtc 0.746, F3 51.3 Hz, 5.375 in tall |
| Driver Fs | 30.35 Hz (Kicker Klippel data) |
| Driver Qts | 0.4195 (Kicker Klippel data) |
| Driver Qes / Qms | 0.4455 / 7.304 |
| Driver Vas | 36.73 L / 1.297 cu ft each |
| Driver Sd | 432.64 cm² each, 865 cm² total, square cone |
| Driver Xmax | 14.2mm |
| Driver Mms | 199.17 g |
| Driver BL | 17.32 Tm |
| Driver Re | 3.515 ohm |
| Driver Displacement | 0.07 cu ft each, Proline X estimate. Kicker does not publish this figure |
| Driver Sensitivity | 85.98 dB Kicker published, 85.645 dB Klippel measured |
| Power Handling | 500 W RMS each, 1000 W RMS combined, 1000 W peak per driver |
| Driver Frequency Response | 25 to 100 Hz, Kicker spec |
| Voice Coil Configuration | Dual voice coil per driver, 2-ohm or 4-ohm, impedance set at the drivers |
| Driver Cone | SoloKon injection-molded polypropylene, 360 degree back bracing |
| Driver Surround | High-roll Santoprene with patented ribbed corners, cone stitched to surround |
| Driver Motor | UniPlate solid pole piece and backplate, bumped top plate |
| Mounting Depth | 3 3/4 in, Kicker spec |
| Woofer Opening | 9 5/16 in SQUARE, both positions, cut to Kicker's published CNC template |
| Standoffs | None required. Feet ship uninstalled |
| Material | Langboard Elite MDF |
| Construction | CNC cut, dado and V groove joinery, perimeter cross brace |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle at both positions, outer layer flush recess |
| Chamber Divider | 3/4 in MDF full bonded panel |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included, 2 sets |
| Terminal Cup | Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC to both driver positions in parallel |
| Damping | Polyfill pre-installed per chamber |
| Carpet | Plush Black |
| Weight | 40 lb |
| Bundle Options | Enclosure only, bring your own pair of Kicker L7T 10 |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
