Goldhorn P5 DSP Ultra: Precision Audio in Every Detail
The Goldhorn P5 DSP Ultra is a high-resolution, 16-channel audio processor designed to deliver unmatched precision in sound quality. Its advanced features cater to audiophiles seeking complete control and high-definition sound in every configuration.
Audiophile-Grade Sound

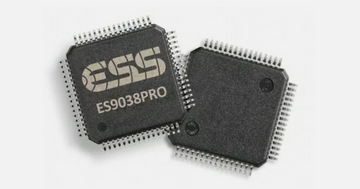

Engineered with dual ES9038Pro DACs, the Goldhorn P5 DSP Ultra delivers unparalleled clarity and dynamic range. These flagship-grade DACs ensure every audio detail is accurately reproduced, allowing listeners to experience every nuance in their music. The DSP's clock system further reduces jitter, ensuring clear sound. This combination sets a new benchmark for audio fidelity, transforming any listening environment into a professional-grade experience.
Seamless Connectivity and Hi-Res Playback
The P5 DSP Ultra integrates advanced connectivity options, including a USB DAC that supports up to 192 kHz/32-bit for direct use with phones and tablets. It also offers WiFi for connection to iOS and Android apps, allowing full music control from your mobile devices. The device supports various high-resolution audio formats, such as DFF, DSF, WAV, FLAC, APE, AIFF, and SACD ISO, ensuring seamless playback of any high-fidelity source. These capabilities provide unmatched flexibility and compatibility, making the P5 DSP Ultra suitable for a wide range of high-resolution systems.
Advanced Control Features
The Goldhorn P5 DSP Ultra has both a panel and a wireless remote, offering effortless control options. With precise 0.005ms delay steps, users can fine-tune time alignment to achieve perfect synchronization between all channels. Its 16-input and 16-output design allows broad integration into any audio setup, supporting complex configurations. The powerful ADI triple-core processor ensures rapid calculations for real-time adjustments, enabling the P5 DSP Ultra to provide a flawless audio experience tailored precisely to user preferences.
Flexible Storage Options
The P5 DSP Ultra offers substantial storage capabilities for extensive audio libraries. With support for SSD storage up to 512GB and HDD up to 3TB, users can easily store a large collection of high-resolution audio files. This flexibility means you can enjoy your favorite tracks without needing additional external storage devices. The integrated storage makes the P5 DSP Ultra a convenient all-in-one solution for maintaining and accessing high-quality audio content.
Comprehensive Format Support
The Goldhorn P5 DSP Ultra is designed to handle a wide range of audio formats, including high-resolution files like DFF, DSF, WAV, FLAC, APE, AIFF, DSD 256, and SACD ISO. It also supports additional formats, such as MP3 and AAC, for broader compatibility. This extensive format support ensures that the P5 DSP Ultra will deliver optimal playback no matter the source. By supporting these diverse formats, the DSP ensures users enjoy their music collection in the highest possible quality without complex format conversions or compatibility concerns.
Specification | Details |
---|---|
Model | P5 DSP Ultra |
DSP Chip | ADAU1463 x 3PCS |
DAC Chip | 2 x ESS9038Pro w/ 7 DAC Filter Settings |
ADC Chip | 2 x AK5558VN |
Opamp | Proprietary |
Capacitors | High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps |
Music Formats | HiRes: DFF / DSF / DSD Up to 256 Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF Compressed: MP3 / AAC / OGG / WMA |
Music Inputs | USB Host x 3 1 x USB-DAC (to 192/32bit) Opt. and Coax (to 192/24bit BT 5.0 aptX HD/AAC/SBC |
Control Inputs | BT Wireless Remote Wi-Fi Mobile App Wired IPS Panel Controller included |
PC Connection | USB B |
Processing Functions | Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative, EQ Linking - Relative or Absolute, Crossover Linking - With EQ link on, Freq Link button will link crossovers |
Delay | 0 ~ 20ms / 0.005ms Steps |
Output EQ | EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass |
Crossover | Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB |
XO Phase Rotation | Variable Phase shift at HP and LP filters from 0° ~ 359° |
Inputs | 16 x Hi / 2 x RCA/Opt./Coax/USB-DAC |
Input EQ | EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps |
Frequency Resp | 10Hz ~ 80kHz |
Operating Voltage | 11v-16v |
Input Sens (V) RCA | 4v |
Input Sens (V) Hi | 20v |
RCA Out Voltage | 16 x 6V |
RCA Out Specs | THD+Noise 0.00018 S/N >125 |
Amp Outputs | THD+Noise <0.03 S/N >100dB | N/A |
Dimensions (mm) | 303 x 231 x 50 |
Start-Stop ready | Yes |
EPS (Intelligent High-Level Input-Error Protection System) | Yes |
Finish | Black Anodized Aluminum |
Auto Turn On via DC Offset or Signal Sensing | Yes |
Remote Turn on Output | Yes |
Clipping LED’s | No |
Built in Bluetooth | aptX HD |
Built In Wifi | Yes |
THD+Noise RCA | 0.00018% |
S/N ratio RCA | >125dB |
THD+Noise Amplifier | N/A |
S/N ratio Amplifier | N/A |
Fuse Rating | 10A |
Input impedance | 6 Ohm High Level |
Controller | BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control |
Input Mixer | Yes |
Presets | 8 |
Software Interface | PC 32bit Windows 7 and up |
All Pass filters at input and output EQs | Both 1st Order and 2nd Order |
Navigation Mode w/ Input Priority | Yes |
Automatic Mode Switching Mixer | Yes |
Password Available | Yes |
Analog Noise Gate | Yes |
Variable Power Off Delay | Yes |
Seven DAC rolloff choices for ESS 9038 | Yes |
What's in the Box?
- Goldhorn P5 DSP Ultra - 16-Channel Audiophile-Grade Digital Signal Processor
- Goldhorn Panel Controller with Display for DSD Player
- Goldhorn Wireless Remote System
- Goldhorn 3m Tuning Cable - USB
- Goldhorn BT / WiFi Antenna
- Goldhorn Owners Manual
Software can be downloaded from the Goldhorn-USA download page.
