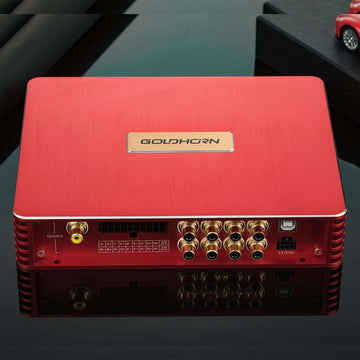

Goldhorn P2 DSPA Pro
16 Channel DSP/DSD Player with 8x80w Amplifier
All-in-One: DSP + Hi-Res DSD Player + 8-Channel Amplifier | Plug & Play Installation
All-in-One Solution
$1,599.99
DSP + DSD Player + 8x80W Amp | Replaces $3,000+ Separate Components
The Ultimate All-in-One Audio Integration Solution
The Goldhorn P2 DSPA Pro revolutionizes car audio integration by combining three essential components in a single, beautifully engineered chassis: a 16-channel digital signal processor, a hi-resolution DSD music player, and a powerful 8-channel Class D amplifier (8x 80W @ 4Ω = 640W total). This isn't just convenience—it's a fundamental reimagining of system architecture that eliminates complexity, reduces installation time, and delivers professional-grade audio performance at a fraction of traditional multi-component costs.
Built around the ADAU1452 DSP processor (Analog Devices' flagship automotive audio chip), the TI PCM1690 24-bit/192kHz DAC, and an efficient Class D amplifier section, the P2 DSPA Pro provides 16 total output channels: 8 amplified speaker outputs (80W each) plus 8 RCA pre-outs (6Vrms) for external amplifier connections. This dual-output architecture enables unprecedented flexibility—drive smaller speakers directly from internal amplification while connecting high-power external amps for subwoofers and premium components.
What truly distinguishes the P2 DSPA Pro is its integrated DSD Hi-Res music player with native DSD256 support—a feature rarely found in car audio, typically reserved for $5,000+ home audiophile equipment. Connect up to three USB drives simultaneously (USB 2.0 Host), and access your entire DSD, WAV, FLAC, APE, AIFF, and MP3/AAC music library with bit-perfect playback. The built-in Bluetooth 5.0 module (aptX-LL/aptX-HD) adds convenience for wireless streaming without compromising system capabilities.
Why P2 DSPA Pro? At $1,599, it costs $400-$600 less than competitors (Helix V EIGHT DSP MK2: $1,600; Audison BitOne.1 HD + external amp: $2,200+) while delivering more DSP channels (16 vs 10-13), integrated DSD playback (competitors lack player modules), and plug-and-play installation via 8 high-level inputs (no wire cutting, no LOC converters). The distinctive red anodized aluminum finish isn't just aesthetically striking—it's functional, providing superior heat dissipation for the integrated Class D amplifier section.
Three Components, One Chassis
🎛️ 16-Channel DSP Processor
ADAU1452 DSP chip (Analog Devices), 31-band parametric EQ per channel, 0.02ms delay precision, Butterworth/Bessel/Linkwitz crossovers (6-48dB/oct), variable phase rotation (0-359°).
🎵 DSD Hi-Res Music Player
Native DSD256/DSD128/DSD64 playback, WAV/FLAC/APE/AIFF/AIF (Hi-Res uncompressed), MP3/AAC/OGG/WMA (compressed), 3x USB 2.0 Host inputs, Bluetooth 5.0 (aptX-LL/aptX-HD).
⚡ 8-Channel Class D Amplifier
8x 80W @ 4Ω (640W Total Power), THD+N <0.02%, S/N >100dB, efficient Class D topology, thermal protection, bridgeable outputs, dedicated power supply for amplifier section.
Technical Specifications
DSP Processing
| DSP Chip: | ADAU1452 (Analog Devices) |
| Processing Channels: | 16 Channels |
| Crossover Range: | 20Hz ~ 20kHz (1dB steps) |
| Crossover Types: | Butterworth, Bessel, Linkwitz |
| Crossover Slopes: | 6-48dB/oct (Butterworth/Bessel) 12-36dB/oct (Linkwitz) |
DAC & ADC Conversion
| DAC Chip: | TI PCM1690 (8-channel) |
| DAC Resolution: | 24-bit / 192kHz |
| ADC Chip: | 2x PCM1840 (Dual) |
| ADC Resolution: | 24-bit / 192kHz |
| Opamp: | NJM4580 & MC33078 |
Integrated Amplifier
| Power Output: | 8x 80W @ 4Ω |
| Total Power: | 640W Maximum |
| Amp THD+N: | <0.02% |
| Amp S/N Ratio: | >100dB |
| Amplifier Class: | Class D (High Efficiency) |
EQ & Time Alignment
| Output EQ: | 31-Band Parametric (±15dB) |
| EQ Adjustment: | 0.1dB steps, Q: 0.5-15 (0.1 steps) |
| Input EQ: | 5-Band (±15dB, 0.1dB steps) |
| Output Delay: | 0 ~ 20ms (0.02ms steps) |
| Input Delay: | 0 ~ 10ms (0.02ms steps) |
DSD Hi-Res Music Player
| DSD Formats: | DFF / DSF (DSD64/128/256) |
| Hi-Res Uncompressed: | WAV, FLAC, APE, AIFF, AIF |
| Compressed: | MP3, AAC, OGG, WMA |
| USB Inputs: | 3x USB 2.0 Host |
| Bluetooth: | BT 5.0 (aptX-LL/aptX-HD) |
Inputs & Outputs
| High-Level Inputs: | 8 Channels (24V max) |
| RCA Inputs: | 2 Channels (4V max) |
| RCA Pre-Outs: | 8x @ 6Vrms |
| Amplified Outputs: | 8x 80W @ 4Ω |
| Total Outputs: | 16 Channels (8 RCA + 8 Amp) |
| RCA THD+N: | <0.003% |
Physical & Power
| Dimensions: | 217 x 170 x 43mm |
| Operating Voltage: | 11V ~ 16V |
| Fuse Rating: | 40A (High Current) |
| Finish: | Red Anodized Aluminum |
| Start-Stop Compatible: | Yes (EPS) |
| Memory Presets: | 8 User Presets |
Competitive Analysis: All-in-One DSP/Amplifier Solutions
The integrated DSP/amplifier market demands efficiency, flexibility, and value. Here's how the Goldhorn P2 DSPA Pro compares to the most respected all-in-one solutions—the Helix V EIGHT DSP MK2 and the Audison BitOne.1 HD Virtuoso + separate amplifier:
💡 Value Analysis
- vs. Helix V EIGHT DSP MK2 (similar price): P2 DSPA Pro delivers 6 more DSP channels (16 vs 10), 40W more total power (640W vs 600W), and integrated DSD Hi-Res player (3x USB inputs + DSD256 support)—features Helix lacks entirely.
- vs. Audison BitOne.1 HD + External Amp (-$600 savings): P2 DSPA Pro costs $600+ less ($1,599 vs $2,200+) while providing integrated amplification (eliminates separate 8-channel amp purchase), DSD music player, and simpler installation (one chassis vs two components).
- Unique P2 DSPA Pro Advantages: The only all-in-one solution under $2,000 combining 16-channel DSP processing, DSD256 native playback, 8x 80W amplification, and 3x USB Host inputs—perfect for audiophiles with extensive hi-res music libraries who want plug-and-play simplicity.
Key Features & Capabilities
🎼 31-Band Parametric EQ
±15dB adjustment in 0.1dB steps per channel, Q range 0.5-15. Peak, High/Low Shelf, 1st/2nd Order All Pass filters for precise frequency shaping across all 16 channels.
🎵 DSD256 Native Playback
Bit-perfect DSD64/128/256 playback (DFF/DSF files)—typically reserved for $5,000+ home audiophile equipment. Connect USB drives with your entire DSD music library.
⚡ 8x 80W Integrated Amplifier
640W total power (Class D, high efficiency). Drive tweeters, midrange, midbass, and rear fill speakers directly—no external amplifiers required for complete 3-way active system.
🔌 Dual Output Flexibility
16 total output channels: 8x RCA pre-outs (6Vrms) for external amps + 8x amplified outputs (80W each)—drive efficient speakers directly while connecting high-power external amps for subs.
🔗 Plug & Play Installation
8 high-level inputs (24V max) connect directly to OEM amplifier outputs—no wire cutting, no LOC converters, no harness adapters. Auto turn-on via DC offset or signal sensing.
📡 3x USB Host Inputs
Connect up to three USB drives simultaneously (USB 2.0 Host). Browse and play entire music libraries from front/rear/trunk USB ports—perfect for extensive DSD collections.
📱 Multiple Control Options
BT Wireless Player Remote (included), Wi-Fi Mobile App (iOS/Android), Optional Wired Panel Controller with IPS Display—choose your preferred control interface.
💾 8 User Presets
Save multiple tuning profiles for different music genres, listening positions, or system configurations—instant recall without re-tuning via PC software or mobile app.
Ideal Use Cases & Applications
🚗 High-End OEM System Upgrades
Target Vehicles: Mercedes-Benz, BMW, Audi, Lexus (factory premium audio systems)
Why P2 DSPA Pro:
- 8 high-level inputs → direct OEM integration (Harman Kardon, Bang & Olufsen)
- Plug-and-play connection → no wire cutting (preserves warranty)
- Integrated amplification → upgrade speakers without adding separate amps
- DSD player module → hi-res audio library playback (USB drives)
🔊 Simplified 3-Way Active Systems
System Architecture: Active 3-way fronts (tweeters, midrange, midbass) + rear fill
Why P2 DSPA Pro:
- 8 amplified channels → 3-way fronts (6ch) + rear fill (2ch), no external amps
- 8 RCA pre-outs → add external subwoofer amplifier(s)
- 16-channel DSP → independent crossover/EQ/delay per driver
- Single chassis → reduces installation complexity and cost
🎹 Audiophile DSD Music Enthusiasts
Target Users: Hi-res music library collectors, DSD format enthusiasts, SACD rippers
Why P2 DSPA Pro:
- DSD256 native playback → bit-perfect DSD/DSF file support
- 3x USB Host inputs → connect multiple USB drives (organize by genre)
- WAV/FLAC/APE/AIFF → full hi-res uncompressed format support
- TI PCM1690 DAC → professional-grade 24-bit/192kHz conversion
💰 Budget-Conscious Integrations
Budget Scenario: Limited funds but desire professional DSP tuning + amplification
Why P2 DSPA Pro:
- $1,599 all-in → DSP + Player + Amp (vs $3,000+ separate components)
- 640W total power → sufficient for most component speaker systems
- 16-channel DSP → more processing channels than $2,200 Audison solution
- Saves $600-$1,400 → reinvest in premium speakers or subwoofers
Professional Installation Guide
📍 Mounting Location
- Under-seat installation: Compact footprint (217 x 170 x 43mm)
- Trunk/cargo area: Ensure adequate ventilation (Class D amp generates heat)
- Avoid direct sunlight: Red anodized finish provides heat dissipation
- Secure mounting: 40A fuse rating indicates high current draw
⚡ Power & Ground Requirements
- Operating voltage: 11V-16V (DC power supply)
- Fuse rating: 40A (8 AWG power wire minimum)
- Ground connection: Direct chassis ground (8 AWG minimum)
- Start-Stop compatible: EPS (Engine Power Save) ready
- Remote turn-on output: Triggers external amplifiers
🔌 Input Connection Strategy
- OEM integration: Use 8 high-level inputs (24V max, no LOC)
- Aftermarket head unit: 2x RCA inputs (4V max)
- USB music library: 3x USB 2.0 Host ports (DSD/FLAC/WAV)
- Bluetooth streaming: Built-in BT 5.0 (aptX-LL/aptX-HD)
- Auto turn-on: DC offset or signal sensing (no remote wire)
🎛️ Tuning & Control
- DSP tuning: Windows PC (32-bit, Win 7+), WiFi included
- Player control: BT Wireless Remote (included)
- Mobile app: iOS/Android WiFi control app
- Optional controller: Wired panel with IPS display screen
- 8 presets: Save multiple tuning profiles
Why Choose the Goldhorn P2 DSPA Pro?
✅ All-in-One Integration
Three components in one chassis: 16-channel DSP + DSD Hi-Res Player + 8x 80W Amplifier—eliminates complexity, reduces installation time, and saves $600-$1,400 vs separate components (Helix DSP + Amp + Player).
🎵 DSD256 Native Playback
Only all-in-one solution under $2,000 with native DSD256 support—typically reserved for $5,000+ home audiophile equipment. Bit-perfect playback via 3x USB Host inputs (connect multiple drives).
🔌 Plug & Play Installation
8 high-level inputs (24V max) connect directly to OEM amplifiers—no wire cutting, no LOC converters, no harness adapters. Auto turn-on via DC offset/signal sensing. Professional results in half the installation time.
💰 Superior Value
At $1,599, delivers more DSP channels (16 vs Helix's 10), integrated DSD player (competitors lack), and 8x 80W amplification—while costing $600+ less than Audison DSP + separate amp.
Simplify Your System with All-in-One Integration
The Goldhorn P2 DSPA Pro delivers professional-grade DSP processing, hi-resolution DSD music playback, and 640 watts of amplification in a single, beautifully engineered chassis—eliminating the complexity and cost of multi-component systems.
$1,599.99
All-in-One Solution | DSD256 Playback | 16 DSP Channels + 8x 80W Amp | Plug & Play
DSD Hi-Res Player: Audiophile-Grade Features
🎵 What is DSD? (Direct Stream Digital)
DSD (Direct Stream Digital) is a high-resolution audio format originally developed by Sony and Philips for Super Audio CD (SACD). Unlike PCM (Pulse Code Modulation) used in CDs and most digital audio, DSD uses 1-bit delta-sigma modulation at extremely high sampling rates—creating a digital representation that more closely resembles the original analog waveform.
DSD Sampling Rates:
- DSD64: 2.8224 MHz (64x CD sampling rate) — equivalent to SACD quality
- DSD128: 5.6448 MHz (128x CD) — double DSD, studio mastering quality
- DSD256: 11.2896 MHz (256x CD) — ultra-high-res, archival quality
Why DSD matters for audiophiles: Many listeners describe DSD as having a more "analog-like" smoothness compared to PCM. The P2 DSPA Pro's native DSD256 support means you can play the highest-quality DSD files without PCM conversion—preserving the format's inherent sonic characteristics.
💾 Triple USB Host: Music Library Management
The P2 DSPA Pro includes three USB 2.0 Host ports—enabling unprecedented flexibility for music library organization and access:
- Front USB port: Easily accessible for temporary files, new music additions
- Rear USB port: Permanent installation for main music library (hide cable routing)
- Trunk/cargo USB port: Large-capacity drive for extensive DSD/FLAC collections
Organizational strategies:
- By genre: USB1 (Rock/Pop), USB2 (Jazz/Classical), USB3 (Electronic/Hip-Hop)
- By format: USB1 (DSD files), USB2 (FLAC/WAV), USB3 (MP3/AAC playlists)
- By mood: USB1 (Energetic driving music), USB2 (Relaxed cruising), USB3 (Audiophile test tracks)
Supported storage: USB flash drives, portable SSDs, USB hard drives (FAT32/exFAT formatted). Maximum tested capacity: 2TB per port (6TB total across three ports).
🎶 Comprehensive Format Support
The P2 DSPA Pro supports virtually every music file format used by audiophiles and casual listeners:
Playback tip: For best sonic results, use DSD files for acoustic/jazz recordings (smoother highs, analog-like presentation) and 24-bit/192kHz FLAC for rock/electronic (precise transients, dynamic punch).
📶 Bluetooth 5.0: aptX-HD Wireless Quality
While USB/DSD playback provides ultimate audio quality, the P2 DSPA Pro's Bluetooth 5.0 module with aptX-HD and aptX Low Latency ensures wireless streaming doesn't compromise system performance:
- aptX-HD: 24-bit/48kHz wireless transmission (576 kbps) — near-lossless quality for streaming services (Tidal HiFi, Qobuz, Apple Music Lossless via iPhone)
- aptX Low Latency: <40ms audio delay — eliminates lip-sync issues when watching videos or using navigation
- AAC/SBC fallback: Ensures compatibility with all Bluetooth devices (iPhone, Android, laptops)
- Bluetooth 5.0: Extended range (~30 meters vs 10m BT 4.2), improved stability in electrically noisy car environments
Practical use: Use Bluetooth for casual listening, podcasts, navigation audio, and switch to USB/DSD playback for critical listening sessions—the P2 DSPA Pro's input mixer allows seamless transitions without manually switching sources.
Real-World System Integration Examples
🚗 Example 1: 2022 Mercedes-Benz E-Class (Burmester Surround System Upgrade)
Owner Goal: Enhance factory Burmester system with DSD music library playback and improved DSP tuning
System Integration:
| Specification | Details |
|---|---|
| Model | P2 DSPA Pro |
| DSP Chip | ADAU1452 |
| DAC Chip | PCM1690 |
| ADC Chip | 2 x PCM1840 |
| Opamp | NJM4580 & MC33078 |
| Capacitors | High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps |
| Music Formats | Hi-Res: DFF / DSF / DSD Up to 256, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3 / AAC / OGG / WMA |
| Music Inputs | USB 2.0 Host x 3, BT 5.0 aptX-LL / aptX-HD |
| Control Inputs | BT Wireless Player Remote, Wi-Fi Mobile App, Optional Wired Panel controller w/IPS Display Screen |
| PC Connection | USB B |
| Processing Functions (See delay below) | Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB, Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Volume Linking (Absolute or Relative), EQ Linking (Relative or Absolute), Crossover Linking (with EQ link on, Freq Link button will link crossovers) |
| Delay | 0 ~ 20ms / 0.02ms steps |
| Output EQ | EQ bands: All Channels 31 @ ± 15dB in 0.1dB steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass / 2nd Order All Pass |
| Crossover | Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB |
| XO Phase Rotation | Variable phase shift at HP and LP filters from 0° ~ 359° |
| Inputs | 8 x Hi / 2 x RCA / BT |
| Input EQ | EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass / 2nd Order All Pass, Input Delay: 0 ~ 10ms in 0.02 steps |
| Frequency Resp | 20Hz ~ 40kHz |
| Operating Voltage | 11V ~ 16V |
| Input Sens (V) RCA | 4V |
| Input Sens (V) Hi | 24V |
| RCA Out Voltage | 8 x 6V |
| RCA Out Specs | THD+Noise < 0.003, S/N Analog input ⧁ 108dB, S/N Digital Input ⧁ 111dB |
| Amp Outputs | 8 x 80W, THD+Noise < 0.02, S/N ⧁ 100dB |
| Dimensions (mm) | 217 x 170 x 43 |
| Start-Stop Ready | Yes |
| EPS (Intelligent High-Level Input-Error Protection System) | Yes |
| Finish | Red Anodized Aluminum |
| Auto Turn On via DC Offset or Signal Sensing | Yes |
| Remote Turn On Output | Yes |
| Clipping LEDs | No |
| Built-in Bluetooth | aptX |
| Built-in Wi-Fi | Yes |
| THD+Noise RCA | 0.003% |
| S/N Ratio RCA | 108dB Analog / 111dB Digital |
| THD+Noise Amplifier | 0.02% |
| S/N Ratio Amplifier | >100dB |
| Fuse Rating | 40A |
| Input Impedance (No adaptor needed) | 6 Ohm High Level |
| Controller | BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control |
| Input Mixer | Yes |
| Presets | 8 |
| Software Interface | PC 32bit Windows 7 and up |
| All Pass Filters (Input & Output EQs) | Both 1st Order and 2nd Order |
| Navigation Mode w/ Input Priority | Yes |
| Automatic Mode Switching Mixer | Yes |
| Password Available | Yes |
| Analog Noise Gate | Yes |
| Variable Power Off Delay | Yes |
| Seven DAC Rolloff Choices for ESS 9038 | No |
What's in the Box?
-
Goldhorn P2 DSPA Pro | 16 Channel DSP/DSD Player with 8x80w Amplifier
-
Goldhorn 3m Tuning Cable - USB
-
Goldhorn BT / WiFi Antenna
-
Goldhorn Owners Manual
-
Goldhorn Video Cable & USB Extension
-
Goldhorn Wireless Remote System
Related Products
Related Videos
Software can be downloaded from the Goldhorn-USA download page.
Goldhorn P2 DSPA Pro | 16 Channel DSP/DSD Player with 8x80w Amplifier
