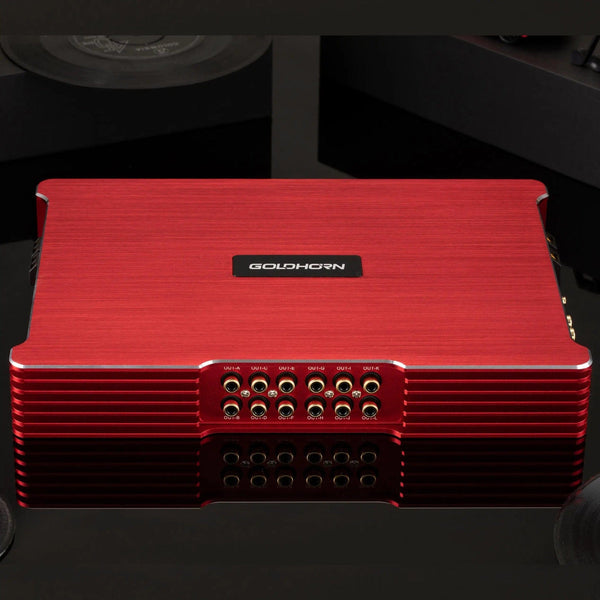

Goldhorn A5 Pro: The Ultimate 8-Channel DSP with DSD Player for High-End Automotive Audio Systems

Elevate Your In-Car Audio Experience

16 channels of DSP processing. 8 amplified channels (80 watts x 8), and 8 6v preamp outputs. that can be used simultaneously.

Introducing the GoldHorn DSD Digital Player A5 Pro — a state-of-the-art, all-in-one digital player meticulously engineered for high-end cars and O.E.M vehicles with complex channel systems. Designed for audio connoisseurs who demand nothing but the best, the A5 Pro offers unparalleled power, precision, and flexibility.

Incredible Connectivity Options

8-Channel High-Level Inputs: Ideal for luxury cars with 4 multiple speakers, achieving a seamless 3-way digital crossover system.
2-Channel Low-Level Inputs: For conventional audio connections.
8-Channel RCA Outputs: Easily connect external amplifiers to enhance your sound experience further.

Performance Beyond Belief

The A5 Pro features an integrated 80W RMS per channel Class D amplifier, renowned for its high energy conversion rate and efficiency across all frequency ranges. Experience a clear, accurate sound reproduction with proper sound imaging and articulate placement.

Cutting-Edge Hardware Architecture

Powered by a 32-bit highly efficient core, the A5 Pro's hardware is optimized for superior automotive audio processing. The dual femtosecond clock generators guarantee an extremely accurate time base for DAC sampling and data reproduction, setting a new industry standard.

Personalized Audio Control

Customize every facet of your audio:

31-Band EQ: Tune your sound to perfection.
Crossover Frequency and Slope: Individually adjustable for each channel.
Phase Inversion and Time Alignment: Optimize sound based on seating positions.
Up to 8 Presets: Save your personalized settings for any scenario.

Unmatched Streaming Capabilities

The A5 Pro comes with Bluetooth 5.0, built on the Qualcomm CSR8675 chip for high-speed, long-range, low-power transmission. Experience sound streaming of the highest quality with active noise cancellation and aptX HD codec support. The device also supports playback via USB/Portable SSD (up to 3T) and smartphone streaming over Bluetooth and Wi-Fi.

Intelligent Control at Your Fingertips

Command your audio settings through a wireless, optional panel remote or a user-friendly app compatible with iOS and Android.

Technical Specifications

High-End Components:

DAC: TI PCM1690 (24bit/192kHz)
CPU: Four ARM Cortex A7 cores
Op Amp: Professional-grade
Capacitors: High-temperature tolerance up to 105°C

Supported Music Formats:

Hi-res: DFF/DSF
Uncompressed: WAV/FLAC/APE/AIF
Compressed: MP3/AAC/OGG/WMA/MV

Amplifier:

8 x 80W/4 Max. integrated Class D amplifier

DSP:

295 MHz ADI chip with 1.2 billion MAC operations per second

Connectivity:

Inputs: 8 x High-Level, 2 x Low-Level
Outputs: 8 x High-Level, 8 x RCA Low-Level
Video: 1 x CVBS (NTSC)

Wireless:

Wi-Fi: 802.11 b/g/n
Bluetooth: 5.0, Profile A2DP/AVRCP, Codec support for aptX/aptX-LL/aptX-HD/AAC/SBC

USB Terminals:

USB2.0 HOST x 3
Type B USB x 1
MINI USB x 1

Dimensions:

217mm x 170mm x 43mm

Don't compromise on your in-car audio. Choose the Goldhorn A5 Pro for an unparalleled, customizable sound experience that makes every journey unforgettable.
