Key Takeaways
- Class A is the sound-quality benchmark because the output stage never switches off, so there is no crossover distortion.
- It is rare in car audio because it runs at roughly 20 to 30 percent efficiency and makes a lot of heat.
- The Audio Wave CR-30X is the Class A car amp we carry: 50 watts pure Class A into 8 ohms, up to 160 watts Class A/B into 2 ohms, at 0.1 percent THD.
- It cools passively with machined copper rods and needs no fan, and every unit is hand-assembled.
- Class A is a specialist front-stage choice. For subwoofers or loud daily systems, Class D or Class A/B is the right tool.
Class A is the amplifier class audiophiles chase because its output stage conducts the full waveform at all times, which removes the crossover distortion that other classes introduce. It is also the rarest class in car audio, because that same design runs hot and inefficient. This is what Class A actually buys you in a vehicle, who it is for, and the Class A car amp we carry.
This page is about picking a Class A amplifier for a car. If you want the full circuit-level theory of how the class works, read our complete guide to Class A car amplifiers. For how the classes stack up against each other, see Class AB vs Class D. Once you have an amp, the install guide and gain guide take it from there.
What makes an amplifier Class A?
A Class A amplifier keeps its output devices conducting through the entire audio waveform, all the time, whether the music is loud or near silent. Because the output stage never switches off and never hands the signal between devices, it avoids crossover distortion, the small glitch that occurs in other classes right at the point where the waveform crosses zero. That is the whole appeal: the most linear output stage of any class.
The cost of keeping the output stage fully on is heat and wasted power. That tradeoff is the reason Class A is treated as a specialist tool rather than a default. For the deeper circuit explanation, the Class A guide covers the topology in full.
Why is Class A rare in car audio?
Because a vehicle is the worst place to put a hot, inefficient amplifier. A Class A stage running at 20 to 30 percent efficiency dumps the majority of the power it draws as heat, in a cabin that is already power-limited and temperature-constrained. Class D subwoofer amps sit above 90 percent efficiency and Class A/B lands in the middle, so for loud systems and subs those classes win on every practical measure.
That is why a true Class A car amp has to engineer specifically around the heat, and why so few exist. It is also why the ones that do exist are built for a narrow job: a revealing front stage where the listener cares more about linearity than about volume or efficiency.

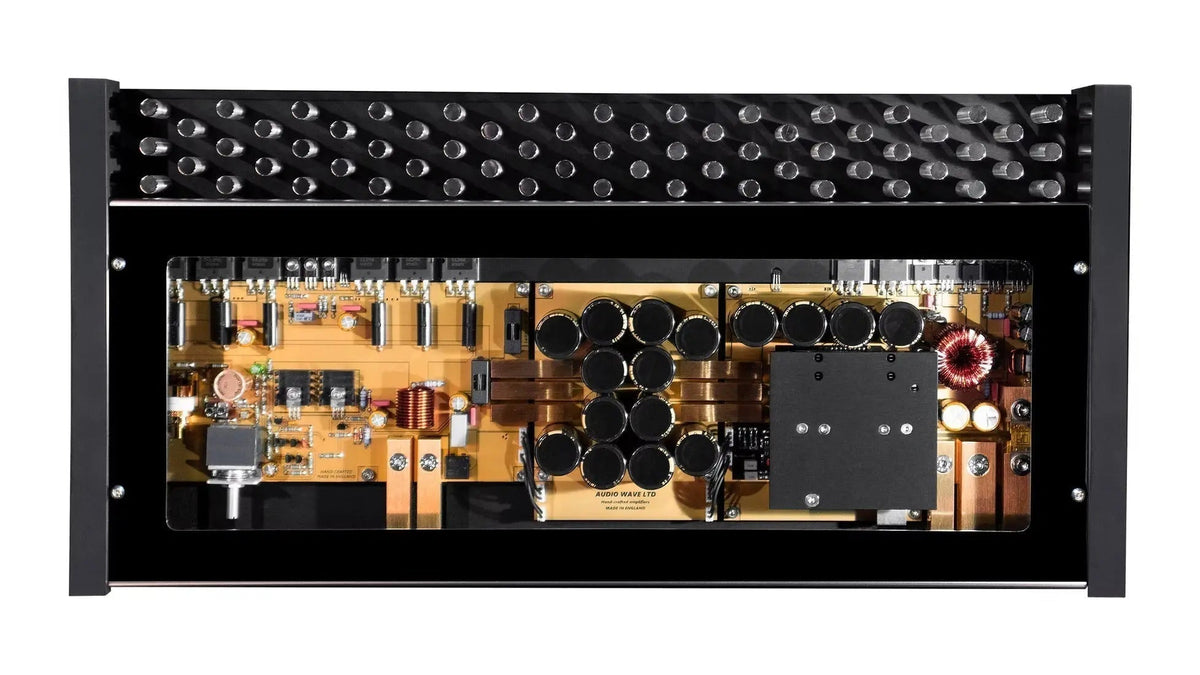

The best Class A car amplifier: Audio Wave CR-30X
The Class A amplifier we carry is the Audio Wave CR-30X, a hand-built monoblock designed around the exact heat problem described above. It runs pure Class A up to its rated Class A wattage, then slides into Class A/B for headroom above that, so you get the Class A output stage where it matters without the amp cooking itself trying to make big power in Class A.
Instead of fans, it moves heat out with custom-machined copper rods, which is a passive solution suited to a car where a fan just pulls in dust. Every unit is hand-assembled with hand-matched components, and as a monoblock it dedicates the whole amplifier to a single channel, so a stereo front stage uses a pair.
| Spec | Audio Wave CR-30X |
|---|---|
| Power @ 8 Ξ© | 50 W, pure Class A |
| Power @ 4 Ξ© | 30 W Class A / 100 W Class A/B |
| Power @ 2 Ξ© | 15 W Class A / 160 W Class A/B |
| THD | 0.1% (rated continuous @ 14.4 V) |
| Frequency response | 20 Hz to 20 kHz (Β±0.3 dB); 9.5 Hz to 120 kHz (Β±3 dB) |
| Signal-to-noise | >118 dB direct, >105 dB op-amp |
| Input sensitivity | 0.1 to 1.8 V direct, 0.3 to 8 V op-amp |
| Cooling | Machined copper rods, no fan |
| Dimensions | 22.0 x 10.6 x 2.8 in (558 x 270 x 72 mm) |
| Weight | 27 lb (12.3 kg) |
| Build | Hand-assembled, hand-matched, monoblock |
This is a five-figure, no-compromise flagship, not a budget amp, and it is priced accordingly. Check the product page for current pricing and availability, or contact us if you want to talk through whether it fits your build.
Who should actually buy a Class A car amp?
Buy Class A if you are building a sound-quality front stage and you value linearity over loudness. SQ competitors, audiophiles running efficient component sets, and listeners who sit and listen critically are the audience. The pure Class A wattage is modest by design, so it pairs with sensitive speakers, not with a system built to be as loud as possible.
Do not buy Class A for a subwoofer, for an SPL build, or for a loud daily driver where the amp lives buried in a trunk. Those jobs want the efficiency and cool operation of Class D, or the balance of Class A/B. Matching the amplifier class to the job is the entire point, and Class A has one job it does better than anything else.
Class A vs Class A/B vs Class D
The three classes you will actually encounter in car audio trade sound-stage purity against efficiency and heat. Class A is the most linear and the least efficient. Class D is the most efficient and runs coolest. Class A/B sits between them and is the most common choice for full-range amplification.
| Class | Typical efficiency | Heat | Best car-audio job |
|---|---|---|---|
| Class A | ~20 to 30% | High | Critical SQ front stage, linearity first |
| Class A/B | ~50 to 65% | Moderate | Full-range and component speakers |
| Class D | >90% | Low | Subwoofers and high-power systems |
Efficiency figures are general class characteristics, in line with the ranges published by Crutchfield and other install references. A full head-to-head on the two most common classes is in our Class AB vs Class D breakdown.
Frequently Asked Questions
What is the best Class A amplifier for car audio?
Is a Class A amplifier worth it in a car?
Why is Class A so rare in car audio?
How much power does the Audio Wave CR-30X make?
Does Class A really sound better?
How do you keep a Class A car amp cool?
Is Class A the same as Class A/B?
Where to go next
If Class A is the direction, look at the Audio Wave CR-30X and read the full Class A car amplifier guide for the theory. If you are weighing classes for a sub or a full-range build, the Class AB vs Class D breakdown is the practical comparison, and the guides library has the install and tuning walkthroughs.
Not sure a Class A amp fits your speakers, your power system, or your goals? Contact us. We compete in SQ and build these systems ourselves, so we will tell you honestly whether Class A is the right call for your car.
