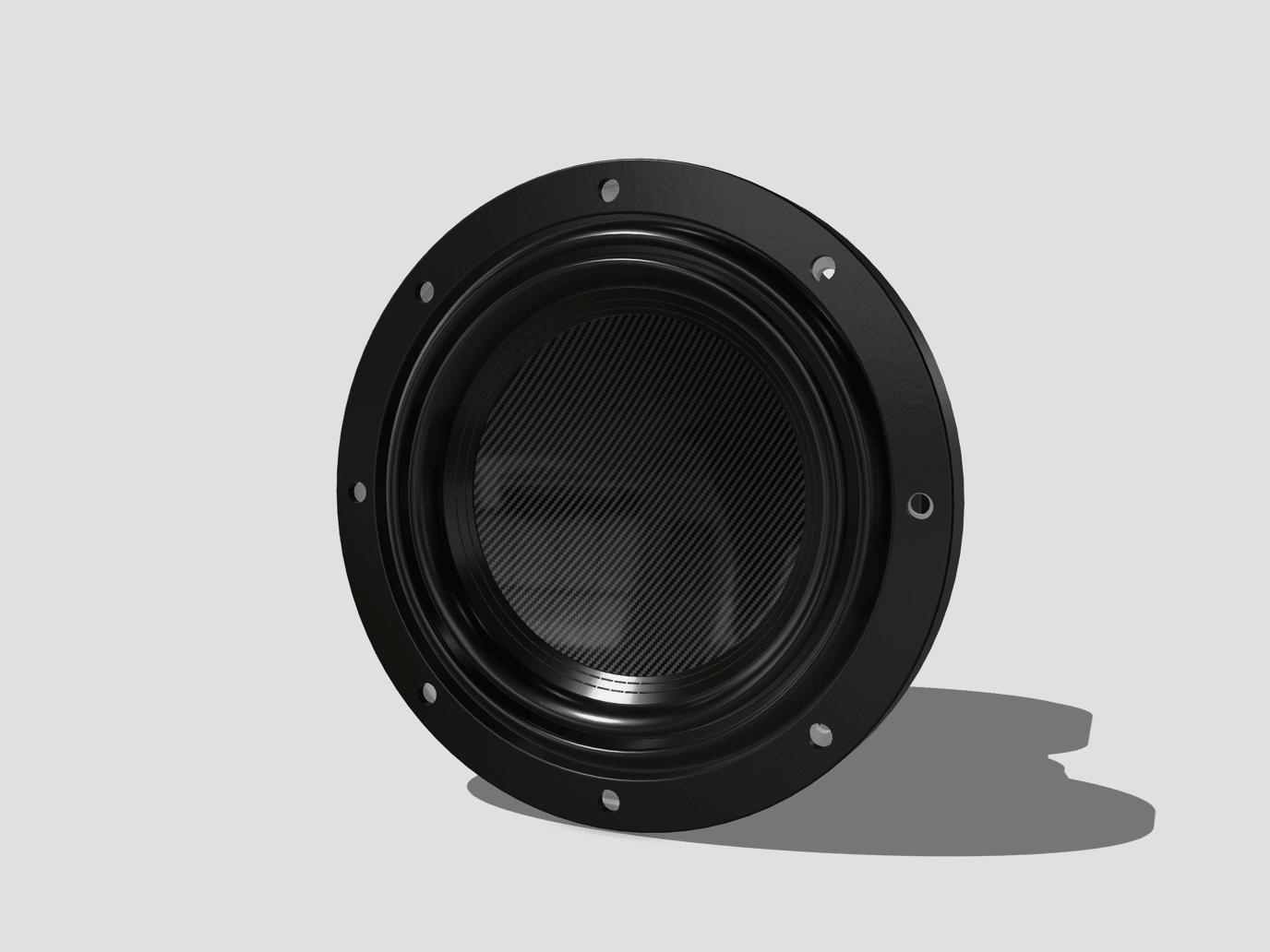

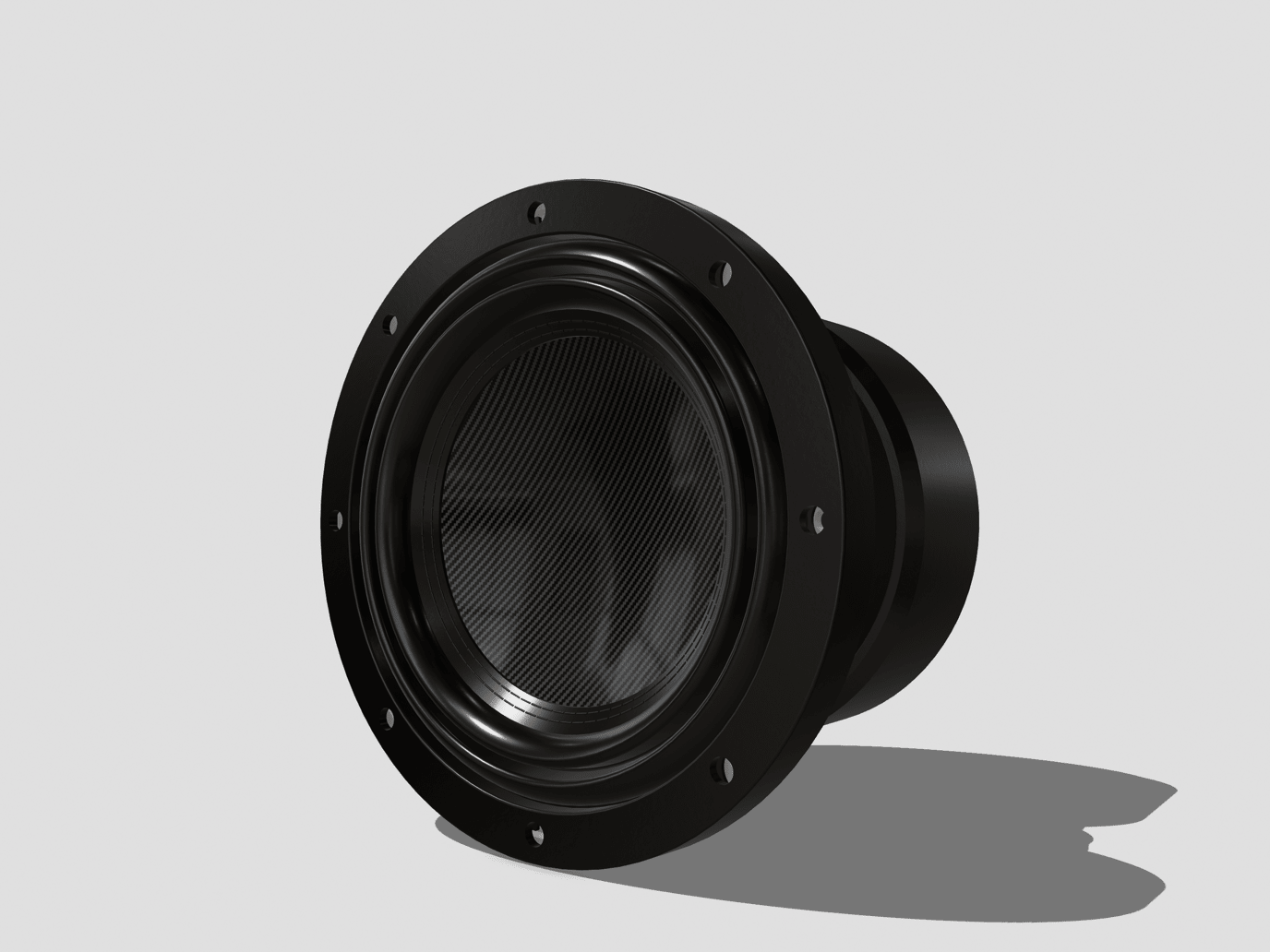

Proline X Driv 850 | 8" 800W Subwoofer

The Driv 850 is rated at 800 watts RMS. We recommend pairing it with an amplifier capable of 600–1,000 watts RMS at the wired impedance — staying within 75–125% of the driver's RMS rating. The D4 wired to 2 ohms mono is the most common configuration, and most quality 1,000-watt monoblocks will land in an ideal power range. The D2 wired to 1 ohm mono is intended for amplifiers specifically rated stable at 1 ohm. A clean 600 watts will outperform a clipping 1,000 watts — gain structure matters more than raw output numbers.

At an EBP of 85–90, the Driv 850's primary alignment is ported. Target 0.6–0.85 cubic feet net tuned to 35–40 Hz — 0.70 ft³ at 37 Hz is the recommended center-point. This delivers maximum output and low-end extension from the driver's motor structure. For sealed, target 0.4–0.6 cubic feet net. Sealed is the right call for underseat truck builds, SQ applications, or any install where enclosure volume is limited — the Driv 850's lower Qts (0.52–0.57) means it sounds controlled and damped in a sealed box rather than loose. Avoid tuning a ported box below 33 Hz. Always use a subsonic filter with a ported enclosure, set 10 Hz below the tuning frequency.

The D2 (dual 2-ohm) and D4 (dual 4-ohm) share an identical mechanical platform — same basket, cone, magnet, and motor geometry. The only difference is voice coil winding impedance. The D4 wires to a 2-ohm mono load when both coils are paralleled, which is the standard configuration for most monoblock amplifiers. The D2 wires to a 1-ohm mono load when paralleled, or runs each coil independently on a 2-channel amplifier at 2 ohms per side. The D4 also carries a higher BL figure (23 T·m vs. 19.13 T·m) due to the tighter winding geometry, giving it slightly higher motor authority. Choose D4 for standard monoblock builds; choose D2 for 1-ohm rated amplifiers or bridged multi-channel builds.

At 800 watts RMS, cone behavior under high excursion is a legitimate engineering concern. A standard paper cone at this power level will begin to flex along the cone surface — a failure mode called cone breakup — which introduces harmonic distortion that becomes audible as harshness or congestion in the bass. The carbon fiber overlay on the Driv 850 adds a rigid composite layer that raises the cone's breakup threshold significantly, keeping the cone moving as a single pistonic unit through the full 14mm Xmax stroke. The paper substrate underneath retains its natural damping characteristics, which prevents the harshness associated with pure composite or metal cone designs. The result is accurate, high-output bass that holds together at full rated power.

Voice coil diameter directly affects two things: motor leverage and thermal capacity. A larger coil diameter increases the length of wire in the magnetic gap, which increases BL (motor force) for a given magnet structure. It also increases the surface area of the coil former, which improves heat dissipation — a larger coil can sustain rated power for longer before thermal compression sets in. At 61.1mm, the Driv 850's coil is notably large for an 8-inch driver in this price class. Paired with the aluminum former, it gives this driver the thermal headroom to handle sustained high-power input without rolling off or protecting.

Yes. Two Driv 850 D4s wired in parallel present a 1-ohm mono load — suitable for amplifiers rated at 1 ohm. Two D4s wired in series present a 4-ohm mono load. Two Driv 850 D2s wired in parallel present a 0.5-ohm load, which is outside the safe operating range for most amplifiers and is not recommended. Two D2s wired in series present a 2-ohm mono load, which is the recommended configuration for running dual D2s on a standard monoblock. Always verify your amplifier's minimum impedance rating before wiring multiple drivers.

The Driv 850 requires a 200mm (7.87 inch) cutout diameter and has a mounting depth of 153mm (6.02 inches). The overall flange diameter is 221mm (8.70 inches). Verify that 153mm of clearance is available behind the baffle face before cutting. This depth is typical for a standard sealed or ported subwoofer enclosure but may require verification in shallow underseat applications.

The Driv 850 and Driv 650 share the same design philosophy and construction standards — carbon fiber overlay cone, CCAW voice coil, cast aluminum basket, ferrite motor. The 850 steps up with a significantly larger voice coil (61.1mm vs. 42.5mm), a larger magnet (φ170×50mm vs. φ134×40mm), double the RMS power handling (800W vs. 400W), and 14mm Xmax vs. 12mm. The 850's lower Qts (0.52–0.57 vs. 0.60–0.70) also makes it the stronger performer in ported alignments. If your enclosure space allows for an 8-inch, the 850 will deliver meaningfully more output and extension than the 650 in the same listening environment.
