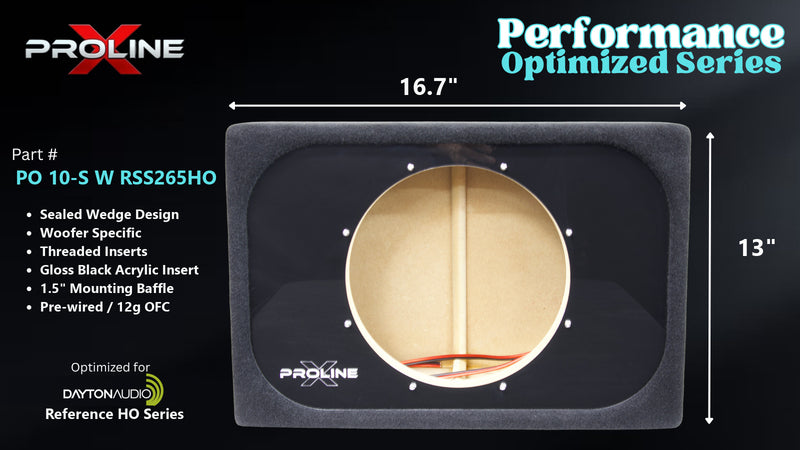

Proline X PO 10-S W RSS265HO sealed wedge, front baffle with gloss black insert and pre-wired leads, 16.7 by 13 inches.

Proline X

Performance Optimized Wedge Sealed 10" Enclosure | Dayton Audio Reference RSS265HO

Q: Does this fit the Dayton Audio Reference RSS265HO, and will any other 10 inch fit?

The Reference RSS265HO, yes, in the RSS265HO-44 (dual 4 ohm) version. The baffle is cut to 9.25 in for Dayton's 10.47 in frame. The 5.37 inch motor clears the cabinet with 0.75 inch to spare. This cabinet is listed for the RSS265HO-44 (dual 4 ohm) only. Dayton's RSS265HO-4 (single 4 ohm) version reads Qtc 0.59 in the same airspace, too damped to sound right sealed, so it is not offered in this enclosure.Any other 10, no. The airspace is engineered around the Reference RSS265HO's own Qts and Vas, and a different woofer that happened to drop into the hole would not see the alignment printed on this page.

Q: What amplifier power should I run, and how should I wire it?

Dayton rates the Reference RSS265HO at 600 watts RMS, so target 420 to 600 watts RMS at the final load.This cabinet is for the Reference RSS265HO RSS265HO-44 (dual 4 ohm): the RSS265HO-44 (dual 4 ohm) is two 4 ohm coils, 8 ohms in series or 2 ohms in parallel. A parallel load at or under 1 ohm needs an amplifier rated for it. Confirm your amplifier's minimum stable impedance first.

Q: Why the wedge angle, and why rear-firing into the trunk?

The seat-side face carries a 20 degree rake that matches the lean of a factory rear seat back, so the cabinet sits flush against it and the cargo space in front stays usable. The baffle is the vertical trunk-lid-side face, so the driver fires rearward into the trunk cavity.The trunk acts as an acoustic extension for the sealed box, and the cabin adds real output below 50 Hz, so in-vehicle response runs deeper than the anechoic 44.1 Hz on this page.

Q: Why is the front baffle double-layered?

The baffle is two bonded 3/4 inch sheets, 1.5 inches through. A single 3/4 inch panel flexes under the pressure a 10 inch woofer puts on it at 600 watts, which smears output and works the driver loose over time; the second layer stiffens the face and gives the mounting hardware twice the material to bite.The outer layer is machined as a flush recess to Dayton's 10.47 inch frame, so the driver bolts to the inner layer and sits flush with the gloss black acrylic insert.

Q: What is the expected low-frequency extension?

Anechoic F3 is 44.1 Hz. Above Qtc 0.707 F3 sits below fc, so the response carries a small lift near resonance before it rolls off.Those figures exclude cabin gain. In a car the cabin's transfer function adds real output below 50 Hz, so in-vehicle response runs deeper than the numbers above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed as a light wall lining to control internal reflections, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box with fill makes it behave as though it were larger, which walks the alignment away from the 0.55 cubic feet this cabinet was built to.

Q: Is the driver included, and are the threaded inserts installed?

No driver. This is an enclosure only. You receive the cabinet finished in plush black carpet with the gloss black acrylic baffle insert, one side-mounted pre-wired terminal cup, the polyfill lining already in place, and stainless machine screws, with the threaded inserts already pressed.The inserts are pressed at the shop on Dayton's published bolt circle for the Reference RSS265HO, so the driver bolts straight in. The Dayton Audio Reference RSS265HO is purchased separately, and the cabinet is cut direct fit to it, not a general purpose 10 inch box.

SKU: PO 10-S W RSS265HO BB

QUICK SPECS

Best For: Dayton Audio Reference RSS265HO Trunk-Fit Builds
Net Volume: 0.55 cu ft (0.62 cu ft Gross)
Driver Match: Dayton Audio Reference RSS265HO (RSS265HO-44 (dual 4 ohm))
Construction: Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Inserts Installed

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 289.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Wedge Sealed 10" Enclosure | Dayton Audio Reference RSS265HO

More enclosures cut for Dayton Audio subwoofers: Dayton Audio Subwoofer Boxes

Enclosure Type Sealed

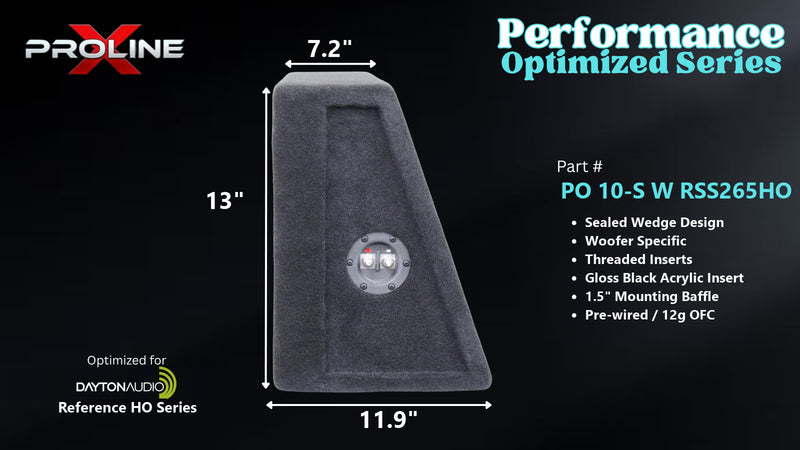

External Dimensions 16.71" W x 13" H x 11.94" D at base tapering to 7.21" D at top

Gross Volume 0.62 cu ft

Net Volume 0.55 cu ft

Shipping Weight 26 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

0.55 cubic feet: Qtc 0.809 on the RSS265HO-44 (dual 4 ohm), F3 44.1 Hz.

Only the RSS265HO-44 (dual 4 ohm) coil is listed. In this airspace the RSS265HO-4 (single 4 ohm) goes too dry to recommend sealed; it belongs in a ported box.

The 5.37 inch motor clears the raked back with 0.75 to spare; the airspace sets the rest of the cabinet.

Dayton's spec sheet holds together on every check I run. Displacement is the one figure they do not give, so it is estimated.

Inserts are pressed at Dayton's bolt circle, so the driver bolts straight in. Sealed, so leave the polyfill as it is and run it at 600 watts or under per driver.

Product Details

Performance Optimized Wedge | Dayton Audio Reference RSS265HO

10" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design

0.55 ft3 Net0.62 ft3 GrossQtc 0.81Single Chamber Wedge16.71" x 13" x 7.21/11.94"Built in Tennessee

The Dayton Audio Reference RSS265HO in a Sealed Wedge

The RSS265HO is Dayton's 10 inch Reference HO: an extra-thick black anodized aluminum cone, a triple shorting-ring motor, a fully vented four-layer coil and parameters Dayton optimizes for small enclosures, rated 600 watts RMS with 13.25 mm of one-way excursion, 5.37 inches of mounting depth on a 10.47 inch frame. Every Thiele-Small figure comes from Dayton's own spec sheet, and it holds together: Qes and Qms reproduce the printed Qts, the moving mass matches the published Vas and cone area, and Qes follows from Bl, Re and Mms.

0.55 cubic feet net on Dayton's published figures: the RSS265HO-44 (dual 4 ohm) reads Qtc 0.809 with resonance at 49.6 Hz and half power at 44.1 Hz. That is a touch above maximally flat: a small lift near resonance and firm midbass. This cabinet is listed for the RSS265HO-44 (dual 4 ohm) only. Dayton's RSS265HO-4 (single 4 ohm) version reads Qtc 0.59 in the same airspace, too damped to sound right sealed, so it is not offered in this enclosure.

Trunk-Load Wedge Design Explained

The driver mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity.

Seat-Side Face Matches Seat Lean

Angled face matches the roughly 20 degree factory seat lean.

Trunk-Lid-Side Face Fires the Woofer

Vertical baffle, cone firing rearward into the trunk cavity.

Trunk Cavity Loading

The trunk acts as an acoustic extension for a smoother presentation.

Preserves Trunk Cargo Space

The wedge tucks against the seat back and the space in front stays usable.

Engineered for the Dayton Audio Reference RSS265HO

Anechoic half power lands at 44.1 Hz, before any cabin gain. Dayton does not publish driver displacement (its Vd is the cone's swept volume), so an estimated 0.062 cubic feet per driver is taken out of the net figure.

Alignment Numbers

Driver	System Qtc	fc	F3
Reference RSS265HO RSS265HO-44 (dual 4 ohm)	Qtc 0.809	49.6 Hz	44.1 Hz

Mounting Geometry

The baffle is cut to 9.25 in for Dayton's 10.47 in frame. The rear panel rakes 20 degrees, so the cavity deepens from 7.21 in at the top to 11.94 in at the base, and the 5.37 in motor clears it with 0.75 in to spare. Dayton prints the RSS265HO's bolt circle, 9.76 inches, so the threaded inserts are pressed into the baffle at the shop and stainless machine screws are included: the driver drops in and bolts down.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every panel intersection, sides and brace seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

Dayton's Published Parameters

RSS265HO-44 (dual 4 ohm): Fs 27.6 Hz, Qts 0.45, Qes 0.5, Qms 4.42, Vas 34.8 L, Mms 161 g, Bl 9.39 N/A, Re 1.6 ohm. Cone area 352 cm2. Xmax 13.25 mm (one-way, as Dayton publish it).

Wiring the Dayton Audio Reference RSS265HO to Your Amplifier

This cabinet is for the Reference RSS265HO RSS265HO-44 (dual 4 ohm): the RSS265HO-44 (dual 4 ohm) is two 4 ohm coils, 8 ohms in series or 2 ohms in parallel. A parallel load at or under 1 ohm needs an amplifier rated for it. Confirm the final load against your amplifier's minimum stable impedance before powering the system.

Power handling is 600 watts RMS per driver. Aim for roughly 420 to 600 watts at the impedance you wire.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, one pre-wired terminal cup, 12 gauge OFC to the driver position. Polyfill wall lining installed. Threaded inserts pressed at Dayton's bolt circle, stainless machine screws included. 1 year limited warranty. Enclosure only, the driver is purchased separately. Call or text 931-563-5151.

Dayton Audio Reference RSS265HO: Cut for One Driver

0.55 cubic feet net at Qtc 0.81, F3 44.1 Hz, cut direct fit and built to order in Tennessee.

Specifications

Specification	Value
Series	Proline X Performance Optimized Wedge
Compatible Driver	Dayton Audio Reference RSS265HO (RSS265HO-44 (dual 4 ohm)), quantity 1. Direct fit
Configuration	Single 10 inch, single chamber sealed wedge
Mounting Position	Trunk or cargo area, tall face against the rear seat back
Firing Direction	Rearward into the trunk. Not a down fire design, no feet included
External Width	16.71 in
External Height	13 in at the seat face
External Depth	11.94 in at the base, tapering to 7.21 in at the top
Internal Volume, Gross	0.62 cu ft
Internal Volume, Net Acoustic	0.55 cu ft after the brace and the driver displacement
Driver Mounting Depth	5.37 in required; 0.75 in clearance above the motor against the raked rear panel
Alignment, RSS265HO-44 (dual 4 ohm)	Qtc 0.809, fc 49.6 Hz, F3 44.1 Hz anechoic
Woofer Opening	9.25 in, cut for Dayton's frame
Frame Outer Diameter	10.47 in
Bolt Circle	9.76 in, Dayton spec; threaded inserts pre-installed
Driver Displacement	0.062 cu ft, estimated; Dayton publishes none
RSS265HO-44 (dual 4 ohm) Fs / Qts / Qes / Qms / Vas	27.6 Hz / 0.45 / 0.5 / 4.42 / 34.8 L
Driver Sd	352 cm2, Dayton spec
Xmax	13.25 mm, one-way, as Dayton publish it
Driver Power Handling	600 W RMS
Wiring Options	This cabinet is for the Reference RSS265HO RSS265HO-44 (dual 4 ohm): the RSS265HO-44 (dual 4 ohm) is two 4 ohm coils, 8 ohms in series or 2 ohms in parallel. A parallel load at or under 1 ohm needs an amplifier rated for it.
Parameter Source	Dayton Audio spec sheet
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Windowed brace, dadoed to the shell
Driver Mounting	Threaded inserts pre-installed at Dayton's bolt circle; stainless machine screws included
Terminal Cups	One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC
Acrylic Insert	Gloss black acrylic baffle insert standard; None variant minus $20
Damping	Light polyfill wall lining, does not alter acoustic volume
Carpet	Plush black
Shipping Weight	26 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

0.55

cu ft

System Qtc

0.81

sealed

Half power

44.1

Hz · F3

Xmax at

330

W RMS · no filter

With 25 Hz subsonic

378

W RMS · +14%

Amplifier

600

W RMS recommended

This enclosure holds 0.55 cu ft net . In it the Dayton Audio RSS265HO runs a system Qtc of 0.81 with half power at 44.1 Hz, and the cone reaches its 12.3 mm travel limit at 330 W, below the driver’s 600 W thermal rating, so travel is what stops you here, not heat. Run a subsonic filter at 25 Hz and that becomes 378 W — +48 W, or 14 percent more power for the same 12.3 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 55.2

RSS265HO-44 · EBP 55.2

At 55.2 the RSS265HO sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

0.55 cu ft against a 34.8 L Vas.

α = Vas ÷ Vb = 2.23 · Fc = Fs√(α+1) = 50 Hz · Qtc = 0.81

RSS265HO-44 · Qtc 0.81, Fc 50 Hz, F3 44.1 Hz

The box lifts resonance from 27.6 Hz free-air to 50 Hz and half power lands at 44.1 Hz, anechoic, before any cabin gain. Parameters are Dayton Audio’s own spec sheet for each coil plotted. Driver displacement is not published and is estimated. Only the coils this listing carries are plotted; the other version falls outside a well-behaved sealed alignment in this cabinet.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 12.3 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 330 W unfiltered → 378 W with a 25 Hz subsonic

RSS265HO-44 · 330 W, no filterRSS265HO-44 · 378 W with subsonic at 25 Hz, 24 dB/octXmax 12.3 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 12.3 mm. Unfiltered that is 330 W, reached first at 24 Hz. It sits under the 600 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 378 W before hitting the same 12.3 mm. That is 14 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	27.60	Hz	free-air resonance
Qts	0.450		RSS265HO-44
Vas	34.80	L	equivalent compliance
Sd	349.7	cm²	effective piston area
Xmax	12.3	mm	one-way, as Dayton publish it
Pe	600	W	continuous RMS
SPL	83.5	dB	1 W / 1 m, derived from T/S

Driver parameters as published by Dayton Audio spec sheet. Curves computed against this enclosure’s actual net airspace.

Customer Installs

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
