Product Details

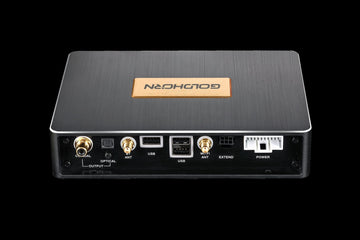

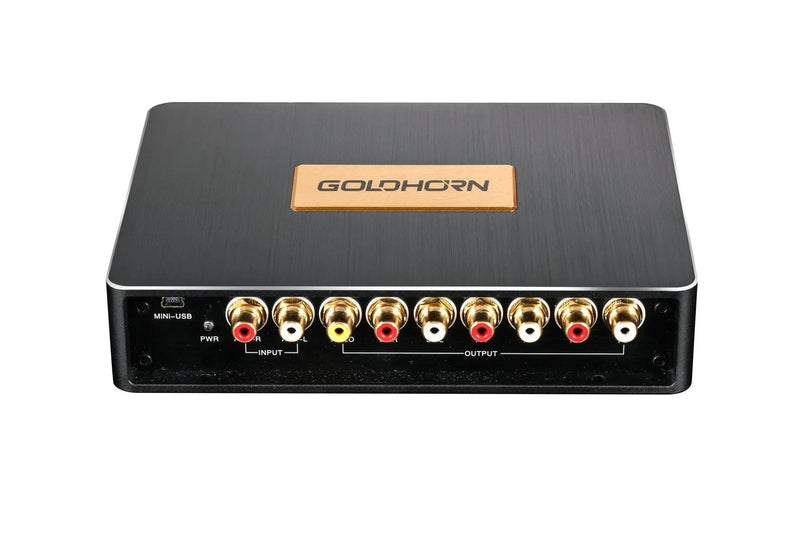

A stand-alone player from Goldhorn.
Goldhorn P2 Pro is a pure car digital player with Bluetooth 5.0 technology. With high-level inputs, P2 Pro is compatible with the factory head unit, and the AUX inputs allow users to connect an additional aftermarket player(e.g., A CD player that is previously installed) to P1. P2 Pro can deliver a better audio landscape when combined with a DSP.
- AKM AK4490 DAC (32-bit / 768 kHz PCM)
- Texas Instruments OPA2604 Operation Amp
- 4 x High Level Inputs 2 x AUX Inputs
- 1 x Optical Output 1 x Coaxial Output
- Bluetooth 5.0(aptX)
- 2 x Femtosecond Clocks
- GH GHA1000 Control Chip
- 6 x 4V preouts
- 2 x AK4493 DAC (32bit/768kHz)
- OPA2604 Op Amp
| P2 Pro Technical Specs | |
| DAC | 2 x AK4493 DAC (32bit/768kHz) |
| Op Amp | OPA2604 Op Amp |
| Ext. Control | GH GHA1000 |
| Gen Processing | 4 x ARM Cortex A7 |
| Ext. Clocking | 2 x Femtosecond Clocks |
| Pwr&Filtering | Elna High Temp (105°C) Electrolytic Caps and WIMA film filtering caps |
| Music Formats (File types) | HiRes DSD: DFF / DSF / DSD Up to 256 Hi Res, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3/AAC/OGG/WMA/MV |
| Music inputs | 3 x USB 2.0 Host, BT 5.0 aptX-LL/AptX, 2 x AUX RCA, 4 x High level |
| Control Inputs | BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control |
| Outputs | 6 x RCA, 1 X Optical (to 192kHz/24bit),1 x Coaxial (to 192kHz/24 bit), 1 x Video output |
| Operatating Voltage | 11V ~ 16V |
| Max Low input | 4V |
| Max High input | 24V |
| RCA output | 6 x 4V |
| DIM (mm) | 194 x 145.5 x 40.5 |
| DIM (In) | 7.64 x 5.73 x 1.6 |
| Controllers available | Wireless BT Controller, Mobile App Control, Optional Wired Controller w/IPS Display |
| Fuse Rating | 10A |
