Karma
Karma Mobile Audio Allure 1 Tweeter | 1" SQ Tweeter Pair
$ 549.99
QUICK SPECS
- Power Handling: 100W RMS with high-pass
- Sensitivity: 90 dB (1W/1m)
- Impedance: 4 ohms
- Mounting Depth: 27.5mm (1.08 in)
Karma Mobile Audio Allure 1 Tweeter | 1" SQ Tweeter Pair
Regular price
$ 549.99
Sale price
$ 549.99
Regular price
Unit price
Free Insured Shipping
On orders over $99
Full Warranty
Authorized Dealer
Lifetime Support
Real Installers
INSTALLER'S TAKE
Product Details
Specifications
FAQs
Related Products
Related Video
Karma Mobile Audio Allure 1 Tweeter
Allure Series 1" SQ Tweeter | Sold as a Matched Pair
1" Soft Dome
External Motor
Waveguide Housing
Pure Silver Leads
4 Ohm
Allure Series
The Detail Engine of the Allure Set
The Karma Mobile Audio Allure 1 Tweeter is the flagship 1 inch tweeter in the Allure line, designed by speaker engineer Dr. Rishi S. Gurbani to pair with the Allure 6 Midbass for a complete front stage. It is sold as a matched pair.
A soft textile dome, an external motor, and a chambered, waveguide-loaded housing give the Allure 1 the kind of clean, detailed, well-controlled top end that holds together at volume. This is the driver that sets your stage height and brings out the air and detail in a recording.
Built to Perform
Everything about the Allure 1 is aimed at low distortion and controlled dispersion, so it integrates cleanly with the midbass instead of fighting it.
External Motor
An external motor structure keeps the magnetic field tightly controlled behind the dome for lower distortion and a cleaner high frequency response.
Chambered Waveguide Housing
A rear chamber lowers resonance and the integrated waveguide shapes dispersion, which makes the tweeter easier to place and blend in a real car.
Soft Textile Dome
A soft textile dome delivers a smooth, natural top end without the hard edge that fatigues your ears on long drives or at high volume.
Pure Silver Leads
Pure silver lead wires carry the signal to the voice coil with minimal resistance, a detail you usually only see on far more expensive tweeters.
Power and Crossover
Like any tweeter, the Allure 1 must be high-passed. Run it filtered the way it is designed to run and it stays clean and protected at any volume you will use in a car.
The factory sheet lists 10 watts nominal and 30 watts peak. That is the raw driver measured full-range with no crossover, which is not how a tweeter is ever used. Behind the recommended 2,500 Hz 24 dB-per-octave high-pass, the Allure 1 handles 100 watts RMS. The crossover is what protects a tweeter, so always run one. When in doubt, cross higher and steeper, not lower.
For a 2-way, high-pass the Allure 1 at 2,500 Hz and hand the midbass off to it at the same point. In a 3-way, let a dedicated midrange carry the band below and bring the tweeter in around 2,500 to 3,500 Hz for the smoothest blend.
Fitment and Integration
The Allure 1 uses a clever threaded lock ring that pulls the tweeter tightly into a front recess, so a flush mount sits like a rear mount. That makes for a clean A-pillar or sail-panel install without a deep pod.

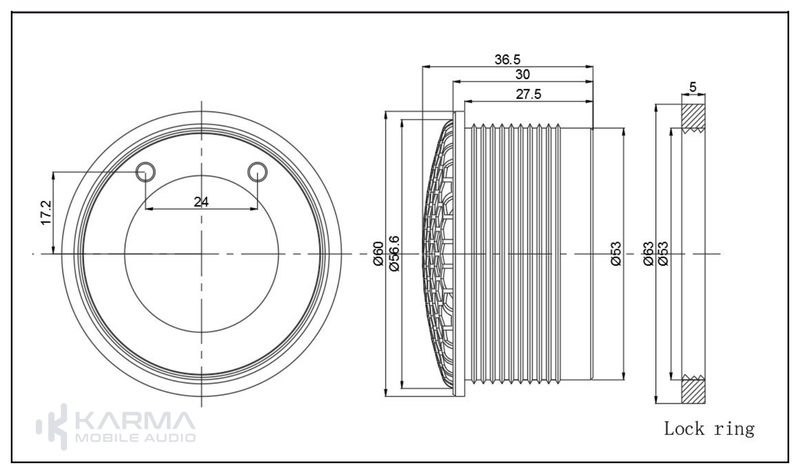

Overall diameter: 60mm. Mounting depth: 27.5mm (1.08 in). Mounting: threaded lock ring for flush or surface mount. Impedance: 4 ohms.
2-Way Front Stage
Pair the Allure 1 with the Karma Mobile Audio Allure 6 Midbass for a clean, full-range two-way.
3-Way Front Stage
Add the Karma Mobile Audio Aspect 3 midrange between the midbass and tweeter for the widest, most precise stage.
Active Setup
Run the Allure 1 direct off a multi-channel amp and set the high-pass and level in your DSP for full control.
Passive Setup
Wire it through the Karma Mobile Audio Allure Crossover and set output with the jumper attenuation, no resistors to solder.
The Top End Your Stage Has Been Missing
Every Karma Mobile Audio Allure 1 Tweeter from Audio Intensity is backed by a 2-year warranty and setup help from a working SQ judge.
Tell us your vehicle and your goals and we will dial in the right crossover, placement, and level. Built on sound quality first.
