US Acoustics Barbara Ann 4-Channel Class AB Amplifier – Old School Full Complementary Design for Sound Quality That Modern Class D Can't Replicate
Welcome to the US Acoustics Barbara Ann 4-channel amplifier – a deliberate rejection of modern Class D switching technology in favor of traditional "Old School Full Complementary low distortion Class AB design" that prioritizes sonic purity over size and efficiency. In an era where virtually every car audio amplifier uses Class D topology for compact packaging and minimal heat generation, the Barbara Ann stands as an unapologetic throwback to the sound quality-first philosophies of 1990s-2000s high-end mobile audio. This isn't nostalgia or stubbornness – it's engineering choice based on measurable performance advantages that linear amplification maintains over switching designs when sound quality rather than watts-per-cubic-inch becomes the primary optimization target.
The tagline is telling: "Beach'n Sound" – a reference to The Beach Boys' iconic "Barbara Ann" that signals this amplifier's purpose. This isn't a competition SPL amplifier, a trunk-rattling bass machine, or a space-saving micro-amp. It's a sound quality amplifier designed for critical listening to full-range music where tonal accuracy, harmonic preservation, and three-dimensional soundstage imaging matter more than maximum output or Instagram-worthy compact installations. The Barbara Ann targets audiophiles, sound quality competitors, and discerning enthusiasts who recognize that Class AB's inherent linearity advantages yield sonic characteristics – warmth, liquidity, natural timbre, effortless dynamics – that even the finest Class D implementations struggle to replicate fully.
Rated conservatively at 4 × 100 watts RMS @ 4 ohms (175W @ 2Ω, 350W bridged @ 4Ω), the Barbara Ann delivers clean, unfatiguing power that drives component speakers and full-range systems with authority and grace. The specification sheet emphasizes quality metrics over raw power: <0.01% THD (ten times lower distortion than typical Class D amplifiers claiming <0.1% THD), >97dB signal-to-noise ratio (quieter noise floor than most source components), and >92dB channel separation (preventing crosstalk that blurs stereo imaging). These aren't theoretical laboratory measurements – they're real-world specifications that translate directly into audible performance improvements: cymbals that shimmer rather than splash, vocals that occupy precise spatial locations rather than diffusing across the dashboard, bass guitars with textured string vibration rather than homogeneous rumble.

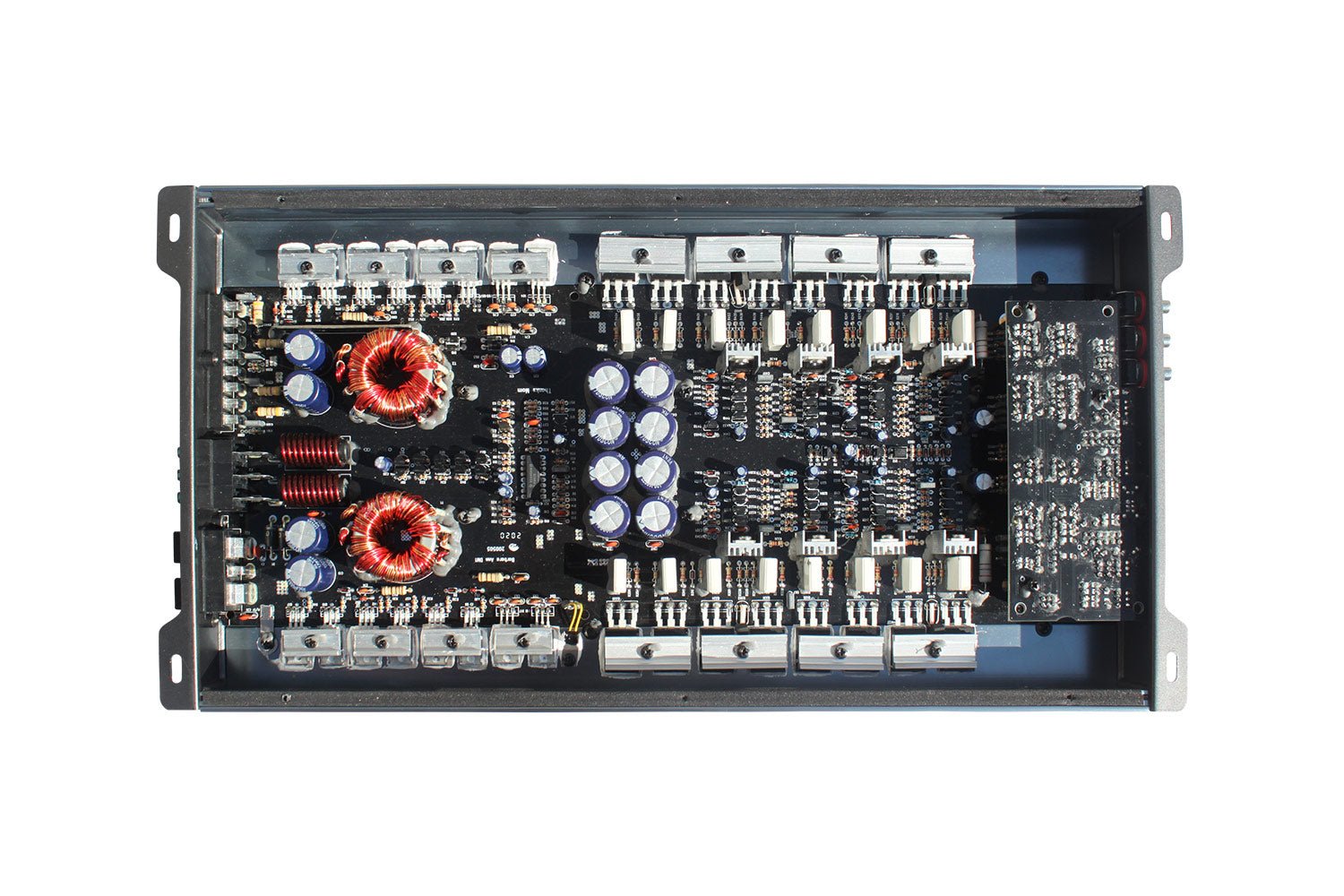

The full complementary circuit topology uses matched pairs of NPN and PNP output transistors operating in symmetrical push-pull configuration, ensuring that both positive and negative signal halves receive identical amplification treatment. This symmetry minimizes even-order harmonic distortion and crossover artifacts that create the "Class AB notch" in poorly-designed amplifiers. Combined with audiophile high-end operational amplifiers in the input and driver stages, the Barbara Ann maintains signal purity from input to output, preserving the tonal character and spatial information encoded in source recordings.
The amplifier features Butterworth crossover filters – the same maximally-flat frequency response topology specified throughout US Acoustics' lineup. Variable high-pass (15-500Hz for rear channels, 50-3kHz for front channels) and low-pass (50-500Hz rear, 500-5kHz front) crossovers with 12dB/octave and 24dB/octave slopes respectively provide flexible system tuning for bi-amped component systems, active crossover configurations, or traditional front/rear installations. The crossover ranges are specifically calibrated for sound quality applications: the front channel high-pass extends to 3kHz to accommodate active tweeter crossover points, while rear channel settings optimize for dedicated midbass/subwoofer duties.
Angled terminals facilitate show-quality installations where wire routing aesthetics matter as much as sonic performance. The three 35-amp fuses protect individual amplifier sections while allowing substantial current flow for the Barbara Ann's 700-watt total output capacity (175W × 4 @ 2Ω). Two 4-gauge power inputs distribute current evenly across internal power supply rails, minimizing ground loop potential and ensuring balanced power delivery to all four channels.
Available in brand new condition from Audio Intensity for $399.99, the Barbara Ann represents exceptional value in the sound quality amplifier category where competing products from established brands (JL Audio, Arc Audio, Zapco, Audison) command $600-1200 premiums for similar specifications. US Acoustics' direct sales model and absence of celebrity endorsement costs allow professional-grade Class AB amplification at pricing accessible to serious enthusiasts without unlimited budgets.
Brand New Condition 4 × 100W @ 4Ω Class AB Linear Design <0.01% THD Butterworth Filters 2-Year WarrantyCritical listeners who recognize the sonic differences between Class AB and Class D amplification. If you've compared linear and switching amplifiers directly and prefer the warmth, liquidity, and natural timbre of Class AB, the Barbara Ann delivers that signature sound quality without requiring boutique brand pricing or vintage equipment sourcing.
Sound quality competitors in IASCA, MECA, or local competitions where judging emphasizes tonal accuracy, soundstage imaging, and low distortion rather than maximum SPL. The Barbara Ann's <0.01% THD and >92dB channel separation specifications meet or exceed requirements for advanced competition classes while providing the sonic purity judges reward.
Installations prioritizing component speakers and full-range reproduction (midbass through treble) rather than bass-heavy subwoofer systems. The Barbara Ann excels at reproducing the midrange and treble frequencies where Class AB's linear characteristics provide audible advantages: vocal clarity, cymbal shimmer, acoustic instrument realism, and three-dimensional imaging.
Systems built around lossless digital sources (FLAC, ALAC, DSD), high-quality streaming (Tidal HiFi, Apple Music Lossless), or analog sources where source quality demands amplification that preserves rather than degrades signal integrity. The Barbara Ann's low distortion and high S/N ratio ensure you hear source quality improvements rather than amplifier limitations.
Music libraries spanning jazz, classical, acoustic, rock, and other genres emphasizing instrumental realism and recording quality over bass impact. The Barbara Ann's neutral tonal balance and transparent character suit listeners who want amplification that reveals recordings' character rather than imposing sonic signatures.
Advanced system builders implementing active bi-amping or tri-amping configurations where individual drivers receive dedicated amplifier channels with electronic crossovers. The Barbara Ann's flexible crossover ranges and four discrete channels enable sophisticated active systems without requiring multiple monoblock amplifiers or complex signal routing.
Understanding why US Acoustics chose "Old School Full Complementary Class AB design" for the Barbara Ann requires exploring the fundamental differences between linear and switching amplification – differences that extend beyond efficiency and packaging into the realm of sonic character.
Linear Amplification: Class AB amplifiers operate output transistors in their active region where collector current varies continuously and proportionally with input signal voltage. The transistors function as variable resistors modulating current flow through the output stage, directly controlling voltage across the speaker load. This analog, continuous-time operation preserves signal waveform shape throughout the amplification process without the switching artifacts inherent to Class D designs.
Full Complementary Topology: The Barbara Ann uses matched pairs of NPN (negative-type) and PNP (positive-type) bipolar junction transistors in symmetric push-pull configuration. When the input signal swings positive, NPN devices conduct and pull the output toward the positive supply rail; when signal swings negative, PNP devices conduct and pull output toward the negative rail. This complementary symmetry ensures both signal polarities receive identical amplification treatment, minimizing even-order harmonic distortion that creates "warmth" in some amplifiers but actually represents nonlinearity.
Bias Current Management: The "AB" designation indicates that output transistors remain slightly conductive even with no input signal (unlike Class B where devices fully turn off), eliminating crossover distortion that occurs when transistor pairs switch conduction. The Barbara Ann's bias current is carefully optimized to minimize crossover artifacts while avoiding the excessive idle power consumption of pure Class A operation.
Despite three decades of Class D development and modern implementations achieving impressive measured specifications, critical listeners consistently report sonic differences between Class AB and Class D amplification. These differences stem from fundamental topology characteristics:
1. No Switching Artifacts: Class D amplifiers operate at 200-500kHz switching frequencies, generating ultrasonic energy that must be filtered before reaching speakers. While output filters remove most switching frequency content, they cannot eliminate all artifacts – intermodulation between audio signals and switching frequency creates sidebands extending into the audio band, and filter phase shift affects transient response. Class AB amplification generates no ultrasonic switching energy, eliminating these artifact sources entirely.
2. Superior Linearity: Bipolar junction transistors operating in linear mode exhibit inherently lower distortion than MOSFETs switching between on/off states. The Barbara Ann's <0.01% THD specification (measured, not marketing) compares favorably to typical Class D amplifiers claiming <0.1% THD – a 10× measured distortion advantage. While 0.1% THD remains inaudible in isolation, lower distortion preserves subtle harmonic overtones and spatial cues that contribute to realistic sound reproduction.
3. Wider Bandwidth: The Barbara Ann's 10Hz-30kHz ±0.5dB frequency response extends well beyond human hearing limits (20Hz-20kHz) without the abrupt rolloff characteristic of Class D output filters. Extended bandwidth preserves phase relationships and transient accuracy across the audio spectrum, yielding more natural reproduction of percussive attacks and ambience decay.
4. Simplified Signal Path: Class AB amplification requires no PWM encoding, high-frequency switching, or output filtering – the signal path from input to output consists purely of analog gain stages. This simplicity minimizes opportunities for signal degradation, maintaining source material integrity through the amplification process.
Class AB's sonic advantages come with practical compromises that explain why Class D dominates modern car audio:
- Lower Efficiency (50-65%): Class AB amplifiers dissipate 35-50% of input power as heat vs. Class D's 80-85% efficiency. The Barbara Ann's 700W total output (4 × 175W @ 2Ω) requires approximately 1100-1400W input power, generating 400-700W of waste heat that must be dissipated through heatsinking. This thermal load demands larger chassis and careful installation location selection.
- Larger Physical Size: The combination of heavier heatsinks (required for greater thermal dissipation) and larger power supply transformers (Class AB requires higher rail voltages than Class D for equivalent output power) yields substantially larger amplifiers. The Barbara Ann measures 17.7" × 8.9" × 2.2" – respectable for Class AB, but substantially larger than equivalent-power Class D amplifiers occupying 12" × 6" × 2" or less.
- Greater Electrical Demands: Lower efficiency means higher current draw for equivalent output power. The Barbara Ann's three 35A fuses total 105A protection capacity, while equivalent Class D amplifiers might use 60-70A total fusing due to higher efficiency reducing input current requirements.
- Potentially Higher Cost: Class AB designs require more output devices (matched complementary pairs vs. single device types in Class D), larger power supplies, and heavier heatsinks – all contributing to higher manufacturing costs. However, US Acoustics' value positioning mitigates this cost differential through direct sales and elimination of brand-tax pricing.
🎵 The Bottom Line: Class AB vs. Class D represents engineering tradeoffs rather than absolute superiority. For bass applications where efficiency and compact size dominate (subwoofer amplifiers), Class D's advantages outweigh sonic considerations. For full-range applications where tonal purity and soundstage imaging matter (component speaker systems), Class AB's linear character provides audible benefits that justify the size and efficiency penalties. The Barbara Ann targets the latter category – listeners prioritizing sound quality over packaging convenience.
× 4 channels RMS @ 14.4V
× 4 channels RMS @ 14.4V
× 2 channels RMS @ 14.4V
4 × 175W @ 2Ω configuration
Conservative Power Ratings: US Acoustics follows the industry-minority practice of conservative power specifications where rated output represents continuous thermal capacity rather than peak marketing numbers. Dyno testing by independent reviewers confirms the Barbara Ann meets or slightly exceeds rated specifications – 175W @ 2Ω measures closer to 180-185W in real-world testing. This conservative rating approach ensures the amplifier delivers rated power reliably during extended listening sessions without thermal protection activation or voltage compression.
Total Harmonic Distortion (THD): <0.01%
The Barbara Ann's exceptional <0.01% THD specification represents ten-fold lower measured distortion than typical car audio amplifiers claiming <0.1% THD. To contextualize this specification:
- 0.01% = -80dB: Harmonic distortion products sit 80 decibels below fundamental signal level – essentially inaudible even during critical listening with high-resolution source material and revealing speakers. This distortion floor approaches theoretical limits of bipolar transistor amplification.
- Preservation of Harmonic Structure: Musical instruments generate complex harmonic series that define tonal character – a saxophone and trumpet playing the same note sound different due to varying harmonic content. Amplifier distortion adds spurious harmonics that alter this tonal signature. At <0.01% THD, the Barbara Ann adds negligible harmonic coloration, preserving the recorded harmonic structure that defines instrument timbre.
- Dynamic Range Implications: Low distortion extends usable dynamic range by maintaining clean reproduction even during loud passages. Many amplifiers sound clean at moderate levels but add audible distortion during peaks. The Barbara Ann's low distortion floor ensures crescendos and transients remain clean and effortless rather than compressed or harsh.
Signal-to-Noise Ratio: >97dB
The Barbara Ann's noise floor sits >97dB below rated output – quieter than most source components (typical head units: 90-95dB S/N; even high-end processors: 100-110dB). This exceptional noise performance ensures the amplifier doesn't degrade source signal quality:
- Audible Silence: During quiet passages in classical or jazz recordings, the Barbara Ann produces genuine silence rather than audible hiss or hum. This "blackness" between notes enhances perceived dynamic range and allows subtle musical details (room ambience, string resonance, breath sounds) to emerge without noise floor masking.
- High-Gain Compatibility: Low noise floor allows aggressive gain structure (setting input sensitivity high to match weak source signals) without introducing audible noise. This flexibility accommodates factory head units with modest output voltages (200-500mV typical) without noise penalties.
Channel Separation: >92dB
Channel separation quantifies signal isolation between amplifier channels – how much signal from the left channel "leaks" into the right channel and vice versa. The Barbara Ann's >92dB specification ensures stereo image integrity:
- Precise Soundstage Imaging: Low crosstalk preserves the spatial information encoded in stereo recordings. Instruments and vocalists occupy specific locations in the soundstage (left-center-right positioning, front-to-back depth) rather than bleeding together into diffuse sonic images.
- Center Image Stability: Center-panned content (lead vocals, kick drums, bass guitars in most mixes) appears precisely centered rather than drifting or widening due to crosstalk-induced phase shifts. This stability creates the perception of a "phantom center channel" in front-stage systems without dedicated center speakers.

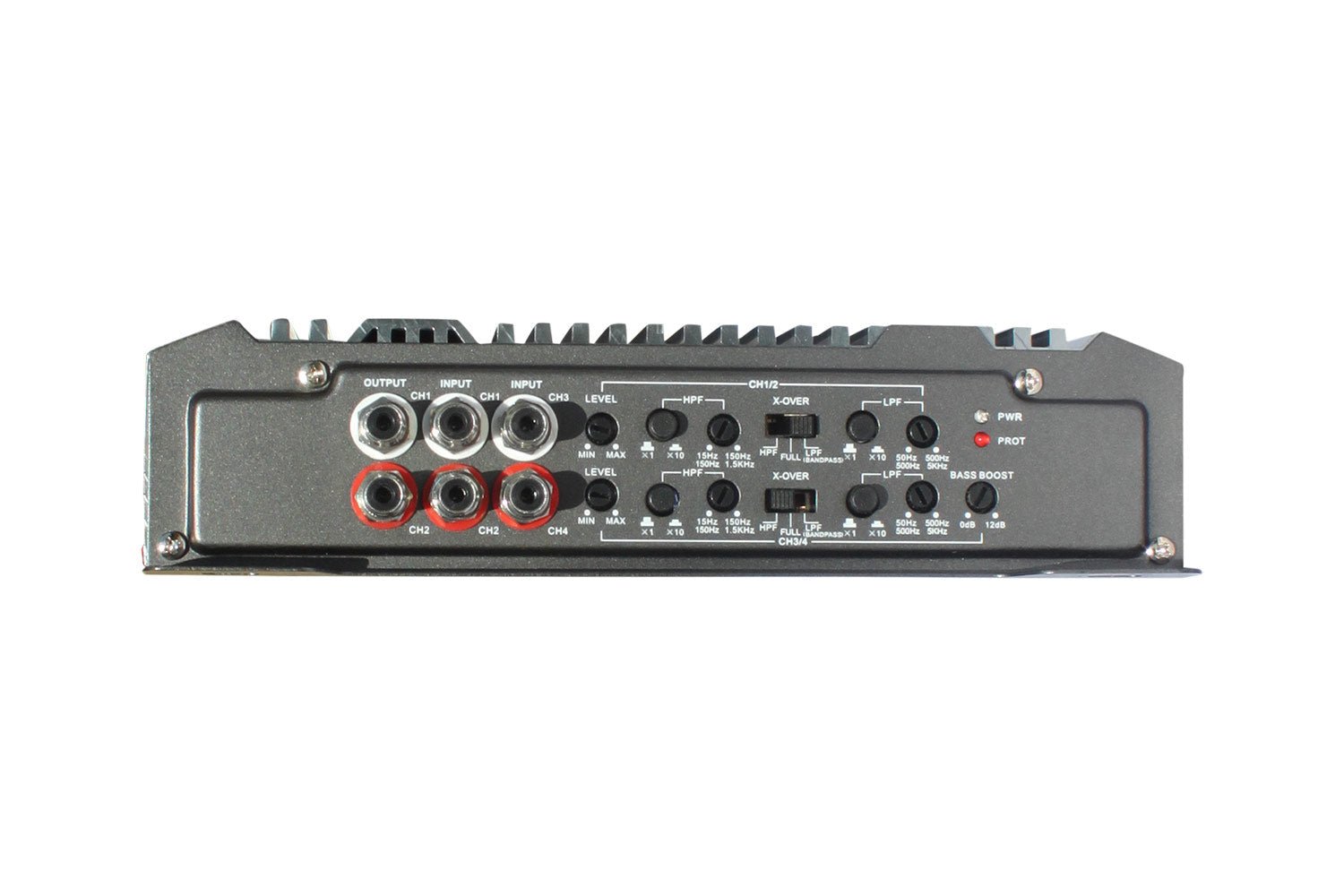

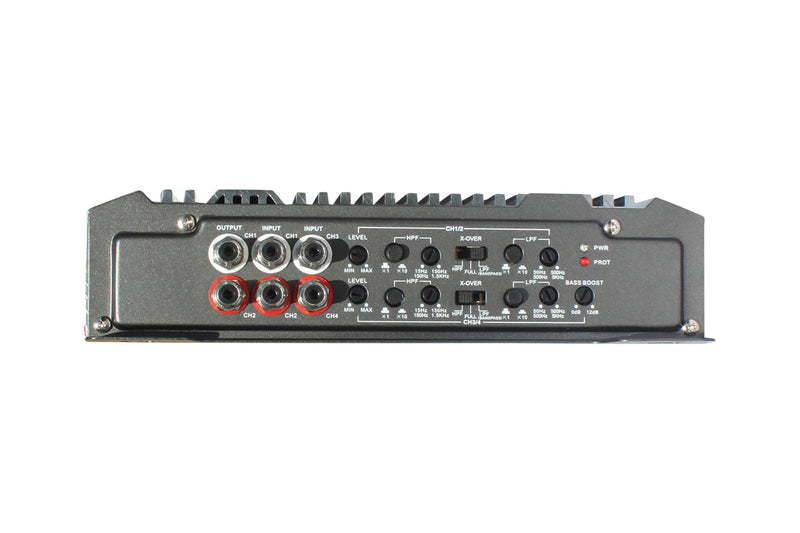

The Barbara Ann features independent crossover control for front and rear channel pairs, enabling flexible system configurations:
| Channels | High-Pass Filter | Low-Pass Filter | Typical Application |
|---|---|---|---|
| Channels 1 & 2 (Front) | 50Hz - 3kHz (12dB/octave) | 500Hz - 5kHz (24dB/octave) | Component tweeters, full-range coaxials, active bi-amp configurations |
| Channels 3 & 4 (Rear) | 15Hz - 500Hz (12dB/octave) | 50Hz - 500Hz (24dB/octave) | Midbass drivers, rear fill speakers, dedicated subwoofer channels |
Application Examples:
- Traditional Front/Rear System: Set front channels (1-2) high-pass at 80Hz (protecting speakers from deep bass), rear channels (3-4) full-range or high-passed at 50Hz. Add external subwoofer amplifier for deep bass below 80Hz.
- Active Bi-Amp Front Stage: Bridge channels 1-2 for tweeters (high-pass at 3kHz), bridge channels 3-4 for midbass (low-pass at 500Hz, high-pass at 80Hz for bandpass). Requires external subwoofer amp.
- Front + Sub Configuration: Channels 1-2 power front components (high-pass 80Hz), bridge channels 3-4 to power subwoofer(s) in 4-ohm configuration (low-pass 80Hz, high-pass 30Hz subsonic). Eliminates need for separate subwoofer amplifier.
- Competition SQ Three-Way: Use external active crossover or DSP for precise frequency allocation, bypass Barbara Ann's crossovers (set full-range), dedicate each channel to specific drivers: Ch1 left tweeter, Ch2 right tweeter, Ch3 left midbass, Ch4 right midbass. Requires separate amplification for subwoofers.
Variable Input Sensitivity: 200mV - 6.0V
The Barbara Ann's wide input sensitivity range accommodates virtually any source equipment from weak factory head units (200-500mV output typical) to professional-grade processors with high-voltage outputs (4-8Vrms). Proper gain structure maximizes signal-to-noise ratio while avoiding input clipping:
Optimal Gain Setting Procedure:
- Set source unit volume to 75-80% of maximum (the level where most listening occurs)
- Play test tones or dynamic music at this volume level
- Increase amplifier input sensitivity (gain) gradually until desired output volume is achieved
- Verify no input clipping occurs by monitoring for distortion during loud passages
- If distortion occurs before reaching desired volume, reduce source unit volume slightly and increase amplifier gain further
| Parameter | Specification |
|---|---|
| Model Designation | US Acoustics Barbara Ann |
| Amplifier Type | 4-Channel Full-Range Class AB |
| Condition | Brand New (Factory Fresh) |
| Topology | Old School Full Complementary Class AB Design |
| RMS Power @ 4Ω (14.4V) | 100 Watts × 4 Channels |
| RMS Power @ 2Ω (14.4V) | 175 Watts × 4 Channels |
| Bridged Power @ 4Ω (14.4V) | 350 Watts × 2 Channels |
| Total System Power (Max Config) | 700 Watts RMS (4 × 175W @ 2Ω) |
| Input Sensitivity Range | 200mV to 6.0V (Variable) |
| Frequency Response | 10Hz to 30kHz (±0.5dB) |
| Total Harmonic Distortion (THD) | <0.01% (20Hz-20kHz) |
| Signal-to-Noise Ratio (S/N) | >97dB (A-weighted) |
| Channel Separation | >92dB @ 1kHz |
| Damping Factor @ 100Hz, 4Ω | >200 |
| Front Channels (1-2) High-Pass | 50Hz to 3kHz (12dB/Octave, Variable) |
| Front Channels (1-2) Low-Pass | 500Hz to 5kHz (24dB/Octave, Variable) |
| Rear Channels (3-4) High-Pass | 15Hz to 500Hz (12dB/Octave, Variable) |
| Rear Channels (3-4) Low-Pass | 50Hz to 500Hz (24dB/Octave, Variable) |
| Crossover Topology | Butterworth (Maximally Flat Passband) |
| Bass Boost | Not Included (Sound Quality Focus) |
| Remote Level Control | Not Included |
| Phase Control | Not Included |
| Input Connections | RCA Line-Level (4 Channels) |
| Output Connections | Angled Speaker Terminals (Show-Quality) |
| Power Terminals | Dual 4 AWG Capacity |
| Fusing | 3 × 35A (105A Total Protection) |
| Recommended Wire Gauge (Power/Ground) | 4 AWG OFC Minimum |
| Current Draw (Approximate @ Full Power) | 90-110A @ 12.3V Average |
| Operational Amplifiers | Audiophile High-End Op-Amps |
| Protection Systems | DC, Short Circuit, Thermal, Overload |
| Diagnostic LEDs | Power, Protect Status Indicators |
| Dimensions (L × W × H) | 17.7" × 8.9" × 2.2" (450mm × 226mm × 56mm) |
| Mounting Footprint | 17.7" × 8.9" (Requires Secure Mounting) |
| Weight (Approximate) | 12-15 lbs (Estimated for Class AB) |
| Operating Voltage Range | 11-16VDC (Automotive Electrical) |
| Warranty Coverage | 2 Years (Manufacturer Warranty) |
| Pricing (Audio Intensity) | $399.99 (New Condition) |
| Target Applications | Sound quality systems, SQ competition, component speakers, active crossover, full-range reproduction |
| Available from Audio Intensity | Brand New, Full Dealer Support |
The Barbara Ann's $399.99 pricing positions it as exceptional value in the sound quality amplifier category where competing products command 50-200% premiums for equivalent specifications.
| Model | Power (4Ω) | THD | Topology | Price Range |
|---|---|---|---|---|
| US Acoustics Barbara Ann | 4 × 100W | <0.01% | Class AB | $399 |
| JL Audio XD400/4v2 | 4 × 100W | <0.1% | Class D | $450-500 |
| Arc Audio XDi 404 | 4 × 100W | <0.05% | Class D | $500-550 |
| Zapco ST-4X SQ | 4 × 100W | <0.01% | Class AB | $700-800 |
| Audison Prima AP4.9 bit | 4 × 100W | <0.05% | Class D + DSP | $900-1000 |
| Alpine PDX-F4 | 4 × 100W | <0.05% | Class D | $350-400 |
✅ Ideal Candidates:
- Class AB Sound Quality Believers: Enthusiasts who've compared Class AB and Class D amplifiers directly and prefer the sonic characteristics of linear amplification – warmth, liquidity, effortless dynamics, natural timbre.
- Component Speaker System Builders: Installations prioritizing high-quality component speakers (Audiofrog, Hertz, Focal, Morel) where amplifier quality matters as much as driver quality. The Barbara Ann's transparency reveals speaker capabilities rather than imposing amplifier coloration.
- Sound Quality Competitors: IASCA, MECA, or local SQ competition entrants where judging rewards low distortion, accurate tonal balance, and precise imaging. The Barbara Ann's specifications meet or exceed most competition requirements.
- Budget-Conscious Audiophiles: Listeners who want Class AB sound quality without Zapco, Audison, or Arc Audio pricing. The Barbara Ann delivers professional-grade specifications at pricing accessible to enthusiasts without unlimited budgets.
- Active Crossover Experimenters: Advanced system builders implementing bi-amped or tri-amped configurations where dedicated amplifier channels drive individual drivers with electronic crossovers. The Barbara Ann's flexible crossover ranges enable sophisticated active systems.
❌ Less Suitable For:
- Bass-Heavy SPL Systems: If your priority is maximum subwoofer output and bass impact, Class D monoblock amplifiers provide better efficiency and power-per-dollar. The Barbara Ann targets full-range sound quality, not bass SPL.
- Compact Installation Requirements: The Barbara Ann's 17.7" × 8.9" footprint and Class AB heat generation require adequate installation space and ventilation. Space-limited installations should consider micro-sized Class D alternatives.
- Maximum Efficiency Seekers: If electrical system limitations demand maximum efficiency (stock alternators, minimal battery capacity), Class D amplifiers' 80-85% efficiency vs. Class AB's 50-65% provides substantial advantages in current draw and heat generation.
- Multi-Amplifier High-Power Systems: Systems requiring 500W+ per channel or massive total system power (2000W+ across all channels) exceed the Barbara Ann's capabilities. Consider dedicated monoblock amplifiers or higher-power multi-channel designs.
🎵 The Bottom Line: The US Acoustics Barbara Ann delivers "Beach'n Sound" quality – the relaxed, musical, fatigue-free sonic character that makes long drives enjoyable rather than exhausting. At $399.99 from Audio Intensity, it represents exceptional value for sound quality enthusiasts who recognize that specifications matter (hence the <0.01% THD and >97dB S/N), but ultimately trust their ears over marketing claims. This isn't an amplifier for everyone – Class D's advantages are real and significant for many applications. But for listeners who prioritize tonal purity, soundstage imaging, and that indefinable "musical" quality that Class AB amplification delivers, the Barbara Ann provides professional-grade performance at working-class pricing.
Old School Sound Quality. Full Complementary Linear Design at $399.99. The US Acoustics Barbara Ann – Because Some Things Never Go Out of Style.
