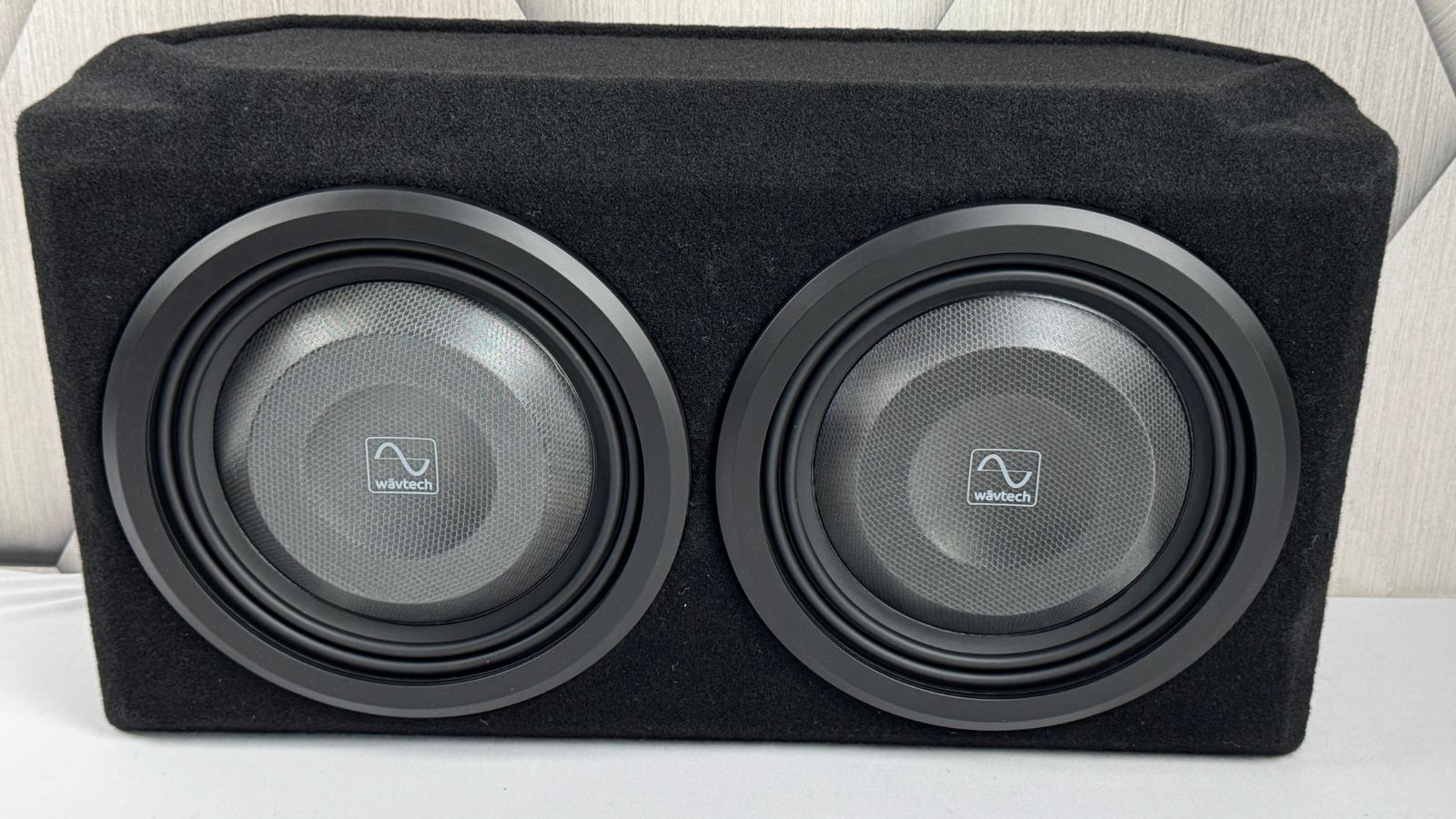

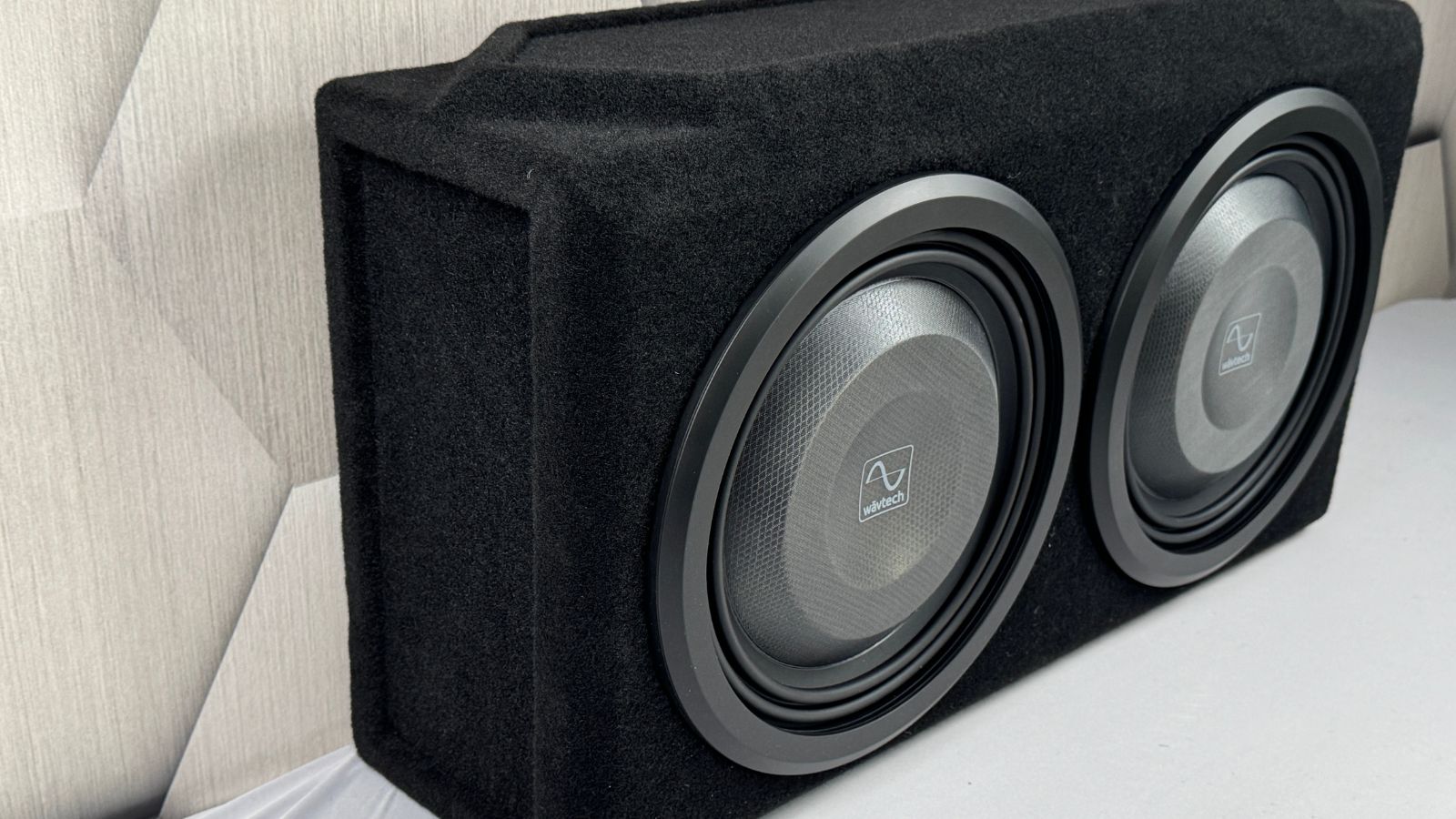

Loaded Dual Wavtech thinPRO12 Subwoofers - Proline-X Micro Series Sealed Enclosure

Experience uncompromising bass performance with this precision-engineered combination of shallow-mount technology and USA-crafted enclosure design.

Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity

📦 Free Shipping, Fast Delivery

Every order includes:

  • ✅ Free lifetime tech support
  • ✅ 30-day price-drop protection
  • ✅ 30-day returns

Brand: Audio Intensity

Availability: ✅ In Stock

Regular price $ 1,599.99
Sale price $ 1,599.99 Regular price
Unit price
Save $ 0.00
Share Compare Get help

Ask a Question

* Required fields

Size guide
Loaded Dual Wavtech thinPRO12 Subwoofers - Proline - X Micro Series Sealed Enclosure|Audio Intensity|Audio Intensity

Loaded Dual Wavtech thinPRO12 Subwoofers - Proline-X Micro Series Sealed Enclosure

Product Information

Overview

Experience Uncompromising Bass in a Space-Saving Design

The Dual Wavtech thinPRO12 in Proline-X Micro Series Sealed Enclosure combines cutting-edge shallow mount subwoofer technology with premium enclosure craftsmanship to deliver extraordinary bass performance in a compact form factor. This powerhouse combination solves the most common challenge in automotive audio: achieving deep, accurate bass without sacrificing valuable space. With dimensions of 29" W × 15" D × 8" H and weighing 80 lbs, this system delivers impressive performance while remaining manageable for installation.

Revolutionary Shallow Mount Performance

This system features two Wavtech thinPRO12 subwoofers, known for their exceptional performance despite their slim 3-inch mounting depth. Unlike typical shallow subwoofers that compromise sound quality, the thinPRO12 delivers bass that rivals much larger drivers through its innovative design and construction.

Premium American-Made Enclosure

The Proline-X Micro Series Sealed Enclosure represents the pinnacle of subwoofer enclosure engineering. Hand-built in the USA with precision CNC-cut components, this sealed enclosure is explicitly optimized for the thinPRO12's acoustic characteristics, maximizing both output and sound quality.

Versatile Installation Options

This combo can be installed in standard orientation or as a downfiring system with optional feet, giving you flexibility based on your vehicle's configuration and sound preferences. The enclosure also features an optional acrylic plate on the front, allowing for custom personalization to match your vehicle's aesthetic.

What's Included

Includes:

  • 2x Wavtech thinPRO12 Shallow Mount Subwoofers
  • 1x Proline-X Micro Series Dual 12" Sealed Enclosure
  • Pre-wired with high-grade 12AWG internal wiring
  • Threaded inserts for secure woofer mounting
  • High-output terminal cup for reliable connectivity
  • Pre-installed polyfill for optimized acoustic performance
Vehicle Compatibility

Vehicle Compatibility

The Proline-X Micro Series Sealed Enclosure with dual Wavtech thinPRO12 subwoofers is designed to fit in a wide range of vehicles where space is at a premium:

  • Compact and mid-size sedans with limited trunk space
  • SUVs requiring cargo area preservation
  • Trucks with extended or crew cabs
  • Sports cars with minimal cargo capacity
  • Custom installations where depth constraints are significant
Why This Combo Works:

Highlights

Maximum Bass, Minimum Space - Experience powerful low frequencies without sacrificing your vehicle's usable space
Engineered Compatibility - The enclosure is precisely matched to the thinPRO12's acoustic requirements for optimal performance
Premium Craftsmanship - American-made quality in both the enclosure and subwoofers ensures exceptional durability
Versatile Installation - Standard or downfiring mounting options adapt to your specific vehicle and preferences
Customizable Appearance - Optional acrylic plate allows for personalization to match your vehicle's interior
Simplified Installation - Pre-wired configuration saves time and ensures proper connection
Complete Solution - Everything you need for deep, accurate bass in one package

Reviews

Product Details

Subwoofer Specifications

Physical Characteristics

Mounting Depth: 3 inches (ultra-shallow design)

Cutout Diameter: 11.125 inches (282mm) - standard 12-inch opening

Voice Coil Size: 5 inches (127mm)

Frame Material: Vented cast aluminum for improved cooling

Cone Design: Honeycomb Nomex and glass fiber composite for rigidity and lightweight performance

Power Handling

RMS Power: 750 watts per subwoofer (1500 watts total)

Peak Power: 2250 watts per subwoofer (4500 watts total)

Recommended Amplifier Power: 250W-750W RMS per subwoofer

Electrical Parameters

Impedance Options: Available in 2-ohm or 4-ohm configurations

Sensitivity: 83dB (2-ohm), 84dB (4-ohm)

Frequency Response: Fs-300Hz

Technical Parameters

Fs (Resonant Frequency): 25Hz (2-ohm), 26Hz (4-ohm)

Qts (Total Q): 0.49 (2-ohm), 0.46 (4-ohm)

Xmax (Linear Excursion): 20mm (0.79 inches)

Xmech (Peak-to-Peak Excursion): 54mm (2.13 inches)

Subwoofer Features

Subwoofer Feature List:

Patented Shallow Design Technology

The thinPRO12 utilizes Wavtech's patent-pending design that allows for extraordinary excursion despite its shallow mounting depth. The innovative motor structure and suspension system work together to create bass that defies the limitations of traditional shallow subwoofers.

Superior Motor Structure

The dual-gap motor structure with double-stacked strontium magnets maximizes magnetic flux density, providing exceptional control over the cone's movement even during high-output conditions. This results in more accurate bass with reduced distortion.

Advanced Voice Coil Design

The massive 5-inch voice coil with 4-layer winding on a vented polyimide composite former provides incredible power handling while effectively dissipating heat during extended play sessions. This construction allows the thinPRO12 to handle significantly more power than typical shallow subwoofers.

Innovative Suspension System

Dual mirrored NBR spiders and an axial force transfer assembly enable the thinPRO12 to achieve over 2 inches of peak-to-peak excursion – a figure previously unheard of in shallow-mount subwoofers. This allows for deeper, more impactful bass.

High-Performance Cone Construction

The honeycomb Nomex and glass fiber composite cone provides exceptional rigidity while maintaining minimal weight, allowing for faster, more accurate bass response. This advanced material combination resists deformation even during extreme excursion.

Premium Connection Options

Heavy-duty 8AWG push terminals ensure solid electrical connections for optimal power transfer from your amplifier to the voice coil, maximizing efficiency and minimizing power loss.

Related Video
Enclosure Specifications

Physical Dimensions

External Dimensions: 29" W x 15" D x 8" H. Precisely designed to minimize footprint while optimizing internal volume

Versatile Mounting: Can be used forward-firing or down-firing

Internal Volume: Optimized at 1.2 cubic feet total (0.6 cubic feet per subwoofer)

Construction Material: High-density MDF for superior rigidity and acoustic isolation

Finish: Premium black plush carpet exterior with option for acrylic personalization plate

Design Features

Internal Bracing: Strategically positioned for maximum structural integrity

Double Mounting Face: Increases rigidity and allows flush mounting of the subwoofer

Sealed Design: Delivers tight, accurate bass response with excellent transient response

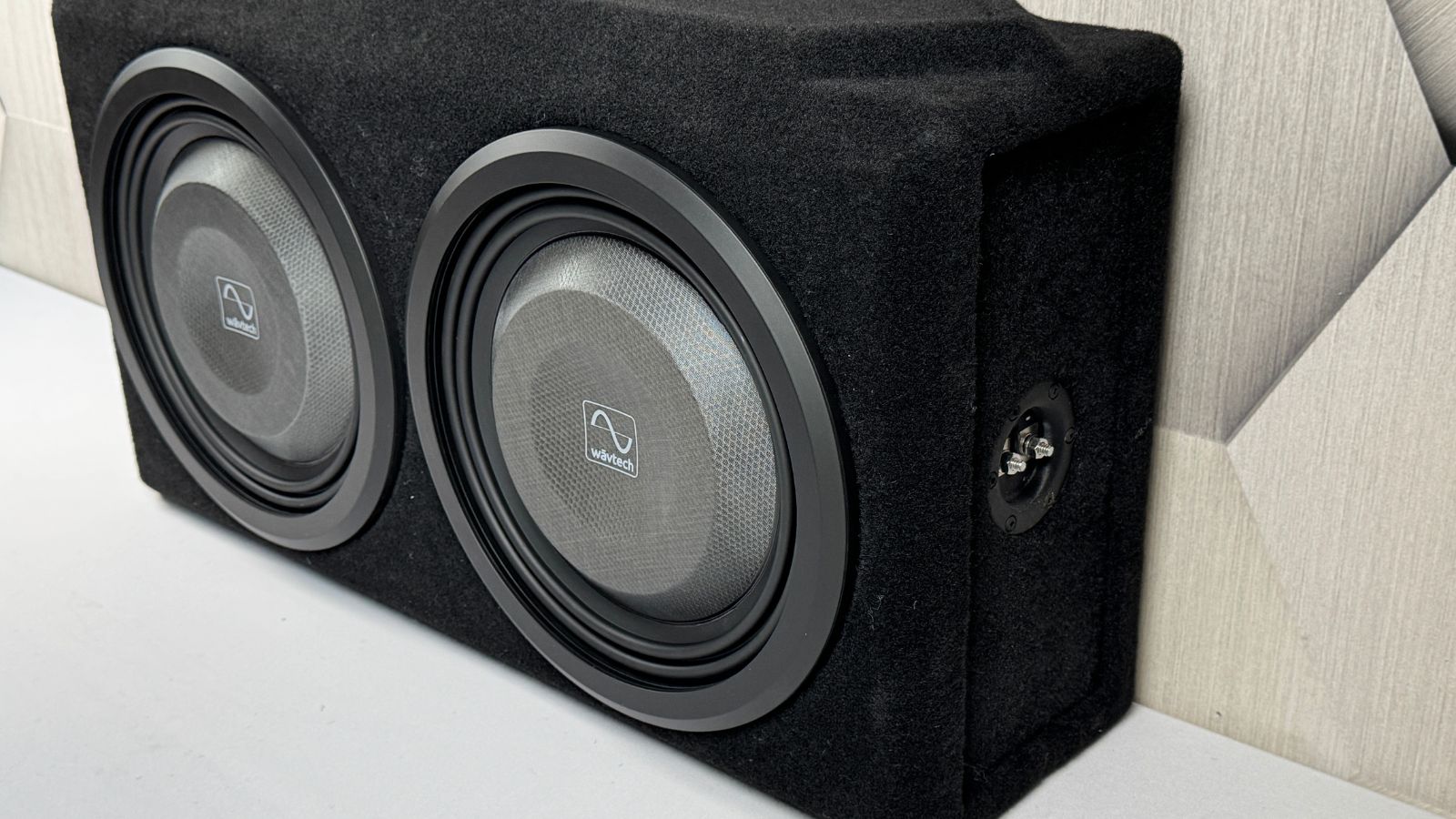

Terminal Cup: High-quality connections for reliable power delivery

Optional Acrylic Inserts: Personalize your system

Wiring: Pre-wired with premium 12AWG OFC internal wiring

Acoustic Treatment: Pre-installed polyfill for optimized frequency response

Enclosure Features

Precision Engineering

The Proline-X Micro Series Sealed Enclosure is hand-crafted using CNC cutting technology to ensure precise dimensions and perfect fit. Each enclosure is built to exacting specifications to optimize the performance of the Wavtech thinPRO12 subwoofers.

American Craftsmanship

Built entirely in the USA, the Proline-X enclosures represent superior quality and attention to detail. The interlocking design and internal bracing ensure structural integrity even during high-output bass reproduction.

Versatile Mounting Options

The enclosure can be installed in traditional orientation or as a downfiring system with optional feet, providing flexibility for various vehicle layouts and bass preferences.

Customization Options

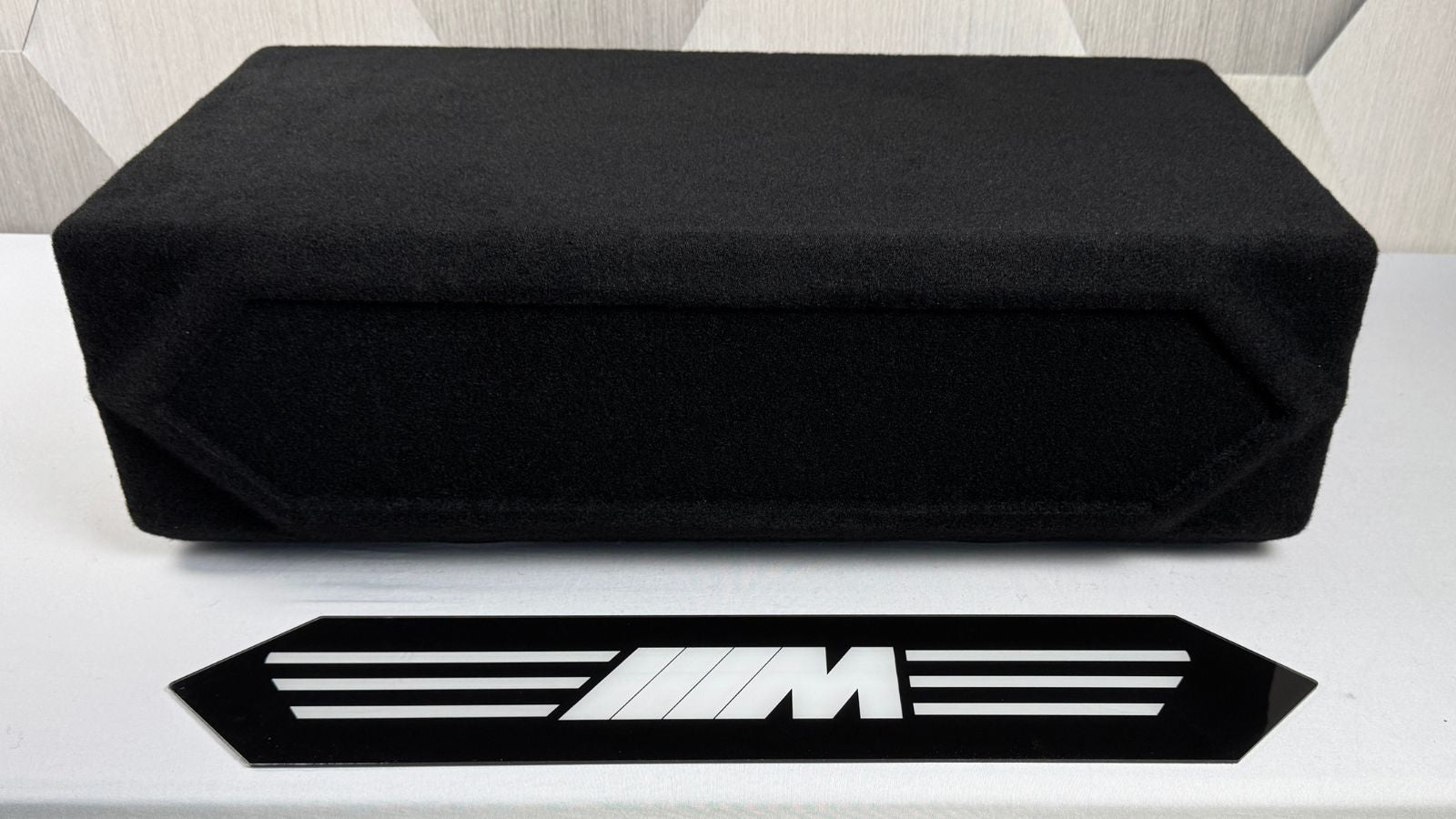

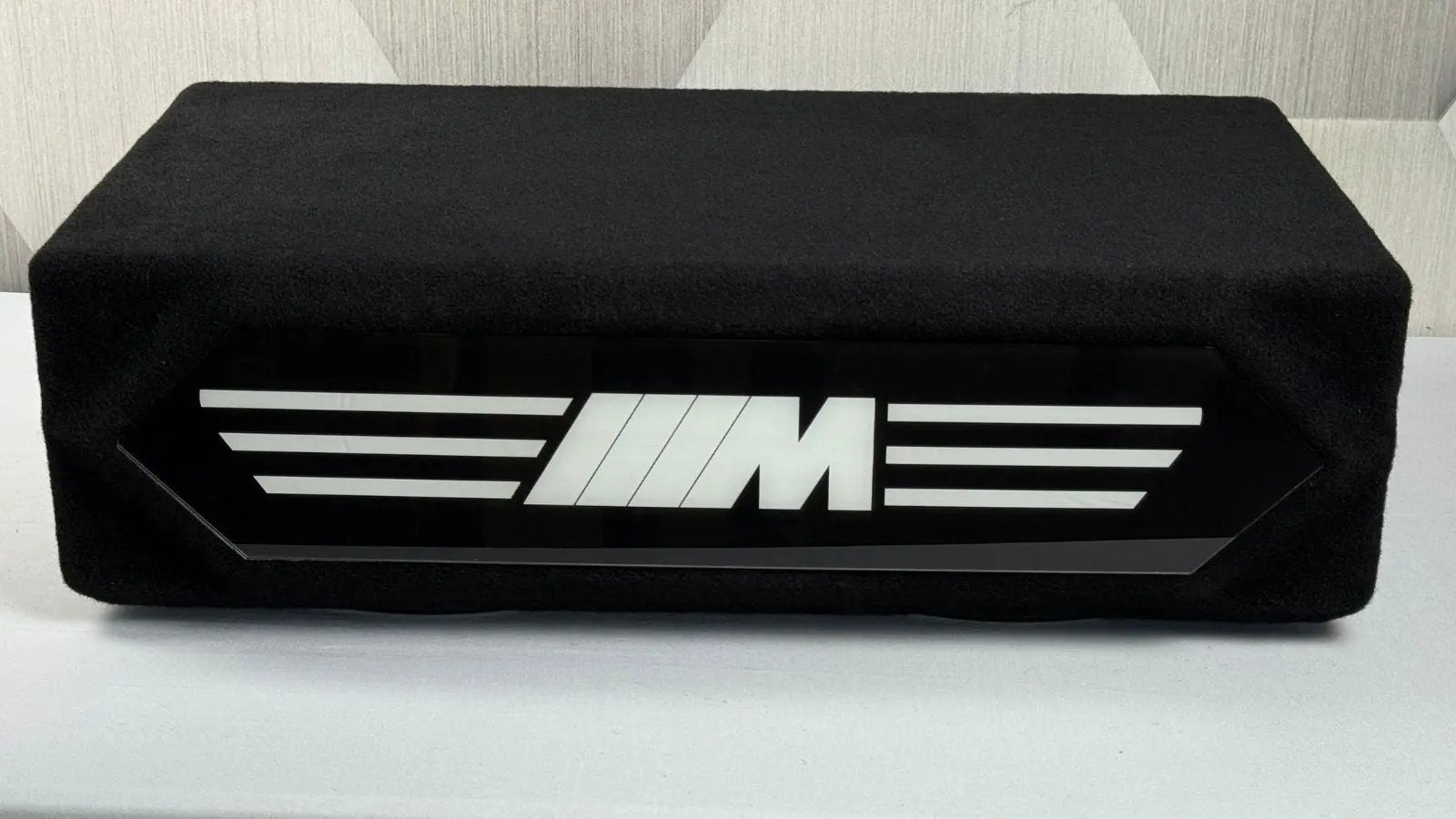

The optional acrylic plate allows for personalization, including custom logos, lighting effects, or other design elements to match your vehicle's interior aesthetic.

Optimized Internal Volume

The enclosure is precisely sized at 0.6 cubic feet per subwoofer – the perfect volume for the thinPRO12 in sealed applications as recommended by Wavtech. This ensures ideal acoustic loading and maximum performance.

Premium Materials

Constructed from high-grade MDF with extensive internal bracing, the enclosure minimizes unwanted resonances and vibrations, resulting in cleaner, more accurate bass reproduction.

Frequently Asked Questions

How much power do I need for the dual Wavtech thinPRO12 setup?

Can I use this in a ported enclosure instead of sealed?

Will this fit in the trunk of my sedan?

How does the downfiring option improve sound?

What wire gauge should I use for connecting to my amplifier?

Do I need a special amplifier for shallow-mount subwoofers?

How does this system compare to traditional deep-mount subwoofers?
