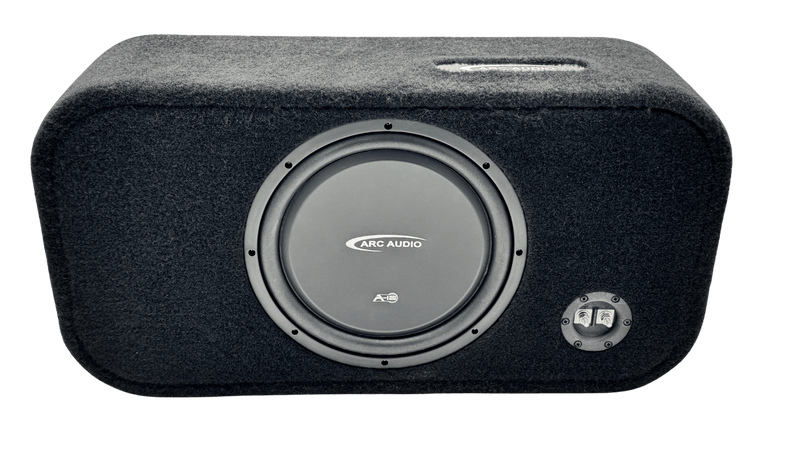

Proline X Micro Series 12" Sealed Enclosure | Built for Arc Audio A12

1.0 cu ft: Arc Audio's Published Optimum

Arc Audio publishes a sealed enclosure range of 0.85 to 1.25 cubic feet for the A12, with 1.0 cubic foot identified as the optimum. This enclosure delivers exactly 1.0 cubic foot of net acoustic airspace. At this volume the A12 produces the balanced tonal signature Arc Audio designed the A-Series for: strong upper-bass presence, moderate deep-bass extension, and the kind of daily-driver character that sounds good at real-world listening levels without requiring DSP correction.

The A12 uses a 3-inch voice coil (versus the A10's 2.5-inch) for higher thermal capacity, and its larger cone area produces roughly 3 dB more low-frequency output than the A10 in equivalent enclosure volumes. This enclosure is built to deliver the exact volume Arc engineered the A12 to perform in.

"If I Do the Math on the External Dimensions, the Volume Looks Too Big"

This is the most common question we get on every Micro Series enclosure. The math customers run looks like this: external dimensions of 28.5" × 14.75" × 7.5" subtract 3/4" walls on all six sides, leaving an assumed internal cavity of 27" × 13.25" × 6". That works out to 2,146 cubic inches, or roughly 1.24 cubic feet. The listed net volume is 1.0 cubic foot, a difference of nearly 0.24 cu ft, which looks like the enclosure must be oversized by about 24%.

That math assumes four things that are not true on a Proline X stack-fab enclosure:

1. The walls are not 3/4" on every side. The front baffle is a double-layer stack-fab build at 1.5 inches thick, twice the assumed wall thickness. That alone removes more internal depth than a 3/4" calculation accounts for.

2. The enclosure is not a perfect rectangle. Viewed from above, all four corners are radiused at 3 inches. This is a deliberate design choice for two reasons: the rounded corners break up the parallel-wall geometry that creates internal standing waves, and they produce a finished shape that fits cleanly against vehicle interior surfaces without sharp corners catching on trim or upholstery. The 3" radii remove measurable internal volume that an external-minus-walls calculation assumes is open airspace.

3. The area directly behind the driver's magnet is precision-milled. This is a deliberate engineering step that serves two purposes. First, it allows us to make fine volume adjustments to hit the target airspace exactly. Second, and more importantly, it increases the open area immediately behind the driver's rear vent. The A12's pole vent is part of the driver's voice coil cooling system. Air flows through the vent during cone movement, carrying heat away from the voice coil former. If the area immediately behind the vent is restricted, backpressure builds against that airflow and voice coil cooling is compromised. Most enclosure manufacturers do not understand this airflow dynamic, and even fewer engineer around it. We do.

4. The driver itself displaces internal airspace once installed. The basket, motor, and pole structure occupy meaningful volume inside the chamber. This is not subtracted from a back-of-napkin external calculation, but it is subtracted from what the driver acoustically loads into.

How we actually calculate volume. Our engineering approach is built on precision, and it is different from how most enclosure manufacturers calculate airspace and different from the math any customer can do from external dimensions. A Proline X stack-fab enclosure is built from individually CNC-cut layers, each with its own machined opening. We calculate the precise internal volume of every layer's opening, then sum those layer-by-layer volumes to arrive at the actual net airspace inside the assembled enclosure. No one else in this industry calculates net volume this way. It is the only method that produces a genuinely accurate account of the airspace a driver sees once the enclosure is built. The 1.0 cubic foot figure is exact, not approximate.

The A12 in a 1.0 cu ft Sealed Box: What It Sounds Like

The Arc Audio A12 is a daily-driver shallow subwoofer built on the same A-Series platform as the A10, scaled up to a 12-inch cone with a 3-inch voice coil. It is not marketed as an SQ competition driver, and it is not engineered to compete in that category. In the 1.0 cubic foot sealed target, the A12 produces the tonal balance most listeners recognize as "good bass" in a daily driver: strong output in the upper-bass range where most bass energy in music lives, moderate extension into the low bass, and no need for DSP to produce a pleasing in-cabin response.

The 12-inch cone gives the A12 about 44% more cone area than the A10, which translates to roughly 3 dB more low-frequency output in equivalent enclosure volumes. The 3-inch voice coil provides higher thermal capacity than the A10's 2.5-inch coil, letting the A12 run its 300 watts RMS reliably in daily-driver use. Running clean unclipped power in the 250 to 300 watt RMS range in this enclosure, the A12 delivers exactly the daily-driver experience Arc Audio designed it for.

1.5" Double-Layer Baffle. Stack Fab. Dowel Reinforced.

The front baffle is a double-layer stack-fab build: two CNC-cut Langboard Elite MDF panels bonded to 1.5 inches total. The stack-fab assembly is further reinforced with dowels throughout, adding between-layer tension reinforcement that locks the panel stack against shear movement under sustained operation. At 300 watts RMS the mechanical load is moderate, but the construction standard is the same across the entire Micro Series lineup because the goal is to build an enclosure that holds its acoustic seal for the life of the vehicle, not just the first year.

The stack-fab construction itself does the joining: every CNC-cut layer interlocks with the layers above and below it, eliminating single-layer butt joints entirely. The 7.5-inch total depth gives the enclosure side walls adequate geometric rigidity for the load, and Langboard Elite MDF at 200 psi internal bond and 410,000 psi MOE is the correct panel spec for a driver in this power class.

Where It Fits

At 28.5" × 14.75" × 7.5", this enclosure fits in shallow-mount install locations where a full-depth 12" sealed box is out of the question but where the A12's larger cone area and higher output is needed:

• Behind-seat: full-size crew cab and extended cab trucks
• Trunk floor: full-size sedans and sport sedans
• Cargo floor: mid-size and full-size SUVs
• Under rear bench: full-size SUVs and vans
• Hatch floor: hatchbacks and sports cars
• Cargo area: crossovers and wagons

Made in Tennessee

Every Proline X Micro Series enclosure is CNC-cut and hand-assembled in Tullahoma, Tennessee on ShopSabre CNC routers. Internal volume, cutout geometry, layer-by-layer opening dimensions, baffle layer count, dowel placement, and terminal positioning are all held to spec on every unit. Langboard Elite MDF throughout: named, mill-documented, published density and bond specifications.
