Proline-X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer

Premium Space-Saving Bass Solution with Uncompromising Performance

Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity

📦 Free Shipping, Fast Delivery

Every order includes:

  • ✅ Free lifetime tech support
  • ✅ 30-day price-drop protection
  • ✅ 30-day returns

Brand: Proline X

Availability: ✅ In Stock

Regular price $ 849.99
Sale price $ 849.99 Regular price
Unit price
Save $ 0.00
Share Compare Get help

Ask a Question

* Required fields

Size guide
Proline - X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer|Proline X|Audio Intensity

Proline-X Loaded Micro Series Sealed Enclosure - Wavtech thinPro12 Subwoofer

Product Information

Overview

Revolutionary Space-Saving Design with Full-Size Performance

The Wavtech thinPro12 Subwoofer in Proline-X Micro Series Sealed Enclosure represents the perfect marriage of innovative technology and precision engineering. This combination delivers exceptional bass performance while maintaining a compact footprint that fits seamlessly in vehicles where space is at a premium.

At the heart of this system is the Wavtech thinPro12 subwoofer, featuring breakthrough shallow-mount technology with an incredibly thin 3-inch mounting depth. Unlike typical shallow subwoofers that compromise on performance, the thinPro12 achieves over 2 inches of peak-to-peak excursion—comparable to many standard subwoofers that are 10 inches deep. This remarkable excursion is made possible by Wavtech's patent-pending dual mirrored NBR spider design and axial force transfer assembly.

Superior Engineering for Exceptional Sound Quality

The thinPro12 subwoofer features a massive 5-inch voice coil with 4-layer winding on a vented polyimide composite former, providing powerful moving force with impressive 750W RMS power handling. The FEA-optimized dual-gap motor structure utilizes double-stacked strontium magnets to maximize flux density and control, resulting in a precise 20mm of linear Xmax.

The honeycomb composite cone made of Nomex and glass fiber creates an ideal balance of rigidity and lightweight construction for distortion-free bass reproduction. This construction ensures tight, accurate bass even during demanding musical passages.

Custom-Fit Enclosure for Optimized Performance

The Proline-X Micro Series Sealed Enclosure is meticulously crafted in the USA to complement the thinPro12 subwoofer perfectly. With compact dimensions of 24" W x 15.5" H x 5.125" D, this ridiculously small sealed design ensures tight, accurate bass response with exceptional transient response and musical detail while maintaining a minimal footprint. The enclosure features versatile mounting options, allowing for standard positioning or down-firing configuration with optional feet for enhanced bass coupling.

The personalization option with an acrylic plate on the front allows you to customize the appearance to match your vehicle's interior or showcase your audio system in style. The entire package is designed to deliver deep, powerful bass in a space-efficient format that doesn't compromise on sound quality.

What's Included

Includes:

  • 1x Wavtech thinPro12 Subwoofer (Part #: thinPRO12-2 or thinPRO12-4, depending on chosen impedance)
  • 1x Proline-X Micro Series Sealed Enclosure for 12" subwoofer
  • Pre-wired with 12-gauge OFC (Oxygen-Free Copper) wiring
  • Threaded inserts on the enclosure for secure woofer mounting

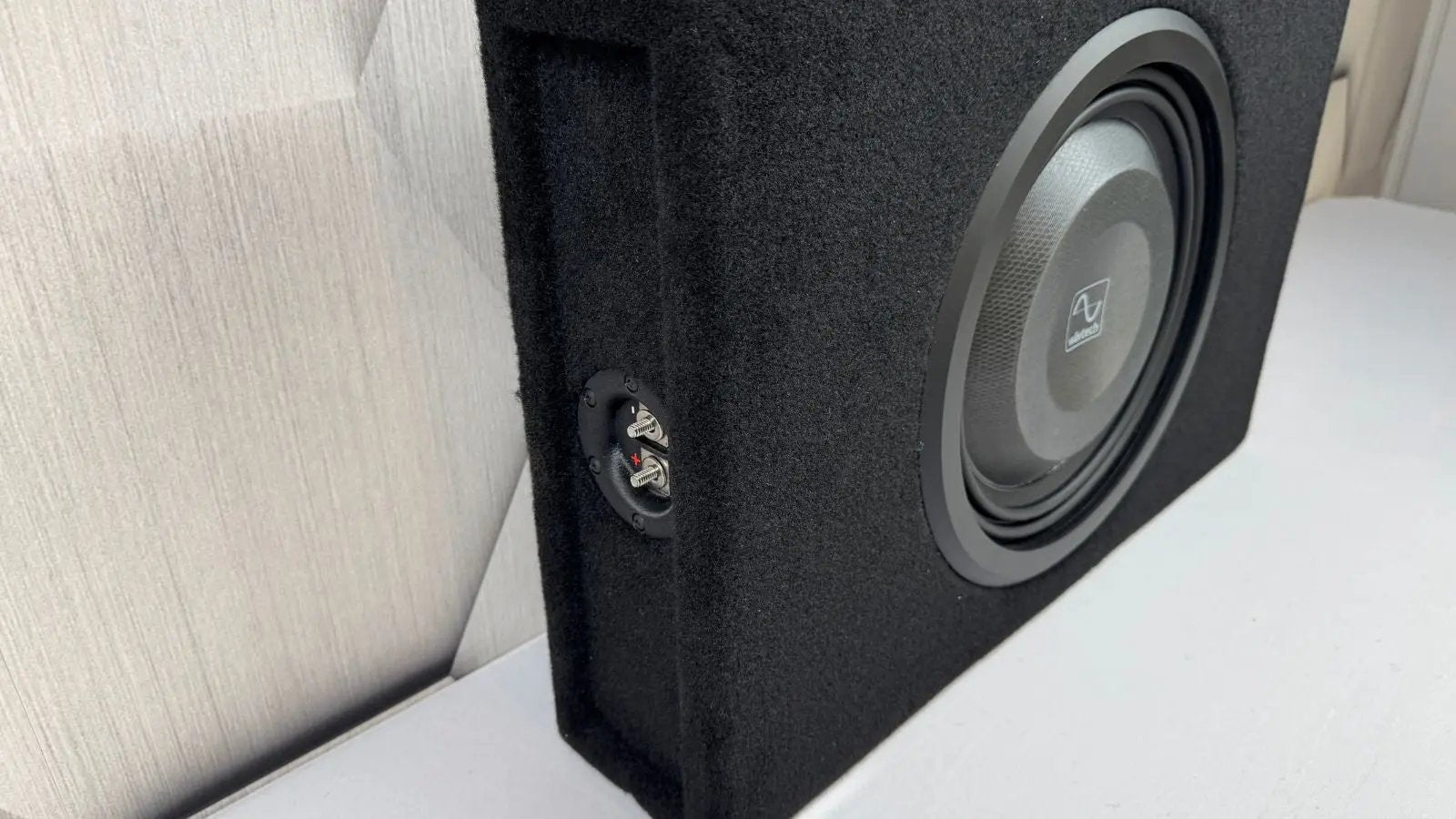

  • High-output terminal cup for reliable amplifier connection

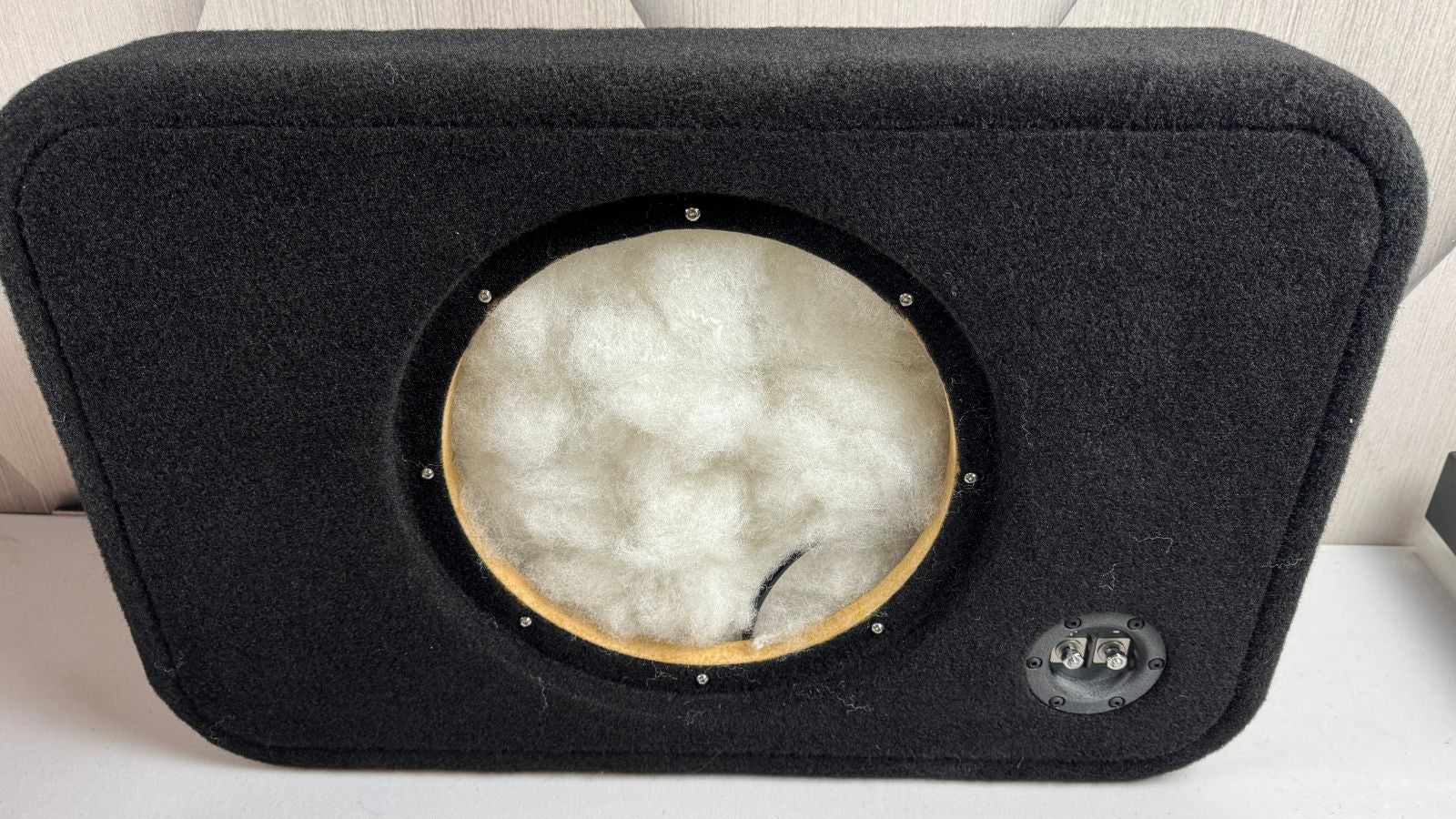

  • Pre-installed polyfill for improved acoustic performance
  • Optional feet for down-firing configuration
Vehicle Compatibility
  • The compact dimensions and versatile configuration of this enclosure make it ideal for a wide range of vehicles where space is at a premium:
  • Compact and mid-size sedans with limited trunk space
  • SUVs and crossovers with cargo area installation
  • Pickup trucks with under-seat or behind-seat installation
  • Sports cars and coupes with minimal trunk space
  • Any vehicle where maximizing cargo space while still enjoying powerful bass is a priority
  • The enclosure's sealed design allows it to perform optimally in limited spaces, delivering superior bass response without requiring the larger volume of a ported enclosure.
Why This Combo Works:

Highlights

✓ Combines space-saving shallow mount technology with high-performance bass capabilities

✓ Precisely matched enclosure volume optimizes the thinPro12's performance characteristics

✓ Sealed design ensures tight, accurate bass reproduction ideal for all music genres

✓ Premium materials and construction in both subwoofer and enclosure ensure long-term reliability

✓ Versatile mounting options (standard or down-firing) provide installation flexibility

✓ Custom personalization option allows for unique aesthetic integration

✓ Made in USA craftsmanship with precision CNC manufacturing for perfect fit

✓ Micro Series design maximizes sound quality while minimizing space requirements

Reviews

Product Details

Subwoofer Specifications

General Specifications

Nominal Size: 12 inches

Nominal Impedance: Available in 2 Ohm (thinPRO12-2) or 4 Ohm (thinPRO12-4)

Power Handling: 750W RMS / 2250W Peak (per subwoofer)

Recommended Power Range: 250W-750W RMS

Frequency Response: Fs - 300Hz

Voice Coil Diameter: 127mm (5 inches)

Mounting Depth: 3 inches

Cutout Diameter: 11-1/8 inches (282mm)

Electro-Mechanical Parameters

Fs: 25Hz (2 Ohm model) / 26Hz (4 Ohm model)

Re: 1.85 Ohms (2 Ohm model) / 3.3 Ohms (4 Ohm model)

Le: 2.48mH (2 Ohm model) / 3.82mH (4 Ohm model)

QMS: 5.02 (2 Ohm model) / 4.16 (4 Ohm model)

Qes: 0.55 (2 Ohm model) / 0.51 (4 Ohm model)

Qts: 0.49 (2 Ohm model) / 0.46 (4 Ohm model)

SPL/Sensitivity (1W/1m): 83dB (2 Ohm model) / 84dB (4 Ohm model)

Xmax: 20mm (0.79 inches)

Xmech p-p: 54mm (2.13 inches)

Subwoofer Features

Subwoofer Feature List:

Revolutionary Shallow Mount Design
The thinPro12 features a groundbreaking design with just 3 inches of mounting depth while delivering performance that rivals traditional deep subwoofers. This makes it perfect for installations where depth is limited but bass performance cannot be compromised.

Exceptional Excursion Capability
With over 2 inches of peak-to-peak excursion (54mm), the thinPro12 moves significantly more air than typical shallow subwoofers, producing deeper, more impactful bass. This is achieved through the patent-pending dual mirrored NBR spider design and axial force transfer assembly.

Advanced Motor Structure
The FEA-optimized dual-gap motor structure uses double-stacked strontium magnets to maximize flux density and control. This results in precise cone movement with 20mm of linear Xmax for clean, undistorted bass even at high output levels.

High-Performance Voice Coil
The massive 5-inch voice coil with 4-layer winding on a vented polyimide composite former provides powerful moving force and excellent thermal dissipation. This allows for sustained high-power handling without compression or failure.

Composite Honeycomb Cone
The honeycomb cone construction using Nomex and glass fiber creates an ideal balance of rigidity and lightweight design. This ensures the cone remains pistonic throughout its operating range, minimizing distortion and breakup modes.

Premium Connection Hardware
Heavy-duty 8AWG push terminals ensure solid, low-resistance connections to amplifier wiring, maximizing power transfer and minimizing signal loss.

Versatile Enclosure Performance
The thinPro12 excels in both sealed and ported enclosures. In sealed applications, box sizes range from 0.4-1.0 cubic feet, with the optimum being 0.6 cubic feet per subwoofer. This versatility allows for flexible installation options without compromising sound quality.

Related Video
Enclosure Specifications

Enclosure Specifications

Enclosure Type: Sealed

Construction Material: High-quality MDF with precision CNC cutting

Dimensions: 24" W x 15.5" H x 5.125" D

Internal Volume: Approximately 0.6 cubic feet (optimized for thinPro12 subwoofer)

Mounting Options: Standard positioning or down-firing with included feet

Exterior Finish: Premium black plush carpet

Terminal Type: High-power terminal cup with stainless steel hardware

Pre-wiring: 12-gauge OFC (Oxygen-Free Copper) wiring

Internal Bracing: Yes, for enhanced rigidity and reduced resonance

Polyfill: Pre-installed for improved acoustic performance

Enclosure Features

Space-Efficient Design
The Proline-X Micro Series Sealed Enclosure is specifically engineered to maximize bass performance while minimizing space requirements. This makes it ideal for vehicles where cargo space is at a premium.

Precision CNC Construction
Each enclosure is hand-built in the USA using precision CNC cutting technology to ensure perfect dimensions and fit. This precision manufacturing creates an airtight sealed environment that optimizes the performance of the thinPro12 subwoofers.

Versatile Mounting Options
The enclosure can be used in standard position or as a down-firing system with the included feet. This versatility allows for flexible installation options to suit different vehicle configurations and listening preferences.

Premium Terminal Cup
High-quality spring-loaded terminals ensure secure connections and optimal signal transfer from your amplifier to the subwoofers, maintaining signal integrity for the best possible sound quality.

Internal Bracing and Acoustic Treatment
Strategic internal bracing enhances structural rigidity to minimize unwanted resonances and vibrations, while pre-installed polyfill improves acoustic performance by reducing standing waves and optimizing frequency response.

Professional-Grade Construction
Built with premium materials and expert craftsmanship, the Proline-X enclosure features an interlocking design for superior structural integrity and durability. The black plush carpet exterior provides a sleek, finished appearance that integrates well with most vehicle interiors.

Frequently Asked Questions

What makes the Wavtech thinPRO12 different from other shallow mount subwoofers?

What are the advantages of the sealed enclosure design used in this package?

How much power do I need to drive this subwoofer effectively?

Can I use this enclosure in a down-firing configuration?

Can I add a second subwoofer to this enclosure in the future?

Will this system work well for all types of music?

How does the shallow design affect bass performance compared to traditional subwoofers?
