Best Sounding 12-Inch Subwoofers for Your Car
If you want to elevate your car audio experience, investing in a high-quality subwoofer can signi...
Read Article →
Prodigy

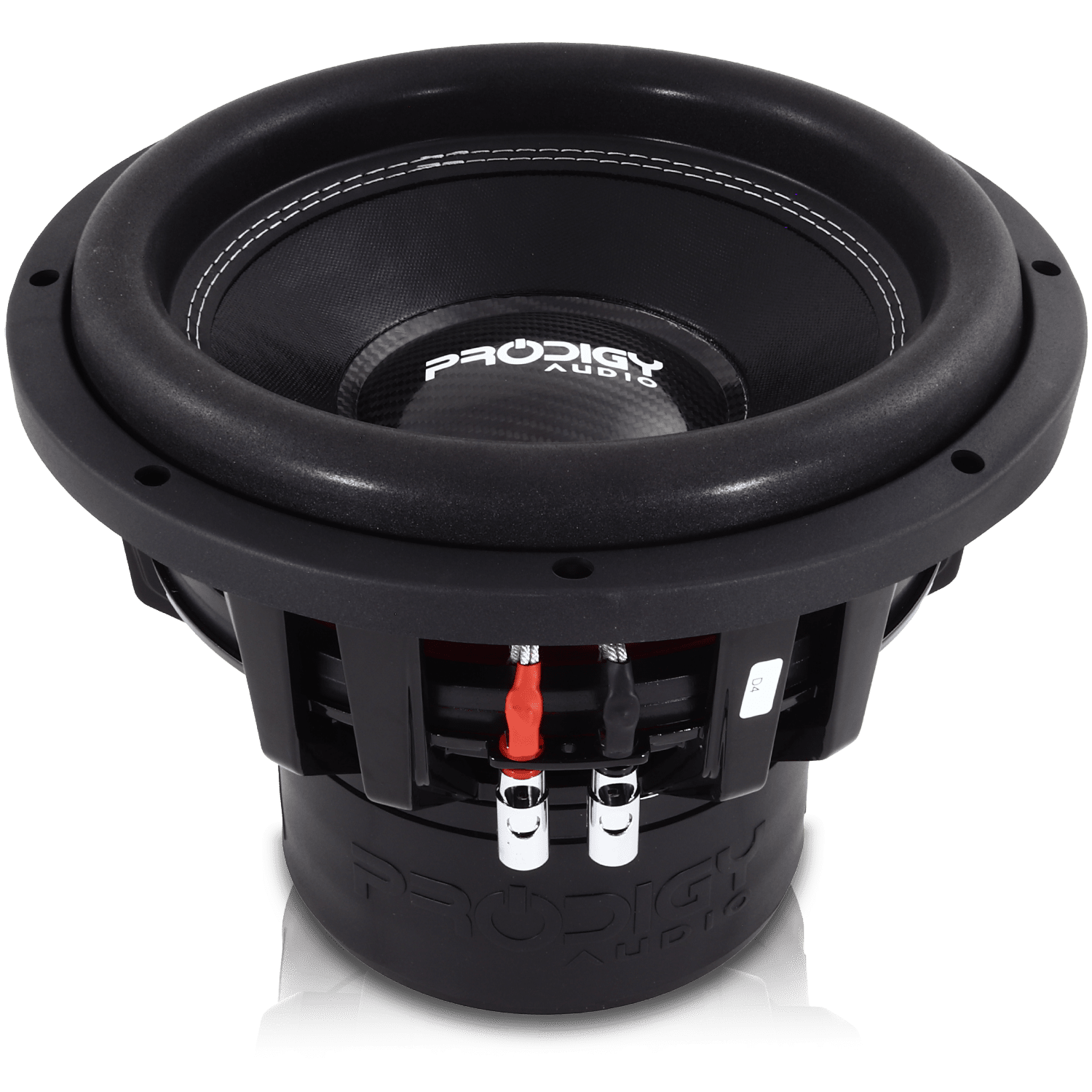

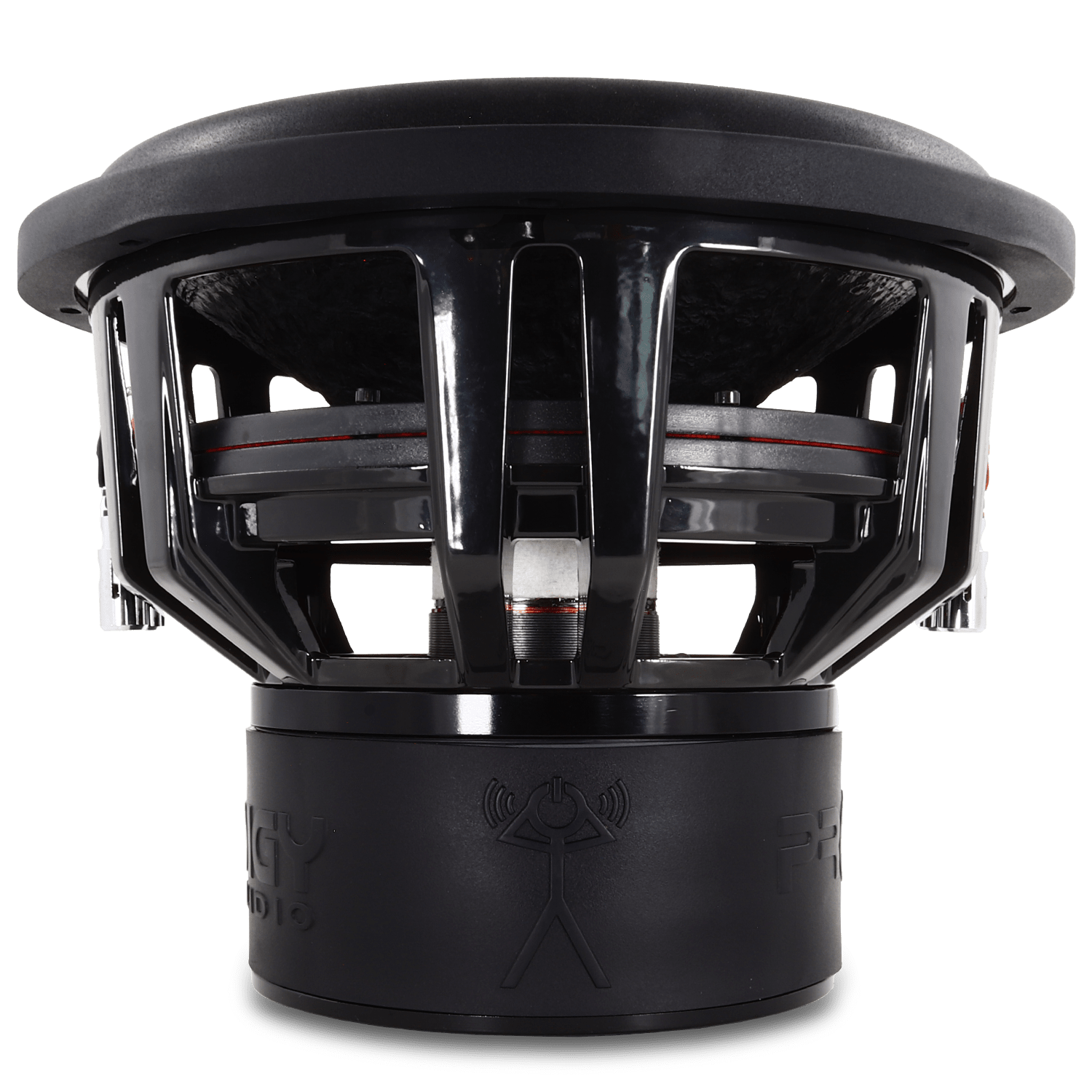

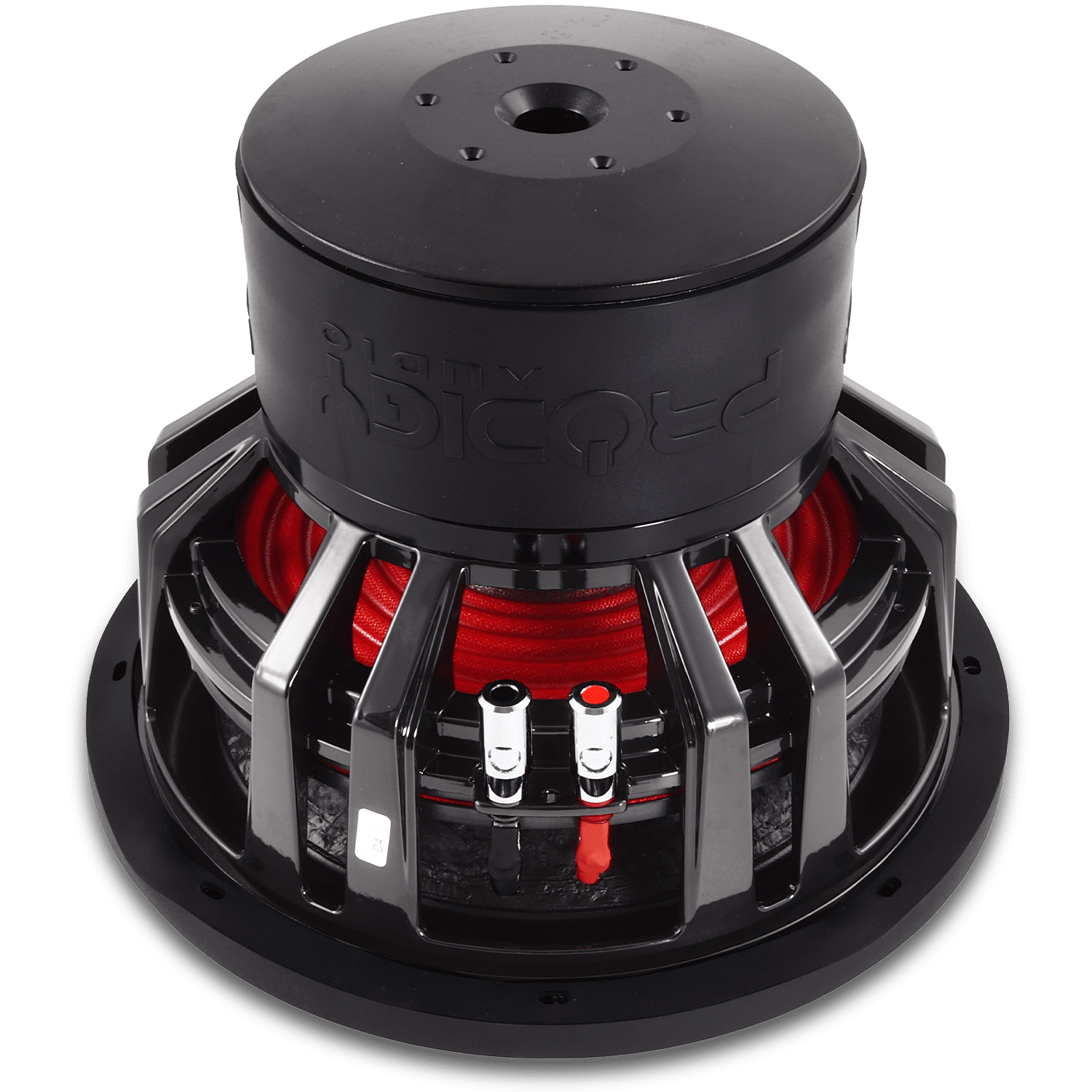

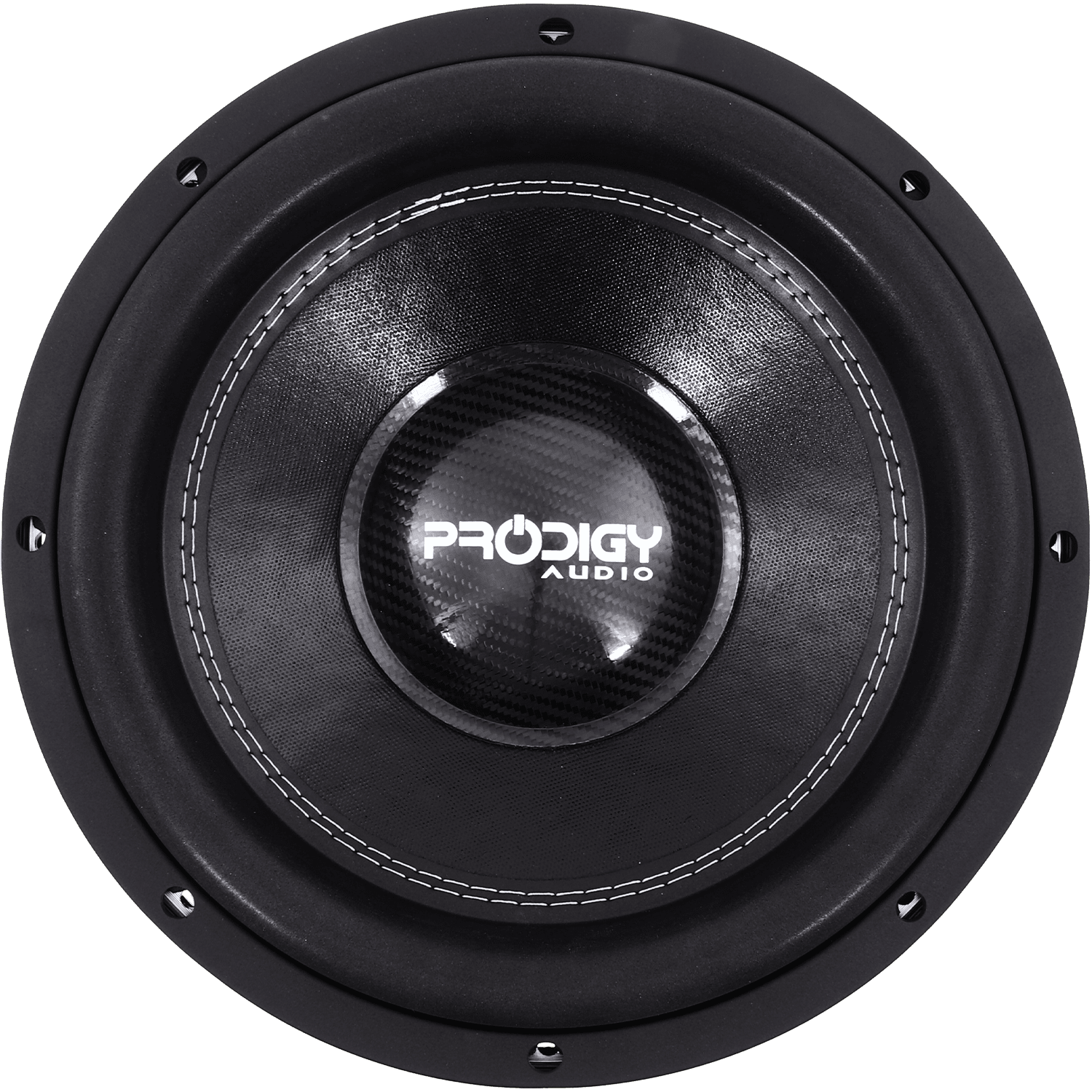

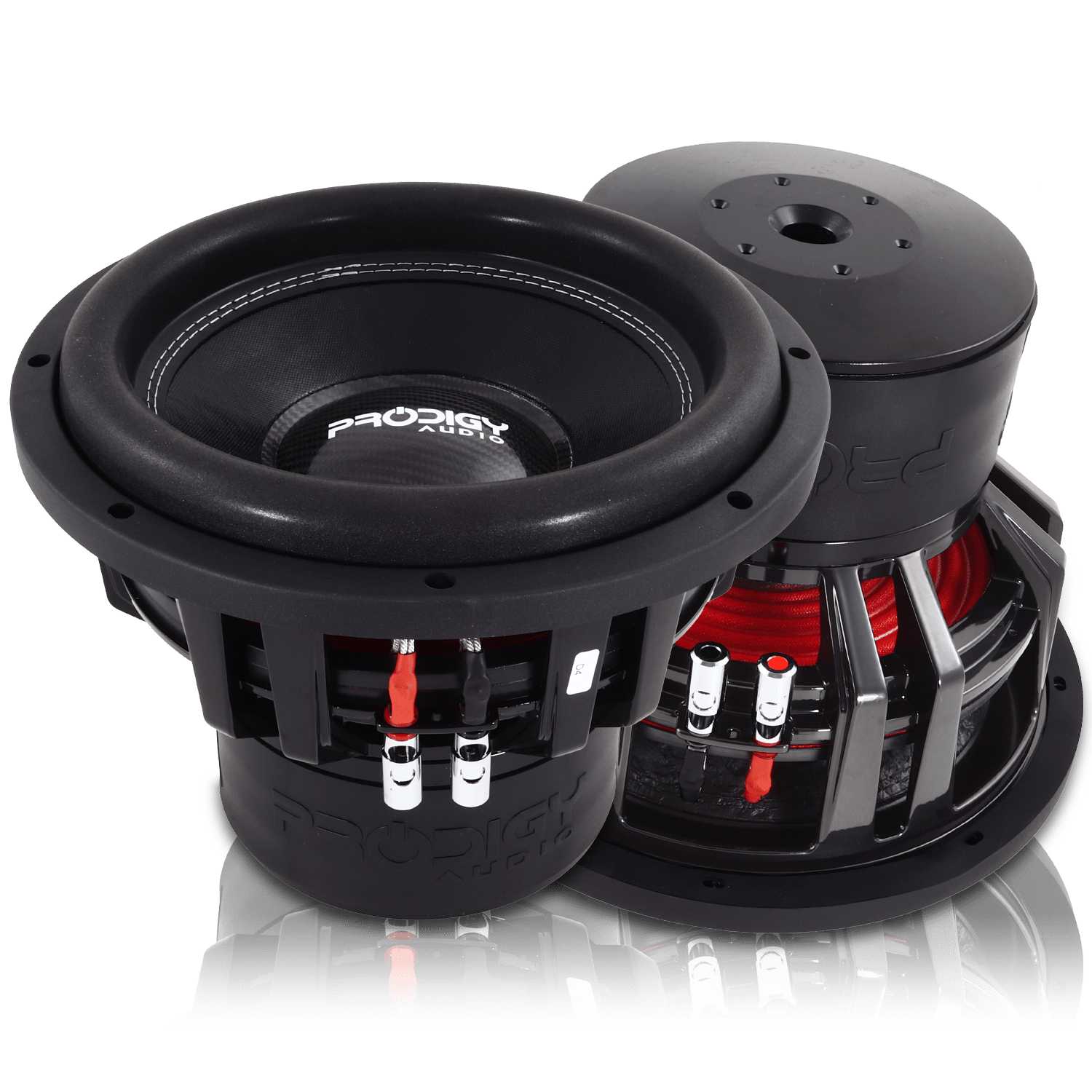

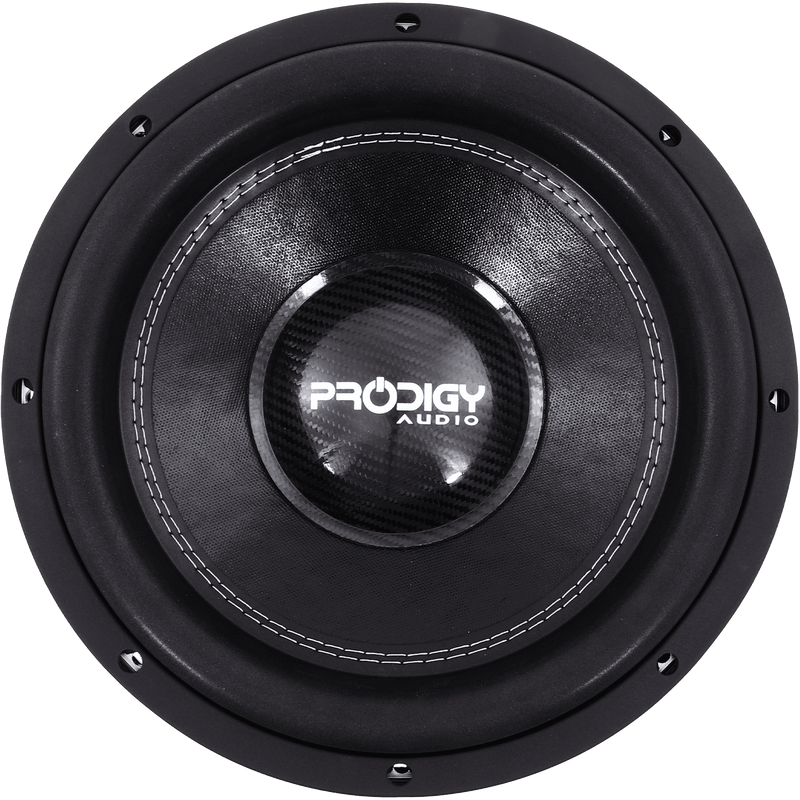

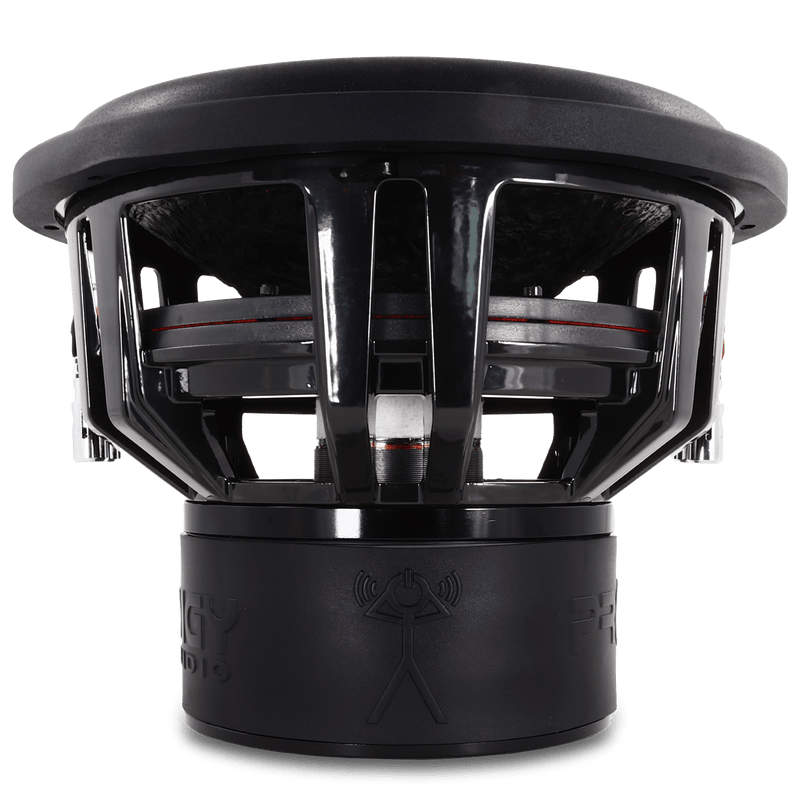

Prodigy Audio 1200 watt 12 inch Subwoofer | NB5 Series
SKU: NB5-12D2
$ 406.99
$ 487.99
Save
$ 81.00
QUICK SPECS
- Best For: High-Output Daily (SQL) & Competition
- Power: 1200 Watts RMS
- Topology/Class: Heavy-Duty High Excursion
- Sonic Character: Deep, Thick, Authoritative
Perfectly Paired With
Prodigy Audio 1200 watt 12 inch Subwoofer | NB5 Series
Free Insured Shipping
On orders over $99
Full Warranty
Authorized Dealer
Lifetime Support
Real Installers
INSTALLER'S TAKE
Product Details
Specifications
Box Advisor
FAQs
Recommended Enclosures
Video
Flagship SQL Performance
The Prodigy Audio NB5 Series 12-inch subwoofer is engineered for the enthusiast who demands more than just loud—it is built for structural authority. Designed to bridge the gap between daily reliability and competition-grade performance, the NB5-12 handles a true 1200 watts RMS without breaking a sweat. Whether you are chasing hair tricks or a perfectly balanced SQL stage, this driver provides the motor force and thermal capacity to sustain high-output sessions in the harshest environments.
Advanced Thermal & Motor Engineering
Heat is the enemy of performance, and the NB5-12 is built to defeat it. It features a massive motor structure with 280 ounces of high-grade ferrite and a 2.75-inch diameter voice coil wound with high-temperature flat aluminum wire. To keep the gap cool, Prodigy implemented a vented pole design combined with radial coil gap vents. The heavy-duty cast aluminum frame doesn't just provide rigidity; it acts as a massive heat sink, pulling BTU's away from the coil to ensure zero power compression during extended play.
Extreme Excursion & Accuracy
With 27mm of linear Xmax (one-way @ 70% BL) and a staggering 50mm of downward mechanical clearance, the NB5-12 moves massive amounts of air with clinical precision. A large inner pole Faraday shorting ring is utilized to minimize inductive distortion, ensuring that the bass remains tight and accurate even at the limits of its travel. Mated to a competition-grade treated paper cone and reinforced foam surround, this subwoofer delivers the "thick," deep lows that Prodigy Audio is known for.
| RMS Power | 1200 Watts |
| Voice Coil Diameter | 2.75" Flat Aluminum |
| Impedance | Dual 2 Ohm / Dual 4 Ohm |
| Fs (Resonance) | 35.8 Hz (D2) / 35.92 Hz (D4) |
| Xmax (Linear) | 27mm (One-Way) |
| Xmech (Peak-to-Peak) | 90mm+ (Clearance) |
| Sensitivity (1w/1m) | 85.9 dB (D2) / 84.7 dB (D4) |
| Vas | 14.02L (D2) / 14.33L (D4) |
| Qts | 0.432 (D2) / 0.533 (D4) |
| BL Force Factor | 28.26 (D2) / 30.15 (D4) |
| Mounting Depth | 8.750" |
| Cutout Diameter | 11.188" |
| Displacement | 0.21 ft³ |
Fs
35.8 Hz
÷
Qes
0.476
=
EBP
75
Ideal for Sealed
Ideal for Ported
0
50
100
150
200+
🎯 Recommended Enclosure: Can work in either sealed or ported, though usually leans toward sealed. Consider your goals: sealed for accuracy, ported for efficiency and output.
Pro Tip: EBP is just one factor in enclosure design. Always use complete Thiele-Small parameters and modeling software for optimal results. Our custom enclosures are engineered specifically for each subwoofer's parameters.
Which to Choose?
- Choose Sealed for tighter, punchier, and more accurate sound, or if space is limited
- Choose Ported for max output, deep bass, and high efficiency, especially for genres like hip-hop
Efficiency Bandwidth Product (EBP)
What is EBP?
The Efficiency Bandwidth Product (EBP) is calculated by dividing the subwoofer's resonant frequency (Fs) by its electrical damping (Qes). This single number helps predict which enclosure type will work best with your subwoofer.
How to Use EBP
- EBP < 50: Ideal for Sealed enclosures
- EBP 50-100: Can work in either, though usually leans toward sealed
- EBP > 100: Ideal for Ported enclosures
Enclosure Specifications
| Enclosure | Volume | Tuning |
|---|---|---|
| Sealed | 1.0 - 1.25 ft³ | N/A |
| Ported | 1.75 - 2.25 ft³ | 32Hz - 35Hz |
No enclosures have been added to this product yet.
