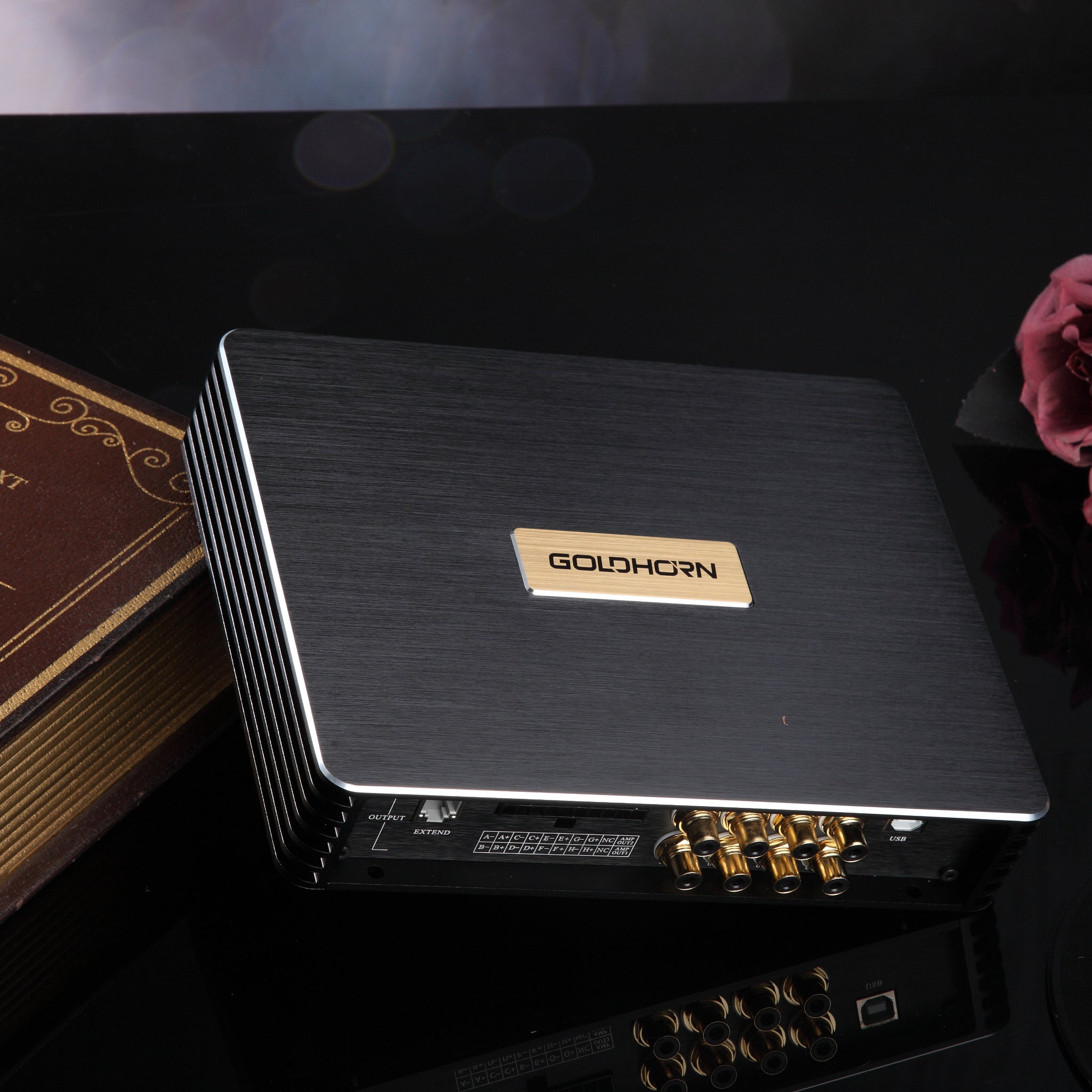

Goldhorn DSPA 816 Pro
Professional Audio Processing Meets Integrated Power
The DSPA 816 Pro occupies a strategic position: premium processing without flagship pricing. Built around the automotive-qualified ADAU1452 SigmaDSP processor and PCM1690 DAC, it delivers reference-grade fidelity with efficient Class D amplification in a compact form factor.
Comprehensive input flexibility includes: 8 high-level inputs, 2 RCA inputs, optical input (192kHz/24-bit), coaxial input (192kHz/24-bit), and Bluetooth 5.0 with aptX HD. The 16-channel DSP output enables complex systems with active crossovers, center channel processing, time alignment, and dedicated subwoofer management.
Strategic Positioning in Goldhorn's Lineup
The DSPA 816 Pro sits between the DSPA 810 Pro (10-channel, 8x65W Class AB) and DSPA 1012 Plus (20-channel, 10 amps):
- vs. DSPA 810 Pro: Adds 6 DSP channels, ADAU1452 processor, Class D amplification, coaxial digital input
- vs. DSPA 1012 Plus: 80% of processing capability at $200 savings—ideal for most non-competition builds
- Luxury Integration Sweet Spot: Perfect for high-end factory integration where 16 channels suffices
At $1,099.99, it undercuts AudioControl D-6.800 ($1,200-1,300) while offering superior specifications.
ADAU1452 SigmaDSP: Automotive-Qualified Processing Power
The heart of the DSPA 816 Pro is the Analog Devices ADAU1452 SigmaDSP, an automotive-qualified audio processor that represents a significant step up from entry-level DSP chips. This processor is part of Analog Devices' premium automotive audio lineup, designed specifically to meet the demanding environmental and reliability requirements of automotive applications.
ADAU1452 Technical Advantages
The ADAU1452 operates at 294.912 MHz, providing computational headroom for complex processing without latency or artifacts.
- 48-Channel Digital I/O: Handles up to 48 channels @ 192 kHz (implements 16 outputs)
- 32-Bit Processing: Maintains signal integrity through complex processing chains
- Automotive Qualified: Tested for -40°C to +105°C operation, voltage transients, EMI
- Flexible Architecture: Four independent serial ports for expandability
PCM1690 DAC: Reference-Grade Conversion
The Texas Instruments PCM1690 DAC (24-bit/192 kHz) delivers 112 dB dynamic range, <0.001% THD+N, and multi-channel conversion without crosstalk—the same DAC architecture found in products costing significantly more.
16-Channel DSP Architecture
Extensive system design flexibility:
- 3-Way Front Stage + Rear: 6 channels tri-amped front, 2 rear, 8 remaining for subs/center/height
- Multi-Subwoofer Zones: Independent tuning per location with unique EQ/crossover/time alignment
- Center Channel: Improved imaging and vocal clarity
- Dual Listening Positions: Optimized tuning for driver and passenger
Every channel features independent 31-band parametric EQ for surgical correction of acoustic anomalies with adjustable frequency, gain, and Q factor.
Class D Amplification: Efficiency Meets Performance
The DSPA 816 Pro's integrated amplification section delivers 8 x 80W @ 4Ω using Class D topology—a deliberate engineering choice that balances power efficiency, thermal management, and audio quality. This represents a notable evolution from the Class AB amplification used in the DSPA 810 Pro, offering measurable advantages for modern automotive installations.
Class D Advantages
- Thermal Efficiency: 85-90% efficiency (vs. 60-70% Class AB), less heat, compact chassis
- Power Draw: Lower current draw reduces electrical system stress
- Compact Form Factor: 296 x 217 x 43 mm fits factory locations/under seats
- Start-Stop Compatible: Handles voltage fluctuations with built-in protection
Amplifier Performance
| Specification | Performance |
|---|---|
| Power Output | 80W RMS x 8 @ 4Ω |
| THD+N (Amplifier) | 0.02% @ 1kHz, 1W |
| Frequency Response | 20Hz - 40kHz (±0.5dB) |
| Signal-to-Noise Ratio | >100dB (A-weighted) |
| Damping Factor | >200 @ 1kHz |
| Channel Separation | >75dB @ 1kHz |

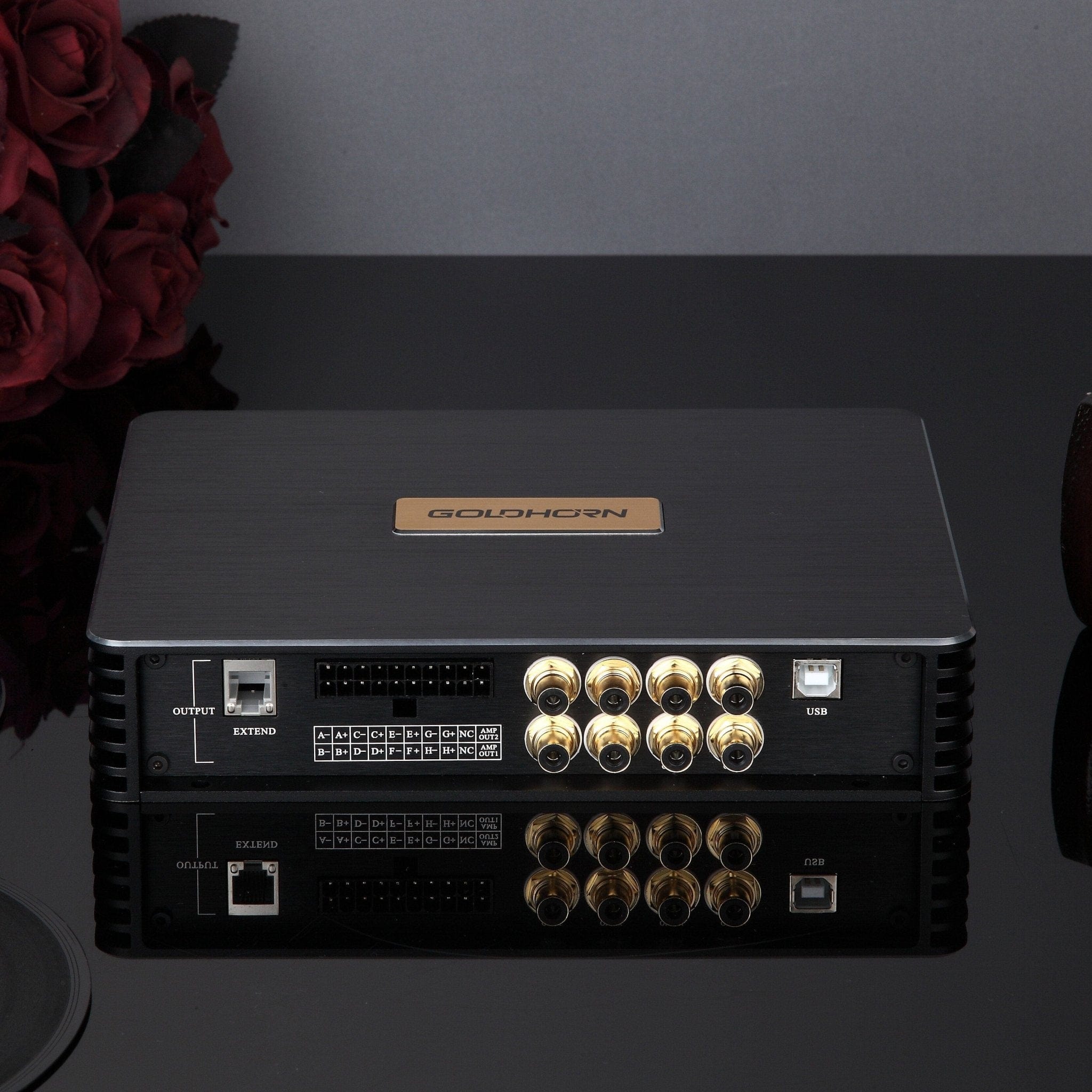

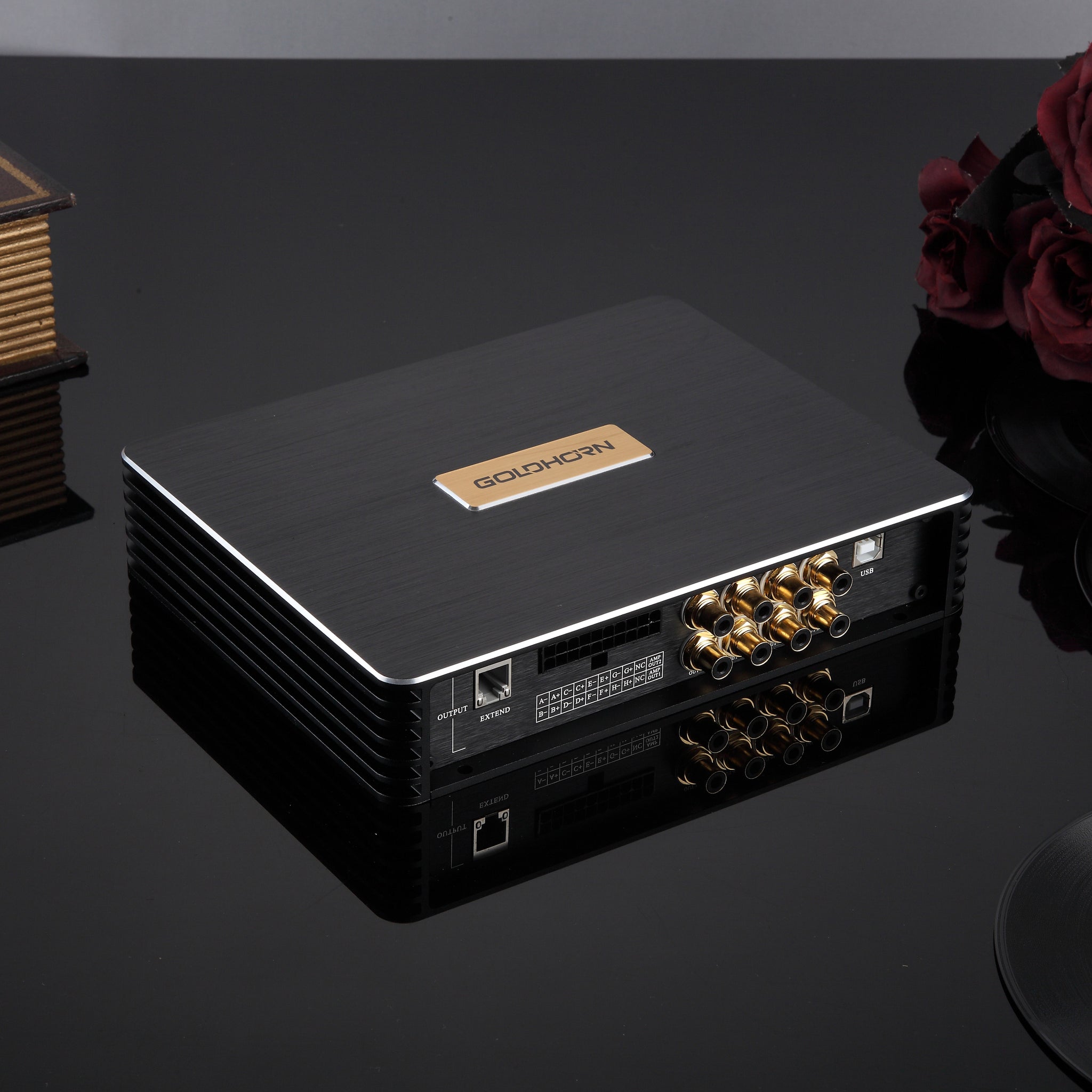

8 RCA Pre-Outputs
8 independent RCA pre-outputs @ 6V enable system expansion:
- Hybrid Amplification: Internal amps for front stage, external amps via RCA for subs/rear
- Full External: Use as pure DSP with all channels routed to external amplifiers
- Subwoofer Optimization: Dedicated high-power amps for subs, internal for full-range
The 6V output voltage (vs. 4V common in competitors) provides 50% more voltage swing, improving signal-to-noise in long cable runs.

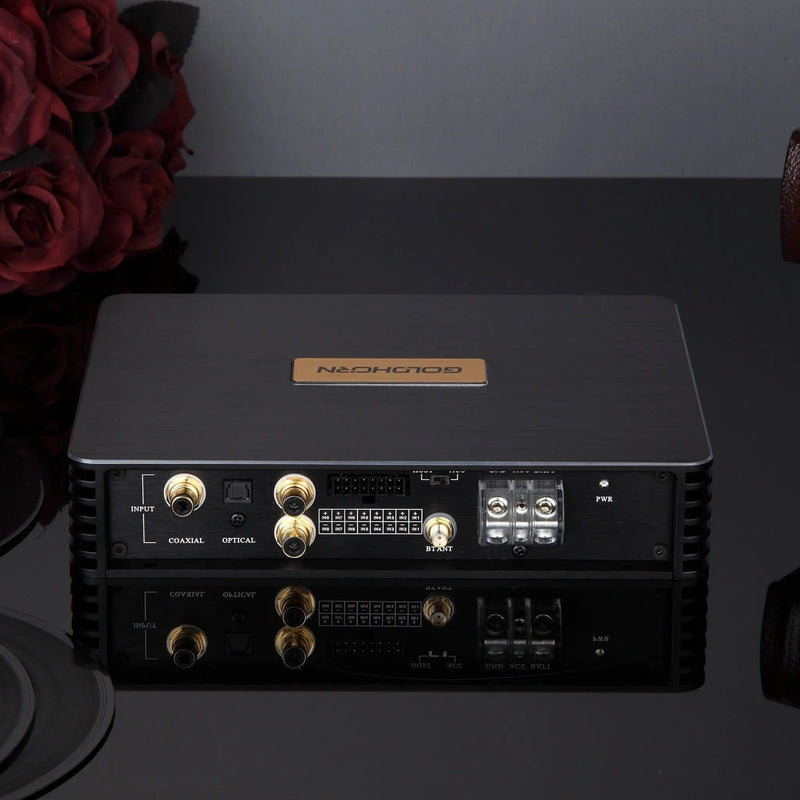

Universal Input Architecture: Every Source, Every Scenario
The DSPA 816 Pro's input architecture demonstrates Goldhorn's understanding of real-world installation challenges. Modern automotive audio systems must integrate with an increasingly diverse array of source equipment: factory head units with proprietary digital audio protocols, aftermarket receivers with analog outputs, digital streaming devices, and wireless connectivity. The DSPA 816 Pro accommodates all of these simultaneously.
8 High-Level Inputs
8 discrete high-level inputs accept speaker-level signals (0.2V-18V) directly from factory systems with optimized input impedance to prevent fault codes.
- Automatic Sensing: Auto-detects signal presence and adjusts sensitivity
- Noise Rejection: Advanced circuitry rejects ground loop noise and EMI
- Differential Design: Maximizes noise immunity in vehicle environments
Digital Inputs
Optical input (192kHz/24-bit Toslink) for luxury factory integration (Porsche, BMW, Audi), digital streaming devices, and external processors.
Coaxial input (192kHz/24-bit RCA) offers longer cable runs (10m+ vs. 5m optical), mechanical robustness, and alternative source compatibility. Having BOTH inputs is rare in this price category.
Bluetooth 5.0
Bluetooth 5.0 module (aptX HD, aptX, AAC, SBC):
- aptX HD: 24-bit/48kHz near-lossless for Android
- AAC Optimized: High-quality iOS device support
- Extended Range: 10m line-of-sight, multi-device stability
- External Antenna: Optimal placement for RF-shielded locations
USB-B PC Connection
USB-B port for PC software configuration, tuning, firmware updates, and real-time monitoring during installation.
Professional Signal Processing Tools
The DSPA 816 Pro's signal processing capabilities go far beyond basic equalization and crossover functions. Goldhorn has implemented a comprehensive suite of tools that enable professional-level system tuning and acoustic optimization.
31-Band Parametric EQ
Per Channel: Every output channel features independent 31-band parametric EQ with adjustable frequency (20Hz-20kHz), gain (±12dB), and Q factor (0.5-16).
Application: Surgical correction of speaker response irregularities, cabin acoustic anomalies, and installation-specific resonances.
Active Crossovers
Filter Types: Butterworth, Bessel, Linkwitz-Riley topologies with slopes from 6dB/octave to 48dB/octave.
Flexibility: Independent high-pass and low-pass filters on every channel enable complex multi-way active designs.
Time Alignment (0-20ms)
Precision: Adjust signal delay in 0.1ms increments (equivalent to ~3.4cm of acoustic path difference).
Application: Compensate for driver distance differences, align wavefronts from multiple speakers, create coherent soundstage imaging.
Phase Adjustment
Range: 0-180° phase rotation per channel for optimizing driver integration and managing acoustic interference.
Application: Critical for subwoofer integration and multi-driver arrays where phase alignment affects overall system response.
Input Mixing & Routing
Flexibility: Route any input to any output with adjustable mixing ratios, enabling complex signal distribution scenarios.
Application: Combine multiple sources, create aux-in feeds, implement upmixing from stereo to multi-channel.
8 Memory Presets
Instant Recall: Store complete system configurations and recall them instantly via software or optional remote control.
Application: Save different tuning profiles for various music genres, listening modes, or passenger configurations.
Output Level Control
Range: Independent level adjustment for each channel (-60dB to 0dB) with 0.1dB precision.
Application: Balance system levels, compensate for speaker sensitivity differences, adjust subwoofer integration.
EPS Error Protection
Monitoring: Real-time monitoring of amplifier temperature, voltage levels, and output signals with automatic protection engagement.
Protection: Thermal shutdown, over-voltage protection, DC offset detection, short-circuit protection.
Competitive Analysis: Value in the $1,000-1,300 DSP/Amp Category
The $1,000-1,300 price range for integrated DSP amplifiers is highly competitive, with offerings from established brands like AudioControl, Mosconi, Helix, and JL Audio. The DSPA 816 Pro's positioning in this market segment is strategic: it delivers premium specifications at a price point that undercuts most competitors while avoiding the compromises typical of budget-oriented products.
Head-to-Head Comparison
Goldhorn DSPA 816 Pro
AudioControl D-6.800
Helix DSP Mini
Competitive Assessment
vs. AudioControl D-6.800 ($1,199-1,299): DSPA 816 Pro offers double the DSP channels (16 vs. 8), dual digital inputs (vs. optical only), Bluetooth 5.0 (not available), and 8 vs. 6 amplified channels—$100-200 less.
vs. Helix DSP Mini ($1,100-1,200): 816 Pro wins with 16 vs. 8 DSP channels, 8 vs. 4 amps, integrated digital inputs, and standard Bluetooth.
vs. Mosconi DSP 6to8 PRO ($1,200-1,400): Pure DSP with no amplification. 816 Pro delivers 16 DSP channels AND 8x80W amplification for less.
vs. JL Audio VXi600 ($1,300-1,400): 816 Pro adds 2 amps, doubles DSP channels (16 vs. 8), includes coaxial input, adds Bluetooth—$200+ savings.
At $1,099.99, specifications typically found $200-400 higher: 16 DSP channels (vs. 8-10), dual digital inputs, integrated Bluetooth, 8 amplified channels (vs. 4-6), premium ADAU1452 processor.
Installation Advantages & Integration Scenarios
The DSPA 816 Pro's design reflects Goldhorn's understanding of real-world installation challenges. Professional installers face tight deadlines, space constraints, and complex integration requirements—the DSPA 816 Pro addresses these challenges through thoughtful engineering.
Installation Scenarios
Compact 296 x 217 x 43 mm fits factory locations, under seats, behind panels.
Luxury Factory Integration: Porsche Cayenne factory Bose → high-level + optical inputs → 3-way front + rear + dual subs → maintains factory controls
Enthusiast Build: Toyota 4Runner aftermarket head unit → internal amps for bi-amped front + rear → RCA pre-outs to external sub amps
Multi-Source Commercial: Shuttle van factory + iPad + Bluetooth → DSP input mixing → automatic source switching
Start-Stop Compatibility
9V-16V operation, soft-start circuitry, 1-2 second wake-up, power supply monitoring with protected mode.
PC Software
Full-featured software included (no extra cost): signal flow visualization, real-time metering, preset management, firmware updates, EQ graphing, tuning file storage.
Complete Technical Specifications
| Category | Specification |
|---|---|
| DSP PROCESSOR | Analog Devices ADAU1452 SigmaDSP (Automotive Qualified) |
| DSP Channels | 16 Independent Output Channels |
| Processing Resolution | 32-bit Internal, 24-bit/192kHz I/O |
| Core Clock Speed | 294.912 MHz |
| DAC | PCM1690 (Texas Instruments) - 24-bit/192kHz |
| DAC Dynamic Range | 112 dB Typical |
| DAC THD+N | <0.001% @ 1kHz |
| AMPLIFICATION | 8 x 80W RMS @ 4Ω (Class D) |
| Total System Power | 640W RMS (All Channels Driven) |
| Amp THD+N | 0.02% @ 1kHz, 1W |
| Amp Frequency Response | 20Hz - 40kHz (±0.5dB) |
| Amp Signal-to-Noise | >100dB (A-weighted) |
| Damping Factor | >200 @ 1kHz |
| Channel Separation | >75dB @ 1kHz |
| INPUTS | |
| High-Level Inputs | 8 Channels (0.2V - 18V) |
| RCA Inputs | 2 Channels (0.2V - 8V) |
| Optical Input (S/PDIF) | 1 x Toslink (Up to 192kHz/24-bit) |
| Coaxial Input (S/PDIF) | 1 x RCA Digital (Up to 192kHz/24-bit) |
| Bluetooth | Bluetooth 5.0 (aptX HD / aptX / AAC / SBC) |
| OUTPUTS | |
| RCA Pre-Outputs | 8 Channels @ 6V Maximum |
| RCA Output Impedance | 470Ω |
| RCA THD+N | <0.002% |
| RCA Signal-to-Noise | 108dB |
| DSP PROCESSING | |
| Parametric EQ | 31 Bands per Channel (20Hz-20kHz, ±12dB, Q: 0.5-16) |
| Crossover Types | Butterworth, Bessel, Linkwitz-Riley |
| Crossover Slopes | 6, 12, 18, 24, 36, 48 dB/octave |
| Time Alignment | 0-20ms per Channel (0.1ms Increments) |
| Phase Adjustment | 0-180° per Channel |
| Input Mixing | Flexible Routing with Adjustable Mixing Ratios |
| Memory Presets | 8 User-Programmable Presets |
| CONNECTIVITY | |
| PC Connection | USB-B (Configuration & Firmware Updates) |
| Remote Control | Optional Wired Remote (Sold Separately) |
| Bluetooth Antenna | External Antenna Connection |
| POWER REQUIREMENTS | |
| Operating Voltage | 9V - 16V DC |
| Idle Current Draw | <0.5A |
| Maximum Current Draw | 60A (All Channels Full Power) |
| Recommended Fuse | 2 x 40A (80A Total) |
| PROTECTION FEATURES | |
| Thermal Protection | Automatic Temperature Monitoring with Shutdown |
| Over-Voltage Protection | Automatic Protection Above 18V |
| Under-Voltage Protection | Automatic Protection Below 8V |
| Short Circuit Protection | Per-Channel Short Detection and Shutdown |
| DC Offset Protection | Automatic DC Detection and Relay Disconnection |
| PHYSICAL | |
| Dimensions (L x W x H) | 296 x 217 x 43 mm (11.7" x 8.5" x 1.7") |
| Weight | 2.3 kg (5.1 lbs) Approximate |
| Chassis Material | Aluminum Alloy Heat Sink Design |
| Operating Temperature | -40°C to +85°C (Automotive Qualified) |
| WARRANTY | 1 Year Manufacturer Warranty (USA) |
Target Applications
Professional Installers: Versatile, reliable, profitable pricing, responsive support
Enthusiast DIY: Premium features, approachable software, growing community, upgrade path
Luxury Integration: Digital connectivity, factory control preservation, compact footprint
Competition SQ: 31-band parametric EQ, 16 DSP channels, measurement-ready, budget-friendly
Why Choose the Goldhorn DSPA 816 Pro?
In a market crowded with DSP amplifiers making bold claims, the DSPA 816 Pro distinguishes itself through substantive advantages rather than marketing hyperbole. Here's why this product deserves serious consideration:
1. Advanced Processing: ADAU1452 SigmaDSP (same family as $1,500-2,000 products), 16 channels, 31-band parametric EQ, comprehensive crossovers/time alignment
2. Dual Digital Inputs: BOTH optical AND coaxial—rare in this category. Saves $100-200 in adapters.
3. Professional Bluetooth: aptX HD (Android) + optimized AAC (iOS)—not basic SBC-only
4. Hybrid Amplification: 8x80W internal + 8 RCA pre-outs @ 6V for external expansion
5. Professional Build: Aluminum heatsink, professional connectors, reliable engineering
6. Software Included: No "basic" vs. "pro" versions, no subscriptions, full access standard
7. Proven Engineering: Low failure rates, high customer satisfaction, serious DSP contender
8. Smart Pricing: $1,099.99—undercuts established brands with comparable/superior specs
Frequently Asked Questions
Q: vs. DSPA 810 Pro? ADAU1452 processor (vs. 1450), 16 channels (vs. 10), Class D (vs. AB), coaxial input added, Bluetooth 5.0 aptX HD
Q: Factory head unit compatibility? Yes, 8 high-level inputs preserve steering wheel controls, voice commands, navigation, safety chimes
Q: Need external amps? 8x80W sufficient for most systems. Add external amps via RCA pre-outs for power-hungry drivers or large subs
Q: Software beginner-friendly? Yes, graphical interface with learning curve. Expect hours to master, aided by online resources and community
Q: Optical vs. coaxial? Same data (192kHz/24-bit), different connections. Optical: electrical isolation. Coaxial: longer runs, robust. Having both ensures compatibility
Q: Active 3-way crossover? Yes, dedicate 6 channels to tri-amped front stage with independent crossovers, EQ, time alignment, phase
Q: Start-stop compatible? Yes, designed for start-stop with soft-start circuitry, handles voltage fluctuations
Q: Warranty? 1-year manufacturer warranty, handled through authorized dealers
Q: Power draw? Idle <0.5A, typical 15-25A, max 60A. Use 2x40A fused connection
Q: Bluetooth streaming? Yes, aptX HD (Android), optimized AAC (iOS), external antenna for RF-shielded locations
Final Recommendations & Summary
At $1,099.99, the DSPA 816 Pro delivers premium processing (16-channel ADAU1452 DSP), versatile amplification (8x80W Class D), comprehensive connectivity (dual digital + Bluetooth + analog), and professional software in a compact package.
Ideal For:
- Professional Installers: Versatile mid-premium with healthy margins
- Enthusiast DIY: Flagship processing without flagship pricing
- Luxury Factory Integration: Digital connectivity, DSP capability, factory control preservation
- SQ Competitors: Advanced tuning tools, budget-friendly
- Multi-Source Systems: Factory + aftermarket + digital + wireless integration
Consider Alternatives If:
- Need 20+ channels → DSPA 1012 Plus
- Tighter budget → DSPA 810 Pro
- Want established brand → AudioControl/JL Audio (higher cost)
- Pure DSP only → Mosconi/Helix/AudioControl
Bottom Line
Specifications typically found $200-400 higher. Exceptionally competitive for professional installers and enthusiasts maximizing capability within budget.
The Goldhorn DSPA 816 Pro is in stock, backed by manufacturer warranty, and ready to ship. Whether you're planning a luxury factory integration, a competition-level sound quality build, or an enthusiast system that maximizes value, this product has the processing power, amplification, and connectivity to deliver excellent results.
Experience the Goldhorn difference—premium processing meets practical value.
| Specification | Details |
|---|---|
| Model | DSPA 816 |
| DSP Chip | ADAU1452 |
| DAC Chip | PCM1690 |
| ADC Chip | 2 x PCM1840 |
| Opamp | NJM4580 & MC33078 |
| Capacitors | High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps |
| PC Connection | USB - B |
| Processing Functions | Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps / Master Gain: 0 ~ 60dB / Channel gains: -20dB ~ +5dB, Polarity: Phase Reversal 0 or 180 / EQ filters Q 0.5 ~ 15 @ 0.1 steps / Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative EQ Linking - Relative or Absolute, Crossover Linking - With EQ link on, Freq Link button will link crossovers |
| Output EQ | EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass |
| Crossover | Butterworth & Bessel:6,12,18,24,30,36,42,48dB / Linkwitz: 12, 24, 36dB |
| Delay | 0 ~ 20ms / 0.02ms Steps |
| Inputs | 8 x Hi / 2 x RCA / Opt / Coax / BT |
| XO Phase Rotation | Variable Phase shift at HP and LP filters from 0° ~ 359° |
| Input EQ | EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps |
| Frequency Resp | 20Hz ~ 40kHz |
| Operating Voltage | 10V ~ 16V |
| Input Sens (V) RCA | 3V Max |
| Input Sens (V) Hi | 16V |
| RCA Out Voltage | 8 x 6V |
| RCA Out Specs | THD+Noise < 0.003 S/N >108 |
| Amp Outputs | 80W x 8 |
| Amplifier Class | Class D |
| Dimensions (mm) | 218 x 170 x 43 |
| Start-Stop ready | Yes |
| EPS Error Protection System | Yes |
| Finish | Black anodized Aluminum |
| Auto Turn On via DC Offset or Signal Sensing | Yes |
| Remote Turn on Output | Yes |
| Built in Bluetooth | Yes |
| THD+Noise Amplifier | 0.03% |
| S/N ratio Amplifier | >100dB |
| THD+Noise RCA out | <0.002% |
| S/N ratio RCA out | 108dB |
| Fuse Rating | 40A |
| Input impedance | 6 Ohms |
| Controller | Optional |
| Input Mixer | Yes |
| Presets | 8 |
| Software Interface | 64bit Windows 8, Windows 8.1 or Windows 10/11 |
| Navigation Mode | Yes |
| Power off Delay | Yes Variable |
| Noise Gate (analog Input) | Yes |
| Automatic Switching Config. | Yes |
| Input EQ | 5 Bands / Chan |
| Input All Pass Filters | 1st and 2nd Order |
| Input Delay | 0 ~ 10ms / Chan |
| Variable Phase 0~360 at crossover filters | Yes |
| Output EQ | 31 All Channels |
| Hi-Shelf, Low-Shelf | Yes |
| Output All Pass filters | 31 per channel |
| Output Delay | 0 ~ 20ms @ .02 steps |
What's in the Box?
-
Goldhorn DSPA 816 Pro | 16 Channel DSP / 8 x 80w Amplifier
-
Goldhorn 3m Tuning Cable - USB
-
Goldhorn BT / WiFi Antenna
-
Goldhorn Owners Manual
-
Goldhorn Power and Speaker Harness
Software can be downloaded from the Goldhorn-USA download page.
Goldhorn DSPA 816 Pro | 16 Channel DSP / 8 x 80w Amplifier
