Proline X

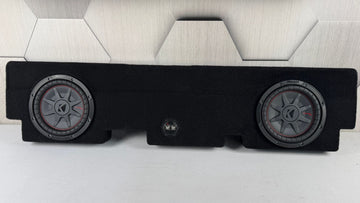

2015-2023 Ford F-150/F-250 Behind-Seat Dual 10" Enclosure – Loaded with Kicker CompRT 10
- Best For: 2015-2023 F-150, 2017-2023 F-250 behind seat
- Configuration: Dual CompRT 10 Sealed, Vehicle Specific Series, loaded
- Volume: 1.05 ft³ net total (0.525 ft³ per driver)
- Tuning: N/A, sealed
- Sonic Character: Balanced, controlled with usable low end
Financing available. Choose Shop Pay Installments at checkout.
What's Included
2015-2023 Ford F-150/F-250 Behind-Seat Dual 10" Enclosure – Loaded with Kicker CompRT 10
Proline X Vehicle Specific Series Enclosure for the Kicker CompRT 10
Cut and tuned for a pair of Kicker CompRT 10 drivers, built to drop into the 2015-2023 F-150, 2017-2023 F-250
Built Around the Kicker CompRT 10
Nothing about this box is generic. Every layer is cut to the CompRT 10's published sealed target, with the baffle bored to the CompRT 10's 9.125 in cutout with 8/32 threaded inserts set on the back face, and clearance cut for its 3.4375 in mounting depth.
The CompRT 10 carries a published Fs of 28.7 Hz, Qts of 0.486 and Vas of 35.36 litres, and an EBP of 57, which puts it in transition enclosure territory. We ran the alignment math on that data and built the box to land where it belongs.
One Common Chamber
Both CompRT 10 drivers share a single 1.05 cubic foot volume, which works out to 0.525 cubic feet of loading per driver. Behind seat enclosures are built common chamber when they carry two drivers.
True net, not marketing net. Internal volume is calculated by summing each CNC cut layer's opening, not estimated from external dimensions minus wall thickness.
Proline X Vehicle Specific Series Construction
This enclosure is stack fabricated on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Each layer is cut to the cab profile and the stack does the joining. Dowel reinforcement runs between layers as tension hardware only, which is what lets the shell follow a behind seat contour without a corner joint in it.
Threaded Inserts, Not Wood Screws
8/32 threaded inserts are set on the backside of the baffle so the driver mounts on machine screws. Pull it a dozen times and the threads are still there.
Pre-Wired Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired internally with 12 gauge OFC. No CCA anywhere in the build.
Damped and Finished
Polyfill is pre-installed to smooth the in box response, and the shell is wrapped in plush black carpet. Built in Tullahoma, Tennessee.
Enclosure Only or Loaded
Order the enclosure bare and mount your own pair of CompRT 10 drivers, or order it loaded and we mount the drivers, dress the wiring and ship it ready to bolt in. Loaded builds are available in Dual 2-Ohm (D2) or Dual 4-Ohm (D4), selectable by variant.
Sealed Enclosure Performance: Pre-Calculated
Using the published Thiele Small parameters for the Kicker CompRT 10, here is the predicted Qtc, system resonance (Fc) and F3 rolloff for this enclosure. Calculated with the same formulas as the Audio Intensity Sealed Box Calculator.
| Enclosure Size | Qtc | Fc | F3 |
|---|---|---|---|
| 0.53 cu ft 1.05 cu ft common chamber, 0.525 per driver | 0.894 | 52.8 Hz | 43.9 Hz |
Kicker CompRT 10 Frequency Response | Sealed, 0.53 cu ft
Note on coil choice: The figures above are the D2 set. The D4 CompRT 10 carries Qts 0.618 and Vas 27.8 litres, and a different Fs of 32.3 Hz, which in this same 0.53 cubic foot volume lands at Qtc 1.047, Fc 54.7 Hz and F3 42.2 Hz. Worth accounting for if you are choosing between the two. Run your own numbers in the Sealed Box Calculator.
Cut for the Driver, Not the Catalog
Select your configuration above. This enclosure ships free to the lower 48 with a 2 year limited warranty, built one at a time in Tullahoma, Tennessee.
| Enclosure | Proline X Vehicle Specific Series, direct fit behind seat |
| Fits | 2015-2023 F-150, 2017-2023 F-250 |
| Driver | Kicker CompRT 10, two pre-installed |
| Voice Coil | Available D2 or D4 by variant, coils wired in parallel: 1 ohm per driver on the D2, 2 ohm on the D4 |
| Enclosure Type | Sealed |
| Chamber | Common chamber |
| Net Internal Volume | 1.05 ft³ net total (0.525 ft³ per driver) |
| Tuning Frequency | N/A, sealed |
| Predicted Qtc | 0.894 |
| Predicted F3 | 43.9 Hz |
| Material | Langboard Elite MDF, 3/4" (18mm) |
| Subwoofer Cutout | 9.125 in |
| Max Driver Mounting Depth | 3.5" |
| Terminal Cup | Proline X ABS/Carbon Fiber, stainless hardware, copper ring terminals |
| Wiring | Pre-wired 12g OFC speaker wire |
| Polyfill | Installed |
| Finish | Automotive carpet |
| Warranty | 2 year limited |
| Built | Tullahoma, Tennessee |
| Brand + Model | Kicker CompRT 10 |
| RMS Power | 400 Watts |
| Peak Power | 800 Watts |
| Voice Coil Config | Dual 2-Ohm (D2) or Dual 4-Ohm (D4) |
| Xmax | 13.35 mm |
| Cone Area (Sd) | 349.67 cm2 |
| Sensitivity | 84.465 dB |
| Mounting Depth | 3.4375 in |
| Cutout Diameter | 9.125 in |
| Manufacturer Sealed Recommendation | 0.4 to 1.25 cu ft |
| Fs | 28.7 Hz |
| Qts | 0.486 |
| Vas | 35.36 L |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
