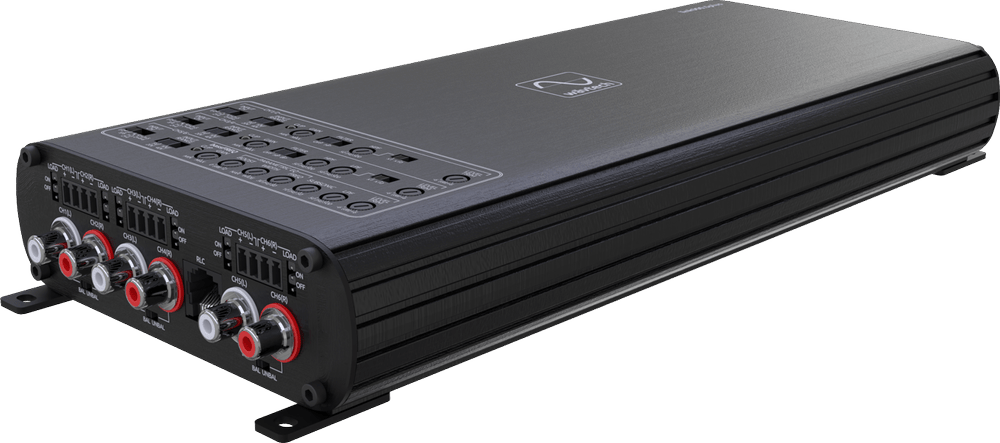

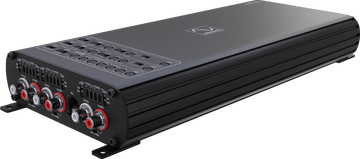

Wavtech link1000.5plus 5 Channel Amplifier

The Factory Integration Five-Channel Redefined

The Wāvtech Link 1000.5 Plus represents a paradigm shift in five-channel amplifier design: it's not merely an amplifier that can work with factory source units—it's an amplifier engineered from the ground up to solve the specific challenges that factory integration presents. While conventional five-channel amplifiers require external line output converters, signal processors, and complex wiring to interface with OEM audio systems, the Link 1000.5 Plus integrates these functions directly into the amplifier architecture, eliminating multiple components and their associated failure points.

At the core of this integration capability is Wāvtech's adaptive OEM load technology, which automatically adjusts to speaker-level inputs ranging from standard 4-8V signals up to 40V—the voltage levels found in premium factory systems from Bose, Harman Kardon, Mark Levinson, and other OEM audio brands. This isn't the static loading found in basic line output converters that work adequately with some vehicles but cause problems with others. The Link 1000.5 Plus employs dynamic impedance matching that adapts to the specific characteristics of each vehicle's factory amplifier output, maintaining signal integrity while preventing the impedance-related issues that plague conventional LOC-based installations.

The amplifier's built-in six-channel summing capability further distinguishes it from competitors. Most factory vehicles output discrete signals for front left, front right, rear left, rear right, center channel, and subwoofer—six distinct channels that traditional aftermarket amplifiers cannot accommodate without external processing. The Link 1000.5 Plus accepts all six factory outputs and intelligently sums them according to user configuration: full-range output for all channels, high-pass filtering for mains, low-pass for subwoofer, or any combination that matches the specific system architecture. This eliminates the need for separate summing processors that cost $100-200 and add complexity to installations.

But the Link 1000.5 Plus addresses the most common five-channel amplifier limitation: inadequate subwoofer power. Where typical five-channel designs allocate 200-300W to the subwoofer channel as an afterthought, the Link 1000.5 Plus delivers a genuine 500W RMS at 2Ω—sufficient for the vast majority of single-subwoofer systems without requiring a separate Monoblock amplifier. Combined with 75W per channel for the four main channels (expandable to 125W at 2Ω or 250W bridged), the Link 1000.5 Plus provides complete system amplification in a single 11.9" × 5.5" × 1.65" package that fits where conventional multi-amplifier systems cannot.

Wāvtech: OEM Integration Specialists Enter Amplification

Wāvtech established its reputation in the car audio industry not through conventional speakers or amplifiers, but by solving the increasingly complex challenge of integrating aftermarket equipment with modern factory audio systems. For over a decade, the company specialized exclusively in line output converters, signal processors, and interface devices that extract and condition signals from OEM head units and factory amplifiers—products that most consumers never see but that professional installers depend on daily.

This singular focus on OEM integration provided Wāvtech with comprehensive understanding of the real-world problems that installers and consumers encounter when upgrading factory systems. They documented the specific signal characteristics of hundreds of OEM audio systems, identified the failure modes of conventional integration approaches, and developed proprietary solutions that work reliably across the widest possible range of vehicles. By the time Wāvtech entered the amplifier market in 2023, they possessed a decade of accumulated knowledge about what works—and what doesn't—when interfacing with factory source units.

The decision to manufacture amplifiers represented not diversification into an unrelated product category, but logical extension of Wāvtech's core expertise. If the company could design standalone processors that successfully integrate with factory systems, why not integrate that same technology directly into amplifiers, eliminating the need for separate components? This approach produces amplifiers that aren't merely compatible with factory integration but are optimized for it—with input circuitry designed specifically for the voltage levels and impedance characteristics of OEM amplifier outputs, with summing capabilities that accommodate multi-channel factory architectures, and with features like start/stop compatibility that reflect understanding of modern vehicle electrical systems.

Wāvtech's amplifier lineup spans from ultra-compact mini-series models (just 4.5" wide) to the plus-series designs like the Link 1000.5 Plus, which provide greater power output and more comprehensive feature sets. All models share common design principles: panel-mount RCA connectors (the most reliable connection method), differential balanced inputs (for noise rejection), active thermal management (preventing shutdown during extended high-power operation), and the 40V input capability that defines Wāvtech's approach. The Link 1000.5 Plus represents the company's answer to the complete system amplifier challenge: sufficient channels, sufficient power, and sufficient integration capability to serve as the sole amplification component in factory-integrated systems.

Power Architecture: Real 500W Subwoofer Performance

The Link 1000.5 Plus employs asymmetric power distribution that recognizes the different demands of main channels versus subwoofer duty. Where many five-channel amplifiers divide available power relatively equally across all channels (resulting in adequate mains performance but compromised subwoofer output), the Link 1000.5 Plus allocates power resources according to real-world requirements: moderate power for speakers that operate efficiently within 75-125W, substantial power for subwoofers that demand hundreds of watts to achieve meaningful output.

The 500W subwoofer specification deserves emphasis because it represents genuine continuous power output, not inflated marketing numbers. At 2Ω, the Link 1000.5 Plus will sustain 500W indefinitely without thermal limiting or protection circuit activation—a capability that many amplifiers claiming similar specifications cannot match under real-world conditions. This power level suffices for single 10-inch or 12-inch subwoofers with 87-90dB sensitivity (the most common specifications for quality car audio subwoofers), producing 115-118dB output in typical vehicle enclosures—more than adequate for any application outside competition sound pressure level contests.

The 1Ω stability on the subwoofer channel extends compatibility to dual 2Ω voice coil subwoofers, which represent a large percentage of the aftermarket subwoofer market. Many five-channel amplifiers specify 2Ω minimum impedance on the subwoofer channel, forcing users to wire dual 2Ω subwoofers in series for 4Ω operation and sacrificing half the available power. The Link 1000.5 Plus maintains full 500W output at 1Ω, ensuring maximum power delivery regardless of subwoofer voice coil configuration.

For the main channels, the 75W @ 4Ω specification targets the sweet spot for component speaker systems. Most 6.5-inch and 6.75-inch component sets (the most common sizes for front door installations) achieve 87-91dB sensitivity, meaning 75W produces 106-110dB at one meter—sufficient dynamic range for critical listening while maintaining headroom for transient peaks. The 125W @ 2Ω capability accommodates lower-impedance component sets or provides additional headroom for users who demand higher sustained output levels.

Adaptive OEM Loading: The Technology That Eliminates External LOCs

Understanding the Link 1000.5 Plus requires understanding what "adaptive OEM loading" actually means and why it matters for factory integration installations. When interfacing with a factory amplified system, the aftermarket amplifier's inputs present an electrical load to the factory amplifier's outputs. If this load impedance is too low, it draws excessive current from the factory amplifier, potentially triggering protection circuits or causing distortion. If the load impedance is too high, signal voltage drops and noise becomes more prominent. Traditional line output converters use fixed resistive loading—typically 22-33Ω—which works acceptably with many factory systems but causes problems with others.

Wāvtech's adaptive loading technology employs active impedance control that dynamically adjusts based on the factory amplifier's output characteristics. When connected to a factory system outputting standard 4-8V signals with low source impedance, the adaptive circuit presents higher input impedance to avoid loading down the factory amplifier. When connected to premium factory systems outputting 20-40V with higher source impedance (common in Bose, Harman Kardon, and other premium OEM systems), the adaptive circuit adjusts to maintain optimal signal transfer while preventing the impedance mismatches that cause frequency response irregularities or noise issues.

This adaptation occurs continuously during operation, not just during initial setup. As the factory amplifier's output impedance changes with frequency and signal level (a characteristic of most Class D factory amplifiers), the Link 1000.5 Plus's input stage compensates to maintain consistent loading across the audio spectrum. The result is flatter frequency response, lower distortion, and more reliable operation compared to static loading approaches—advantages that become particularly apparent in vehicles with sophisticated factory audio systems that actively monitor speaker load and adjust their output characteristics accordingly.

The 40V input capability represents the practical limit of what OEM audio systems produce. The highest-output factory amplifiers—found in vehicles like BMW Individual Audio, Mercedes-Benz Burmester, Lexus Mark Levinson, and similar ultra-premium systems—can generate peaks approaching 35-40V into speaker loads. Conventional aftermarket amplifiers specify maximum input of 4-8V; connecting them directly to high-voltage factory outputs without attenuation causes input clipping and severe distortion. The Link 1000.5 Plus accepts these signals directly, with input circuitry designed to handle the voltage levels without clipping or compression, eliminating the need for external attenuators or interface devices.

Combined with differential balanced inputs (which reject noise induced in wiring runs from factory amplifier locations to aftermarket amplifier mounting points), the adaptive loading system enables installations that would be prohibitively complex or unreliable using conventional amplifiers plus external integration devices. The installer runs speaker-level wiring from the factory amplifier outputs directly to the Link 1000.5 Plus, makes gain adjustments to match input sensitivity to the factory output level, and proceeds with the installation—without purchasing, mounting, wiring, or troubleshooting separate line output converters, attenuators, or summing processors.

Six-Channel Summing and Signal Routing Flexibility

Modern factory audio systems increasingly employ multi-channel architectures that complicate aftermarket integration. Where older vehicles output simple four-channel audio (front left, front right, rear left, rear right), contemporary vehicles often provide six or more discrete channels: front channels, rear channels, center channel (for dashboard-mounted center speakers), and dedicated subwoofer output. Additionally, many factory systems apply different processing to different channels—dialogue enhancement on the center channel, bass management that routes low frequencies exclusively to the subwoofer output, surround processing that creates artificial ambience in the rear channels.

The Link 1000.5 Plus's six-channel summing capability accommodates these multi-channel factory architectures without requiring external processors. The amplifier accepts up to six discrete speaker-level inputs and provides flexible routing to its five output channels based on how the installer configures the internal summing controls. Understanding the available configurations helps determine optimal setup for specific vehicles and system objectives.

Configuration 1: Four-Channel + Dedicated Subwoofer

This configuration suits vehicles with six factory channels where the installer wants to maintain the factory's four main channels (front + rear) while using the Link 1000.5 Plus's dedicated subwoofer channel for aftermarket subwoofer output. The factory front left/right and rear left/right signals connect to the amplifier's main channel inputs, while the factory subwoofer output (if present) can be used to trigger or sum with the dedicated subwoofer channel input. The amplifier's main channels can be set to full-range (if using passive crossovers in component speakers) or high-passed at 80-120Hz to remove bass content that the subwoofer will reproduce.

Configuration 2: Full-Range Summed Output

For vehicles where the factory system distributes frequency content unevenly across channels (common in systems with active bass management), the summed full-range configuration combines all six factory outputs into composite signals that contain the complete frequency spectrum. This ensures that aftermarket speakers receive full bandwidth audio regardless of how the factory system routes frequencies, preventing the missing bass or thin sound that occurs when using only two or four factory channels that have been high-passed by factory processing.

Configuration 3: Custom Summing with Selective Filtering

The most advanced configuration uses the Link 1000.5 Plus's flexible summing controls to create custom combinations: front channels summed with full-range content for complete tonal balance, rear channels summed with high-pass filtering to eliminate bass content (since rear speakers typically don't require deep bass reproduction), and subwoofer channel receiving low-pass filtered sum of all bass content from factory channels. This configuration provides optimal signal content for each speaker type while maximizing the sonic potential of the factory source signals.

The summing capability also addresses vehicles where factory channels carry different levels. Some OEM audio systems output higher voltage to front speakers than rear speakers, or apply different gain structures to different channels as part of their internal DSP processing. The Link 1000.5 Plus's independent gain controls for each channel pair allow the installer to balance levels after summing, ensuring consistent output regardless of input level variations.

BassFREQ Subwoofer Processing: Precision Bass Management

The Link 1000.5 Plus's subwoofer channel includes Wāvtech's proprietary bassFREQ processor, which provides comprehensive bass frequency management that exceeds what most dedicated subwoofer amplifiers offer. Understanding these features and their applications enables optimal subwoofer integration regardless of vehicle acoustics or subwoofer characteristics.

24dB/Octave Low-Pass Crossover

The variable low-pass filter operates across the full bass frequency range (typically 50-250Hz) with an extremely steep 24dB per octave slope. This aggressive filtering matters because it determines how effectively the crossover prevents higher frequencies from reaching the subwoofer. A 12dB/octave slope (found on most amplifiers) reduces signal level by 12dB for every doubling of frequency above the crossover point; a 24dB/octave slope reduces signal by 24dB per octave, providing twice the rejection rate. This steeper slope prevents midrange frequencies from causing distortion in subwoofers that cannot reproduce them cleanly, and ensures cleaner handoff between subwoofer and main speakers for more coherent overall frequency response.

For typical installations, 80-100Hz crossover points work well with most component speaker systems. This range allows the subwoofer to handle frequencies below male vocal fundamentals (which center around 100-150Hz) while leaving midrange content to speakers better suited to reproduce it. In vehicles with larger component woofers (6.75-inch or 8-inch) that can reproduce deep bass effectively, raising the crossover to 60-70Hz prevents overlap and maintains clarity in the critical 80-150Hz region where muddiness most commonly occurs.

24dB/Octave Subsonic Filter

The adjustable subsonic filter (also called high-pass filter or infrasonic filter) removes content below the subwoofer's useful operating range, preventing wasted amplifier power and driver excursion on frequencies the subwoofer cannot reproduce effectively. Every subwoofer has a low-frequency limit determined by its enclosure alignment; below this frequency, the driver loses mechanical control and distortion increases dramatically while output capability decreases. The subsonic filter, typically set 5-10Hz below the enclosure's tuning frequency, prevents the amplifier from driving the subwoofer with these problematic ultra-low frequencies.

The 24dB/octave slope matters even more for subsonic filtering than for low-pass filtering. Below the enclosure's tuning frequency, subwoofer excursion increases rapidly with decreasing frequency—a doubling of excursion for each halving of frequency. A shallow subsonic filter (12dB/octave) provides insufficient protection, allowing significant infrasonic content to reach the driver and potentially causing mechanical damage during high-power operation. The Link 1000.5 Plus's 24dB/octave subsonic filter provides aggressive protection without affecting frequencies within the subwoofer's operating range.

Parametric Equalizer

The one-band parametric EQ provides three adjustable parameters: center frequency, bandwidth (Q factor), and boost/cut amount. This seemingly simple feature solves multiple real-world problems that fixed-frequency equalizers cannot address. In vehicles with bass cancellation at specific frequencies (caused by cabin acoustic resonances), the parametric EQ can boost the affected frequency range to compensate. In vehicles with excessive boom at particular frequencies (also acoustic in origin), the parametric EQ can notch out the problematic range. And for competition applications or personal preference, the parametric EQ can emphasize specific bass frequencies for desired tonal character.

The flexibility comes from the Q control, which determines how narrow or wide the affected frequency range is. Wide Q settings (low Q values like 0.5-1.0) affect broad frequency ranges, suitable for compensating for general bass rolloff or broad room resonances. Narrow Q settings (high Q values like 3.0-5.0) affect very specific frequency ranges, ideal for eliminating particular resonant frequencies without affecting adjacent frequencies. This precision makes the parametric EQ far more useful than graphic equalizers with fixed frequencies and bandwidths.

Together, these three bassFREQ functions—low-pass crossover, subsonic filter, and parametric EQ—provide the essential tools for integrating subwoofers with main speakers and optimizing bass response for specific vehicles and listening preferences. These aren't features that improve specifications on paper; they're practical tools that professional installers use daily to solve acoustic problems that affect every installation.

Start/Stop Compatibility and Modern Vehicle Electrical Systems

The Link 1000.5 Plus includes specific design features that address the electrical challenges presented by modern vehicles, particularly those equipped with start/stop systems (also called idle-stop or auto-start-stop). Understanding these systems and how the amplifier accommodates them prevents installation problems and ensures reliable operation.

Start/stop systems automatically shut down the engine when the vehicle comes to a complete stop (at traffic lights, in traffic, etc.) and restart it when the driver releases the brake pedal. This provides measurable fuel economy and emissions benefits in city driving, which is why it has become nearly universal in vehicles manufactured since 2015. However, start/stop systems create electrical conditions that conventional car audio equipment finds challenging.

When the engine shuts down, battery voltage typically remains at 12.5-13V initially, then gradually decreases as the vehicle's electrical loads (HVAC blower, infotainment system, etc.) draw current without the alternator replenishing it. When the engine restarts, the starter motor draws enormous current (200-400A), causing battery voltage to drop momentarily to 7-9V before recovering as the alternator comes back online and recharges the battery. Most car audio amplifiers specify minimum operating voltage of 10-11V; when voltage drops below this threshold, they enter protection mode and shut down, causing an audible interruption (pop, click, or complete silence) that annoys users.

The Link 1000.5 Plus operates reliably down to 7V—the lowest voltage level that occurs during normal start/stop operation. This doesn't mean the amplifier produces full power at 7V (power output is directly related to supply voltage, and 7V operation yields perhaps 30-40% of rated power), but it means the amplifier continues operating without shutdown or protection mode activation. As battery voltage recovers following engine restart, the amplifier transparently returns to full power output without audible artifacts or interruption.

This capability requires specific design considerations in the amplifier's power supply and protection circuits. The power supply must operate across a wider voltage range than conventional designs (7-16V instead of 10-16V), with voltage regulation that maintains stable internal voltages despite large fluctuations in battery voltage. The protection circuits must distinguish between temporary voltage sags (which should not trigger shutdown) and sustained undervoltage conditions (which indicate genuine electrical problems requiring protective action). Wāvtech's start/stop compatibility reflects their OEM integration expertise—they understand how modern vehicles operate and design amplifiers that work reliably in these environments.

Beyond start/stop compatibility, the Link 1000.5 Plus includes comprehensive protection circuits that prevent damage from common installation errors or electrical faults: thermal protection (prevents overheating during sustained high-power operation or inadequate ventilation), short circuit protection (detects speaker wire shorts and shuts down affected channels), DC offset protection (prevents DC voltage on speaker terminals that can damage voice coils), and reverse polarity protection (prevents damage if power and ground are accidentally reversed during installation). These protections work transparently—they don't affect sound quality or operation under normal conditions, but they prevent the amplifier damage that would otherwise occur from foreseeable problems.

Physical Design and Installation Considerations

The Link 1000.5 Plus measures 11.9" × 5.5" × 1.65"—dimensions that reflect deliberate design optimization for the installation locations typically available in modern vehicles. At under 12 inches long and less than 6 inches wide, the amplifier fits under most front seats (the most common mounting location for five-channel amplifiers in daily drivers) without requiring seat track modification or interfering with seat operation.

The 1.65-inch height particularly matters because it determines whether the amplifier can mount in constrained vertical clearances. Under-seat mounting typically provides 2-3 inches of clearance between the vehicle floor and the lowest seat rail or mechanism; the Link 1000.5 Plus's sub-2-inch profile ensures it fits with margin for wiring connections and airflow. This compact footprint doesn't come at the expense of capability—the amplifier delivers 1000W total power in a package that requires less than one cubic foot of mounting space.

The detachable mounting tabs deserve mention because they enable multiple mounting orientations. The tabs can be attached to any side of the amplifier chassis, allowing horizontal mounting (most common), vertical mounting (for installations where floor space is limited but vertical space is available), or inverted mounting (necessary in some vehicles where only the underside of seat structures provides mounting surface). This flexibility prevents situations where the amplifier physically fits in the available space but cannot be mounted because mounting holes are in unusable locations.

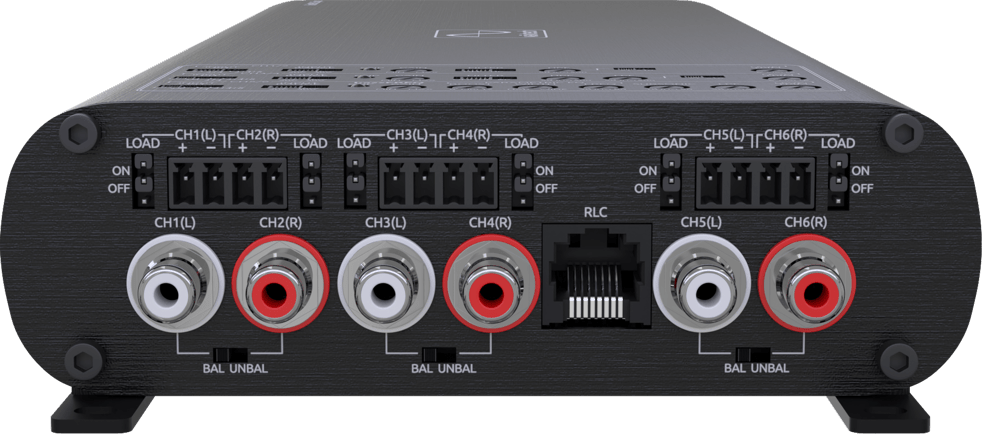

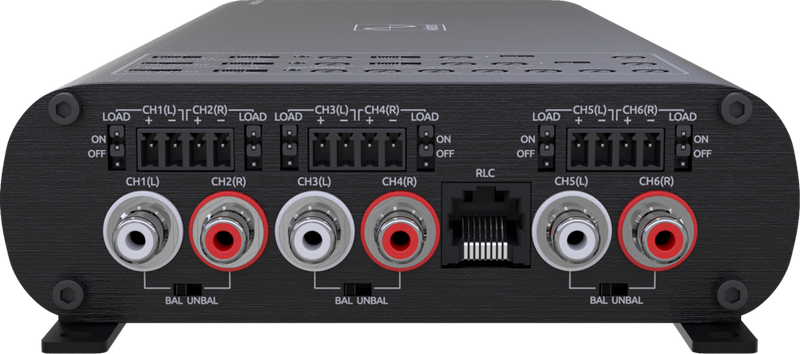

Terminal and Connection Design

The amplifier employs panel-mount RCA connectors rather than chassis-mount connectors—a distinction that matters more than many installers realize. Panel-mount RCAs thread through the amplifier's mounting panel with locking nuts securing them from both sides, providing strain relief and preventing the connector from pushing into the amplifier chassis when cables are inserted or removed. Chassis-mount RCAs solder directly to the circuit board; inserting cables applies force directly to solder joints, which can crack over time from vibration or repeated connection cycles. Wāvtech uses panel-mount RCAs across their entire product line because they're more reliable—a philosophy that reflects the company's professional installation focus.

The speaker-level inputs employ locking detachable terminals that accept bare wire or pin terminals. These connectors provide the security of screw terminals while allowing the entire input harness to disconnect quickly for amplifier removal or service—a feature particularly valuable in under-seat installations where the amplifier must be removed to access mounting bolts or wiring underneath it. The locking mechanism prevents accidental disconnection from vibration while providing tool-free release when intentional disconnection is needed.

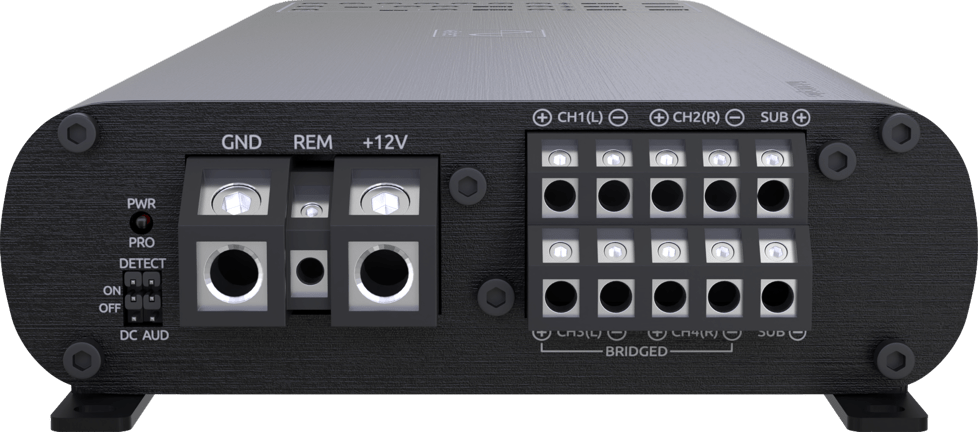

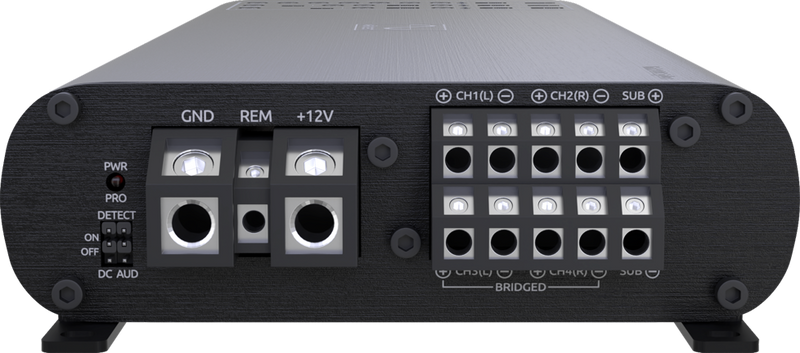

Power and ground connections use 4-gauge terminal blocks—appropriate sizing for the amplifier's maximum current draw. At full output (approximately 1000W total), the Link 1000.5 Plus draws roughly 100-110A from the vehicle's electrical system (assuming 60% efficiency typical of Class D amplification). This requires 4-gauge power cable minimum for runs up to 15 feet, 2-gauge for longer runs or installations where multiple amplifiers share the same power distribution. The amplifier should be fused at 125-150A using ANL or MIDI fuse format at the battery connection point, providing protection for the power cable while allowing sufficient current for full amplifier output plus transient peaks.

Crossover and Processing Architecture

Beyond the comprehensive subwoofer processing provided by bassFREQ, the Link 1000.5 Plus includes channel-specific filtering that addresses different system architectures and component requirements. Understanding these crossover options and their applications enables optimal configuration for specific installations.

Channels 1/2: Variable High-Pass with 1×/10× Multiplier

Channels 1 and 2 (typically used for front speakers) feature variable high-pass crossover operating at 12dB/octave with an unusual but useful feature: a 1×/10× frequency multiplier switch. In the 1× position, the high-pass filter adjusts across a typical range (likely 50-250Hz), suitable for protecting component tweeters or full-range speakers from excessive bass content. In the 10× position, the filter range multiplies by ten (approximately 500-2500Hz), enabling the channels to drive tweeters directly without passive crossovers by filtering out midrange and bass content entirely.

This 10× capability addresses specific system architectures: fully active front stage systems where the amplifier's built-in crossovers replace passive crossovers, or installations where component tweeters need to be driven separately from midbass woofers using the amplifier's crossovers rather than the component set's included passive crossovers. While the 12dB/octave slope isn't as steep as the 18-24dB/octave crossovers typically found in dedicated DSP processors, it suffices for protecting tweeters from midrange content while maintaining simpler electronic design.

Channels 3/4: Variable High-Pass, Band-Pass, or Low-Pass

Channels 3 and 4 offer even more flexibility with three filter modes: high-pass (removing bass content), band-pass (removing both bass and treble content to create a midrange-only output), or low-pass (removing treble content). This versatility accommodates multiple use cases. In high-pass mode, channels 3/4 serve as rear fill channels with bass content directed to the subwoofer instead. In band-pass mode, channels 3/4 can drive dedicated midrange speakers in three-way or four-way active front stage systems. In low-pass mode, channels 3/4 can drive midbass woofers or small subwoofers directly.

The band-pass mode particularly distinguishes the Link 1000.5 Plus from amplifiers offering only high-pass or low-pass options. Creating a band-pass filter requires combining high-pass and low-pass filters at different frequencies—for example, a 250Hz high-pass combined with a 4000Hz low-pass creates a band-pass filter passing only 250-4000Hz (the typical midrange frequency range). This enables truly active multi-way systems without external DSP processing, though the 12dB/octave crossover slopes limit how close crossover points can be placed (steeper slopes allow closer crossover points with less overlap).

Channel 5: Dedicated Subwoofer Processing (BassFREQ)

As detailed previously, channel 5 incorporates the complete bassFREQ suite: variable 24dB/octave low-pass filter, variable 24dB/octave subsonic filter, and one-band parametric EQ. The steeper 24dB/octave slopes on the subwoofer channel reflect the greater importance of precise frequency control for subwoofers, where inadequate filtering causes either excessive overlap with main speakers (muddiness) or insufficient filtering of infrasonic content (wasted power and potential driver damage).

Together, these crossover options provide substantial system design flexibility without requiring external DSP processors. A complete active system could employ: channels 1/2 in 10× high-pass mode driving tweeters (crossed at 3500-4000Hz), channels 3/4 in band-pass mode driving midrange speakers (crossed at 300Hz-3500Hz), and channel 5 driving a subwoofer (crossed at 80-100Hz with subsonic filter protecting the driver below 25-30Hz). This five-way active system—tweeters, midrange, midbass (passive or separate amplifier), and subwoofer—requires only the Link 1000.5 Plus's internal processing rather than $300-600 in external DSP equipment.

Comparison with Established Five-Channel Amplifiers

The comparison reveals the Link 1000.5 Plus's competitive positioning: it matches the subwoofer power output of JL Audio's RD900/5 (the reference product in the five-channel category) while providing integrated OEM capabilities that JL's amplifier lacks entirely. The JL Audio requires external line output converters and summing processors for factory integration, adding $150-250 to the effective system cost and increasing installation complexity. The Link 1000.5 Plus eliminates these external components while maintaining comparable power specifications and adding features like parametric EQ that the JL doesn't include.

Against Rockford Fosgate's P1000X5, the Link 1000.5 Plus offers comparable total power but trades slightly lower main channel output (75W versus 100W at 4Ω) for superior OEM integration capability and more advanced subwoofer processing. The Rockford's 12dB/octave subwoofer crossover, while adequate, provides less precise frequency control than the Link 1000.5 Plus's 24dB/octave bassFREQ implementation. For installations where factory integration is required, the Link 1000.5 Plus provides capabilities the Rockford simply cannot match without external processors.

Kicker's KEY200.4 represents a different market segment: extreme compactness and basic functionality at lower cost. With only 200W subwoofer output (versus 500W) and 50W main channels (versus 75W), the KEY series targets modest systems where size constraint is the primary concern. The Link 1000.5 Plus delivers substantially more power in a package that's still compact enough for under-seat mounting, making it the better choice for systems demanding reference-level output capability.

The Link 1000.5 Plus's pricing strategy—typically $649-699 depending on retailer—positions it between budget five-channel amplifiers ($300-400) that lack the power and features for serious installations, and premium alternatives ($700-900) that offer marginal performance advantages but don't justify their cost premium for most users. This pricing particularly makes sense when accounting for the integrated OEM capabilities: a conventional five-channel amplifier plus quality line output converter plus summing processor totals $600-800, making the Link 1000.5 Plus's all-in-one approach both simpler and more cost-effective.

System Applications and Configuration Examples

The Link 1000.5 Plus's feature set enables multiple system architectures, each addressing different vehicle types, installation objectives, and component selections. Understanding these configurations helps determine optimal application and component matching.

Configuration 1: Factory Integration Daily Driver

This represents the most common application: upgrading a vehicle with factory source unit and factory speakers to aftermarket speakers and subwoofer while maintaining all factory controls and display functions. The Link 1000.5 Plus connects to speaker-level outputs from the factory amplifier (or head unit if no factory amplifier exists), using its adaptive loading and 40V input capability to interface reliably regardless of factory system voltage levels. The six-channel summing combines all factory outputs into appropriate signals for the five-channel system: front components, rear components (or rear fill), and subwoofer.

Component selection typically includes: 6.5-inch or 6.75-inch component speakers for front doors (utilizing 75-125W main channels), coaxial speakers or small components for rear fill (powered by channels 3/4), and single 10-inch or 12-inch subwoofer (utilizing the 500W subwoofer channel). The amplifier mounts under the driver or passenger seat, with power cable running to the battery and speaker-level input harness tapping the factory amplifier outputs. Installation requires no cutting of factory harnesses—speaker-level connections use quick-disconnect adapters that restore factory functionality if the amplifier is ever removed.

Total installation cost (labor plus components): $1,500-2,500 depending on component quality and labor rates. This provides dramatic improvement over factory audio while maintaining factory warranty and source unit functionality.

Configuration 2: Active Front Stage Sound Quality System

This configuration targets enthusiasts prioritizing front stage performance over rear fill, using the Link 1000.5 Plus's crossover flexibility to implement active crossovers for two-way or three-way component systems. Channels 1/2 drive front tweeters using the 10× high-pass mode (3500-4000Hz crossover), channels 3/4 drive front midbass woofers using high-pass mode (80-100Hz crossover), and channel 5 drives the subwoofer (80Hz low-pass). This eliminates passive crossovers entirely, providing benefits in efficiency, power handling, and frequency response control.

For three-way active systems, channels 3/4 can operate in band-pass mode to drive dedicated midrange drivers (300Hz-3500Hz), with midbass woofers powered by separate amplifier or additional channels from a second Link amplifier. The active approach demands more complex installation and tuning but rewards with superior staging, imaging, and tonal accuracy—capabilities that matter for sound quality competition or critical listening applications.

This configuration suits aftermarket source units with comprehensive processing (time alignment, EQ) or external DSP processors that handle system-level signal processing, with the Link 1000.5 Plus providing amplification and frequency-specific crossovers. The parametric EQ on the subwoofer channel enables compensation for vehicle-specific acoustic anomalies without requiring full system-level EQ.

Configuration 3: Premium Factory System Enhancement

High-end vehicles with premium factory audio systems (Bose, Harman Kardon, Mark Levinson, Bang & Olufsen, Burmester, etc.) present specific challenges: they output high voltage signals (20-40V), employ complex multi-channel architectures (often 8-16 channels), and use active bass management that routes frequencies dynamically. The Link 1000.5 Plus's 40V input capability and six-channel summing specifically address these premium systems, enabling subwoofer upgrades or complete speaker replacement while maintaining factory source unit operation.

The most common application: adding a high-performance subwoofer to a premium factory system. The factory's subwoofer output (if present) or summed low-frequency content from main channels feeds the Link 1000.5 Plus's subwoofer channel, which drives an aftermarket subwoofer substantially superior to the factory unit. The main channels can remain unused (factory speakers retained) or can drive upgraded components if full system replacement is desired. The adaptive loading prevents the impedance-related issues that plague conventional amplifier connections to high-voltage factory systems.

Configuration 4: Marine or Powersports Application

While primarily designed for automotive use, the Link 1000.5 Plus's compact size and comprehensive feature set suit marine (boat) or powersports (UTV, side-by-side) applications where space is limited and source units may be factory installations with speaker-level outputs. The amplifier's robust construction and sealed electronics provide reasonable environmental protection, though additional weatherproofing (conformal coating, sealed enclosure) is recommended for direct marine exposure.

Marine applications typically use: channels 1/2 for cockpit speakers, channels 3/4 for tower or stern speakers, and channel 5 for marine subwoofer. The 40V input capability accommodates marine source units that output higher voltages than automotive units, and the 2Ω stability across all channels suits marine speakers (which commonly present 2Ω impedance). The compact footprint enables mounting in the limited spaces available in boat dashboards or under-seat compartments.

Electrical System Requirements and Installation Planning

Power Cable Routing and Connection

The primary power cable must run from the vehicle battery positive terminal directly to the amplifier's power input, with an ANL or MIDI fuse holder installed within 18 inches of the battery connection. This fuse protects the power cable itself (not the amplifier—the amplifier has internal protection) by opening if the cable shorts to ground anywhere along its length. The 125-150A fuse rating allows the amplifier to draw full power plus transient peaks without nuisance fuse opening, while providing protection for 4-gauge cable (which has approximately 180A maximum safe current capacity).

Cable routing should avoid heat sources (exhaust components, catalytic converters), moving parts (steering columns, pedal assemblies), and sharp metal edges that could abrade insulation over time. Factory wire looms and conduits provide ideal routing paths when available. Grommets protect cables at firewall penetrations, preventing chafing and maintaining weather sealing. Professional installations use split loom or expandable sleeving for mechanical protection and appearance.

Grounding Strategy

The ground connection demands equal attention to power wiring. The ground cable should use the same gauge as power cable (4-gauge minimum) and connect to clean bare metal on the vehicle chassis—not factory ground straps, seatbelt bolts, or painted surfaces. The mounting location should be within 3-4 feet of the amplifier to minimize voltage drop in the ground path. Surface preparation requires removing paint, rust, and oxidation from a 2-3 inch area using wire brush or sandpaper, then securing the terminal with bolt and star washer (which cuts through any remaining oxidation to ensure good electrical contact).

Poor grounding manifests as various problems: alternator whine in speakers (ground loop from insufficient current capacity), reduced power output (voltage drop in ground path), or complete amplifier failure (if ground circuit opens). The ground path matters as much as the power path—both must carry the amplifier's full current without excessive resistance or voltage drop.

Signal Wiring Considerations

For factory integration installations, speaker-level input wiring taps the factory amplifier outputs (or head unit speaker outputs if no factory amplifier exists). Many vehicles provide accessible connection points at the factory amplifier harness or at convenient speaker locations. T-tap connectors or dedicated speaker-level adapters (available for many vehicle models) enable quick connection without cutting factory harnesses. The Link 1000.5 Plus's differential balanced inputs reject noise induced in these signal cables, so elaborate shielding or twisted-pair construction isn't necessary for most installations.

For systems using aftermarket source units with RCA outputs, quality RCA cables with proper routing (away from power cables, avoiding crossing at 90-degree angles) prevent noise coupling. The panel-mount RCA design on the Link 1000.5 Plus provides secure mechanical connection and strain relief that prevents intermittent connections from vibration.

Remote Turn-On Connection

The amplifier's remote turn-on input can connect to several sources: aftermarket source unit remote output (blue/white wire, typically), factory source unit accessory power (requires voltage-triggered relay to avoid excessive current draw), or the amplifier's auto-turn-on feature (detects audio signal or DC offset from factory systems and powers on automatically). The auto-turn-on capability particularly suits factory integration installations where accessing a traditional remote wire would require complex harness modification.

Tuning and Setup Procedures

Proper tuning transforms adequate sound quality into excellent system performance. The Link 1000.5 Plus provides comprehensive controls that, when properly configured, optimize frequency response, maximize power transfer, and prevent distortion.

Initial Gain Setting

Gain controls determine input sensitivity—they are NOT volume controls. Proper gain setting matches the amplifier's input sensitivity to the source unit's output voltage, allowing maximum volume from the source without input clipping distortion. The procedure: play dynamic music at 75-80% maximum source unit volume (the level you'll actually use), then gradually increase amplifier gain while monitoring the clip indicator LED. When the LED begins flashing, reduce gain slightly until it stops—this represents optimal gain setting where the amplifier receives maximum clean signal without clipping.

For factory integration installations with unknown output voltage, the process requires more trial: start with gain at minimum, increase source unit to maximum volume, then gradually raise amplifier gain until desired loudness is achieved. The clip LED warns if gain is excessive. Some factory systems output different maximum voltage levels across their volume range (common in systems with internal compression or limiting), so testing at multiple volume levels ensures gain setting works across the full operating range.

Crossover Configuration

Crossover settings depend on speaker specifications and system architecture. For component speakers with passive crossovers: set main channels to full-range (crossover defeated or set to minimum frequency) and allow the passive crossover to handle frequency division. For active systems: configure crossover points based on speaker capabilities—typically 3500-4000Hz tweeter crossover (using 10× multiplier on channels 1/2), 80-100Hz midbass high-pass (channels 3/4), and 80-100Hz subwoofer low-pass (channel 5).

The subwoofer subsonic filter should be set 5-10Hz below the enclosure's tuning frequency. For sealed enclosures, use 25-30Hz. For ported enclosures, determine the port tuning frequency (from enclosure specifications) and set subsonic filter 5Hz below—for example, a 35Hz tuned port should use 30Hz subsonic setting. This protects the driver from infrasonic excursion without affecting usable bass frequencies.

Parametric EQ Adjustment

The bass parametric EQ addresses vehicle-specific acoustic problems. The adjustment procedure requires playing test tones or bass-heavy music and listening for problem frequencies: excessive boom at particular frequencies (requiring cut), or missing bass at specific ranges (requiring boost). Start with flat EQ (no boost or cut), identify problem frequencies by ear or using measurement equipment, then adjust the parametric EQ center frequency to the problem frequency, set appropriate Q width (narrow for specific problems, wider for broad adjustments), and apply boost or cut as needed. Small adjustments (3-6dB) usually suffice—excessive EQ indicates fundamental acoustic problems that EQ cannot solve effectively.

Optional Remote Level Control

The Link 1000.5 Plus supports Wāvtech's optional linkRC remote control (sold separately) for subwoofer level adjustment from the driver's seat. This convenience feature allows matching bass level to different music genres, listening preferences, or number of passengers (since passenger load affects vehicle acoustics). The remote mounts on the dash or console using included bracket, with cable running to the amplifier's remote control port. Remote adjustment provides 0dB (no attenuation) to approximately -12dB of subwoofer level reduction without affecting main channel output.

Condition Documentation: Brand New Condition

This Wāvtech Link 1000.5 Plus amplifier is brand new, representing current production from Wāvtech's established manufacturing. The unit arrives in original factory packaging with all included accessories: mounting tabs, power/ground terminals (if detachable), terminal block hardware, owner's manual, and warranty documentation. The amplifier has never been installed, powered, or removed from packaging beyond initial quality inspection at the factory.

Physical inspection confirms factory-fresh condition: heatsink shows no mounting holes or screw marks, all terminal blocks are clean without evidence of wire insertion, connectors show no wear, and protective films (if present on any panels or surfaces) remain in place. This is not new-old-stock that has been stored for years—these are current production units with manufacturing dates reflecting recent production runs.

Wāvtech Warranty and Support

As an authorized dealer, Audio Intensity provides full manufacturer warranty support for Wāvtech products. The Link 1000.5 Plus includes Wāvtech's standard warranty covering defects in materials and workmanship, with duration specified in the included warranty documentation. Warranty service routes through Audio Intensity's support infrastructure, which maintains direct communication with Wāvtech's technical team for product support and troubleshooting assistance.

The warranty covers manufacturing defects but excludes damage from improper installation (incorrect wiring, inadequate fusing, insufficient ventilation), abuse (overpowering speakers until failure, operating with shorted outputs), or environmental factors (water intrusion, extreme heat exposure, corrosion from harsh environments). Following proper installation procedures and providing adequate electrical system protection maintains warranty coverage throughout the warranty period.

Value Proposition Analysis: The Integration Advantage

The Link 1000.5 Plus's value proposition becomes clear when comparing total system cost for factory integration installations. A conventional approach requires: five-channel amplifier ($400-700), line output converter with summing capability ($150-250), installation labor for multiple components (additional 2-3 hours at $80-120/hour), and troubleshooting time for integration issues that inevitably arise with multi-component systems. Total cost: $750-1,200 in components plus substantial labor premium.

The Link 1000.5 Plus consolidates these functions into a single component priced at $649-699 (typical retail), eliminating the external LOC and summing processor while reducing installation complexity and associated labor cost. The integrated approach also improves reliability—fewer components means fewer potential failure points, fewer connections that can work loose from vibration, and simpler troubleshooting if problems occur. For professional installers, the reduced labor time translates to either lower installation cost (more competitive pricing) or improved profit margins on installations.

Beyond initial cost savings, the Link 1000.5 Plus enables installations that would be prohibitively complex using conventional components. Premium factory systems outputting 30-40V often require custom attenuation and multiple interface devices to work with standard aftermarket amplifiers; the Link 1000.5 Plus handles these signals directly without additional components. Multi-channel factory systems (6+ channels) require sophisticated summing that basic LOCs cannot provide; the Link 1000.5 Plus's six-channel summing with flexible filtering accommodates these complex architectures. These capabilities expand the range of vehicles that can receive quality audio upgrades while maintaining factory source unit functionality.

The amplifier also provides feature depth that eliminates need for external processing in many installations. The bassFREQ suite (24dB/octave crossovers, subsonic filter, parametric EQ) offers similar functionality to dedicated bass processors costing $150-300. The flexible main channel crossovers enable active system designs without external DSP for applications where sophisticated time alignment and EQ aren't required. While the Link 1000.5 Plus doesn't replace comprehensive DSP processors for sound quality competition or ultimate system tuning, it provides sufficient processing capability for the vast majority of daily driver and enthusiast installations.

Who Should Choose the Link 1000.5 Plus

The Wāvtech Link 1000.5 Plus serves specific applications where its integrated OEM capabilities, compact size, and comprehensive processing create compelling advantages over alternatives:

Factory Integration Installations: Any vehicle retaining the factory source unit while upgrading speakers and adding subwoofer—the Link 1000.5 Plus's primary target market. This includes vehicles with expensive factory navigation/infotainment systems that cannot be replaced, lease vehicles where modifications must be reversible, and modern vehicles where replacing the factory source unit would disable integrated vehicle functions.

Premium Factory System Upgrades: Vehicles with high-voltage factory audio systems (Bose, Harman Kardon, Mark Levinson, Burmester, Bang & Olufsen, etc.) that require 40V input capability and sophisticated integration. The Link 1000.5 Plus specifically addresses these applications that standard amplifiers cannot accommodate without extensive external processing.

Complete System in Limited Space: Installations where mounting space constraints prevent multi-amplifier systems. The Link 1000.5 Plus delivers 1000W total power (sufficient for most daily driver and enthusiast systems) in under-seat dimensions that fit where separate main channel and subwoofer amplifiers cannot.

Active System Builders Without DSP: Enthusiasts implementing active front stage systems who don't require comprehensive DSP processing but need flexible crossover controls. The Link 1000.5 Plus's band-pass capability on channels 3/4 and 10× multiplier on channels 1/2 enable multi-way active systems without external DSP investment.

Professional Installers: Shops that perform numerous factory integration installations and require reliable, proven solutions that reduce labor time and callback problems. The Link 1000.5 Plus's integrated approach simplifies installations, reduces component count, and provides comprehensive feature set that accommodates various vehicle architectures without requiring different components for different vehicles.

The Link 1000.5 Plus is less suitable for applications requiring aftermarket source unit with the amplifier (where OEM integration capability provides no value), systems needing more than 500W subwoofer power (requiring separate monoblock amplifier), or installations where comprehensive DSP processing is mandatory (sound quality competition, extreme acoustic correction). Understanding these application boundaries ensures the Link 1000.5 Plus serves installations where its strengths align with actual requirements rather than forcing compromise where alternatives would better serve the specific application.

Technical Specifications Summary

• Configuration: 5-channel Class D amplifier with integrated OEM interface
• Main Channels Power @ 4Ω: 4 channels × 75W RMS (300W total)
• Main Channels Power @ 2Ω: 4 channels × 125W RMS (500W total)
• Bridged Power @ 4Ω: 2 pairs × 250W RMS (500W total)
• Subwoofer Channel @ 4Ω: 1 channel × 300W RMS
• Subwoofer Channel @ 2Ω: 1 channel × 500W RMS
• Subwoofer Channel @ 1Ω: 1 channel × 500W RMS (true stability)
• Total System Power: 1000W RMS maximum (all channels driven)
• Input Capability: 40V maximum (adaptive OEM loading)
• Input Channels: 6-channel summing with flexible routing
• Input Types: Speaker-level (high-level) and RCA line-level
• Input Impedance: Adaptive based on source characteristics
• Differential Balanced Inputs: Yes (noise rejection for long runs)
• Channels 1/2 Crossover: Variable HP, 12dB/octave, with 1×/10× multiplier
• Channels 3/4 Crossover: Variable HP/BP/LP, 12dB/octave
• Channel 5 Low-Pass: Variable LP, 24dB/octave (bassFREQ)
• Channel 5 Subsonic: Variable subsonic filter, 24dB/octave
• Channel 5 Parametric EQ: 1-band adjustable (frequency, Q, boost/cut)
• Remote Level Control: Compatible with optional linkRC (sold separately)
• Start/Stop Compatible: Yes (operates down to 7V)
• Operating Voltage Range: 7V - 16V DC
• Active Thermal Management: Yes (power reduction vs. shutdown)
• Auto Turn-On: DC-offset detection or audio signal detect
• Protection Circuits: Thermal, short circuit, DC offset, reverse polarity
• Current Draw @ Idle: <2A (low parasitic drain)
• Current Draw @ Full Power: ~100-110A (1000W output)
• Recommended Fusing: 125-150A ANL or MIDI at battery connection
• Power Cable Gauge: 4-gauge minimum (2-gauge for runs >15 feet)
• RCA Connectors: Panel-mount (locking, strain-relieved)
• Speaker Inputs: Locking detachable terminals (bare wire/pin compatible)
• Power Terminals: 4-gauge terminal blocks (screw-type)
• Dimensions: 11.9" × 5.5" × 1.65" (compact footprint)
• Mounting: Detachable tabs (multiple orientation options)
• Weight: Approximately 5-6 lbs (lightweight aluminum construction)
• Finish: Black anodized aluminum chassis
• Condition: Brand new, never installed, factory packaging
• Included Accessories: Mounting tabs, terminal hardware, owner's manual
• Warranty: Manufacturer warranty via Audio Intensity (terms in documentation)

Final Assessment

The Wāvtech Link 1000.5 Plus represents focused engineering applied to a specific problem: how to provide complete system amplification for factory-integrated installations without the complexity, cost, and reliability concerns of multi-component approaches. By integrating OEM interface capability, signal summing, comprehensive processing, and sufficient power delivery into a single compact package, Wāvtech created a solution that simplifies installations while expanding the range of vehicles that can receive quality audio upgrades.

This isn't the amplifier for every application. It won't satisfy the sound quality competitor who demands separate monoblocks for subwoofers and dedicated multi-channel amplifiers for active front stages. It doesn't include the comprehensive DSP processing found in products costing twice as much. And it provides moderate rather than extreme power levels on the main channels. But for its intended application—factory integration with complete system capability in compact form—the Link 1000.5 Plus delivers precisely what's needed without the unnecessary features that inflate cost and complexity.

The true innovation isn't in the power specifications or even the OEM integration technology individually—it's in the integration of these capabilities into a cohesive design optimized for real-world installations. Wāvtech leveraged their decade of OEM integration experience to create an amplifier that works reliably with the widest possible range of factory systems, provides the processing tools installers actually use, and fits where space constraints prevent conventional multi-amplifier solutions. That focused design philosophy—solving real problems rather than chasing specifications—defines what makes the Link 1000.5 Plus valuable for its target applications.

At $649-699, the Link 1000.5 Plus costs less than quality five-channel amplifier plus external integration components while providing superior capability and simpler installation. That value proposition, combined with the practical advantages of single-component systems (fewer failure points, simpler troubleshooting, reduced installation labor), makes it a compelling choice for factory integration installations where maintaining OEM source unit functionality matters more than ultimate power specifications or audiophile-grade component separation. For daily drivers retaining factory navigation and infotainment while upgrading audio performance, the Link 1000.5 Plus delivers complete system capability without compromise.
