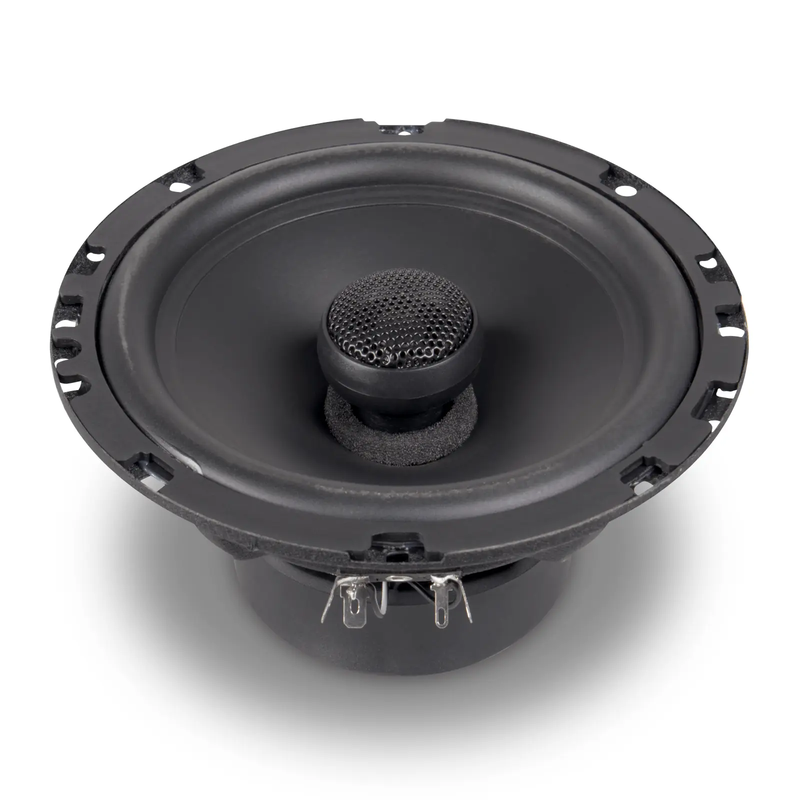

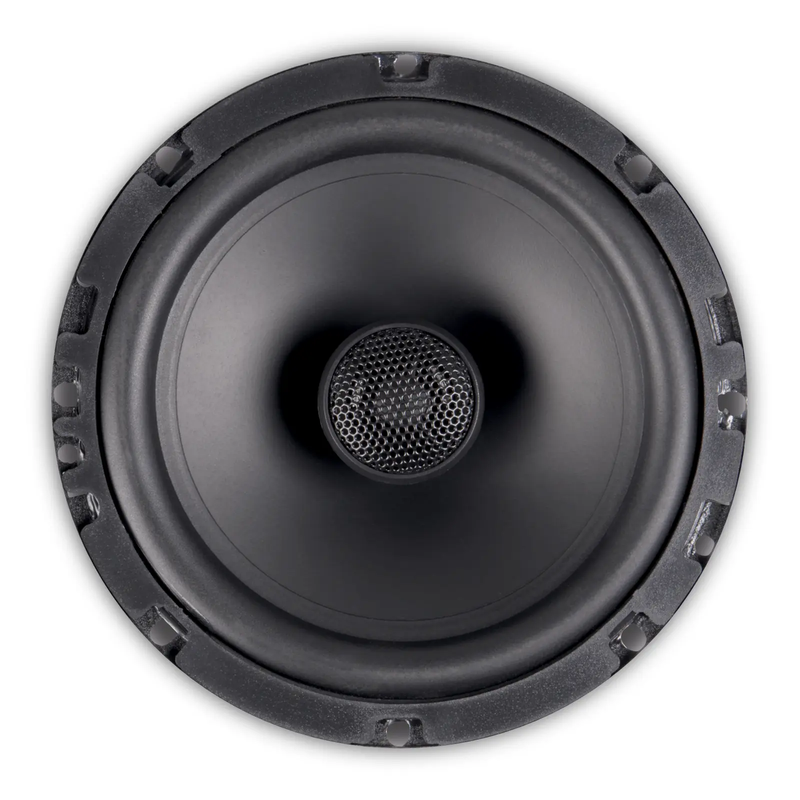

ADCX613 1000 Series Speaker
The ADCX613 is a 6.5-inch 2-way coaxial speaker from Audio Dynamics' 1000 Series, engineered to deliver exceptional tonal accuracy and realism. It features a coated paper cone midrange and a ¾-inch polymer film dome tweeter, and it can handle up to 80 Watts RMS power, making it suitable for various audio setups.
Realistic Tonal Accuracy
The coated paper cone midrange is selected for its ability to reproduce music with astonishing realism and detailed timbre across harmonics. This design choice ensures that the speaker delivers a natural, immersive listening experience, bringing new life to your music collection.
High-Quality Tweeter
Equipped with a ¾-inch (20mm) polymer film dome tweeter, the ADCX613 produces clear and effortless highs. The tweeter's design complements the midrange driver, producing a balanced and dynamic sound profile that accurately reproduces high-frequency details.
Durable Construction

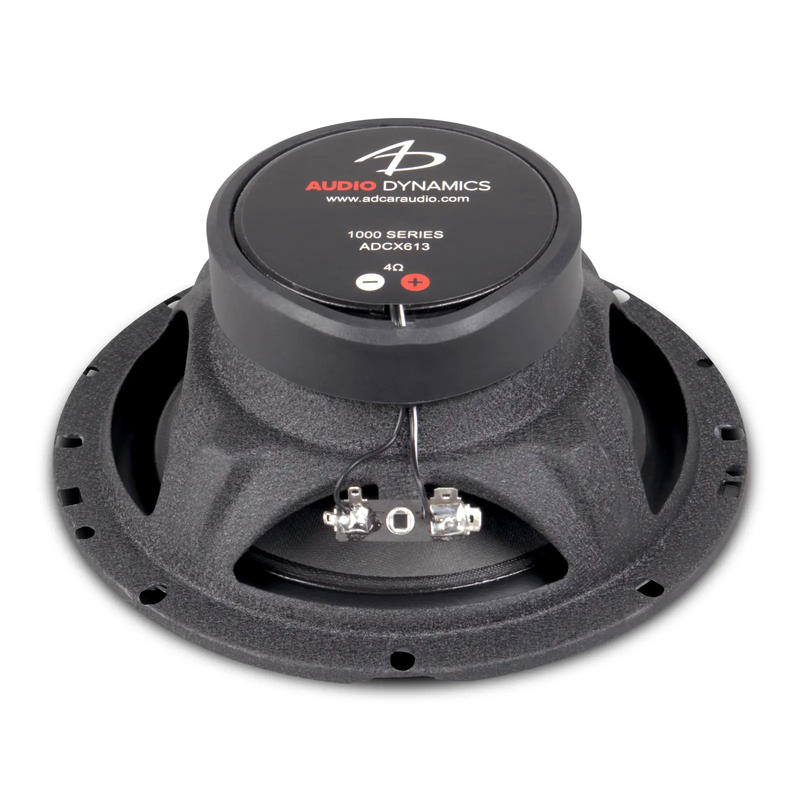

The speaker features a dampened steel frame and rubber surround, ensuring durability and longevity. These materials are chosen to withstand the rigors of automotive environments and provide consistent performance over time.
Technical Specifications
- Frequency Response: Fs of 78.530 Hz
- Sensitivity: 85.099 dB
- Nominal Impedance: 4 ohms
- Mounting Depth: 2.5 inches (64 mm)
- Power Handling: 80 Watts RMS (with recommended high-pass crossover settings)
These specifications highlight the ADCX613's capability to deliver high-quality audio performance in a compact form.
Installation Recommendations
For optimal performance, it is recommended to use an electronic high-pass crossover with a minimum crossover point of 60Hz at 24dB/Octave, 80Hz at 18dB/Octave, or 100Hz at 12dB/Octave. Adhering to these settings ensures the speaker operates within its ideal frequency range, providing clear and distortion-free sound.
Top 10 Features
- Coated Paper Cone Midrange: Delivers realistic tonal accuracy and detailed timbre.
- ¾-Inch Polymer Film Dome Tweeter: Produces clear and effortless high frequencies.
- 80 Watts RMS Power Handling: Suitable for various audio setups with recommended crossover settings.
- Dampened Steel Frame: Ensures durability and reduces resonance for cleaner sound.
- Rubber Surround: Provides longevity and consistent performance in automotive environments.
- Compact 6.5-Inch Design: Fits into a variety of installation spaces without compromising sound quality.
- High Sensitivity (85.099 dB): Offers substantial output with minimal power input.
- 4 Ohm Nominal Impedance: Compatible with a wide range of amplifiers and audio systems.
- Engineered for Accuracy: Designed to reproduce music with ultimate precision.
- Part of the 1000 Series: A lineup known for pulling listeners into the musical performance and breathing new life into music collections.
Owner's manual is not available for this product.
No video available for this product.
| Specifications | |
|---|---|
Speaker Size The diameter of a speaker, typically measured in inches, indicating its physical size. It affects sound dispersion, bass response, and overall performance in audio systems.
|
|
Design |
|
Efficiency A measure of how effectively a speaker converts power into sound, typically expressed in decibels (dB) at 1 watt/1 meter. Higher efficiency indicates louder output with less power.
|
|
Continuous Power (RMS) The amount of power a speaker can handle consistently over time without damage, measured in watts. It reflects the speaker's reliable performance capacity.
|
|
| T/S Parameters | |
Free Air Resonance (Fs) The frequency at which a speaker naturally vibrates with minimal external force. It reflects the speaker's lowest resonant frequency and impacts bass reproduction capability.
|
|
Total Speaker “Q” (Qts) A parameter combining electrical (Qes) and mechanical (Qms) damping to indicate the speaker's overall control.
|
|
Electrical “Q” (Qes) A speaker parameter measuring the electrical damping caused by the voice coil and magnet system. Lower Qes values indicate better control over cone movement through electrical means.
|
|
Mechanical “Q” (Qms) A speaker parameter that measures the mechanical damping of its suspension system. A higher Qms indicates less damping, allowing longer cone movement before returning to rest.
|
|
Compliance (Vas) A speaker parameter representing the volume of air that has the same acoustic compliance as the speaker's suspension. It reflects how easily the speaker cone moves in response to sound.
|
|
Mms The total moving mass of a speaker's diaphragm, including the cone, dust cap, voice coil, and any added components. Measured in grams, it affects the speaker's efficiency and response.
|
|
