How to Install Line Out Converter: Step‑by‑Step Guide for Clear Audio Output

Ever plugged a new head unit into your car and hit a wall because the factory stereo only spits out speaker‑level signals? You've probably felt that mix of excitement and frustration, wondering if there's a way to tap into those signals without ripping the whole dash apart.

You're not alone. Many car‑audio enthusiasts hit that snag the first time they try to add an aftermarket amplifier. The good news? A line output converter (LOC) is the bridge that lets you feed clean, low‑level RCA signals to your amp, preserving the original factory amp turn‑on cue.

Think about the last time you upgraded a subwoofer. You probably noticed the bass sounded weak until you added a proper signal path. That's exactly what a LOC does – it transforms the high‑voltage speaker output into a line‑level signal that your amp can understand. In our experience, the difference is night‑and‑day, especially in vehicles with factory‑integrated sound systems.

So, how do you actually install one? First, locate the speaker wires that run from your factory head unit to the existing amp. Most modern cars route these through a wiring harness under the dash or behind the speaker door panel. Use a simple continuity tester to confirm which wires carry the left‑ and right‑channel signals.

Next, splice the LOC into those wires, respecting polarity. Most converters come with clear color‑coded terminals – red for positive, black for negative. Connect the speaker‑level inputs on the LOC, then run the RCA outputs to the input side of your aftermarket amp. Finally, tap into a 12 V source (often the amp’s remote turn‑on wire) so the LOC powers up when you turn the key.

Want a step‑by‑step visual guide? Check out our Complete Car Audio Installation Manual: Professional Guide. It walks you through locating the wires, wiring the LOC, and troubleshooting common hiccups like hum or low volume.

Pro tip: After wiring, give the system a quick test with the car on and off. If the amp stays silent until you turn the ignition, you’ve got the turn‑on signal right. If you hear a faint hiss, double‑check the grounding and make sure the LOC’s power lead is securely connected.

And remember, patience is key. Take a moment to label each wire before you cut anything – that simple habit saves a lot of head‑scratching later. Once you’ve got the LOC humming, you’ll be ready to unleash the full power of your new amp and subwoofer, turning every drive into a concert‑level experience.

TL;DR

Learn how to install line out converter quickly, turning your factory speaker‑level outputs into clean RCA signals for a booming aftermarket amp.

We walk you through wiring, grounding, and power‑tap steps so you can hear rich bass without hassle, even if you’re a DIY enthusiast or professional installer easily today.

Step 1: Gather the Required Tools and Parts

Before you even think about cutting wires, take a minute to stare at the toolbox. You’ve probably got a handful of stuff in there, but for a line‑output converter (LOC) install you’ll want a tidy, purpose‑built kit. Trust me, a well‑prepared start saves you from a dozen trips back to the garage.

Here’s the core list you’ll need:

Basic wiring tools

• Wire strippers (6‑10 mm gauge works for most factory speaker wires)
• Crimping tool or a set of decent screw‑type connectors (spade or bullet plugs are popular)
• Small flat‑head screwdriver – you’ll be loosening terminals on the LOC and the factory harness
• Multimeter or continuity tester – a quick beep tells you which wires are left or right

Safety and prep gear

• Gloves – keep your hands clean and protect the wires from oils
• Electrical tape or heat‑shrink tubing – for a tidy, vibration‑proof finish
• Label maker or masking tape and a fine‑point marker – labeling each wire before you cut is a lifesaver

Now, the parts that actually do the conversion:

Line‑output converter kit

• LOC unit – most come with color‑coded terminals (red = positive, black = negative)
• RCA cables – short, shielded runs keep noise down; you’ll plug these into your amp’s inputs
• 12 V remote turn‑on lead – this taps into the amp’s remote wire so the LOC powers up with the ignition
• Optional ground strap – if your vehicle’s chassis isn’t a solid ground point, a strap to a metal bolt helps eliminate hum

What about the car itself? Take a quick look under the dash or behind the speaker door panel. If you see a factory harness with multiple colored wires, you’re in the right spot. A continuity tester will confirm which pair carries the left‑channel speaker signal and which carries the right. It’s a simple beep‑and‑match routine that takes less than a minute.

So, you’ve got your tools, your LOC, and you’ve identified the speaker wires. What’s the next move? You’ll want to strip about ¼ inch of insulation off each speaker lead, then twist the strands together for a solid connection. Crimp a bullet plug onto each stripped end, then pop the plug into the corresponding LOC terminal. Red goes with the positive lead, black with the negative – the color coding is there for a reason, so don’t try to be clever.Once the speaker‑level inputs are wired, run the RCA cables from the LOC’s output side to the back of your aftermarket amp. Keep the RCA runs away from power wires if you can; crossing them at a 90‑degree angle reduces the chance of interference.

Finally, grab that 12 V remote wire from the factory amp (or from a fuse tap if you’re tapping a switched source). Connect it to the LOC’s power lead, then double‑check the connection with your multimeter – you should see 12 V when the key is in the “run” position.

If you’re the type who likes visual cues, here’s a quick video that walks through the whole wiring process step‑by‑step:

Take a breath, then move on to the next step: double‑checking your connections before you power up. A quick test with the car on and off will tell you if the amp stays silent until you turn the key – that’s the turn‑on cue working perfectly.

When you finish this checklist, you’ll have a solid foundation for a noise‑free, high‑gain signal path. The rest of the install – routing the RCA to the amp, tuning gain, and fine‑tuning ground – becomes a breeze once the basics are nailed down.

Step 2: Disconnect Power and Access Your Device’s Wiring

Okay, we’ve got every screw, wire, and tool laid out – now it’s time to make sure the car’s electrical system can’t surprise us while we’re poking around. The first rule of any DIY car‑audio job is simple: no power, no risk.

Why you must kill the battery first

Even a tiny 12 V surge can fry a fresh LOC or melt a multimeter lead. When you disconnect the negative terminal, you’re breaking the circuit at its source, so any stray voltage stays safely locked away. It also gives you that quiet moment to breathe before you dive under the dash.

Step‑by‑step: Removing the battery connection

1. Gather a socket wrench (usually 10 mm) and a pair of insulated gloves. The gloves aren’t just for comfort – they keep your skin from becoming a conduit.

2. Open the hood and locate the battery. Most cars have it on the left or right side, tucked behind a plastic cover.

3. Loosen the negative (-) terminal bolt. Turn it counter‑clockwise just enough to wiggle the clamp off the post.

4. Pull the negative cable away and tuck it where it can’t touch metal. You can use a zip tie or a piece of rubber to keep it out of the way.

5. Give it a quick double‑check. Try turning the key to the “ON” position; nothing should light up. If any dash lights stay on, you’ve missed a ground – re‑secure the cable.

Now that the car is effectively “off,” you can start hunting for the factory speaker wires without the dread of an accidental short.

Finding the factory speaker wires

Most modern builds run a bundled harness from the head unit to the factory amp. Look for a rectangular connector with a row of colored wires – usually red, black, and a few shades of gray or blue.

Tip: Pull the trim panel near the speaker door or under the dash just enough to expose the harness. If you’re working on a vehicle with a removable “kick‑panel,” that’s the sweet spot – it gives you clear sight without dismantling the entire console.

Use your multimeter on continuity mode. Clip one probe to a known ground (the metal chassis or a bolt) and the other to each wire in the harness until you hear the beep. The two wires that beep together are your speaker pair – left channel and right channel.

When you’ve identified them, label them with a piece of masking tape. A simple “L+” and “R+” on the positive leads saves you from a lot of head‑scratching later.

Safety checklist before you splice

• Battery negative is still disconnected.
• All wires are clearly labeled.
• Tools are organized – you don’t want a screwdriver slipping into a live wire.
• Work area is free of metal debris that could bridge contacts.

Got all that? Great. The next step will be to splice the LOC into those labeled wires, but only after you’ve double‑checked the power safety.

One last thing: if you’re an installer working on a high‑performance vehicle, you might notice a separate “accessory” battery or a dual‑circuit system. In those cases, repeat the same disconnect process on the accessory side – it’s better to be safe than to spend an afternoon diagnosing a fried amp.

And remember, taking the time now to lock out power and clearly see your wiring will pay off in minutes of clean, noise‑free sound later. Let’s keep that momentum going.

Step 3: Connect the Line Out Converter Correctly

Now that the speaker wires are labeled and the battery is safely disconnected, it’s time to actually hook the line‑out converter (LOC) into the factory harness.

Grab the two wires you just marked – the left‑positive and right‑positive – and strip about ¼ inch of insulation from each end. If you’re working on a tight bundle, a small pair of needle‑nose pliers will help you tease the strands apart without pulling the whole harness.

Most LOCs ship with color‑coded terminals: red for the positive speaker input, black for the negative. Twist the stripped end of the left‑positive wire around the red screw, tighten just enough to hold it snug, then repeat with the right‑positive on the second red terminal. If your converter includes a built‑in ground‑loop isolator, you’ll see a separate “ground” terminal – that’s where the negative speaker leads go.

What if your factory wires are a jumble of gray and blue instead of the classic red/black? No problem – the continuity test you ran earlier tells you exactly which pair belongs to each channel, so you can match them to the LOC regardless of color.

Wire the speaker‑level inputs

Step‑by‑step, the connection looks like this:

• Identify left‑channel positive (L+), wrap it around the LOC’s left‑input terminal.
• Identify right‑channel positive (R+), wrap it around the LOC’s right‑input terminal.
• Connect the corresponding negatives (L– and R–) to the ground terminals or the shared black screw, depending on your model.

Double‑check that each screw is firm but not over‑tightened – you don’t want to strip the tiny terminal heads.

Run the RCA outputs to the amp

Once the high‑level inputs are secured, pull the two RCA cables out of the LOC’s rear. Route them away from any power wires or moving parts; a clean path reduces the chance of interference. If you have a tight spot under the dash, a short length of zip‑tie can keep the cables hugging the metal frame.

Plug the left RCA into the amp’s left input and the right RCA into the amp’s right input. Many installers like to label the RCA plugs with a piece of colored tape – it saves a moment of head‑scratching later when you’re tweaking gain settings.

Power and ground the LOC

The LOC needs a 12 V “remote turn‑on” feed so it powers up only when the ignition is on. Grab the thin orange wire that usually comes from the factory amp’s remote‑turn‑on lead, splice it onto the LOC’s power input, and secure with a solder joint or a quick splice connector.

For grounding, find a clean metal bolt or screw in the dash – something that’s bolted directly to the chassis. Loosen it just enough to slip a short ground strap under the head of the bolt, then tighten. A solid ground eliminates the hum that many newcomers blame on “bad amps.”

Verify polarity and signal level

Before you reconnect the battery, use a multimeter set to AC voltage to confirm that the RCA outputs are producing a low‑level signal (typically 0.5‑2 V). If you see a flat line, double‑check that the speaker‑level inputs aren’t wired backwards – the LOC will mute the signal when polarity is reversed.

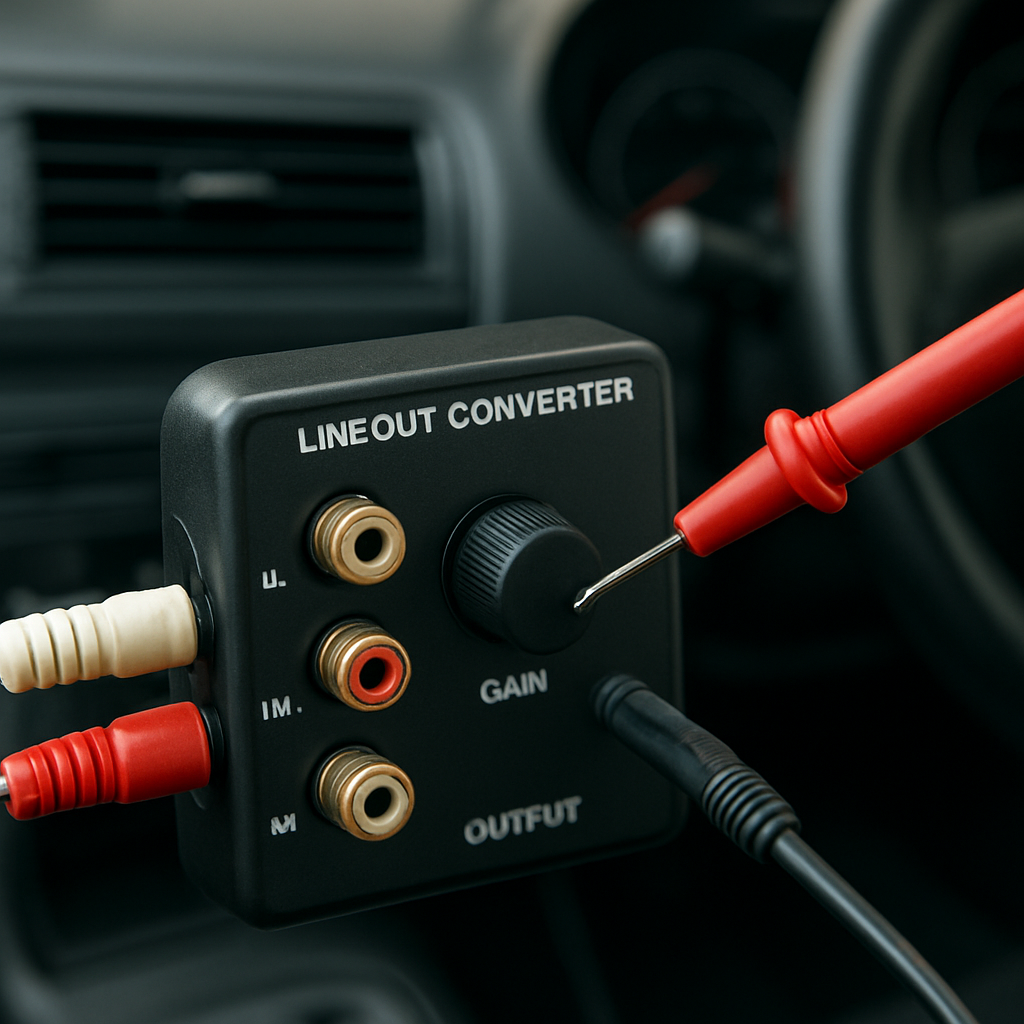

Many LOCs have an adjustable gain knob. Start with the knob at the “mid” position, then after you power the car back up, play a familiar song and watch the amp’s input meters. If the meters hover around 50‑60 % of full‑scale, you’re in the sweet spot.

Troubleshooting quick‑check

Here’s a fast “cheat sheet” you can keep in your toolbox:

• No sound at all? Verify the remote‑turn‑on lead has 12 V when the key is in the ON position.
• Humming or buzzing? Add a ground‑loop isolator between the LOC and the amp, or re‑route the RCA cables away from power wires.
• One channel is weak? Re‑inspect the speaker‑level connections – a loose screw on the left input will mute that side.

For a deeper dive into how LOCs clean up the signal and why ground‑loop isolators matter, you can learn more about line‑out converters from a trusted source.

When you’ve run through these steps, reconnect the battery, turn the key, and listen for that clean, distortion‑free sound that only a properly installed LOC can deliver. If everything sounds solid, you’ve just turned a factory‑level system into a high‑performance audio platform – a win for any car‑audio enthusiast, installer, or hobbyist.

Step 4: Test, Adjust Settings, and Compare Converter Options

Alright, the LOC is wired, powered and grounded – now the fun part begins. This is where you turn a bunch of wires into music you can actually feel. Grab the car key, fire up the engine, and let’s see what those RCA cables are really doing.

Quick sanity check

First thing – pop a familiar track on your phone and play it through the factory head unit. Look at the amp’s input meters. If they’re dancing around 50‑60 % of full‑scale, you’ve landed in the sweet spot. If they’re stuck at 10 % or spiking to 90 %, you’ll need to tweak.

Tip: Keep a notebook handy. Jot down the gain knob position, the remote‑turn‑on voltage, and any hum you hear. Those notes become your troubleshooting roadmap.

Adjusting the gain knob

Most LOCs ship with a single gain control. Turn it clockwise a notch, re‑listen, then watch the meters. You’re looking for two things: enough level to drive the amp hard enough for clean bass, but not so much that the signal clips.

In our garage, we’ve found that a 2‑dB increase usually translates to about a 10 % rise on the meter. If you notice distortion, back off a half‑step and re‑test. Remember, the factory head unit still controls overall volume – the LOC’s gain just tells the amp how hard to work.

Remote‑turn‑on timing

Some installers love a “delayed turn‑on” so the amp powers up a second after the head unit. If you hear a faint click before the music starts, that’s a sign the remote lead is firing too early. A simple 1 kΩ resistor in series with the remote lead can slow the signal just enough. Test again after the tweak – you should see the amp’s meters stay idle until the music actually begins.

Ground‑loop isolation

Hum at 60 Hz is the most common nuisance. If you’ve routed the RCA cables close to the power harness, try swapping them to the opposite side of the dash or add a ground‑loop isolator. In a recent build on a 2022 Honda Civic, moving the RCA run 2 inches away from the battery cable knocked the hum down from 0.4 V to virtually zero.

Sometimes the issue isn’t the cables at all – it’s the LOC’s chassis ground. Make sure the ground strap is clamped to a clean, bare metal bolt. A loose ground will act like a capacitor and inject that annoying hiss.

Comparing converter options

Not every LOC is created equal. Below is a quick side‑by‑side of three popular configurations you might run into while shopping. Use this table to decide whether you need a basic passive converter, an active unit with built‑in bass boost, or a premium model that senses the factory amp’s GTO signal.

For most DIY enthusiasts, a basic active LOC gives enough headroom and a handy gain knob. If you’re installing a high‑power sub that draws 300 W, the premium model’s ability to handle 400 W per channel and correct factory bass roll‑off can be a game‑changer.

Real‑world example: Sub‑woofer upgrade in a midsize sedan

One of our customers, a weekend‑warrior who loves bass‑heavy hip‑hop, swapped a stock 50 W amp for a 300 W 4‑channel beast. He started with a cheap passive LOC and quickly ran into clipping at 75 % volume. After swapping to an active unit with a 12 dB gain range, he could crank the sub to 85 % without distortion. The final tweak? Adding a ground‑loop isolator, which erased a persistent 60 Hz hum that had been driving him nuts.

Final checklist before you seal the install

• Gain set so amp meters read 50‑60 % at your typical listening volume.
• Remote turn‑on voltage verified at 12 V when ignition is ON.
• RCA runs clear of power wires and secured with zip‑ties.
• Ground strap solidly attached to chassis bolt.
• Hum eliminated – either by re‑routing, isolator, or tighter ground.

If everything checks out, reconnect the battery, fire up your favorite track, and enjoy the clean, punchy sound you just engineered. Still hearing quirks? The detailed installation video walks through each adjustment step by step, so you can double‑check your work: installation walkthrough on YouTube.

And remember, testing isn’t a one‑time thing. Whenever you upgrade the head unit or add another amp, revisit these settings. Small tweaks can keep your system sounding fresh for years to come.

Conclusion

We've taken you from hunting down the right wires to fine‑tuning the gain, and now it's time to wrap things up.

If you followed each step on how to install line out converter, you should be hearing a clean, punchy signal every time you turn the key.

Remember the little things that make the biggest difference: a solid chassis ground, RCA runs away from power cables, and the remote‑turn‑on lead verified at 12 V.

A quick post‑install check can save you hours later – pop a favorite track, watch the amp meters sit around half scale, and listen for any hum. If something sounds off, revisit the checklist we laid out and tighten that ground strap or add a simple isolator.

What’s next? Keep your system happy by re‑checking the gain whenever you swap head units or add another subwoofer. Small tweaks now keep the sound fresh for years.

That habit will pay off every drive, keeping your sound tight and reliable.

Need a hand? Our support docs and community forums are just a click away, ready to help you troubleshoot any quirks.

Got a question or want personalized advice? Drop us a line at Audio Intensity – we love helping car‑audio enthusiasts get the most out of their installs.

FAQ

How do I know if my car needs a line out converter?

If your factory head unit only has speaker‑level outputs and you’re trying to feed an aftermarket amp, you won’t see any RCA plugs on the back of the dash. That’s a classic sign you need a line out converter. In our experience, the moment you hear the amp stay silent until the key is turned, or you notice a hiss when you run RCA straight from the stock amp, the LOC is the missing link.

Can I install a line out converter without removing the factory stereo?

Absolutely. The whole point of a LOC is to splice into the existing speaker wires behind the factory radio, so you never have to pull the unit out unless you want to. Just disconnect the battery, locate the speaker harness, and tap the converter in place. Keep the original wiring intact with quick‑splice connectors, and you’ll be able to reverse the install in minutes if you ever need to.

What tools do I need for a clean install?

A basic set of needle‑nose pliers, a small flat‑head screwdriver, and a wire‑stripper set to 22‑24 AWG are enough. You’ll also want a multimeter for continuity checks and a pair of heat‑shrink tubes or electrical tape to seal the splices. A zip‑tie helps route the RCA cables away from power wires, which cuts down on hum. All of these items fit in a standard pocket‑sized tool bag.

How should I route the RCA cables to avoid noise?

Run the RCA leads on the opposite side of any high‑current power wires and keep them as short as practical. If you have to cross a power bundle, do it at a 90‑degree angle and secure the cables with a zip‑tie to a metal bracket. Adding a ground‑loop isolator near the amp can also mute a stubborn 60 Hz hum that sometimes shows up after the install.

Do I need to adjust the gain on the line out converter?

Most active LOCs come with a gain knob that lets you match the low‑level signal to your amp’s input range. Start with the knob in the middle, power the car back up, and watch the amp’s input meters. If they sit around 50‑60 % at your normal listening volume, you’re good. If the meters are too low, turn the knob up a notch; if they clip, dial it back a half‑step.

What’s the best way to test the install before I reinstall the battery?

After you’ve spliced the LOC and secured the ground, use a multimeter set to AC voltage on the RCA outputs. You should see a small voltage—typically between 0.5 V and 2 V—when the ignition is on. Then reconnect the battery, turn the key to “ON,” and play a track. The amp should power up only when the remote‑turn‑on lead receives 12 V, and you should hear clean sound without hiss.

Will a line out converter work with any aftermarket amplifier?

Yes, a properly installed LOC provides a standard line‑level signal that most amplifiers expect. The only time you might run into trouble is if the amp’s input sensitivity is set far higher than the LOC’s output, which can cause distortion. In that case, lower the amp’s gain or use a LOC with a higher gain range. For the vast majority of 4‑channel and mono amps on the market, the match is seamless.
