Wavtech bassRESTOR Bass Restoration Processor

To understand why the bassRESTOR exists and how it works, we must first understand why so much recorded music lacks deep bass content despite being performed on instruments capable of producing powerful low frequencies. The problem isn't a modern phenomenon – it's baked into the recording and mastering decisions made over six decades of commercial music production.

Analog Tape Physics (1950s-1990s): Magnetic tape – the dominant recording medium from the dawn of multitrack recording through the 1990s – had fundamental physical limitations at low frequencies. Deep bass requires large magnetic flux changes on tape, but excessive low-frequency content caused tape saturation, modulation noise, and print-through (unwanted magnetic transfer between tape layers on the reel). Mastering engineers routinely applied high-pass filters at 40-60Hz during mixing and mastering to prevent these problems, permanently removing the deepest bass fundamentals from master recordings. Even when bassists and drummers performed with thunderous low-frequency impact, the final recordings contained only the upper harmonics and overtones – not the fundamental frequencies that give bass instruments their visceral power.

Studio Monitor Limitations (1950s-1980s): Professional studio monitors during the golden era of rock, soul, jazz, and early hip-hop typically featured 8-inch or 10-inch woofers in small sealed enclosures. These monitors often had -3dB points around 60-80Hz, rolling off steeply below that frequency. Mastering engineers made EQ and balance decisions while listening to monitors that physically couldn't reproduce the deep bass we now take for granted with modern subwoofers. If they couldn't hear bass below 60Hz, they didn't engineer for it – creating a self-fulfilling cycle where recordings lacked bass because monitoring systems couldn't reproduce it.

Vinyl Pressing Constraints (1950s-1980s): Vinyl records – the dominant distribution format through the mid-1980s – have severe low-frequency limitations. Excessive bass causes the cutting stylus to carve grooves so wide that playback time per record side decreases dramatically (fewer grooves fit on the disc). Powerful low frequencies also cause tracking problems on consumer turntables with lightweight tonearms and compliance-mismatched cartridges, resulting in skipping and mistracking. Mastering engineers routinely cut bass below 60-80Hz to ensure records could be manufactured cost-effectively and played reliably on consumer equipment. The music originally performed might have contained deep bass, but the vinyl format demanded its removal.

AM Radio Compatibility (1950s-1970s): When AM radio dominated music broadcasting, mastering engineers optimized recordings for the 100Hz-4kHz bandwidth limitations of AM transmission. Deep bass was pointless – AM receivers physically couldn't reproduce it, so engineers filtered it out during mastering to maximize loudness and clarity in the frequency range AM could deliver. Even when FM radio became dominant (with its superior bandwidth), mastering practices established during the AM era persisted for years.

MP3/AAC Psychoacoustic Coding (1990s-Present): Lossy compression algorithms like MP3 and AAC achieve 10:1 or higher compression ratios by discarding audio information the codecs determine is psychoacoustically "less important." While modern codecs preserve bass reasonably well at high bitrates (320kbps MP3, 256kbps AAC), lower bitrates (128kbps and below – still common for older downloads and some streaming services) apply aggressive low-frequency bit allocation reductions. The bass may still exist in the file, but it's quantized coarsely, losing dynamic range and transient detail. The result: bass that sounds dull, compressed, and lifeless compared to uncompressed sources.

Loudness War Side Effects (1990s-Present): The "loudness war" – the decades-long mastering trend toward maximum average loudness – used aggressive multiband compression and limiting to squeeze every decibel of perceived volume from recordings. While this maximized loudness on radio and in casual listening environments, it compressed dynamic range and often reduced low-frequency impact. Heavy bass transients (kick drum hits, bass guitar plucks) were compressed to prevent them from limiting overall loudness, removing the punch and dynamics that give bass its physical impact.

Streaming Service Normalization (2010s-Present): Modern streaming platforms (Spotify, Apple Music, YouTube Music, Tidal) apply loudness normalization algorithms that adjust playback levels to create consistent perceived volume across different tracks. While this prevents volume jumps between songs, it can reduce the perceived impact of bass-heavy tracks mastered with modern techniques. Tracks engineered with powerful low-frequency content may sound less impactful than intended because normalization reduces their playback level relative to less bass-heavy material.

The bassRESTOR employs psychoacoustic bass synthesis – a sophisticated signal processing technique based on how the human auditory system perceives pitch and bass. Understanding this technology requires brief exploration of acoustic physics and auditory neuroscience.

When a bass guitar plays an E1 note (approximately 41Hz fundamental frequency), the string vibrates at 41Hz, but it also vibrates at integer multiples of that fundamental: 82Hz (2nd harmonic), 123Hz (3rd harmonic), 164Hz (4th harmonic), and so on. These harmonics give the bass its tonal character – without harmonics, all bass notes would sound like pure sine waves (boring and textureless). Here's the psychoacoustic magic: if you remove the 41Hz fundamental but leave the harmonics intact, your brain still perceives the pitch as 41Hz. This phenomenon is called "the missing fundamental" or "virtual pitch perception."

Your auditory cortex analyzes the harmonic series (82Hz, 123Hz, 164Hz, 205Hz...) and calculates their greatest common divisor – 41Hz – then presents that frequency to your conscious perception as the pitch you're hearing, even though the 41Hz fundamental is absent from the actual acoustic signal. This isn't a trick or illusion – it's fundamental to how pitch perception works. It's why you can identify bass melodies on small speakers physically incapable of reproducing the fundamental frequencies being played.

The bassRESTOR exploits this psychoacoustic phenomenon in reverse. Instead of relying on your brain to calculate missing fundamentals from existing harmonics, it analyzes the harmonic content present in the audio signal and synthesizes the missing fundamental frequencies, then adds them back into the signal path before it reaches your amplifier and subwoofers. The process involves several sophisticated steps:

Traditional bass restoration processors like the AudioControl Epicenter require full-range input signals because they analyze midrange and treble harmonics (2nd through 5th harmonics of bass fundamentals, which often extend into the 200-500Hz midrange region) to calculate what the missing bass fundamentals should be. This works excellently when full-range signals are available, but it creates installation nightmares in OEM integration scenarios or systems using dedicated DSP subwoofer outputs that contain only low-pass filtered bass (typically 80Hz and below).

The bassRESTOR's key innovation is its ability to extract sufficient harmonic information from low-pass filtered signals to perform psychoacoustic synthesis. Even when the input signal is filtered at 80Hz (removing all midrange and treble), the remaining 40-80Hz octave contains second harmonics of fundamentals in the 20-40Hz deep bass region. The bassRESTOR's advanced analysis algorithms extract those remnant harmonics and use them to synthesize the truly deep bass (20-40Hz) that even the low-pass filter removed. This capability allows installation flexibility impossible with competing processors:

• Factory Amplifier Integration: Tap the factory subwoofer amplifier's speaker outputs (already low-pass filtered) and feed them to the bassRESTOR's speaker-level inputs. The processor restores deep bass from the filtered signal and outputs high-voltage RCA signals to your aftermarket amplifier, eliminating the need to access full-range signals from the factory head unit or DSP.
• Aftermarket DSP Systems: Connect the bassRESTOR between your DSP's subwoofer output (low-pass filtered) and your subwoofer amplifier. The processor enhances the already-filtered bass signal without requiring full-range signal rerouting or additional DSP output channels.
• Head Unit Subwoofer Outputs: Use the bassRESTOR with aftermarket head units that provide dedicated subwoofer RCA outputs (typically low-pass filtered at 80-120Hz). The processor works directly with these filtered outputs, adding restoration processing without requiring access to the head unit's full-range front/rear outputs.

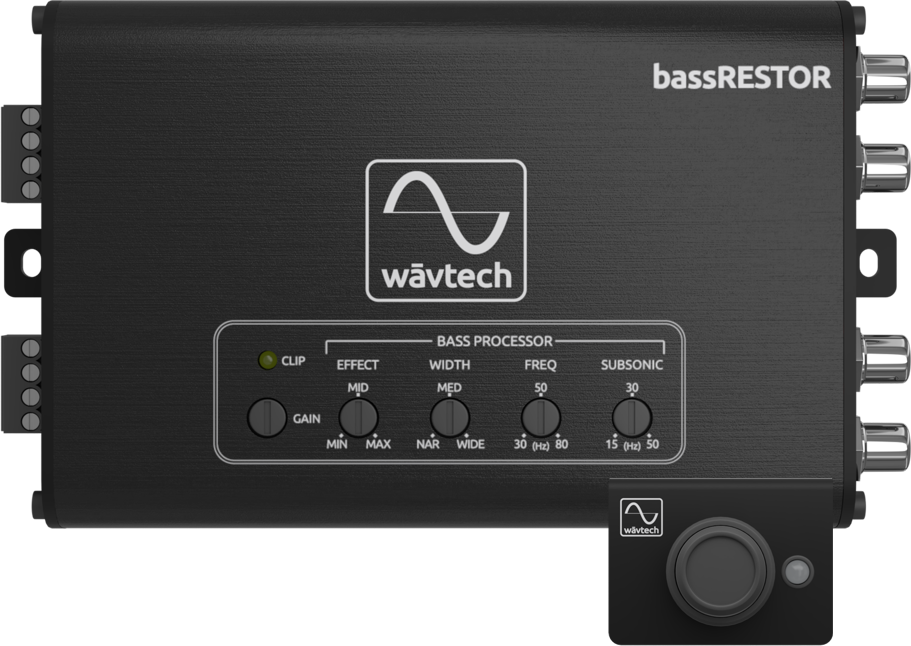

The bassRESTOR provides comprehensive control over the bass restoration process through both internal chassis adjustments and the included remote level control, allowing precise tailoring of the effect to match different musical genres, recording eras, and personal preferences.

The included remote control mounts anywhere in the vehicle cabin (typically on the dashboard, center console, or A-pillar) and provides three critical real-time adjustments accessible while driving:

The bassRESTOR's chassis provides additional adjustment controls for one-time system calibration and fine-tuning:

Frequency Control (30-80Hz): Sets the center frequency of the restoration effect. Lower settings (30-40Hz) target the deepest bass fundamentals for maximum visceral impact – ideal for electronic music, modern hip-hop, and bass-heavy genres. Higher settings (60-80Hz) target midbass fundamentals that add punch and body to rock, funk, and guitar-driven music without overwhelming deep subsonic content. Most installations optimize around 40-50Hz for balanced restoration across multiple genres.

Width Control (Narrow-Wide): Adjusts the bandwidth of the restoration effect. Narrow settings focus restoration on a tight frequency range around the center frequency, providing surgical enhancement without affecting adjacent frequencies. Wide settings broaden the restoration range, affecting a wider span of bass frequencies for more comprehensive enhancement. Start with narrow settings and expand width if restoration sounds too focused or "single-note."

Variable Gain Adjustment (0.5-10Vrms): Calibrates input sensitivity to match source equipment output voltage. Set gain to maximize signal-to-noise ratio without clipping – too little gain wastes dynamic range and allows noise into the signal path; too much gain causes input overload and distortion. The chassis-mounted clip LED illuminates when input signals approach clipping, allowing precise gain optimization during initial setup.

Variable Subsonic Filter (15-50Hz): Provides high-pass filtering to remove infrasonic content below your subwoofer's safe operating range. Set this filter 5-10Hz below your enclosure's tuning frequency (for vented boxes) or below your subwoofer's free-air resonance (for sealed boxes) to prevent over-excursion damage from extreme low-frequency content, wind noise, or microphone handling rumble in live recordings. Steeper filter slopes provide more aggressive protection but may affect the deepest bass transients.

The bassRESTOR's comprehensive input/output architecture ensures compatibility with virtually any source equipment, from factory amplifiers to high-end DSP processors, through multiple signal connection options and intelligent auto-sensing features.

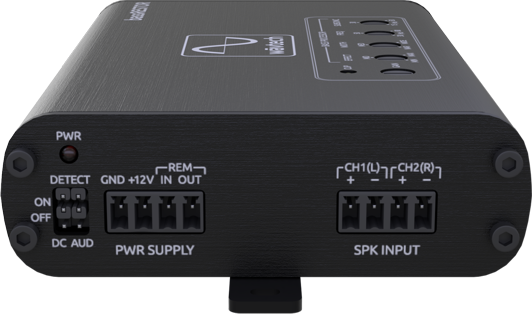

Speaker-Level Inputs (High-Level):

• Differential Balanced Design: The speaker-level inputs use differential input topology that rejects common-mode noise (alternator whine, ignition noise, electrical interference) by sensing only the voltage difference between positive and negative input terminals. This noise rejection maintains clean signal integrity even when connected to factory amplifier outputs in electrically noisy vehicles.
• Dual Input Sensitivity Ranges: Selectable 2-20Vrms or 4-40Vrms input sensitivity accommodates both moderate-powered factory amplifiers (typically 10-20 watts RMS, generating 6-9Vrms) and high-powered aftermarket amplifiers (50-150 watts RMS, generating 14-24Vrms). Maximum 40Vrms input capacity prevents overload even from powerful amplifiers driven to full output.
• Locking Detachable Terminals: Speaker wire connections use locking screw terminals with detachable blocks, allowing prewiring of the bassRESTOR on a bench before installation. The locking mechanism prevents vibration-induced wire loosening common to standard screw terminals in automotive environments.
• OEM Load Detect Compatible: Factory amplifiers in many modern vehicles use DC-offset sensing or resistive load detection to verify that speakers are connected before activating amplifier outputs. The bassRESTOR's input circuitry presents appropriate loading characteristics to satisfy these detection schemes, preventing factory amplifier shutdown errors when tapping outputs for signal.

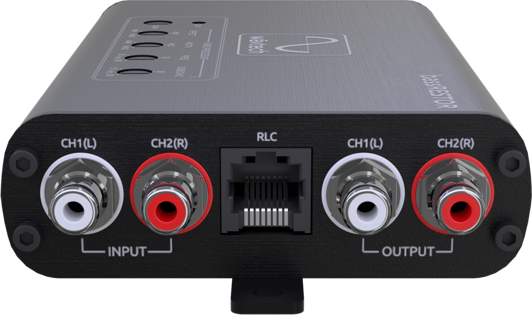

RCA Line-Level Inputs:

• Professional-Grade Panel-Mount Connectors: The RCA jacks use professional panel-mount construction with chassis grounding rather than PCB-mount connectors that can fail from cable stress and vibration. Panel-mount connectors physically lock RCA plugs in place, preventing disconnections from cable tension or vehicle motion.
• Dual Input Sensitivity Ranges: Selectable 0.5-5Vrms or 1-10Vrms sensitivity accommodates both standard consumer line-level signals (typically 2-4Vrms from most head units and DSPs) and high-voltage "pro" outputs from competition-grade processors (up to 8-10Vrms). This flexibility eliminates the need for external attenuators or padding networks to match level.
• Low Impedance Loading: Input impedance exceeds 10kΩ, presenting minimal loading to source equipment. This high impedance prevents output stage strain on source units with marginal current drive capability and maintains clean frequency response without bass rolloff from impedance interactions.

2-Channel RCA Line Outputs:

• High-Voltage Line Driver (>10Vrms): The output stage functions as a high-performance line driver capable of generating >10Vrms output voltage – substantially higher than typical 2-4Vrms consumer line-levels. This elevated output voltage maximizes signal-to-noise ratio by allowing amplifier gain controls to be set lower (reducing gain-induced noise and distortion) while maintaining full output power. High-voltage outputs also minimize susceptibility to RCA cable-induced noise pickup during long cable runs common in trunk-mounted amplifier installations.
• Low Output Impedance (<50Ω): The output stage's sub-50Ω source impedance allows driving long RCA cable runs (15-20 feet common in larger vehicles) without high-frequency rolloff or bass boost from cable capacitance interactions. Low output impedance also allows driving multiple amplifier inputs in parallel (Y-splitter scenarios) without level or frequency response degradation.
• Professional Panel-Mount Construction: Output RCA jacks use the same professional panel-mount construction as inputs, ensuring secure connections that withstand vehicle vibration and cable stress without loosening or intermittent contact failures.

Generated 12V Remote Output:

• High Current Capacity (>500mA): The bassRESTOR generates a 12V remote turn-on output capable of sourcing >500 milliamps – sufficient to trigger remote inputs on 3-4 typical amplifiers simultaneously. This eliminates the need to run separate remote wires from the head unit to the bassRESTOR location, simplifying wiring in complex installations with multiple amplifiers.
• Automatic Activation Logic: The remote output activates automatically when the bassRESTOR detects turn-on conditions (incoming 12V remote signal, DC-offset on speaker inputs, or audio signal presence). It deactivates when turn-on conditions cease, ensuring downstream amplifiers turn off properly to prevent battery drain.

The bassRESTOR features three independent turn-on sensing modes that work individually or in combination:

The bassRESTOR's effectiveness varies by musical genre and recording era. Understanding optimal settings for different music styles maximizes restoration benefits while avoiding over-processing artifacts.

The Problem: Classic rock recordings from Led Zeppelin, Pink Floyd, The Who, Deep Purple, and countless other legendary acts were mastered for vinyl playback and AM/FM radio broadcast. Bass guitars and kick drums were recorded with powerful low-frequency content, but mastering engineers removed fundamentals below 50-80Hz to accommodate vinyl limitations and ensure radio compatibility. The result: thin, weak bass that fails to deliver the power and impact these bands created during recording sessions.

Optimal bassRESTOR Settings:

• Frequency: 40-50Hz – Targets the deep fundamental frequencies of bass guitars (E1 at 41Hz, A1 at 55Hz) and kick drums (typical fundamental around 60-80Hz with second harmonic interaction creating 30-40Hz content)
• Width: Medium-Wide – Covers the broad bass spectrum from deep kick drum fundamentals through bass guitar body resonance
• Effect: +9 to +15dB – Moderate to high restoration levels compensate for the substantial bass content removed during mastering
• Result: Led Zeppelin's "Whole Lotta Love" gains the chest-thumping kick drum impact lost on vinyl. Pink Floyd's "Comfortably Numb" adds bass guitar body and depth absent from CD remasters. The Who's "Won't Get Fooled Again" delivers the thunderous bass power that made Pete Townshend's stage performances legendary.

The Problem: Early hip-hop and R&B from the 1980s through mid-1990s predated the bass-heavy production techniques that define modern urban music. While these recordings contain more bass than classic rock (producers recognized urban music's emphasis on rhythm and bass), they still lack the deep subsonic content (25-40Hz) that modern subwoofers can reproduce and contemporary hip-hop routinely delivers. Tracks that sounded bass-heavy on 1990s car systems with 10-inch woofers in 1.0 cubic foot ported boxes sound anemic on modern systems with dual 12-inch woofers in large enclosures tuned to 30Hz.

Optimal bassRESTOR Settings:

• Frequency: 35-45Hz – Targets the deepest bass fundamentals to match modern hip-hop production standards
• Width: Medium – Focused restoration that adds deep bass without excessively coloring midbass punch
• Effect: +6 to +12dB – Moderate restoration fills in missing deep bass while preserving the original production's midbass emphasis
• Result: Run-DMC tracks gain subsonic impact matching modern trap production. Dr. Dre's "The Chronic" adds deep bass layers that modern remasters still lack. Classic Mary J. Blige and Jodeci tracks gain the bass depth contemporary R&B listeners expect.

The Problem: Jazz recordings prioritize tonal accuracy and instrument separation over bass impact, but upright bass (acoustic double bass) produces fundamentals from E1 (41Hz) down to B0 (31Hz) on five-string instruments. Most jazz recordings capture only the upper harmonics and "fingerboard slap" attack transients, missing the deep resonant body tone that gives acoustic bass its warmth and presence. Even modern jazz recordings often lack deep bass because engineers assume listeners use small monitors without subwoofer support.

Optimal bassRESTOR Settings:

• Frequency: 40-50Hz – Matches upright bass fundamental range
• Width: Narrow-Medium – Precise restoration that adds body without overwhelming the delicate instrument balance jazz demands
• Effect: +3 to +9dB – Subtle to moderate enhancement that restores acoustic bass presence without creating artificial boom
• Result: Miles Davis' "Kind of Blue" gains upright bass body and depth, making Paul Chambers' legendary bass lines feel present in the vehicle rather than distant. Modern jazz recordings gain the subwoofer integration audiophiles expect without losing the genre's characteristic instrument clarity.

The Problem: Streaming services (Spotify, Apple Music, YouTube Music, Pandora) use lossy compression (typically 128-320kbps AAC or Ogg Vorbis) that reduces bass dynamic range and transient detail. While the bass frequencies exist in the stream, they're coarsely quantized and dynamically compressed, sounding dull and lifeless compared to CD-quality or lossless sources. Bass transients (kick drum attacks, bass plucks) lose their sharp impact, smoothing into sustained rumble.

Optimal bassRESTOR Settings:

• Frequency: 35-50Hz – Broad target range compensates for compression-induced smearing
• Width: Wide – Comprehensive restoration across the entire bass spectrum affected by compression artifacts
• Effect: +6 to +15dB – Moderate to high restoration compensates for compression-reduced bass dynamics
• Result: Streaming audio gains the transient impact and dynamic punch lost to compression algorithms. Bass becomes more differentiated and textured rather than homogeneous rumble. The difference between streaming and lossless sources narrows substantially.

The Reality: Contemporary hip-hop, electronic dance music (EDM), trap, dubstep, and bass-heavy pop are engineered with subwoofer playback in mind. These recordings contain powerful fundamental bass from 25-50Hz and need no restoration – they already deliver the deep bass impact the bassRESTOR would synthesize. Over-processing these recordings creates excessive bass that overwhelms midrange, causes amplifier clipping, and risks subwoofer over-excursion.

Optimal bassRESTOR Settings:

• Approach 1 – Bypass Mode: Use the remote control's bypass function to completely disable restoration processing when playing modern bass-heavy material. The bassRESTOR passes signals unprocessed, functioning purely as a line driver.
• Approach 2 – Minimal Effect: Set Effect to +0 to +3dB for subtle enhancement that adds slight emphasis without overwhelming the existing bass content. This approach suits listeners who prefer exaggerated bass even on recordings already engineered bass-heavy.
• Result: Bass remains powerful and impactful without the over-processing artifacts (distortion, muddiness, loss of midrange clarity) that occur when restoration is applied to material that needs no enhancement.

The bassRESTOR's versatile connectivity enables solutions for complex installation challenges that single-purpose processors cannot address.

Challenge: A 2018-2024 truck or SUV with factory premium audio (Bose, Harman Kardon, B&O, etc.) includes a factory amplifier with dedicated subwoofer output driving a factory subwoofer. The owner wants to add a powerful aftermarket subwoofer system but lacks full-range signal access without expensive factory integration adapters or DSP-based solutions.

bassRESTOR Solution:

1. Tap the factory subwoofer amplifier's speaker outputs using the bassRESTOR's high-level inputs
2. The bassRESTOR's differential inputs reject factory amplifier noise while extracting clean audio signal
3. DC-offset detection automatically triggers the bassRESTOR when factory audio activates
4. Bass restoration processing synthesizes deep bass fundamentals missing from factory system tuning
5. High-voltage RCA outputs drive aftermarket amplifier with maximum signal-to-noise ratio
6. Remote control allows bass level and restoration adjustment without accessing trunk-mounted equipment
7. Generated 12V remote output triggers aftermarket amplifier without additional wiring to factory head unit

Benefits: Complete aftermarket bass system integration using only factory subwoofer signal – no head unit replacement, no expensive DSP, no factory amplifier bypass. Total installation time: 2-3 hours. Cost savings vs. full factory integration DSP: $300-600.

Challenge: An enthusiast system includes a high-end DSP processor (Helix, Audison, AudioControl) providing time alignment, crossover filtering, and parametric EQ. However, the DSP lacks bass restoration/enhancement capabilities, and the owner wants to add restoration processing without replacing the entire DSP (expensive) or cascading multiple processors (signal degradation risk).

bassRESTOR Solution:

1. Connect DSP subwoofer output (already low-pass filtered and time-aligned) to bassRESTOR RCA inputs
2. bassRESTOR adds restoration processing to the pre-filtered, pre-aligned signal
3. bassRESTOR RCA outputs feed subwoofer amplifier with restored bass content
4. All DSP crossover, EQ, and time alignment settings remain active and unchanged
5. Remote control provides independent bass level and restoration adjustment without affecting DSP settings

Benefits: Adds bass restoration capability to existing DSP system without replacement or complex signal routing. The bassRESTOR functions as a specialized post-processor handling only restoration duties while the DSP manages all other system tuning. Remote control independence allows restoration adjustment without laptop connection or DSP software access.

Challenge: A competition system uses separate amplifiers for front stage, rear fill, and subwoofers, but the source unit provides only single-pair RCA outputs (no multi-output routing). The owner wants to add bass restoration without installing additional processors or Y-splitting weak source signals.

bassRESTOR Solution:

1. Feed source unit subwoofer RCA outputs to bassRESTOR inputs
2. bassRESTOR processes subwoofer signal with restoration enhancement
3. High-voltage bassRESTOR outputs drive subwoofer amplifier
4. The bassRESTOR's >10Vrms output voltage provides substantial signal-to-noise improvement over source unit's typical 2-4Vrms outputs
5. Y-split bassRESTOR outputs (if driving multiple subwoofer amplifiers) without signal degradation due to low output impedance

Benefits: Combines bass restoration processing with line driver/signal distribution functionality in a single unit. Eliminates need for separate line driver and restoration processor. High-voltage outputs maximize signal quality to subwoofer amplifier(s).

The bass restoration processor category includes several competitors, each with distinct approaches to solving the missing bass problem. Understanding the bassRESTOR's competitive positioning clarifies its unique advantages.

Market Position: The AudioControl Epicenter (original, Indash, Micro, and Micro Pro variants) represents the longest-established and best-known bass restoration processor, with the original model launching in the late 1980s. AudioControl pioneered bass restoration technology and maintains dominant market share through brand recognition and decades of professional installer loyalty.

Technical Approach: Epicenter processors analyze full-range audio signals (requiring midrange and treble content) to detect harmonic structures, then synthesize sub-bass fundamentals one octave below detected harmonics. The processing algorithm focuses on recreating the octave below what's present rather than synthesizing multiple missing octaves.

bassRESTOR Advantages:

• Low-Pass Signal Compatibility: The bassRESTOR works with pre-filtered subwoofer outputs; Epicenter requires full-range signals. This difference is critical for OEM integration where factory amplifiers provide only low-pass filtered subwoofer channels, and for aftermarket DSP systems where subwoofer outputs are already filtered. The bassRESTOR installs without signal routing gymnastics or full-range signal access requirements.
• Integrated Line Driver: The bassRESTOR includes >10Vrms line driver functionality, eliminating the need for separate line-level converters or signal boosters. Epicenter models typically output standard 4Vrms line-levels, often requiring additional line drivers for optimal signal-to-noise in long cable runs.
• Speaker-Level Input Capability: The bassRESTOR accepts speaker-level inputs directly from factory amplifiers or aftermarket amplifiers without external LOCs (line output converters). Most Epicenter models require RCA line-level inputs, necessitating separate LOC purchases for speaker-level signal sources.
• Cost-Effectiveness: The bassRESTOR typically retails 20-40% below equivalent Epicenter models while including remote control, line driver, and speaker-level input capabilities that would require additional purchases with Epicenter installations.

Epicenter Advantages:

• Brand Recognition: AudioControl's decades-long market presence and professional installer relationships provide confidence for conservative buyers concerned about unknown brands.
• Processing Refinement: Three decades of algorithm refinement yield highly natural-sounding restoration with minimal artifacts when fed optimal full-range signals. Epicenter processing is considered the reference standard for psychoacoustic bass synthesis.
• Model Variety: AudioControl offers multiple Epicenter variants (original, Indash, Micro, Micro Pro) with different feature sets, form factors, and price points, allowing precise matching to specific installation requirements.

Several brands (Power Acoustik, Boss Audio, SSL, generic imports) offer bass restoration processors at $50-150 price points – substantially below the bassRESTOR's typical $200-250 retail pricing. These budget alternatives appeal to cost-conscious buyers but sacrifice significant functionality and performance.

bassRESTOR Advantages:

• Superior Component Quality: Professional panel-mount RCA connectors, locking speaker terminals, aluminum chassis construction, and differential balanced inputs represent substantial quality improvements over budget processors' PCB-mount connectors, plastic housings, and unbalanced inputs that fail from vibration and electrical noise.
• Clean Signal Path: <115dBA signal-to-noise ratio and <0.05% THD+N specifications ensure transparent signal processing without audible noise or distortion. Budget processors often exhibit >85dBA S/N (30dB worse) and >0.5% THD, degrading sound quality even when restoration effect is bypassed.
• Comprehensive Feature Set: High-voltage line driver outputs, multiple auto-turn-on modes, OEM load detection compatibility, and generated 12V remote output eliminate the need for additional supporting equipment. Budget processors typically lack these integration features, requiring separate purchases that eliminate initial cost savings.
• Wavtech Engineering and Support: Wavtech's OEM integration expertise ensures the bassRESTOR addresses real-world installation challenges that budget manufacturers overlook. Technical support from Wavtech and authorized dealers like Audio Intensity provides installation assistance unavailable with generic imports.

The Wavtech bassRESTOR occupies the critical mid-market position where professional-grade functionality meets accessible pricing. At typical retail pricing 20-40% below flagship competitors while matching or exceeding their feature sets, the bassRESTOR delivers exceptional value for multiple buyer categories.

✅ Ideal Candidates:

• OEM Integrators: Anyone upgrading factory audio systems without head unit replacement. The bassRESTOR's speaker-level inputs, DC-offset detection, and low-pass signal compatibility solve OEM integration challenges that competing processors cannot address without expensive supporting equipment.
• Classic Music Enthusiasts: Listeners whose libraries emphasize classic rock, vintage jazz, older hip-hop, or any music recorded before modern bass-heavy production became standard. If you're frustrated that your expensive subwoofer system sits idle playing pre-1990s recordings, the bassRESTOR transforms thin vintage material into modern sonic experiences.
• Multi-Genre System Builders: Enthusiasts who refuse to optimize systems for single genres. The bassRESTOR's remote control allows instant adjustment between bass-heavy modern tracks (bypass or minimal restoration) and thin vintage recordings (maximum restoration), accommodating diverse libraries without compromise.
• DSP System Enhancers: Owners of aftermarket DSP processors lacking bass restoration features who want to add this capability without replacing expensive processors. The bassRESTOR integrates seamlessly between DSP subwoofer outputs and amplifiers, adding specialized processing without affecting existing DSP tuning.
• Streaming Audio Listeners: Users who primarily stream music from Spotify, Apple Music, YouTube Music, or other compressed sources. The bassRESTOR compensates for compression-induced bass dulling and dynamic range reduction, narrowing the quality gap between streaming and lossless sources.
• Value-Conscious Professionals: Installers seeking professional-grade bass restoration without AudioControl Epicenter pricing. The bassRESTOR's comprehensive feature set (line driver, speaker inputs, OEM compatibility, remote control) eliminates supporting equipment costs while delivering comparable sonic performance.

❌ Less Suitable For:

• Single-Genre Modern Music Listeners: If your library consists exclusively of bass-heavy modern hip-hop, EDM, trap, or electronic music engineered with deep bass fundamentals, you don't need bass restoration. These recordings already contain the 20-50Hz content the bassRESTOR would synthesize. Save money and install complexity by skipping restoration processing entirely.
• Purist Audiophiles: Listeners who demand absolutely unprocessed signal paths and consider any psychoacoustic processing "artificial." While the bassRESTOR offers bypass mode for unprocessed pass-through, purists philosophically opposed to processing should avoid restoration processors regardless of brand or quality.
• Budget-Constrained Basic Systems: Entry-level systems with limited amplifier power and subwoofer capability won't fully benefit from bass restoration. Adding synthesized deep bass to a system with a single 10-inch woofer in a 0.75 cubic foot box powered by 200 watts simply reveals the system's limitations rather than transforming performance. Restoration works best in systems with subwoofer capability exceeding the original recordings' bass content.

Transform Thin Recordings Into Modern Experiences. Psychoacoustic Intelligence. OEM Integration Excellence. The Wavtech bassRESTOR – Restore the Bass, Restore the Music.
