Wavtech link500.4mini 4 Channel Amplifier

The Most Common Upgrade, Redefined for Modern Vehicles

The Wāvtech Link 500.4 Mini addresses the single most popular car audio upgrade: adding quality front speakers and a subwoofer to vehicles with factory source units. This seemingly straightforward application becomes complex in modern vehicles equipped with premium factory audio systems, multi-channel architectures, and start/stop electrical systems that conventional compact amplifiers cannot accommodate. The Link 500.4 Mini solves these challenges in less than 42 cubic inches—a package small enough to hide under seats, behind glove boxes, or in door panels while delivering 500W total system power and the OEM integration technology typically found only in products twice its size.

Understanding the Link 500.4 Mini requires recognizing what "three-channel mode" means for this four-channel amplifier. While the chassis provides four discrete channels, the most valuable configuration uses channels 1-2 for front speakers (75-125W per channel depending on impedance) and bridges channels 3-4 to create a single high-power subwoofer channel (250W at 4Ω). This 2+1 architecture perfectly matches the component selection in typical upgrades: a pair of 6.5-inch component speakers in front doors and a single 10-inch subwoofer in the trunk or under-seat location. One amplifier, one power cable run, one mounting location—complete system amplification without the complexity of multiple components.

But the Link 500.4 Mini's compact dimensions—just 9.2 inches long, 4.5 inches wide, and 1.65 inches tall—don't tell the complete story. This amplifier integrates Wāvtech's adaptive OEM loading technology (40V input capability), four-channel input summing, parametric EQ on the subwoofer channel, subsonic filtering, and comprehensive crossover controls that would typically require external processors costing $150-250. For factory integration installations in vehicles where mounting space is severely constrained, the Link 500.4 Mini provides capabilities that would otherwise demand multiple components occupying three to four times the volume.

The sizing matters because modern vehicles provide progressively less accessible space for aftermarket equipment. Where older vehicles offered substantial trunk areas and simple under-seat cavities, contemporary designs fill these spaces with spare tire compartments, subwoofers for premium factory audio systems, battery relocation (hybrid/electric vehicles), and storage bins integrated into seat structures. The Link 500.4 Mini fits in locations where standard amplifiers physically cannot: behind door panels (in trucks and SUVs with oversized doors), in unused factory compartments designed for OEM equipment, or mounted vertically on seat rails using the detachable mounting tabs. This installation flexibility prevents situations where the right amplifier capabilities exist but physical constraints prevent installation.

Mini-Series Engineering: Maximum Capability in Minimum Space

The Link 500.4 Mini belongs to Wāvtech's mini-series amplifier lineup, distinguished by their ultra-compact 4.5-inch width—half the width of conventional car audio amplifiers. This dimension reduction doesn't result from simply making everything smaller; it represents fundamental rethinking of amplifier architecture to achieve reference-grade power density while maintaining the thermal management and reliability characteristics necessary for automotive environments.

Class D amplification enables this compactness through significantly higher efficiency than Class AB alternatives. Where Class AB amplifiers operate at 50-65% efficiency (meaning 35-50% of input power dissipates as heat), well-designed Class D implementations achieve 75-85% efficiency. The Link 500.4 Mini's Class D topology means less heat generation per watt of output power, which translates to smaller heatsinks, reduced cooling requirements, and ultimately the compact dimensions that define the mini-series design philosophy. At full output—approximately 500W total system power—the amplifier dissipates perhaps 100-150W as heat, manageable with the heatsink area available in the compact chassis.

The 4.5-inch width specifically matters because it enables installation options unavailable to wider amplifiers. Standard car audio amplifiers measure 7-10 inches wide, requiring mounting surfaces with corresponding clearance. The Link 500.4 Mini's narrow profile fits between obstructions that prevent standard amplifier mounting: between seat rails and center consoles, in the narrow spaces alongside factory subwoofer enclosures, or in door panel cavities where width constraint is the limiting factor. Combined with the detachable mounting tabs that allow multiple orientation options, this narrow design transforms otherwise unusable spaces into viable amplifier mounting locations.

But compact dimensions create engineering challenges that Wāvtech addresses through careful design choices. The panel-mount RCA connectors provide reliable signal connection in space-constrained installations where chassis-mount connectors would position cables too close to vehicle structures or interfere with mounting. The locking detachable speaker-level input terminals allow the input harness to disconnect completely for amplifier removal without requiring terminal access (valuable when the amplifier mounts in confined spaces where loosening terminal screws is difficult). The 4-gauge power terminals accommodate sufficient cable gauge for the amplifier's current requirements while maintaining the compact terminal block dimensions necessary for the small chassis.

The active thermal management system addresses the reality that compact amplifiers in confined mounting locations face thermal challenges that larger amplifiers with better airflow don't encounter. Rather than shutting down when approaching thermal limits (causing audible interruption and user annoyance), the Link 500.4 Mini gradually reduces output power to maintain safe operating temperature while keeping music playing. In practical terms: during extended high-volume operation in vehicles parked in direct sunlight with ambient temperatures exceeding 100°F, the amplifier might reduce power output from 500W to perhaps 350-400W rather than shutting down entirely. The user perceives slightly reduced maximum volume capability rather than complete silence—a significant advantage for installations where supplementary cooling isn't practical.

Power Specifications and Three-Channel Optimization

The Link 500.4 Mini's power specifications reveal its optimization for the most common upgrade scenario: front speakers plus subwoofer. Understanding the available configurations and their applications helps determine optimal component matching and system architecture.

The three-channel configuration—2 channels for fronts, 1 bridged channel for subwoofer—represents optimal utilization for the most common upgrade scenario. The 75W @ 4Ω per front channel provides ample power for component speakers with typical sensitivity (87-91dB), producing 106-110dB maximum output at one meter—sufficient dynamic range for critical listening without overwhelming speakers designed for 50-100W continuous operation. The 250W bridged subwoofer channel handles single 10-inch or 12-inch subwoofers with authority, delivering the bass foundation that factory systems typically lack.

Component selection for three-channel configuration typically includes: 6.5-inch or 6.75-inch component speakers for front doors (matching the 75-125W power range), and single subwoofer with 200-300W power handling (allowing headroom beyond the amplifier's 250W output for dynamic peaks and safe operation). This component combination provides dramatic improvement over factory audio—clearer vocals and instruments from quality component speakers, substantial bass extension from the dedicated subwoofer—while maintaining reasonable total system cost ($400-600 for speakers and subwoofer, $300-400 for the amplifier, plus installation labor).

The 250W bridged subwoofer power deserves context because it represents substantially more capability than the "subwoofer channels" found on typical four-channel amplifiers. Many conventional four-channel designs provide perhaps 150-200W on channels 3-4 when bridged, forcing compromises in subwoofer selection or requiring separate Monoblock amplifiers. The Link 500.4 Mini's full 250W bridged output (equivalent to many dedicated Monoblock amplifiers in this power range) eliminates the need for additional amplification in systems where single moderate-power subwoofers suffice. This simplifies installations, reduces total component cost, and maintains the single-amplifier convenience that makes the Link 500.4 Mini valuable for space-constrained applications.

For installations requiring rear speakers, the four-channel configuration provides 75W per channel across all four positions—front left, front right, rear left, rear right. This suits vehicles where rear passengers matter (family vehicles, ride-share applications) or where rear acoustic reinforcement improves perceived front stage imaging. The amplifier's crossover controls allow configuring rear channels with high-pass filtering to remove bass content (directing it to the subwoofer instead), preventing the muddy, boomy sound that results from full-range operation of rear speakers in typical vehicle acoustics.

Integrated OEM Technology: 40V Input and Adaptive Loading

The Link 500.4 Mini integrates the same OEM interface technology found in Wāvtech's larger plus-series amplifiers, providing capabilities typically associated with products double or triple its size. This integration eliminates external line output converters, attenuators, and summing processors that would otherwise be required for factory integration installations—particularly valuable in compact installations where additional components create mounting and wiring complexity.

The 40V input capability addresses premium factory audio systems that output signal voltages far exceeding the 4-8V typical of standard factory head units. Vehicles equipped with Bose, Harman Kardon, Mark Levinson, Bang & Olufsen, Burmester, and similar premium OEM systems often output 20-40V to their speakers, requiring the high voltage to drive factory speakers designed for these levels. Conventional aftermarket amplifiers specify maximum input of 4-8V; connecting them to high-voltage factory outputs causes severe input clipping and distortion. The Link 500.4 Mini's input circuitry handles these signals directly without external attenuation, maintaining signal integrity while accommodating the full voltage range of OEM audio systems.

The adaptive loading technology works continuously to optimize impedance matching between factory amplifier outputs and the Link 500.4 Mini's inputs. Different factory systems present different source impedances and signal characteristics; static loading (fixed resistive loads like those in basic line output converters) works acceptably with some vehicles but causes problems with others—frequency response irregularities, noise issues, or factory amplifier protection activation. The Link 500.4 Mini's adaptive circuit dynamically adjusts input impedance based on the factory system's characteristics, maintaining optimal signal transfer across the widest possible range of vehicles without requiring vehicle-specific adjustment or configuration.

The four-channel input summing capability accommodates factory systems that distribute audio across multiple channels with different processing applied to each. Many modern factory audio systems employ active bass management (routing low frequencies to dedicated subwoofer outputs), center channel processing (for dashboard center speakers), and surround processing (for rear channels). These multi-channel architectures complicate aftermarket integration because simply tapping two channels often results in missing frequency content or thinned sound character. The Link 500.4 Mini accepts up to four speaker-level inputs and intelligently sums them into the appropriate signals for its output channels, ensuring that aftermarket speakers receive full-bandwidth audio regardless of how the factory system distributes frequencies.

The built-in summing includes level trim adjustment—a critical feature for vehicles where factory channels output different voltage levels. Some OEM systems provide higher output to front channels than rear channels, or apply different gain structures as part of their internal DSP processing. Without level trim capability, summing these unbalanced signals results in frequency response errors or tonal imbalances. The Link 500.4 Mini's adjustable trim allows the installer to compensate for these level mismatches, creating balanced summed outputs that provide consistent tonal character.

Together, these OEM integration features eliminate components that would otherwise be required: a quality line output converter with summing capability typically costs $150-250, requires its own mounting location (occupying additional space in already constrained installations), demands separate power and ground connections, and introduces additional connection points where problems can occur. The Link 500.4 Mini integrates these functions directly, simplifying installations while reducing total component cost and improving reliability through reduced component count.

Subwoofer Processing: Parametric EQ and Subsonic Protection

Channels 3 and 4—typically bridged for subwoofer duty in three-channel configuration—include dedicated bass processing that exceeds what most compact four-channel amplifiers provide. These features address real-world acoustic problems that affect every subwoofer installation, transforming adequate bass performance into optimized low-frequency reproduction matched to specific vehicles and subwoofers.

Parametric Equalizer: Precision Frequency Control

The one-band parametric EQ on channels 3/4 provides three adjustable parameters: center frequency (which frequency to affect), Q factor (how narrow or wide the affected range), and boost/cut amount (how much to increase or decrease level). This seemingly simple feature solves multiple problems that fixed-frequency graphic equalizers cannot address effectively.

Every vehicle exhibits acoustic characteristics unique to its cabin dimensions, seating positions, and interior materials. These characteristics manifest as frequency response irregularities in bass reproduction: certain frequencies are emphasized (creating boom or excessive output), while others are attenuated (creating holes or missing bass). The parametric EQ allows precise targeting of these problem frequencies. For vehicles with excessive boom at 60Hz (a common resonance frequency in many sedans), the installer sets the center frequency to 60Hz, narrows the Q to affect primarily 55-65Hz, and applies 3-6dB of cut to reduce the boom without affecting adjacent bass frequencies. For vehicles with bass cancellation at 80Hz (caused by standing wave patterns in the cabin), the reverse approach applies: boost at 80Hz with appropriate Q width to compensate for the acoustic null.

The Q control determines how surgically the EQ affects frequency response. Wide Q settings (0.5-1.0) create broad adjustments affecting large frequency ranges, suitable for general tonal shaping or compensating for gradual bass rolloff. Narrow Q settings (3.0-5.0) create precise notch filters that target specific problem frequencies without affecting adjacent ranges—ideal for eliminating particular resonances or compensating for sharp acoustic nulls. This flexibility makes the parametric EQ far more useful than graphic equalizers with fixed frequencies and bandwidths, which often cannot precisely target the actual problem frequencies in specific vehicles.

For competition applications or personal preference tuning, the parametric EQ enables bass character customization. Enthusiasts preferring emphasized mid-bass punch (40-60Hz) can boost this range with appropriate Q width. Those preferring deeper sub-bass extension (25-35Hz) can emphasize those frequencies instead. And for vehicles where factory subwoofer location or enclosure characteristics cause specific frequency emphasis, the parametric EQ compensates to flatten response and restore natural bass character.

Subsonic Filter: Driver Protection Below Usable Range

The adjustable subsonic filter (high-pass filter on the subwoofer channel) removes content below the subwoofer's useful operating range, preventing wasted amplifier power and excessive driver excursion on frequencies the subwoofer cannot reproduce effectively. Every subwoofer/enclosure combination has a low-frequency limit determined by its design; below this frequency, the driver loses mechanical control, distortion increases dramatically, and output capability decreases. Allowing the amplifier to drive the subwoofer with these infrasonic frequencies wastes power and potentially damages the driver through over-excursion.

The subsonic filter's frequency should be set based on enclosure type and tuning. For sealed enclosures (which exhibit gradual bass rolloff below resonance), setting the subsonic filter at 25-30Hz protects the driver from infrasonic content while preserving usable deep bass. For ported enclosures (which are tuned to specific frequencies), the subsonic filter should be set 5-10Hz below the port tuning frequency—for example, a 35Hz tuned port should use a 30Hz subsonic setting. This protects the driver from operating below port tuning, where excursion increases dramatically and mechanical damage becomes likely during high-power operation.

The variable nature of the subsonic filter accommodates different subwoofer and enclosure combinations without requiring separate external processors. The installer determines the appropriate frequency based on the specific components used, sets the filter accordingly, and achieves optimal protection without affecting bass frequencies within the subwoofer's designed operating range.

Remote Level Control Compatibility

The Link 500.4 Mini supports Wāvtech's optional linkRC remote level control (sold separately), enabling subwoofer level adjustment from the driver's seat. This convenience feature allows matching bass output to different music genres (some material has more inherent bass content than others), personal preference (different passengers may prefer different bass levels), or acoustic conditions (passenger loading affects vehicle acoustics and bass response). The remote provides approximately 0dB to -12dB of attenuation on the subwoofer channel without affecting front speaker output, maintaining proper system balance while accommodating user preference.

Crossover Architecture and System Flexibility

Beyond the dedicated subwoofer processing on channels 3/4, the Link 500.4 Mini provides comprehensive crossover controls that enable multiple system architectures without external processors. Understanding these options and their applications helps optimize configuration for specific component selections and installation objectives.

Channels 1-2: Variable High-Pass and Low-Pass

The front channels (1-2) feature variable high-pass and low-pass crossovers operating at 12dB per octave. The high-pass filter removes bass content from front speakers, directing it to the subwoofer instead—the standard configuration for systems with dedicated subwoofer. Typical high-pass settings range from 80-120Hz depending on component speaker capabilities: smaller speakers (5.25-inch woofers) benefit from higher crossover points (100-120Hz) to prevent over-excursion on deep bass, while larger speakers (6.75-inch woofers) can handle lower crossover points (80-100Hz) for more overlap with the subwoofer.

The low-pass filter on channels 1-2 enables these channels to drive midbass woofers in active biamplified systems. By setting the low-pass to 300-500Hz, channels 1-2 can drive 6.5-inch or 8-inch midbass drivers separately from tweeters (which would be driven by channels 3-4 or a separate amplifier). This active configuration eliminates passive crossovers, providing benefits in power handling, efficiency, and frequency response control—though it demands more complex installation and system tuning than passive configurations.

Channels 3-4: Bridged Subwoofer or Active Midbass

In three-channel mode (the most common configuration), channels 3-4 bridge to create a single 250W subwoofer channel with dedicated processing. But the channels can also operate independently with their own crossover controls: variable high-pass, variable low-pass, or full-range operation. This flexibility accommodates alternative system architectures.

For vehicles where rear speakers matter, channels 3-4 can drive rear fill speakers with high-pass filtering to remove bass content (typical setting: 100-150Hz high-pass). This prevents rear speakers from competing with the subwoofer in bass frequencies while providing midrange and treble output for rear passengers. The independent gain controls on channels 3-4 allow reducing rear output relative to front output, maintaining proper front-to-rear balance that emphasizes front stage performance while providing adequate rear reinforcement.

For fully active front stage systems, channels 3-4 can drive tweeters with high-pass filtering (3500-5000Hz) while channels 1-2 drive midbass woofers with low-pass filtering (80-500Hz). This two-way active configuration requires external amplification for subwoofer duty but provides the staging and imaging advantages of active crossovers without passive component limitations. The 12dB per octave slopes aren't as steep as the 18-24dB slopes found in dedicated DSP processors, limiting how close crossover points can be placed, but they suffice for many active implementations where component speakers have appropriate mechanical capabilities for their assigned frequency ranges.

Crossover Slope Considerations

The 12dB per octave slopes on all crossovers represent a balance between circuit simplicity (steeper slopes require more complex filtering that occupies more circuit board space) and practical filtering effectiveness. A 12dB per octave high-pass filter at 100Hz reduces signal level by 12dB at 50Hz (one octave below), 24dB at 25Hz (two octaves below), and 36dB at 12.5Hz (three octaves below). This provides meaningful protection for speakers that shouldn't reproduce deep bass while maintaining relatively simple analog implementation.

For comparison, 24dB per octave slopes (found on the subwoofer's low-pass and subsonic filters) provide twice the rejection rate: 24dB per octave, 48dB two octaves away, 72dB three octaves away. These steeper slopes matter more for subwoofers, where precise frequency control affects both sound quality (preventing midrange content from reaching the subwoofer) and mechanical protection (preventing infrasonic content from causing over-excursion). The Link 500.4 Mini employs steeper slopes where they matter most while using simpler 12dB slopes for main channel filtering where they're adequate for most applications.

Start/Stop Compatibility and Modern Vehicle Features

The Link 500.4 Mini's start/stop compatibility addresses the electrical challenges created by modern vehicle efficiency systems that automatically shut down engines at traffic stops. Understanding these systems and how the amplifier accommodates them prevents installation problems and ensures reliable operation.

Start/stop systems (standard equipment on most vehicles manufactured since 2015) shut down the engine when the vehicle comes to complete stops, then automatically restart when the driver releases the brake. During engine shutdown, battery voltage remains relatively stable initially (12.5-13V), but gradually decreases as vehicle electrical loads draw current without alternator replenishment. When the engine restarts, starter motor current draw (200-400A) causes battery voltage to sag momentarily to 7-9V before the alternator comes online and voltage recovers.

Conventional amplifiers specify minimum operating voltage of 10-11V; when battery voltage drops below this threshold during restart, they enter protection mode and shut down, causing audible interruption (pop, click, or silence) that annoys users. The Link 500.4 Mini operates reliably down to 7V—the lowest voltage occurring during normal start/stop operation. While power output at 7V is reduced (perhaps 40-50% of rated power, since output is proportional to supply voltage), the amplifier continues operating without shutdown or protection activation. As voltage recovers, power transparently returns to normal without audible artifacts.

This low-voltage operation capability requires specific power supply design: wider operating voltage range (7-16V instead of 10-16V), voltage regulation maintaining stable internal voltages despite large supply fluctuations, and protection circuits that distinguish between temporary voltage sags (which shouldn't trigger shutdown) and sustained under voltage conditions (indicating genuine electrical problems). Wāvtech's OEM integration experience informs this design—they understand how modern vehicles operate electrically and create products that work reliably in these environments.

Beyond start/stop compatibility, the Link 500.4 Mini includes comprehensive protection systems preventing damage from common installation errors or electrical faults: thermal protection (preventing overheating), short circuit protection (detecting speaker wire shorts and shutting down affected channels), DC offset protection (preventing DC voltage on outputs that damages speaker voice coils), and reverse polarity protection (preventing damage if power and ground are accidentally reversed). These protections operate transparently—they don't affect sound quality or normal operation, but they prevent the amplifier damage that would otherwise occur from foreseeable problems.

The auto turn-on feature provides two activation methods: DC-offset detection (sensing the small DC voltage many factory amplifiers produce on their outputs) or audio signal detection (sensing when audio signal is present on inputs). This flexibility accommodates vehicles where accessing a traditional 12V remote turn-on wire would require complex harness modification. The installer simply connects power, ground, and signal inputs; the amplifier powers on automatically when the factory system activates, and powers off when it shuts down. For installations using aftermarket source units with traditional remote outputs, that connection remains available and provides immediate turn-on without the brief delay inherent in signal-sensing activation.

Comparison with Compact Four-Channel Alternatives

The comparison reveals the Link 500.4 Mini's positioning: it delivers significantly more power than ultra-compact alternatives like Alpine's KTP-445U (500W versus 180W total) while providing integrated OEM capabilities that JL Audio and Rockford Fosgate products lack entirely. The Alpine, while extremely compact and budget-friendly, provides insufficient power for systems with demanding component speakers or moderate subwoofers—its 90W bridged output barely suffices for 8-inch subwoofers, and cannot drive 10-inch or 12-inch subwoofers to adequate output levels. The Link 500.4 Mini's 250W bridged output handles these larger subwoofers with authority, eliminating the need for separate Monoblock amplifiers.

Against JL Audio's RD400/4 (a reference product in the compact four-channel category), the Link 500.4 Mini offers comparable power specifications while adding capabilities the JL completely lacks: 40V input handling, multi-channel summing, parametric EQ, and subsonic filtering. The JL Audio requires external line output converters and processors for factory integration, adding $150-250 to effective system cost and increasing installation complexity. For aftermarket source unit installations where OEM integration isn't required, the JL Audio's premium build quality and brand reputation justify its higher cost. But for factory integration—the Link 500.4 Mini's primary application—the integrated capabilities provide substantial advantages.

Rockford Fosgate's R300X4 represents mainstream brand value: recognized name, adequate specifications, competitive pricing. But like the JL Audio, it provides only RCA inputs and lacks any factory integration capability. The Link 500.4 Mini's similar pricing ($449-499 versus $249-299) makes it the better choice for factory integration installations, while the Rockford might appeal to users prioritizing brand recognition over integrated features.

The Link 500.4 Mini's pricing strategy—$449-499 typical retail—positions it between budget compact amplifiers ($150-250) that lack power and features for quality installations, and premium alternatives ($500-800) that offer marginal performance advantages but don't justify their cost premium for most applications. When accounting for the integrated OEM capabilities that eliminate external components costing $150-250, the Link 500.4 Mini's all-in-one approach provides both simpler installation and better overall value than conventional amplifier-plus-processors systems.

Installation Strategies for Space-Constrained Vehicles

The Link 500.4 Mini's compact dimensions enable installation locations unavailable to standard amplifiers, but realizing this advantage requires understanding the specific mounting options and their implications for wiring, cooling, and service access.

Under-Seat Mounting (Most Common)

The 9.2" × 4.5" footprint fits under most front seats without requiring seat track modification. The 1.65-inch height accommodates typical under-seat clearances (2-3 inches between floor and lowest seat mechanism). The detachable mounting tabs can attach to any chassis side, allowing mounting orientation that avoids seat mechanisms, wiring harnesses, or HVAC ducting. When mounting under seats, ensure 1-2 inches of clearance above the amplifier for convection airflow—the active thermal management prevents shutdown but adequate ventilation maintains full power capability.

Under-seat mounting provides several advantages: proximity to door speaker locations (minimizing speaker wire runs), easy access for future adjustment or troubleshooting, and central vehicle location that balances power cable length to battery and signal cable length from factory source unit. The primary disadvantage: limited space for large wiring bundles, particularly in vehicles with factory-installed under-seat subwoofers or storage compartments.

Behind Kick Panels (Trucks and SUVs)

Vehicles with large door openings (pickup trucks, full-size SUVs) often provide substantial space behind kick panel trim pieces. The Link 500.4 Mini's narrow 4.5-inch width fits in these cavities where wider amplifiers cannot, with the additional benefit of proximity to front door speakers (minimizing speaker wire lengths). Mounting behind kick panels requires securing the amplifier to metal structure behind the trim panel using the detachable tabs, then routing power and signal cables through existing wiring channels to avoid visible installation.

This mounting location provides excellent cooling (kick panel areas receive substantial airflow from vehicle HVAC systems) and keeps the amplifier completely hidden from view. The disadvantages: accessing the amplifier for adjustment requires removing kick panels (manageable for initial setup but inconvenient for frequent changes), and ensuring water intrusion protection in vehicles where kick panel areas can get wet (requiring conformal coating or sealed amplifier enclosures for off-road vehicles or boats).

Door Panel Mounting (SUVs and Vans)

Large vehicles with oversized doors sometimes provide sufficient depth behind door panels for amplifier mounting. This location offers ultimate proximity to front door speakers (speaker wire runs measured in inches rather than feet) but demands careful consideration of door operation, window mechanisms, and water intrusion. The amplifier must mount where door opening and closing doesn't stress wiring connections, where window travel doesn't contact the chassis, and where door panel removal for service doesn't require complete amplifier removal.

Door mounting particularly suits vehicles where under-seat and trunk locations are unavailable or impractical. The compact size and light weight (approximately 3-4 lbs) prevent issues with door hinges or latches that heavier equipment would cause. However, power cable routing from battery through door jamb requires careful protection against chafing and door pinching—professional installations use factory door boot grommets or add supplementary rubber boots to protect wiring.

Trunk Panel Mounting (Sedans and Coupes)

Vehicles with limited under-seat space but accessible trunk areas can mount the amplifier behind trunk side panels or under package trays. The compact dimensions fit in panel cavities where standard amplifiers require exterior mounting (visible installations). This maintains clean trunk appearance while providing the amplification needed for system upgrades. Trunk mounting requires longer power cable runs from battery (typically 15-20 feet versus 10-12 feet for under-seat mounting) but provides better cooling due to larger enclosed volume and easier service access.

Vertical Mounting Configurations

The detachable mounting tabs enable vertical amplifier orientation in locations where horizontal space is unavailable but vertical space exists: alongside center consoles, on seat backs, or on interior trim panels. Vertical mounting doesn't significantly affect cooling (convection still functions, just in different orientation) but requires ensuring wiring connections don't experience excessive stress from vibration or vehicle motion. The locking detachable speaker-level input terminals particularly suit vertical mounting, providing secure connection that won't vibrate loose even when the amplifier is oriented with terminals facing downward.

Three-Channel System Design and Component Matching

Optimizing the Link 500.4 Mini for three-channel configuration—the most popular application—requires careful component selection and system design to match amplifier capabilities with speaker requirements and vehicle acoustics.

Front Component Selection

The 75W @ 4Ω (or 125W @ 2Ω) per front channel targets component speakers in the 6.5-7-inch size range with sensitivity of 87-91dB. This combination produces maximum output of 106-110dB at one meter, providing ample dynamic range for critical listening while maintaining safe operating margins for speakers typically rated 75-100W RMS power handling. Quality component sets in this specification range include offerings from Focal, Morel, Hertz, JL Audio, and similar manufacturers, priced typically $200-600 per pair depending on performance objectives.

Component speakers with lower sensitivity (83-86dB, common in high-end audiophile designs) benefit from the 2Ω operation if their impedance allows it, extracting maximum power (125W per channel) to compensate for the efficiency disadvantage. Component speakers with higher sensitivity (92-95dB, typical of competition-oriented designs) don't require full amplifier power and can operate comfortably at 4Ω with gain settings reduced to prevent over-driving.

For active front stage configurations (eliminating passive crossovers), the component selection must account for the amplifier's 12dB per octave crossover slopes. Tweeters require mechanical high-pass protection; if using the amplifier's crossover alone (channels 1-2 set to high-pass at 3500-4000Hz), select tweeters with ferrofluid cooling and robust voice coil construction that can handle occasional low-frequency content if crossover settings are incorrect. Midbass woofers similarly benefit from robust construction since 12dB/octave crossovers allow more overlap than steeper slopes, potentially exposing drivers to frequency content outside their optimal range.

Subwoofer Selection for 250W Bridged Output

The 250W bridged subwoofer channel suits single 10-inch or 12-inch subwoofers with 200-350W power handling. This specification range includes the majority of quality car audio subwoofers from manufacturers like JL Audio (W3v3, W6v3 series), Rockford Fosgate (Punch, Power series), Sundown Audio (E-series), and similar brands. The amplifier provides sufficient power for these subwoofers to achieve 115-120dB output in typical vehicle enclosures—more than adequate for any application outside extreme SPL competition.

Subwoofer selection should account for enclosure type and available space. Sealed enclosures require more power than ported enclosures to achieve equivalent output (typically 3dB more power for the same SPL), meaning a 250W amplifier drives a ported subwoofer to higher output than an equivalent sealed design. However, sealed enclosures require less volume than ported enclosures (often half the volume or less), making them preferable for space-constrained installations. The Link 500.4 Mini's parametric EQ helps compensate for the sealed enclosure's bass rolloff, boosting deep bass frequencies to extend response without requiring larger enclosures or more powerful amplifiers.

For installations requiring more bass output than single subwoofers driven by 250W can provide, consider dual subwoofer configurations with each driver wired to present 4Ω to the amplifier. Two 10-inch subwoofers with dual 2Ω voice coils (wired in series within each subwoofer, then paralleled together for 2Ω total) provide 3dB more output than single subwoofer configurations while maintaining the same power requirement. However, dual subwoofers require substantially more enclosure volume than single subwoofers—often prohibitive in compact vehicles where the Link 500.4 Mini's small size is necessary.

Complete System Examples

Budget Daily Driver ($1,200-1,500 total): Polk Audio DB6502 component speakers front ($180), Rockford Fosgate P3D4-10 subwoofer ($180), sealed enclosure ($100), Link 500.4 Mini amplifier ($449), wiring kit ($80), professional installation ($400). This system provides dramatic improvement over factory audio with components known for reliability and value. Total power: 150W front, 250W sub.

Enthusiast System ($2,200-2,800 total): Focal PS165F3 component speakers front ($450), JL Audio 10W6v3-D4 subwoofer ($450), custom ported enclosure ($250), Link 500.4 Mini amplifier ($449), premium wiring kit ($120), professional installation with sound deadening ($600). This system approaches sound quality competition capability with reference-grade components properly installed. Total power: 150W front, 250W sub.

Active Front Stage ($2,000-2,500 total): Hertz ML 280 component set (using amplifier's active crossovers instead of passive, $400), single 10-inch subwoofer (separate Monoblock amplifier required), Link 500.4 Mini driving front stage actively ($449), external Monoblock for subwoofer ($200), premium wiring ($150), professional installation with DSP tuning ($700). This configuration uses the Link 500.4 Mini's four channels for active front stage biamplification, sacrificing integrated subwoofer capability for ultimate front stage control.

Condition Documentation: Brand New Factory Fresh

This Wāvtech Link 500.4 Mini amplifier is brand new, representing current production from Wāvtech's established manufacturing. The unit arrives in original factory packaging with all included accessories: detachable mounting tabs, speaker-level input terminal connector, power/ground terminal hardware, owner's manual, and warranty documentation. The amplifier has never been installed, powered, or removed from packaging beyond factory quality inspection.

Physical inspection confirms factory-fresh condition: heatsink shows no mounting marks, terminal blocks are clean without wire insertion evidence, all connectors are free from wear, and any protective films on surfaces remain in place. This is not old inventory that has languished in storage—these are current production units with recent manufacturing dates, ensuring latest production standards and component quality.

Warranty Coverage and Support

As an authorized Wāvtech dealer, Audio Intensity provides full manufacturer warranty support. The Link 500.4 Mini includes Wāvtech's standard warranty covering defects in materials and workmanship, with duration specified in included documentation. Warranty service routes through Audio Intensity's support infrastructure, which maintains direct communication with Wāvtech's technical team for product support and troubleshooting assistance.

Standard warranty coverage includes manufacturing defects but excludes damage from improper installation (incorrect wiring, inadequate fusing, insufficient ventilation), abuse (overpowering speakers until failure, operating with shorted outputs), or environmental factors (water intrusion, extreme heat, corrosion). Following proper installation procedures and providing adequate electrical system protection maintains warranty coverage throughout the warranty period.

Value Proposition: Complete Integration in Minimal Space

The Link 500.4 Mini's value proposition emerges from comparing total system cost and capability against alternatives. A conventional approach to factory integration with external line output converter requires: four-channel amplifier ($200-400), LOC with summing capability ($150-200), mounting space for both components, separate wiring for each, and additional labor for multi-component installation. Total component cost: $350-600 before labor, occupying 2-3 times the space of the Link 500.4 Mini alone.

The Link 500.4 Mini consolidates these functions into a single component priced at $449-499, eliminating the external LOC while providing capabilities it lacks (parametric EQ, subsonic filter, comprehensive crossover controls). For space-constrained installations, this consolidation matters as much as cost savings—finding mounting locations for multiple components becomes increasingly difficult in modern vehicles where aftermarket equipment must hide completely to maintain factory appearance and avoid interfering with vehicle features.

The power specifications particularly matter when comparing against ultra-compact alternatives like Alpine's KTP-445U. While the Alpine costs $120-150 less, its 180W total power and 90W bridged subwoofer output cannot drive the same components to equivalent loudness. Upgrading from the Alpine to the Link 500.4 Mini costs perhaps $150 more but provides 2.8× the total system power and 2.8× the subwoofer power—enabling component and subwoofer selections that the Alpine simply cannot drive to adequate output levels. For users willing to invest in quality speakers, the amplifier must have sufficient power to utilize their capabilities; the Alpine lacks this power, while the Link 500.4 Mini provides it.

Against premium compact amplifiers like JL Audio's RD400/4 ($399-449), the Link 500.4 Mini offers comparable power specifications while adding integrated OEM capabilities worth $150-250 in external components. For aftermarket source unit installations where factory integration isn't needed, the JL Audio's premium build quality and brand reputation justify its higher cost. But for factory integration—representing the majority of compact amplifier installations—the Link 500.4 Mini provides superior overall value through its integrated approach.

The sizing advantage particularly benefits professional installers who perform numerous factory integration installations. The ability to mount the Link 500.4 Mini in locations where standard amplifiers won't fit prevents situations where the correct capabilities exist but physical constraints force system compromises or complex custom mounting solutions. Time saved on installation translates to either lower labor costs (more competitive pricing) or improved profit margins, making the Link 500.4 Mini valuable beyond its component cost alone.

Who Should Choose the Link 500.4 Mini

The Wāvtech Link 500.4 Mini serves specific applications where its combination of compact size, integrated OEM capabilities, and adequate power creates compelling advantages:

Space-Constrained Factory Integration: Vehicles retaining factory source units while adding front speakers and subwoofer, where mounting space for standard amplifiers doesn't exist or would interfere with vehicle features. This includes compact cars, vehicles with under-seat factory subwoofers, and installations where completely hidden mounting is mandatory for aesthetic or theft prevention reasons.

Premium Factory System Upgrades: Vehicles with high-voltage factory audio systems (Bose, Harman Kardon, etc.) requiring 40V input capability. The Link 500.4 Mini eliminates external interface devices that would otherwise be required, simplifying installations in vehicles where mounting space for multiple components is problematic.

Three-Channel System Builders: The most common upgrade scenario—front speakers plus subwoofer—where the Link 500.4 Mini's optimized configuration (2 channels front, 1 bridged channel sub with dedicated processing) provides precisely the capabilities needed without unnecessary features or channels.

Daily Drivers Prioritizing Reliability: Vehicles used for commuting, family transportation, or ride-share applications where system reliability matters more than ultimate power specifications. The Link 500.4 Mini's conservative power ratings, comprehensive protection circuits, and start/stop compatibility ensure reliable operation in daily driving conditions.

Budget-Conscious Enthusiasts: Users demanding quality components and proper factory integration but working within realistic budgets. The Link 500.4 Mini's $449-499 price point eliminates the choice between adequate power (requiring expensive amplifiers) and proper integration (requiring additional processors), providing both capabilities at single-component cost.

The Link 500.4 Mini is less suitable for applications requiring more than 250W subwoofer power (demanding separate Monoblock amplifiers), systems with four full-range speakers all requiring substantial power (where five-channel amplifiers better match requirements), or installations where ultimate sound quality takes priority over space constraints (justifying larger amplifiers with more sophisticated processing). Understanding these application boundaries ensures the Link 500.4 Mini serves installations where its strengths align with actual requirements rather than forcing compromise where alternatives would better serve specific needs.

Technical Specifications Summary

• Configuration: 4-channel Class D amplifier with integrated OEM interface
• Power @ 4Ω: 4 channels × 75W RMS (300W total)
• Power @ 2Ω: 4 channels × 125W RMS (500W total)
• Bridged Power @ 4Ω: 2 pairs × 250W RMS (500W total)
• Three-Channel Configuration: 2 × 75W front + 1 × 250W sub bridged
• Input Capability: 40V maximum (adaptive OEM loading)
• Speaker-Level Input Range: 1-20V RMS (20×), 2-40V RMS (40×)
• RCA Input Range: 0.2-5V RMS (0.2×), 0.4-10V RMS (0.4×)
• Input Channels: 4-channel summing with level trim adjustment

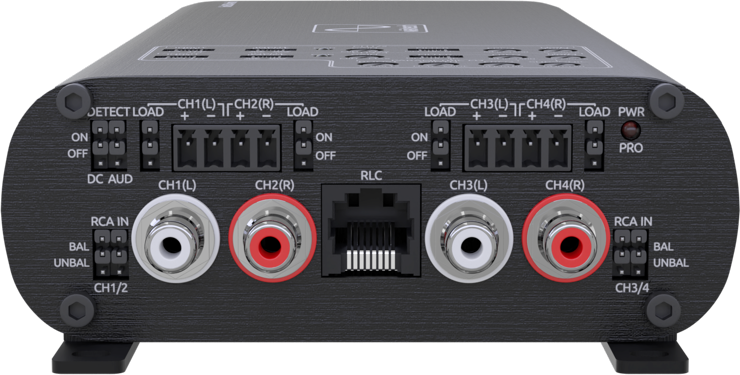

• Input Types: Speaker-level (high-level) and RCA line-level
• Differential Balanced Inputs: Yes (noise rejection)
• Channels 1-2 Crossover: Variable HP or LP, 12dB/octave
• Channels 3-4 Crossover: Variable HP or LP, 12dB/octave
• Channels 3-4 Parametric EQ: 1-band adjustable (frequency, Q, boost/cut)
• Channels 3-4 Subsonic Filter: Variable frequency, protects subwoofer
• Remote Level Control: Compatible with optional linkRC (channels 3/4)
• Frequency Response: <10Hz to >43kHz (+0dB/-3dB)
• THD+N: <1% at rated power
• Signal-to-Noise Ratio: >85dBA (referenced to 1W @ 4Ω)
• Start/Stop Compatible: Yes (operates down to 7V)
• Operating Voltage Range: 7V - 16V DC
• Active Thermal Management: Yes (power reduction vs. shutdown)
• Auto Turn-On: DC-offset detection or audio signal detect
• Protection Circuits: Thermal, short circuit, DC offset, reverse polarity
• Current Draw @ Idle: <2A (low parasitic drain)
• Current Draw @ Full Power: ~60-70A (500W output)
• Recommended Fusing: 80-100A ATO/ATC/mini-ANL at battery
• Power Cable Gauge: 8-gauge minimum (adequate for full power)
• RCA Connectors: Panel-mount (locking, strain-relieved)
• Speaker Inputs: Locking detachable terminals (bare wire compatible)

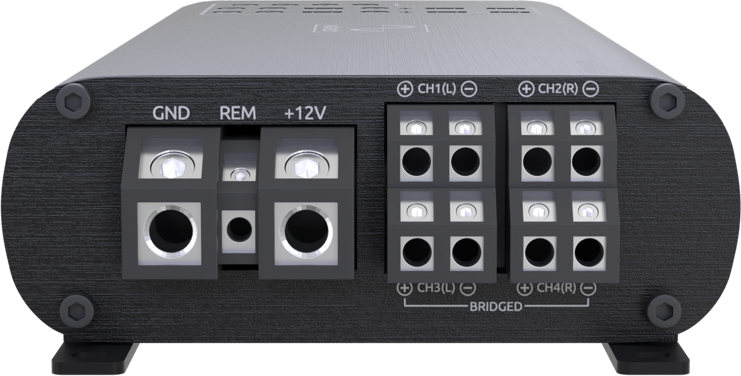

• Power Terminals: 4-gauge capable terminal blocks
• Dimensions: 9.2" × 4.5" × 1.65" (ultra-compact footprint)
• Mounting: Detachable tabs (multiple orientation options)
• Weight: Approximately 3-4 lbs (lightweight aluminum construction)
• Finish: Black anodized aluminum chassis
• Condition: Brand new, never installed, factory packaging
• Included Accessories: Mounting tabs, speaker-level connector, terminal hardware, manual
• Warranty: Manufacturer warranty via Audio Intensity (terms in documentation)

Final Assessment

The Wāvtech Link 500.4 Mini occupies a specific niche in the compact amplifier market: it provides the integrated OEM capabilities and comprehensive processing found in larger amplifiers, the adequate power output necessary for quality component and subwoofer systems, and the compact dimensions that enable installation in vehicles where space constraints prevent standard amplifier mounting. This combination addresses the most common car audio upgrade scenario—front speakers plus subwoofer in vehicles with factory source units—with a single component that eliminates the external processors and complex wiring that conventional approaches require.

The amplifier's compact dimensions matter not as a specification to chase but as a practical solution to real installation challenges. Modern vehicles progressively reduce accessible space for aftermarket equipment while increasing the complexity of factory audio systems that require sophisticated integration technology. The Link 500.4 Mini addresses both trends simultaneously: small enough to fit where standard amplifiers cannot, sophisticated enough to interface with premium factory systems that basic amplifiers cannot accommodate. This dual capability makes it valuable for professional installers who encounter diverse vehicles and installation constraints daily.

At $449-499, the Link 500.4 Mini costs more than budget compact amplifiers ($150-250) but substantially less than premium alternatives ($500-800) while providing capabilities that neither category offers. The budget amplifiers lack adequate power for quality components and lack any factory integration capability. The premium alternatives provide marginal power advantages but still require external LOCs and processors for factory integration, increasing total system cost beyond the Link 500.4 Mini's all-in-one approach. For the specific application it targets—factory-integrated front speakers plus subwoofer in space-constrained vehicles—the Link 500.4 Mini represents optimal balance of capability, size, and cost.

This isn't the amplifier for every application. Users needing more than 250W subwoofer power require separate Monoblock amplifiers. Systems with demanding four-speaker configurations benefit from five-channel amplifiers with more balanced power distribution. And installations where size isn't constrained can use larger amplifiers with more sophisticated DSP processing. But for the most popular upgrade scenario executed in modern vehicles with limited space and complex factory audio systems, the Link 500.4 Mini provides precisely what's needed: adequate power, complete integration, comprehensive processing, and dimensions that enable installation where alternatives simply won't fit. That focused design philosophy—solving the most common problem optimally rather than attempting to serve every possible application—defines the Link 500.4 Mini's value for its intended market.
