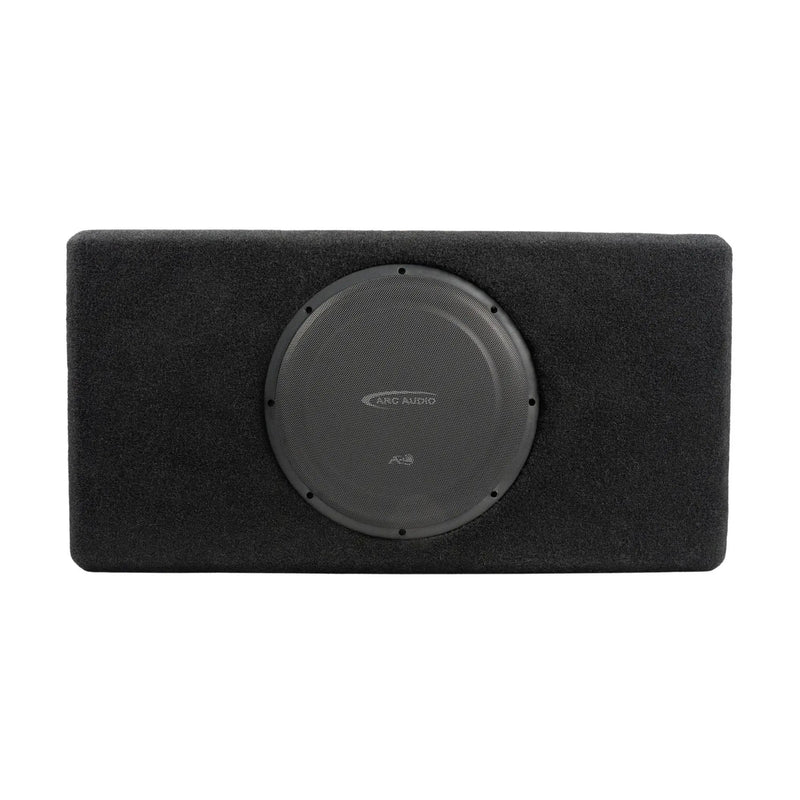

Proline X Single 10" Sealed Down-Fire System | Loaded with Arc Audio A10

QUICK SPECS

Best For: Under-seat installs / Tight-space builds
Configuration: Single 10" Sealed — Down-Fire
Volume: 0.60 ft³ Net
Tuning: N/A — Sealed
Sonic Character: Tight, Accurate, SQ-Focused

Proline X Enclosure — Built in Tennessee CNC-cut Langboard Elite 3/4" MDF, V-groove + dado joinery, recessed ABS/Carbon Fiber terminal cup.

Driver + Enclosure — Matched and Pre-Wired Subwoofer pre-installed and wired to the correct impedance. Connect your amplifier and it's ready to run.

Shipping Included Assembled to order in 2–5 business days. No freight charges at checkout.

$ 499.99

Voice Coil Configuration

Hurry! Only 2 left in stock.

Financing available — choose Shop Pay Installments at checkout.

What's Included

Proline X sealed down-fire enclosure — single 10" configuration
Arc Audio A10 10" shallow-mount subwoofer pre-installed
Pre-wired 12g OFC speaker wire — Dual 2-ohm or Dual 4-ohm configuration

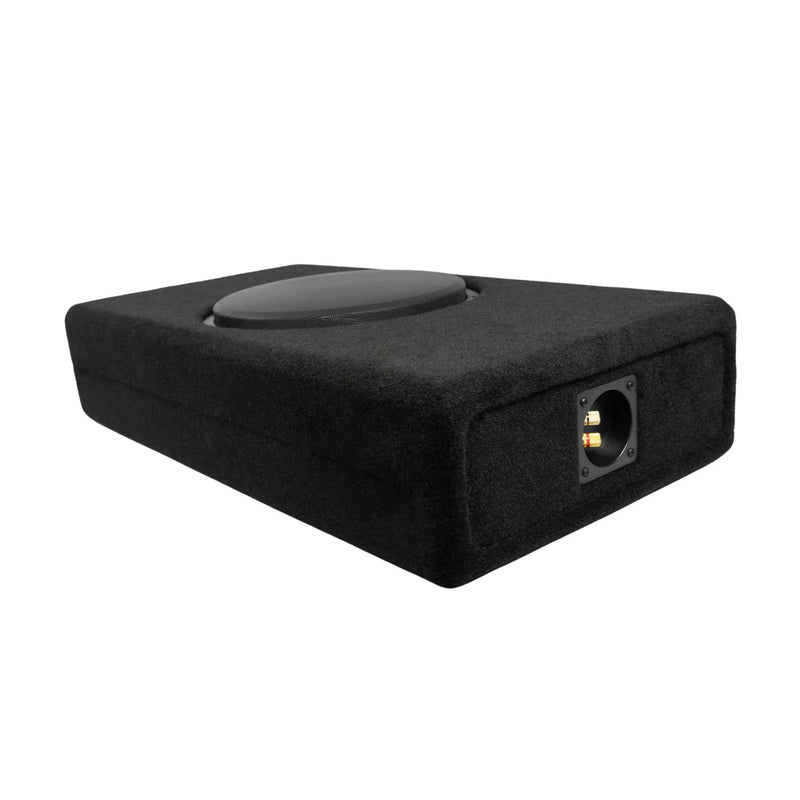

Recessed ABS/Carbon Fiber Composite terminal cup — stainless hardware, copper ring terminals

Amplifier, power wire, and RCA cables not included

Proline X Single 10" Sealed Down-Fire System | Loaded with Arc Audio A10

Enclosure Type Sealed

External Dimensions 24.5" × 5.25" × 13.5"

Net Volume .60cu ft

Tuning Frequency N/A

Cutout Diameter Direct Fit

Front Panel Thickness 1.5

Max Mounting Depth 4.5"

INSTALLER'S TAKE

The down-fire orientation is the right call for this driver in this application. The A10's 3.77" mounting depth means the cone sits very close to whatever surface is below it in a standard face-up install — under a seat, that can be a problem at high excursion. Face-down into a 0.60 ft³ sealed box gives the cone clearance and keeps the driver protected. The double baffle at 1.5" is important here too — at 3.77" depth, the motor sits close to the baffle surface, and a single 3/4" panel would introduce more flex directly behind the magnet. Two layers eliminates that.

The impedance selection at checkout matters. Know your amplifier's stable impedance before you order. Dual 4-ohm wired parallel is 2 ohms — the safer choice for most amps. Dual 2-ohm wired parallel is 1 ohm — verify your amplifier is explicitly rated for 1-ohm operation before selecting that configuration.

Product Details

The Proline X Single 10" Sealed Down-Fire System pairs the Arc Audio A10 10" shallow-mount subwoofer with a Proline X sealed down-fire enclosure built at our Tennessee facility. Net internal volume is 0.60 ft³ — centered within Arc Audio's published optimum range of 0.40–0.90 ft³ for the A10 in a sealed alignment. The down-fire orientation mounts the driver facing the floor, which keeps the cone protected from physical contact and allows the enclosure to sit flat in under-seat and trunk applications without the driver exposed. The A10 ships pre-wired to your selected impedance — Dual 2-ohm (wired parallel to 1 ohm) or Dual 4-ohm (wired parallel to 2 ohms). Select your amplifier's target impedance at checkout.

Every panel is CNC-cut from 3/4" Langboard Elite MDF at our Tennessee facility — a mill-certified panel stock with a 200 psi internal bond rating, 410,000 psi modulus of elasticity, and 325 lb face screw holding strength. In a sealed enclosure, panel integrity is the entire acoustic story. The sealed air volume behind the driver is what controls cone motion — any flex or air leak at a joint directly corrupts that suspension. This box does not flex and does not leak.

Version III construction uses V-groove combined with dado joinery throughout, and the front baffle is 1.5" thick — two layers of 3/4" MDF laminated together. The A10's 3.77" mounting depth is a shallow-mount driver; the double baffle eliminates the flex point directly behind the driver where internal pressure concentrates during high-excursion playback. The terminal cup is built in-house at our Tennessee facility — ABS/Carbon Fiber Composite body, recessed mount, stainless steel hardware, aluminum landing plates, copper ring terminals, and 12g OFC speaker wire pre-installed. Nothing to source. Nothing to upgrade. It ships ready to wire.

Shipping is included in the price. At 24.5" wide and 5.25" tall, this is a compact freight shipment — but a loaded enclosure ships as a packaged unit. That cost is built into what you see. No freight line item on your order confirmation. What you see is what you pay.

Enclosure Specifications

Enclosure Type	Sealed — Down-Fire
Configuration	Single 10"
Net Volume	0.60 ft³
Tuning Frequency	N/A — Sealed
External Dimensions	24.5" W × 5.25" H × 13.5" D
Front Baffle Thickness	1.5" Double Baffle
MDF	Langboard Elite 3/4"
Joinery	V-groove + dado
Terminal Cup	Recessed ABS/Carbon Fiber Composite
Speaker Wire	12g OFC pre-installed
Finish	Plush Black
Vehicle Fitment	Universal

Woofer Details

The Arc Audio A10 is a shallow-mount 10" subwoofer engineered specifically for installations where standard-depth drivers won't fit. At 3.77" mounting depth, it handles under-seat truck enclosures, behind-seat builds, and down-fire configurations where a full-depth motor would conflict with the floor or seat bottom. The A10's basket geometry is designed for multi-angle mounting — face-up, face-down, or at any angle — with structural integrity maintained regardless of orientation. This is not an afterthought in the design; Arc Audio engineered the A10 basket to distribute stress evenly under any mounting condition, which is why it is well-suited for the down-fire format. Impedance is available in Dual 2-ohm or Dual 4-ohm — select the configuration that matches your amplifier's target load at checkout.

Brand + Model	Arc Audio A10
Size	10"
RMS Power	250W
Peak Power	500W
Voice Coil Config	Dual 2-ohm or Dual 4-ohm (select at checkout)
Mounting Depth	3.77"
Cutout Diameter	9-3/16"
Optimum Sealed Volume	0.60 ft³
Sealed Volume Range	0.40 – 0.90 ft³

Why This Combo Works

Arc Audio A10 in a Proline X 0.60 ft³ Sealed Down-Fire Enclosure

The A10's published optimum sealed volume is 0.60 ft³ — that is exactly what this enclosure delivers. Arc Audio publishes a range of 0.40–0.90 ft³ for the A10 in sealed alignment; the center of that range produces the flattest frequency response and the most predictable transient behavior. This isn't a generic box the driver happens to fit in — the internal volume was built to the spec.

The sealed alignment suits the A10's design philosophy. Arc Audio engineers the A-Series for accurate, controlled bass in restricted spaces — the driver is optimized for linear response at moderate excursion rather than maximum output. In a properly sized sealed box, the A10 produces tight, fast bass that tracks the music accurately and integrates cleanly with a front stage. This system is the right choice for SQ-focused builds, daily drivers who prioritize sound quality over output, and any install where the enclosure needs to disappear physically while the bass does its job.

For amplifier power, target 200–250W RMS at the wired impedance. Dual 2-ohm wired parallel = 1 ohm final load. Dual 4-ohm wired parallel = 2 ohm final load. The A10 is rated at 250W RMS — stay in that range. A clean 250W amplifier will outperform a clipping 500W amplifier on this driver every time.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF — Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source — not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks — relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention — relevant for every joint that isn't face-to-face

Internal Bond

200 psi — The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE — Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge — Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock — Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
