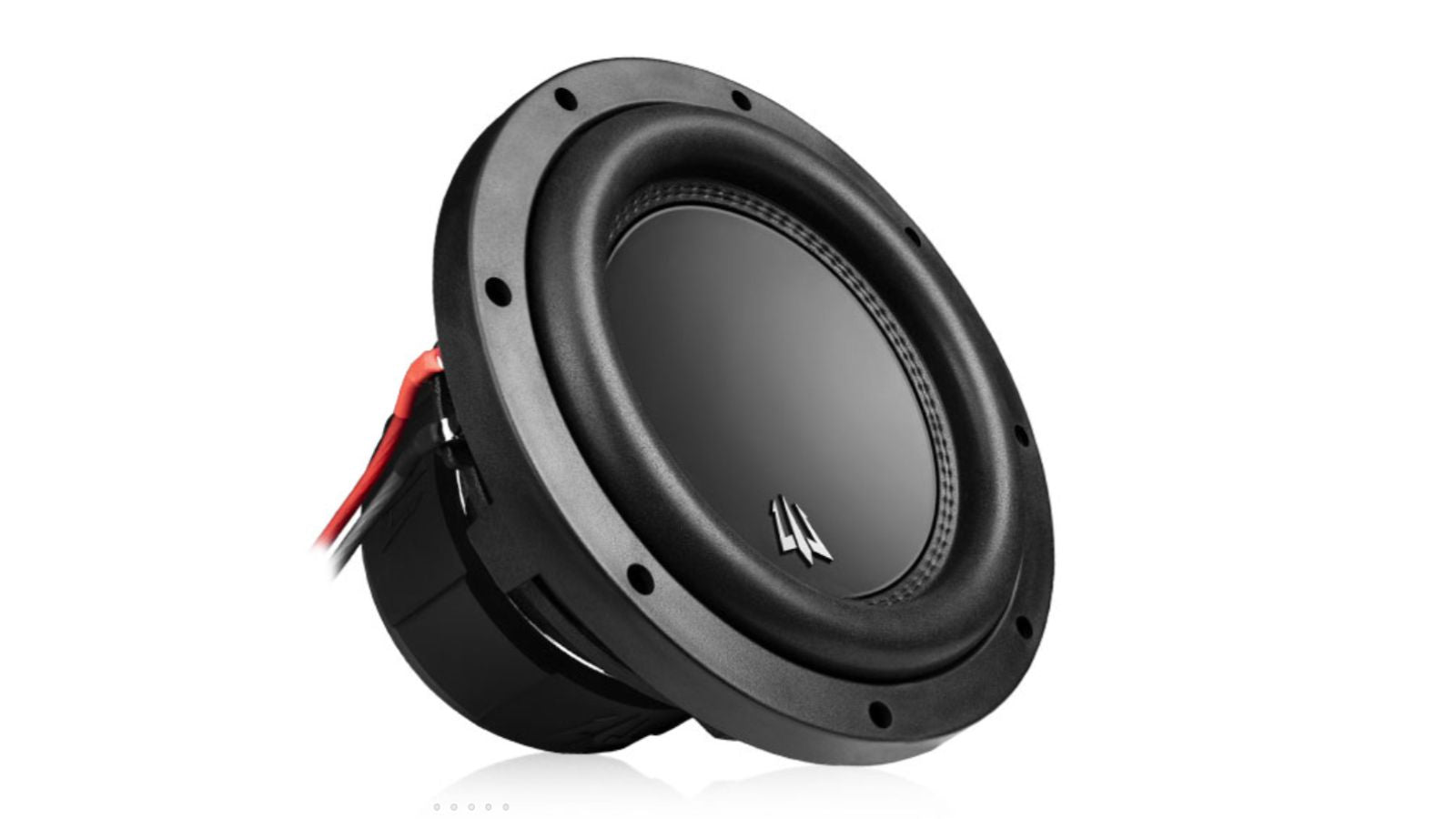

Triton SX6D4 6.5" Dual 4-Ohm Subwoofer

Triton Audio emerged from a simple yet powerful philosophy: no-compromise design at accessible prices. While many mobile audio brands have shifted focus toward mass-market commodity products or ultra-premium boutique offerings, Triton Audio occupies the critical middle ground – delivering components with genuine engineering integrity and premium construction techniques at pricing that respects the dealer channel and end consumer alike.

Designed and engineered in the United States, Triton Audio products reflect American mobile audio traditions: robust construction that withstands demanding automotive environments, flexible installation characteristics that accommodate diverse vehicle types, and tonal voicing that favors musical accuracy over exaggerated effects. The brand's direct-from-factory distribution model eliminates intermediate brokers and distributors, ensuring that Audio Intensity and other authorized dealers can offer exceptional value without compromising product quality or dealer support.

Triton's product development process emphasizes real-world installation compatibility. Where competing brands design speakers and subwoofers for idealized laboratory conditions, Triton engineers account for the harsh realities of automotive installations: elevated temperatures (up to 140°F in enclosed trunks during summer), constant vibration across rough roads, electrical noise from alternators and ignition systems, and the acoustical challenges of cabin environments with irregular surfaces and minimal sound treatment. This practical engineering approach yields components that perform reliably year after year, not just during the first demo session.

Triton Audio's commitment to sound quality begins with material selection. The SX6D4 exemplifies this philosophy through components typically reserved for far more expensive subwoofers:

• Non-Pressed Paper Cone: Unlike stamped or injection-molded cones that introduce resonances and coloration, the SX6D4's treated paper cone is formed through traditional methods that preserve fiber alignment and internal damping. This construction yields natural bass texture with minimal mechanical noise, allowing the subwoofer to reproduce acoustic bass instruments with realistic tonal character rather than the "one-note boom" common to budget woofers.
• Stitched Foam Surround: The large-roll foam surround isn't simply glued to the cone and basket – it's mechanically stitched using precision equipment that ensures consistent tension distribution around the entire circumference. This stitched construction prevents surround separation under extreme excursion and power levels, eliminating a common failure mode that plagues adhesive-only designs. The foam compound itself features UV inhibitors and ozone resistance for long-term durability even in sun-exposed installations.
• Flat Stitched-In Tinsel Leads: The electrical connection between the voice coil and basket terminals uses flat tinsel wire that's stitched directly into the spider (suspension) rather than simply spot-welded. This redundant mechanical attachment prevents lead failure during extreme cone excursion while maintaining electrical flexibility. Many competing subwoofers fail when tinsel leads fatigue and break after thousands of excursion cycles – the SX6D4's stitched leads are engineered for decade-long reliability.
• Tinned OFC Cable Terminals: The basket terminals use tinned oxygen-free copper construction that resists oxidation and ensures clean electrical contact even in humid or salt-air environments. The terminal blocks accept up to 12-gauge wire, providing ample current capacity for the full 300-watt RMS power handling without voltage drop or heat buildup at the connections.

Introduced in late 2021, the Triton SX subwoofer series was purpose-designed to address a gap in the mobile audio market: affordable high-output woofers with professional-grade construction. While traditional entry-level subwoofers compromise on either power handling or build quality to hit aggressive price points, the SX platform refuses that tradeoff. By optimizing manufacturing efficiency and eliminating unnecessary features, Triton created a dual-magnet platform that competes directly with subwoofers costing 30-50% more.

The dual 40-ounce magnet structure defines the SX series advantage. Each subwoofer in the lineup – from the compact 6.5" SX6D4 to the flagship 12" SX12 – uses matched magnet pairs mounted in symmetric push-pull configuration around the voice coil. This dual-magnet topology delivers three critical performance benefits:

The SX series spans four diameter options (6.5", 8", 10", and 12"), each sharing the same construction philosophy: die-cast baskets, stitched foam surrounds, dual magnets, and 3-inch voice coils. This platform consistency means that system builders can mix multiple SX subwoofers of different sizes with confidence that tonal character and efficiency will remain consistent across the array – a valuable advantage for custom installations requiring non-standard woofer combinations.

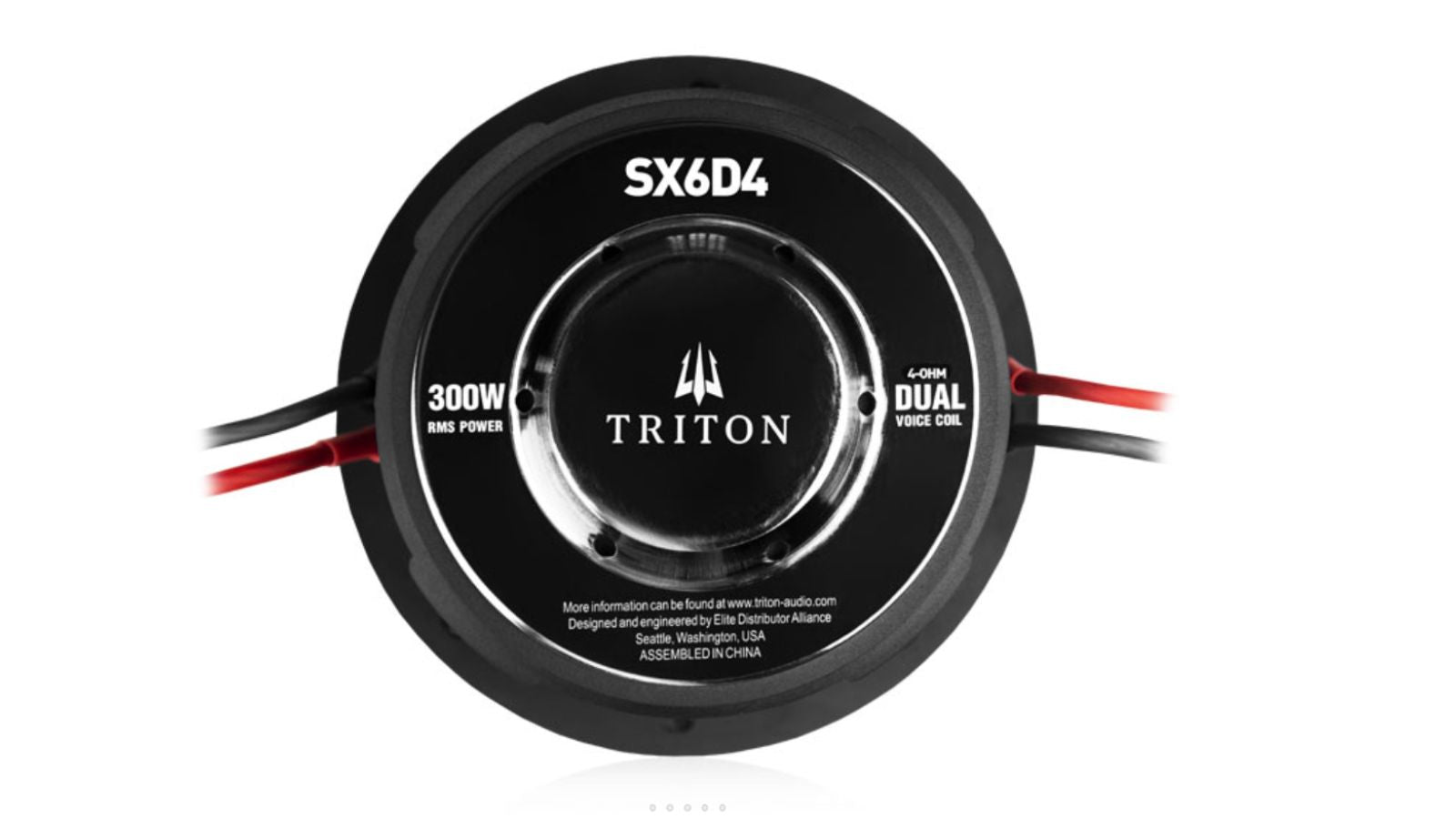

The SX6D4's motor assembly represents the most aggressive magnetic structure ever applied to a 6.5-inch mobile audio subwoofer. The dual 40-ounce magnets create a combined 80-ounce motor – a specification more commonly associated with 8-inch or even 10-inch performance woofers. This massive magnetic mass isn't marketing excess – it's engineering necessity for generating the flux density required to control a 3-inch voice coil moving through 14.11mm of linear excursion.

Magnetic flux density determines how effectively the motor converts electrical current into mechanical force. Higher flux density yields:

• Greater Efficiency: More acoustic output per watt of amplifier power, reducing electrical system demands and thermal stress on both the subwoofer and amplifier.
• Improved Transient Response: Faster acceleration and deceleration of the cone assembly, allowing the subwoofer to accurately reproduce rapid bass sequences and percussive impacts rather than smearing transients into sustained "woof" sounds.
• Extended Low-Frequency Extension: The stronger magnetic field provides greater control authority as excursion increases at low frequencies, preventing mechanical over-excursion and port chuffing while maintaining clean output down to the subwoofer's resonance frequency.
• Higher Power Handling: The increased flux concentration improves thermal coupling between the voice coil and pole piece, allowing heat dissipation that supports the 300-watt RMS continuous power rating without thermal compression or voice coil failure.

The motor assembly uses a ventilated pole piece design that allows air circulation through the voice coil gap during cone excursion. This "breathing" action pumps heated air away from the voice coil and draws cooler air in from the enclosure, functioning as a passive cooling system that extends thermal headroom during extended high-power operation. Many competing 6.5" subwoofers use sealed motor structures that trap heat, leading to premature thermal compression and reduced dynamic output as the voice coil temperature rises.

The 3-inch dual 4-ohm voice coil represents extraordinary engineering for a 6.5-inch subwoofer – most competing products in this diameter class use 1.5-inch to 2-inch coils with corresponding limitations in power handling and excursion capability. Triton's decision to implement a 3-inch coil provides multiple performance advantages:

Power Handling: The 3-inch diameter provides substantially greater coil surface area than smaller designs, distributing thermal energy across more wire length and allowing higher continuous power handling. The SX6D4's 300-watt RMS rating isn't peak marketing hype – it's the genuine continuous thermal power capacity when operated with pink noise or music signals over extended sessions.

Excursion Capability: Larger voice coils can "overhang" the magnetic gap more dramatically without losing coupling to the magnetic field. This geometric advantage allows the SX6D4's 14.11mm linear excursion specification – substantially greater than typical 6.5" subwoofers with 1.5" coils limited to 8-10mm XMAX. More excursion directly translates to greater air displacement and higher output capability, especially at low frequencies where cone travel determines maximum SPL.

Wiring Flexibility: The dual 4-ohm voice coil configuration provides three practical impedance options:

• 2-Ohm Parallel Wiring: Connect both voice coils in parallel for 2-ohm total impedance. This configuration maximizes power transfer from Class D Monoblock amplifiers rated at 2 ohms, extracting full amplifier output. Ideal for single-subwoofer systems powered by compact amplifiers with limited output at 4-ohm loads.
• 8-Ohm Series Wiring: Connect both voice coils in series for 8-ohm total impedance. This higher impedance reduces current draw from the amplifier, allowing operation with vintage or Class A/B amplifiers that may not be stable at 2-ohm loads. Series wiring also enables multiple SX6D4 subwoofers to be paralleled for a final system impedance that remains amplifier-friendly (two 8-ohm subs parallel = 4 ohms final).
• 4-Ohm Single-Coil Operation: Use only one voice coil while leaving the other disconnected. This rarely-used configuration allows operation at 4 ohms with reduced power handling (150 watts RMS per coil), useful for testing or temporary installations where simplified wiring is desired.

The voice coil former uses high-temperature aluminum rather than paper or fiberglass, providing superior heat conduction from the copper winding to the pole piece and magnet structure. Aluminum formers also offer better mechanical strength to resist deformation under extreme excursion forces, maintaining precise voice coil centering even after thousands of high-power excursion cycles.

The non-pressed paper cone measures approximately 5.0 inches in effective diameter, providing about 19.6 square inches of radiating area. While this absolute cone area is modest compared to larger subwoofers, the SX6D4's 14.11mm linear excursion capability compensates through increased travel. Using the volumetric displacement formula (Cone Area × Excursion × 2 for peak-to-peak movement), the SX6D4 displaces approximately 22.2 cubic inches of air during maximum excursion – equivalent to a 10-inch subwoofer with 7mm XMAX operating at the same frequency.

The cone geometry features a shallow cone angle (approximately 35-40 degrees) rather than the steep 60-70 degree profiles common to many small subwoofers. This shallow profile provides two acoustic benefits: reduced cone breakup modes at higher frequencies (allowing the subwoofer to play cleanly up to 200Hz for midbass duties if needed), and improved off-axis dispersion for more uniform bass distribution throughout the vehicle cabin.

The large-roll stitched foam surround accounts for nearly half of the SX6D4's total moving assembly travel. Unlike small half-roll surrounds that limit excursion through geometric constraints, the large-roll design allows the cone to move through extreme travel without surround compression or "bottoming out." The foam compound features:

• UV Stabilizers: Prevent deterioration from sunlight exposure in vehicles with rear-deck or hatchback installations where direct sun exposure can degrade untreated foam in 2-3 years.
• Ozone Resistance: Protects against cracking and brittleness from ozone exposure (a common issue in urban environments with elevated air pollution).
• Temperature Stability: Maintains compliance and linearity across temperature extremes from -20°F winter cold starts to 140°F trunk temperatures during summer heat.
• Mechanical Stitching: The surround is stitched to both the cone and basket using precision equipment that ensures uniform tension distribution. This stitched attachment prevents surround separation – a catastrophic failure mode where the surround tears away from the cone or basket under high excursion, rendering the subwoofer inoperable.

The progressive spider (suspension) provides restoring force that returns the cone to center position after excursion. The spider uses a three-roll design that progressively stiffens as excursion increases, preventing mechanical over-travel that could damage the voice coil or surround. This progressive characteristic also provides acoustic benefits: the increasing restoring force at extreme excursion reduces harmonic distortion by preventing asymmetric cone motion that generates even-order harmonics.

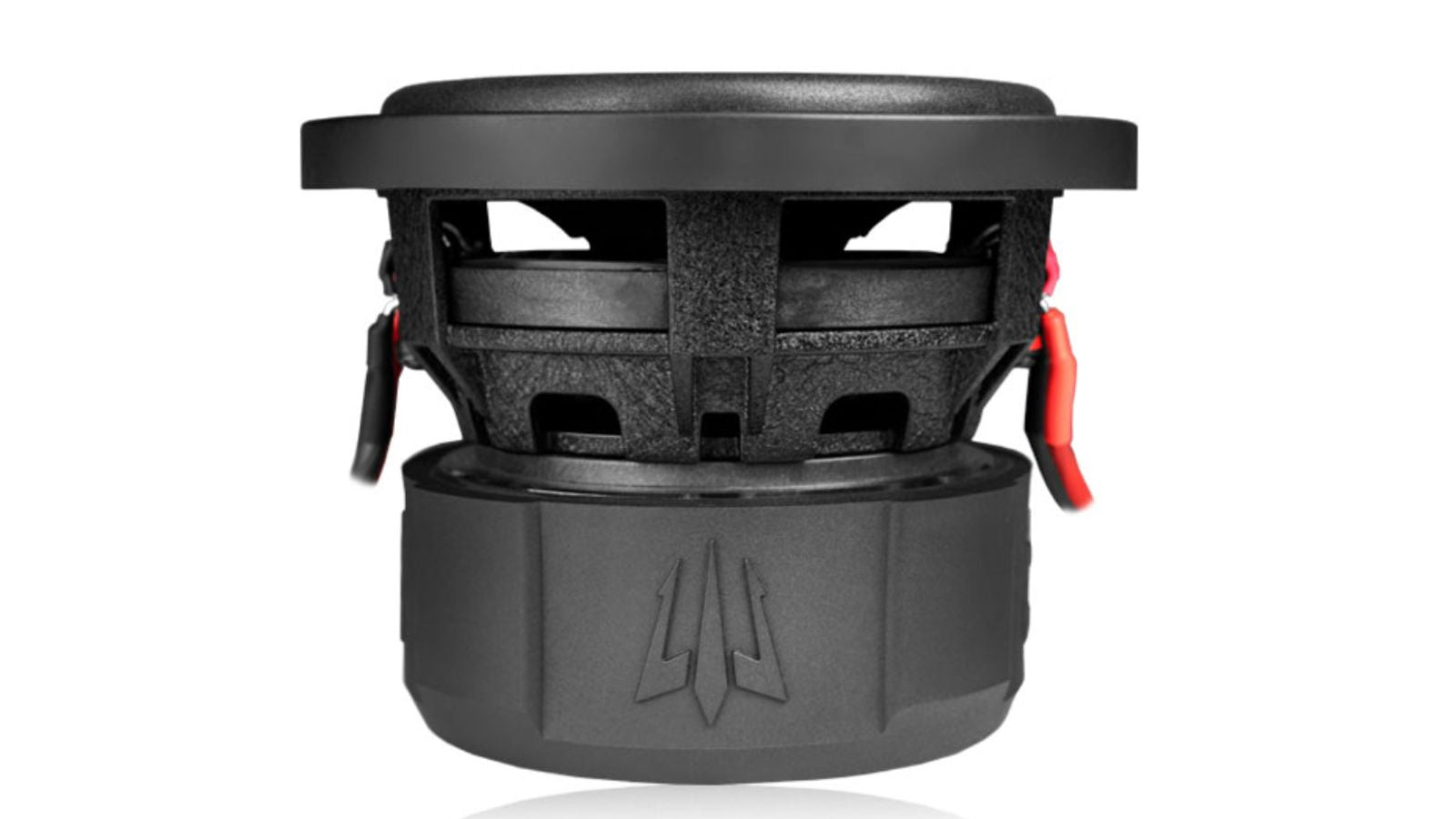

The die-cast aluminum basket represents a significant construction upgrade over the stamped steel baskets common to budget subwoofers. Die-casting allows complex three-dimensional geometry that stamping cannot achieve: large open areas for acoustic transparency, reinforcing ribs at stress points, and precise mounting flanges that ensure proper alignment during installation.

Acoustic advantages: The open basket design minimizes acoustic reflections and cancellations behind the cone, allowing cleaner bass reproduction with reduced comb filtering. Many stamped baskets use solid areas or minimal openings that create standing waves and resonances behind the cone, coloring the bass response with peaks and nulls that vary with enclosure type.

Mechanical rigidity: Aluminum's high stiffness-to-weight ratio prevents basket flexing under extreme excursion forces. When a 6.5" subwoofer moves 14mm of linear excursion while handling 300 watts, the reaction forces trying to bend the basket are substantial. Stamped steel baskets can flex and vibrate, wasting amplifier power and introducing mechanical noise. The SX6D4's die-cast construction eliminates these parasitic losses, converting more electrical energy into acoustic output.

Thermal management: Aluminum's excellent thermal conductivity helps dissipate heat from the motor assembly and voice coil to the surrounding air and enclosure walls. This passive cooling extends thermal headroom and prevents the thermal compression that reduces dynamic output as components heat up during extended high-power operation.

The basket includes four mounting holes on a standard 5.75-inch bolt circle, ensuring compatibility with universal 6.5" subwoofer enclosures and mounting rings. The mounting flange is precisely machined for flat seating against enclosure walls, creating an airtight seal that prevents air leaks that would degrade bass output and increase port noise in vented designs.

The SX6D4's flexible enclosure requirements make it adaptable to virtually any installation constraint. Whether you're building a tiny sealed box for a sedan trunk, a compact vented enclosure for a hatchback, or a custom under-seat installation for a pickup truck, the SX6D4 delivers legitimate bass output from enclosures that would starve most competing subwoofers.

Recommended Volume Range: 100 to 400 cubic inches (0.058 to 0.23 cubic feet)

Sealed enclosures provide the most compact installation option while delivering excellent transient response and group delay characteristics. The SX6D4's Qtc (total Q factor) allows optimal sealed alignment across this broad volume range:

Construction Notes for Sealed Enclosures:

• Material: Use minimum 0.75-inch MDF (medium-density fiberboard) or 0.625-inch Baltic birch plywood. Thinner materials will flex and resonate under high output, wasting amplifier power and introducing cabinet coloration.
• Bracing: Even small enclosures benefit from internal bracing. Add a single cross-brace connecting opposite walls to eliminate panel resonances that color bass response.
• Sealing: Apply silicone sealant to all internal seams and joints. Even tiny air leaks degrade bass output and can cause audible port-like noises as air whistles through gaps under high excursion.
• Damping Material: Fill 30-50% of internal volume with polyester fiberfill or acoustic foam. This damping material absorbs internal standing waves and slightly increases effective acoustic volume, smoothing frequency response and reducing cabinet resonances.
• Terminal Cup: Install a recessed terminal cup on the rear panel for clean wire connections. Avoid simple wire pass-throughs that can short against the enclosure frame or pull loose during installation.

Recommended Volume: 0.35 cubic feet (605 cubic inches) net internal volume
Port Tuning: 1.5-inch diameter × 6.6-inch length

Vented enclosures sacrifice some compactness and transient precision in exchange for substantially greater output capability and extended low-frequency response. The SX6D4's vented alignment is optimized for musical bass reproduction rather than maximum SPL competition tuning:

Port Tuning Analysis: The specified 1.5" × 6.6" port tunes the 0.35 ft³ enclosure to approximately 45-48Hz – a moderate tuning frequency that balances low-frequency extension with midbass output. This tuning provides:

• Extended Bass Response: Usable output down to approximately 38-40Hz (-3dB point) – a full octave below most factory audio systems and deep enough to reproduce the fundamental frequencies of bass guitars, kick drums, and synthesizer bass lines with authority.
• Higher Efficiency: At the port tuning frequency (45-48Hz), the enclosure achieves approximately 3dB higher sensitivity than a sealed design. This efficiency gain reduces amplifier power requirements and extends electrical system headroom for multi-amplifier installations.
• Increased Maximum Output: The ported alignment can produce approximately 5-6dB greater peak SPL at frequencies near port tuning compared to sealed, allowing the compact 6.5" woofer to generate output levels that rival 10-inch sealed subwoofers.
• Reduced Excursion at Tuning: At frequencies near port tuning, the port handles much of the acoustic output while cone excursion decreases dramatically. This mechanical unloading reduces distortion and extends power handling at common bass frequencies (40-60Hz range where most music content resides).

Port Construction: Use precision-molded ABS port tubes rather than improvised PVC plumbing pipe. Quality port tubes feature:

• Flared Ends: Smooth radius transitions at both ends reduce port turbulence and "chuffing" noise during high-excursion operation. Sharp-edged ports create audible wind noise as air velocity increases during bass transients.
• Smooth Interior: Precision-molded ports have smooth internal surfaces that minimize boundary layer separation and port noise. PVC pipe has rougher interiors with manufacturing seams that can generate audible turbulence.
• Precise Diameter: Port tuning calculations assume specific internal diameter. Generic PVC "nominal" dimensions don't match actual internal diameter, resulting in tuning errors that can shift port frequency by 5-10Hz.

Vented Enclosure Construction Notes:

• Port Placement: Position the port opening at least 2-3 inches away from the subwoofer cone and facing away from rear walls or corners. Ports too close to the cone couple turbulent air from cone excursion, increasing port noise.
• Bracing: Vented enclosures require more aggressive internal bracing than sealed designs due to higher internal air pressures. Add cross-braces connecting all parallel walls to prevent panel flexing that wastes amplifier power and introduces cabinet coloration.
• Volume Precision: Net internal volume must account for subwoofer displacement (approximately 0.04 ft³ for the SX6D4), port displacement (approximately 0.01 ft³ for the 1.5" × 6.6" tube), and bracing displacement. Build the gross external enclosure approximately 10-15% larger than the target 0.35 ft³ to achieve correct net volume after subtracting component displacements.
• Subsonic Filter: Vented enclosures provide minimal cone control below port tuning frequency. Always use an amplifier subsonic filter set 5-10Hz below port tuning (38-43Hz for this alignment) to prevent over-excursion damage when reproducing extremely low frequencies or processed bass with infrasonic content.

The SX6D4's compact dimensions and flexible enclosure requirements enable creative installations impossible with larger subwoofers:

The SX6D4's dual 4-ohm voice coil configuration provides exceptional flexibility for system design, accommodating everything from compact 4-channel amplifiers to dedicated Monoblock subwoofer amplifiers.

Single SX6D4 Wiring Options:

Multiple SX6D4 System Wiring:

The dual 4-ohm voice coil configuration enables flexible multi-subwoofer arrays while maintaining amplifier-compatible final impedance:

• Two SX6D4 Subwoofers @ 1Ω Final: Wire each subwoofer in parallel (2Ω per sub), then parallel both subwoofers together. Final system impedance: 1 ohm. Recommended amplifier: Competition-grade Monoblock rated at 600-800 watts RMS @ 1Ω. This configuration extracts maximum system output but requires an amplifier specifically rated for 1-ohm operation.
• Two SX6D4 Subwoofers @ 2Ω Final: Wire each subwoofer in series (8Ω per sub), then parallel both subwoofers together. Final system impedance: 4 ohms. Recommended amplifier: 400-600 watts RMS @ 4Ω. This configuration provides a balance of high output and broad amplifier compatibility.
• Two SX6D4 Subwoofers @ 4Ω Final: Wire each subwoofer in series (8Ω per sub), then series both subwoofers together. Final system impedance: 16 ohms (impractical for most amplifiers). Alternatively, wire each sub in parallel (2Ω per sub), then series both subs together for 4Ω final. Recommended amplifier: 300-400 watts RMS @ 4Ω.
• Four SX6D4 Subwoofers @ 2Ω Final: Wire each subwoofer in series (8Ω per sub), then parallel all four subwoofers together. Final system impedance: 2 ohms. Recommended amplifier: 800-1200 watts RMS @ 2Ω. This configuration creates a massive 6.5" subwoofer array with approximately 78 square inches of total cone area (equivalent to a single 10" subwoofer) and 1200 watts total power handling.

The SX6D4's 300-watt RMS power handling requires proper electrical infrastructure for reliable performance:

Wiring Gauge Recommendations:

• Power and Ground Wire: Use minimum 8 AWG oxygen-free copper (OFC) power and ground wire for single SX6D4 systems (up to 300W RMS). Upgrade to 4 AWG OFC for dual subwoofer systems (600W total), and 1/0 AWG OFC for quad subwoofer systems (1200W total). Wire gauge directly affects voltage drop – undersized wire reduces available voltage at the amplifier, decreasing maximum output and potentially causing thermal protection activation.
• Speaker Wire: Use minimum 14 AWG OFC speaker wire for runs up to 10 feet, or 12 AWG OFC for longer runs. The SX6D4's relatively high impedance (2Ω minimum) means speaker wire resistance has less impact than with 1-ohm competition systems, but quality wire still improves damping factor and transient response.
• Fuse Location: Install the primary fuse within 18 inches of the battery positive terminal. This protects the entire power wire run from short-circuit fire hazards. Use AGU, ANL, or MIDI fuse holders rated for the full fuse value – cheap inline blade fuse holders can overheat and fail at high current levels.
• Ground Connection: Connect amplifier ground wire directly to chassis metal using a bolt-through connection with star washer to bite through paint and ensure clean metal-to-metal contact. Sand the chassis contact point to bare metal before connection. Poor ground connections are the #1 cause of amplifier noise and unstable operation.

Compact Systems (Single SX6D4, Space-Limited Installations):

• 4-Channel Amplifier (Bridged): Use a 4-channel amplifier with front/rear speakers on channels 1-2, then bridge channels 3-4 for subwoofer duty. Look for amplifiers rated at 150-200 watts RMS × 2 @ 4Ω bridged. This single-amplifier solution minimizes space requirements and electrical system demands while providing full-range system amplification.
• Compact Monoblock: Micro-sized Monoblock amplifiers (under 8" length) rated at 200-300 watts RMS @ 2Ω provide dedicated subwoofer power without consuming excessive trunk space. Pair with a separate 4-channel amplifier for front/rear speakers, or use high-level inputs from the factory head unit if preserving factory speakers.

Balanced Systems (Single or Dual SX6D4, Daily Driver Applications):

• 500-Watt Class D Monoblock: A quality 500-watt Monoblock provides substantial headroom for single SX6D4 operation (300W rating) and can power dual SX6D4 subwoofers at moderate output levels. This amplifier class offers excellent efficiency (minimal heat generation) and compact dimensions suitable for trunk installations without extensive ventilation requirements.
• 5-Channel Amplifier: All-in-one solution with front/rear speakers on channels 1-4 and dedicated subwoofer channel rated at 200-300 watts RMS @ 2Ω. This single-amplifier approach simplifies wiring, reduces electrical system demands, and minimizes installation complexity – ideal for daily drivers where trunk space and electrical capacity are limited.

High-Output Systems (Dual or Quad SX6D4, Enthusiast Installations):

• 1000-Watt Monoblock: A 1000-watt Monoblock provides full power for dual SX6D4 subwoofers (600W total handling) with substantial headroom for dynamic peaks. Look for amplifiers rated at 1000 watts RMS @ 2Ω with proven reliability and thermal management. This power level requires upgraded electrical system components (high-output alternator, AGM battery, 1/0 AWG wiring).
• 1500-2000 Watt Monoblock: Required for quad SX6D4 arrays (1200W total handling). This amplifier class demands comprehensive electrical system upgrades including 200A+ alternator, dual battery system, and 1/0 AWG or larger wiring. Reserve this power level for dedicated enthusiast vehicles where electrical system modifications are acceptable and bass output is a primary priority.

Extracting maximum performance from the SX6D4 requires proper integration with amplifier controls and source unit settings. Even a perfectly-built enclosure and properly-wired installation can sound mediocre without appropriate tuning.

Gain Structure: Set amplifier gain using an oscilloscope or distortion-detecting multimeter, not by ear. Procedure:

1. Set source unit volume to 75-80% of maximum (the volume level where most listening occurs)
2. Play test tones at 50Hz (available free online or through mobile apps)
3. Increase amplifier gain until output voltage matches the formula: Voltage = SQRT(Power × Impedance). For 300W into 2Ω: V = SQRT(300 × 2) = 24.5V AC
4. If amplifier begins clipping (flattening sine wave tops) before reaching target voltage, reduce gain slightly to eliminate clipping
5. Mark final gain position with paint pen for future reference if controls are accidentally adjusted

Crossover Settings:

• Low-Pass Filter (Subwoofer): Set amplifier low-pass filter to 80Hz with 12dB/octave or 24dB/octave slope. This frequency allows the SX6D4 to reproduce true subwoofer frequencies while preventing overlap with door speakers that creates muddy, indistinct midbass. If door speakers are small (4" or smaller) or have limited low-frequency capability, raise crossover to 100-120Hz to reduce strain on door speakers.
• High-Pass Filter (Door Speakers): Set door speaker high-pass filter to match subwoofer crossover point (80Hz) with 12dB/octave slope minimum. This protects door speakers from low-frequency excursion damage while cleaning up midbass reproduction by removing frequencies they cannot reproduce cleanly.
• Subsonic Filter (Vented Enclosures Only): If using a vented enclosure, enable amplifier subsonic filter and set 5-10Hz below port tuning frequency. For the specified 0.35 ft³ vented alignment (45-48Hz tuning), set subsonic to 38-43Hz with steepest available slope (24dB/octave preferred). This protects the subwoofer from over-excursion below port tuning where cone control is minimal.

Bass Boost: Use bass boost conservatively, if at all. The SX6D4's response in properly-designed enclosures is already flat through its passband – adding bass boost typically creates one-note boom rather than extended bass. If boost is desired for specific music genres (electronic, hip-hop), limit boost to +3dB maximum at 45Hz. Higher boost levels dramatically increase power compression, reduce maximum SPL, and risk thermal damage to the voice coil.

Phase Setting: Most installations sound best with subwoofer phase set to 0° (normal). However, if the subwoofer sounds weak or cancels out door speaker bass, try reversing phase to 180° using the amplifier phase switch. The correct phase setting produces the strongest, most impactful bass reproduction and depends on vehicle acoustics, subwoofer location, and listener seating position.

Polarity Check: Verify correct polarity by playing bass-heavy music and momentarily disconnecting one subwoofer wire. Bass output should decrease dramatically when the wire is disconnected. If bass actually increases when disconnecting a wire, polarity is reversed – swap positive and negative connections at either the amplifier or subwoofer (not both).

Time Alignment (DSP Systems): If using a digital signal processor with time alignment capability, delay the subwoofer signal to match arrival time at the listening position. Measure the distance from the subwoofer to the driver's seat and from the door speakers to the driver's seat. Calculate delay using the formula: Delay (ms) = [Door Speaker Distance - Subwoofer Distance] / 13.5 (speed of sound in inches/ms). Apply this delay value to the subwoofer channel to ensure bass and midbass frequencies arrive simultaneously, creating coherent, well-integrated sound.

Vehicle cabins introduce severe acoustical problems that affect bass reproduction: reflections from glass and plastic surfaces, standing waves between parallel surfaces, and cabin gain that boosts low frequencies by 6-12dB. Professional tuning addresses these issues:

• Real-Time Analyzer (RTA) Measurement: Use a calibrated measurement microphone and RTA app (free options available for smartphones) to measure actual frequency response at the listening position. Sweep pink noise or use RTA test signals to identify peaks and nulls in bass response caused by cabin acoustics.
• Parametric EQ Correction: Use DSP parametric equalization to reduce peaks and fill nulls. Typical vehicle bass response shows 3-6dB peaks at specific frequencies (often 60-80Hz and 100-120Hz ranges) caused by cabin dimensions. Apply narrow bandwidth (Q=3-5) cuts at peak frequencies to flatten response. Avoid boosting nulls – these represent acoustic cancellations that require spatial solutions (subwoofer repositioning), not EQ.
• Target Curve: Aim for gradually rising bass response from 80Hz down to the system's low-frequency limit, with approximately +6dB at 40Hz compared to 80Hz. This rising response compensates for equal-loudness contours (Fletcher-Munson curves) that make humans less sensitive to low frequencies, creating perceived flat response despite measured rise.

The SX6D4's sonic signature reflects its construction philosophy: accurate, powerful bass reproduction without the exaggerated effects common to single-note boom boxes. This subwoofer rewards proper installation and tuning with performance that rivals many 8-inch and even 10-inch competitors.

Transient Response: The SX6D4's 80-ounce dual-magnet motor provides exceptional control authority over the moving assembly, yielding tight, articulate bass transients. Kick drums exhibit sharp attack with clean decay rather than smearing into sustained rumble. Fast bass sequences (double-kick metal, rapid hip-hop bass lines) remain distinct and intelligible rather than blurring into indistinct "thump." This transient precision comes from the high magnetic flux density that rapidly accelerates and decelerates the cone assembly.

Tonal Balance: The non-pressed paper cone delivers natural bass texture without the metallic coloration of aluminum cones or the plasticky artifacts of injection-molded polypropylene. Acoustic bass instruments (upright bass, bass guitar, tuba) sound realistic with authentic woody resonance rather than synthetic boom. Electronic bass maintains proper texture with clean fundamental tones and harmonics rather than smearing into one-note rumble.

Efficiency and Sensitivity: At 79.59dB sensitivity (1W/1m), the SX6D4 falls into the moderate-efficiency category – not as efficient as large-cone competition woofers (85dB+), but substantially more efficient than long-excursion audiophile designs (75dB or lower). This moderate sensitivity means the SX6D4 produces satisfying output from modest amplifier power. A quality 200-watt amplifier generates approximately 102dB peak SPL in a typical vehicle cabin – enough for satisfying bass impact without overwhelming other frequencies.

Sealed Enclosure Performance:

• Small Volume (100-150 cu.in.): Excellent transient response and midbass punch (70-120Hz region) with bass extension to approximately 65-70Hz. Maximum output approximately 100-102dB peak SPL at driver's seat. Best for small vehicles where midbass impact is prioritized over deep bass extension, or for systems using external bass boost to restore low-frequency output.
• Optimal Volume (200-250 cu.in.): Balanced performance with smooth response from 50-55Hz upward. Maximum output approximately 103-105dB peak SPL. Best all-around sealed alignment offering both compact size and legitimate bass extension suitable for all music genres.
• Large Volume (350-400 cu.in.): Extended bass response down to 45-48Hz with reduced midbass emphasis. Maximum output approximately 105-107dB peak SPL. Best for applications where enclosure space constraints are minimal and deep bass extension is prioritized.

Vented Enclosure Performance:

• Specified Alignment (0.35 ft³, 45-48Hz tuning): Extended bass response down to 38-40Hz with elevated output in the 40-60Hz octave (common musical bass fundamentals). Maximum output approximately 108-110dB peak SPL – 5-6dB greater than sealed alignments in the tuned frequency range. Best for maximum output systems where additional enclosure volume (compared to sealed) is acceptable and installation space allows the larger box and port tube.

Electronic/Hip-Hop: The SX6D4 excels with synthesized bass, tracking rapid sequences cleanly without overhang or "one-note" boom. The 14.11mm excursion capability handles powerful sustained bass notes without compression or distortion. Vented alignments provide extra impact for bass-heavy tracks.

Rock/Metal: Fast double-kick drum work reveals the SX6D4's transient response strengths. Individual kick hits remain distinct and punchy rather than blurring together. The natural cone material preserves acoustic drum texture better than synthetic cones.

Jazz/Classical: Acoustic bass instruments sound authentic with proper fundamental tone and harmonic structure. The SX6D4 doesn't add artificial coloration or boom to upright bass, tuba, or orchestral bass drum – it simply reproduces what's in the recording accurately.

Country/Folk: Clean, unobtrusive bass support that doesn't overwhelm vocals or acoustic instruments. The SX6D4's moderate efficiency prevents bass from dominating in genres where low frequencies should support rather than lead.

The 6.5-inch subwoofer category spans enormous performance and price ranges, from $30 commodity woofers to $300+ audiophile designs. The SX6D4 targets the critical mid-market segment where performance and value intersect.

The SX6D4 occupies a critical market position: delivering near-premium performance at mid-market pricing. While specific pricing fluctuates based on dealer costs and regional market conditions, the value equation remains consistent – this subwoofer offers construction quality and performance capabilities typically reserved for products costing 30-50% more.

✅ Ideal Candidates:

• Space-Constrained Enthusiasts: Owners of compact cars, hatchbacks, or modern sedans where trunk space is precious. If you refuse to sacrifice cargo capacity but demand legitimate bass performance, the SX6D4 delivers output impossible from similarly-sized alternatives.
• Truck Owners Seeking Under-Seat Bass: Extended cab and crew cab pickup drivers where under-seat installation is the only practical option. The SX6D4's compact enclosure requirements and powerful output make it ideal for custom under-seat boxes that fit between seat rails.
• Multi-Sub System Builders: Enthusiasts who understand that multiple smaller subwoofers often outperform single larger woofers through increased total cone area and improved room coupling. Dual or quad SX6D4 arrays create flexible installation options impossible with single 12" subwoofers.
• Motorcycle/Powersports Audio: Touring bike riders, UTV/SXS owners, and boat operators who need legitimate bass in extremely limited spaces. The SX6D4's compact footprint and high power handling enable bass systems in saddlebags, under-dash locations, and marine installations.
• Value-Conscious Audiophiles: Listeners who prioritize actual performance over badge prestige. If you want die-cast construction, dual-magnet motors, and premium component quality without paying boutique brand premiums, the SX6D4 delivers.
• Daily Driver Upgraders: Commuters seeking musical bass enhancement without trunk-rattling SPL excesses. The SX6D4's natural tonal balance and moderate efficiency provide satisfying bass impact that enhances music rather than overwhelming it.

❌ Less Suitable For:

• Competition SPL Competitors: If you're chasing trophy-winning output numbers in sanctioned SPL competitions, dedicated competition woofers (10" or 12" diameter, 1000W+ power handling, ultra-high efficiency) remain the appropriate choice. The SX6D4 delivers impressive output for its size, but physics favors larger diameters for maximum SPL.
• Ultra-Deep Bass Seekers: Listeners who demand flat response down to 20Hz for organ music, movie sound effects, or extreme electronic bass. The SX6D4's compact enclosure requirements limit deep bass extension – 10" or 12" woofers in large enclosures remain necessary for true infrasonic output.
• Badge-Conscious Buyers: If brand prestige and logo recognition matter more than actual performance, established premium brands command higher prices. However, blind listening tests typically reveal minimal performance differences between the SX6D4 and subwoofers costing substantially more.
• Unlimited-Space Installations: If trunk space is unlimited and enclosure size is irrelevant, larger diameter subwoofers (10" or 12") provide easier paths to high output and deep bass extension. The SX6D4's primary advantage is performance despite compact size – when size isn't constrained, larger woofers often prove simpler and more cost-effective.

The SX6D4's construction quality supports decade-long service life when properly installed and operated within specifications:

• Mechanical Durability: Stitched foam surround prevents separation failures common to adhesive-only designs. Die-cast aluminum basket eliminates stamped steel corrosion. Flat stitched tinsel leads resist fatigue failures that plague spot-welded connections. These premium construction techniques ensure the SX6D4 survives hundreds of thousands of excursion cycles without mechanical degradation.
• Thermal Reliability: The 3-inch voice coil and dual-magnet motor provide substantial thermal mass and heat dissipation capability, preventing thermal failures that plague undersized competing designs. Ventilated pole piece promotes air circulation that extends thermal headroom during sustained high-power operation.
• Environmental Resistance: UV-stabilized foam surround and weather-resistant cone treatment allow the SX6D4 to withstand harsh automotive environments including elevated temperatures (140°F+ in enclosed trunks), humidity, and temperature cycling without deterioration.
• Resale Value: While 6.5" subwoofers don't command the resale premiums of flagship 12" competition woofers, the SX6D4's premium construction and Triton Audio's growing reputation ensure reasonable resale values for used examples in good condition.

Package Contents:

• One (1) Triton SX6D4 6.5" Dual 4-Ohm Subwoofer
• Factory packaging and documentation
• Manufacturer warranty coverage (terms through authorized dealers)

Not Included (Available Separately):

• Subwoofer Enclosure: Custom-built or universal 6.5" sealed/vented enclosures available from Audio Intensity or built to specification using guidelines provided above.
• Amplifier: Dedicated subwoofer amplifier or 4-channel with bridging capability (200-400W RMS @ 2Ω or 4Ω recommended).
• Wiring Kit: Complete amplifier installation kit with appropriately-sized power/ground wire (8 AWG minimum for 300W), fuse holder, RCA cables, and speaker wire.
• Installation Hardware: Mounting screws, terminal connectors, enclosure carpet/vinyl covering, acoustic damping material, terminal cups.

The Triton SX6D4 6.5" Dual 4-Ohm Subwoofer represents the intersection of engineering excellence and practical value. In a market segment often dominated by compromise – either sacrificing power handling for compact size, or requiring large enclosures to achieve meaningful output – the SX6D4 refuses both limitations.

What makes this subwoofer exceptional isn't any single specification, but rather the comprehensive engineering approach. The 80-ounce dual-magnet motor provides control authority typically reserved for 8-inch woofers. The 3-inch voice coil enables power handling and excursion capability impossible with smaller coils common to this diameter class. The die-cast aluminum basket eliminates resonances that plague stamped steel competitors. The stitched foam surround and non-pressed paper cone deliver natural bass texture rather than synthetic coloration.

These aren't marketing features – they're engineering solutions to real-world problems. The massive motor isn't about specification sheet bragging rights; it's about generating the flux density required to control extreme excursion without compression or distortion. The oversized voice coil isn't excess; it's the thermal mass necessary to handle 300 continuous watts without failure. The die-cast basket isn't cosmetic luxury; it's the structural rigidity required to prevent energy-wasting flex under high output.

Triton Audio's "Engineered for You" philosophy is evident throughout the SX6D4's construction. Every component reflects deliberate choices prioritizing performance and reliability over unnecessary costs. The result: a subwoofer that delivers near-premium performance at mid-market pricing, competing directly with products costing 30-50% more while maintaining construction quality that supports decade-long service life.

For compact vehicle owners, truck drivers needing under-seat bass, motorcycle touring riders, multi-sub system builders, and anyone facing severe space constraints, the SX6D4 solves problems that traditional subwoofers cannot address. It fits where 8-inch and 10-inch woofers physically cannot, yet produces output that rivals those larger competitors through advanced engineering rather than brute-force diameter.

Available in brand new condition from Audio Intensity, the SX6D4 arrives factory-fresh with full manufacturer support and dealer technical assistance. This isn't closeout stock or refurbished product with uncertain history – it's current-production premium engineering ready to transform your space-limited vehicle into a bass authority.

Compact Bass Authority. Dual-Magnet Engineering. No-Compromise Performance. The Triton SX6D4 – Engineered for You.
