Audio Dynamics
Audio Dynamics 2000 Series 6″x 9″ Component Set
SKU: ADCS6923
$ 119.99
$ 399.99
Save
$ 280.00
Closeout Item
Free Shipping
On Orders over $99
Final Sale
No Restocks. No Returns
Don-t miss out on this deal!
23 people are viewing this right now

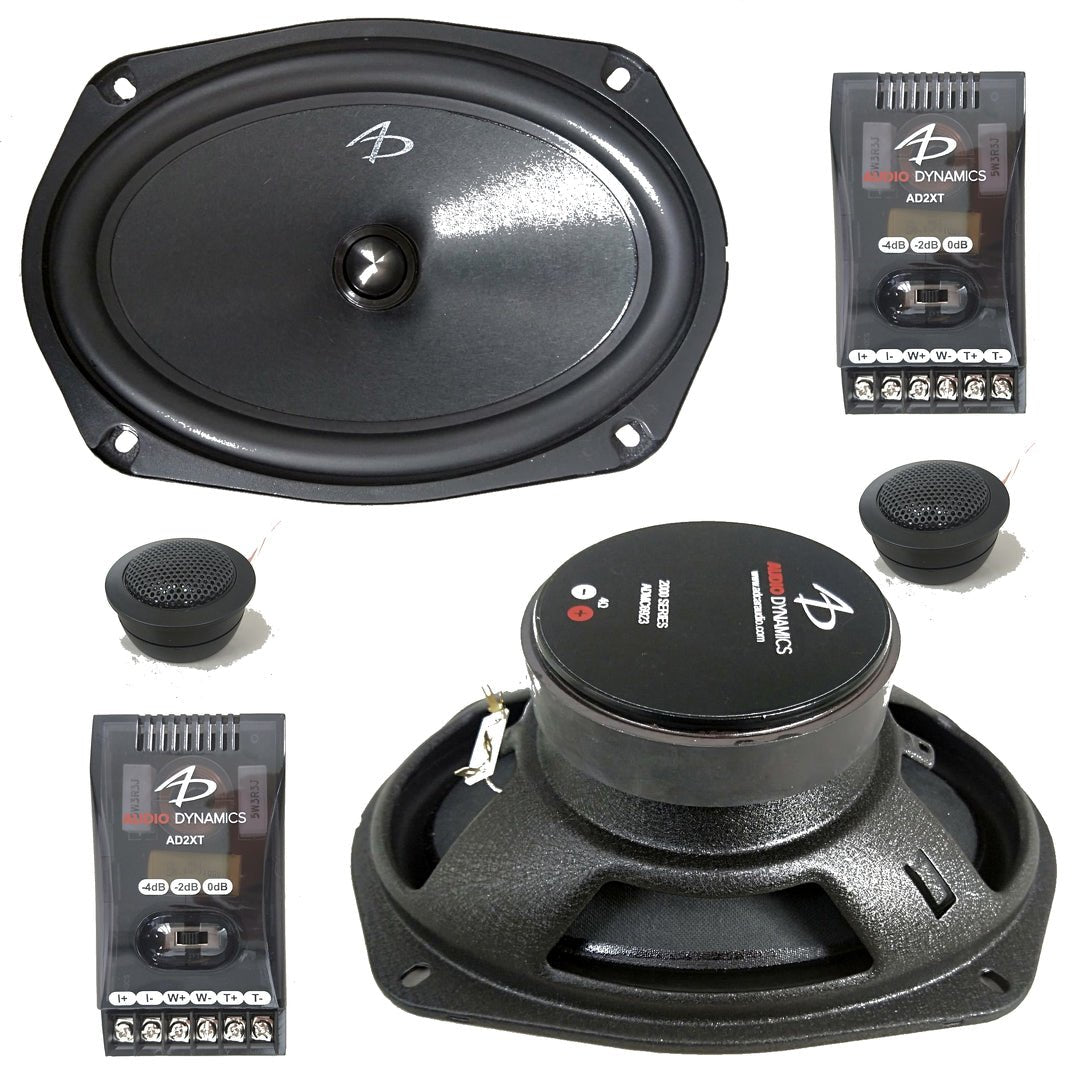

Audio Dynamics 2000 Series 6″x 9″ Component Set
Regular price
$ 119.99
Sale price
$ 119.99
Regular price
$ 399.99
Unit price
Product Details
Specifications
Related Products
AUDIO DYNAMICS 2000 SERIES
6″×9″ Component Set
ADCS6923
Engineered Wool Pulp Cone Technology • Separate Crossover Design • 100W RMS Power Handling
Regular Price: $449.99
$399.99
SAVE $50.00 (11% OFF)
Expert Rating
4.4/5.0
⭐⭐⭐⭐⭐
🎯 The 6×9 Advantage: Understanding Oval Speaker Philosophy
The 6×9″ format has dominated automotive rear deck installations for decades, but this ubiquity masks sophisticated acoustic engineering. The oval geometry isn't a compromise—it's a calculated solution to maximize cone surface area within constrained automotive mounting locations.
Audio Dynamics' ADCS6923 component set leverages the 6×9 platform's 138.5 cm² effective radiating area—approximately 30% more surface area than a traditional 6.5″ round woofer (135.6 cm²). This increased Sd (diaphragm area) directly translates to greater acoustic output potential and improved low-frequency extension without requiring additional mounting depth or amplifier power.
The component architecture separates the 20mm polyimide tweeter from the main woofer assembly, enabling optimal off-axis response and precise soundstage imaging impossible with coaxial 6×9 designs. The included external crossover network with tweeter attenuation provides acoustic tuning flexibility for diverse vehicle acoustics and listener preferences.
Technical Specifications
WOOFER SPECIFICATIONS
| Model: | ADMC6923 |
| Frame Outer Diameter: | 6.49″ × 9.23″ |
| Metric Dimensions: | 165×234 mm |
| Mounting Depth: | 3.35″ (85 mm) |
| Motor Diameter: | 3.98″ (101 mm) |
| Voice Coil: | 1″ (25.4 mm) |
| Cone Material: | Wool Pulp |
TWEETER SPECIFICATIONS
| Model: | ADTW2523 |
| Dome Size: | 0.75″ (20 mm) |
| Dome Material: | Polyimide |
| Motor Type: | Neodymium |
| Flush Mount Diameter: | 1.94″ (49 mm) |
| Flush Mount Depth: | 0.75″ (19 mm) |
| Surface Mount Height: | 1.39″ (35 mm) |
ELECTRICAL SPECIFICATIONS
| RMS Power: | 100 Watts* |
| Nominal Impedance: | 4 Ohm |
| Optimal Bandwidth: | 60 Hz – 20 kHz |
| Recommended HPF: | 60 Hz @ 24 dB/oct |
| Alternative HPF: | 80 Hz @ 18 dB/oct |
| Conservative HPF: | 100 Hz @ 12 dB/oct |
CROSSOVER FEATURES
| Type: | External Passive |
| Tweeter Capacitor: | Polypropylene Film |
| Inductor Type: | Air Core |
| Tweeter Attenuation: | Adjustable |
| Topology: | 2-Way Component |
⚠️ Power Rating Context: *100W RMS rating assumes electronic high-pass crossover filtering with minimum slope of 60 Hz @ 24 dB/octave, 80 Hz @ 18 dB/octave, or 100 Hz @ 12 dB/octave. Operation without proper subsonic protection will reduce thermal power handling and may cause mechanical damage.
Material Science: Wool Pulp Cone Engineering
Why Wool Pulp Dominates Mid-Tier Component Design
Acoustic Damping Properties
Wool pulp's fibrous structure provides exceptional internal damping characteristics (loss factor η ≈ 0.15-0.25), significantly higher than synthetic alternatives like polypropylene (η ≈ 0.05-0.08). This intrinsic material damping suppresses cone breakup resonances above 2 kHz, resulting in smoother frequency response through the critical 1-4 kHz vocal range without requiring aggressive electronic equalization.
Tonal Accuracy & Timbre Preservation
Audio Dynamics' extensive listening tests confirmed wool pulp's ability to reproduce realistic harmonic structure and timbral accuracy across diverse musical genres. The material's moderate stiffness (Young's modulus ≈ 3-5 GPa) combined with low density (≈ 0.6-0.8 g/cm³) creates an optimal balance between pistonic behavior in the passband and controlled modal behavior at higher frequencies.
Unlike overly rigid materials (carbon fiber, aluminum) that exhibit harsh breakup modes, or overly compliant materials (rubber, foam) that lack transient detail, wool pulp delivers natural midrange tonality reminiscent of high-end audiophile drivers at accessible price points.
Moisture Resistance Treatment
Organic cone materials historically suffered moisture absorption issues in automotive environments (humidity, temperature cycling, direct water exposure). Audio Dynamics addresses this vulnerability through acoustically-transparent chemical treatment that maintains the wool pulp's desirable damping properties while providing water resistance comparable to synthetic cones.
This treatment process represents the engineering sweet spot: preserving organic material's acoustic advantages while eliminating its traditional reliability concerns for year-round automotive use.
Polyimide Tweeter Technology Analysis
The Polyimide vs. Silk Dome Decision
The ADCS6923 employs a 20mm polyimide dome tweeter rather than Audio Dynamics' signature silk dome used in their premium series. This material substitution reflects deliberate engineering tradeoffs:
| Characteristic | Polyimide Dome | Silk Dome |
|---|---|---|
| Usable Bandwidth | 2 kHz – 22 kHz | 2 kHz – 20 kHz |
| Power Handling | Higher (50W+) | Moderate (30-40W) |
| Tonal Character | Detailed, Extended | Smooth, Musical |
| Environmental Durability | Excellent | Good (treatment req.) |
| Cost Point | Lower | Higher |
For the 2000 Series price point, polyimide delivers robust performance and extended high-frequency response appropriate for rear-fill applications where ultimate timbral refinement takes secondary priority to output capability and reliability.
Passive Crossover Network Deep-Dive
Premium Component Selection Strategy
Polypropylene Film Capacitors
The tweeter high-pass section utilizes polypropylene film capacitors rather than inferior electrolytic types common in budget designs. Film capacitors offer superior electrical characteristics including:
- Negligible ESR (Equivalent Series Resistance): Minimal signal attenuation and phase distortion
- Temperature Stability: Consistent performance across -40°C to +105°C automotive range
- Low Dielectric Absorption: Reduced stored energy effects that can blur transient response
- Long-Term Reliability: 50,000+ hour lifetime vs. 2,000-10,000 hours for electrolytic caps
This component upgrade translates to cleaner high-frequency reproduction with improved detail retrieval compared to cost-optimized passive networks.
Air Core Inductors
The woofer low-pass filter employs air core inductors instead of ferrite core designs. While larger and more expensive, air core inductors provide critical performance advantages:
- Zero Core Saturation: Linear inductance even at high current levels (critical for 100W operation)
- No Hysteresis Distortion: Ferrite core materials introduce measurable THD; air cores eliminate this
- Lower DCR (DC Resistance): Minimal power loss and improved damping factor
- Frequency-Independent Behavior: Consistent inductance across full audio bandwidth
Adjustable Tweeter Attenuation
The included tweeter attenuation control enables acoustic fine-tuning for specific vehicle environments:
- 0 dB Setting: Maximum output for heavily damped interiors or distant listening positions
- -3 dB Setting: Balanced response for typical rear deck installations with moderate reflections
- -6 dB Setting: Reduced output for highly reflective environments or close proximity mounting
This flexibility ensures optimal tonal balance integration with front stage components without requiring external DSP equalization.
Installation Strategy & System Integration
Mounting Location Analysis
Rear Deck Installation (Primary Application)
Advantages:
- Factory-designed mounting locations with optimal baffle reinforcement
- Natural acoustic loading from rear cabin volume and rear glass reflection
- 3.35″ mounting depth accommodates most vehicles with factory 6×9 provisions
- Component separation allows tweeter surface-mounting on rear deck for improved dispersion
Critical Considerations:
- Verify clearance: Measure rear deck to rear glass distance (minimum 4″ recommended)
- Seal mounting baffle: Use closed-cell foam tape to isolate front and rear acoustic radiation
- Tweeter positioning: Surface-mount tweeters 12-18″ apart for optimal rear soundstage width
- Wire management: Route speaker wire away from trunk hinges and moving components
Rear Door Installation (Alternative)
Feasibility Assessment:
- Depth Requirements: 3.35″ mounting depth may conflict with window regulators in some vehicles
- Adapter Plates: 6×9 to round door adapters often reduce effective mounting depth by 0.25-0.5″
- Sound Deadening: Essential for rear door installations to control panel resonances
- Weatherproofing: Moisture-treated cone provides protection, but ensure vapor barrier integrity
Note: Verify specific vehicle door cavity depth before purchase if considering door mounting.
Custom Enclosure Options (Advanced)
For enthusiasts seeking maximum performance, the ADCS6923 woofers can be installed in sealed enclosures:
- Recommended Volume: 0.50-0.75 cubic feet per driver (sealed)
- Expected F3: Approximately 80-90 Hz (based on typical Qtc ≈ 0.7-0.9)
- Application: Rear shelf pod installations or trunk-mounted sealed boxes
- Benefit: Improved bass extension and reduced distortion vs. infinite baffle mounting
Amplification & Electronic Integration
Power Amplifier Recommendations
Optimal Power Range:
- Conservative (60-75W RMS @ 4Ω): Aftermarket head unit amplifier sections, factory upgraded systems
- Recommended (75-100W RMS @ 4Ω): Dedicated 2-channel or 4-channel amplifier rear channels
- Maximum (100-125W RMS @ 4Ω): Requires proper high-pass filtering and quality source material
Amplifier Topology: Class A/B amplification preferred for rear-fill applications due to superior tonal accuracy. Class D acceptable if using quality designs with >80 kHz switching frequency.
High-Pass Filter Configuration
Mandatory Protection: 100W power rating assumes proper subsonic filtering.
Option 1: 60 Hz @ 24 dB/octave (Linkwitz-Riley 4th order)
Best for systems with subwoofer handling below 60 Hz
Option 2: 80 Hz @ 18 dB/octave (Butterworth 3rd order)
Balanced approach for most installations
Option 3: 100 Hz @ 12 dB/octave (Butterworth 2nd order)
Conservative protection for high-output applications
System Configuration Examples
Configuration 1: Budget Head Unit System
Application: Basic upgrade over factory speakers, powered by aftermarket head unit
- Front: Component speakers powered by head unit front channels (18-22W RMS)
- Rear: ADCS6923 powered by head unit rear channels (18-22W RMS)
- Subwoofer: Optional powered subwoofer with line-level inputs
- High-Pass Filtering: Head unit built-in HPF @ 80-100 Hz (if available)
Performance Expectation: Significant improvement over factory audio with minimal installation complexity. Speakers will be underdriven but provide clean, detailed output suitable for casual listening.
Configuration 2: 4-Channel Amplifier System (RECOMMENDED)
Application: Balanced full-range system with proper rear-fill support
- Front: Premium component speakers (Ch 1-2: 75-100W RMS @ 4Ω)
- Rear: ADCS6923 (Ch 3-4: 75-100W RMS @ 4Ω)
- Subwoofer: Separate monoblock amplifier (300-500W @ 4Ω/2Ω/1Ω)
- High-Pass Filtering: 4-channel amplifier built-in HPF @ 60-80 Hz, 12-24 dB/oct
- Rear Level: Attenuate rear channels -3 to -6 dB below front stage
Performance Expectation: Professional-quality sound with proper imaging, dynamic range, and full-bandwidth coverage. ADCS6923 provides ambient fill without overpowering front soundstage.
Configuration 3: DSP-Controlled Active System (ADVANCED)
Application: Competition or audiophile installation with active crossovers
- DSP Unit: 6-8 channel processor with time alignment and EQ
- Front: Active 3-way (tweeter, midrange, midbass) with independent amplification
- Rear: ADCS6923 using DSP-controlled active crossover (bypassing passive network)
- Active Crossover Points: HPF 80 Hz @ 24 dB/oct, LPF 4-5 kHz @ 12-18 dB/oct
- Time Alignment: Delay rear channels 10-20ms to improve front stage focus
Performance Expectation: Maximum potential from ADCS6923 with DSP-optimized frequency response and phase alignment. Active operation allows higher power handling and reduced distortion vs. passive crossover.
Expert Analysis & Rating Breakdown
OVERALL EXPERT RATING: 4.4/5.0 ⭐⭐⭐⭐⭐
"Exceptional value proposition for 6×9 component upgrade seekers. Audio Dynamics delivers wool pulp tonal accuracy and premium crossover engineering at aggressive $399.99 pricing."
STRONG BUY RECOMMENDATION
Best-in-class value for rear-fill component systems under $500
Who Should Buy the ADCS6923?
✓ IDEAL BUYER
Value-Oriented Enthusiasts
- Seeking component-grade rear speakers without $600+ premium pricing
- Appreciate natural wool pulp tonality and high-quality crossover design
- Want adjustable tweeter attenuation for acoustic tuning flexibility
- Need 6×9 format for factory rear deck mounting provisions
- Value moisture resistance for year-round durability
Expected satisfaction: 9/10
⚠ CONSIDER CAREFULLY
Front Stage Applications
- Polyimide tweeter suitable for rear fill but lacks silk dome refinement
- For critical front stage listening, consider 3000 Series with silk tweeters
- 100W power handling adequate but not competition-grade for extreme SPL
- 6×9 oval format prioritized for rear applications in design optimization
Front stage rating: 7/10 (acceptable but not optimal)
✗ NOT RECOMMENDED
Subwoofer Replacement Seekers
- 60 Hz low-frequency extension requires subwoofer support below 60-80 Hz
- Designed for full-range operation, not dedicated bass reproduction
- Requires proper high-pass filtering—cannot operate as "full bass" driver
- For bass emphasis, pair with dedicated subwoofer system
Bass-only application: Not suitable
Package Contents & Warranty
What's Included
Woofer Components
- 2× ADMC6923 6×9″ Woofers
- Wool pulp cone construction
- 1″ voice coil design
- Gold-plated terminals
Tweeter Components
- 2× ADTW2523 0.75″ Tweeters
- 20mm polyimide dome
- Neodymium magnet system
- Flush & surface mount options
Crossover Network
- 2× External passive crossovers
- Polypropylene film capacitors
- Air core inductors
- Adjustable tweeter attenuation
Installation Hardware
- Mounting screws (woofer)
- Tweeter mounting hardware
- Speaker wire leads
- Installation instructions
Manufacturer Warranty & Support
Audio Dynamics provides comprehensive warranty coverage through authorized dealers. Coverage includes manufacturing defects in materials and workmanship under normal use conditions.
Important: Warranty coverage requires proper installation including high-pass filtering per manufacturer specifications. Physical damage, water exposure beyond normal automotive use, or operation outside recommended parameters void warranty protection.
For warranty details and technical support, contact Audio Dynamics directly through their authorized dealer network or visit: adcaraudio.com
Purchase Information
Ready to Upgrade Your Rear Stage?
Audio Dynamics ADCS6923 6×9″ Component Set
Regular Price: $449.99 $399.99 SAVE $50.00 (11% OFF)
✓ Wool Pulp Cone Engineering
✓ Premium Crossover Components
✓ Component Design with Separate Tweeters
✓ Adjustable Tweeter Attenuation
Available exclusively through Audio Intensity. Contact for current availability and shipping options.
Contact Audio Intensity
Product Page:
Audio Intensity Product Listing
Manufacturer Info:
Audio Dynamics Official Page
Product Information Accuracy: Specifications and features based on manufacturer documentation current as of publication. Audio Dynamics reserves the right to modify product specifications without notice. Installation requirements vary by vehicle—always verify fitment before purchase. Images may show product from different angles or with optional accessories.
All specifications subject to manufacturer updates. Power ratings assume electronic high-pass crossover filtering per manufacturer recommendations. Installation by qualified professional recommended for optimal performance and warranty protection.
