A ground loop is what you hear when two pieces of audio gear see two slightly different chassis voltages and your RCA shield ends up carrying the difference as current. It's the engine whine that rises with RPM, the 60 Hz hum that sits behind your music, the buzz that disappears when you pull the head unit out of the dash. This guide is the millivolt-level diagnostic procedure we use at the shop, the real fixes that work, and the honest take on why ground loop isolators are usually the wrong answer.
- Voltage differences as small as 1 mV between two ground points can produce audible noise in a car audio signal path (Io Audio Technologies, 2024).
- A documented installer measurement showed 50 mV drop at the radio ground and 200 mV at the amplifier ground, leaving a 150 mV difference that drove current through the RCA shield (BestCarAudio.com, 2024).
- Acceptable ground voltage drop is under 50 mV per 100 W of amplifier power. ANSI/CTA-2031 specifies 0.25 V max drop on power wire (BestCarAudio.com, 2023).
- Bench-tested ground loop isolators introduced 6.27 to 6.88 percent signal loss, raised THD from 0.00227 to 0.125 percent at 1 kHz, and shifted the −3 dB low frequency point from 2.8 Hz to 46 Hz (BestCarAudio.com, 2024).
- Diagnose with a multimeter and a pair of shorting (muting) plugs at the amp RCA inputs. The plug test tells you whether the noise comes from upstream of the amp or from the amp's own power and ground (Car Audio Help).
This is troubleshooting territory, so it assumes the rest of your install is sane. If the amp ground itself isn't right, none of the loop fixes below will hold. Read our guide to grounding a car amplifier first if you're not sure your chassis bolt is good. For the wider context of how power, ground, and signal cables interact in a clean install, the power, ground, and RCA wiring guide covers the topology this article assumes.
What Is a Ground Loop in a Car Audio System?
A ground loop forms when two audio components see slightly different chassis voltages and a closed conductive path exists between them. Voltage differences as small as 1 mV between those two ground points can produce audible noise in audio signal cabling because line-level audio itself is measured in millivolts (Io Audio Technologies, 2024). Current flows through the RCA shield from the higher-potential ground to the lower one, and that current rides on top of your music as hum, whine, or buzz.
The mechanism is simple Ohm's law on the body steel. Every fastener, every weld, every section of unibody between the head unit ground point and the amplifier ground point has a tiny resistance. When the alternator dumps current into the chassis through the engine block bond, voltage drops across that resistance and the two ground points sit at different potentials. Connect them with an RCA shield and the shield becomes the easiest path for the current to equalize. That current modulates the audio signal on the center conductor, and you hear it through your speakers.
This is a different failure mode than a single bad chassis ground. A bad ground starves the amp of supply voltage and shows up as protection-mode triggers, clipping, or measurable voltage drop under load. A ground loop adds noise to a signal path that's otherwise working. The fixes are different, the symptoms are different, and the test procedures are different. Confusing the two is the most common reason DIY installers chase these issues for weeks without resolving them.
According to BestCarAudio.com's 2024 grounding analysis, a ground loop occurs when there is a difference in ground potential between two audio components and current flows through the interconnect shield attempting to equalize that difference. Even potential differences below 1 mV can be audible because line-level audio signals operate in the same voltage range (Io Audio Technologies, 2024).
What Does a Ground Loop Sound Like?
Alternator whine produced by a ground loop has a fundamental frequency that scales with engine RPM, typically running from around 100 Hz at idle to over 1,000 Hz at higher engine speeds depending on the alternator's pole count and pulley ratio (DIYMobileAudio installer testing, 2023). That RPM-dependent pitch is the dead giveaway. If you rev the engine and the noise rises in pitch, you have a ground loop or an alternator filtering issue. If the noise stays at a constant tone, you have something else.
Three noise types show up in car audio, and they sound distinct once you know what to listen for. Ground loop noise tracks engine speed. 60 Hz hum sits at a constant low pitch and usually points to a wiring-harness ground or interference from accessory power. Buzz is broadband mid-and-high frequency content, often from a damaged RCA shield letting ignition or injector noise into the signal.
| Noise Type | Pitch Behavior | Typical Cause |
|---|---|---|
| Alternator whine | Rises with engine RPM, falls when you let off the throttle | Ground loop or alternator output filtering |
| 60 Hz hum | Constant low tone, present even with engine off | Harness ground loop or AC interference |
| Ignition buzz | Broadband, gets louder with throttle but pitch is irregular | Damaged RCA shield or RCA routed near ignition wiring |
Source: Crutchfield car audio noise suppression guide, 2024
The fundamental of alternator whine is calculable, not mysterious. A 12-pole alternator (six pole pairs) at 2,500 engine RPM, spun by a 2.5:1 pulley ratio, produces a fundamental at (12 / 2) x (2,500 x 2.5 / 60) = 625 Hz. Plug your specific alternator's pole count and your pulley ratio into that equation and you can predict the noise frequency before you ever turn the system on. If what you hear matches the math, the noise is alternator-coupled. If it doesn't, look elsewhere.
Knowing which noise you have narrows the diagnostic path significantly. The next section is the procedure that tells you exactly which component is misbehaving.
How Do You Diagnose a Ground Loop in Three Steps?
The standard diagnostic procedure isolates the noise source upstream or downstream of the amplifier using a pair of shorting RCA plugs (Car Audio Help). You build the plugs by soldering the center pin to the shield on a cheap pair of male RCAs, plug them into the amp's RCA inputs in place of the regular signal cables, and listen. If the noise stops, the source is upstream. If the noise persists, the amp itself is contributing and the issue is its power or ground.
This is the test that separates two-week troubleshooting from twenty-minute troubleshooting. Most installers skip it because they don't have the muting plugs ready. A pre-made pair lives in our diagnostic kit because we need them at least once a month.
The full procedure runs in three stages, each one narrowing the search.
- Run the muting plug test. With the engine running and the system on, plug shorted RCAs into the amp inputs. Noise gone? The source is upstream of the amp (head unit, signal cable, integration interface, or shared chassis ground path). Noise persists? The amp's own power or ground is the issue, and you should pivot to chassis ground voltage testing. (See the amp grounding guide for that path.)

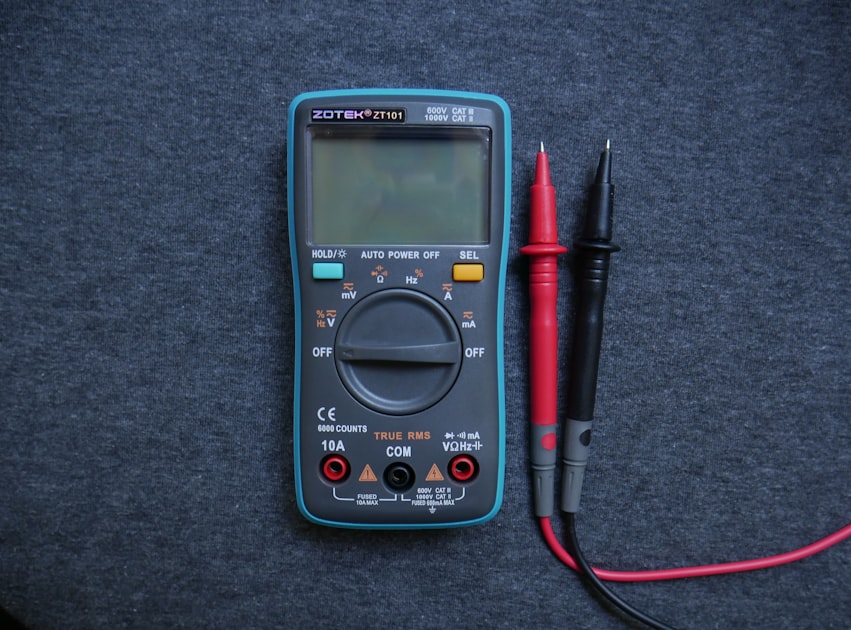

- Measure ground potential between components. With the engine running and the system playing, set a multimeter to DC millivolts. Touch one probe to the head unit's ground stud or chassis screw, the other to the amplifier's ground stud. A reading above about 30 mV indicates a meaningful potential difference between the two grounds. Anything over 100 mV is causing audible noise in any decent system.
- Trace the loop path. Disconnect the RCAs at the amp end. Touch one multimeter probe to the RCA shield (outer ring) at the amp end of the cable, the other to the amp's ground stud. A non-zero millivolt reading confirms the RCA shield is carrying loop current. That tells you the head unit chassis ground and the amp chassis ground are at different potentials and the shield is the path.
Each step takes about two minutes. By the end of the third you know whether the problem is upstream, downstream, or in the chassis ground path itself. The fix you need depends entirely on which step revealed the problem.
What Causes Ground Loops in Car Audio Specifically?
A documented installer measurement showed a 50 mV drop at the radio chassis ground and a 200 mV drop at the amplifier chassis ground under load, producing a 150 mV potential difference between the two points (BestCarAudio.com, 2024). That 150 mV is what drives the loop current through the RCA shield. The cause behind those numbers is almost always one of four things, and they show up in roughly this order of frequency in the shop.
First, the head unit and the amp are grounded to chassis points that are electrically distant from each other. The head unit grounds to a dash bracket. The amp grounds to a trunk floor bolt. The body steel between them has resistance, the alternator pumps current through it, and the two ground points end up at different potentials.
Second, RCA cables routed alongside the power wire pick up noise through capacitive and inductive coupling. This isn't strictly a ground loop, but it shows up the same way and the fix overlaps. Crutchfield's installation guide says to route RCA cables down the opposite side of the vehicle from the power cable and to cross at 90 degrees if they must intersect (Crutchfield, 2024). That separation breaks the coupling that was adding the noise.
Third, factory wiring-harness adapters and cheap aftermarket pigtails introduce shared ground paths inside the harness itself. The audio ground inside a factory harness is not a clean reference. It picks up noise from every accessory on the same circuit. Grounding an aftermarket head unit to a factory harness ground wire instead of running a fresh ground wire to bare sheet metal is one of the most common quiet failures we see.
Fourth, the RCA cable itself has a damaged or undersized shield. Bench measurements of common RCA cables found shield DC resistance ranging from about 0.3 ohm on a quality KnuKonceptz Krystal interconnect up to 1.3 ohm on cheap mass-market cable (DIYMobileAudio installer measurements, 2023). A shield with high resistance is a worse return path, which can make existing potential differences more audible. It can also mean a single broken shield strand is doing most of the work, ready to fail entirely.
BestCarAudio.com's 2024 engine noise analysis documented a real-world voltage measurement showing 50 mV drop at the radio ground and 200 mV at the amplifier ground, producing a 150 mV chassis potential difference between the two components. That difference drives current through the RCA shield and produces audible noise tracking engine RPM.
Factory amplified systems and integration interfaces
Factory amplified vehicles add another wrinkle. When the OEM amp lives under a seat or in a fender well and you're tapping speaker-level signal off it through a line-output converter, the LOC's ground reference becomes part of the loop path. A cheap LOC grounded to a different chassis point than the aftermarket amp creates a loop the moment you connect them. We carry the Wavtech onyXmini for this exact reason. Its differential input rejects ground potential differences that a single-ended LOC would pass straight through to the amp. If you're integrating with a factory amplified system, spec a quality differential-input LOC and ground it at the same point as the aftermarket amp it feeds.
How Do You Fix a Ground Loop the Right Way?
Acceptable ground voltage drop is under 50 mV per 100 W of amplifier power, with ANSI/CTA-2031 specifying 0.25 V max drop on the power wire under load (BestCarAudio.com, 2023). The fix for a ground loop is the work that gets every chassis ground reading under those thresholds and keeps the audio signal cabling away from the power cable. There's no shortcut here, but the work is straightforward.
Bond the head unit and amp grounds to the same reference point
The cleanest fix is to ground every audio component to the same chassis location, ideally a single bare-metal stud near the battery negative post. On most vehicles this means running a dedicated ground wire from the head unit chassis straight to the amp's ground point or to a shared ground distribution block, instead of using whatever screw was nearby behind the dash. Eliminate the body steel from the return path and the potential difference goes with it.
Run a star ground topology in multi-amp systems
When you have two or more amps plus a DSP, daisy-chaining grounds amp-to-amp is asking for trouble. Each amp's current draw modulates the next amp's reference voltage. A star topology gives every amplifier and the DSP its own ground wire back to a single shared distribution point, with the distribution point bonded to bare metal or directly to battery negative. The car audio system design fundamentals guide covers the multi-amp electrical layout in more depth.
Reroute RCA cables on the opposite side of the cabin from power
Crutchfield's rule is opposite-side routing with 90-degree crossings if cables must intersect (Crutchfield, 2024). On most vehicles that means power down one rocker panel and RCA down the other. If you can only route on one side, gain at least 6 inches of separation by routing power along the floor pan and RCA up under the headliner. Parallel runs at the same height invite the noise back in.
Address the Big 3 if the chassis path is suspect
On modern vehicles with significant aluminum or adhesive-bonded body construction, the chassis itself isn't always a reliable ground reference. A Big 3 upgrade replaces the three undersized factory cables (alternator-to-battery positive, battery-to-chassis, engine-to-chassis) with properly gauged wire and shores up the entire vehicle's ground integrity. A clean Big 3 won't fix a routing or shield problem on its own, but it eliminates the chassis path as a possible source so you can isolate the actual cause.
On a recent shop install, a customer brought in a 2021 Ford F-150 with persistent alternator whine that three previous shops had failed to fix. Two had installed ground loop isolators. The actual problem: the head unit ground was tied into the factory harness's audio ground wire, which connected internally to a body grounding stud 11 feet away through the harness loom. Pulling the head unit ground off the harness and running a fresh 12 AWG to the same stud the amp grounded to dropped the chassis potential difference from 380 mV to 4 mV. The whine stopped completely. Total fix time, including pulling the dash kit: about 90 minutes.
When Is a Ground Loop Isolator Actually Acceptable?
Bench testing of consumer transformer-type ground loop isolators measured 6.27 to 6.88 percent signal loss, total harmonic distortion rising from 0.00227 percent to 0.125 percent at 1 kHz, more than 1 percent THD below 70 Hz, and the −3 dB low frequency point shifting from 2.8 Hz up to 46 Hz (BestCarAudio.com, 2024). Those are real, measurable costs, and they argue strongly against using an isolator until the chassis ground path has been thoroughly diagnosed and ruled unfixable.
An isolator is a band-aid. It works by breaking the DC continuity of the RCA shield, usually with a small audio transformer. The transformer adds insertion loss, distortion, and a high-pass roll-off that eats your subwoofer extension. A 46 Hz low corner means you're losing meaningful output across the entire bottom octave of your subwoofer's range. If you bought a sub that hits 25 Hz cleanly, an isolator with that roll-off throws away half its useful bandwidth.
That said, isolators have a place. They're acceptable when the chassis ground path is genuinely unfixable, which on modern vehicles isn't as rare as it used to be. Specific cases:
- Factory amplified systems with no clean signal access. When the OEM amp output is the only available source, the factory chassis ground path is what it is. A high-quality differential-input LOC like the Wavtech onyXmini handles this without an inline isolator.
- Carbon fiber, fiberglass, or composite-bodied vehicles. Without a continuous steel chassis, every ground point is essentially floating. A quality transformer isolator is the practical solution.
- Vehicles with permanent CAN-bus integration interfaces. Some integration modules don't expose a usable ground reference. If you've ruled out every other path, an isolator may be the only option.
If you're going to use one, spec a transformer-coupled unit, not a capacitor-coupled one. Transformer isolators give measured low-frequency performance that, while compromised, is at least known. Capacitor-coupled isolators behave as a poorly defined high-pass filter into low-impedance loads and the bass loss is unpredictable. For the same reason, mount the isolator as close to the amp as the cable run allows. The shorter the unbalanced run after the isolator, the less new noise the system can pick up.
Most car audio shops sell ground loop isolators because they're easy money on a frustrated customer. We don't keep a stocking inventory of them. If your install needs an isolator, something earlier in the signal chain is broken and an isolator is just hiding the symptom. The customers who came in with isolators already installed almost always had the noise come back within a year as the underlying ground problem evolved. Fix the ground, and the isolator becomes a $30 part you didn't need.
Frequently Asked Questions
Does a ground loop isolator actually fix the noise?
Can a bad alternator cause what sounds like a ground loop?
Will twisted-pair RCA cables eliminate a ground loop?
Why does the noise only show up at high volume?
Does an aftermarket DSP help with ground loop noise?
How do I test for a damaged RCA shield?
Fix the Ground, Not the Symptom
Ground loops are one of the most diagnosed-by-feel and least diagnosed-by-measurement problems in car audio. The fix is rarely a new component. It's almost always running a fresh ground wire from the head unit to the same chassis point as the amp, separating signal from power cable routing, and verifying the work with a multimeter before closing the dash. Twenty minutes with a meter beats two months of swapping interconnects.
For the larger context of how grounding fits into the full electrical and signal chain, the complete car audio amplifier guide covers power, signal, and integration topology end to end. If you're working through a stubborn install or a noise that none of the above resolved, contact us at the shop. We measure these on the bench and on the vehicle every week, and the answer is almost always something specific to the install rather than the gear.
