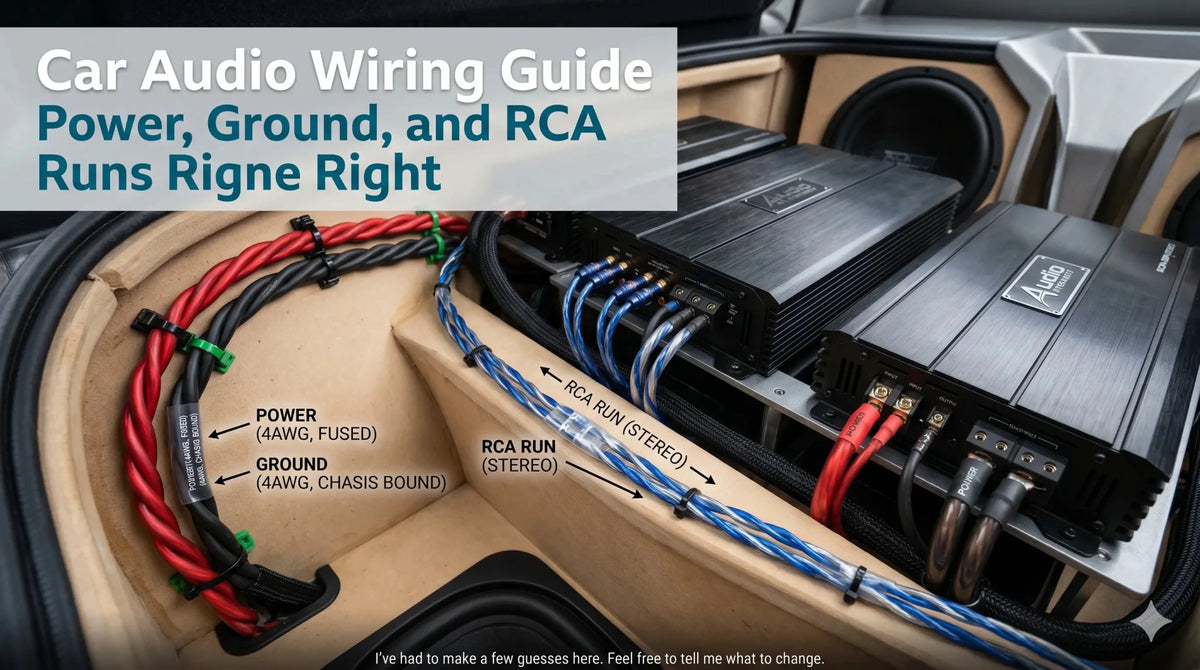

Power, ground, and RCA are the three runs that decide whether an amplifier puts out clean output or hum, voltage sag, and intermittent shutoffs. They share the same routing path through the cabin and they interact electrically, so they get planned as one job. This guide covers the order we run them in our shop, the rules that prevent noise, and the wiring mistakes we see most often on cars that come in for diagnostic work.
- Power wire size matches sustained current draw, not peak. Under 600W needs 8 AWG copper, 1,200W needs 4 AWG, and 3,000W needs 1/0 AWG. Copper-clad aluminum (CCA) carries roughly 62% of the current of pure copper at the same gauge, so it has to be sized one to two gauges larger. (Crutchfield)
- The inline fuse on the power cable belongs within 18 inches of the battery positive terminal. It protects the wire, not the amp.
- Ground wire matches power wire gauge and stays under 18 inches when possible. Bare metal contact, paint scraped, star washer plus lock washer, factory bolt or M6 self-tap minimum.
- RCAs run on the opposite side of the vehicle from the power cable. Cross at 90 degrees if they must intersect. Distance and angle reject alternator whine far better than a ground loop isolator does.
- A ground loop isolator is treating a symptom. The cause is almost always a high-resistance amp ground or RCAs run alongside power.
Why Power, Ground, and RCA Get Planned Together
The three runs share one physical path through the cabin and one electrical relationship with each other. Pull a sill plate or kick panel once, you should pull every wire that needs to live under it. That means deciding the route for the power cable, the ground point at the back of the vehicle, and the RCA path before any cable is cut. Skipping that step is how installs end up with the power cable taped on top of the RCAs because there was no time left to redo it.
Electrically, the three cables interact. A power cable carries pulsing DC current that radiates a magnetic field. A poorly routed RCA next to that cable picks up the alternator pulse and feeds it into the amp as audible whine. A high-resistance ground forces the speaker return current to find a path back to the battery through the RCA shields, which is the actual mechanism behind most ground loop noise on car audio installs. (BestCarAudio.com)
The order we run them in is fixed. Plan the full route first. Run power from the battery to the amp location, including the firewall pass-through and inline fuse. Set the ground point at the amp end. Pull RCAs on the opposite side from power. Add the remote turn-on lead in the same loom as the RCAs. Test before any panel goes back in.
For the broader system context this wiring fits into, see our complete car audio amplifier guide and our system design fundamentals piece, which covers how the four functional blocks (source, processing, amplification, transducers) fit together before any cable is pulled.
How Do You Run a Power Cable from Battery to Amp?
The power cable is the first run because every other cable can be routed around it, but it cannot be routed around them. Standard sizing covers most aftermarket installs. Under 600 watts of amplifier output uses 8 AWG OFC copper, 1,200 watts moves up to 4 AWG, and 3,000 watts requires 1/0 AWG. CCA wire (copper-clad aluminum) needs to go up one or two gauges to carry the same current safely, because aluminum conducts roughly 62% as well as copper at the same cross-section. We have a full breakdown in our power and ground wire sizing guide.
- Connect at the battery positive. Use a ring lug crimped and heat-shrunk onto the cable, sized to fit the battery terminal bolt. A dab of dielectric grease on the lug surface prevents corrosion. Never bolt aluminum (CCA) directly to a lead post, since galvanic corrosion will eat the connection in a year.
- Place the inline fuse within 18 inches of the battery. The fuse protects the wire, not the amp. If a chafe or short happens between the battery and the fuse, the wire arcs to ground until the battery dies or the cable melts. Eighteen inches is the convention car audio retailers use; a closer mount is better when the engine bay allows it. (Crutchfield)
- Mount the fuse holder securely, oriented so heat from the engine doesn't bake the housing. ANL fuses for high-current installs (4 AWG and larger), MAXI or MIDI for 8 AWG. Match fuse value to wire ampacity, not amp draw, so a single 4 AWG run gets a 100 to 150 A fuse depending on insulation rating.
- Run to the firewall pass-through. Use an existing factory grommet when one is available; that's usually a rubber grommet on the driver-side firewall carrying a wiring harness. Slit the grommet, slide the power cable through, and seal with a dab of silicone after pulling. If no grommet exists, drill a clean hole and install a new rubber grommet. Cable contacting bare sheet metal will chafe through over time and short to chassis.
- Route along the sill plate or under the carpet, away from pedals and seat tracks. Bend radius matters: a 1/0 AWG cable does not turn a 90-degree corner gracefully. Plan a smooth path and zip-tie to the existing harness every 12 to 18 inches.
- Leave a service loop at the amp end. Six inches of slack lets you pull the amp out for service or troubleshooting without cutting the cable. Terminate with a ring lug or set screw connector matching the amp's positive terminal.
The fuse exists to protect the cable, not the amp. Mounting it inside the cabin near the amp leaves the entire run from battery to firewall unprotected, which is the segment most likely to short under impact or rodent damage. The fuse goes within 18 inches of the battery, every time.
Where Does the Amp Ground Connect?
Amp ground is the most failure-prone part of a car audio install because the unibody chassis is not a perfect conductor. A bad ground point can drop several volts across itself at full output, starving the amp and causing protection-mode shutoffs, even when the power cable and connections are flawless. Ground gauge matches power gauge, length stays under 18 inches when possible, and the contact point gets prepped to bare metal. We cover the full procedure in our amp grounding guide.
The short version of the procedure: locate a structural metal point within 18 inches of the amp negative terminal. Sand or scrape the paint and any anti-corrosion coating down to bright, bare steel in a circle larger than the ring lug. Drill or use an existing factory bolt at M6 (1/4 inch) or larger. Stack the ring lug with a star washer between the lug and the chassis (the star washer bites through any residual coating and into the metal) and a lock washer under the bolt head. Torque snug, then check the next day after thermal cycling.
Voltage drop is the test that tells you whether the ground works. With the engine running and the amp at high volume, a multimeter probe on the amp negative terminal and the other on the battery negative post should read under 0.1 volt. Anything above 0.3 volts is wasting amp output as heat in the ground path and is the most common cause of dim-light voltage sag at bass hits.
The ground problem we see most often on cars that come in for noise diagnostics is the seat-belt-bolt ground. Factory seat belt bolts are torqued to high-strength specs and look like solid mounting points, but the bolt threads into a captive nut that sits on top of painted sheet metal. Current has to pass through the paint to reach the chassis, and the resulting resistance drops voltage and induces noise. Pick a structural body bolt with bare-metal prep instead.
If your amp pulls more than 1,500W RMS, the ground path back through the body to the battery negative becomes the bottleneck. That's where the Big 3 upgrade matters: you upgrade the battery-to-chassis ground, the chassis-to-engine block ground, and the alternator-to-battery positive cable, all to the same gauge as your amp power cable. Without the Big 3, even a perfect amp ground can't get current back to the battery fast enough during transients.
How Do You Run RCA Cables Without Picking Up Noise?
RCAs carry the line-level signal from the head unit (or line output converter) to the amp inputs. They run at roughly 2 to 5 volts peak, which is small enough that any induced voltage from the power cable's magnetic field shows up as audible hum or whine through the speakers. The fix is geometric: distance, angle, and shielding.
Run the RCAs on the opposite side of the cabin from the power cable. If your power cable runs along the driver-side sill, the RCAs run along the passenger-side sill, and vice versa. Eighteen inches of separation on parallel runs is the working rule, and it lines up with how most factory wiring harnesses are already split between the two sides. If a power cable and an RCA must cross, cross them at 90 degrees, never parallel for any distance.
Cable construction matters. Twisted-pair shielded RCAs reject common-mode noise far better than coaxial-style RCAs, because any induced voltage shows up equally on both conductors and cancels at the amp input. Cheap RCAs with foil-only shielding pick up engine noise on long runs; braided or twisted-pair construction is worth the upgrade on any run over six feet. (Crutchfield)
- Pick the opposite-side path. Power on driver side, RCAs on passenger side. Set up the route end-to-end before pulling a single inch.
- Use the shortest length that allows a six-inch service loop at each end. Excess cable coiled behind the head unit is fine; coiled behind the amp picks up noise from the amp's own switching power supply.
- Zip-tie to existing harnesses, not to the power cable. Factory looms run on the same side you're using and provide a clean path with mounting points already in place.
- Cross power at 90 degrees if you have to cross. A perpendicular crossing induces a small fraction of the noise that a parallel run does, because the cable only sees the field for the width of the crossing instead of along its full length.
- Keep RCA connectors away from amp heat sinks and power cable terminations. Plug them into the amp inputs with the cable exiting toward the side, not toward the power input.
When a car comes in with engine whine and the install looks visually clean, the order of checks is: 1) measure ground voltage drop at full volume, 2) check RCA routing for parallel power runs, 3) verify the head unit chassis is grounded to the same point as the amp (not a separate dash bolt), 4) look for a worn alternator or failing diode trio. The first two account for roughly 80% of the cars we see, and neither requires a ground loop isolator to fix.
When Do You Add the Remote Turn-On Wire?

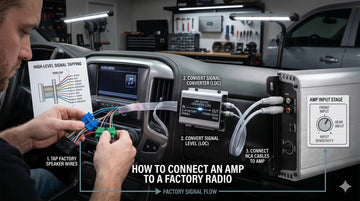

The remote turn-on wire is a small 12V trigger that tells the amp to switch on with the radio. On an aftermarket head unit it's the blue wire with a white stripe. On a factory radio install, it's a switched 12V tap from the fuse panel or a signal-sense input on the amp itself. Either way, it runs in the same loom as the RCAs, on the opposite side of the cabin from the power cable.
It's an 18-gauge wire because the trigger circuit only carries milliamps, not speaker current. Running it with the RCAs is a routing convenience: same path, same zip-tie points, same opposite-side rule. The full procedure for aftermarket head units, factory radios, and multi-amp setups is in our remote turn-on wiring guide. For factory radio signal extraction (line output converter selection, where to tap, branded factory amp traps), see our factory radio connection guide.
Common Wiring Mistakes That Cause Noise and Failure
The pattern of failures we see at the shop is consistent enough that we keep a mental checklist. These are the six wiring mistakes that account for most diagnostic visits, in rough order of frequency.
| Mistake | What it causes | Fix |
|---|---|---|
| Power and RCA in the same loom | Alternator whine, hiss that rises with engine RPM | Re-route RCAs to opposite side of cabin |
| Firewall grommet missing or undersized | Cable chafes on bare metal, eventually shorts | Install rubber grommet sized to cable diameter |
| Fuse mounted near amp instead of near battery | Cable run unprotected from battery to firewall | Move fuse holder within 18 in of battery |
| Ground point not prepped to bare metal | High resistance, voltage sag, protection shutoffs | Sand to bright steel, star washer, re-torque |
| Ground loop isolator added before fixing the cause | Noise stays, signal degrades, wastes diagnosis time | Remove isolator, fix ground and RCA routing |
| CCA wire used at copper-spec gauge | Voltage drop, hot connections, melted insulation | Upsize CCA by one to two AWG, or replace with OFC |
Of the six, the first two cover most of the cars that come in. The third one only shows up after a fault, but when it does, it usually means a melted dashboard or a vehicle fire, which is why the fuse-near-battery rule is non-negotiable.
How Do You Test the Install Before Reassembly?
Before any panels go back, run through a four-step bench test. Skipping this is how shops end up pulling sill plates twice. The full sequence takes about five minutes per car and catches the issues that turn into call-back service jobs.
- Power-on sequence check. Key off, key on with radio off, key on with radio on, then play music. The amp should be silent in the first three states and audibly producing output only in the fourth. Any clicks, pops, or audible turn-on transients point to a remote wire problem (constant 12V instead of switched) or a high-pass crossover set wrong.
- Voltage measurement at the amp positive terminal. Engine at idle should read 13.8 to 14.4 volts. At high-volume music, the reading shouldn't drop below 12.5 volts on a healthy electrical system. A drop below 12 volts points to undersized power cable, weak battery, or insufficient alternator output for the amp's draw.
- Ground voltage drop test. Multimeter across the amp negative terminal and battery negative post, with the amp running at moderate volume. Reading should be under 0.1 volt. Anything higher means the ground point is wasting amp output as heat.
- RCA shield continuity. Ohmmeter from the RCA shell at the head unit end to the RCA shell at the amp end should read close to zero. A break or partial break in the shield is invisible visually but creates an antenna for interference.
After 20 minutes of normal-volume operation, run a hand along the power cable at the firewall pass-through and at the amp end. The cable should be ambient temperature or slightly warm. Anything hot enough to be uncomfortable means the cable is undersized for the actual current draw, and the system is going to fault on a long highway pull or fail outright on a hot summer day.
The Order It Goes Together
Plan the route first, run power second, set the ground third, pull RCAs and the remote wire on the opposite side fourth, and test before reassembly fifth. The job goes faster when the order is fixed, and it almost never has to be redone. The cars that come back for noise diagnostics are almost always cars where one of the five steps got skipped or done out of order.
If you're building from scratch, our amplifier guide covers component selection and the system design fundamentals piece covers signal flow planning. Once components are picked, this wiring guide is the install procedure. If you have questions about a specific vehicle or hit a problem the diagnostic order doesn't solve, contact us with the model year and what you're seeing on the meter, and we'll work through it.
