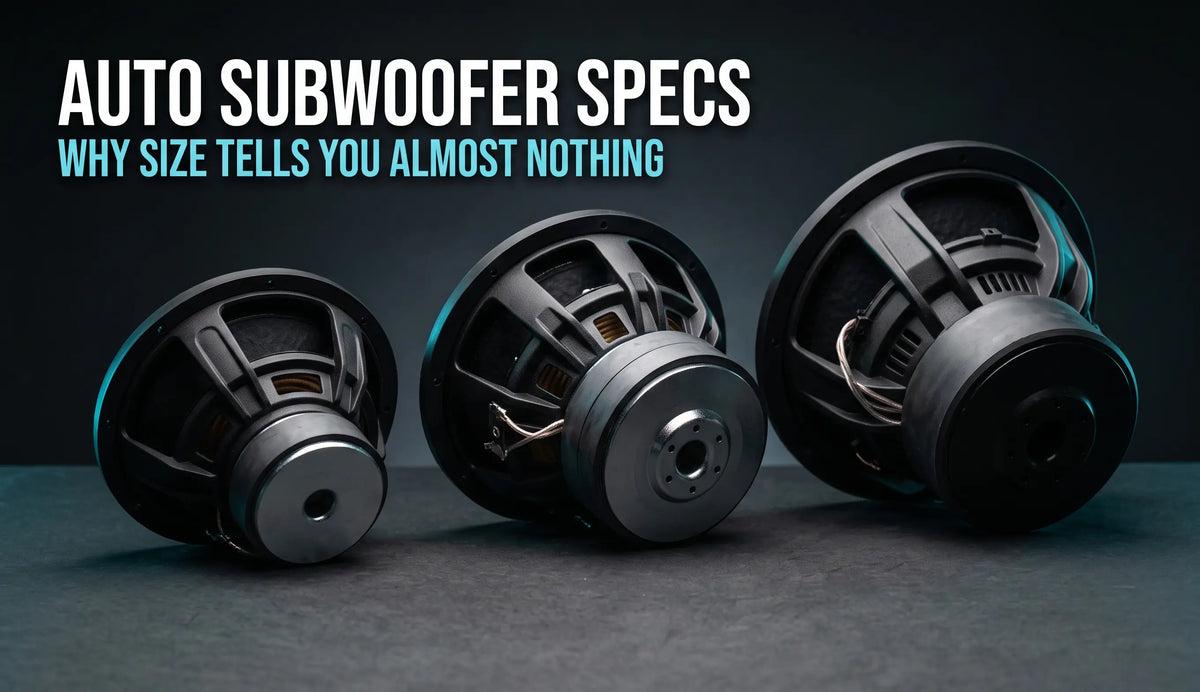

Auto Subwoofer Specs: Why Size Tells You Almost Nothing

A subwoofer's diameter is a mounting dimension, not a performance specification. We stock three 10-inch Image Dynamics subwoofers whose published cone areas are within 4.7% of each other, yet one displaces 42% more air than another. This is how to read the numbers that actually predict what a driver will do in your vehicle.

We are using one size on purpose. Holding diameter constant is the only way to show how little diameter tells you. Every figure below comes from the Image Dynamics manufacturer spec sheets rather than from retail listings, which is a distinction that turns out to matter. Once the spec sheet makes sense, our size-specific shortlists are more useful: we keep separate write-ups on 12-inch subwoofers, 8-inch subwoofers, and shallow-mount drivers by size.

Does subwoofer size actually determine output?

No. Cone area sets a ceiling, and cone area barely moves between drivers of the same nominal size. The ID10 V.4 has a published Sd of 363 cm². The IDQ10 V.4 and IDMAX10 V.4 both sit at 380.13 cm². That is a 4.7% spread across the entire lineup. Everything that separates these three happens below that ceiling.

T/S parameters, Sd, Xmax, depth, cutout and sensitivity from Image Dynamics published specifications, dual 2-ohm variants. Vd and EBP calculated from those figures.

The IDMAX10 weighs 27.8 pounds, heavier than most 12-inch subwoofers, and nearly all of that weight is motor. That is the honest summary of what separates these three: not the hole they drop into, but how much magnetic force is available to control the cone and how far that cone is allowed to travel.

What is Xmax, and why does it matter more than diameter?

Xmax is how far the cone travels in one direction while the voice coil stays in the linear part of the magnetic gap. Low-frequency output is a function of displaced air, and displaced air is cone area multiplied by excursion. That product is called Vd, and it is the single most useful number you can calculate from a spec sheet.

Run it on these three. The ID10 V.4 gives 363 cm² times 14mm, which works out to 31.0 cubic inches. The IDQ10 V.4 gives 33.6 cubic inches. The IDMAX10 V.4, with the same cone area as the IDQ but 19mm of travel, gives 44.1 cubic inches. The flagship moves 42% more air than the entry driver while its cone is only 4.7% larger. Almost the entire advantage is excursion.

That excursion has to physically happen somewhere, which is why the IDMAX10 needs 7.68 inches of mounting depth against the ID10's 5.12. Image Dynamics gets there with a 55mm voice coil winding height versus 38.3mm on the IDQ Series, keeping more conductor in the gap across the full stroke so motor force stays consistent from rest to full throw.

Check which convention the number uses

Some listings publish peak-to-peak excursion, which counts total stroke in both directions and is double the one-way figure. A driver advertised at 30mm peak-to-peak has 15mm one-way, and comparing it against a competitor's 15mm one-way rating would be comparing identical drivers.

This is not hypothetical. Image Dynamics publishes 19mm for the IDMAX10 V.4 on its own spec sheet, while several large retail listings for the same driver show 39mm. Same subwoofer, two numbers that differ by a factor of two. Go to the manufacturer before you trust an excursion figure, and if a spec sheet does not state which convention it uses, treat the number as unverified.

Why does the cheaper ID10 have a lower Fs than the pricier IDQ10?

Because price buys motor control and serviceability, not extension. The ID10 V.4 costs $139.99 and resonates at 32 Hz. The IDQ10 V.4 costs $238.99 and resonates at 42 Hz. That is 10 Hz in the wrong direction if low-end reach were what you were paying for.

The extra hundred dollars buys a 180 ounce motor in place of a 127 ounce one, aluminum flat-wound voice coil wire in place of copper, and a 16-screw field-replaceable cone assembly. Blow the IDQ and you unbolt the cone assembly, drop in a replacement with alignment shims, and the motor stays in service. No adhesive, no curing time. The ID10 has a fixed cone assembly, so a failure means a new driver.

Look at Qms for the mechanical side of this. The ID10 sits at 5.742, the IDQ10 at 4.179. Lower mechanical Q means the suspension itself is doing more damping, which is the stiffer suspension that produces the higher Fs and lets the IDQ10 work in a smaller sealed box. That is the trade the spec sheet is describing, and no single row of the table captures it.

If you want to see how far apart price tiers actually land in practice, this walkthrough of four builds at four budgets is a useful sanity check on what the extra money buys.

Mounting depth and enclosure volume decide more builds than power does

More projects die on a tape measure than on an amplifier. Across these three drivers the published mounting depth runs 5.12, 5.81, and 7.68 inches. The IDMAX10 needs 50% more depth than the ID10 for a nearly identical hole, and behind a rear seat or under a truck bench that difference is the whole decision.

Volume follows the same pattern. Image Dynamics publishes sealed alignments down to 0.40 cubic feet for the ID10 V.4 and down to 0.60 for the IDQ10 V.4. The IDMAX10's ported Audiophile alignment wants 2.0 cubic feet tuned to 30 Hz and returns an F3 of 26 Hz. That is a competition-grade number, and it costs five times the airspace of a small sealed ID10 box.

Subtract the driver itself while you are at it. Displacement runs 0.0832, 0.10, and 0.11 cubic feet respectively, and that volume comes out of your net internal number rather than off the top of it.

We cut both of these on our ShopSabre routers from 3/4 inch Langboard Elite MDF at 0.005 inch tolerance. Langboard Elite runs 48.5 pounds per cubic foot with a 200 psi internal bond, and that internal bond number is the one that matters for a box under pressure. Performance Series enclosures use V-groove and dado joinery, ship with a Proline X ABS and carbon fiber composite terminal cup, stainless hardware, copper ring terminals, and 12-gauge OFC pre-wired. Sealed variants arrive with polyfill installed. Two-year warranty.

Mark at CarAudioFabrication covers the same fitment-first logic from the install side, including the measurement mistakes that send people back to the drawing board.

Sealed or ported: how do you decide?

Start with efficiency bandwidth product. EBP equals Fs divided by Qes. Under 50 points toward a sealed box, 50 to 100 means the driver will work either way, and above 100 favors ported. Both inputs are on any legitimate spec sheet.

Here is where it gets interesting. The ID10 V.4 scores 32 divided by 0.759, or 42. The IDQ10 V.4 scores 42 divided by 0.992, which is also 42. Two drivers with a 10 Hz difference in resonant frequency land on the same enclosure recommendation, because the higher Fs is offset by higher electrical damping. The IDMAX10 V.4 scores 27 divided by 1.346, or 20, which is the most strongly sealed-leaning number of the three despite it being the driver with the published ported alignment.

Treat that as a starting point rather than a verdict. EBP is one ratio standing in for a modeled response, and it knows nothing about your vehicle. The IDMAX10 works well ported precisely because 19mm of Xmax and a 27 Hz Fs give it room the ratio does not account for, and because its published 2.0 cubic foot alignment reaches an F3 of 26 Hz.

The character difference is real either way. Crutchfield puts it plainly: a sealed box is best for music that demands tight, accurate bass, with flat response and excellent power handling, though a sealed enclosure tends to require more power than a ported box (Crutchfield). BestCarAudio.com makes the counterpoint on output, noting that a vented enclosure with a single driver will still outperform a sealed enclosure designed for two woofers, especially from 30 to 50 hertz (BestCarAudio.com). Ported buys output and sealed buys control, and both cost you something.

In practice the argument usually ends at available airspace before EBP gets a vote. If you can only fit 0.6 cubic feet, you are building sealed regardless of what the ratio suggests. Our enclosure guide works through the alignment math in detail.

Which coil should you buy, D2 or D4?

Buy the coil that lands on the impedance your amplifier is rated for. A D2 has two 2-ohm coils and wires to 1 ohm in parallel or 4 ohms in series. A D4 has two 4-ohm coils and wires to 2 ohms in parallel or 8 ohms in series. Two 2-ohm drivers in parallel gives 1 ohm, two 4-ohm drivers in parallel gives 2 ohms, and two 2-ohm drivers in series gives 4 ohms.

Crutchfield frames the choice well: parallel wiring provides for maximum amplifier output, while series wiring lets you configure multiple woofers to one amplifier at an acceptable impedance (Crutchfield). Both statements are true, and which one applies depends entirely on how many drivers you are running and what your amp tolerates.

There is a real trap on the IDMAX10 D2. Its DC resistance measures 1.80 ohms per coil, which lands near 0.9 ohms wired in parallel. Plenty of monoblocks advertised as 1-ohm stable will not tolerate that. Wire that driver in series for 4 ohms, or buy the D4 and run a comfortable 2 ohms. Check your amplifier's minimum rated impedance before you pick the coil, not after the box is built.

Coil choice also changes the box. The dual 4-ohm version of each of these models carries a different Vas and a higher Qts than the dual 2-ohm version, which produces a higher Qtc in the same sealed volume. Model the coil you are actually buying.

How to read any subwoofer spec sheet in five numbers

Once you know what to look at, most listings sort themselves in under a minute. In order of how often each one ends the conversation:

1. Mounting depth. Measure rear clearance first. If the driver does not fit, nothing else on the sheet matters.
2. Published enclosure volume. Compare the manufacturer's recommended net volume against the space you have, then subtract driver displacement.
3. Vd, which is Sd times Xmax. This is your air-displacement budget and the best single predictor of low-frequency output. Confirm the excursion convention before you calculate.
4. Fs and Qes together. Divide them for EBP. Neither number means much alone, and Fs in particular does not correlate with price.
5. Coil impedance. Match it to your amplifier's rated minimum load, checking DC resistance where it is published.

Motor weight, cone material, and voice coil wire tell you about durability and control under sustained power. They are worth reading, but they rarely eliminate a candidate on their own. The five above do. Sensitivity, in this particular comparison, tells you nothing at all: all three drivers are rated 85 dB.
