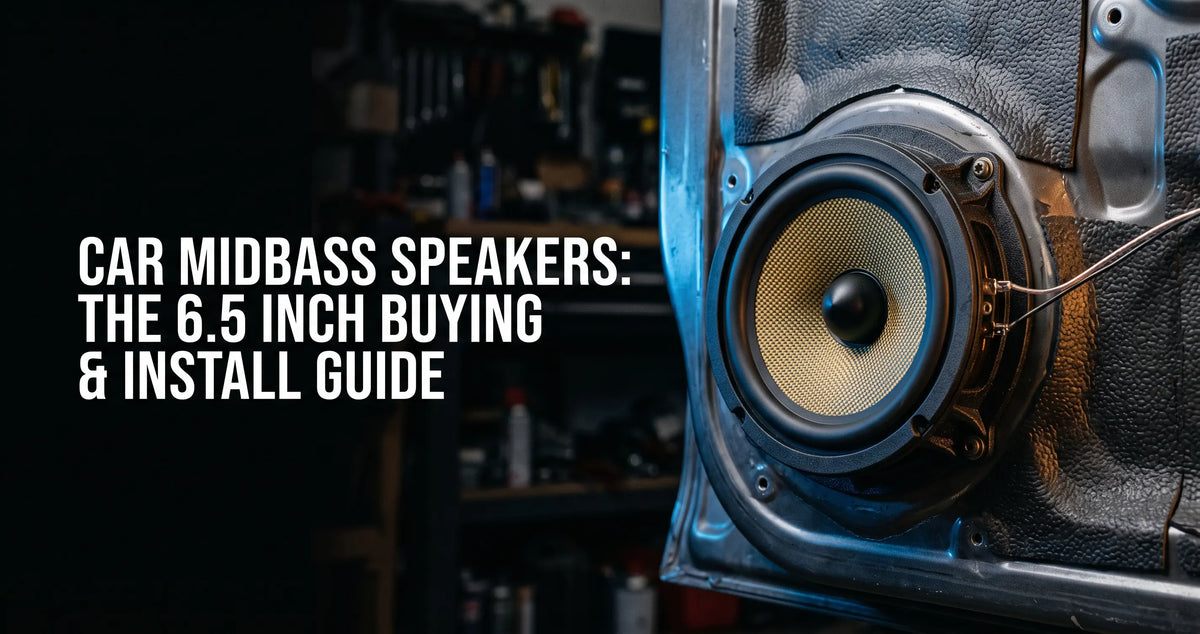

Car Midbass Speakers: The 6.5 Inch Buying and Install Guide

Midbass is the 70 Hz to 300 Hz band that separates a system you notice from a system you feel. It sits between what your subwoofer covers and what your midrange handles, and in a car it is the hardest band to get right because the door you mount it in is working against you. This guide covers what to look for on a midbass spec sheet, where to set the crossover, what mounting depth you actually need, and which drivers we stock for the job.

We are going to stay in the car for this whole article. Midbass behaves differently in a vehicle than it does anywhere else, because you are mounting a driver in a thin steel box with a hole in it, six inches from your leg, in a cabin small enough that the wavelengths matter. If you want the wider system context first, start with our car audio system design fundamentals guide. For the tuning side, the complete DSP tuning guide covers crossovers and time alignment in depth. If you are shopping full component sets rather than dedicated midbass drivers, our 6.5 inch car speaker roundup is the better starting point, and do you need an amplifier for car speakers answers the power question directly.

What Is a Midbass Speaker in a Car?

A midbass driver is a speaker built specifically to reproduce roughly 70 Hz to 300 Hz, and in a car that almost always means a 6.5 inch or 6x9 driver mounted in the door. It is not a subwoofer and it is not a midrange. It is the middle link, and it is the one most systems get wrong.

Here is why that band matters more than its width suggests. The fundamental of a kick drum sits around 60 to 80 Hz, but the punch you feel in your chest is the 100 to 200 Hz region right on top of it. A bass guitar's open E is 41 Hz, but almost everything that lets you tell one bass player from another lives above it. A male voice has its chest weight down at 100 to 150 Hz. Lose that band and the music goes thin, no matter how big your subwoofer is.

That is the trap most people fall into. They add a sub, they get plenty of low bass, and the system still sounds hollow. The sub is doing its job. The midbass is not there.

Why Does a Factory Car Door Destroy Midbass?

Because a factory door is an open baffle with a flexible wall, and both of those are fatal to midbass. The back wave off the cone wraps around the edge of the door panel, arrives at the front out of phase, and cancels the output you paid for. Meanwhile the sheet metal itself flexes, turning cone motion into panel motion instead of sound.

Run the numbers and it stops being abstract. Sound travels about 13.5 inches per millisecond. A 300 Hz tone has a wavelength near 45 inches, and an 80 Hz tone stretches to roughly 14 feet. The path from the front of your door speaker, around the edge of the door card, to the back of the cone is a real fraction of that 45 inch figure and a smaller fraction of the 14 foot one. That is exactly why cancellation gets worse as frequency drops, and why midbass suffers more than midrange does.

So what fixes it? Two things, in this order. Seal the inner door skin so the back wave cannot get around to the front, and mount the driver to something rigid so the energy goes into air instead of into steel. Deadening the outer skin helps with rattle and road noise, but sealing the inner skin is what actually recovers midbass output.

We have measured this on our own builds more times than I can count, and the result is consistent enough to be boring: the door treatment usually does more for midbass than the driver upgrade does. If you only have budget for one, do the door.

How Do You Read a Midbass Spec Sheet?

Six numbers tell you almost everything, and one of them is usually a lie. Here is what to look at, in order of how much it should change your decision.

Mounting depth and cutout

This is first because it is the only spec that can make a driver physically impossible. Measure your door before you shop, including clearance for the window when it drops. Note that bolt circle diameter is always larger than cutout diameter. On the Karma Allure 6, cutout is 145 mm (5.71 in) and the six-hole bolt circle is 157 mm (6.18 in). If you ever see those reversed on a spec table, the table is wrong.

Fs and Qts

Fs is the driver's free-air resonance, and Qts describes how damped it is. Together they tell you what kind of load the driver wants. The Allure 6 has an Fs of 43 Hz and a Qts of 0.47, which is why Karma specifies a sealed door or infinite-baffle install rather than a ported one. There is a related rule of thumb, EBP, calculated as Fs divided by Qes: under 50 points toward sealed, 50 to 100 is a transition zone, and over 100 points toward ported. Karma does not publish Qes on this sheet, so I am not going to invent one to run the math.

Power handling, and why it is usually a lie

This is the number that misleads people. The Allure 6 factory sheet lists 35 watts nominal and 70 watts peak. Those are bench figures, measured full-range with no crossover, driving the cone to its mechanical limit. Nobody installs a midbass driver that way. Behind the 65 Hz 24 dB-per-octave Linkwitz-Riley high-pass Karma specifies for it, the usable rating is 125 watts RMS. Size your amp off 125, not 35.

The Aspect 6.9 tells the same story with different numbers: 80 watts nominal and 180 watts peak on the raw sheet, 125 watts RMS behind the same 65 Hz filter. If a spec sheet gives you a small number with no crossover context, it is describing a bench test, not your car.

Sensitivity

Sensitivity tells you how loud the driver plays per watt, and it matters most for matching. The Allure 6 measures 87 dB and the Aspect 3 midrange measures 85 dB. Two decibels apart means those two level-match in a three-way with almost no correction, which saves you gain structure headaches later.

Excursion

Excursion is how far the cone can travel, and it sets how much air the driver can move at the bottom of its band. Karma lists 6 mm (0.24 in) of one-way excursion on the Aspect 6.9. Always check whether a figure is one-way or peak-to-peak, because doubling a number makes it look twice as good and manufacturers know that.

Which Karma Midbass Drivers Do We Stock?

We brought in Karma Mobile Audio because the line is engineered around sound quality first and priced where a real front stage is actually reachable. The drivers are designed by speaker engineer Dr. Rishi S. Gurbani, and the material set is consistent across the range: woven Kevlar cones, titanium voice coil formers, cast aluminum baskets, and one-piece butyl surrounds with integrated gaskets. That last detail matters more than it sounds. A butyl surround survives years of heat cycling in a door, where foam turns to dust.

Karma Allure 6: the one to buy if the door will take it

The Allure 6 is the flagship 6.5 inch midbass in the line and the one I point most SQ-minded builds toward. It runs a 25.5 mm titanium voice coil former on a 90 mm motor, which is what lets it hold composure when you actually drive it. Fs of 43 Hz and Qts of 0.47 put it squarely in sealed-door or infinite-baffle territory. High-pass it between 63 and 80 Hz, hand off to your tweeter or midrange around 2.5 kHz, and feed it a clean 100 to 150 watts per channel at 4 ohms. It is sold as a matched pair at $500 and carries a 2-year warranty.

Karma Aspect 6.9: more cone area in a factory hole

If your vehicle came with 6x9 openings, the Aspect 6.9 is the easiest real midbass upgrade available to you. Cone area is what you feel, and a 6x9 has meaningfully more of it than a round 6.5 in the same opening. It is a free-air design, so no enclosure is required, but it still wants a solid deadened baffle. Overall dimensions are 245.5 x 175.5 mm (9.67 x 6.91 in) with roughly a 174 x 126 mm cutout and 85 mm of depth. Confirm depth against your window mechanism before ordering. It is sold as a matched pair at $475.

Karma Aspect 6.1: the whole front stage in one box

The Aspect 6.1 component set is where most people should start. You get a pair of Kevlar midbass drivers, a pair of 1 inch silk dome tweeters, and the matching passive crossover for $300. The crossover brings the tweeter in at 3,000 Hz and sets the level balance for you, so there is no DSP required to get a coherent result. Each channel takes 100 watts RMS with the crossover in place. High-pass the midbass at 80 Hz at 24 dB per octave and let a subwoofer carry everything underneath. At 66.5 mm (2.62 in) it is also the shallowest midbass in the lineup, which makes it the answer for tight doors.

Where Should You Set the Midbass Crossover?

High-pass between 63 and 80 Hz at 12 to 24 dB per octave, and pick the exact point based on your subwoofer, not your midbass. Karma specifies 65 Hz at 24 dB per octave Linkwitz-Riley for both the Allure 6 and the Aspect 6.9, and 80 Hz at 24 dB per octave for the Aspect 6.1 set.

The reason to filter at all is simple. Every millimeter of excursion a midbass driver spends trying to make 40 Hz is excursion it cannot spend on the band you actually want from it. Worse, that long low-frequency travel modulates everything the driver is playing on top of it, which smears the vocal range. Take the low end away and the same driver at the same volume gets louder, cleaner, and more composed. That is not a tradeoff. It is free performance.

On the top end, hand off around 2.5 kHz to a tweeter in a two-way, or around 300 Hz to a dedicated midrange in a three-way. If you are running the Aspect 3 midrange, cross it at 300 Hz at 24 dB per octave and let the tweeter come in at 3,000 to 3,500 Hz. Its 85 dB sensitivity sits within 2 dB of the Allure 6, so the level match is nearly automatic.

One habit worth building: match your high-pass slope to your subwoofer's low-pass slope. Two 24 dB-per-octave Linkwitz-Riley filters at the same frequency sum flat through the handoff. Mismatched slopes leave you with a dip or a bump right where the two drivers meet, and you will spend an afternoon chasing it with EQ instead of fixing it with a crossover setting.

6.5 Inch or 6x9: Which Should You Buy?

Buy for the hole you have. That is genuinely most of the decision. If your doors came with round 6.5 inch openings, a 6.5 inch midbass is a bolt-in and a 6x9 means fabrication. If you have factory 6x9 openings, putting a round 6.5 in that hole throws away cone area for no reason.

When you do have the choice, here is the honest tradeoff. A 6x9 moves more air for a given excursion because the cone is bigger, so it wins on raw midbass output. A 6.5 is easier to keep controlled at the top of its band and generally easier to package, and it needs less depth, 74.5 mm on the Allure 6 against 85 mm on the Aspect 6.9. For a competition-oriented two-way or three-way front stage, I lean 6.5. For a truck with factory 6x9s and a driver who wants the system to hit, the 6x9 is the better answer.

What about running both? It works, but only if you treat the rear 6x9s as fill: high-passed, level-matched well below the front, and time-aligned. Run them at the same level as the front stage and you will pull the soundstage into the back seat. Our DSP tuning guide covers the delay setup for that.

How Much Power Does Midbass Actually Need?

Plan on 100 to 150 watts per channel at 4 ohms for a serious 6.5 inch midbass driver, and make sure it is clean. That is the range Karma specifies for the Allure 6, and it lines up with the 125 watt RMS filtered rating on both the Allure 6 and the Aspect 6.9.

Head unit power will not do this job. A typical factory or aftermarket head unit delivers somewhere in the neighborhood of 15 to 22 watts RMS per channel in real terms, and midbass is the most power-hungry band a door speaker plays. You can absolutely make sound with head unit power. You cannot make midbass with it.

The part people get backwards is what actually kills drivers. It is not wattage. It is distortion. An underpowered amp driven into clipping sends harmonic energy straight into a voice coil that was never rated for it, and that is what burns speakers, especially small midranges. A clean 125 watt amplifier is safer for your drivers than a dirty 75 watt one. Set your gains properly and give yourself headroom.

What Does a Midbass Install Actually Require?

Five things, and the driver is only one of them. Skip the other four and you will not hear what you paid for.

A rigid baffle. Mount the driver to a solid adapter ring, not to thin plastic or bare sheet metal. The ring needs to be stiff enough that it does not flex under the motor's reaction force, and it needs to seal to the door.

A sealed inner skin. This is the single highest-return step. Close off the service holes in the inner door skin so the rear wave cannot wrap around to the front. Sealing beats adding mass here.

Outer skin damping. Constrained layer damper on the outer skin stops the panel from ringing along with the music. It also drops road noise, which raises your effective dynamic range on the highway.

A gasket at the driver. The Karma drivers ship with a one-piece butyl surround and integrated gasket, so the seal to the baffle is handled if you mount them flat and torque them evenly. Do not leave a gap.

Depth clearance for the window. Drop the window fully and check. A driver that clears with the window up and hits with it down is a very expensive noise.

Aiming matters too, though it is more forgiving in the midbass band than up top. Below about 300 Hz you are largely omnidirectional in a cabin this size, so on-axis aim buys you less here than it does for a tweeter. Get the seal and the mounting right first. Worry about aim when you get to the midrange and tweeter.

Two-Way or Three-Way: Does Midbass Change the Answer?

It changes how hard your midbass has to work, which changes how good it can sound. In a two-way, your 6.5 covers everything from the high-pass point up to about 2.5 kHz, which is a wide job for one driver. In a three-way, a dedicated midrange takes over around 300 Hz and the midbass gets to focus on the band it was built for.

Is the extra driver worth it? For most builds where the budget allows, yes, and the reason is not the added band coverage. It is that the midbass stops trying to reproduce vocals while it is moving several millimeters to make 80 Hz. That intermodulation is what makes a hard-working two-way sound congested when you turn it up. Split the job and the congestion goes away.

The practical build path: start with the Aspect 6.1 set as a clean two-way, then add the Aspect 3 midrange later to make it a three-way. Or go straight to the reference build with the Allure 6, the Aspect 3, and the Allure 1 tweeter. Either way you need enough amplifier channels and a DSP to set the crossovers, or the Allure passive crossover if you are staying two-way without processing.

Frequently Asked Questions

Where to Go Next

If you are starting from a factory system, the order that gets you the most for your money is door treatment, then a real midbass driver on real power, then a subwoofer, then processing. Most people do that list backwards and wonder why the expensive parts are not delivering.

Browse the full Karma Mobile Audio lineup or the wider midbass driver collection when you know your cutout and depth. For the low end underneath it, start with choosing the right subwoofer enclosure and our subwoofer collection. Once the hardware is in, the DSP tuning guide is where the crossover points and time alignment get dialed in.

Not sure what will fit your doors? Send us your year, make, and model and we will check the cutout, bolt pattern, and depth against the mounting drawings before you order. Contact us and tell us what you are driving and what you want it to sound like.
