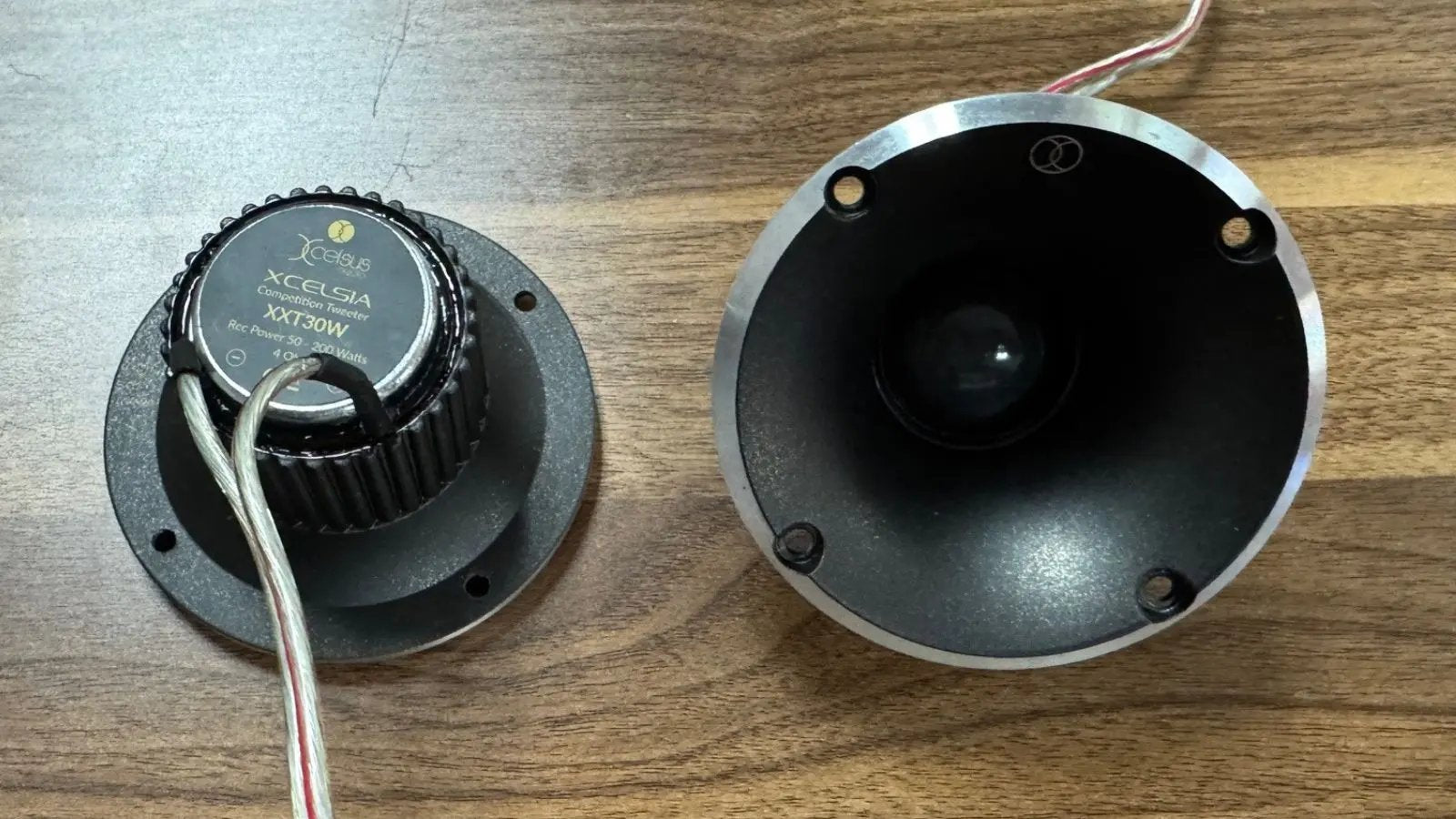

Xcelsus XXT30W – Competition Series 30mm WaveGuide Tweeter (pair)| Previous Demo

Technical Specifications

Waveguide Technology — Why It Matters Beyond Marketing

The difference between a conventional dome tweeter and a waveguide-loaded tweeter isn't subtle, and it's not just about aesthetics or perceived quality—it's about fundamental acoustic behavior that determines system capabilities. Understanding what waveguides actually do explains why Xcelsus developed the XXT30W alongside the XXT30, and why competition systems increasingly favor waveguide designs over bare domes.

Controlled Dispersion Across Frequency: A bare 30mm dome tweeter exhibits narrow dispersion at high frequencies (above 10 kHz) where wavelength is small relative to dome diameter, and wide dispersion at lower frequencies (2-5 kHz) where wavelength is large. This frequency-dependent dispersion creates tonal balance shifts as you move off-axis—the tweeter sounds bright on-axis and progressively duller as you move to the sides. A properly engineered waveguide like the XXT30W's controls dispersion to maintain consistent coverage across its entire operating range (2-23 kHz), creating a soundstage that maintains tonal balance whether you're centered in the listening position or sitting off to one side.

Increased Effective Radiating Area: The waveguide acts as an acoustic transformer, increasing the tweeter's effective radiating area beyond its physical 30mm dome diameter. This increased area provides several advantages: higher output capability (the XXT30W's 98 dB sensitivity is exceptional for a 30mm driver), lower distortion at a given SPL (the larger effective area requires less cone excursion), and extended low-frequency response (the larger radiating area maintains output at frequencies where a bare dome would roll off). Xcelsus states the XXT30W can cross as low as 2 kHz—a frequency where most bare dome tweeters would exhibit severe beaming and distortion.

Impedance-Controlled Loading: The waveguide provides acoustic impedance matching between the high-impedance dome surface and low-impedance air, improving coupling efficiency. This is why the XXT30W achieves 98 dB sensitivity—the dome's energy is more efficiently transferred to the listening environment rather than being reflected back into the motor structure. This efficiency translates to lower amplifier power requirements and higher maximum output before thermal or mechanical limits are reached.

Reduced Reflections and Edge Diffraction: The waveguide's geometry guides sound away from the tweeter mounting surface, reducing baffle edge diffraction that creates frequency response irregularities in bare dome installations. This is particularly important in car audio where tweeters are often mounted in doors, dashes, or A-pillars where mounting surfaces create complex reflection patterns. The waveguide isolates the dome from these surfaces, creating cleaner on-axis and off-axis response.

2 kHz Crossover Capability — Flexibility Conventional Tweeters Can't Match

Xcelsus explicitly states the XXT30W is "perfectly suited for use in a 2-way or 3-way system with a low X-OVER POINT down to 2k," recommending 6 dB or 12 dB slopes when crossing at 2-2.5 kHz. This capability fundamentally changes system design possibilities in ways that aren't obvious until you understand the constraints conventional tweeters impose.

Why Most Tweeters Can't Cross at 2 kHz: Conventional 25-28mm dome tweeters typically require crossover points above 3-4 kHz because: (1) their small dome area can't produce adequate SPL below 3 kHz without excessive excursion and distortion, (2) they begin beaming (narrowing dispersion) at frequencies where wavelength approaches dome diameter, creating off-axis rolloff that makes integration with midranges difficult, and (3) their limited power handling at low frequencies means they reach thermal or mechanical limits at SPL levels that midranges handle comfortably.

What 2 kHz Crossover Enables in 3-Way Systems: When building a 3-way system with 8" midbass, 4" midrange, and tweeter, the ability to cross the tweeter at 2 kHz (rather than 3.5-4 kHz) allows the 4" midrange to operate in its optimal range from 200-250 Hz up to 2 kHz, avoiding the upper midrange region (3-5 kHz) where 4" drivers begin beaming and losing off-axis response. The result is smoother transition between drivers, wider dispersion across the critical 1-5 kHz vocal range, and reduced lobing (frequency-dependent cancellation patterns) that occurs when crossover points fall in regions where both drivers have significant output.

Benefits for 2-Way Systems: In a 2-way system with 8" midrange operating across 40-4,000 Hz (like the XXM875), the ability to cross the XXT30W at 2 kHz creates a two-driver system that covers 40 Hz to 23 kHz with only one crossover point. Contrast this with conventional tweeters requiring 3.5-4 kHz crossover, which forces the 8" driver to maintain linear off-axis response through 4 kHz—a frequency where most 8" drivers are severely beaming. The 2 kHz crossover allows the 8" driver to operate in a range where its dispersion is still reasonable, creating better integration and wider soundstage.

98 dB Sensitivity — Effortless Dynamics with Minimal Power

The XXT30W's 98 dB @ 1W/1m sensitivity is extraordinary for a tweeter—most high-quality dome tweeters measure 88-92 dB, meaning the XXT30W is 6-10 dB more efficient. In practical terms, 98 dB sensitivity means the XXT30W requires one-quarter to one-tenth the amplifier power to achieve the same SPL as typical tweeters. This efficiency advantage matters for several reasons:

Reduced Amplifier Requirements: With 98 dB sensitivity and 50W RMS power handling, the XXT30W can achieve approximately 115 dB maximum SPL at 1 meter—sufficient for competition-level output. More importantly, at typical listening levels (85-95 dB), the XXT30W requires only 0.1-1 watt, operating well within its thermal and mechanical comfort zone. This reduces thermal compression (the tendency for sensitivity to decrease as voice coil temperature rises) and allows the tweeter to maintain composure during sustained high-output passages where less-efficient tweeters would begin compressing or distorting.

Improved Transient Response: Lower required power means lower voice coil temperature under normal operation, which means more consistent motor force (voice coil resistance increases with temperature, reducing current and thus motor force). The XXT30W's efficiency allows it to maintain "lightning-fast" transient response even during sustained high-SPL operation where less-efficient tweeters would be operating at elevated temperatures with degraded performance.

Better Integration with High-Sensitivity Midranges: The XXM425 midrange has 86 dB sensitivity; the XXT30W's 98 dB sensitivity means they can be matched with simple level adjustments in DSP rather than requiring complex padding networks or mismatched amplifier channels. This sensitivity matching simplifies system tuning and ensures both drivers reach their output limits at similar input levels, maintaining tonal balance across the crossover region even during dynamic peaks.

30mm Nano Weave Soft Dome — The XXT30 Core Technology

The XXT30W uses the same 30mm nano weave soft dome diaphragm and high-power neodymium vented motor assembly as the standard XXT30 dome tweeter—the waveguide is an addition, not a replacement. Understanding what this core technology provides explains why Xcelsus chose to develop a waveguide version rather than designing an entirely new tweeter.

Nano Weave Soft Dome Material: The "nano weave" designation refers to textile dome construction where fabric fibers are woven at microscopic scale to create a dome with specific stiffness and damping characteristics. Soft textile domes offer advantages over metal domes (aluminum, titanium) in terms of natural damping—the fiber-to-fiber friction dissipates energy, smoothing out breakup modes that metal domes exhibit as sharp peaks in frequency response. The result is the "smooth delicate sound" that users consistently describe—extended treble response without the harshness or fatigue that metal domes can create, especially at the high SPL levels where competition systems operate.

30mm Diameter for Extended Response: The 30mm dome diameter is larger than typical 25-28mm tweeters, providing increased radiating area that extends low-frequency response and improves power handling. Combined with the waveguide's acoustic loading, the 30mm dome can operate linearly down to 2 kHz—a frequency where smaller domes would be severely stressed. The larger diameter also improves dispersion at mid frequencies (2-5 kHz) before the waveguide takes over to control dispersion at higher frequencies.

High-Power Neodymium Vented Motor: The neodymium magnet structure provides high flux density in a compact package, generating strong motor force (Bl) that maintains control over the dome during transients. The "vented" designation indicates that the voice coil former is vented (open at the back), allowing air to flow through during excursion—this provides cooling (reducing thermal compression) and reduces trapped air compression behind the dome (which would act as a spring, increasing resonant frequency and reducing low-frequency extension). The combination allows the XXT30W to handle 50W RMS despite its compact 30mm size—many tweeters of this diameter are limited to 20-30W RMS.

"Highly Detailed, Open & Wide Soundstage" — What This Actually Means

Xcelsus describes the XXT30W as delivering a "highly detailed, open & wide soundstage," language that appears in marketing for dozens of tweeters. What makes the XXT30W's claim credible is the combination of technologies that actually create these characteristics rather than just promising them:

"Highly Detailed": Detail retrieval requires low distortion, extended frequency response, and absence of resonances that mask subtle information. The nano weave soft dome's natural damping minimizes breakup modes above the passband, the neodymium motor's high flux density maintains low THD even at high output, and the waveguide reduces reflections and edge diffraction that would blur transient information. The practical result is the ability to hear cymbal decay, vocal breath sounds, and instrumental harmonics that less-resolving tweeters obscure.

"Open": "Open" sound refers to lack of compression or congestion during complex passages—the sense that each instrument has space rather than everything blurring together. This requires adequate power handling (50W RMS), high sensitivity (98 dB reduces thermal stress), and linear frequency response without peaks that emphasize certain frequencies over others. The XXT30W's ability to "be pushed to high listening levels without worry of losing its composure" directly creates this open quality—the tweeter doesn't compress or distort when multiple instruments are playing simultaneously at high SPL.

"Wide Soundstage": Soundstage width is directly determined by off-axis response—tweeters with poor off-axis behavior create narrow, center-focused images while tweeters with controlled off-axis dispersion create wide, enveloping soundstages. The XXT30W's waveguide maintains consistent dispersion from 2 kHz through 23 kHz, creating wide coverage that extends beyond the listening position. In car audio where listening positions are off-center, this wide dispersion is critical—passengers aren't just hearing reflected sound, they're in the tweeter's primary coverage pattern.

Installation Considerations — "Adequate Real Estate" Requirement

Xcelsus explicitly states: "If you can afford the real estate demanded by this exceptional waveguide tweeter then be prepared to experience..." This isn't casual language—it's recognition that the XXT30W's 90mm outer diameter and 45mm mounting depth require installation locations with adequate space. Comparing to the standard XXT30 (66mm overall diameter, 50mm cutout, more compact mounting), the XXT30W demands approximately 40% more mounting surface area and specific depth clearance.

Where the XXT30W Fits: Typical installation locations include A-pillars (custom pods), sail panels (if sufficient depth available), dashboard locations with custom mounting, or door-mounted pods. The 70mm cutout diameter is manageable, but the 90mm outer diameter means you need clear space around the tweeter to avoid interference with interior trim, door handles, or other components. The 45mm depth requires clearance behind the mounting surface—in doors, this means avoiding window mechanisms; in dashes, avoiding HVAC components.

When to Choose XXT30 vs. XXT30W: User discussions on forums reveal the decision: "I'm leaning more towards the XXT30 mostly because of the size and the XXT30 seem more SQ.." This user is mistaken about SQ—both use the same dome and motor, so intrinsic sound quality is equivalent. The actual decision criteria: if you have installation space constraints or prefer compact appearance, choose the XXT30. If you have adequate space and want the benefits of waveguide loading (lower crossover capability, wider dispersion, higher output), choose the XXT30W. In competition installations where custom fabrication is standard, the XXT30W's advantages typically outweigh size considerations.

XXT30W vs. XXT30 — Understanding the Relationship

Since the XXT30W shares core technology with the XXT30, understanding their relationship helps clarify when each is appropriate:

Identical Core Components: Both use the 30mm nano weave soft dome, same voice coil, same neodymium vented motor assembly. Forum users confirm: "Assuming that the XXT30W is essentially using the same tweeter guts as the standard XXT30..." This means intrinsic dome performance—distortion, power handling, frequency response of the dome itself—is equivalent.

Waveguide Differences: The XXT30 uses a compact enclosure (66mm diameter) with minimal acoustic loading. The XXT30W adds a precision-engineered waveguide that controls dispersion, increases effective radiating area, and extends low-frequency capability. The waveguide doesn't make the tweeter "better" in absolute terms—it changes its acoustic behavior to optimize for specific applications (lower crossover points, wider coverage, higher sensitivity).

Application Differences: XXT30 is optimal for 3-way systems where crossover point will be 3.5-4 kHz and installation space is limited. XXT30W is optimal for 2-way or 3-way systems where crossover point is 2-2.5 kHz, maximum output and wide dispersion are priorities, and installation space accommodates 90mm diameter. Both are "competition-grade"—the choice depends on system architecture and installation constraints, not quality differences.

Dawid Koniarski's Design Philosophy in Tweeter Engineering

While the XXT30W was developed after Dawid Koniarski's 2016 departure from Xcelsus' parent philosophy, it reflects several design principles he established during 37 years at DLS (1979-2016):

Optimize Dispersion Through Geometry: Just as Koniarski's 1983 component speaker invention recognized that separate drivers allow optimization for specific frequency ranges and mounting locations, the XXT30W's waveguide recognizes that tweeter dispersion should be controlled through acoustic design rather than accepted as a limitation. The waveguide is an engineering solution to a real problem (frequency-dependent dispersion), not a cosmetic feature.

Efficiency Enables Dynamics: The 98 dB sensitivity reflects Koniarski's principle that efficiency and power handling together create dynamic capability. High sensitivity reduces thermal stress, allowing higher maximum output and better transient response. This was a hallmark of DLS tweeters that dominated European competition—they could play loud without strain.

Natural Tonality Over Exaggerated Response: The nano weave soft dome's smooth, delicate character reflects Koniarski's preference for accuracy over emphasis. Metal domes offer more "apparent" detail through emphasized treble, but soft domes reveal detail through absence of resonances and natural damping. The XXT30W doesn't sound like a "car tweeter" with exaggerated brightness—it sounds accurate.

Condition Notes — Previous Demo Pair in Excellent Condition

Who Should Buy the XXT30W?

The Xcelsus XXT30W is a specialized tweeter for specific applications:

3-Way System Builders Crossing at 2-2.5 kHz: If you're building a system with 8" midbass, 4" midrange (like XXM425), and tweeter, the XXT30W's ability to cross at 2 kHz allows optimal driver integration where conventional tweeters would require 3.5-4 kHz crossover, forcing the midrange into beaming territory.

2-Way System Builders with Extended Midranges: If you're building a 2-way system with 8" drivers operating up to 4 kHz (like XXM875), the XXT30W's 2 kHz crossover capability creates smooth integration where the 8" driver's dispersion is still reasonable, avoiding the lobing and tonal shifts that occur with higher crossover points.

Competition Sound Quality Builders: If you're building IASCA, MECA, or EMMA systems where judges score soundstage width, off-axis response, and tonal balance, the XXT30W's controlled dispersion and wide coverage deliver the "open & wide soundstage" that scores well in imaging categories.

High-Efficiency System Builders: If you're matching tweeters to high-sensitivity midranges (like XXM425's 86 dB), the XXT30W's 98 dB sensitivity allows level matching through simple DSP adjustments rather than requiring complex padding or mismatched amplifier channels.

Installers with Adequate Mounting Space: If your installation locations accommodate 90mm outer diameter and 45mm depth—typically custom A-pillar pods, sail panels, or dashboard locations with fabrication—the XXT30W's waveguide advantages outweigh size considerations.
