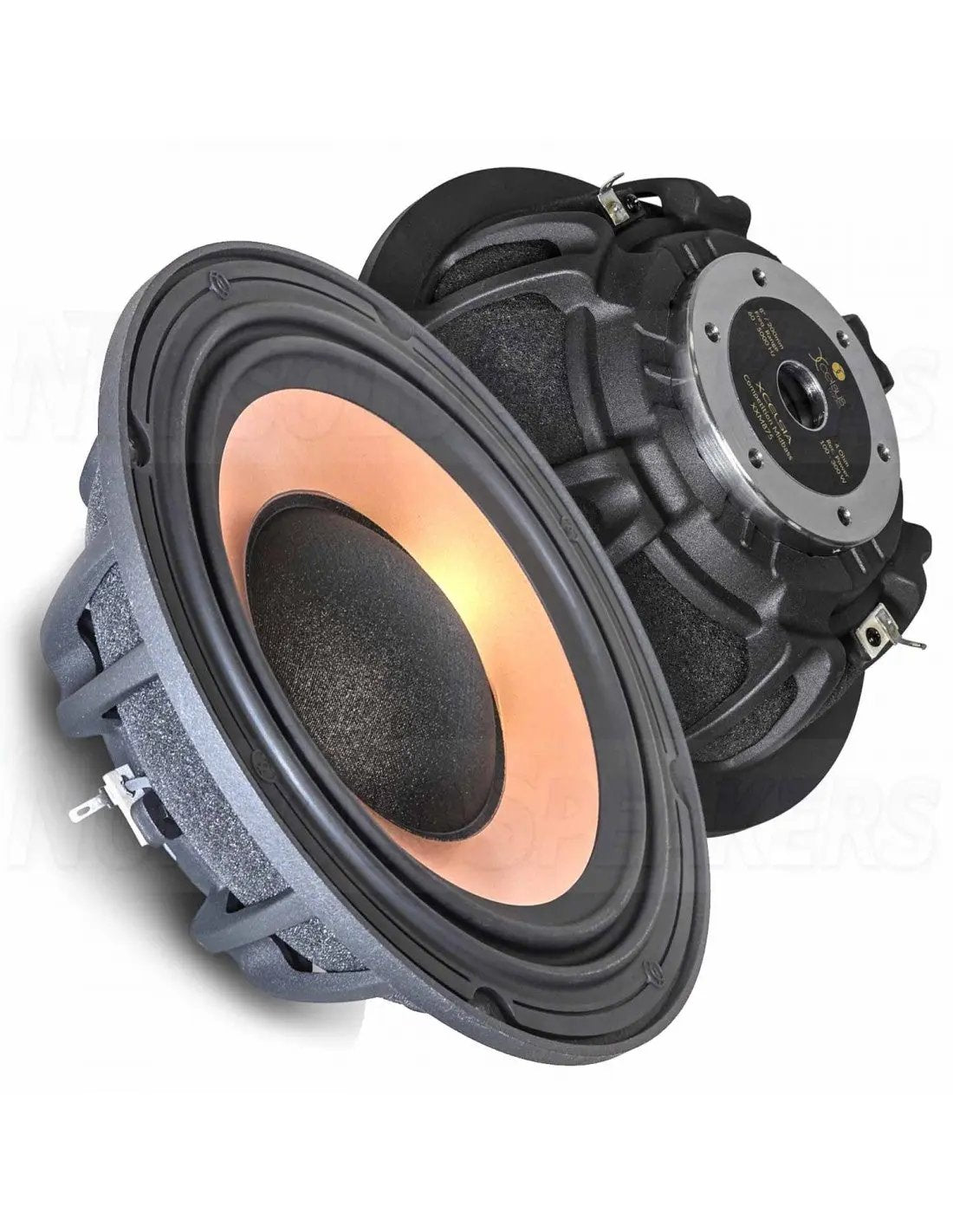

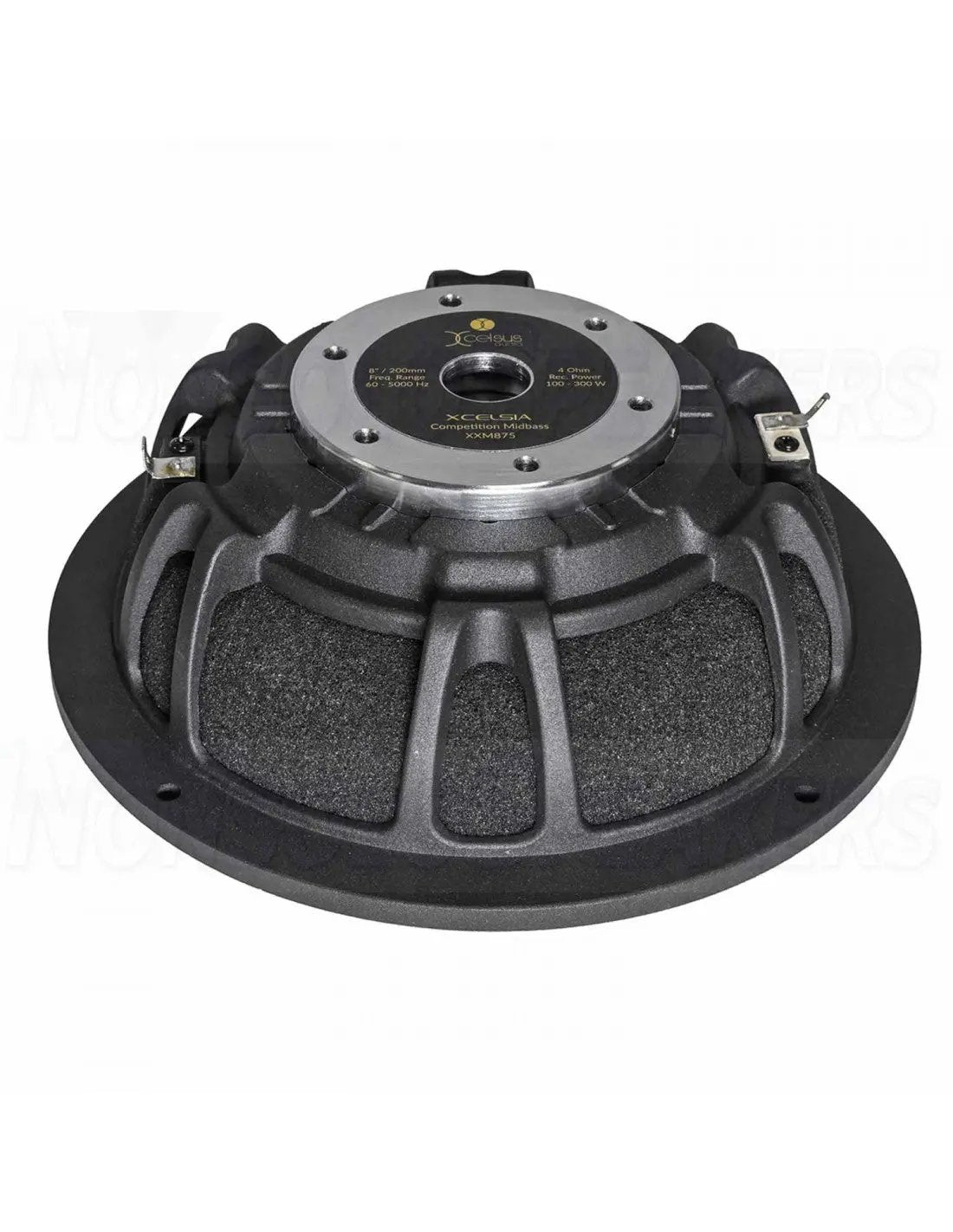

Xcelsus XXM875 8" Competition Midbass - Pair | Previous Demo

Technical Specifications

40 Hz to 4,000 Hz — The Most Versatile Midbass Range in Competition Audio

The XXM875's 40 Hz to 4,000 Hz frequency response is extraordinary for an 8-inch driver—and it fundamentally changes how you can design a system around it. Most 8-inch midbass drivers are optimized for 60-500 Hz operation, requiring crossover to smaller midranges above 250-400 Hz to avoid beaming (the narrowing of dispersion as wavelength approaches cone diameter). The XXM875, by contrast, maintains usable output all the way to 4 kHz, allowing two completely different system architectures:

Configuration 1: Traditional 3-Way Midbass (60-250 Hz)
In a classic 3-way active system, the XXM875 handles the midbass region from 60-250 Hz, crossed to a 4-inch midrange (like the XXM425) at 200-250 Hz and a tweeter at 3-4 kHz. In this role, the XXM875's 40 Hz extension allows it to reach down into subwoofer territory, reproducing kick drum fundamentals (50-80 Hz) and bass guitar body (60-120 Hz) with authority. The massive 75mm voice coil provides the excursion control and power handling to deliver these frequencies at competition SPL levels without distortion or mechanical stress.

Configuration 2: Extended 2-Way Full Midrange (40-4,000 Hz)
In a 2-way system or modified 3-way where the XXM875 operates across its full range, it functions as a midrange driver in an 8-inch body—handling everything from subsonic bass (40 Hz) through upper midrange vocals and harmonics (4 kHz), crossed only to a tweeter at 3-4 kHz. This configuration is rare because most 8-inch drivers can't maintain linear off-axis response above 1-2 kHz. The XXM875's spiderless suspension, lightweight cone, and minimal moving mass allow it to remain coherent up to 4 kHz, creating a 2-way system with bass extension that rivals systems using dedicated subwoofers.

This versatility is what makes the XXM875 "one of the most versatile midbass drivers" according to professional reviews—you're not locked into one system architecture. Change your DSP crossover points, and the XXM875 adapts from dedicated midbass to full-range midrange while maintaining the "ultra-high-end sound quality" that defines Competition Series drivers.

Spiderless Suspension in 8-Inch Format — Scaling the Revolution

When you scale spiderless suspension technology from 4-inch midranges (XXM425) to 8-inch midbass drivers (XXM875), you face new engineering challenges. The cone area increases by approximately 4× (from ~13 cm² to ~50 cm²), meaning significantly more air mass must be moved, creating higher mechanical stress on the suspension system. Conventional wisdom suggests that larger drivers need spiders to control excursion and maintain voice coil centering—which makes Xcelsus' decision to use SSS in the XXM875 all the more significant.

The Spiderless Suspension System (SSS) in the XXM875 eliminates the conventional spider entirely, relying instead on a proprietary surround geometry and suspension tuning to provide restoring force and voice coil centering. The advantages that made SSS revolutionary in smaller midranges scale directly to the 8-inch format:

• Reduced Moving Mass (Mms): Without the spider's mass (typically 20-40 grams in an 8-inch driver), the diaphragm assembly weighs substantially less. This allows faster acceleration and deceleration for a given motor force, translating to improved transient response even at low frequencies (40-100 Hz) where larger drivers typically sound "slow" compared to smaller units.
• Eliminated Spider Nonlinearity: Spiders exhibit force-versus-displacement curves that aren't perfectly linear—restoring force increases nonlinearly as excursion increases, creating mechanical distortion. By removing the spider, SSS eliminates this distortion source, allowing the XXM875 to maintain low THD even during high-excursion bass transients.
• Unrestricted Cone Movement: As described in product literature, SSS allows "unrestricted cone movement," meaning the cone can move through its excursion range without fighting spider stiffness that varies with displacement. This contributes to the "straight frequency range" and "extreme response" that reviewers note.
• Simplified Mechanical System: With only the surround providing suspension, the force path is mechanically simpler and more predictable. This improves manufacturing consistency (unit-to-unit matching) and allows more precise tuning of suspension compliance to match the motor force and intended frequency range.

The practical result? User reviews describe the XXM875's bass as "smooth, transparent, and authoritative" with a spiderless design whose "benefits were immediately apparent as soon as the music began." This isn't just marketing—it's the measurable consequence of removing mechanical compromises that conventional drivers accept as necessary.

75mm Voice Coil — Oversized for Maximum Control and Power

The XXM875's 75mm (3-inch) voice coil is massive for an 8-inch driver designed for sound quality rather than SPL competition. For context, typical 8-inch SQ midbass drivers use 38-50mm voice coils; the XXM875's 75mm coil is 50-100% larger in diameter. This oversized coil provides several critical advantages:

Increased Surface Area for Heat Dissipation: Voice coil surface area scales with diameter—a 75mm coil has approximately 2.25× the surface area of a 50mm coil (assuming similar coil height). This increased area allows more efficient thermal transfer from the coil windings to the surrounding air and motor structure, enabling the XXM875's 100-300 watts RMS continuous power handling. Note that Xcelsus specifies a range (100-300W) rather than a single value—this likely reflects the driver's thermal stability across different duty cycles and excursion levels.

Enhanced Motor Force (Bl) for Cone Control: A larger voice coil diameter allows more wire to interact with the magnetic field (assuming the magnet structure scales proportionally), increasing motor force. Higher Bl translates to better electrical damping—the driver's ability to control cone motion through electromagnetic induction. This is critical for maintaining accurate transient response at low frequencies, where cone inertia can cause "overhang" or ringing if motor control is insufficient.

Improved Excursion Linearity: Larger voice coils operating in appropriately sized magnetic gaps can maintain more linear motor force across greater excursion. While specific Xmax specifications aren't published for the XXM875, the combination of 75mm coil, spiderless suspension, and 40 Hz low-frequency extension suggests significant linear excursion capability—necessary to reproduce 40-60 Hz content at high output without distortion.

Integrated Cooling Technology: Product descriptions mention "integrated cooling technology" in the voice coil assembly. While specifics aren't detailed, this likely refers to either vented voice coil formers (allowing air to flow through the coil gap during excursion) or specialized coil wire with enhanced thermal conductivity. Combined with the neodymium motor's copper cap (which acts as a heat sink and reduces inductance), the XXM875's thermal management allows sustained high-output operation without the thermal compression (power handling reduction as temperature increases) that plagues lesser drivers.

Lightweight Metal Alloy Cone — Precision-Engineered Stiffness-to-Weight

The XXM875's cone material is described variably as "magnesium alloy," "aluminum," or simply "lightweight metal alloy" across different sources—reflecting either material variations between production runs or different alloy formulations used in the same family. What's consistent is the engineering goal: optimal stiffness-to-weight ratio for an 8-inch cone operating from 40 Hz to 4 kHz.

If Magnesium Alloy: Magnesium offers exceptional stiffness-to-weight ratio—approximately 75% lighter than aluminum while maintaining similar rigidity. This allows the cone to remain pistonic (moving as a rigid unit) across the XXM875's entire operating range, avoiding breakup modes that would create frequency response peaks or coloration. Magnesium's higher internal damping compared to pure aluminum also helps smooth any resonances that do occur beyond the passband. The challenge with magnesium is cost and manufacturing complexity—it's more difficult to form and requires protective coatings to prevent oxidation.

If Aluminum Alloy: Aluminum provides excellent rigidity at low weight, with better manufacturability than magnesium and lower cost. Pure aluminum has lower internal damping than magnesium, but aluminum alloys (blended with silicon, copper, or magnesium) can achieve damping characteristics that balance rigidity with resonance control. Aluminum's thermal conductivity also helps dissipate heat from the voice coil through the cone structure—a secondary benefit for power handling.

Why Metal Cones for Competition Midbass: Regardless of specific alloy, metal cones offer advantages for competition use where output, transient response, and reliability matter. Metal's high stiffness prevents cone flex during high-excursion bass transients (40-80 Hz content at high SPL), maintaining pistonic motion and avoiding the delayed resonances that paper or composite cones can exhibit. Metal's low mass (compared to reinforced paper or fiber composites of equivalent stiffness) reduces moving mass, improving efficiency and transient response. And metal's durability ensures consistent performance across years of competition use—no surround deterioration, no cone warping from humidity, no performance drift.

Users describe the XXM875's sound as "crystal-clear articulation" with "thunderous midbass impact"—the metal cone delivers both impact (low-frequency authority from high stiffness) and articulation (upper midrange detail from low moving mass and extended response to 4 kHz).

Neodymium Motor with Copper Cap — Thermal Management and Efficiency

The XXM875's neodymium motor structure with copper cap represents modern motor design optimized for both efficiency and thermal stability. Neodymium magnets deliver up to 20× the magnetic field strength per unit volume compared to ferrite, allowing compact motor structures that still generate high flux density in the voice coil gap. This is critical for an 8-inch driver where installation depth is often limited—neodymium allows powerful motors without the massive magnet stacks that ferrite would require.

The copper cap (also called Faraday ring or shorting ring) serves two critical functions:

• Inductance Reduction: As current flows through the voice coil, it generates a magnetic field that opposes the permanent magnet's field—this self-inductance acts as a low-pass filter, reducing high-frequency response and slowing transient response. The copper cap creates eddy currents that oppose voice coil inductance, effectively canceling it and maintaining flat impedance across frequency. This allows the XXM875 to maintain its 4 kHz upper response without the rolloff that high-inductance motors create.
• Thermal Management: Copper's exceptional thermal conductivity (400 W/m·K, one of the highest of any metal) allows it to act as a heat sink, absorbing thermal energy from the voice coil and distributing it through the motor structure. During sustained high-power operation (200-300W RMS), the copper cap helps stabilize voice coil temperature, reducing thermal compression and maintaining consistent power handling.

The combination of neodymium's high flux density and copper cap's inductance control creates what product descriptions call "exceptional transient response"—the driver reacts instantly to amplifier signals without the lag or overhang that high-inductance motors create. This is particularly important for the XXM875's extended 40-4,000 Hz range, where maintaining phase coherence from deep bass through upper midrange requires consistent motor behavior across five octaves.

Competition Pedigree — "Best of Show" and Championship Victories

The XXM875 isn't theoretical engineering—it's competition-proven with "Best of Show" accolades and victories in the SQ Pro category, the highest level of sound quality competition where judges evaluate system accuracy, imaging, staging, tonal balance, and dynamic capability under standardized listening conditions. When a driver contributes to championship-winning builds, it's not because of marketing or specifications—it's because judges, who listen to dozens of reference systems annually, can hear the difference.

What makes the XXM875 succeed in competition environments?

• Low Distortion Across Power Range: Competition tracks are played at reference levels (often 100+ dB SPL) where driver nonlinearities become audible. The XXM875's spiderless suspension and oversized voice coil maintain low THD even at high output, avoiding the harmonic artifacts that judges penalize.
• Extended Upper Frequency Response: The 4 kHz upper limit allows the XXM875 to integrate seamlessly with tweeters crossed at 3-4 kHz, maintaining phase coherence and avoiding the midrange "holes" that can occur when midbass drivers roll off too early. Judges specifically listen for smooth vocal reproduction from 200-3,000 Hz—the XXM875's extended range covers this critical region.
• Transient Accuracy: Competition scoring includes "imaging and staging" categories where judges evaluate the system's ability to place instruments in 3D space and reproduce attack transients with precision. The XXM875's low moving mass and spiderless suspension deliver the transient response needed to score highly in these categories.
• Tonal Neutrality: The metal cone's lack of coloration allows the XXM875 to reproduce source material without imposing a sonic signature. Judges compare systems against reference tracks they know intimately—drivers that add peaks, resonances, or timbral shifts are immediately identified and penalized.

When installers choose the XXM875 for championship builds, they're selecting a driver with proven performance under the most demanding listening conditions in car audio. The competition victories aren't accidents—they're validation that Xcelsus' engineering decisions translate to audible advantages.

Slim Profile for Factory Fitment — Installation Versatility

Despite its 75mm voice coil and neodymium motor, the XXM875 features what product descriptions call a "slim profile" or "thin base" designed to "fit in many org[inal] places in cars where there is an 8" base[sic]." This is significant because 8-inch factory locations in doors often have limited mounting depth (typically 65-85mm), and high-performance aftermarket drivers frequently exceed these constraints, requiring spacers, door modifications, or custom mounting solutions.

The slim profile is achieved through neodymium's compact motor structure—where ferrite motors would require 100+mm magnet stacks to achieve equivalent flux density, neodymium achieves it in 60-70mm total depth. This allows the XXM875 to drop into factory 8-inch door locations in vehicles like Honda Accords, BMW 3/5-series, Audi A4/A6, and other models with factory 8-inch midbass speakers—upgrading from factory paper-cone drivers without door modifications.

For competition installations where custom mounting is standard, the slim profile allows installation in fiberglass or aluminum door panels, kick panels, or floor-mounted enclosures with straightforward fabrication. The 8-inch diameter strikes an optimal balance—large enough to provide adequate radiating area for 40-60 Hz bass extension, small enough to maintain controlled off-axis response up to 4 kHz when properly positioned.

Dawid Koniarski's Legacy in 8-Inch Midbass Design

While the XXM875 was developed after Dawid Koniarski's 2016 departure from Xcelsus' parent philosophy, it embodies the driver design principles he established during 37 years as Chief Speaker Designer at DLS (1979-2016). Koniarski's approach—validated through his 1983 invention of the automotive component speaker system and proven through IASCA/EMMA championships where DLS earned 35% of World Finals awards in 2004—prioritized measurable performance advantages over marketing specifications.

The XXM875's design reflects several Koniarski principles:

• Question Conventional Compromises: Just as Koniarski's 1983 epiphany ("if coaxials were ultimate, home HiFi would use them") led him to invent component systems, the XXM875's spiderless suspension questions the necessity of a component (spider) that adds mass and nonlinearity.
• Optimize for Specific Frequency Ranges: The XXM875 isn't trying to be a subwoofer (despite 40 Hz extension) or a full-range driver (despite 4 kHz response)—it's optimized specifically for midbass reproduction (60-250 Hz) or extended midrange (40-4,000 Hz) depending on system architecture.
• Competition Validation: Koniarski's DLS drivers dominated European competition not through subjective claims but through measurable victories. The XXM875's "Best of Show" and SQ Pro championships follow this tradition—prove performance where it matters.
• Natural Tonality Over Exaggerated Response: The metal cone's lack of coloration reflects Koniarski's preference for accuracy over character. DLS drivers didn't sound like "car speakers" with exaggerated peaks—they revealed recordings. The XXM875 continues this philosophy.

When users describe the XXM875's sound as "smooth, transparent, and authoritative," they're experiencing the same qualities that made DLS drivers legendary in the 1990s-2000s competition scene—drivers engineered for accuracy first, output second, and marketing claims never.

Recommended System Configurations

The XXM875's versatile frequency response allows multiple system architectures. Here are three proven configurations:

Configuration 1: High-End 3-Way Active (Recommended for Competition)

• Midbass: XXM875 — 60-250 Hz (24 dB/octave slopes)
• Midrange: XXM425 — 200-3,500 Hz (overlap for smooth integration)
• Tweeter: XXT30 or XXT30W — 3,000-20,000 Hz
• Processing: DSP with active crossovers, time alignment (critical for 3-way coherence)
• Advantages: Each driver optimized for specific range, maximum output capability, championship-level accuracy

Configuration 2: Extended 2-Way (Maximum Simplicity)

• Midrange: XXM875 — 40-4,000 Hz (full operating range)
• Tweeter: XXT30W — 3,000-20,000 Hz (waveguide for wide dispersion)
• Processing: DSP with 12-18 dB/octave crossover at 3-3.5 kHz
• Advantages: Eliminates midrange driver and crossover point, bass extension rivals 3-way+subwoofer systems, simpler tuning

Configuration 3: 3-Way with Subwoofer (Maximum Output)

• Subwoofer: 10-12" — 20-60 Hz (handles deepest bass)
• Midbass: XXM875 — 50-250 Hz (midbass punch without subsonic excursion)
• Midrange: XXM425 — 200-3,500 Hz
• Tweeter: XXT30W — 3,000-20,000 Hz
• Advantages: Maximum SPL capability, dedicated subwoofer handles excursion-intensive subsonic content, XXM875 focuses on midbass impact

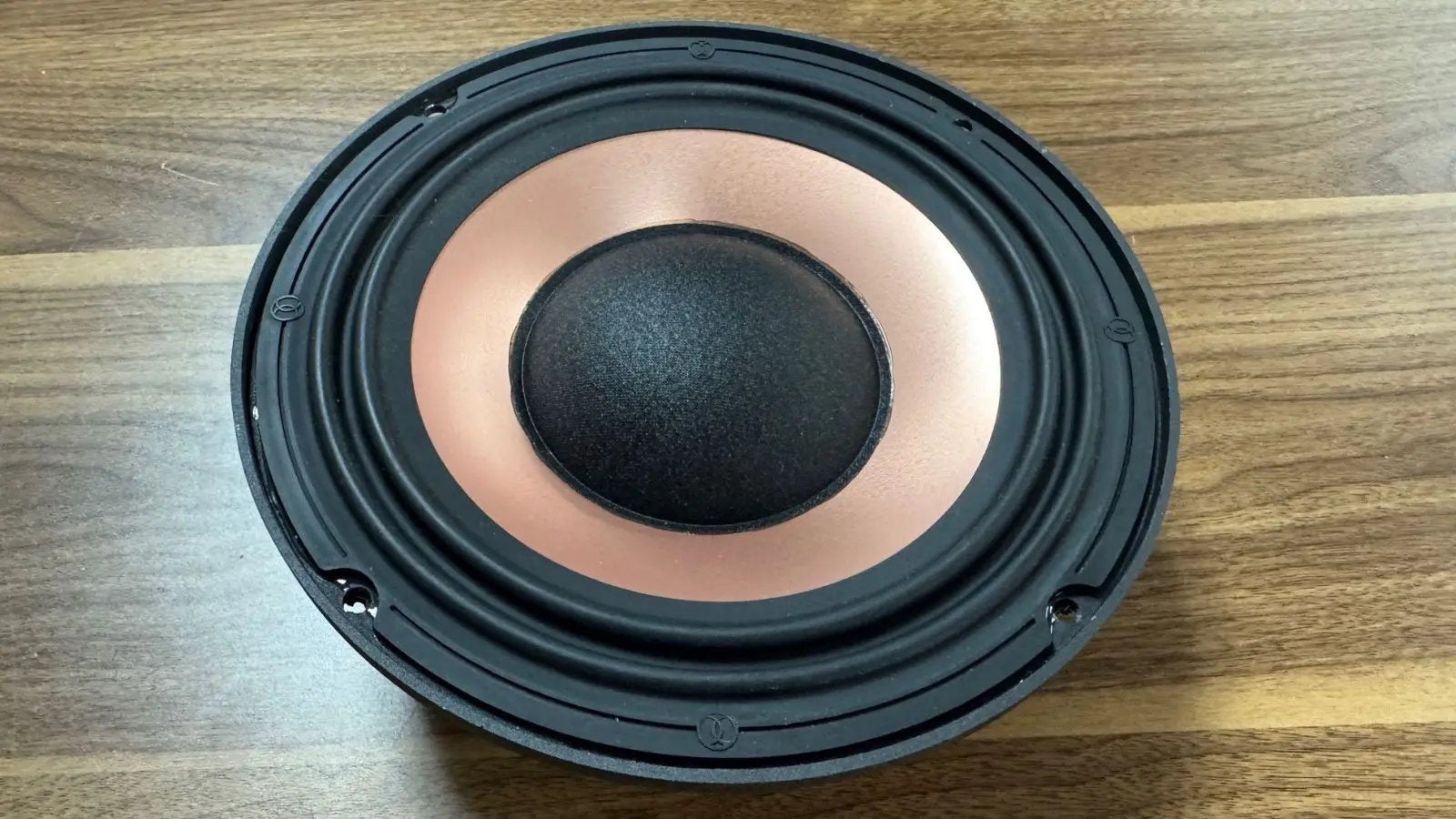

Condition Notes — Previous Demo Unit from 3-Way Display System

Who Should Buy the XXM875?

The Xcelsus XXM875 is a specialized driver for specific applications and listeners:

Sound Quality Competitors: If you're building IASCA, MECA, or EMMA competition systems where judges score midbass accuracy, transient response, and tonal balance, the XXM875's championship pedigree and spiderless suspension advantages are exactly what winning builds require. The "Best of Show" and SQ Pro victories prove this driver performs where it matters.

3-Way System Builders: If you're committed to active processing with dedicated midbass, midrange, and tweeter, the XXM875 provides the 60-250 Hz foundation with power handling (300W RMS) and extension (down to 40 Hz) that allows high-output midbass without subwoofer support in smaller vehicles.

Extended 2-Way Enthusiasts: If you want to eliminate the complexity of 3-way systems while maintaining bass extension, the XXM875's 40-4,000 Hz range allows a 2-way configuration (XXM875 + tweeter) that delivers output and extension rivaling traditional 3-way+subwoofer systems.

Xcelsus Competition Series Builders: If you're building a complete Competition Series system (XXM875 midbass, XXM425 midrange, XXT30W tweeter), this driver provides the midbass foundation that integrates seamlessly with the spiderless midrange and waveguide tweeter technologies.

Audiophiles Who Understand Metal Cones: If you appreciate what metal cones offer—low coloration, high rigidity, extended response, consistent performance—and understand that they require proper system tuning to avoid brightness, the XXM875 delivers reference-grade midbass accuracy.
