Steg SDSP6 DSP Amplifier
Italian High-End 6-Channel DSP Amplifier with 32-Bit Digital Signal Processing
Precision Audio Engineering
6x 65W RMS @ 4Ω / 6x 90W RMS @ 2Ω Class D amplification
32-bit DSP processor with Burr-Brown A/D & D/A converters
Multiple inputs: High-level, RCA, AUX, Optical SPDIF, Bluetooth
Advanced time alignment, 31-band EQ, and crossover control
PC software, mobile app, and DRC remote control compatibility
Part Number: SDSP6 | Dimensions: 249 x 210 x 57.5 mm
Technical Specifications
Power Output
- • 4Ω: 65W x 6 RMS
- • 2Ω: 90W x 6 RMS
- • Class: D Amplification
- • THD: <0.015%
DSP Performance
- • 32-bit DSP processor
- • 48 kHz sampling rate
- • BurrBrown A/D & D/A
- • 295 MHz processing power
Inputs & Outputs
- • 6x High-level inputs
- • 2x RCA/AUX inputs
- • Optical SPDIF digital
- • Bluetooth connectivity
Audio Processing
- • 31-band parametric EQ
- • Time alignment (0.02ms steps)
- • Variable crossovers
- • Multiple filter types
Control Features

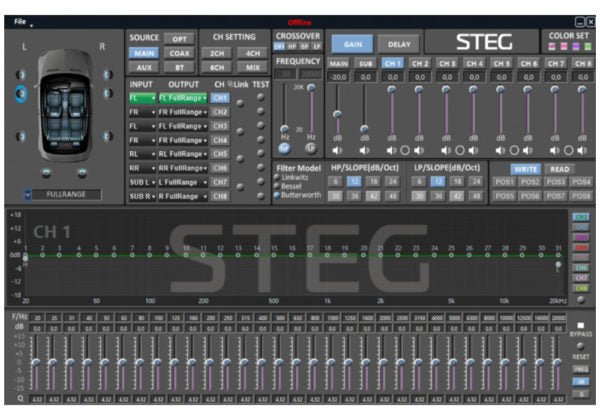

- • PC software control

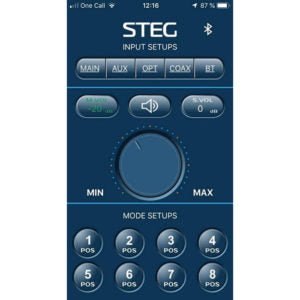

- • Mobile app compatible
- • DRC remote control
- • Real-time adjustments
Physical
- • Size: 249 x 210 x 57.5mm
- • Frequency: 20Hz - 22kHz
- • SNR: 105dB digital
- • Operating: 9-15V DC
Professional DSP Features
Italian Engineering Excellence
From the renowned Italian brand STEG, this DSP amplifier represents decades of high-end audio engineering. Built with premium BurrBrown converters and advanced 32-bit processing for uncompromising sound quality.
Complete System Integration
Seamlessly integrates with factory systems using high-level inputs and de-equalization functions. Multiple input options, including optical SPDIF and optional Bluetooth, ensure compatibility with any source.
Advanced Time Alignment
Precise time alignment with 0.02-ms resolution steps allows perfect acoustic staging. Combined with an independent 31-band parametric EQ per channel, it achieves professional-grade sound tuning.
Multiple Control Options
Control via PC software for detailed tuning, mobile app for convenience, or optional DRC remote for instant adjustments. Real-time settings changes and eight memory presets for different configurations.
The Ultimate DSP Solution
The Steg SDSP6 represents the pinnacle of digital signal processing technology, combining high-end 6-channel Class D amplification with sophisticated DSP capabilities in a single, compact unit.
This Italian-engineered marvel features a powerful 32-bit DSP processor running at 295 MHz, capable of 1.2 billion MAC operations per second. Premium Burr-Brown A/D and D/A converters ensure pristine signal integrity throughout the processing chain, while the 48 kHz sampling rate maintains exceptional audio fidelity.
Whether integrating with factory systems through high-level inputs or connecting high-end sources via optical SPDIF, the SDSP6 maximizes acoustic performance through advanced features like de-equalization, independent channel processing, and comprehensive crossover controls with Butterworth and Linkwitz-Riley filter options.
The SDSP6 transforms any vehicle into a concert hall, offering the tools and precision that audio professionals demand for creating the perfect soundscape in your mobile environment.
Professional Grade
Italian engineering excellence
Complete Software Suite
PC software, mobile app included
Expert Support
Installation and tuning guidance
