🎯 EXECUTIVE OVERVIEW

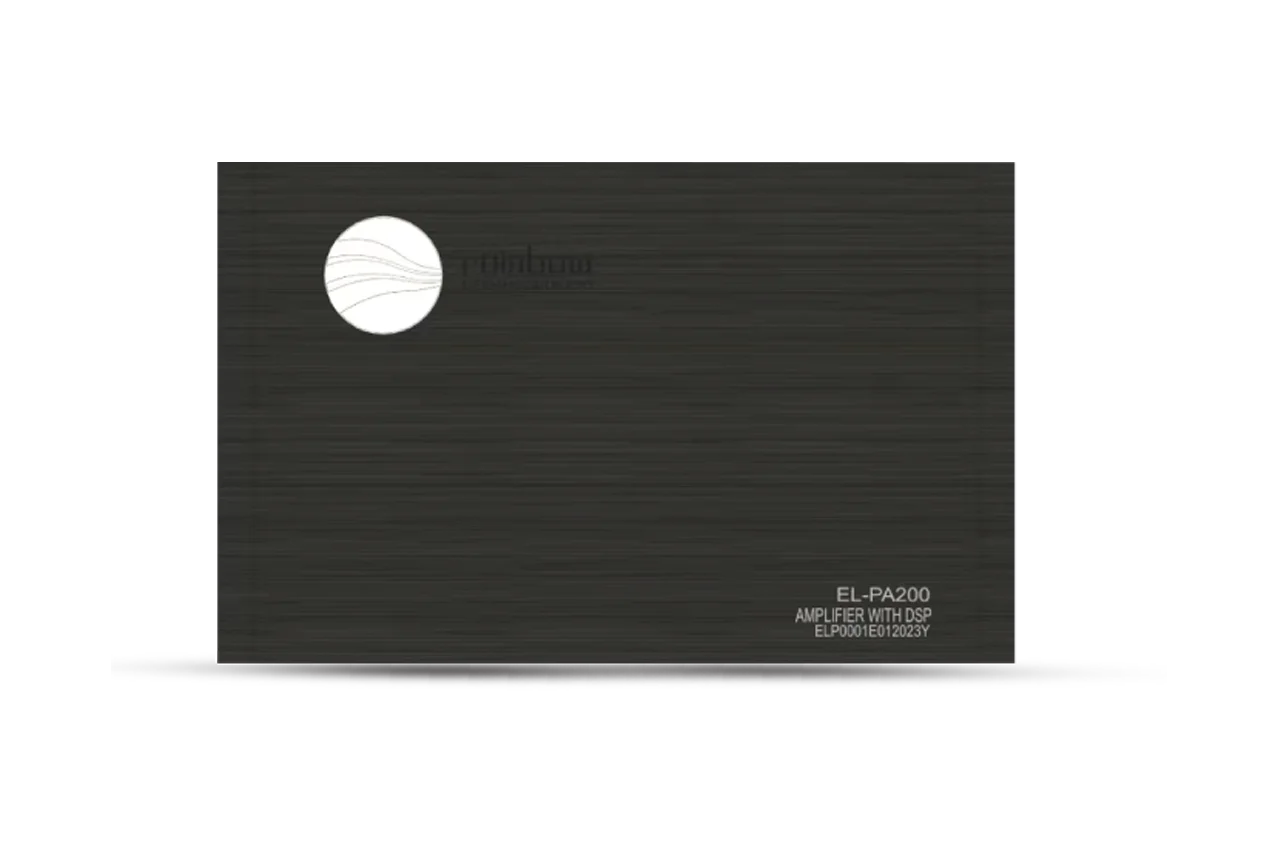

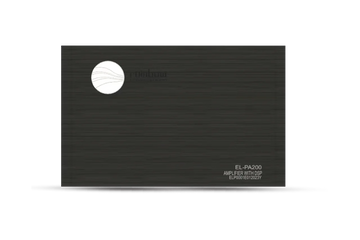

Rainbow EL-PA200 NEO from Germany's Rainbow Audio represents the perfect all-in-one solution for enthusiasts seeking professional DSP tuning capabilities combined with integrated amplification—all at an unprecedented 70% off closeout pricing. This is not a basic signal processor or budget amplifier—it's a German-engineered DSP+amplifier combo designed for OEM integration, system upgrades, and installations demanding precise digital signal processing with reliable power delivery.

Available as a closeout model at $119.99 (vs. $399.99 retail), the EL-PA200 NEO delivers 6-channel DSP processing with 4×50W RMS built-in Class AB amplification, Bluetooth and USB connectivity, 4-channel high-level inputs (OEM integration ready), DRC NEO remote support, and Rainbow's intuitive tuning software—all in a compact 178×117×40mm footprint that fits behind dashboards, under seats, or in tight installation spaces.

⚙️ TECHNICAL SPECIFICATIONS

🔥 KEY STRENGTHS

• All-in-One DSP+Amplifier Solution – Eliminates need for separate DSP processor and amplifier, reducing system cost, installation complexity, wiring requirements, and space consumption. Single-unit German engineering vs. multi-component budget systems.
• 70% Off Closeout Pricing ($119.99) – Professional 6-channel DSP + 4×50W amplifier at entry-level pricing. Comparable separate components cost $350-700 (DSP $200-400 + amplifier $150-300). Exceptional value for German engineering at closeout discount.
• German Rainbow Audio Engineering – Rainbow Audio's 40+ year German engineering heritage applied to accessible Experience Line DSP products. Intuitive tuning software, reliable hardware design, comprehensive DSP feature set without complexity overload.
• OEM Integration Ready (High-Level Inputs) – 4-channel high-level speaker inputs accept up to 26Vpp factory amplifier output. Taps into OEM speaker wires without low-level RCA requirement—ideal for factory radio upgrades, premium OEM system enhancement, or installations where head unit replacement isn't desired.
• 6-Channel DSP Processing – Independent DSP control for front left, front right, rear left, rear right, center, and subwoofer channels. Each channel features parametric EQ, time alignment, crossover filters, phase control, and gain adjustment for precise system tuning.
• 4×50W RMS Class AB Amplification – Built-in 200W total system power (4 channels × 50W RMS) sufficient for component speakers, coaxial speakers, or bi-amped front stage. Class AB topology delivers clean, low-distortion amplification vs. budget Class D designs.
• Bluetooth + USB Connectivity – Built-in Bluetooth receiver for wireless audio streaming from smartphones/tablets. USB input provides digital audio connection for lossless playback. Flexibility for multiple source inputs beyond factory radio integration.
• DRC NEO Remote Support – Compatible with Rainbow's DRC NEO digital remote control (sold separately). Provides level control, input source selection, and preset switching from dashboard-mounted controller without laptop computer requirement.
• Ultra-Compact Footprint (178×117×40mm) – Small enough to hide behind dashboard, under driver/passenger seat, or in tight trunk spaces. Contrast with full-size amplifiers (300-400mm length) that dominate trunk installations. Stealth integration for factory-appearance upgrades.
• Professional DSP Tuning Software – Rainbow's PC-based tuning software provides graphical interface for parametric EQ (31-band), time alignment (0-20ms per channel), crossover design (Butterworth/Linkwitz-Riley filters, 6-24 dB/octave slopes), phase adjustment, and gain structure optimization.

⚠️ IMPORTANT CONSIDERATIONS

Power Output Limitations

• 4×50W RMS = Front Stage Only – 200W total system power sufficient for component/coaxial speakers but does NOT power subwoofers adequately. External subwoofer amplifier required for bass frequencies (use DSP's 6th channel RCA output to feed separate sub amp).
• Not for High-Efficiency Speakers – 50W RMS per channel adequate for 87-92 dB sensitivity speakers but may underpower low-efficiency drivers (84-86 dB). Verify speaker sensitivity before purchase to ensure adequate headroom.
• Class AB Thermal Management – Class AB amplifiers generate more heat than Class D designs. Ensure adequate ventilation around unit (avoid completely sealed enclosures). Thermal protection may activate if ambient temperature exceeds 60°C or installation lacks airflow.

DSP Tuning Requirement

• Laptop + Software Knowledge Required – DSP tuning requires PC connection, Rainbow software installation, and understanding of parametric EQ, time alignment, crossover theory. Not plug-and-play—professional tuning or DIY learning curve necessary for optimal results.
• Initial Tuning Critical – Factory default settings provide basic functionality but won't optimize for specific speakers, vehicle acoustics, or listening preferences. Budget time for proper system measurement and DSP adjustment after installation.
• DRC Remote Sold Separately – DRC NEO remote control (for level/source/preset adjustment without laptop) is optional accessory not included. Budget additional $50-100 if remote functionality desired.

Installation Complexity

• Professional Installation Recommended – High-level input wiring, power/ground connections, RCA output routing, speaker wire terminations, and DSP configuration require electrical/audio expertise. DIY possible but expect 4-6 hour installation for experienced installers.
• OEM Integration Challenges – Factory amplified systems (Bose, Harman Kardon, Mark Levinson, etc.) may have non-standard signal levels, active crossovers, or DSP processing that complicates integration. Research vehicle-specific compatibility before purchase.

⚔️ COMPETITIVE POSITIONING

🎵 IDEAL CUSTOMER PROFILE

Primary Buyers

• Budget-Conscious System Upgraders – Want professional DSP tuning and integrated amplification without $500-700 premium pricing. Accept closeout limited availability for 70% discount on German engineering.
• OEM Integration Enthusiasts – Upgrading factory audio systems without head unit replacement. High-level inputs tap into OEM speaker wires, preserving factory radio functionality, steering wheel controls, and vehicle integration.
• DIY Installers with Tuning Skills – Comfortable with laptop-based DSP tuning software, parametric EQ concepts, time alignment theory, and crossover design. Willing to invest time learning Rainbow's tuning interface for optimal results.
• Space-Constrained Installations – Need compact all-in-one solution that fits behind dashboard or under seats. 178×117×40mm footprint enables stealth installations where full-size amplifiers won't fit.

Secondary Buyers

• Component Speaker System Builders – Using 4×50W RMS for bi-amped front stage (tweeters + midbass active crossover via DSP) with external subwoofer amplifier fed from 6th DSP channel RCA output.
• German Engineering Advocates – Value Rainbow Audio's 40-year heritage, intuitive tuning software, and European quality standards at accessible pricing vs. mass-market Asian alternatives.
• Bluetooth/USB Audio Streamers – Want wireless audio convenience (Bluetooth) or lossless digital playback (USB) integrated with DSP processing rather than relying solely on factory head unit audio quality.

🔧 SYSTEM INTEGRATION RECOMMENDATIONS

Typical System Configurations

Configuration 1: Front Stage Upgrade (Most Common)

• Speakers: Component set (tweeters + midbass woofers) powered by 4×50W RMS amplifier
• Subwoofer: External amplifier fed from EL-PA200's 6th channel RCA output
• DSP Usage: Time alignment, active crossover (tweeter high-pass, midbass band-pass), parametric EQ for speaker/vehicle correction
• Best For: OEM integration upgrades, factory radio retention, space-constrained installations

Configuration 2: Full 4-Channel System

• Front: Component speakers or coaxials (channels 1-2)
• Rear: Coaxial speakers or rear fill (channels 3-4)
• Subwoofer: External amplifier from RCA output
• DSP Usage: Independent EQ/time alignment for front and rear staging
• Best For: Sedan/SUV installations prioritizing front and rear audio balance

Configuration 3: Bi-Amped Front Stage (Advanced)

• Channel 1: Left tweeter (active high-pass crossover via DSP)
• Channel 2: Right tweeter (active high-pass crossover via DSP)
• Channel 3: Left midbass (active band-pass crossover via DSP)
• Channel 4: Right midbass (active band-pass crossover via DSP)
• Subwoofer: External amplifier from RCA output
• Best For: Sound quality enthusiasts eliminating passive crossovers for maximum DSP control

DSP Tuning Best Practices

• Time Alignment: Measure driver-to-listener distances for left/right/subwoofer. Input delays to create virtual center image. Start with 0.5ms adjustments and fine-tune by ear.
• Crossover Design: Component tweeters: 3500-4000 Hz high-pass (12-18 dB/octave Butterworth). Midbass: 80-100 Hz high-pass + 3500 Hz low-pass (band-pass). Subwoofer: 80 Hz low-pass (24 dB/octave Linkwitz-Riley).
• Parametric EQ: Use RTA (real-time analyzer) app or calibrated mic to measure in-car frequency response. Apply EQ cuts (not boosts) to flatten response—cutting peaks preserves headroom.
• Gain Structure: Set amplifier gains conservatively (avoid clipping). Use DSP input sensitivity adjustment to optimize signal-to-noise ratio without overdriving ADC converters.

Installation Requirements

• Power Supply: Direct battery connection via 40A fuse (200W total output requires robust 12V supply). Minimum 8 AWG power wire recommended.
• Ground Connection: Chassis ground within 18" of unit (minimize ground loop potential). Clean, bare metal contact with star washer and dielectric grease.
• Input Wiring: Tap OEM speaker wires at factory amplifier output or head unit speaker outputs. Maintain polarity (positive to positive, negative to negative) for all 4 channels.
• Speaker Output: 16-18 AWG speaker wire to tweeters/midbass woofers. Route away from power wires to minimize EMI/RFI interference.

✅ WHY RAINBOW EL-PA200 NEO?

📋 FINAL RECOMMENDATION

The Rainbow EL-PA200 NEO represents exceptional value for enthusiasts seeking professional DSP tuning combined with integrated amplification at entry-level pricing. With 6-channel DSP processing, 4×50W RMS Class AB amplifier, Bluetooth/USB connectivity, OEM integration ready high-level inputs, and German Rainbow Audio engineering, it delivers comprehensive system upgrade capabilities in a single compact unit.

At 70% off retail pricing ($119.99 vs. $399.99), the EL-PA200 NEO offers unmatched cost-effectiveness—comparable separate DSP and amplifier components total $350-700. While closeout status means limited availability and potential warranty reduction, the immediate value proposition is extraordinary for budget-conscious upgraders accepting these tradeoffs.

Reviewed by Audio Intensity Pro Audio Team

Specifications verified against Rainbow Audio official documentation
