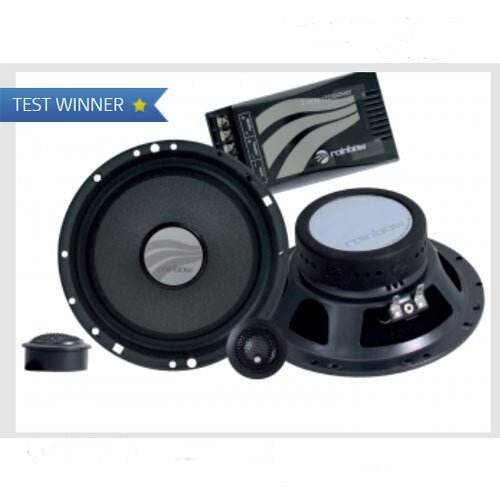

Rainbow Audio DL-C6.2 2-way 6.5 inch Component Set

165mm (6.5") Woofer: Coated Natural Fiber Cone Design

The DL-C6.2's 165mm woofer embodies Rainbow's commitment to authentic sound reproduction through careful material selection and acoustic engineering rather than exotic specifications or marketing-driven feature inflation. This is a driver designed for musical accuracy—reproducing midrange vocals, instrumental timbre, and bass fundamentals with the natural tonal balance that makes long listening sessions pleasurable rather than fatiguing.

Coated Natural Fiber Cone: Acoustic Authenticity

At the heart of the woofer's performance lies its coated natural fiber cone—a material choice that prioritizes sonic accuracy over marketing appeal. Natural fiber cones (typically cellulose-based paper pulp composites) have been the gold standard for midrange reproduction in professional studio monitors and high-fidelity home speakers for decades, prized for their inherent self-damping characteristics and ability to reproduce complex harmonic content without the metallic edge or plastic coloration associated with synthetic cone materials.

Butyl Rubber Surround: Controlled Cone Motion

The cone's outer edge attaches to the basket through a butyl rubber surround—a half-roll suspension design that allows the cone to move linearly (in and out) while preventing rocking motion or lateral excursion that would create distortion. Butyl rubber is Rainbow's surround material of choice across multiple product lines due to its ideal combination of mechanical compliance (allowing free cone movement), excellent damping characteristics (controlling resonances at the surround's natural frequencies), and exceptional long-term durability.

Unlike foam surrounds that deteriorate after years of UV exposure and ozone attack (crumbling and losing elasticity), or cloth surrounds that can absorb moisture and shift parameters, butyl rubber surrounds maintain their mechanical properties for decades. In automotive environments where speakers face temperature extremes from -20°F winter cold to 150°F+ summer dashboard heat, material stability isn't a luxury—it's essential for maintaining consistent performance throughout the component's service life.

The surround's compliance is carefully matched to the spider (inner suspension) characteristics and motor strength to establish the woofer's resonant frequency, excursion limits, and transient response. Too stiff, and the woofer loses low-frequency extension and sounds mechanically constrained; too compliant, and the cone motion becomes uncontrolled, creating distortion during peaks. Rainbow's engineering calibrates this balance for optimal midbass punch and midrange clarity within the component's intended frequency range.

Folded Powder-Coated Steel Basket

The woofer mounts in a folded powder-coated steel basket—a stamped and formed construction that balances rigidity, acoustic neutrality, and cost-effectiveness. While Rainbow's flagship components employ cast aluminum or machined baskets, Dream Line's steel basket approach demonstrates that proper engineering can extract excellent performance from traditional materials.

Magnet Motor and Voice Coil Assembly

The DL-C6.2 woofer employs a ferrite magnet motor with vented voice coil former design and stainless steel lead wire connections—specifications that reveal Rainbow's attention to thermal management and long-term reliability even in entry-level products.

Ferrite magnets (ceramic permanent magnets composed of iron oxide and barium or strontium compounds) represent proven technology that delivers consistent magnetic field strength over decades without the degradation risks associated with some neodymium magnet formulations. While ferrite magnets are physically larger and heavier than neodymium alternatives of equivalent field strength, they offer superior thermal stability—maintaining magnetic properties at elevated temperatures—and eliminate the cost premium of rare-earth materials, allowing budget allocation toward other performance-critical components.

The vented voice coil former incorporates channels or perforations that allow air to flow through the voice coil gap during cone motion. This ventilation serves dual purposes: cooling (moving air carries heat away from the voice coil, reducing thermal compression and power handling limitations) and pressure equalization (preventing pressure buildup behind the dust cap that can restrict cone movement at extreme excursions). The result is a motor assembly that maintains efficiency and control during sustained high-power operation rather than thermally compressing and losing output as it heats.

Stainless steel lead wires connect the voice coil to the input terminals—a seemingly minor specification that significantly impacts long-term reliability. Copper lead wires (common in budget drivers) can fatigue and break after millions of flexure cycles as the cone moves in and out; stainless steel's superior fatigue resistance dramatically extends service life in high-excursion applications. This attention to connection reliability exemplifies Rainbow's engineering philosophy: specify components for decade-long service rather than just meeting minimum performance criteria.

20mm Silk Dome Tweeter: Natural High-Frequency Extension

Complementing the natural fiber woofer, the DL-C6.2's 20mm silk dome tweeter continues Rainbow's material philosophy: prioritizing acoustic authenticity and listening comfort over specification sheet bragging rights. This is a tweeter designed for extended listening sessions with complex musical material—revealing high-frequency detail and air without the artificial brightness, sibilance emphasis, or listener fatigue associated with poorly-engineered metal dome alternatives.

Natural Fiber Silk Mixture Dome

Rainbow specifies a natural fiber silk mixture for the DL-C6.2's tweeter dome—a composite textile material that balances the acoustic properties of pure silk (natural damping, smooth frequency response) with enhanced durability and consistency from synthetic fiber reinforcement. This hybrid approach delivers silk's sonic signature—natural high-frequency extension, freedom from metallic edge, and forgiving off-axis response—while addressing pure silk's vulnerabilities to moisture absorption and mechanical weakness.

Neoprene Surround for Controlled Motion

The silk dome's outer edge attaches to the tweeter faceplate through a neoprene surround—a half-roll suspension similar in function to the woofer's butyl surround but engineered for the tweeter's much higher frequency range and lower excursion requirements. Neoprene (polychloroprene synthetic rubber) offers excellent mechanical damping, weather resistance, and consistent compliance across wide temperature ranges—maintaining tweeter performance from winter cold to summer heat extremes.

The neoprene surround's compliance is carefully matched to the dome's mass and the motor's strength to establish the tweeter's resonant frequency (typically 800-1200 Hz, well below the intended crossover point) and control dome motion at frequency extremes. Proper surround design prevents the dome from entering mechanical resonance within the tweeter's operating band, ensuring smooth response throughout the critical high-frequency range where the ear is most sensitive to irregularities.

Compact Faceplate and Mounting Flexibility

The 20mm silk dome mounts in a compact faceplate housing engineered for installation flexibility—allowing surface mounting, flush mounting, or angled mounting depending on vehicle geometry and acoustic optimization preferences. Multiple mounting options enable installers to position tweeters for optimal stereo imaging rather than accepting compromised locations dictated by limited hardware configurations.

The faceplate design incorporates acoustic engineering principles: shallow waveguide contouring to control directivity and smooth the transition from dome radiation to free-air propagation, and strategic damping materials to minimize faceplate resonances that could color the tweeter's output. These details—invisible in specification sheets but audible in listening sessions—exemplify the engineering depth Rainbow applies even to entry-level products.

Passive Crossover Network: Precision Frequency Distribution

The DL-C6.2 includes a dedicated passive crossover network engineered to divide the amplified audio signal between woofer and tweeter at the optimal frequency point while maintaining proper phase relationships, impedance characteristics, and power handling capability. This isn't a generic universal crossover adapted to work with arbitrary drivers—it's a purpose-designed circuit calibrated specifically for the DL-C6.2's woofer and tweeter characteristics.

12 dB/Octave Slopes: Acoustic and Electrical Balance

Rainbow specifies 12 dB/octave crossover slopes (second-order filters) for both woofer and tweeter channels—a moderate slope rate that balances several competing engineering priorities: adequate driver protection (preventing the tweeter from receiving damaging low frequencies or the woofer from attempting to reproduce frequencies beyond its breakup range), smooth frequency response transition in the crossover region, and manageable component complexity/cost.

The 12 dB/octave slope means that one octave above the crossover frequency, the woofer's output has been attenuated by 12 dB (reduced to approximately 1/4 electrical power), while one octave below the crossover point, the tweeter's output is similarly reduced. This moderate rolloff allows both drivers to contribute in the crossover region, creating acoustic overlap that—when properly phase-aligned—results in smooth frequency response through the critical midrange-to-treble transition where the ear is highly sensitive to irregularities.

Component Quality and Circuit Topology

The crossover circuit employs film capacitors and air-core inductors—component types chosen for their linear behavior, low distortion, and consistent performance across the audio frequency range. Film capacitors (polyester or polypropylene dielectric) avoid the non-linear distortion and parameter drift associated with electrolytic capacitors, while air-core inductors (coils wound without ferrous metal cores) eliminate the saturation effects and distortion that iron-core inductors introduce at high signal levels.

The crossover board itself features quality construction with proper component spacing, adequate trace widths for power handling, and mechanical mounting provisions that prevent vibration-induced connection failures—addressing reliability concerns that plague poorly-engineered crossovers where solder joints crack from automotive vibration exposure.

Installation Flexibility and Protection

The crossover network is designed for installation flexibility—compact dimensions allow mounting in door cavities, under seats, or in trunk locations while maintaining proper thermal dissipation. The circuit incorporates tweeter protection elements (polyswitch or capacitor sizing) that prevent thermal damage from excessive power or amplifier clipping, extending tweeter service life even when subjected to less-than-ideal operating conditions.

Power Handling and Performance Specifications

High Sensitivity: Amplifier Efficiency and Real-World Performance

The DL-C6.2's 90 dB sensitivity rating positions it in the high-efficiency category for premium car audio components—a specification with significant practical implications for system design and real-world performance. High sensitivity means the speakers can produce satisfying volume levels from moderate amplifier power, making them excellent candidates for factory head unit upgrades or aftermarket receiver installations where external amplification isn't desired or feasible.

To put this specification in context: at 90 dB sensitivity, these speakers produce 90 dB SPL at 1 meter distance with just 1 watt of input power. Each doubling of amplifier power yields a 3 dB SPL increase, meaning:

• 2 watts: 93 dB SPL
• 4 watts: 96 dB SPL
• 8 watts: 99 dB SPL
• 16 watts: 102 dB SPL
• 32 watts: 105 dB SPL
• 64 watts: 108 dB SPL
• 100 watts: 110 dB SPL

For reference, 100 dB SPL represents volume levels suitable for energetic listening with full dynamic range, while sustained exposure to 110 dB approaches hearing damage thresholds. The DL-C6.2's high sensitivity means that even factory head units producing 15-20 watts RMS per channel can drive these speakers to approximately 102 dB SPL—sufficient for satisfying listening in most vehicles with typical road noise levels.

For users adding external amplification, the 100-watt RMS continuous power handling provides headroom for clean, undistorted output at high volume levels while the 150-watt peak rating offers margin for transient musical peaks without driver damage. This power handling range makes the DL-C6.2 compatible with amplifiers from modest 50-watt-per-channel units through more substantial 100+ watt designs.

Installation and Integration Considerations

Universal Fitment: 6.5" Standard Sizing

The DL-C6.2's 165mm (6.5") woofer dimension represents the most common component speaker size in car audio, providing broad compatibility with factory speaker locations in hundreds of vehicle makes and models. The 6.5" format strikes an optimal balance: large enough to reproduce satisfying midbass output and maintain efficiency, yet compact enough to fit the door panel and dash locations found in vehicles from compact sedans through full-size SUVs and trucks.

Rainbow engineers the woofer basket with standard mounting dimensions compatible with typical 6.5" speaker locations, while the folded steel construction maintains relatively shallow mounting depth—an important consideration in modern vehicles where door panel cavity space is limited by window mechanisms, structural reinforcements, and increasingly complex door-mounted electronics (power window motors, central locking actuators, puddle lights).

Tweeter Positioning and Imaging Optimization

The compact 20mm tweeter dimensions and flexible mounting hardware support multiple installation approaches depending on vehicle acoustics and imaging priorities:

Amplifier Matching and System Design

The DL-C6.2's specifications make it compatible with diverse amplification approaches:

• Factory Head Unit Direct Connection: High 90 dB sensitivity allows satisfying performance from factory receiver power (typically 15-25 watts RMS per channel). Ideal for budget-conscious upgrades prioritizing sound quality improvement without amplifier investment.
• Aftermarket Receiver Direct Connection: Most aftermarket head units produce 18-25 watts RMS per channel into 4 ohms—sufficient to drive the DL-C6.2 to approximately 102-104 dB SPL, adequate for most listening preferences in typical vehicles.
• External Amplification (50-100W per channel): Adding a modest external amplifier (50-100 watts RMS per channel) provides substantial headroom and dynamic capability, allowing the DL-C6.2 to reproduce demanding musical material without compression or distortion during peaks.

The 4-ohm nominal impedance provides universal compatibility—factory systems, aftermarket receivers, and external amplifiers all perform optimally with 4-ohm loads. Unlike 2-ohm speakers that can stress amplifier output stages or 8-ohm designs that sacrifice power transfer efficiency, 4-ohm impedance represents the industry-standard compromise maximizing compatibility and performance.

Wiring and Connection Considerations

Proper installation requires attention to several connection details for optimal performance:

• Wire Gauge: Minimum 16-gauge speaker wire for runs up to 15 feet; 14-gauge for longer runs or high-power applications. Undersized wire introduces resistance that robs amplifier power and can affect damping factor.
• Polarity Verification: Ensure all speakers are wired with consistent polarity (positive to positive, negative to negative). Reversed polarity on one channel creates phase cancellation that destroys bass output and imaging.
• Crossover Mounting: Install crossover networks in locations protected from moisture while maintaining adequate ventilation for thermal dissipation. Avoid mounting directly against hot surfaces or in water-prone door cavities without weatherproofing.
• Grounding: While speakers don't require dedicated chassis grounding like amplifiers, ensure clean electrical connections free from corrosion to maintain optimal signal transfer and prevent ground loop issues.

Value Proposition: German Engineering at Entry-Level Pricing

Dream Line Positioning in Rainbow's Lineup

Within Rainbow's product hierarchy, the Dream Line represents the accessible entry point into German-engineered car audio—positioned below the flagship Germanium series (with exotic aluminum-paper cones and neodymium magnets), the competition-oriented Profi Line, and the vehicle-specific Intelligence Line, but above generic Asian-manufactured alternatives in both material quality and sonic performance.

This positioning strategy allows Rainbow to offer genuine German engineering philosophy—material science, acoustic tuning, and build quality standards—at price points competitive with mid-tier products from volume manufacturers. The DL-C6.2 doesn't chase specification sheet supremacy or exotic material bragging rights; instead, it focuses on delivering balanced, accurate sound reproduction using proven materials executed with precision that reflects three decades of Rainbow's acoustic expertise.

Comparing Value: Dream Line vs. Alternatives

Who Should Consider the DL-C6.2?

The Rainbow DL-C6.2 Dream Line component system represents ideal value for several enthusiast profiles:

• ✅ First-Time Component Upgraders: Moving from factory coaxial speakers to components, seeking dramatic sound quality improvement without flagship investment
• ✅ Budget-Conscious Audiophiles: Understanding that acoustic authenticity comes from engineering rather than price tags, willing to choose proven materials over exotic specifications
• ✅ German Engineering Advocates: Specifically seeking Rainbow's sonic signature—natural tonal balance, excellent midrange clarity, non-fatiguing high frequencies—at accessible pricing
• ✅ Daily Driver Installations: Reliable, long-term sound quality for everyday vehicles where exotic flagship systems represent overinvestment relative to usage patterns
• ✅ Multi-Vehicle Owners: Outfitting multiple vehicles with quality components without requiring flagship pricing for each installation
• ✅ Vocal-Focused Listeners: Appreciating natural fiber cone midrange accuracy for vocal-centric genres (jazz vocals, classical, acoustic, singer-songwriter content)

Long-Term Value: Durability and Serviceability

Beyond initial acoustic performance, the DL-C6.2 delivers long-term value through material choices engineered for decade-long service lives. The butyl rubber woofer surrounds won't deteriorate like foam alternatives (which typically fail after 5-10 years), the coated natural fiber cones maintain flexibility indefinitely, the silk mixture tweeter domes resist environmental degradation, and the ferrite magnets maintain field strength essentially forever.

This durability means the DL-C6.2 represents a one-time investment rather than a consumable requiring periodic replacement—a consideration often overlooked when comparing initial purchase prices but highly relevant when calculating total cost of ownership over years of service. Quality components that deliver consistent performance for 10-15+ years offer better value than cheaper alternatives requiring replacement after 3-5 years due to surround deterioration or component failure.

Rainbow DL-C6.2: Authentic German Engineering

Three decades of Rainbow acoustic expertise delivered in an accessible component system engineered for natural sound reproduction, material longevity, and long-term listening satisfaction.

Experience Rainbow's commitment to acoustic authenticity: where natural materials, precision engineering, and three decades of German manufacturing expertise converge to deliver sound quality that reveals music rather than coloring it.
