🏆 The Legend Compressed: SoloX DNA in Compact Form

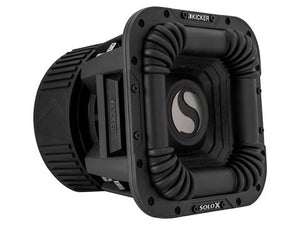

The Kicker SoloX L7X 8" isn't just an 8-inch subwoofer—it's the distillation of over two decades of SPL championship dominance into a space-efficient package. Born from the legendary SoloX lineage that powered Alma Gates' "Beast" Bronco to world SPL titles in the 2000s, this driver delivers competition-grade technology that most 8-inch woofers can't even imagine. When you need 800 watts RMS of fury but don't have trunk space for a 15", the L7X 8 is your answer—and it's engineered to survive the abuse.

🔬 Engineering Deep Dive: Why the L7X 8 Defies Physics

Most 8-inch subwoofers are designed for mild bass augmentation in compact vehicles. The Kicker SoloX L7X 8" was engineered with a completely different mission: deliver SPL competition performance in the smallest possible footprint. Here's how Kicker achieved this:

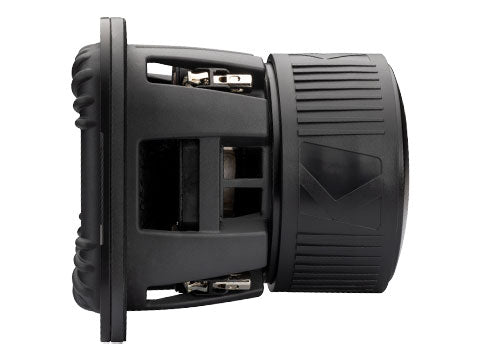

1. Motor Assembly Architecture

The 225 oz triple-stacked ferrite magnet structure with hyper-extended pole piece creates a magnetic field strength typically found in 12" competition woofers. This massive motor provides the linear force required to control 24mm excursion at full power—most 8" drivers have 10-15mm Xmax and would mechanically self-destruct attempting this.

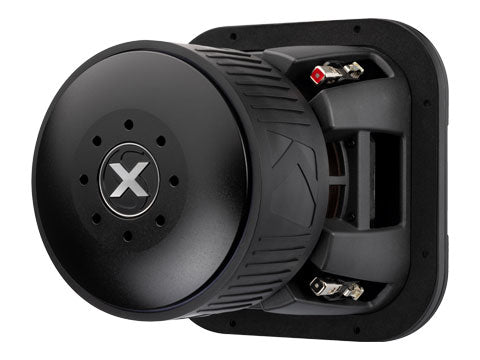

2. Forced Air Cooling Physics

Traditional 8" subwoofers rely on passive heat dissipation, which becomes inadequate above 300W RMS. The L7X's Forced Air Cooling™ system actively circulates air through the motor assembly, functioning like a heat sink with active airflow. This allows the voice coil to maintain optimal operating temperature even at 800W continuous, preventing thermal power compression (the phenomenon where bass output decreases as the voice coil heats).

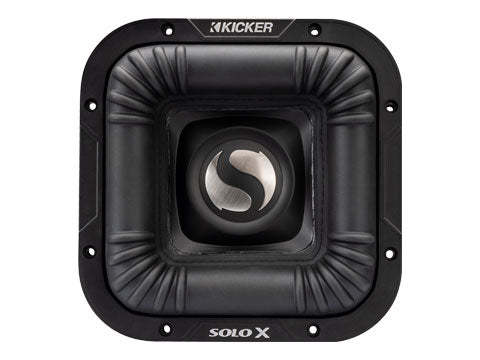

3. Square Cone Advantage

Kicker's patented square cone geometry maximizes cone area within the 8" mounting footprint. The effective radiating area is ~20% larger than a round 8" cone, which translates to:

• +2-3 dB SPL at maximum power (audible difference)
• Lower cone acceleration required for the same output (reduced distortion)
• More efficient bass production at mid-power levels (daily driving)

The double-pressed pulp construction with ribbed corners prevents cone flex (the Achilles' heel of large square cones), maintaining pistonic motion across the full excursion range.

4. Dual-Spider Suspension Scaling

Achieving 24mm Xmax in an 8" driver requires exceptional suspension engineering. The dual-spider system is specifically tuned for this excursion range:

• Linear restoring force throughout travel (no spring-rate changes)
• Prevents mechanical bottoming at full excursion
• Maintains voice coil centering under extreme power

This suspension architecture is why the L7X can sustain 800W bursts without audible distortion—lesser 8" woofers would mechanically overextend and produce ugly clipping sounds.

🎵 Performance Analysis: Real-World Use Cases

SPL Competition (Budget/Space-Constrained Classes)

The L7X 8 is a legitimate SPL competition subwoofer for classes with size or budget restrictions:

• Space-limited vehicles: Compact cars, motorcycles with custom enclosures, UTVs
• Multi-driver arrays: Four L7X 8" subs = 3200W RMS capacity in the space of two 12" woofers
• Budget SPL builds: Lower entry cost vs. flagship 12"/15" competition drivers

Expected Performance: Properly installed in a 0.75-1.0 ft³ ported enclosure tuned to 35-40 Hz, a single L7X 8 powered by 800W can achieve 135-138 dB @ 40 Hz on the dash meter—competitive in regional SPL events.

Daily Driver with Serious Bass Demands

For enthusiasts who need authoritative bass in compact vehicles (coupes, hatchbacks, trucks with limited cab space):

• Powered at 400-600W: Clean, distortion-free bass with excellent transient response
• Ported enclosure (0.85-1.0 ft³ @ 38 Hz): Deep, room-shaking low-end for hip-hop/EDM
• Sealed enclosure (0.50-0.65 ft³): Tight, accurate bass for rock/metal with faster decay

The L7X 8's 30-100 Hz response extends lower than most 8" woofers, reaching legitimate sub-bass frequencies that smaller drivers cannot reproduce.

Where the L7X 8 Excels (and Where It Doesn't)

📦 Enclosure Recommendations

The L7X 8 is enclosure-critical—improper box design will compromise performance. Kicker provides detailed T/S parameters for modeling:

Sealed Enclosure (Recommended: 0.50-0.65 ft³)

• 0.50 ft³: Tightest transient response, F3 ≈ 55 Hz, ideal for rock/metal
• 0.65 ft³: Balanced output and control, F3 ≈ 48 Hz, good all-around choice
• Power handling: Full 800W RMS capability (sealed loading protects against over-excursion)

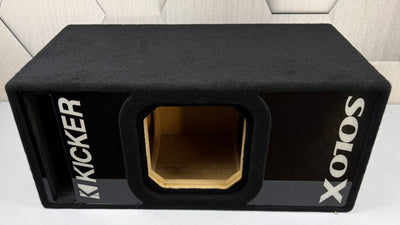

Ported Enclosure (Recommended: 0.85-1.0 ft³ @ 35-40 Hz Tuning)

• 0.85 ft³ tuned to 38 Hz: Maximum efficiency, +4-6 dB output vs. sealed, deep bass extension
• 1.0 ft³ tuned to 35 Hz: Deepest bass response, ideal for SPL competition @ 40 Hz test tone
• Port design: Use precision slot ports or 3" diameter round ports (avoid cheap flared ports)
• Warning: Ported loading increases excursion—do not exceed 800W RMS without subsonic filtering

Multi-Driver Configuration (4x L7X 8" Example)

• Total enclosure volume: 3.0-3.5 ft³ ported @ 38 Hz
• Power requirement: 3200W RMS total (mono amplifier at 0.5Ω final impedance with dual 2Ω drivers)
• Expected output: 145-148 dB @ 40 Hz (competitive in regional SPL events)

🏁 The Verdict: Competition Tech, Compact Package

The Kicker SoloX L7X 8" is a rare breed: a legitimate competition subwoofer that doesn't require a full-size trunk. While it carries a premium price ($399.99) for an 8" driver, you're paying for:

• 800W RMS power handling (2-3x more than budget 8" woofers)
• Forced Air Cooling technology found in flagship competition drivers
• 24mm Xmax excursion (extreme for 8" class)
• Field-serviceable recone kit (repair vs. replace economics)
• SoloX championship heritage from Kicker's SPL dominance era

Bottom Line: If you need serious SPL in a compact footprint and have the amplifier/electrical infrastructure to support 800W, the L7X 8 is unmatched in the 8" class. If you're looking for a budget 8" for mild bass augmentation, this is massive overkill—stick with the Image Dynamics ID8 V4 ($99.99) instead. But if you want to shock people with what an 8" can actually do, this is the ultimate answer.
