Hybrid Audio Legatia X6 7" Woofer / Midrange - Pair (Previous Display)

PREVIOUS DISPLAY SET - EXCELLENT CONDITION

Carefully maintained showroom demonstration units

Premium 7.1-Inch Wide-Bandwidth Performance

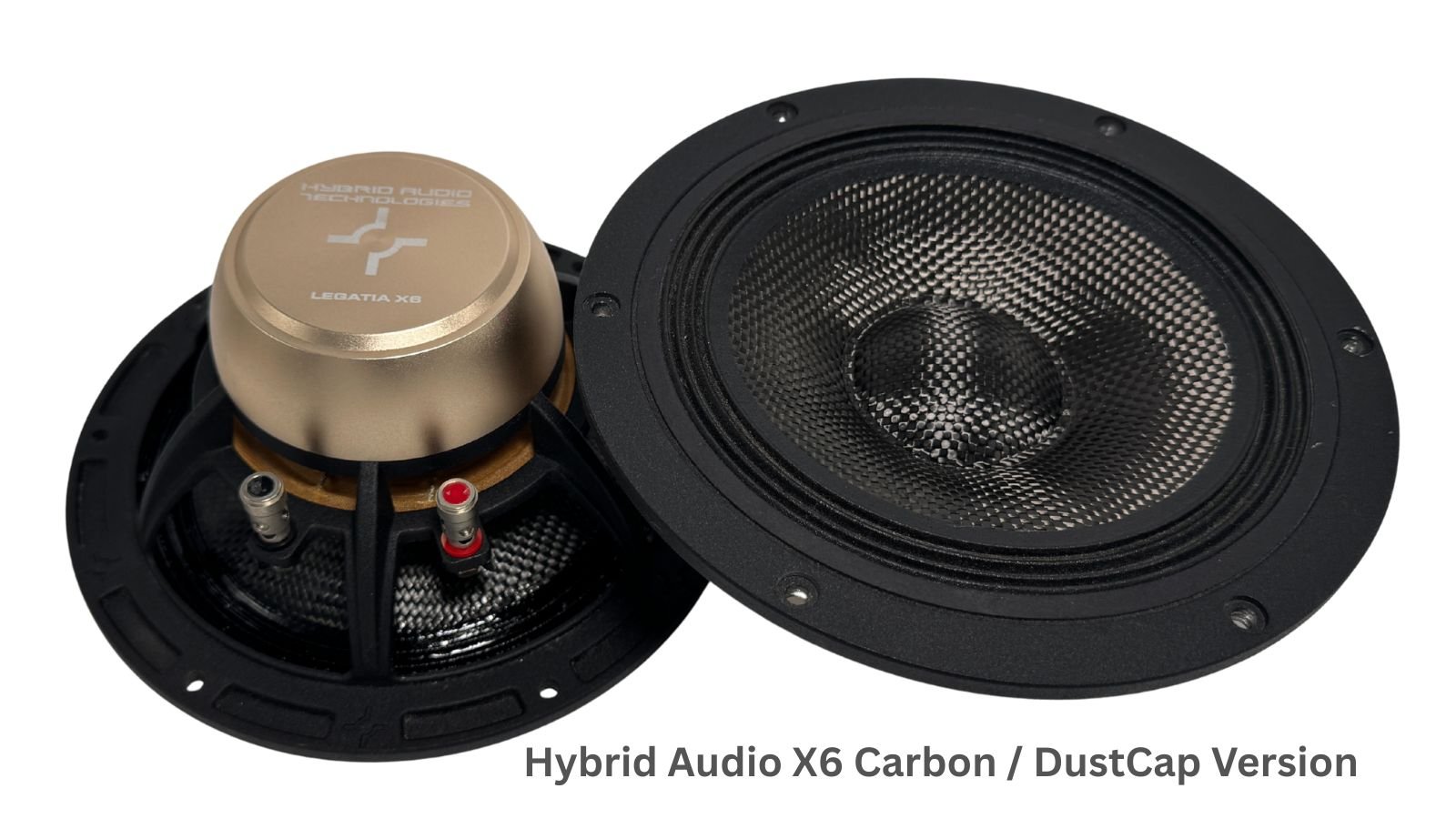

The Legatia X6-C represents Hybrid Audio's flagship large-format midrange/midbass offering, featuring carbon fiber cone construction with dustcap design for exceptional versatility in both 2-way and 3-way system configurations.

Advanced Carbon Fiber Engineering

Superior Materials & Construction:

• Carbon fiber diaphragm with matching carbon fiber dustcap
• Cast aluminum proprietary frame with embossed Hybrid Audio cross logos
• Progressive double-S fine fabric surround for enhanced excursion
• Enhanced single-dip phenolic spider for superior linear motion
• 35.55mm high-purity aluminum voice coil

Performance Specifications:

• Size: 181mm (7.1-inch) overall diameter
• Frequency Response: Approximately 70 Hz – 10,000 Hz
• Voice Coil Diameter: 35.55mm (1.4-inch)
• Linear Excursion: 18mm two-way (Xmax: 9mm one-way)
• Mounting Depth: 73.6mm (2.89 inches)
• Impedance: 4 ohms
• Six mounting screws (4mm cap head screws recommended)

Competition-Grade Motor System

Advanced Motor Design:

• Double-stacked Neodymium cup motor configuration
• Copper shorting cup for reduced inductance and improved frequency response
• Aluminum radiator for enhanced heat dissipation
• Enhanced thermal power handling through optimized venting
• Voice coil former venting holes for improved cooling

Sound Quality Heritage

Hybrid Audio Technologies continues to set the standard for high-end car audio with drivers that deliver reference-quality reproduction. The X6 Carbon Dustcap version offers the forward, lively character that carbon fiber is renowned for, making it ideal for systems requiring dynamic, engaging sound reproduction.

Versatile System Integration

Multi-Purpose Design:

• Excellent for 2-way systems as primary midbass/midrange
• Perfect for 3-way configurations as dedicated midbass or upper midrange
• Wide bandwidth operation covers over six octaves of information
• Shallow mounting depth compared to comparable SE series
• Compatible with L6SE, L6V2, and original L6 mounting topology

Professional Installation Features

Enhanced Connectivity:

• Nickel-plated spring-loaded binding post terminals
• Improved terminal spacing to prevent accidental short-circuits
• Resistance to mechanical loosening from vehicle vibration
• Optimized for both tinned wire and binding post connections

Condition & Value Proposition

As a previous display set, these drivers offer exceptional value while maintaining the full performance standards and build quality that Hybrid Audio is renowned for. Each driver has been inspected and tested to ensure optimal performance.

What's Included:

• Pair of Hybrid Audio X6-C Carbon Dustcap drivers
• Hand-matched close tolerance certification with individual parameters
• Premium wooden gift box presentation
• Complete technical documentation and installation guidelines

Display History Benefits:

• Fully tested and verified performance
• Maintained in controlled showroom environment
• No installation wear or mounting damage
• Significant savings over new retail pricing
