Goldhorn P3 DSPA Plus (Display Model)
Regular price
$ 999.99
Sale price
$ 999.99
Regular price
$ 1,999.99
Unit price
Product Details
Goldhorn P3 DSPA Plus
20-Channel DSP/DSD Player with Integrated Amplification

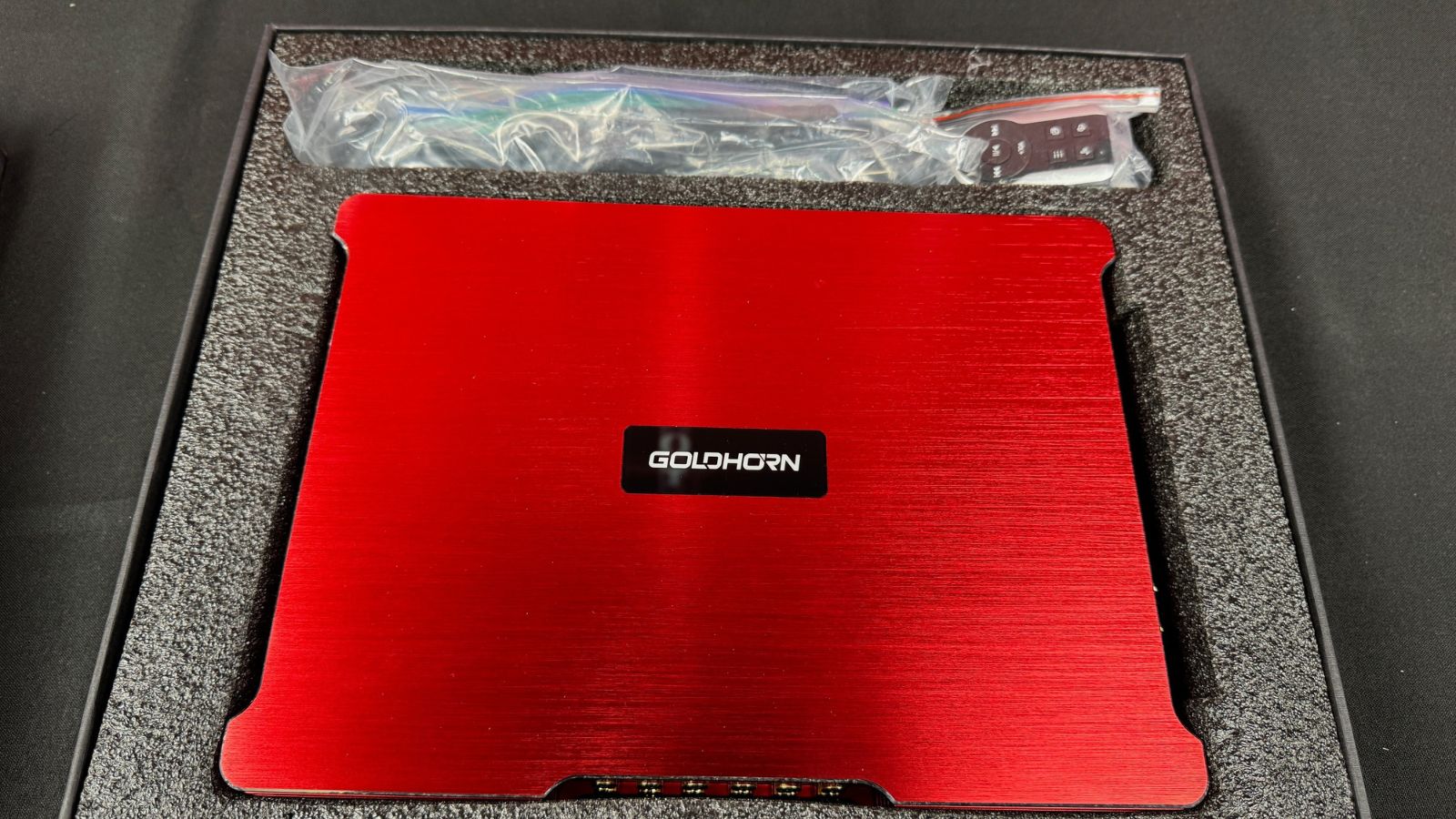

This is a brand new unit with a damage shipping box. It is 100% complete and carries a full warranty
A pioneering marvel meticulously designed for discerning 20-channel car audio enthusiasts. This all-in-one digital powerhouse redefines automotive audio technology with professional-grade DSP tuning and integrated hi-res DSD playback.
DSP Processing
20-Channel ADAU1463
Amplification
8×80W + 2×150W
Hi-Res Audio
DSD up to 256
Connectivity
Wi-Fi + Bluetooth
Professional Audio Excellence
The P3 DSPA Plus transcends being merely a high-performance audio device; it emerges as a true all-in-one digital powerhouse, redefining the boundaries of automotive audio technology with integrated DSD playback and professional DSP processing.
Advanced DSP Processing
Professional-grade ADAU1463 DSP chip with 20-channel processing, featuring 31-band parametric EQ output with independent adjustment for absolute control over your audio sculpting.
Powerful Amplification
Formidable 10-channel Class D amplifier delivering 80 watts per channel for eight channels and a staggering 150 watts per channel for two channels, ensuring extraordinary sonic output.
Hi-Res DSD Playback
Built-in DSD player supporting formats up to DSD256, plus hi-res uncompressed formats like WAV, FLAC, APE, and AIFF for audiophile-grade music reproduction.
Technical Specifications
Professional-grade components and precision engineering
Goldhorn P3 DSPA Plus Technical Specifications
DSP Chip ADAU1463
DAC Chip PCM1690
ADC Chip 3 × PCM1840
Opamp MC33078
Capacitors High Temperature to 105°C electrolytics and WIMA film caps
Music Formats Hi-Res: DFF/DSF/DSD up to 256 | Uncompressed: WAV/FLAC/APE/AIFF/AIF | Compressed: MP3/AAC/OGG/WMA
Music Inputs USB Host × 3, USB-DAC × 1 (to 192/32bit), BT 5.0 aptX/AAC/SBC
Control Inputs BT Wireless Player Remote, Wi-Fi Mobile App, Optional Wired Panel controller w/IPS Display Screen
PC Connection USB-B
Crossover Frequency 20Hz ~ 20kHz @ 1dB steps
Master Gain 0 ~ 60dB
Channel Gains -20dB ~ +5dB
Delay 0 ~ 20ms / 0.02ms steps
Output EQ 31 bands @ ±15dB in 0.1dB steps (Peak/High Shelf/Low Shelf/1st-2nd Order All Pass)
Crossover Butterworth & Bessel: 6,12,18,24,30,36,42,48dB | Linkwitz: 12,24,36dB
XO Phase Rotation Variable Phase shift at HP and LP filters 0 ~ 359°
Inputs 8 × Hi-Level, 2 × RCA, Bluetooth
Input EQ 5 bands @ ±15dB in 0.1dB steps | Input Delay: 0 ~ 10ms in 0.02 steps
Frequency Response 20Hz ~ 40kHz
Operating Voltage 11V ~ 16V
Input Sensitivity (RCA) 4V
Input Sensitivity (Hi-Level) 24V
RCA Output Voltage 12 × 6V
RCA Output Specs THD+Noise < 0.003%, S/N Analog: 108dB, S/N Digital: 111dB
Amplifier Outputs 8 × 80W + 2 × 150W (THD+Noise < 0.02%, S/N > 100dB)
Dimensions 296 × 217 × 43mm
Start-Stop Ready Yes
EPS Protection System Intelligent High-Level Input Error Protection
Finish Red Anodized Aluminum
Built-in Bluetooth aptX
Built-in Wi-Fi Yes
Fuse Rating 60A
Input Impedance 6 Ohm High Level (No adapter needed)
Presets 8
Software Interface PC 32bit Windows 7 and up
Navigation Mode Yes with Input Priority
Advanced Features & Technology
Pioneering automotive audio innovation for the discerning enthusiast
Professional DSP Processing
The heart of the P3 DSPA Plus features the advanced ADAU1463 DSP chip, delivering professional-grade signal processing with 20-channel capability. The integrated professional-grade DSP tuning empowers you with a remarkable 31-band EQ output with independent adjustment, granting absolute control to sculpt your audio perfectly.
31-Band Parametric EQ
±15dB adjustment in 0.1dB steps for precise tuning
Advanced Crossover Options
Butterworth, Bessel, and Linkwitz filters with variable phase rotation
Time Alignment
Up to 20ms delay with 0.02ms precision steps
ADAU1463 DSP Chip
Professional-grade signal processing with advanced algorithms for audiophile sound quality
Hi-Res DSD Playback
Audiophile-grade music reproduction with DSD support up to 256 and lossless format compatibility
Integrated Hi-Res Audio Player
Beyond DSP processing, the P3 DSPA Plus features a built-in high-resolution audio player capable of handling the most demanding audiophile formats. From DSD up to 256 to lossless formats like FLAC and WAV, experience your music collection in uncompromising quality.
DSD Support
DFF/DSF formats up to DSD256 for audiophile playback
Lossless Formats
WAV, FLAC, APE, AIFF support up to 192kHz/32-bit
Multiple USB Inputs
3 USB host ports plus USB-DAC connectivity
Powerful Integrated Amplification
At its core, the P3 DSPA Plus houses a formidable 10-channel Class D amplifier, capable of delivering an impressive 80 watts per channel for eight channels while providing a staggering 150 watts per channel for two channels. This engineering prowess ensures extraordinary sonic output with minimal distortion.
High Power Output
8×80W + 2×150W Class D amplification
Low Distortion
THD+Noise < 0.02% for pristine audio quality
Excellent S/N Ratio
>100dB signal-to-noise ratio
10-Channel Class D
Powerful amplification with exceptional efficiency and minimal heat generation
Advanced Connectivity & Control
Multiple control options and seamless integration capabilities
Wi-Fi Control
Mobile app control for convenient wireless operation and tuning
Bluetooth 5.0
aptX, AAC, and SBC codec support for high-quality wireless streaming
PC Software
Comprehensive Windows software for detailed configuration and tuning
Optional Display
Wired panel controller with IPS display screen available
Input/Output Configuration
Inputs
High-Level Inputs 8 channels
RCA Inputs 2 channels
USB Host Ports 3 ports
USB-DAC 192kHz/32-bit
Wireless Bluetooth 5.0
Outputs
RCA Outputs 12 channels @ 6V
Amplifier Channels 8×80W + 2×150W
DSP Processing 20 channels
Remote Turn-On Yes
EPS Protection Intelligent System
The Symphony of Innovation
The P3 DSPA Plus stands as a pioneering marvel, meticulously designed to cater to the discerning tastes of 20-channel car audio enthusiasts. However, it transcends being merely a high-performance audio device; it emerges as a true all-in-one digital powerhouse, redefining the boundaries of automotive audio technology.
What truly sets the P3 DSPA Plus apart is its integrated professional-grade DSP tuning. This transformative feature empowers you with a remarkable 31-band EQ output with independent adjustment, granting you absolute control to sculpt your audio perfectly. Moreover, the P3 DSPA Plus offers a sophisticated 5-band EQ/delay input pre-adjustment, allowing you to fine-tune your audio before it reaches the amplifiers.
The result? Unparalleled clarity, a multi-dimensional soundstage, and an auditory experience that defies conventional expectations. Through a seamless blend of cutting-edge technology and an unwavering commitment to audio excellence, the P3 DSPA Plus promises to elevate your car audio experience to new heights.
It ensures that every note, every beat, and every melody is a testament to the engineering brilliance that defines this symphony of innovation. It's more than an audio player; it's the embodiment of automotive audio perfection for the true connoisseur of sound. Step into the world of automotive audio luxury with the P3 DSPA Plus and let your ears revel in the harmonious symphony of superior sound.
