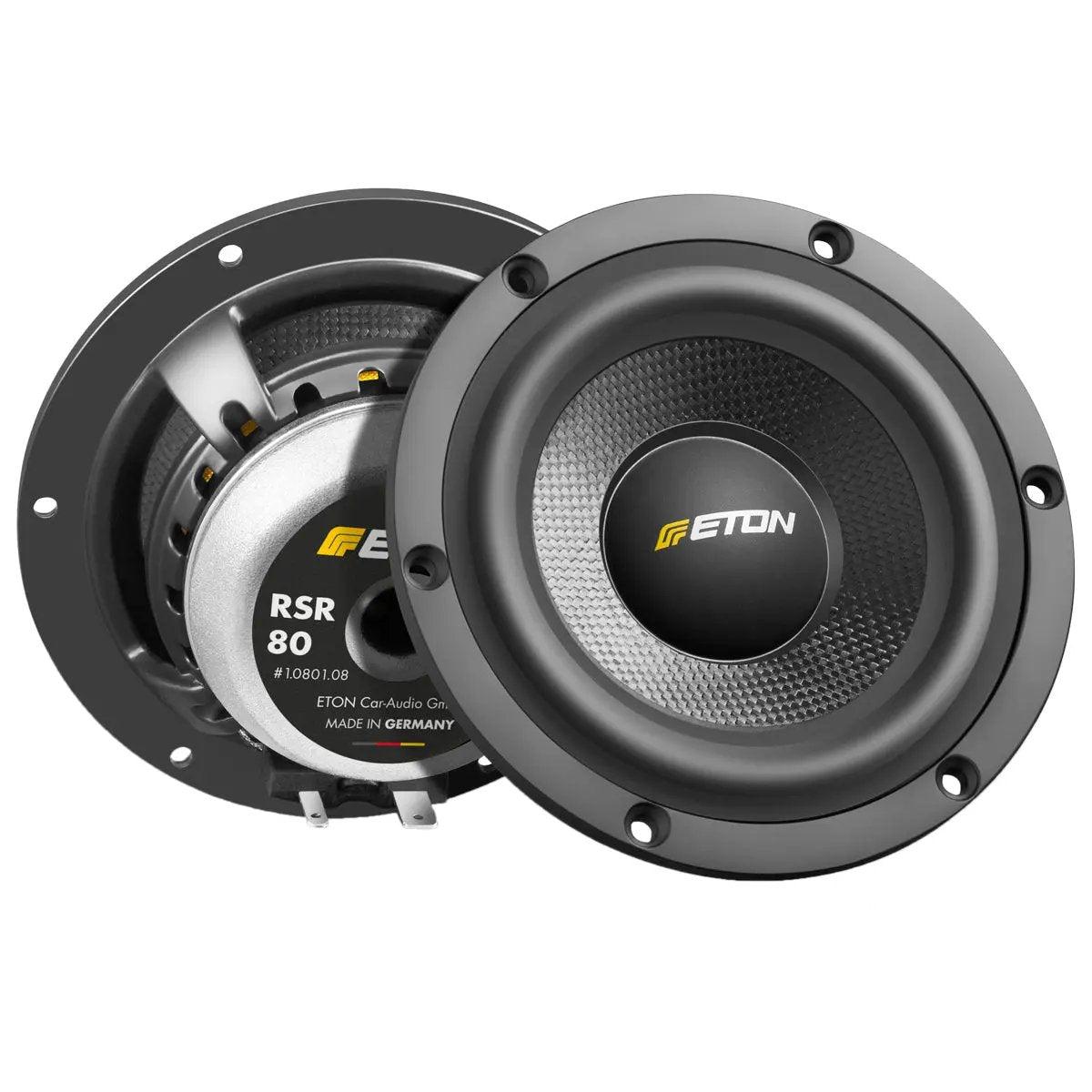

Eton RSR 80 3" Midrange Driver

Eton RSR 80 – 80mm (3") Competition Midrange

Reference Sound Series | Carbon-Rohacell Sandwich Technology | Made in Germany Engineering Excellence

New Old Stock (NOS) – This competition-grade midrange represents the pinnacle of Eton's Reference Sound Series engineering. Built for discerning audiophiles and sound quality competitors, this 3" driver features the legendary Carbon-Rohacell-Glass Fiber sandwich cone technology that dominated European car audio competitions. Manufactured in Germany with Eton's renowned build quality, this midrange is designed to upgrade the RSR 160 system to a true 3-way configuration delivering ultra-detailed vocal reproduction and expansive midrange clarity.

Carbon-Rohacell Sandwich Cone Technology

The RSR 80's three-layer composite cone represents aerospace-grade engineering applied to automotive audio. This proprietary sandwich construction combines carbon fiber outer skins with a Rohacell PMI foam core—the same structural material used in Formula 1 racing chassis and aerospace composite panels.

This multi-material approach achieves what single-material cones cannot: pistonic movement below 10kHz with zero cone flexure. When voices or instruments reach transient peaks, the cone accelerates and decelerates as a rigid piston—maintaining perfect time alignment between direct sound and reflected acoustics. The result is vocal reproduction so transparent that you can identify individual studio microphone characteristics in well-recorded tracks.

Neodymium Motor System with Optimized Magnetic Field Symmetry

The RSR 80 employs a powerful neodymium magnet assembly with precision-machined pole geometry that eliminates the asymmetric distortion common in conventional motors. Eton's engineers spent hundreds of hours analyzing magnetic flux density distribution using finite element analysis (FEA) software to achieve perfect magnetic field symmetry.

This motor topology ensures the voice coil operates in a uniform magnetic field regardless of excursion position. The force moving the cone forward equals the force pulling it backward—meaning your amplifier's signal translates into cone motion with microscopic accuracy. Complex musical passages maintain perfect clarity because individual notes reproduce without intermodulation distortion artifacts.

Powder-Coated Aluminum Die-Cast Basket with Flow-Optimized Ventilation

Eton's basket design represents the intersection of mechanical engineering and acoustic science. The aluminum die-cast structure provides a rigid mounting platform that prevents basket resonances from coloring sound, while the flow-optimized spoke geometry ensures efficient air circulation without generating audible wind noise.

This level of basket engineering is typically reserved for ultra-premium studio monitor drivers costing hundreds of dollars individually. Eton applies this same manufacturing precision to every RSR series component, ensuring that system performance matches theoretical design capabilities in real-world automotive installations.

Optimal Crossover Design for 3-Way Systems

The RSR 80's 130Hz resonance frequency and 150Hz-10kHz operating range make it the perfect midrange for true 3-way systems. This driver fills the critical frequency band where male and female vocal fundamentals reside—the octaves from approximately 150Hz to 3kHz where the human ear exhibits maximum sensitivity.

By relieving the RSR 160 woofer of midrange duties above 200Hz, you eliminate the cone breakup and beaming issues that compromise 2-way systems. The 6.5" woofer now operates solely in its pistonic range, while the 3" midrange handles vocals and upper midrange with 130-degree off-axis dispersion—creating a soundstage that wraps around listeners rather than beaming from door panels.

Installation Considerations and Placement Strategy

The RSR 80's compact dimensions and shallow mounting depth provide exceptional installation flexibility. However, midrange placement profoundly affects soundstage height, depth, and imaging precision—making strategic installation planning as important as component selection.

Critical Installation Notes: The 33.9mm shallow mounting depth fits locations where conventional midranges cannot, but remember the 165mm outer diameter requires adequate clearance behind door panels or trim pieces. The RSR 80 ships with a protective grille—use it in exposed locations where physical protection is needed, but remove it for competition judging as the grille introduces minor high-frequency response ripples.

Ensure the mounting surface provides rigid support—the lightweight carbon-rohacell cone reveals every vibration in its mounting panel. Damping material (CLD tiles or closed-cell foam) applied to the reverse side of the mounting surface eliminates panel resonances that otherwise color midrange tonality.

Four Decades of Bavarian Manufacturing Excellence

Founded in 1983 in Bavaria, Germany, Eton Soundsysteme GmbH has spent over 40 years perfecting the science of automotive loudspeaker design. While many car audio brands outsource manufacturing to reduce costs, Eton maintains complete in-house control—from initial acoustic modeling through final quality inspection—at their German facility.

This commitment to "Made in Germany" manufacturing ensures that every RSR series driver meets exacting tolerances unachievable in mass-production facilities. German labor costs and stringent environmental regulations make Eton products more expensive than competitors, but the investment yields drivers that maintain performance specifications for decades rather than years.

The Reference Sound Series (RSR) represents Eton's upper-tier product line—positioned between their value-oriented POW series and flagship PRO series. RSR components deliver 80-90% of PRO series performance at approximately half the cost, making reference-grade sound quality accessible to serious enthusiasts who demand manufacturing excellence without exotic pricing.

European Sound Quality Competition Dominance

While American car audio culture emphasizes SPL (sound pressure level) competitions, European enthusiasts prioritize EMMA sound quality judging—objective measurements of tonal accuracy, soundstage geometry, and imaging precision. Eton's RSR and PRO series components consistently appear in championship-winning vehicles at EMMA finals across Europe.

EMMA judging criteria include:

• Tonal Accuracy: Frequency response linearity measured with calibrated microphones—the carbon-rohacell cone's pistonic behavior achieves ruler-flat response within ±2dB across the critical midrange
• Soundstage Dimensions: Width, height, and depth of the perceived acoustic space—proper RSR 80 placement creates vocalist images at dashboard height with instrument placement extending beyond door panels
• Center Image Focus: Vocalist appears precisely centered between driver and passenger—achievable only when left and right channel arrival times match within 0.5 milliseconds (requiring careful time alignment)
• Imaging Precision: Individual instrument localization within the soundstage—the RSR 80's wide dispersion pattern creates believable instrument positioning rather than left-right stereo panning

Eton drivers succeed in this judging environment because German engineering prioritizes measurable performance over marketing specifications. When competition judges place calibrated microphones in the listening position, Eton systems deliver the frequency response, phase coherence, and distortion performance their specifications promise.

Aerospace-Grade Core Material in Automotive Audio

Rohacell is a proprietary polymethacrylimide (PMI) closed-cell rigid foam manufactured by Evonik Industries in Germany. This material wasn't developed for loudspeakers—it was engineered for aerospace composite sandwich panels where weight reduction and structural rigidity determine mission success.

Formula 1 racing teams use Rohacell in carbon fiber chassis construction. Aerospace manufacturers employ it in aircraft fuselage panels and helicopter rotor blades. The material achieves what seems physically impossible: lower density than Styrofoam with compressive strength approaching aluminum.

When sandwiched between carbon fiber and glass fiber skins, Rohacell creates a composite cone structure with bending stiffness comparable to solid aluminum at a fraction of the weight. This allows the RSR 80's cone to accelerate and decelerate instantaneously in response to amplifier signals—reproducing attack transients (drum hits, guitar plucks, vocal consonants) with microsecond accuracy.

The Audible Difference: Transient Response and Harmonic Purity

Most midrange drivers employ polypropylene or paper cones because these materials cost pennies to manufacture. While adequate for casual listening, these conventional materials exhibit mechanical limitations that become audible during critical listening or competition judging.

The practical result: Vocals sound like human voices rather than reproductions. You hear subtle breath sounds between phrases, the texture of vocal cord vibration, the acoustic signature of the recording studio. Guitar strings resonate with metallic shimmer. Drum hits have impact and decay. The RSR 80 doesn't add a sonic "signature"—it reveals what's actually recorded on the source material.

Complete Honesty About Product Condition

This is New Old Stock (NOS) product: Authentic Eton RSR 80 midrange driver from original German production, stored in unopened factory packaging since manufacturing. This driver has never been installed, powered, or used in any capacity.

Why NOS Product Availability: Eton periodically updates their product lines with new technologies and revised specifications. When a series transitions to a new generation, remaining inventory of the previous generation becomes "New Old Stock." These drivers represent identical manufacturing quality and specifications as original retail units—the only difference is they sat in secure distributor warehouses rather than dealer shelves.

Break-In Expectations: Like all high-performance drivers with stiff suspensions, the RSR 80 requires 20-50 hours of moderate-level operation for optimal performance. During initial use, the suspension gradually becomes more compliant, slightly lowering resonance frequency and improving low-frequency extension. This is normal behavior for competition-grade drivers and does not indicate a defect.

Upgrading RSR 160 or CSR 16 Systems to 3-Way Configuration

The RSR 80 was specifically engineered to complete Eton's Reference Sound Series ecosystem. While the RSR 160 (6.5" 2-way component system) delivers excellent performance, adding the RSR 80 midrange transforms it into a true reference-grade 3-way system rivaling factory installations in luxury vehicles.

Competitors running RSR 160 2-way systems score in the 85-90 point range at EMMA events. Those same competitors upgrading to RSR 160 + RSR 80 3-way configurations consistently score 92-96 points—the difference between "Expert" class and podium finishes. This 5-7 point improvement stems entirely from improved midrange performance and soundstage geometry.

Amplification Requirements and Signal Processing

The RSR 80's 87dB sensitivity and 4-ohm impedance make it relatively easy to drive, but extracting competition-grade performance requires thoughtful amplification and crossover implementation.

Critical Note: The 20-watt RMS power handling represents thermal limits, not mechanical limits. The RSR 80's suspension and cone can handle much higher instantaneous power during transients (drum hits, vocal peaks). However, continuous operation above 20 watts generates voice coil temperatures exceeding 200°C, causing adhesive breakdown and eventual failure. Size your amplifier appropriately—more power is not better for this application.

German Engineering at Accessible Pricing

Competition-grade 3" midrange drivers with comparable specifications typically command $200-400 per pair from premium brands. The RSR 80's positioning in Eton's Reference Sound Series delivers flagship-level engineering at mid-tier pricing—making German manufacturing quality accessible to serious enthusiasts.

Competitive Alternatives Comparison: Comparable 3" competition midranges include Focal PS 80F (French), Morel MT-350 (Israeli), and Audio Frog GS30 (American). All deliver excellent performance, but the Eton RSR 80 distinguishes itself through rohacell foam core technology and German manufacturing—attributes shared with studio monitor drivers costing hundreds per unit.

For enthusiasts building reference-grade systems on realistic budgets, the RSR 80 represents the performance sweet spot: flagship materials and engineering without exotic pricing. You're paying for measurable performance improvements rather than brand markup.

New Old Stock Availability Context

Eton periodically refreshes their product lines with updated technologies and revised aesthetics. When the RSR series transitioned to newer iterations, remaining inventory of original RSR 80 drivers became New Old Stock. These drivers represent the exact same specifications, materials, and manufacturing quality as original retail units—they simply sat in secure distributor warehouses rather than dealer showrooms.

Scarcity Consideration: As NOS inventory depletes through sales, replacement inventory does not exist. Eton's current production focuses on newer series, making original RSR 80 drivers increasingly difficult to source. For enthusiasts seeking to complete RSR 160 system upgrades or replace damaged midranges, available NOS inventory represents the final opportunity to source these drivers in new condition.

This scarcity dynamic affects value perception: German-manufactured drivers retain value better than mass-produced alternatives. Five years from now, an RSR 80 in new condition will likely command premium pricing due to limited availability—making today's acquisition both a performance upgrade and a sound investment.

The Eton RSR 80 Advantage

• Carbon-Rohacell-Glass Fiber Sandwich Cone: Aerospace-grade composite construction delivers pistonic motion to 10kHz with zero cone breakup
• Neodymium Motor with Optimized Field Symmetry: High-energy rare-earth magnet provides 87dB sensitivity with symmetric BL curve eliminating even-order distortion
• Made in Germany Quality: Hand-assembled in Bavaria with individual testing ensuring every driver meets exacting specifications
• Shallow 33.9mm Mounting Depth: Fits installation locations where conventional midranges cannot, enabling optimal soundstage positioning
• RSR 160 System Integration: Purpose-engineered to upgrade 2-way systems to competition-grade 3-way configuration
• EMMA Competition Pedigree: Proven performance in European sound quality championships validates real-world capabilities
• New Old Stock Condition: Unopened factory packaging with zero use hours—full manufacturer specifications guaranteed
• Aluminum Die-Cast Basket: Precision-engineered platform with flow-optimized ventilation and powder-coat corrosion resistance
• Reference-Grade Performance: Flagship materials and engineering at mid-tier pricing—exceptional value proposition
• Long-Term Durability: Carbon-rohacell construction maintains performance for decades, not years

For Serious Enthusiasts and Competitors: The Eton RSR 80 represents the final opportunity to source New Old Stock units of this competition-proven midrange. German engineering, aerospace-grade materials, and EMMA championship pedigree combine to deliver reference-grade vocal reproduction that transforms good systems into great ones. Whether you're upgrading an existing RSR 160 installation or building a new competition system, this driver provides the midrange clarity and soundstage precision that separate podium finishers from participants.
