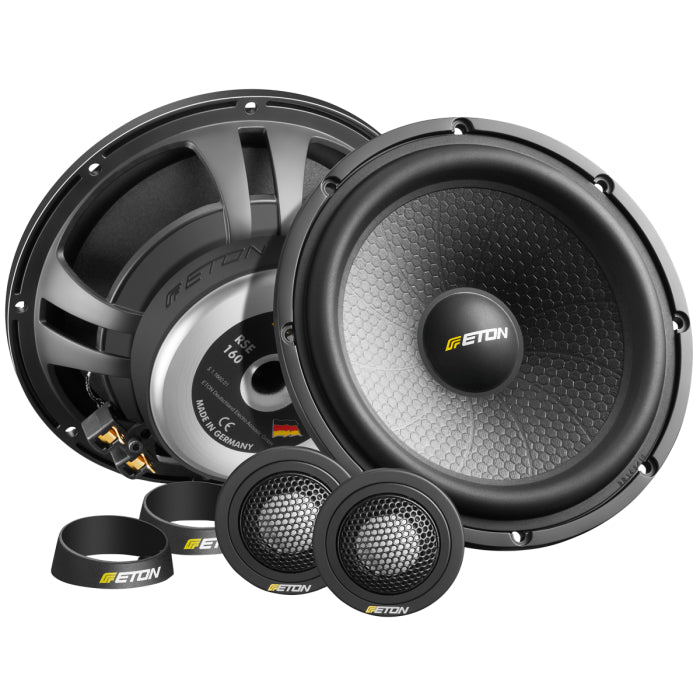

Eton RSE 160
6.5" 2-Way Component System with PSP Cone Technology
Made in Germany PSP Technology Ceramic-Aluminum Tweeter 70W RMS
Product Overview
The Eton RSE 160 represents 35+ years of German engineering excellence, delivering audiophile-grade sound quality through proprietary PSP (Paper-Sandwich-Paper) cone technology. This premium 6.5" 2-way component system combines a low-resonance paper-foam-paper composite midrange driver with an exotic 25mm ceramic-aluminum tweeter for crystalline high-frequency reproduction. Engineered for discerning listeners demanding natural tonal balance, the RSE 160 delivers powerful, dynamic bass, warm, voluminous midrange, and ultra-fine highs without harshness or listener fatigue.
Unlike mass-market component speakers relying on generic cone materials and entry-level tweeters, the RSE 160 features die-cast aluminum baskets, optimized ferrite magnet systems, and specially-tuned external crossovers for precise frequency division. The shallow 60mm mounting depth enables installation in tight factory locations, while 89 dB sensitivity ensures excellent performance with both factory amplifiers (30-40W) and aftermarket systems up to 120W music power. Manufactured in Germany with rigorous quality control, the RSE 160 sets a benchmark for mid-tier component speakers prioritizing sound quality over artificial brightness.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | RSE 160 (ET-RSE160) |
| Manufacturer | Eton Audio (Germany) |
| System Type | 2-Way Component Set |
| Woofer Size | 165mm (6.5 inch) |
| Tweeter Size | 25mm (1 inch) Ceramic-Aluminum Dome |
| RMS Power | 70 Watts (per speaker) |
| Peak Power | 120 Watts (music power) |
| Sensitivity | 89 dB (2.83V / 1m) |
| Impedance | 4 Ohm (nominal) |
| Frequency Response | 50 Hz – 3,000 Hz (woofer), 1,800 Hz – 40,000 Hz (tweeter) |
| Resonance Frequency (Fs) | 73 Hz |
| Xmax (Mechanical) | ±9.2mm |
| Voice Coil Diameter | 32mm (1.26 inch) |
| Outer Diameter | 165mm |
| Cutout Diameter | 146mm |
| Mounting Depth | 60mm (2.36 inch) - Shallow-Mount |
| Basket Material | Die-Cast Aluminum (Powder-Coated) |
| Cone Material | PSP (Paper-Sandwich-Paper) Composite with Foam Layer |
| Spider Material | Nomex Dual-Layer (High-Temperature) |
| Magnet Material | Ferrite (Optimized Magnetic Field Symmetry) |

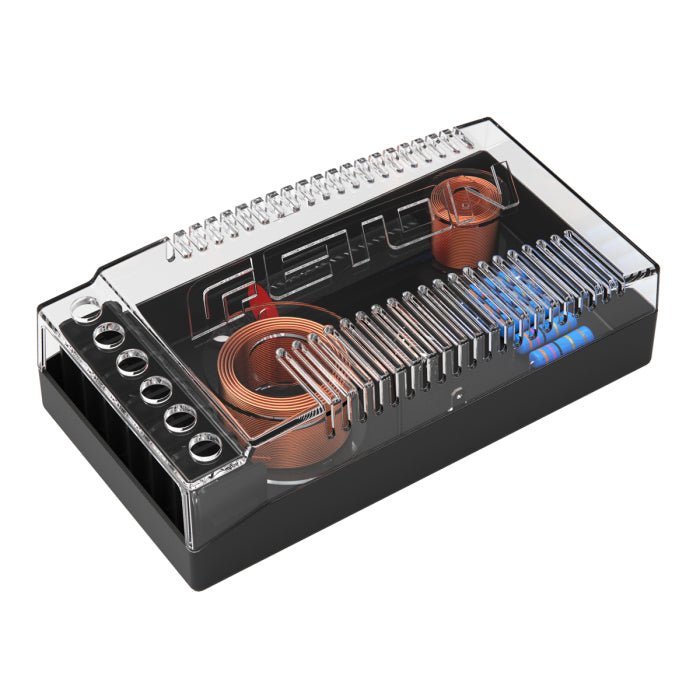

| Crossover | External 2-Way Passive (Specially-Tuned Housing) |
| Weight (per woofer) | 1.1 kg (2.4 lbs) |
| Manufacturing | Made in Germany |
| Warranty | 2 Years Manufacturer Warranty |
| Sale Price | $799.99 USD (pair) |
Key Features & Technologies

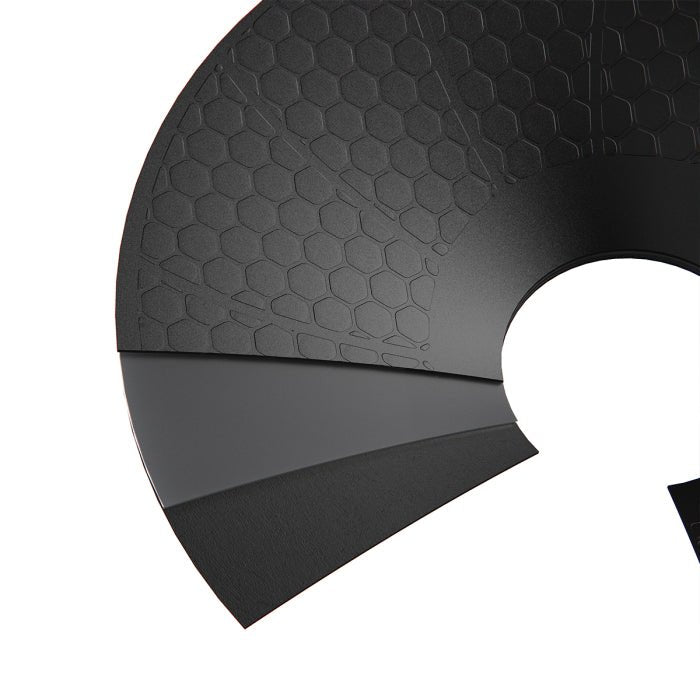

PSP Cone Technology
Proprietary Paper-Sandwich-Paper (PSP) composite cone with special embossing and foam inner layer delivers low-resonance, clean, open-sounding midrange. The sandwich construction combines the natural damping of paper with foam's energy absorption, eliminating coloration and ringing. PSP technology produces warm, voluminous midrange with exceptional vocal clarity—ideal for acoustic, jazz, and classical genres.

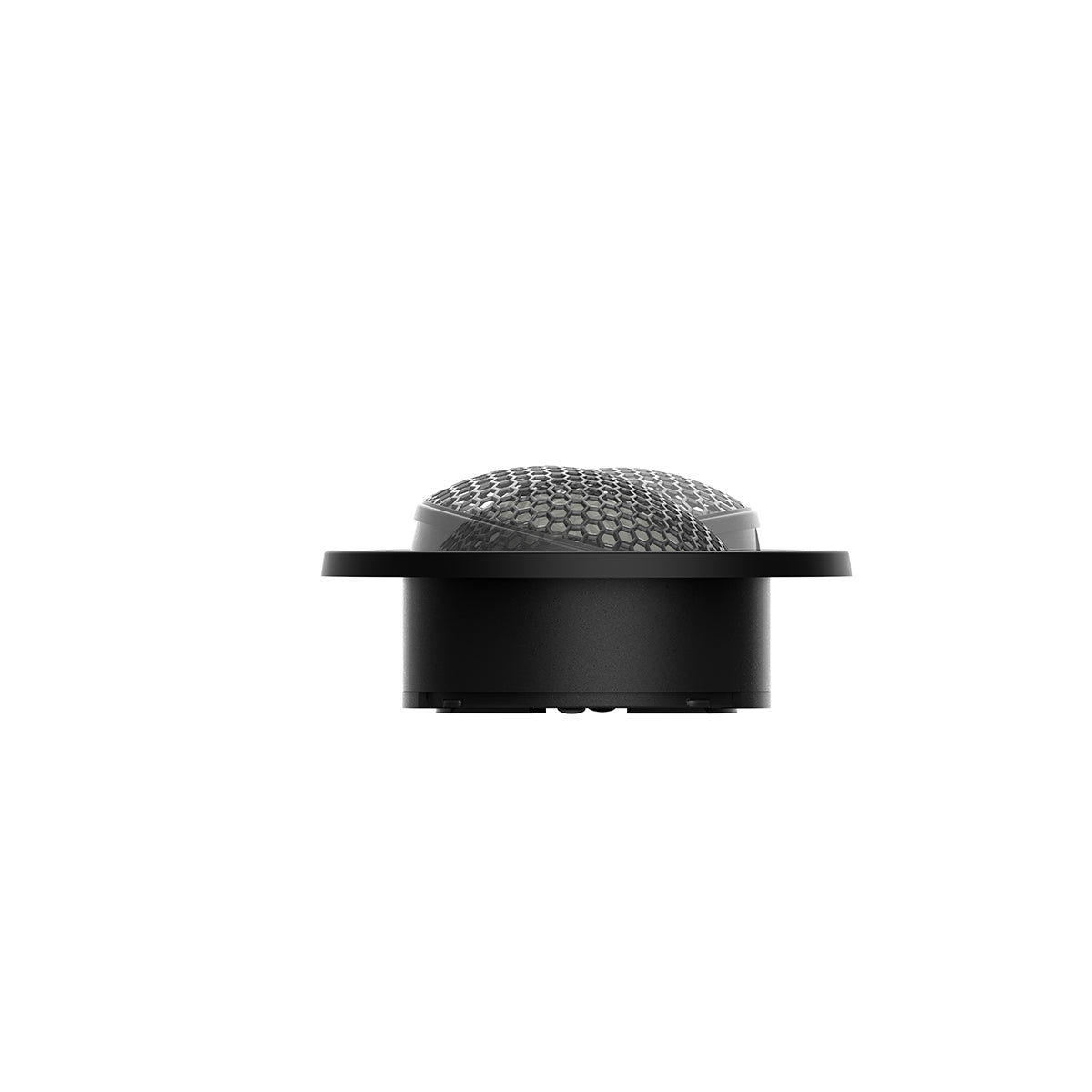

25mm Ceramic-Aluminum Tweeter
Exotic ceramic-aluminum alloy dome borrowed from Eton's high-end home audio tweeters delivers ultra-fine highs up to 40kHz. Swivel and rotate function enables precise radiation pattern adjustment for optimal soundstage imaging. Vented coil design with finely-wrapped copper-finished aluminum wire ensures clearest highs without harshness, harmonizing perfectly with PSP midrange driver.

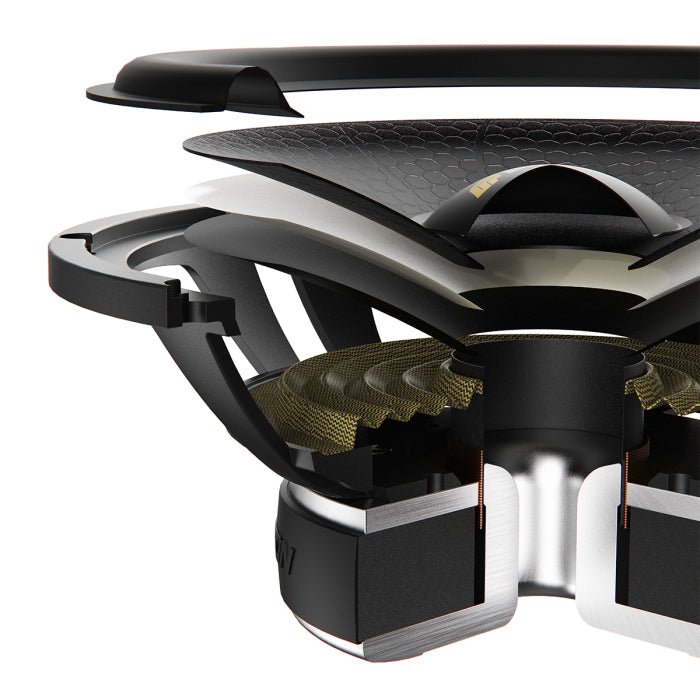

Die-Cast Aluminum Basket
Powder-coated die-cast aluminum basket provides increased stability with minimum weight for reduced resonance. Flow-optimized ventilation design ensures efficient heat dissipation during high-power operation. Corrosion-resistant finish guarantees long-term durability in automotive environments. Aluminum construction delivers maximum precision by eliminating basket flexing common in stamped steel designs.
Optimized Ferrite Magnet System
Flat, extremely powerful ferrite magnet with optimized magnetic field symmetry and gloss-turned pole plate ensures powerful, dynamic bass. Large core bore and specialized ventilation ducts provide optimized heat dissipation without flow noise. Precision manufacturing maintains consistent magnetic field geometry for linear cone excursion and low distortion—critical for audiophile sound quality.
Heavy-Duty 32mm Voice Coil
Extremely resilient 32mm voice coil with dual fiber Nomex centering provides stable, long-term elastic suspension. High-temperature construction withstands power surges and thermal fluctuations typical in automotive installations. Light yet robust design ensures impulse fidelity and optimal working range with high symmetry. Superior thermal management prevents power compression during extended high-volume playback.
Shallow 60mm Mounting Depth
Compact 60mm (2.36") mounting depth enables installation in factory door locations with limited clearance. Shallow-mount design maintains full performance capability without compromising excursion or bass output. Compatible with most European and Japanese vehicles with tight door cavity constraints. Professional installation recommended to verify clearance with window mechanisms and inner door panels.
Why Choose Eton RSE 160?
- German Engineering Heritage: 35+ years of Eton precision manufacturing expertise with Made in Germany quality control
- PSP Cone Technology: Proprietary paper-foam-paper sandwich composite delivers low-resonance, natural midrange reproduction
- Exotic Ceramic-Aluminum Tweeter: Home audio-grade 25mm dome borrowed from Eton's flagship series for ultra-fine highs
- Powerful 70W RMS Rating: Robust power handling works with factory amplifiers (30-40W) or aftermarket systems up to 120W peak
- Shallow-Mount Design: 60mm mounting depth fits tight factory door locations in European and Japanese vehicles
- Optimized Ferrite Magnet: High-flux density motor structure with thermal management for powerful, dynamic bass
- Specially-Tuned Crossovers: External passive crossovers engineered for precise frequency division and phase coherence
- Adjustable Tweeter Radiation: Swivel/rotate function enables soundstage optimization for off-axis listening positions
Installation & Compatibility
Universal Fitment
Standard 165mm (6.5") mounting pattern with 8-hole configuration fits most factory door locations. Cutout diameter: 146mm matches common European and Japanese vehicle speaker openings. Verify mounting depth clearance (60mm minimum) before installation to prevent window regulator interference. Aftermarket speaker adapters may be required for certain vehicles.
Amplifier Requirements
Minimum: 30W RMS @ 4Ω per channel (factory head unit compatible). Recommended: 50-70W RMS @ 4Ω for optimal performance. Maximum: 120W peak power (avoid sustained clipping). 4Ω nominal impedance compatible with factory and aftermarket amplifiers. Aftermarket DSP integration unlocks full potential through active crossover and time-alignment tuning.
Tweeter Mounting Options
Surface-mount tweeter cups included for A-pillar, sail panel, or dash installation. Swivel/rotate mechanism enables precise aiming toward listening position. Flush-mount option available with optional mounting rings (sold separately). Professional installation recommended for optimal tweeter placement and soundstage imaging. Avoid tweeter locations with direct sunlight exposure (thermal protection).
Package Contents
Included in Box: (2) 165mm PSP woofers with aluminum baskets, (2) 25mm ceramic-aluminum tweeters with swivel mounts, (2) External passive crossover networks (specially-tuned), (8) Mounting screws, (2) Speaker grilles (optional), Installation manual with wiring diagrams, 2-year manufacturer warranty card.
Important Considerations
- Professional Installation Highly Recommended: Component speaker installation requires door panel removal, wiring routing, tweeter mounting, and crossover placement expertise. Incorrect installation may damage factory trim, window regulators, or electrical systems. Budget $150-$300 for professional labor.
- Amplifier Power Matching Critical: While 70W RMS power handling accommodates factory amplifiers, optimal performance requires 50-70W RMS clean power @ 4Ω. Underpowered installations (<30W) result in limited dynamic range and bass output. Overpowered installations (>120W peak) risk voice coil damage from clipping distortion.
- Door Dampening Essential for Bass Performance: Factory door panels lack acoustic sealing and vibration dampening. Install Dynamat or equivalent sound deadening material ($50-$100 per door) to eliminate panel resonance and maximize bass output. Without dampening, expect 30-40% bass loss and audible rattles at high volume.
- Mounting Depth Verification Required: 60mm shallow-mount design fits most vehicles, but verify clearance with window regulator mechanisms, inner door bracing, and lock assemblies before purchase. European vehicles (Audi, BMW, Mercedes) typically accommodate 60mm depth; some Japanese vehicles require spacer rings.
- Tweeter Placement Affects Soundstage: Factory door-mounted tweeter locations produce inferior imaging vs. A-pillar or sail panel mounting. Budget time for custom tweeter mounting and crossover tuning to achieve audiophile-grade soundstage depth and width. Professional tuning services ($200-$400) optimize time-alignment and frequency response.
- Break-In Period Required: Allow 30-50 hours of moderate-volume playback for PSP cone and Nomex spider suspension to fully settle. Initial sound may appear slightly restricted; full bass extension and midrange warmth emerge after break-in completes. Avoid sustained high-volume playback during first 20 hours.
- Mid-Tier Pricing Reflects German Manufacturing: $799.99 retail price positions RSE 160 in premium mid-tier segment. Budget-conscious buyers may find entry-level component sets at $200-$400, but sacrifice PSP cone technology, German engineering, and Eton's legendary midrange performance. Value proposition centered on natural tonal balance vs. artificial brightness.
Performance Analysis
Sound Quality
PSP cone technology delivers warm, natural midrange with exceptional vocal clarity. Ceramic-aluminum tweeter produces crystalline highs without harshness. Ideal for acoustic, jazz, and classical genres prioritizing tonal accuracy over artificial brightness.
Bass Output
Optimized ferrite magnet and 9.2mm Xmax deliver powerful, dynamic bass down to 50Hz. PSP cone's low resonance provides tight, controlled low-frequency reproduction. Requires proper door dampening and 50W+ amplifier power for full bass potential.
Power Efficiency
89 dB sensitivity ensures excellent output capability with factory amplifiers (30-40W). Performs acceptably with head unit power; unlocks full potential with 50-70W RMS aftermarket amplification. 4Ω impedance compatible with most amplifier configurations.
Installation Complexity
Standard 165mm mounting pattern fits most vehicles. 60mm shallow-mount design accommodates tight door cavities. Tweeter mounting requires A-pillar/sail panel customization. Professional installation recommended for optimal crossover placement and wiring routing.
Durability
Die-cast aluminum baskets and Nomex spiders withstand automotive temperature extremes. Heavy-duty 32mm voice coil resists thermal compression. German manufacturing quality ensures 10+ years of reliable performance with proper installation and usage.
Soundstage Imaging
Adjustable tweeter radiation enables precise soundstage optimization. Proper A-pillar mounting creates expansive front soundstage with natural instrument placement. Requires DSP time-alignment for audiophile-grade imaging depth and width.
Ideal Customer Profile
✅ Perfect For:
Audiophiles Seeking Natural Tonal Balance: Listeners prioritizing warm, accurate midrange and smooth highs over artificial brightness or exaggerated bass.
Factory System Upgraders: Customers seeking significant sound quality improvement over factory speakers without extreme SPL requirements.
German Engineering Enthusiasts: Buyers valuing Made in Germany manufacturing quality, precision engineering, and long-term reliability.
Shallow-Mount Installations: Vehicle owners with tight door cavity clearance requiring 60mm or less mounting depth.
❌ Not Ideal For:
Budget-Conscious Buyers (<$400 Budget): $799.99 premium pricing may exceed budget; entry-level alternatives available at $200-$400 range sacrifice PSP technology.
SPL Competition Enthusiasts: 70W RMS power handling and 89 dB sensitivity optimized for sound quality, not maximum volume output.
DIY Novices Without Installation Experience: Component speaker installation requires door panel removal proficiency and electrical knowledge.
Bass-Heavy Genre Listeners: Natural midrange focus may not satisfy listeners demanding exaggerated bass for hip-hop, EDM, or rock genres.
Experience German Engineering Excellence
Transform your automotive audio with Eton's legendary PSP cone technology and ceramic-aluminum tweeters. Handcrafted in Germany for audiophiles demanding natural tonal balance and fatigue-free listening.
$799.99
Free Shipping | Made in Germany
6.5" 2-Way Component System • 70W RMS • 89 dB Sensitivity • ET-RSE160
