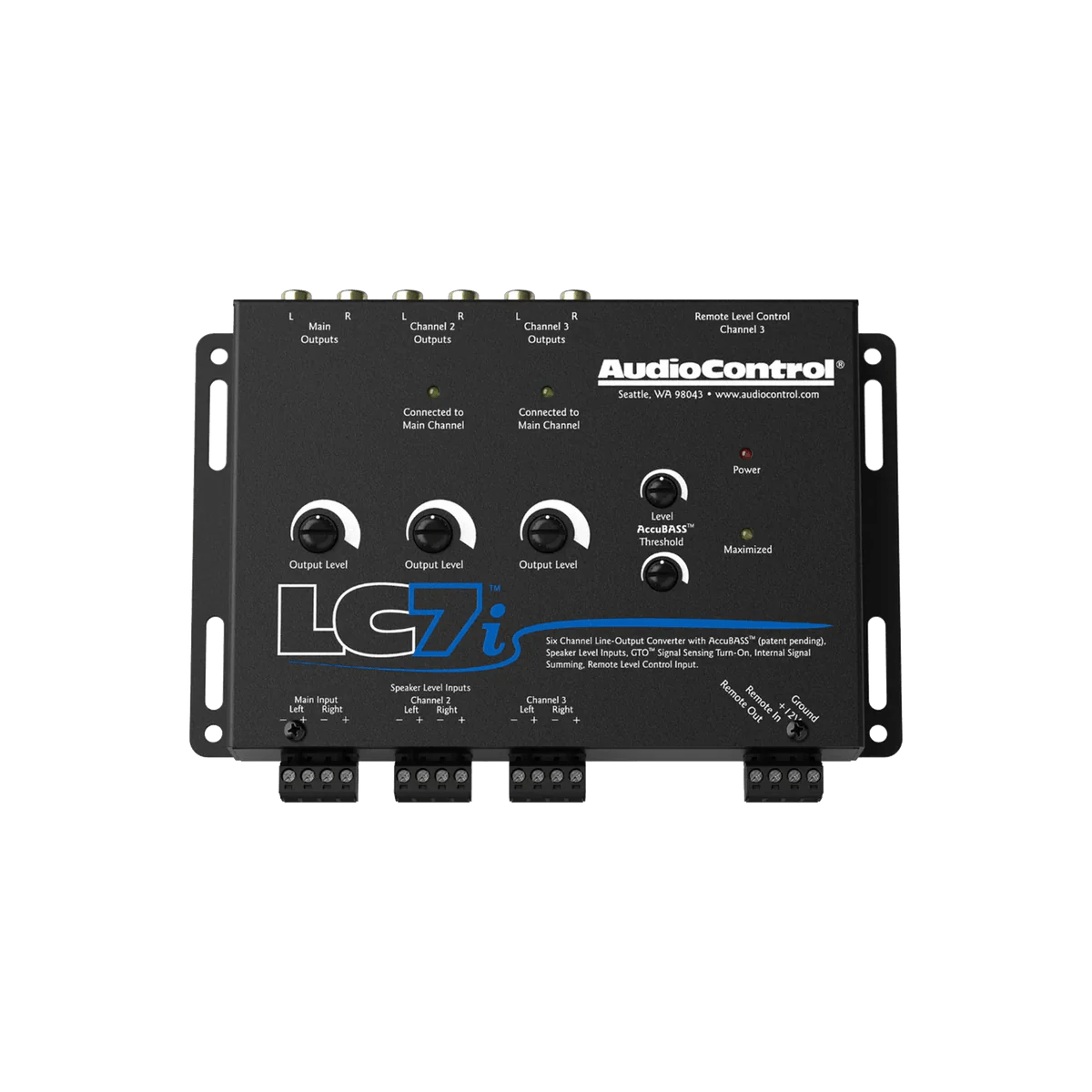

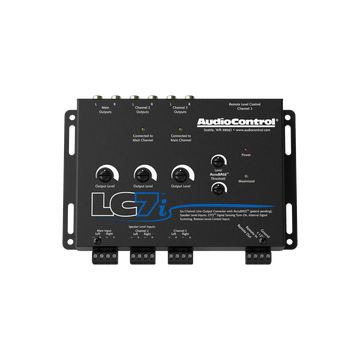

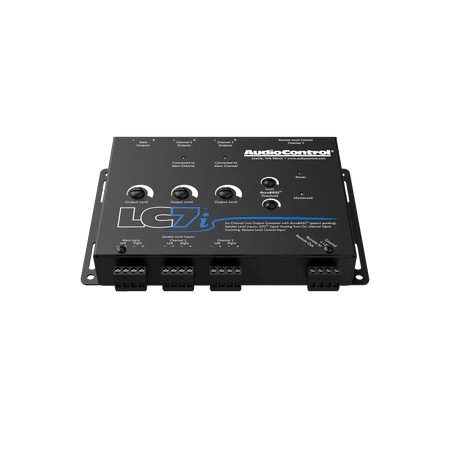

AudioControl LC7i 6 channel Active Line Converter
Regular price
$ 139.99
Sale price
$ 139.99
Regular price
$ 149.99
Unit price
Product Details
AudioControl LC7i
6-Channel Active Line Output Converter with AccuBASS™
Transform Your Factory Audio System into a High-Performance Sound Stage
$139.99
Professional-Grade Line Converter | 5-Year Warranty | Patent-Pending AccuBASS Technology
🎯 Overview: The Bridge Between Factory & Aftermarket Excellence
The AudioControl LC7i represents the gold standard in active line output converters, solving one of car audio's most frustrating challenges: extracting clean, powerful signals from factory head units to drive aftermarket amplifiers and subwoofers. Designed by AudioControl—the Seattle-based pioneers of automotive signal processing since 1977—the LC7i delivers studio-grade conversion quality while preserving your vehicle's factory infotainment features, steering wheel controls, and integrated systems.
At the heart of the LC7i lies AccuBASS™, AudioControl's patent-pending bass restoration technology that automatically corrects the low-frequency roll-off engineered into most factory systems. While OEM manufacturers intentionally reduce bass output at higher volumes to protect weak factory speakers, the LC7i intelligently restores this missing bass, delivering the full-bodied low-end response your aftermarket subwoofers and amplifiers were designed to reproduce.
⚡ Why the LC7i Exists: The Factory Audio Problem
Modern vehicles integrate head units with climate controls, navigation, backup cameras, and vehicle diagnostics—making replacement impractical or impossible. Yet factory systems suffer from compressed dynamic range, active bass roll-off, and speaker-level outputs designed for weak OEM speakers. The LC7i bridges this gap, converting high-level signals to pristine 8.5-volt RCA outputs while correcting frequency response deficiencies, enabling you to add powerful amplifiers and subwoofers without sacrificing factory functionality.
🔧 Core Technical Specifications
| INPUT SPECIFICATIONS | |
|---|---|
| Speaker Level Inputs | 3 pairs (6 channels total) |
| Maximum Input Power | 400 Watts per channel @ 4Ω |
| Input Impedance | 20kΩ (compatible with virtually all factory systems) |
| Input Compatibility | Factory head units, OEM amplifiers, Bose/premium systems |
| OUTPUT SPECIFICATIONS | |
| Preamp Outputs | 3 pairs (6 channels RCA) |
| Maximum Output Level | 8.5 Volts RMS (industry-leading voltage) |
| Output Gain Control | ±12 dB per channel pair (independent adjustment) |
| Output Impedance | 150Ω (optimized for amplifier input stages) |
| PERFORMANCE METRICS | |
| Frequency Response | 10 Hz – 22,000 Hz (±0.5 dB) |
| Total Harmonic Distortion | < 0.01% THD+N (audiophile-grade) |
| Signal-to-Noise Ratio | > 100 dB (A-weighted, typical) |
| POWER & CONTROL | |
| Operating Voltage | 10.5V – 16V DC |
| Turn-On Method | GTO™ Signal Sense (automatic) or 12V remote |
| Remote Output | +12V DC, 1 Amp maximum (triggers amplifiers) |
| Ground Isolation | Switchable (Isolated / Ground / 200Ω) |
| PHYSICAL DIMENSIONS | |
| Dimensions (W×D×H) | 7.5" × 4.7" × 1.2" (190 × 119 × 30 mm) |
| Weight | 1.5 lbs (0.7 kg) |
| Mounting | Compact form factor for under-seat/behind-dash installation |
| ADDITIONAL FEATURES | |
| AccuBASS™ Technology | Patent-pending automatic bass restoration (adjustable threshold) |
| Channel Summing | 4-channel or 6-channel summing to 2 channels (for OEM crossovers) |
| AutoMode | Channel 2 input feeds Channel 2 & 3 outputs when no Ch.3 input signal |
| Remote Control | ACR-1 wired bass remote compatible (sold separately) |
| Warranty | 5 Years (industry-leading coverage) |
🌟 Key Features & Technology Deep Dive
Patent-Pending AccuBASS™
Automatically detects and corrects the bass roll-off engineered into factory systems at higher volumes. Unlike passive line converters, AccuBASS dynamically restores low-frequency energy as you turn up the volume, ensuring subwoofers receive the full bass signal they need. Adjustable threshold lets you tailor restoration to your specific factory system's characteristics.
8.5 Volt RMS Output
Industry-leading output voltage ensures maximum signal strength to your amplifiers, improving signal-to-noise ratio and reducing gain-related noise. Higher voltage outputs allow amplifiers to operate with lower gain settings, minimizing hiss and maximizing dynamic range—critical for high-end systems.
Advanced Channel Summing
Intelligently combines multiple factory crossover outputs (tweeter, midrange, woofer) into full-range signals for aftermarket processors. Essential for premium OEM systems like Bose, Harman Kardon, and Bang & Olufsen that use active crossovers with separate speaker-level signals. No external summing cables required.
Active Input Circuitry
Buffered 20kΩ input impedance prevents loading down factory amplifiers, maintaining proper operation of OEM systems. Unlike resistor-based passive converters, active circuitry preserves signal integrity and prevents factory amplifier shutdown errors in vehicles with load-sensing circuits.
Independent Gain Controls
Each of the three channel pairs features ±12 dB output level adjustment, allowing precise matching to amplifier input sensitivities. Optimize signal levels for front channels, rear fill, and subwoofer outputs independently—critical for balanced system tuning and preventing clipping.
GTO™ Signal Sense
AudioControl's proprietary DC offset detection technology auto-turns the LC7i on when it detects audio signal, eliminating the need to tap into factory 12V remote wires (often difficult or impossible in modern vehicles). Also supports traditional 12V remote input for maximum compatibility.
Switchable Ground Isolation
Three-position ground switch (Isolated/Ground/200Ω) eliminates ground loop noise in challenging factory system configurations. Start with fully isolated (factory setting) for cleanest signal path, then adjust if needed to eliminate hum or alternator whine—critical for sensitive amplifier installations.
ACR-1 Remote Compatible
Optional ACR-1 wired remote (sold separately) provides dash-mounted control of Channel 3 output level—ideal for subwoofer bass control from the driver's seat. LED indicator confirms system operation, and compact design allows under-dash or custom in-dash mounting.
🚗 Installation Guidance & Best Practices
Recommended Installation Workflow
- Signal Source Identification: Locate factory speaker wires at the head unit harness or OEM amplifier output. Use a multimeter to identify positive/negative pairs for each channel. For premium systems (Bose, Harman, etc.), map all crossover outputs (tweeter, mid, woofer) for proper summing configuration.
- Physical Mounting Location: Choose a location with good ventilation and minimal exposure to moisture—under front seats or behind the dash are ideal. Ensure access to RCA input/output adjustments for tuning. Mount securely using included hardware or industrial Velcro to prevent vibration-induced failures.
- Speaker-Level Input Wiring: Connect factory speaker wires to LC7i input terminals (removable blocks accommodate up to 12 AWG). Maintain proper polarity (positive to positive, negative to negative). For premium systems with active crossovers, refer to AudioControl's summing diagrams in the LC7i manual to combine signals correctly.
- RCA Output Configuration: Connect LC7i RCA outputs to amplifier inputs. Typical configuration: Channels 1-2 (front), Channels 3-4 (rear), Channels 5-6 (subwoofer). Use quality RCA cables with proper shielding (twisted-pair construction) to minimize interference—avoid routing near power cables.
- Power & Ground Connections: Connect +12V to constant or switched power source (10 AWG minimum), ground to clean chassis ground point (sand to bare metal for best conductivity). Set ground isolation switch to "Isolated" position initially—only adjust if ground loop noise occurs during system testing.
- Turn-On Signal Setup: For automatic operation, leave 12V remote input disconnected and rely on GTO™ Signal Sense. If factory system has issues with signal sensing (rare), tap into factory amplifier's remote wire and connect to LC7i's remote input. Verify LC7i powers on/off with head unit.
- AccuBASS™ Calibration: Set AccuBASS threshold to approximately 12 o'clock position initially. Play music with strong bass content and increase factory head unit volume to 75-80% maximum. If bass becomes weak or thin at high volumes, increase AccuBASS threshold (turn clockwise). If bass becomes boomy or overwhelming, decrease threshold. Goal: consistent bass response across entire volume range.
- Output Level Adjustment: Set all LC7i output level controls to minimum (-12 dB). Gradually increase each channel pair's level while playing test tones, monitoring amplifier clipping indicators. Optimize levels so amplifiers reach full output with LC7i gains around 50-75%—this maximizes signal-to-noise ratio while preventing input clipping.
- System Integration Testing: Test all head unit functions (volume, fade, balance, EQ) to verify proper integration. Confirm subwoofer output tracks with factory bass settings. Check for ground loop noise, alternator whine, and speaker pop/thump during power on/off cycles. If issues arise, adjust ground isolation switch.
- ACR-1 Remote Installation (Optional): If using ACR-1 bass remote, mount in accessible location (under dash, center console). Connect control cable to LC7i's remote port. ACR-1 adjusts Channel 3 output level only—ensure subwoofer amplifier is connected to LC7i Channels 5-6 for bass control functionality.
⚠️ Critical Installation Notes:
• Premium Factory Systems: Vehicles with Bose, Harman Kardon, Bang & Olufsen, or other premium systems often use active crossovers with separate tweeter/mid/woofer outputs. Consult AudioControl's system-specific summing diagrams to combine signals properly—incorrect summing causes frequency response gaps.
• Amplified Factory Systems: Many modern vehicles use Class D factory amplifiers with differential (bridged) outputs. The LC7i's 20kΩ input impedance safely handles these systems, but verify wiring polarity carefully to avoid phase cancellation.
• CAN-Bus Equipped Vehicles: Some vehicles with CAN-bus-controlled audio systems may require additional interface modules (e.g., AudioControl's LGD load generator) to prevent factory amplifier shutdown. Research your specific make/model for compatibility.
• Ground Loop Prevention: Always start with LC7i's ground isolation switch in "Isolated" position. Only change to "Ground" or "200Ω" if ground loop noise occurs—improper grounding can introduce more noise than it eliminates.
• Premium Factory Systems: Vehicles with Bose, Harman Kardon, Bang & Olufsen, or other premium systems often use active crossovers with separate tweeter/mid/woofer outputs. Consult AudioControl's system-specific summing diagrams to combine signals properly—incorrect summing causes frequency response gaps.
• Amplified Factory Systems: Many modern vehicles use Class D factory amplifiers with differential (bridged) outputs. The LC7i's 20kΩ input impedance safely handles these systems, but verify wiring polarity carefully to avoid phase cancellation.
• CAN-Bus Equipped Vehicles: Some vehicles with CAN-bus-controlled audio systems may require additional interface modules (e.g., AudioControl's LGD load generator) to prevent factory amplifier shutdown. Research your specific make/model for compatibility.
• Ground Loop Prevention: Always start with LC7i's ground isolation switch in "Isolated" position. Only change to "Ground" or "200Ω" if ground loop noise occurs—improper grounding can introduce more noise than it eliminates.
Wiring Gauge Recommendations
Power & Ground
10 AWG minimum (LC7i draws minimal current, but use quality wire for future-proofing and low resistance)
Speaker-Level Inputs
16-18 AWG (low current, high impedance—use factory speaker wire gauge or better)
RCA Signal Cables
Twisted-pair construction with 95%+ shielding coverage—avoid bargain cables that introduce noise
Remote Wire (12V)
18 AWG (triggers amplifiers—ensure combined amplifier remote current < 1 amp)
🎓 Advanced Application Scenarios
Scenario 1: Factory Head Unit + Aftermarket Subwoofer System
Configuration: Connect factory front speaker outputs to LC7i Channels 1-2, rear outputs to Channels 3-4. Use LC7i Channels 5-6 (or summed Ch.3 output) to feed subwoofer amplifier. Enable AccuBASS to restore factory bass roll-off at high volumes. Set LC7i output levels to match amplifier input sensitivity.
Benefits: Retain factory head unit controls, steering wheel audio buttons, and navigation integration while adding powerful subwoofer bass. AccuBASS ensures consistent low-end across all volume levels—eliminates the "weak bass at high volume" problem.
Scenario 2: Premium Factory System (Bose/Harman) + DSP + Amplifiers
Configuration: Tap factory amplifier outputs for all speakers (tweeter, mid, woofer per side). Use LC7i's channel summing to combine crossover outputs into full-range signals. Feed summed LC7i outputs to DSP processor, then to aftermarket amplifiers. Bypass AccuBASS if DSP handles bass restoration.
Benefits: Extracts full-bandwidth signal from actively crossed-over OEM systems, providing DSP with complete frequency information for proper tuning. LC7i's summing eliminates need for external summing boxes—simplifies wiring and reduces potential failure points.
Scenario 3: Factory Head Unit + 4-Channel Amplifier + Component Speakers
Configuration: Connect factory front speaker outputs to LC7i Channels 1-2, rear to Channels 3-4. Feed LC7i Channels 1-2 to 4-channel amplifier (front channels), Channels 3-4 to rear channels. Amplifier powers aftermarket component speakers with passive crossovers.
Benefits: Improves factory speaker sound quality with aftermarket components while maintaining OEM controls. LC7i's 8.5V output ensures strong signal to amplifier, reducing gain-related noise. AccuBASS restores midbass energy lost in factory processing—critical for component systems without subwoofers.
Scenario 4: Multiple Amplifier Systems (Front/Rear/Subwoofer)
Configuration: Use all six LC7i outputs: Channels 1-2 feed front amplifier, Channels 3-4 feed rear amplifier, Channels 5-6 feed subwoofer amplifier. Set independent gain controls to balance levels between amplifiers. Use ACR-1 remote to control subwoofer output from driver's seat.
Benefits: Full system control with independent level adjustment per amplifier zone. LC7i's 1-amp remote output triggers all amplifiers simultaneously. Single-point signal processing (AccuBASS) applies to entire system—ensures consistent bass restoration across all channels.
🔬 AccuBASS™ Technology: How It Works
The Factory Bass Roll-Off Problem
Modern factory audio systems employ dynamic bass reduction algorithms that progressively cut low-frequency output as volume increases. This engineering compromise prevents weak OEM speakers (typically 20-30W RMS) from overexcursion and distortion at high volumes. While protecting factory speakers, this creates a frustrating listening experience: bass sounds full at low-to-moderate volumes but becomes thin and anemic when you turn it up—precisely when you want powerful bass most.
Traditional passive line converters simply convert the factory signal to RCA outputs without addressing this bass roll-off, resulting in aftermarket subwoofers and amplifiers receiving a bass-deficient signal. No amount of amplifier gain or subwoofer adjustment can restore frequency content that was never present in the source signal—garbage in, garbage out.
AccuBASS™ Intelligent Bass Restoration
AudioControl's patent-pending AccuBASS™ technology solves this problem through voltage-threshold-based frequency response correction. Here's the technical breakdown:
- Signal Voltage Monitoring: AccuBASS continuously monitors the input signal voltage from the factory system, using it as a proxy for volume level (higher voltage = higher volume).
- Threshold Detection: When input voltage exceeds the user-set AccuBASS threshold (adjustable via rotary control), the circuit recognizes that factory bass roll-off is likely occurring.
- Dynamic EQ Application: Above threshold, AccuBASS progressively applies low-frequency boost (typically 40-150 Hz) to compensate for factory bass reduction. The boost amount increases proportionally with volume—matching the factory roll-off curve.
- Real-Time Adaptation: As you adjust factory volume up/down, AccuBASS dynamically engages/disengages bass restoration, maintaining consistent low-frequency response across the entire usable volume range.
- System-Specific Tuning: The adjustable threshold allows calibration to your specific factory system's characteristics—some OEMs start roll-off at 50% volume, others at 75%. Set threshold to match your system's behavior for optimal results.
📊 AccuBASS Calibration Guide:
Threshold Too Low (counterclockwise): Bass restoration engages too early, causing excessive low-end boost at moderate volumes—muddy, boomy sound.
Threshold Too High (clockwise): Bass restoration engages too late, allowing factory roll-off to occur before correction activates—weak bass at high volumes persists.
Optimal Setting: Bass response remains consistent from 25% to 100% volume—neither boomy at low levels nor thin at high levels. Typical setting: 11-1 o'clock position (varies by vehicle).
Threshold Too Low (counterclockwise): Bass restoration engages too early, causing excessive low-end boost at moderate volumes—muddy, boomy sound.
Threshold Too High (clockwise): Bass restoration engages too late, allowing factory roll-off to occur before correction activates—weak bass at high volumes persists.
Optimal Setting: Bass response remains consistent from 25% to 100% volume—neither boomy at low levels nor thin at high levels. Typical setting: 11-1 o'clock position (varies by vehicle).
Why AccuBASS Outperforms Alternatives
vs. Passive Line Converters
Passive converters use resistor dividers with no signal processing—they pass factory bass roll-off directly to amplifiers. AccuBASS actively corrects frequency response, delivering full-bandwidth signals to aftermarket equipment.
vs. Amplifier Bass Boost
Amplifier bass boost applies constant EQ regardless of volume level—causes boomy bass at low volumes or insufficient bass at high volumes. AccuBASS dynamically adapts boost to match factory roll-off behavior.
vs. DSP-Only Solutions
Standalone DSPs can EQ bass, but lack voltage-sensing automatic adjustment—require manual remote control or accept fixed bass curve. AccuBASS provides set-and-forget operation that tracks factory volume automatically.
vs. Factory Head Unit EQ
Factory EQ settings often max out at ±3-6 dB and don't address volume-dependent roll-off. AccuBASS provides dynamic bass restoration beyond factory EQ's range, specifically targeting high-volume deficiencies.
⚙️ Technical Deep Dive: Design Philosophy
Active Input Circuitry vs. Passive Conversion
The LC7i's active input buffering represents a fundamental design advantage over passive line converters. Passive converters use simple resistor voltage dividers to step down speaker-level signals—while cheap and simple, this approach creates several problems:
- Input Loading: Passive converters present low impedance (often 50-200Ω) to factory amplifiers, potentially causing overload conditions that trigger shutdown protection in load-sensitive OEM systems. The LC7i's 20kΩ input impedance is essentially invisible to factory amplifiers—no loading effects.
- Signal Degradation: Passive resistor networks introduce thermal noise (Johnson noise) proportional to resistance value. Active buffering in the LC7i uses operational amplifiers with near-zero output impedance, delivering cleaner signals to downstream equipment.
- Frequency Response Errors: Passive converters create RC filter circuits when driving capacitive amplifier inputs, causing high-frequency roll-off. The LC7i's active outputs drive capacitive loads without frequency response deviations—flat 10Hz-22kHz response maintained.
- Ground Loop Susceptibility: Passive converters directly couple factory system ground to aftermarket equipment grounds, creating ground loops that introduce noise. The LC7i's isolated power supply ground (switchable) breaks this ground loop path when in "Isolated" mode.
8.5 Volt Output: Why It Matters
The LC7i's 8.5 volt RMS maximum output (12V peak) exceeds most aftermarket head units (typically 2-5V RMS) and represents one of the highest output voltages in the line converter category. This high voltage output delivers measurable benefits:
Improved Signal-to-Noise Ratio
Higher signal voltage means noise (ground loop hum, RFI, etc.) represents a smaller percentage of total signal. If noise floor is 10mV and signal is 2V, SNR = 46 dB. With 8.5V signal, SNR = 59 dB—13 dB improvement.
Lower Amplifier Gain Requirements
Amplifiers operate with gain controls set lower when receiving 8.5V input vs. 2V input. Lower gain settings reduce amplifier input stage noise contribution and improve channel balance tracking.
Reduced Cable Interference
Higher voltage signals are more resistant to induced interference from nearby power cables, ignition systems, and alternator noise—critical in electrically noisy vehicle environments.
DSP Input Headroom
Digital signal processors benefit from strong input signals that utilize full ADC bit depth. 8.5V signals maximize dynamic range capture and minimize quantization noise in DSP processing chains.
Channel Summing Architecture
Premium factory systems (Bose, Harman Kardon, Bang & Olufsen, JBL) use active crossover networks that send separate frequency bands to dedicated speakers: tweeters (3kHz+), midranges (300Hz-3kHz), and woofers (80-300Hz). When upgrading these systems, you need full-range signals for aftermarket processors and amplifiers—but the factory system outputs only band-limited signals.
The LC7i solves this through internal summing networks that recombine these filtered signals back into full-range outputs:
- 6-to-2 Summing Mode: Combines all six factory inputs (front L/R, rear L/R, center, sub) into two full-range outputs—ideal for systems where OEM uses center channel and discrete subwoofer outputs. Sums without phase cancellation using proper signal combining amplifiers.
- 4-to-2 Summing Mode: Combines front four channels (tweeter L/R, woofer L/R) into two full-range front outputs, leaving rear channels independent—common configuration for systems with separate front/rear processing. Preserves factory fade control functionality.
- Auto-Mode Channel Mirroring: When no signal is present at Channel 3 input, the Channel 2 input automatically feeds both Channel 2 and Channel 3 outputs—allows feeding rear amplifier zone from front signal when factory system lacks discrete rear outputs.
🔍 Summing Configuration Requirements:
Proper summing requires understanding your factory system's crossover architecture. Incorrect summing causes frequency response gaps (missing midrange) or cancellation (no bass). Consult AudioControl's LC7i manual for system-specific diagrams covering major premium OEM systems. When in doubt, use a real-time analyzer (RTA) to verify summed output contains full 20Hz-20kHz spectrum.
Proper summing requires understanding your factory system's crossover architecture. Incorrect summing causes frequency response gaps (missing midrange) or cancellation (no bass). Consult AudioControl's LC7i manual for system-specific diagrams covering major premium OEM systems. When in doubt, use a real-time analyzer (RTA) to verify summed output contains full 20Hz-20kHz spectrum.
📊 Expert Performance Analysis
Performance Category Breakdown
| Category | Rating | Analysis |
|---|---|---|
| Signal Quality | 5.0/5.0 | 0.01% THD+N and >100dB SNR represent audiophile-grade performance. Active buffering and isolated power supply eliminate passive converter artifacts. |
| Feature Set | 4.8/5.0 | AccuBASS, channel summing, 8.5V output, GTO signal sense, and ground isolation cover 95% of installation scenarios. Only lacks digital input option. |
| Installation Flexibility | 4.5/5.0 | Compact size, removable terminal blocks, and switchable ground modes simplify installation. Summing requires careful planning for complex OEM systems. |
| Build Quality | 4.7/5.0 | Robust construction, quality PCB layout, and 5-year warranty demonstrate commitment to longevity. Metal chassis provides EMI shielding and heat dissipation. |
| Value Proposition | 4.5/5.0 | $139.99 positions LC7i in mid-premium tier. AccuBASS and channel summing justify cost vs. basic converters ($40-70), though budget-conscious users may find it pricey. |
| Ease of Use | 4.2/5.0 | Basic installation is straightforward, but AccuBASS calibration and summing configuration require technical knowledge. Manual provides good guidance but assumes installer experience. |
✅ Strengths & Advantages
- AccuBASS Technology: Patent-pending bass restoration is genuinely effective—solves the factory bass roll-off problem that plagues aftermarket upgrades. Dynamic, automatic operation eliminates need for constant adjustment.
- 8.5V Output Voltage: Industry-leading output ensures maximum signal quality and amplifier compatibility. Higher voltage improves SNR and reduces gain-related noise significantly vs. 2-4V converters.
- Active Input Circuitry: 20kΩ buffered inputs prevent factory amplifier loading and maintain signal integrity. Critical for modern load-sensitive OEM systems that passive converters can disrupt.
- Internal Channel Summing: Eliminates need for external summing boxes when integrating premium factory systems. Saves installation time, reduces failure points, and simplifies wiring.
- Signal Quality Metrics: 0.01% THD and >100dB SNR match or exceed aftermarket head unit performance. Transparent signal path preserves factory source quality without coloration.
- GTO Signal Sense: Automatic turn-on via DC offset detection eliminates need to tap factory remote wires—major timesaver in vehicles where 12V remote access is difficult.
- Switchable Ground Isolation: Three-position ground switch solves ground loop problems without external isolators. Flexible approach handles diverse vehicle electrical systems effectively.
- 5-Year Warranty: Industry-leading warranty coverage demonstrates AudioControl's confidence in product reliability. Rare in car audio, where 1-2 year warranties are standard.
- ACR-1 Remote Compatibility: Optional wired bass remote allows driver-accessible subwoofer control without DSP complexity. Simple, effective, and affordable upgrade path.
- Compact Form Factor: 7.5" × 4.7" × 1.2" dimensions fit under seats or behind dashes in most vehicles. Low profile design avoids installation location conflicts with vehicle structures.
⚠️ Limitations & Considerations
- Price Point: $139.99 is 2-3× cost of basic passive converters. Budget-focused users may find value proposition difficult to justify, though performance gap is substantial.
- AccuBASS Calibration Required: Set-and-forget operation requires initial calibration to match factory system characteristics. Incorrect threshold setting causes either excessive boost or insufficient restoration.
- Manual Complexity: While comprehensive, the LC7i manual assumes installer familiarity with line converter concepts. First-time installers may find summing diagrams and configuration options overwhelming.
- No Digital Inputs: LC7i handles only analog speaker-level inputs. Vehicles with optical/digital audio outputs require additional conversion (though this is rare in factory systems).
- Fixed AccuBASS Curve: Bass restoration curve is preset by AudioControl—not user-adjustable beyond threshold. Some factory systems may benefit from custom EQ curves that LC7i cannot provide (requires DSP).
- Terminal Block Wire Gauge Limit: 12 AWG maximum wire size may be restrictive for installers preferring larger gauge for power/ground. Requires pigtail adapters for 8-10 AWG applications.
- Single Remote Output: 1-amp maximum remote output current may be insufficient for systems with multiple high-current amplifiers. Requires relay or distribution block for large multi-amp systems.
- No Built-in Time Delay: Unlike LC7i PRO, standard LC7i lacks signal delay for front/rear time alignment. Systems requiring time correction need external DSP addition.
- ACR-1 Remote Sold Separately: Dash-mounted bass remote is optional accessory ($30-40 additional). Would be nice to include given LC7i's premium positioning.
🎯 Purchase Recommendation & Target Users
Who Should Buy the AudioControl LC7i
- Factory System Upgraders: Anyone adding aftermarket amplifiers/subwoofers while retaining factory head unit—the LC7i's core use case. AccuBASS delivers tangible bass improvement vs. passive converters.
- Premium OEM System Owners: Bose, Harman Kardon, Bang & Olufsen, JBL equipped vehicles benefit from LC7i's channel summing. Essential for extracting full-range signals from actively crossed-over factory systems.
- High-Quality System Builders: Enthusiasts prioritizing signal quality over cost savings. 0.01% THD and 8.5V output justify premium pricing for discerning ears and high-end downstream equipment.
- Professional Installers: Shop professionals appreciate LC7i's reliability, comprehensive feature set, and 5-year warranty. Reduces callbacks vs. cheaper converters prone to noise/failure issues.
- Vehicles with Integrated Infotainment: Modern vehicles where head unit replacement is impractical (touchscreen climate controls, backup camera, vehicle settings). LC7i preserves all factory functionality.
- Bass Enthusiasts: Anyone frustrated by factory bass weakness at high volumes. AccuBASS directly addresses this common complaint with automatic, effective correction.
Consider Alternatives If...
- Budget Constrained: Users with <$100 budgets may prefer basic converters like PAC SNI-35 ($40) or Scosche SLC4 ($60). Sacrifice AccuBASS and 8.5V output but functional for basic applications.
- Need DSP Features: Systems requiring time alignment, parametric EQ, or crossovers should consider LC7i PRO ($200) with built-in DSP or standalone DSP processors. Standard LC7i offers only bass restoration.
- Simple 2-Channel Applications: If adding only a single subwoofer amplifier to non-premium factory system, AudioControl's LC2i ($100, 2-channel with AccuBASS) provides 70% of LC7i's benefits at lower cost.
- Digital-Only Factory Systems: Rare vehicles with optical/digital-only audio outputs (some luxury European vehicles) require digital-to-analog conversion before LC7i. Adds complexity and cost.
- DIY First-Timers with Complex Systems: Beginners tackling premium OEM systems with active crossovers may find LC7i's summing configuration overwhelming. Consider professional installation or simpler source unit replacement if feasible.
Final Verdict: Value & Recommendation
The AudioControl LC7i earns a STRONG BUY recommendation for anyone upgrading factory audio systems with aftermarket amplifiers while retaining OEM head units. At $139.99, it occupies the sweet spot between basic passive converters (functional but limited) and full DSP processors (feature-rich but expensive/complex).
AccuBASS technology is the differentiator—it's not marketing hype but a genuinely effective solution to factory bass roll-off. If you've experienced weak bass at high volumes from your factory system, AccuBASS will restore that missing low-end energy automatically and dynamically. This single feature justifies the ~$70 premium over basic converters for bass-focused listeners.
The 8.5-volt output and 0.01% THD specifications deliver audible improvements in signal quality—less noise, better dynamic range, cleaner sound. Combined with active input buffering, switchable ground isolation, and internal channel summing, the LC7i handles installation challenges that cause passive converters to fail or introduce noise.
For premium factory systems (Bose, Harman, etc.), the LC7i's channel summing capability is essential—attempting to integrate these systems without summing results in frequency response gaps and disappointing sound. The LC7i's internal summing networks eliminate need for external boxes and complex wiring gymnastics.
Bottom line: If you're serious about sound quality and adding amplifiers to a factory system, the LC7i is worth every dollar of its $139.99 price. Budget alternatives exist, but they lack AccuBASS, offer lower output voltage, and often introduce noise issues that require troubleshooting. The LC7i simply works—and works exceptionally well—backed by AudioControl's 5-year warranty and 40+ years of audio engineering expertise.
🔗 Product Resources & Links
Manufacturer Information
AudioControl LC7i Product Page →
Official specs, user manual PDF, installation videos, and technical support
Installation Support
Locate AudioControl-certified installation professionals near you
ACR-1 Bass Remote
Optional wired bass control (sold separately, ~$35)
Dash-mounted control for Channel 3 output level adjustment
Warranty Coverage
5 Years (Parts & Labor)
Industry-leading warranty coverage—register at AudioControl.com after purchase
📦 What's Included:
• AudioControl LC7i Line Output Converter
• Removable terminal blocks (power, speaker inputs)
• Mounting hardware (screws, brackets)
• User manual with wiring diagrams and summing configurations
• 5-Year warranty registration card
Not Included (Purchase Separately):
• ACR-1 wired bass remote (optional)
• RCA cables (recommend quality twisted-pair construction)
• Power/ground wire (10 AWG minimum)
• Speaker wire for input connections (16-18 AWG)
• AudioControl LC7i Line Output Converter
• Removable terminal blocks (power, speaker inputs)
• Mounting hardware (screws, brackets)
• User manual with wiring diagrams and summing configurations
• 5-Year warranty registration card
Not Included (Purchase Separately):
• ACR-1 wired bass remote (optional)
• RCA cables (recommend quality twisted-pair construction)
• Power/ground wire (10 AWG minimum)
• Speaker wire for input connections (16-18 AWG)
🏆 Expert Summary: AudioControl LC7i
The AudioControl LC7i represents the gold standard for factory audio system integration, combining patent-pending AccuBASS™ bass restoration, industry-leading 8.5V output, and intelligent channel summing in a compact, installer-friendly package. At $139.99, it delivers measurable performance advantages over budget converters while remaining accessible to enthusiasts and professionals alike.
For anyone retaining factory head units while upgrading to aftermarket amplifiers and subwoofers, the LC7i solves the bass roll-off problem that passive converters cannot address. Backed by AudioControl's 5-year warranty and 40+ years of engineering excellence, the LC7i earns its STRONG BUY recommendation as the definitive line converter for quality-focused installations.
Patent-Pending AccuBASS™ 8.5V RMS Output 0.01% THD+N 6-Channel Summing 20kΩ Active Inputs GTO™ Signal Sense 5-Year Warranty
