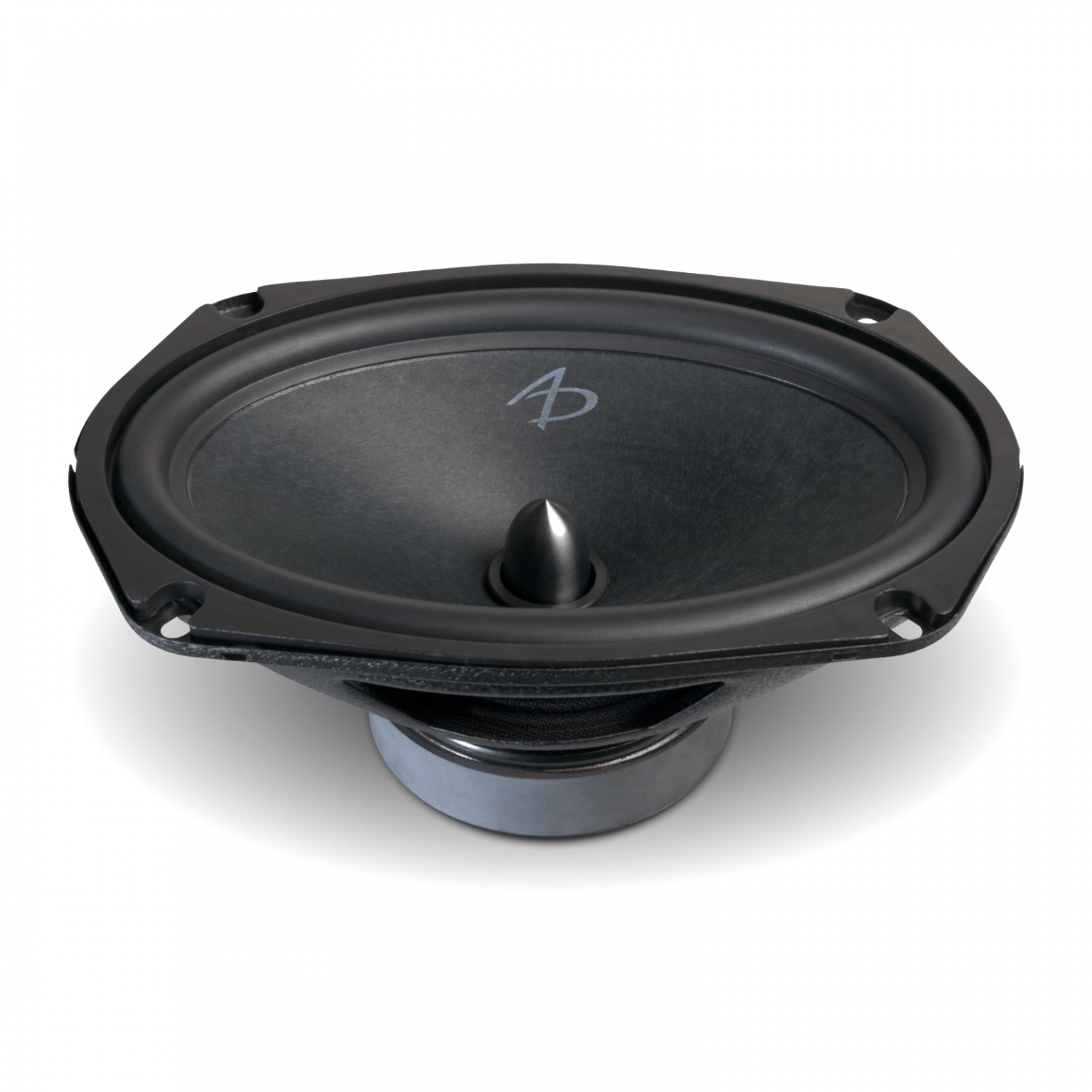

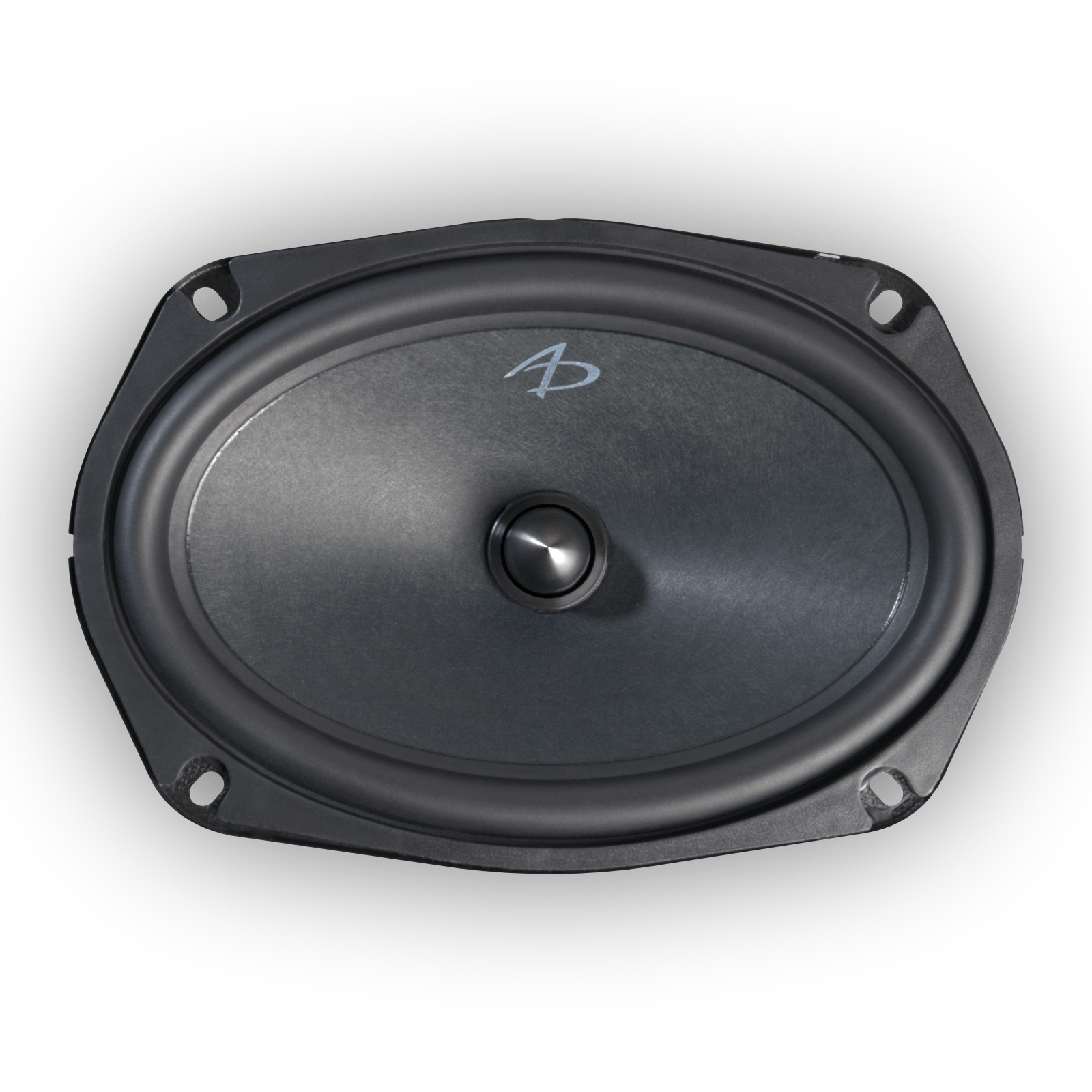

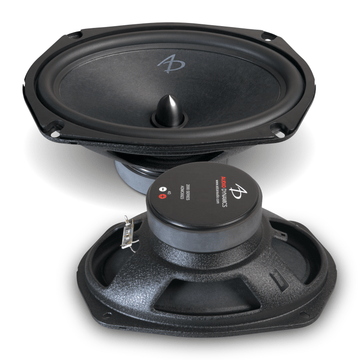

Audio Dynamics 2000 Series 6″x 9″ Mid Woofer

ADMC6923 6"x 9" Mid Woofer

Component-Grade 6x9 Midrange – Wool Pulp Cone Technology

Wool Pulp Cone Technology

Perfectly blended wool pulp composite delivers astonishing realism and detailed timbre across vocal and instrumental harmonics. Natural damping eliminates cone breakup for smooth, accurate midrange response.

100W RMS Power Handling

High-temperature 25.4mm (1") voice coil with advanced cooling design handles 100 watts RMS continuous power. Robust construction ensures long-term reliability in demanding automotive environments.

Component-Grade Construction

Flow-optimized steel basket minimizes rear-wave reflections. Moisture-resistant chemical treatment protects cone integrity in automotive climates. Engineered in the USA for component-system performance.

Optimized 6x9 Format

Large 169mm effective diameter provides enhanced surface area for improved midrange efficiency and dynamics. 85mm mounting depth fits most factory 6x9 locations without extensive modification.

89.69 dB Sensitivity

High-efficiency design delivers impressive output from modest amplifier power. Optimized magnetic structure (Qts 0.8067) ensures controlled response with minimal EQ requirements.

Extended Low-Frequency Response

Fs of 52.76 Hz enables deep midrange extension for full-bodied male vocals and lower midrange instruments. Large 36.8L Vas ensures powerful bass-mid transitions in properly designed enclosures.

*Power Handling Note: All Audio Dynamics power ratings require electronic high-pass crossover protection. Recommended crossover points: 60Hz @ 24dB/octave, 80Hz @ 18dB/octave, or 120Hz @ 12dB/octave. Operating below recommended crossover points will reduce power handling and may cause mechanical damage.

Electronic High-Pass Crossover (REQUIRED)

The ADMC6923 requires electronic high-pass filtering for proper operation and full power handling capability:

• 60 Hz @ 24 dB/Octave – Deep midrange extension with maximum impact (recommended for 3-way systems)
• 80 Hz @ 18 dB/Octave – Balanced approach for most installations
• 120 Hz @ 12 dB/Octave – Conservative setting for maximum protection

System Integration Recommendations

• Component Upgrade: Replace factory 6x9 coaxials with ADMC6923 + separate tweeters for true component performance
• 3-Way Front Stage: Combine with 6.5" or 8" midbass + high-frequency tweeter for reference-quality staging
• Rear Fill: Excellent for rear midrange duties in competition-grade systems
• Amplification: Recommended minimum 50W RMS x 2 @ 4Ω; ideal with 75-100W RMS @ 4Ω

⚠️ Important: Operating the ADMC6923 below recommended crossover points will result in reduced power handling, increased distortion, and potential mechanical damage. Always use active DSP or amplifier high-pass filtering. Passive crossovers are not recommended for this application.

⭐ Expert Verdict: STRONG BUY

"Component-System Midrange in 6x9 Format"

The Audio Dynamics ADMC6923 represents a rare breed in the 6x9 category – a dedicated midrange driver built to genuine component-system standards. While most 6x9s chase bass response with flimsy cones and weak motors, Audio Dynamics took the opposite approach: wool pulp cone, 25.4mm voice coil, and optimized T/S parameters for pure midrange accuracy.

Sound quality is exceptional. Vocal reproduction is natural and effortless, with none of the nasal coloration or cone breakup typical of budget 6x9s. The wool pulp cone delivers authentic timbre across guitar, piano, and vocal fundamentals – you'll rediscover subtle harmonic details lost with synthetic cone materials. Extension down to 52 Hz provides impressive lower midrange authority.

Build quality matches the performance. The steel basket is rigid and well-damped, the voice coil former shows quality construction, and moisture treatment protects against automotive environments. This is clearly engineered for long-term reliability, not disposable entry-level pricing.

At $229.99 (18% off), the ADMC6923 targets serious enthusiasts building reference-quality systems. It's not cheap – but compare it to quality 6.5" component midranges at $250-$350/pair and the value proposition becomes clear. You're getting larger surface area, extended low-frequency response, and the same wool pulp technology at competitive pricing.

Bottom line: The ADMC6923 is for enthusiasts who refuse to compromise on midrange accuracy. If you're building a serious 3-way front stage or upgrading factory rear 6x9s to component-grade performance, this driver delivers exceptional results. Highly recommended for intermediate-to-advanced installations with proper DSP and amplification.
