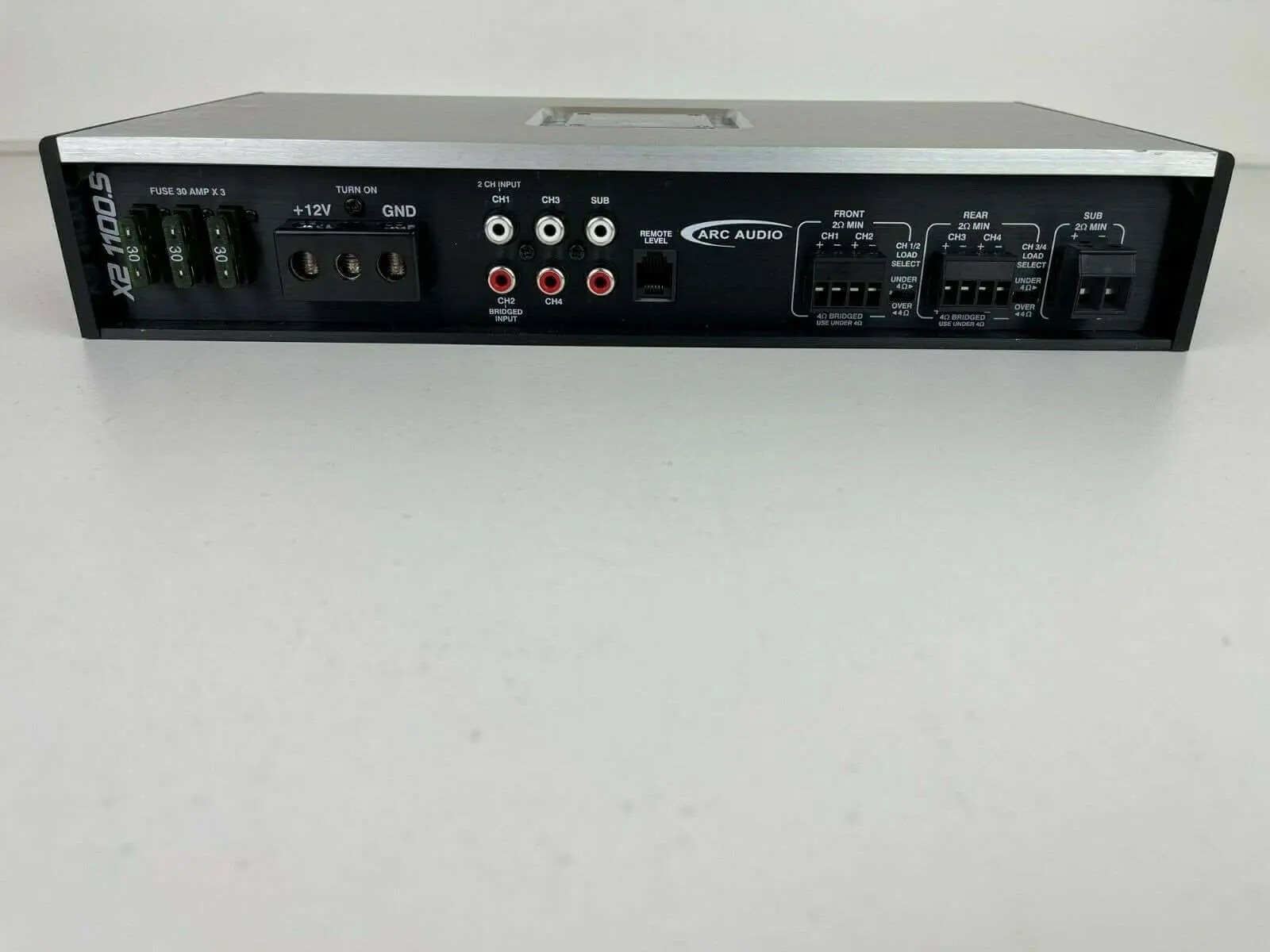

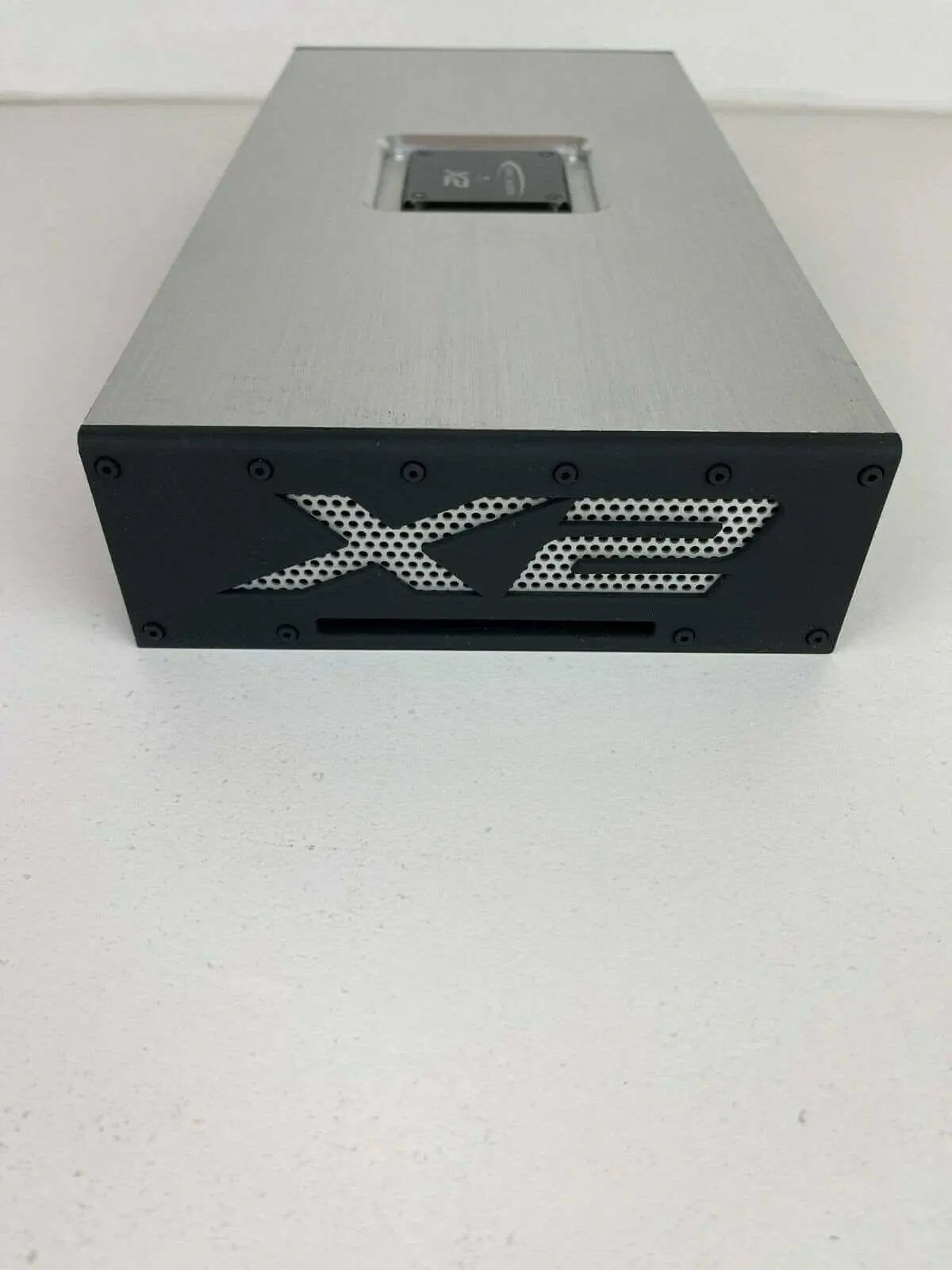

Arc Audio X2 1100.5 Multi Channel Amplifier - Previous demo unit

Write your review

$ 600.00 ~~$ 1,099.99~~

You save 45%

Arc Audio X2 1100.5 Multi Channel Amplifier - Previous demo unit - Audio Intensity

Click image to zoom

Perfect working condition, Excellent cosmetic condition.

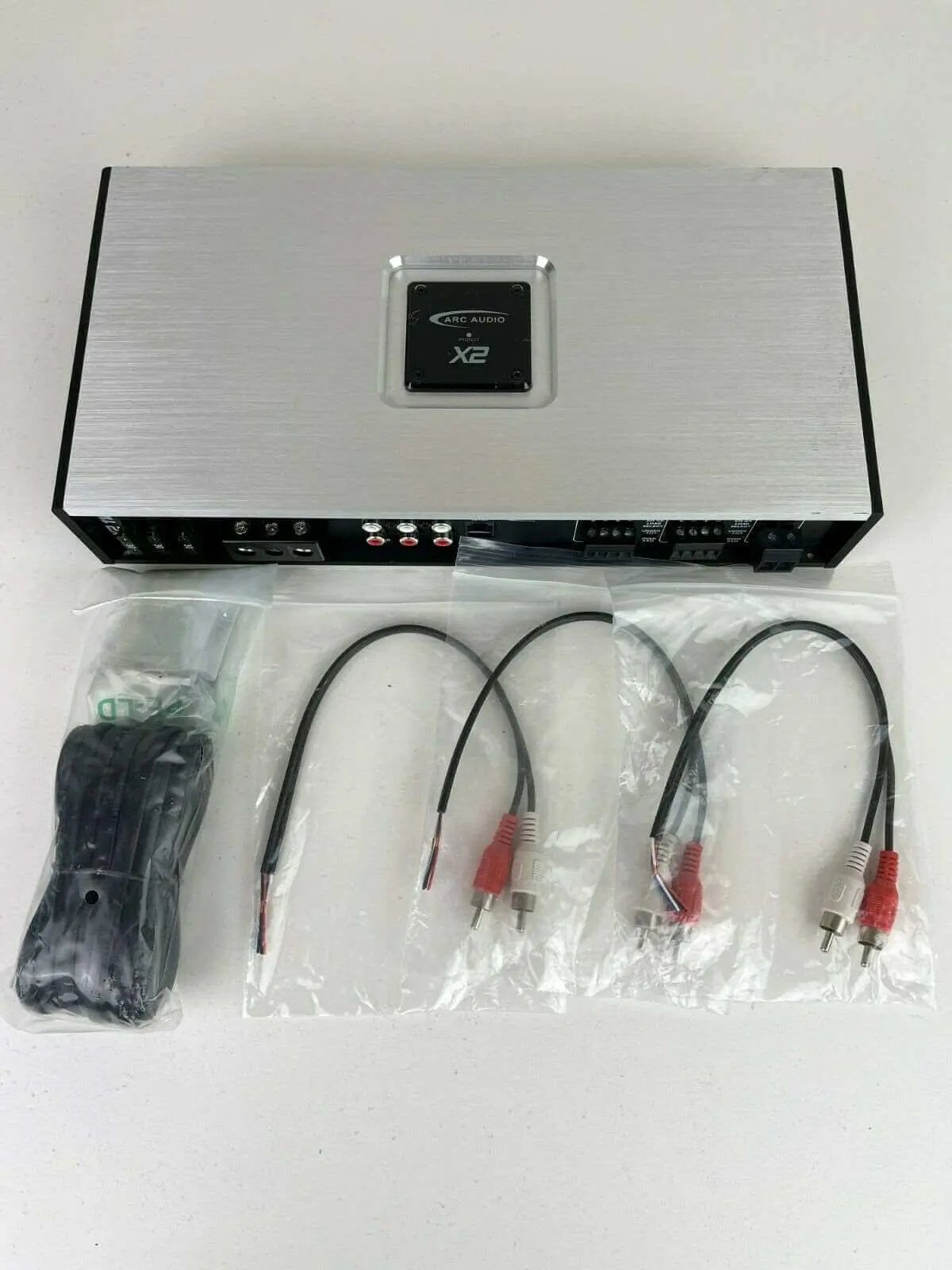

Come with a Bass knob and Hi level input pigtails

One amplifier running an entire system without compromise to sound quality of overall performance? Yes, it's true! Following the success and bar-raising XDi Series, the X2 Series of amplifiers offer users enhanced performance, bandpass crossovers on all channels, and improved filtering to extend the XDi application legacy. These upgrades make X2 one of the finest affordable multi-channel all-in-one amplifiers available.

Robert Zeff has does it again with this single package solution designed to run your mid's/highs and subs from a single compact amplifier.

The X2 1100.5 is a compact and elegant design that is small enough to fit just about anywhere in a vehicle allowing you that personalized "Big Sound" without the loss of valuable storage space.

Capable of producing 150 watts to each of the four main channels; the X2 1100.5 provides enough power and dynamics to satisfy any audio enthusiast while still leaving enough in reserve for those late-night jam sessions. With its elegant silver brushed-aluminum extruded aluminum cosmetic case (X2 Level 2 cosmetics package) and affordable price point, the X2 amplifier series is perfect for the daily driver or the wildest of custom installations.

Multi-Channel Amplifier (5-Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Start-Stop Vehicle Compatible
Signal Sense and DC Detect
Single Side Connection Design
Nickel-Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra-Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next-Generation High-Speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections

4-Channels @ 4 Ohms (Ch 1-4) 150 Watts

4-Channels @ 2 Ohms (Ch 1 - 4) 150 Watts

2-Channel @ 4 Ohms (Ch 1-4 Bridged) 300 Watts

1-Channel @ 4 Ohms (Ch 5) 275 Watts

1-Channel @ 2-Ohms (Ch 5) 500 Watts

Frequency Response 10Hz - 20kHz

Crossover Range (Ch 1-4) 50Hz - 550Hz

Crossover Types (Ch 1-4) Bandpass All Channels

Crossover Range (Ch 5) 30Hz - 230Hz

Bandpass Crossovers Yes (Ch 1/2 only)

Remote Level Control Yes(Ch 5 only)

Remote Level Control Included Yes

Input Sensitivity (Low) 200mV - 3.5V

Cosmetic Trim X2 Trim Level 2

Fuse 3 x 30 Amp

Dimensions 12.42"(L) x 6.268"(W) x 2.162"(H)

Arc Audio

Arc Audio X2 1100.5 Multi Channel Amplifier - Previous demo unit

Product code: X2 1100.5 Demo

In Stock

Write your review

$ 600.00 ~~$ 1,099.99~~

You save 45%

$ 600.00 ~~$ 1,099.99~~

Add to Wishlist Added to Wishlist

Description
Perfect working condition, Excellent cosmetic condition.

Come with a Bass knob and Hi level input pigtails
One amplifier running an entire system without compromise to sound quality of overall performance? Yes, it's true! Following the success and bar-raising XDi Series, the X2 Series of amplifiers offer users enhanced performance, bandpass crossovers on all channels, and improved filtering to extend the XDi application legacy. These upgrades make X2 one of the finest affordable multi-channel all-in-one amplifiers available.

Robert Zeff has does it again with this single package solution designed to run your mid's/highs and subs from a single compact amplifier.

The X2 1100.5 is a compact and elegant design that is small enough to fit just about anywhere in a vehicle allowing you that personalized "Big Sound" without the loss of valuable storage space.

Capable of producing 150 watts to each of the four main channels; the X2 1100.5 provides enough power and dynamics to satisfy any audio enthusiast while still leaving enough in reserve for those late-night jam sessions. With its elegant silver brushed-aluminum extruded aluminum cosmetic case (X2 Level 2 cosmetics package) and affordable price point, the X2 amplifier series is perfect for the daily driver or the wildest of custom installations.
- Multi-Channel Amplifier (5-Channels)
- Microprocessor Class-D Design
- Designed And Engineered By Robert Zeff
- High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
- Remote Bass Boost Control (Included)
- Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
- Start-Stop Vehicle Compatible
- Signal Sense and DC Detect
- Single Side Connection Design
- Nickel-Plated RCA Terminals
- Quick Disconnect Speaker Terminal Plugs
- Audiophile Class-D Output Filter Networks
- Detailed Microprocessor Controlled Protection
- Large, High-Frequency Switching Power Supplies
- RCA Inputs Are Compatible With Speaker-Level Inputs
- Fault Codes Storage Of The Last Protection Code Detected
- High Signal To Noise Ratio Without Compromising Power Output
- Fully Balanced Input Stage Significantly Increases Flexibility
- Ultra-Low ESR, High-Capacity Power Supply Storage Capacitors
- Flexible Mounting Orientation For Vertical Or Horizontal Installations
- Next-Generation High-Speed Class-D Technology Powering All X2 Amplifiers
- Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
- Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
- Quick Disconnect Type Terminal Connections
4-Channels @ 4 Ohms (Ch 1-4) 150 Watts

4-Channels @ 2 Ohms (Ch 1 - 4) 150 Watts

2-Channel @ 4 Ohms (Ch 1-4 Bridged) 300 Watts

1-Channel @ 4 Ohms (Ch 5) 275 Watts

1-Channel @ 2-Ohms (Ch 5) 500 Watts

Frequency Response 10Hz - 20kHz

Crossover Range (Ch 1-4) 50Hz - 550Hz

Crossover Types (Ch 1-4) Bandpass All Channels

Crossover Range (Ch 5) 30Hz - 230Hz

Bandpass Crossovers Yes (Ch 1/2 only)

Remote Level Control Yes(Ch 5 only)

Remote Level Control Included Yes

Input Sensitivity (Low) 200mV - 3.5V

Cosmetic Trim X2 Trim Level 2

Fuse 3 x 30 Amp

Dimensions 12.42"(L) x 6.268"(W) x 2.162"(H)
