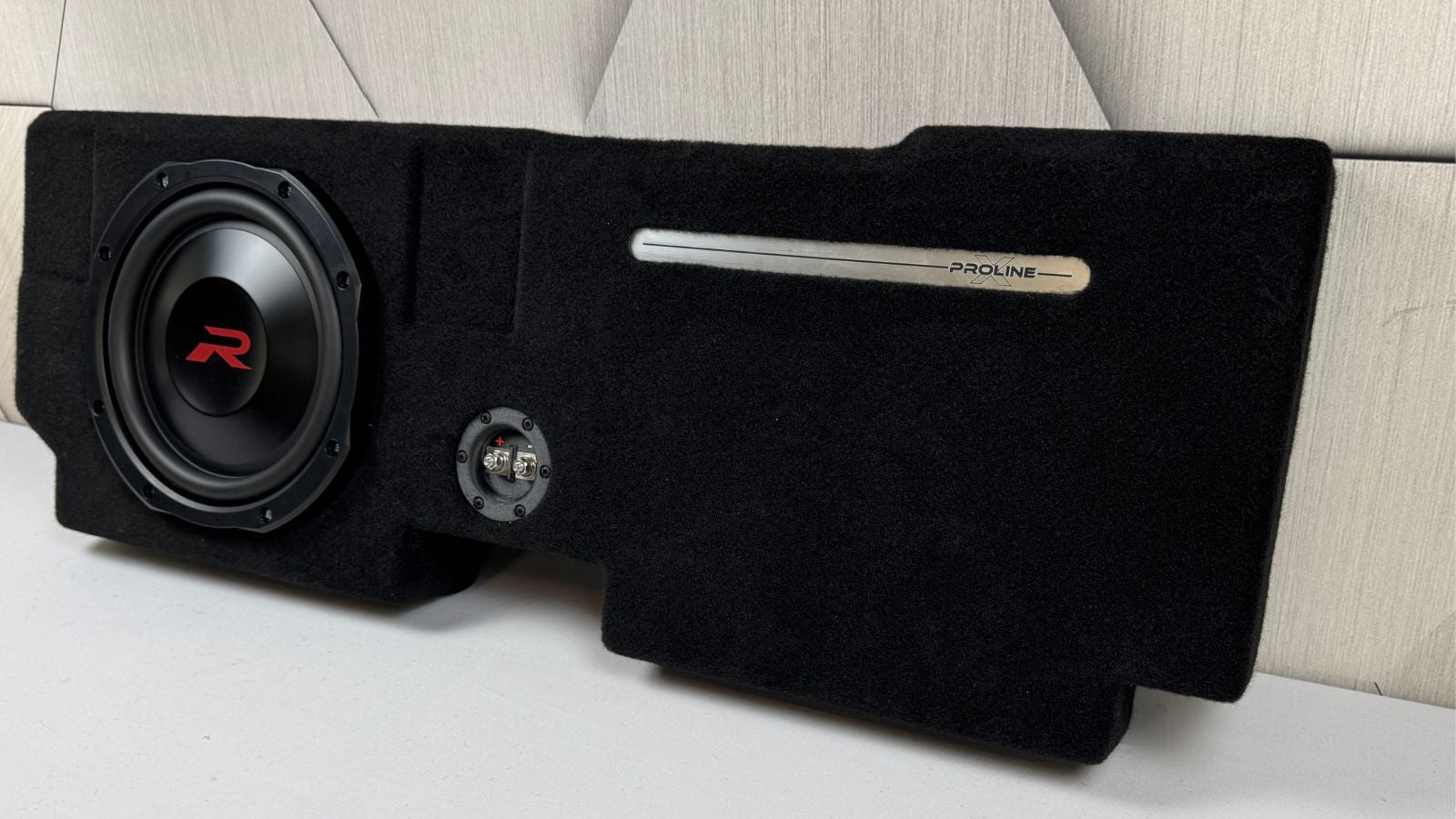

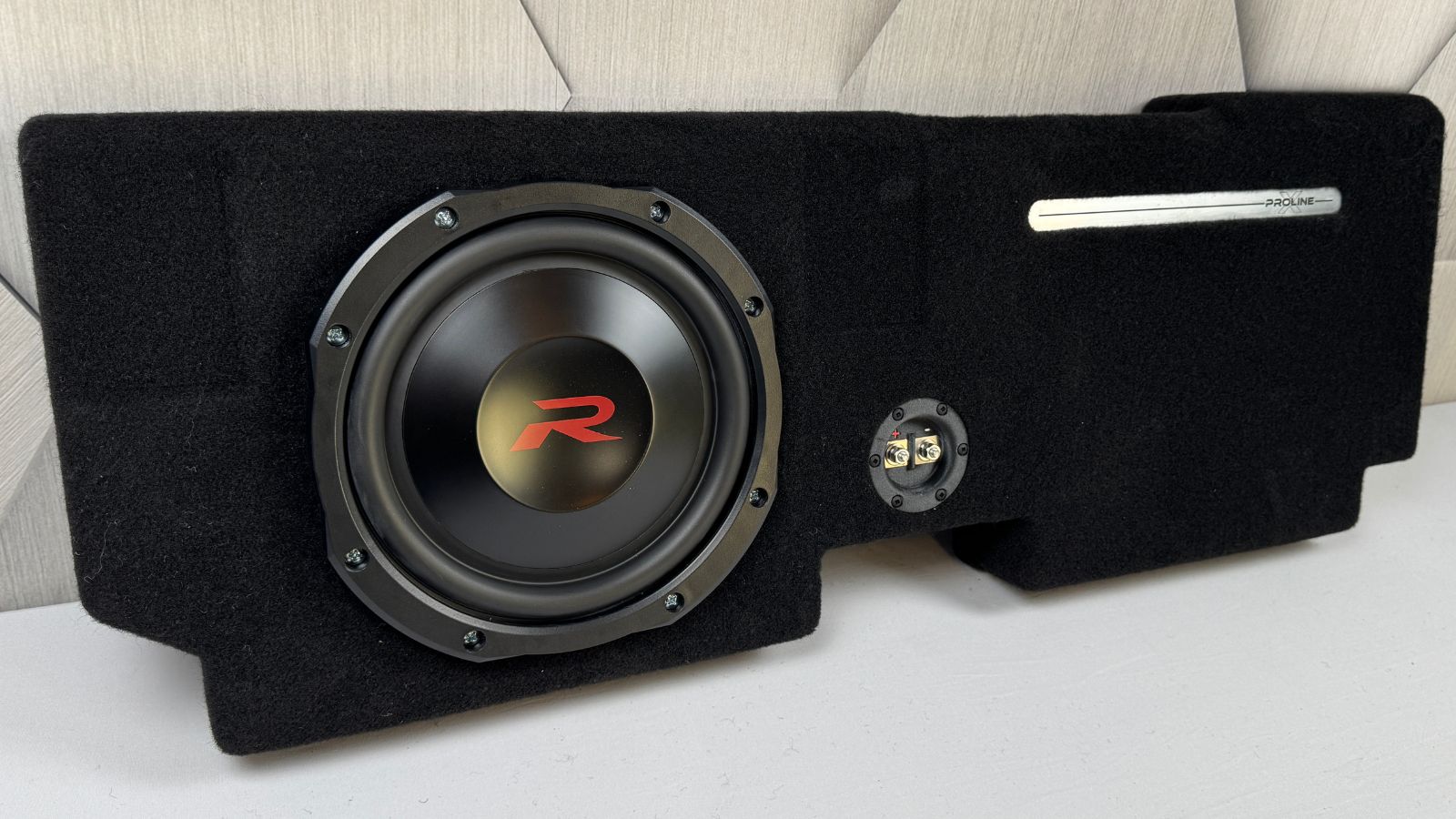

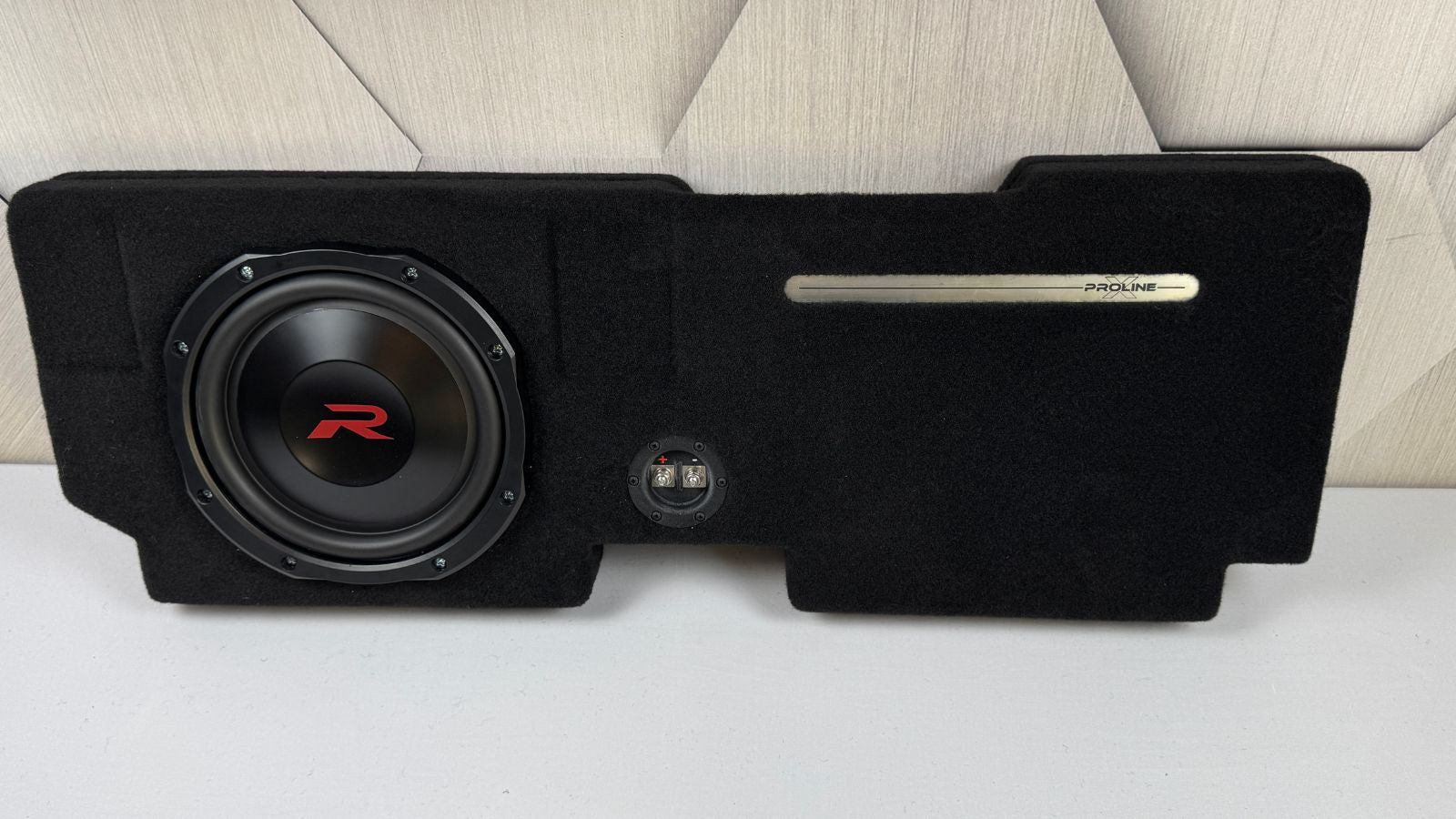

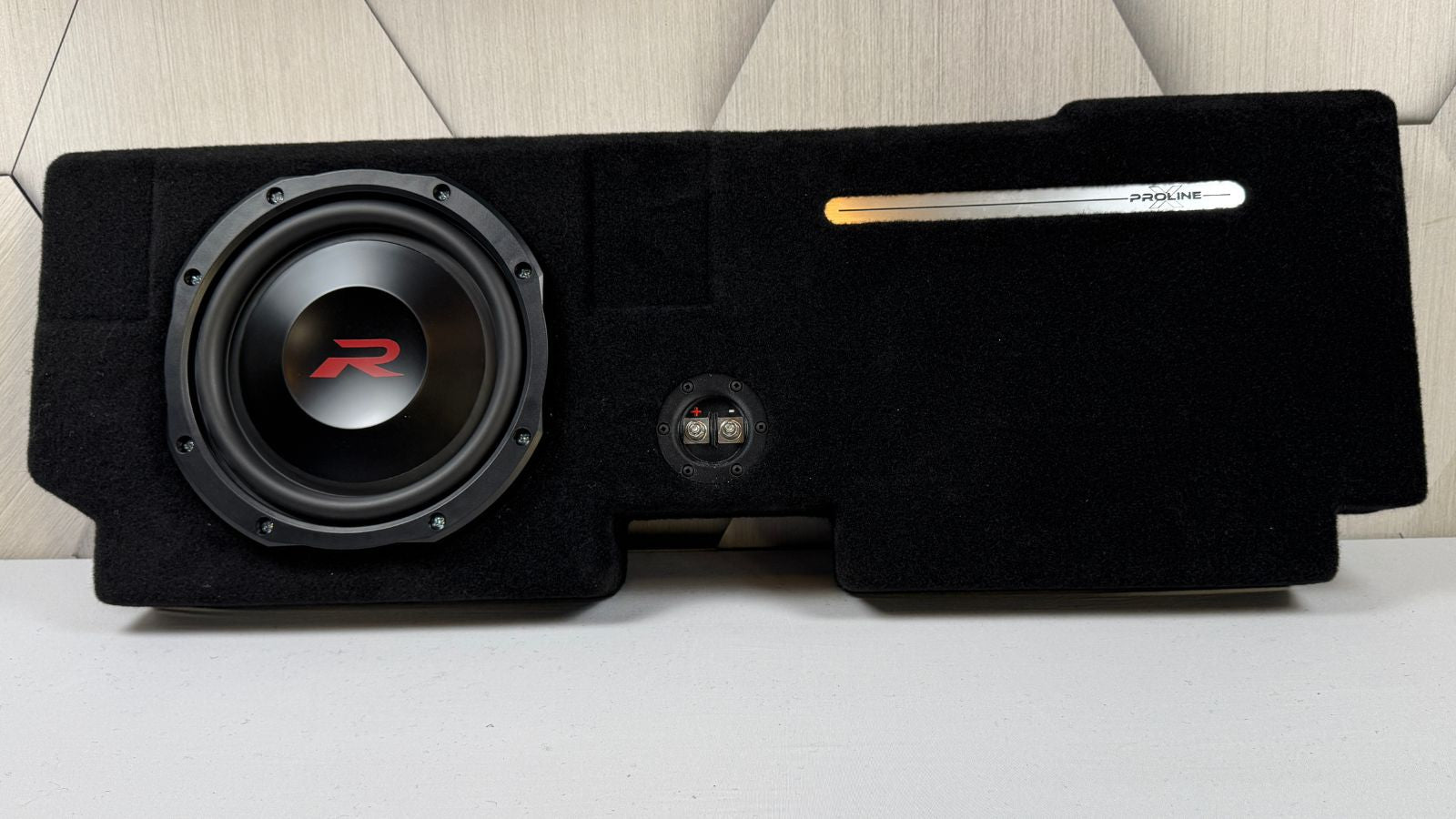

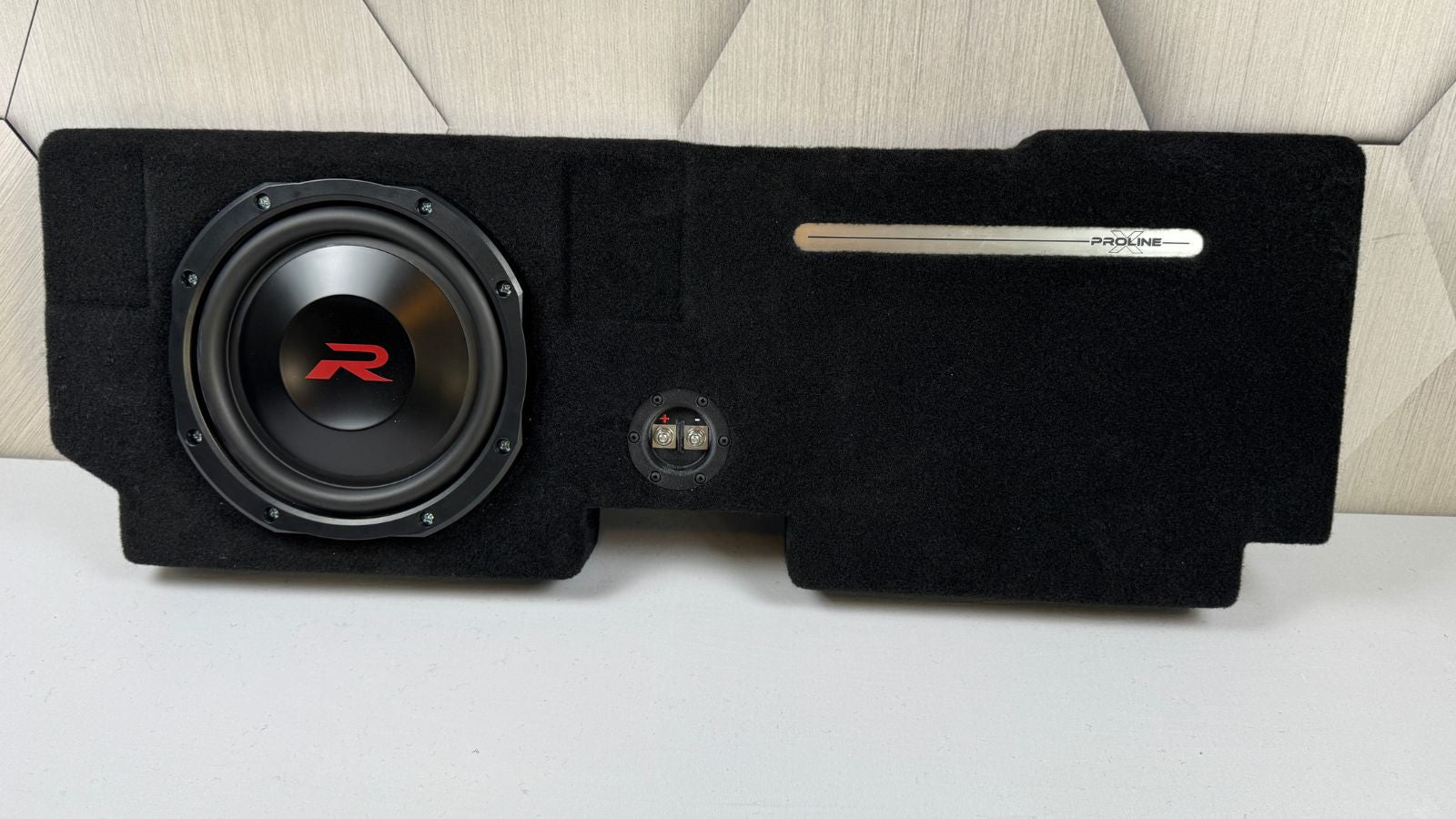

2015-2023 Ford F-150 & 2017-2023 F-250 Direct Fit Ford Series Loaded Subwoofer Enclosure – Alpine RSW10D4

Regular price $ 959.99
Sale price $ 959.99 Regular price
Unit price

Product Information

Overview

Premium Alpine Subwoofer + Custom Ford F-Series Enclosure: The Ultimate Bass Solution

The Alpine RSW10D4 subwoofer combined with our Proline X direct-fit enclosure creates the perfect bass solution for Ford F-150 (2015-2023) and F-250 (2017-2023) truck owners who want serious audio performance without sacrificing valuable space. This carefully engineered system addresses the unique acoustic challenges of Ford SuperCrew and Super Cab trucks by positioning a premium shallow-mount subwoofer behind the passenger-side rear seat, maintaining your under-seat storage while delivering impressive low-frequency response.

Performance That Exceeds Expectations

The Alpine RSW10D4 shallow subwoofer is the heart of this system. It features an oversized 4-inch voice coil powered by a neodymium magnet that delivers an impressive 600W RMS of power handling. Despite its compact design, requiring only 3.25 inches of mounting depth, this subwoofer achieves the same cone movement (20mm of excursion) as full-size subwoofers, producing deep, accurate bass that enhances every genre of music.

Alpine Subwoofer Features

Custom-Engineered For Your Ford F-Series

Our Proline X enclosure isn't just another generic box – it's specifically designed for the acoustics of Ford F-Series trucks, with an optimal 0.5 cubic feet of internal volume for enhanced bass frequencies. The enclosure sits snugly behind the passenger-side rear seat, featuring pre-drilled mounting holes, threaded inserts for secure subwoofer installation, and premium black carpeting that matches your truck's interior for a factory-installed appearance.

Factory Integration With Aftermarket Sound

Whether you're upgrading your factory audio system or building a custom setup, this Alpine-Proline X combination delivers exceptional bass response while maintaining your truck's everyday practicality. Experience the perfect balance of sound quality, output, and vehicle integration with this professional-grade audio solution designed specifically for your Ford F-Series.

What's Included

Includes:

Alpine RSW10D4 10" R-Series shallow-mount subwoofer (Dual 4-ohm voice coils)

Proline X VS FD1 10-S ALP direct-fit enclosure specifically for 2015-2023 Ford F-150 & 2017-2023 F-250

Professional pre-wiring with 12-gauge oxygen-free copper speaker wire

Threaded inserts on enclosure for secure woofer mounting

High-output terminal cup for clean, stable connections

Pre-installed polyfill for enhanced sound quality

Vehicle Compatibility
  • Ford F-150: All trim levels (2015-2023) with SuperCrew or Super Cab configuration
  • Ford F-250: All trim levels (2017-2023) with SuperCrew or Super Cab configuration
  • Super Duty models supported
  • Maintains full under-seat storage functionality
  • Fits behind the passenger-side rear seat
Why This Combo Works:

Highlights

✓ Shallow-mount design with only 3.25" mounting depth integrates perfectly where standard subwoofers won't fit
✓ Powerful 600W RMS output delivers exceptional bass performance without excess power demands
✓ Custom-engineered enclosure with optimal 0.5 cubic feet volume specifically tuned for F-Series cab acoustics
✓ Precision-fit design maintains all factory functionality and doesn't compromise under-seat storage
✓ Alpine's Gen2 DD-Linear Magnetic Circuit technology ensures precise bass control with minimal distortion
✓ Die-cast aluminum subwoofer frame and high-quality MDF enclosure provide rigid construction for cleaner sound
✓ Factory-match carpet finish integrates seamlessly with your truck's interior for a professional appearance

Reviews

Product Details

Subwoofer Specifications

General Specifications:

Subwoofer Size: 10 inches

RMS Power Handling: 600 watts

Peak Power Handling: 1800 watts

Frequency Response: 29Hz - 200Hz

Sensitivity: 78dB (1W/1m)

Nominal Impedance: Dual 4-ohm voice coils

Physical Specifications:

Mounting Depth: 3.25" (82.55mm)

X-Max (Linear Excursion): 20mm

Voice Coil Diameter: 4" (102mm)

Cone Type: Polypropylene with aluminum dust cap

Surround Material: Butyl rubber

Frame Construction: Die-cast aluminum

Magnet Type: Neodymium

Thiele-Small Parameters:

Free Air Resonance (Fs): 31 Hz

Electrical Q (Qes): 1.66

Mechanical Q (Qms): 5.72

Total Q (Qts): 1.19

Cone Area (Sd): 380 cm²

Mechanical Travel (Xmech): 54 mm

Subwoofer Features

Subwoofer Feature List:

Ultra-Shallow Design
The Alpine RSW10D4 features an innovative shallow-mount design that's perfect for the space constraints of modern trucks. Despite its compact profile requiring only 3.25 inches of mounting depth, this subwoofer delivers premium bass performance that rivals much larger drivers. This makes it ideal for Ford F-Series trucks, where installation space is limited but audio expectations remain high.

Extreme Output Capability
Don't be fooled by the slim profile – the RSW10D4 features the same cone movement (20mm of excursion) as full-size Alpine R2-Series subwoofers. This remarkable excursion capability allows the shallow driver to move significant air volume, producing deep, powerful bass that enhances any music genre from hip-hop to country, rock to classical.

Advanced Motor Structure
At the heart of the subwoofer is an oversized 4-inch voice coil controlled by a powerful neodymium magnet. Alpine's proprietary Gen2 DD-Linear Magnetic Circuit technology employs a compact and efficient dual-gap voice coil structure that provides superior control over the motor, resulting in significantly lower distortion and precise bass articulation even at high volume levels.

Optimized Sound Projection
The lightweight yet rigid aluminum dust cap allows for quick sound transitions with minimal distortion. This specialized design efficiently projects bass off the speaker's surface, creating a hard-hitting yet smooth low-frequency response that integrates naturally with your vehicle's existing sound system.

Superior Construction Quality
The RSW10D4 is built with a die-cast aluminum frame providing the rigid, sturdy foundation for powerful bass reproduction. This premium construction ensures high energy transfer while minimizing unwanted resonance and distortion, resulting in cleaner, more accurate bass performance throughout the subwoofer's operating range.

Flexible Installation Options
With dual 4-ohm voice coils, the RSW10D4 offers flexible wiring configurations to match a variety of amplifiers. This versatility allows you to wire the subwoofer for either 2-ohm or 8-ohm impedance, making it compatible with a wide range of aftermarket audio systems and amplifier specifications.

Related Video
Enclosure Specifications

General Specifications:

Enclosure Series: Vehicle Specific Series (Proline X)

Enclosure Type: Sealed (optimal for sound quality and space efficiency)

Net Volume: 0.5 cubic feet (optimized for the Alpine RSW10D4)

Enclosure Material: Premium MDF (Medium Density Fiberboard)

Front Baffle Thickness: 3/4 inch

Subwoofer Recess: Precision-cut for Alpine RSW10D4

Internal Bracing: Yes, for enhanced rigidity and reduced resonance

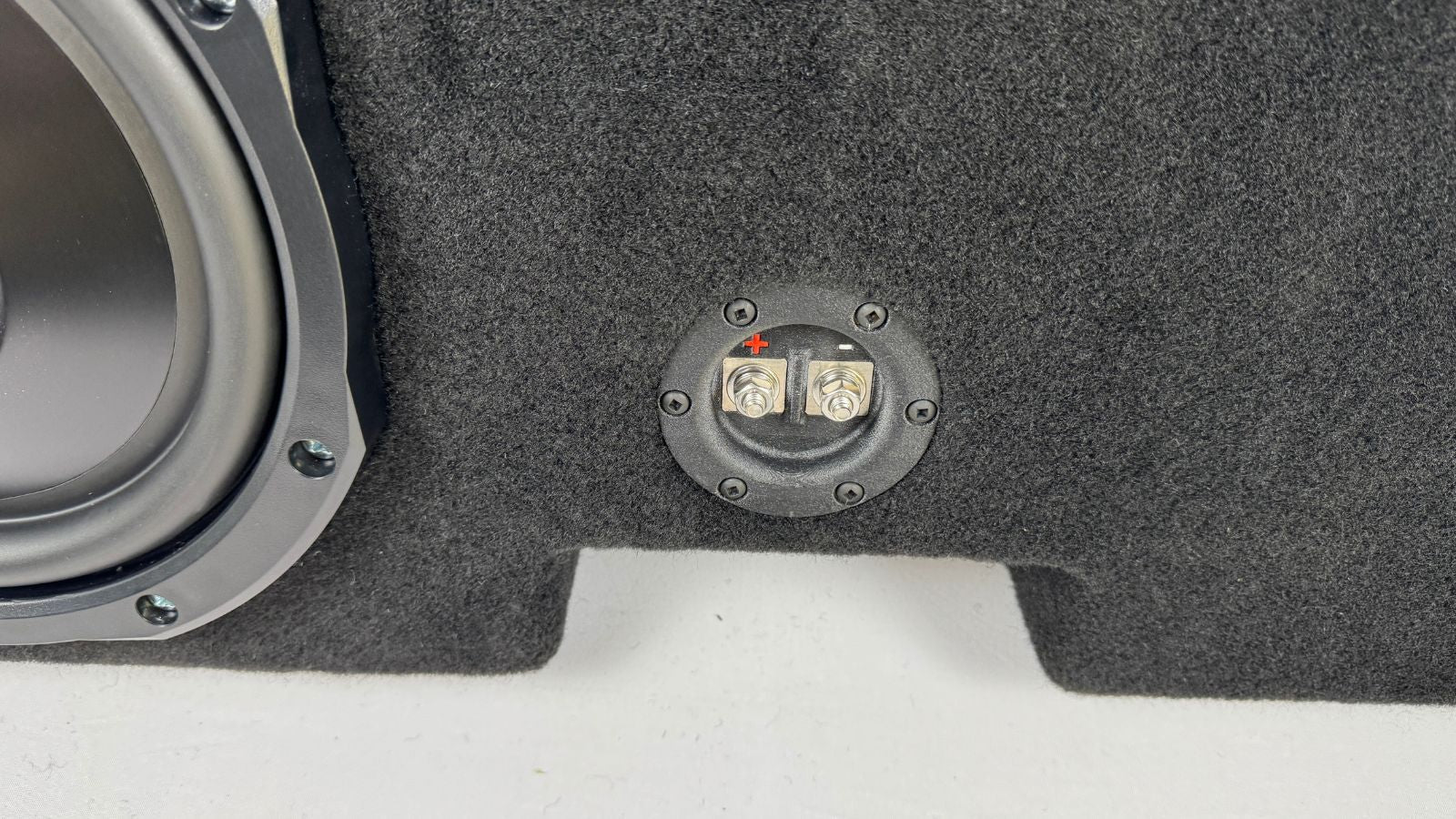

Terminal Cup: High-quality spring-loaded design for secure connections

Physical Specifications:

Subwoofer Mounting Depth: 3.5 inches (accommodates the 3.25" RSW10D4)

Subwoofer Cutout: Precision-cut for 10" Alpine RSW10D4

Number of Cutouts: 1 (single 10" configuration)

Finish: Premium black automotive carpet (matches Ford interior)

Dimensions: Custom-fit to Ford F-Series rear passenger area

Installation Location: Behind the passenger-side rear seat

Enclosure Features

Ford F-Series Direct-Fit Design
The Proline X enclosure is specifically engineered to fit 2015-2023 Ford F-150 and 2017-2023 F-250 trucks with SuperCrew or Super Cab configurations. This isn't a generic "universal" box—it's a precision-designed solution with exact dimensions that fit perfectly behind the passenger-side rear seat without modification to your vehicle.

Space-Efficient Solution
Understanding that truck owners value their cargo space, we've designed this enclosure to maximize audio performance without sacrificing utility. The enclosure tucks neatly behind the rear seat, maintaining full access to your under-seat storage area – a major advantage over universal solutions that often require compromise.

Acoustically Optimized Volume
With 0.5 cubic feet of internal volume, this enclosure provides the ideal acoustic environment for the Alpine RSW10D4 subwoofer. This precise volume has been calculated and tested specifically for this driver to deliver optimal bass response and transient accuracy in the unique acoustic space of Ford F-Series cabs.

Premium Construction Quality
Built with high-grade MDF and featuring internal bracing, this enclosure provides the rigid, resonance-free foundation necessary for clean bass reproduction. Every joint is precisely cut, glued, and secured for an airtight seal that ensures maximum performance from your subwoofer investment.

Factory-Match Aesthetics
This enclosure offers OEM-level integration. It is finished in premium black automotive carpet that perfectly matches the Ford F-Series interior. The professional finish complements your truck's sophisticated interior while providing a durable, scratch-resistant surface that will look great for years.

Stack Fab Design
Our unique stack fab design provides optimal enclosure volume for enhanced bass frequencies while ensuring perfect fitment. This specialized construction method allows us to follow the exact contours of your truck's interior for a factory-installed appearance and maximum acoustic performance.
