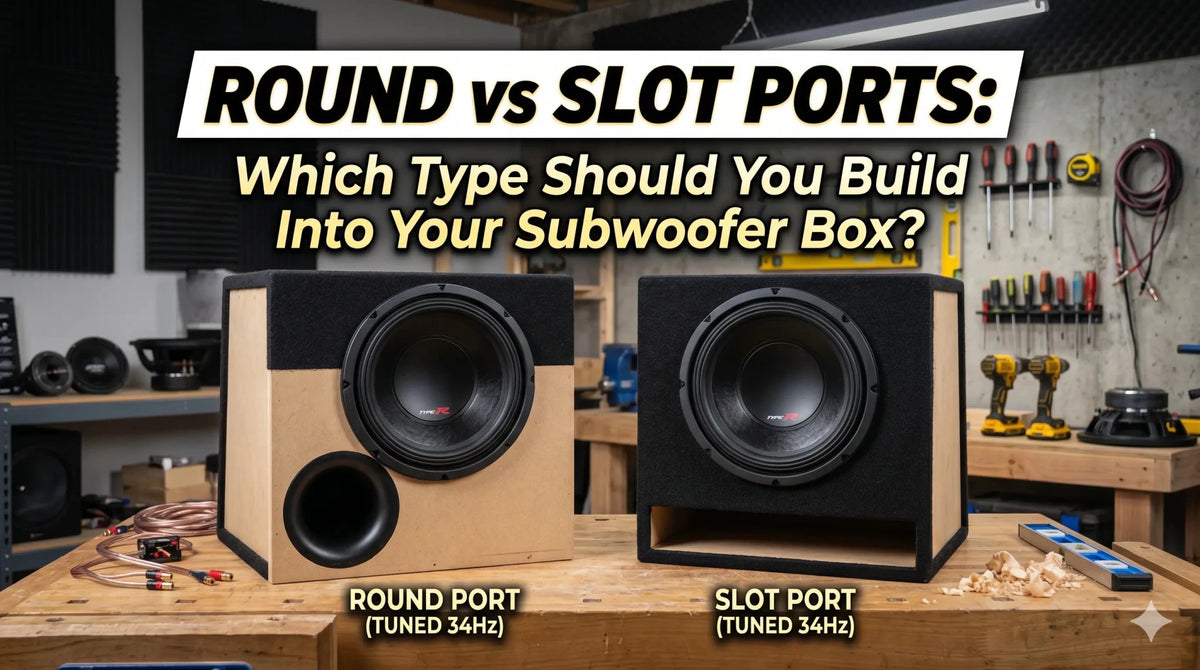

Round vs Slot Ports: Which Type Should You Build Into Your Subwoofer Box?

For a ported subwoofer enclosure, round and slot ports tune to the same frequency at the same cross-sectional area and effective length. The differences show up in port velocity tolerance, internal volume cost, and how easily the geometry fits a real vehicle. Round ports flare cleanly on both ends and stay quiet up to roughly 25 m/s of airflow. Slot ports pack more area into shallow boxes and share walls with the enclosure to save volume, but their square corners limit flare effectiveness. Choose round for trunk SQ builds and aero applications. Choose slot for truck behind-seat boxes, vehicle-specific designs, and high-output multi-sub systems.

This article assumes you've already chosen a ported alignment over sealed or bandpass. If you haven't, start with our subwoofer enclosure design guide and our sealed, ported, and bandpass comparison. What follows covers the round versus slot port decision specifically: tuning math, velocity ceilings, internal-volume cost, manufacturability, and which one we cut on the CNC for which build.

What Actually Differs Between a Round Port and a Slot Port?

The Helmholtz resonance formula that sets a vented box's tuning frequency uses two port variables: cross-sectional area (Av) and effective length (Lv). It does not have a shape term. A 4-inch round port (12.57 sq in area) and a 4 by 3 slot port (12 sq in area) tuned to the same length resonate at almost exactly the same frequency in a given box. The shape difference shows up in three other places: end correction, wall friction, and how much enclosure volume the port consumes.

End correction is the small "extra length" the air mass at the port ends behaves as if it had. For a round port flanged on one end and free on the other (a typical box port), end correction adds roughly 0.85 times the radius at the flanged end and 0.6 times the radius at the free end (Beranek, Acoustics, Acoustical Society of America). For a slot port using one or more enclosure walls as port walls, the math gets messier and most builders use a simulator (WinISD, BassBox Pro, Hornresp) instead of hand calculation.

Wall friction scales with port perimeter relative to area. A round port has the lowest perimeter-to-area ratio of any shape, which means lower frictional loss at high airflow. A slot port has more wall surface per cross-sectional area and four sharp corners that promote turbulent separation. Both are fine at moderate velocity. Both choke at high velocity. Round ports choke later.

How Much Internal Volume Does Each Port Cost the Box?

This is where slot ports earn their reputation. A round port displaces pi r squared times its physical length, all of it subtracted from the enclosure's net internal volume. A 4-inch round port that's 18 inches long takes 226 cubic inches (about 0.13 cubic feet) of internal volume away from the driver. A slot port using two of the enclosure's existing walls (top and bottom of the box, for example) only adds two new internal walls, so its volume cost is the area between the new walls, not pi r squared times length.

For a tight vehicle-specific box (a truck behind-seat enclosure, an SUV cargo-floor build, a tightly packaged sedan trunk box), this matters. A 1.0 cubic foot net target with a round port might require a gross box volume of 1.15 cubic feet. The same target with a slot port sharing two walls might only need 1.05 cubic feet of gross volume. In a behind-seat truck box where every inch of depth is fought for, that 0.10 cubic foot is the entire reason slot ports dominate the truck install market.

Round ports buy back some of that volume cost in flexibility. They can be moved to any face of the box, angled, or routed through partitions. A slot port's geometry is locked to the wall it shares, which constrains driver placement and terminal location. Both are tradeoffs that show up in real builds, not on the spec sheet.

Why Port Velocity Matters More Than Port Shape

Air moving through a port has a peak velocity at tuning frequency under high power. Below a critical velocity, flow stays laminar and the port works as a pure mass-loaded resonator. Above that velocity, flow separates from the port walls, vortices form, and you get audible chuffing plus port compression (lost output). The audible-chuffing threshold depends on port shape, edge geometry, and end treatment.

Industry consensus from the loudspeaker engineering literature is roughly: 17 m/s (56 ft/s) for slot ports with sharp internal corners, 20 m/s for round ports with no flare, 22 m/s for round ports with one flared end, and 25 m/s for aero ports flared on both ends (Salvatti, Devantier, Button, JAES 2002, "Maximizing Performance from Loudspeaker Ports"). Aero ports also reduce port compression by approximately 3 dB at high SPL versus equivalent straight ports, which is why they dominate SPL builds where every dB matters.

Port velocity is calculated from the volume velocity of the cone (cone area times peak excursion times angular frequency at Fb) divided by port area. If the math says your port hits 22 m/s at rated power, a slot port will chuff and a single-flared round port will be on the edge. The fix is not to change port shape blindly. The fix is to add port area, run the math again, and adjust port length to keep tuning the same.

When We Build Round Ports

Round ports go into builds where airflow noise has to be controlled and the box geometry can accommodate the port displacement. That covers most trunk SQ builds, single-sub configurations targeting moderate output, and any application where the port can be flared on both ends. PVC tubing flared with PVC bell flares or precision-machined aero port flanges is the cleanest implementation. We use 4-inch and 6-inch aero flares cut to length, fitted into a CNC-routed pocket on the back wall, and sealed with PL Premium polyurethane glue.

Round ports also win when the port has to be moved off-axis or routed through an internal partition. They tolerate angles, transitions, and odd geometries that a slot port locked to a wall cannot accommodate.

When We Build Slot Ports

Slot ports go into builds where depth is the constraint or where a single very large port is required. Truck behind-seat boxes get slot ports nearly without exception, because the available depth (often 6 to 10 inches between the seat back and the cab wall) cannot fit a useful round port without compromising tuning or driver placement. Vehicle Specific Series boxes follow the same pattern. SPL builds also lean slot when the math calls for 30 plus square inches of port area, because packing that much round area into the available real estate is impractical (BestCarAudio.com).

Slot ports also brace the box. Every internal port wall is also a vertical or horizontal stretcher, which raises panel resonance frequency above the operating band. That's a side benefit of the geometry, not the reason to choose it, but it shows up on a measured frequency sweep.

How to Calculate Equivalent Round and Slot Port Sizes

Pick the cross-sectional area first based on application: 12 to 14 sq in per cubic foot of net internal volume for daily SQ, 14 to 18 sq in per cubic foot for high-output ported, 18 to 25 plus for SPL. Then calculate the physical length needed to hit your tuning frequency at that area in your box volume using the Helmholtz formula or a simulator.

Worked example. A 1.0 cubic foot net box for a 12-inch ported sub targeting 33 Hz tuning needs about 14 sq in of port for daily-output use. As a 4-inch round port (12.57 sq in) the length comes out to roughly 17 to 18 inches with end correction included. As a slot port using the box's top and bottom walls (so two existing walls plus two new ones) at 4 inches tall by 3.5 inches wide (14 sq in), the length comes out to roughly 18 to 19 inches with the boundary-corrected effective length. The numbers are close because the area is nearly identical. The slot port costs less internal volume in displacement but constrains driver placement to the opposite wall.

How We Cut Ports on Proline X Enclosures

Performance Series ported builds are usually trunk or cargo-area enclosures where depth is not the limiting factor. We default to 4-inch or 6-inch aero ports with both ends flared, cut into a CNC-routed pocket on the rear baffle and sealed with PL Premium. Aero ports give us the highest velocity ceiling and the cleanest measured response.

Vehicle Specific Series boxes (behind-seat truck, SUV cargo-floor, sedan trunk) are nearly always slot ports. The available depth dictates the geometry, and the slot's wall-sharing keeps gross box volume manageable in tight cabins. We cut the slot's internal walls from the same Langboard Elite 3/4-inch MDF as the rest of the box and dado them into the side panels for a rigid joint that doubles as bracing.

Loaded Series boxes follow whatever the driver manufacturer publishes for that model. If JL Audio's W7 enclosure manual specifies a slot, we cut a slot. If Image Dynamics' IDMAX 10 V4 (39mm Xmax peak-to-peak, 19.5mm one-way) specs an aero port, we cut an aero port. We don't second-guess the driver engineer's port specification on a Loaded build. For background on how port geometry interacts with material choice and bracing, see our MDF vs plywood subwoofer box comparison and our sealed subwoofer box design guide for the contrast case where there is no port to worry about.

Round vs Slot Ports: Frequently Asked Questions

If you're spec'ing a custom ported box and want help choosing between round and slot for a specific driver and vehicle, contact us with the driver model, target tuning frequency, and the vehicle's available enclosure space. We'll run the math and recommend a port geometry before any wood gets cut.
