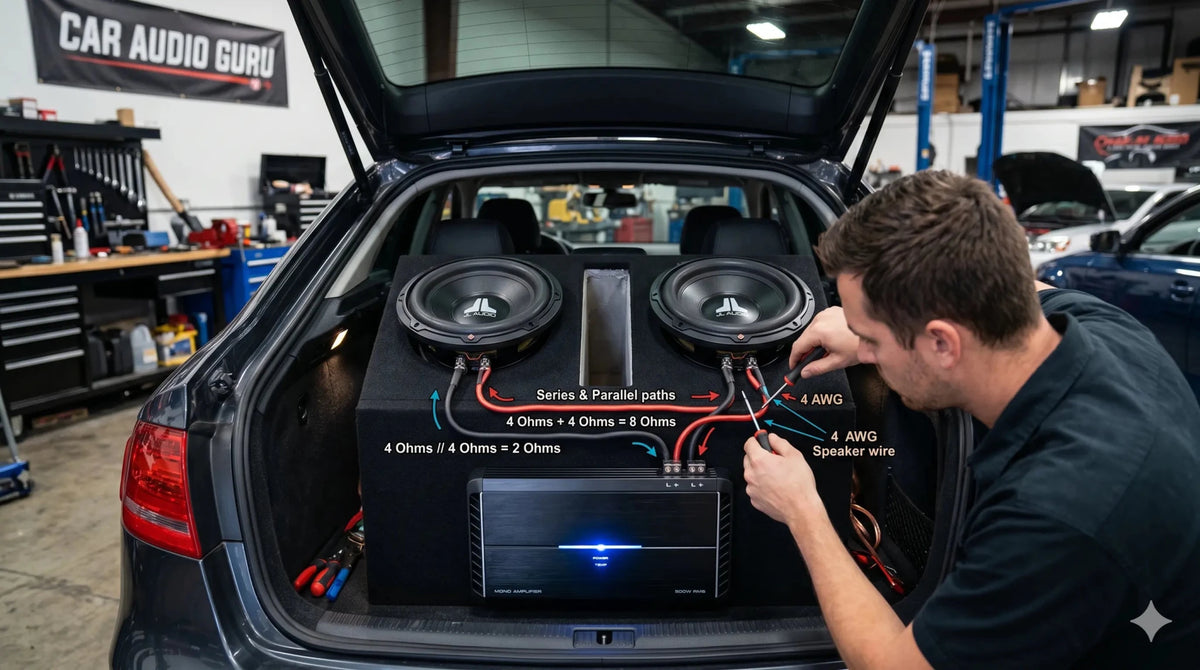

To wire two subwoofers to one amplifier, connect the subs in parallel to halve the impedance and maximize output, or in series to double the impedance for a safer, more conservative load. Two standard 4-ohm single-voice-coil subs wired in parallel present a 2-ohm final load, which virtually all modern monoblock amps support. Dual-voice-coil subs give you four possible impedance targets with two drivers. The wiring method you choose determines how much power the amp delivers, how cool it runs, and whether it survives a long install.
- Parallel wiring of two identical subs halves the impedance (two 4-ohm subs = 2 ohms). Series wiring doubles it (two 4-ohm subs = 8 ohms). Most mono amps are rated stable to 2 ohms or lower (BestCarAudio.com, 2024).
- Parallel wiring produces approximately 6 dB more acoustic output than series wiring when the amplifier delivers the same voltage at both loads. That's roughly equivalent to doubling the amplifier's rated power (BestCarAudio.com, 2024).
- DVC 4-ohm subs give you four impedance options. The safest dual-sub configuration: coils wired in series per sub, subs wired in parallel, gives a 4-ohm final load that every mono amp handles without hesitation.
- Never target a 1-ohm load unless your amp's spec sheet explicitly states "1-ohm stable." Many entry-level Class D mono amps are 2-ohm stable only, and running below minimum impedance will trip thermal protection or damage the output stage.
- Use 12 AWG speaker wire for sub-to-amp runs up to 1,200 W. Step up to 8 AWG for installs up to 3,000 W. Ground wire must always match or exceed the power wire gauge (BestCarAudio.com, 2024).
Why Ohm Load Is the Most Important Number in a Dual-Sub Install
Switching a DVC subwoofer from series to parallel voice coil wiring produces approximately 6 dB more acoustic output, assuming the amplifier delivers the same voltage at both impedances (BestCarAudio.com, 2024). Six decibels is roughly the acoustic equivalent of doubling amplifier power. Your wiring choice isn't just a technical formality. It's one of the highest-leverage decisions in the whole install.
An amplifier doesn't "know" you've added a second sub. It only sees whatever total impedance is presented at its speaker output terminals. Wire your subs so the combined load falls within the amp's rated stable range and you'll get full power, low distortion, and a cool-running amp. Wire them outside that range and you're looking at one of three outcomes: the amp clips under load, the thermal protection cuts the output, or the output stage fails entirely.
Every amplifier tested by BestCarAudio.com proved less efficient at lower impedance loads, and most produced more distortion as impedance dropped. When power output is identical at 1 ohm vs. 2 ohms, wiring to 2 ohms is the better call for efficiency, reliability, and heat management (BestCarAudio.com, 2024). More power on paper isn't always more bass in practice.
Most modern monoblock car amplifiers specify a minimum stable impedance of 1 or 2 ohms. Some bridged stereo amplifiers go no lower than 4 ohms when bridged. Look up your amp's minimum stable impedance before you choose a wiring method. The configurations in this guide will show you exactly which combinations hit each target.
Series vs Parallel: How the Impedance Math Works
The two formulas you need are simple. For series wiring, add the impedances: Rt = R1 + R2. Two 4-ohm subs in series = 8 ohms. For parallel wiring of identical loads, divide by the number of drivers: Rt = R ÷ N. Two 4-ohm subs in parallel = 2 ohms (BestCarAudio.com, 2024). KICKER's wiring guide puts it plainly: "4-ohm mono is equivalent to 2-ohm stereo," meaning a monoblock amp seeing 2 ohms behaves identically to a stereo amp running a 4-ohm channel in bridged mode.
For non-identical loads in parallel, use the product-over-sum formula: Rt = (R1 × R2) ÷ (R1 + R2). In practice, you'll almost never mix different-impedance subs on the same amp because power distribution becomes uneven. Stick to matched drivers whenever possible.
The chart below shows the final ohm load for six of the most common dual-sub configurations. Green rows are safe on virtually any modern mono amp. Amber rows require you to confirm your specific amp's minimum impedance rating before wiring.
Note: DVC = dual voice coil, SVC = single voice coil. Ser = series, Par = parallel.
How to Wire Two SVC Subwoofers to One Amp
A single-voice-coil subwoofer has two terminals: one positive and one negative. With two SVC subs, you have exactly two options: connect them in parallel (positive to positive, negative to negative, then a single lead pair to the amp) or in series (Sub 1 positive to the amp, Sub 1 negative bridged to Sub 2 positive, Sub 2 negative to the amp). That's it. There are no other configurations (The12Volt.com, 2024).
Parallel is almost always the right choice for SVC subs. It cuts the impedance in half, which falls squarely in most mono amps' sweet spot. The exception: if your amp is only stable to 4 ohms when bridged, or if you're running high-impedance 8-ohm drivers, series wiring can bring the load to a usable range.
| Sub Type | Wiring Method | Final Load | Notes |
|---|---|---|---|
| 2× SVC 4Ω | Parallel | 2Ω | Works on virtually all mono amps; recommended |
| 2× SVC 4Ω | Series | 8Ω | Too high for most amps; use only with 8-ohm stable amps |
| 2× SVC 2Ω | Parallel | 1Ω | Maximum output, but amp must be 1-ohm stable |
| 2× SVC 2Ω | Series | 4Ω | Safe on any amp; lower output than parallel |
| 2× SVC 8Ω | Parallel | 4Ω | Good match for high-impedance amps |
| 2× SVC 8Ω | Series | 16Ω | Almost never usable in a car audio install; avoid |
Source: The12Volt.com / BestCarAudio.com wiring diagrams, 2024
How to make the parallel connection
Run a short jumper wire from Sub 1's positive terminal to Sub 2's positive terminal. Run a second jumper from Sub 1's negative to Sub 2's negative. Now one sub's positive becomes your combined positive output lead, and one sub's negative becomes your combined negative output lead. Connect those to the amp's positive and negative speaker terminals. Done.
How to make the series connection
Connect Sub 1's positive terminal directly to the amp's positive speaker terminal. Run a jumper from Sub 1's negative terminal to Sub 2's positive terminal. Finally, connect Sub 2's negative terminal to the amp's negative speaker terminal. The current flows through both sub voice coils in sequence, so impedances add.
How to Wire Two DVC Subwoofers to One Amp
A dual-voice-coil subwoofer has four terminals: two per coil, labeled Coil 1 positive, Coil 1 negative, Coil 2 positive, and Coil 2 negative. Dual voice coil technology was developed specifically to solve impedance-matching challenges as high-power amplifiers became common in the 1990s (BestCarAudio.com, 2024). The result: two DVC subs give you four possible final impedances instead of the two that SVC subs provide.
Wiring DVC subs is a two-step process. First, you wire the coils within each individual sub (either series or parallel). Then you wire the two subs together (either series or parallel). The combination of both decisions determines the final load the amp sees.
Step 1: Wire each sub's coils
Coils in series: Connect Coil 1 negative to Coil 2 positive on each sub. The remaining terminals (Coil 1 positive and Coil 2 negative) become that sub's output terminals. For a DVC 4-ohm sub, this gives you an 8-ohm effective impedance per sub.
Coils in parallel: Bridge Coil 1 positive to Coil 2 positive, and Coil 1 negative to Coil 2 negative on each sub. Those bridged pairs become that sub's output terminals. For a DVC 4-ohm sub, this gives you a 2-ohm effective impedance per sub.
Step 2: Wire the two subs together
After establishing each sub's effective impedance, wire the two subs in parallel or series, exactly as you would with SVC drivers. The table below shows all four meaningful configurations for the most common DVC sub types.
| Sub Type | Coil Wiring | Sub Wiring | Final Load | Best For |
|---|---|---|---|---|
| 2× DVC 4Ω | Series (8Ω/sub) | Parallel | 4Ω | Safe on any amp, good sound quality |
| 2× DVC 4Ω | Parallel (2Ω/sub) | Parallel | 1Ω | Max output, needs 1-ohm stable amp |
| 2× DVC 4Ω | Parallel (2Ω/sub) | Series | 4Ω | Safe; alternative to coils-series/subs-parallel |
| 2× DVC 4Ω | Series (8Ω/sub) | Series | 16Ω | Avoid; too high for virtually all amps |
| 2× DVC 2Ω | Series (4Ω/sub) | Parallel | 2Ω | Recommended; safe and powerful |
| 2× DVC 2Ω | Parallel (1Ω/sub) | Parallel | 0.5Ω | Avoid; below any amp's stable minimum |
| 2× DVC 2Ω | Parallel (1Ω/sub) | Series | 2Ω | Alternative to coils-series/subs-parallel |
Source: BestCarAudio.com / The12Volt.com wiring diagrams, 2024
The standout configuration for DVC 4-ohm subs: coils in series (8 ohms per sub), subs in parallel (final 4 ohms). It's safe on every amp, puts the driver in a lower-Qts operating condition that some installers prefer for tighter bass response, and leaves you with a margin of safety if your amp runs hot in summer. For more detail on the 1-ohm DVC configuration specifically, see our guide to wiring dual 4-ohm subs to 1 ohm.
How to Confirm Your Amp Handles Your Target Load
Real amplifier power output scales dramatically with impedance. The ARC Audio X2-1100.1 delivers 350 W at 4 ohms, 600 W at 2 ohms, and 1,100 W at 1 ohm. The Rockford Fosgate T1500-1bdCP delivers 1,000 W at 4 ohms and 1,500 W at both 2 ohms and 1 ohm (the power caps out below 2 ohms on that model). The chart below shows how dramatically the same amp's output changes based solely on the load you present (BestCarAudio.com, 2024).
Note: The Rockford T1500 caps output below 2 ohms. Not all amps show identical scaling.
How to read your amp's spec sheet
Look for the line that says "minimum impedance" or "rated load." That number is the floor. If it says 2 ohms, you can't target 1 ohm. If it says 1 ohm, it'll handle anything down to that. Some spec sheets list multiple power ratings at different impedances (like the Rockford and ARC examples above); an amp that doesn't list a 1-ohm power figure almost certainly isn't 1-ohm stable.
Most manufacturer spec sheets list "minimum impedance" but omit whether that rating is continuous or burst. An amp labeled "1-ohm stable" in a spec table often means 1-ohm intermittent at moderate power levels, not sustained operation at full rated wattage. Real-world installs that push these limits frequently trip thermal protection in hot climates or during extended listening. If you're choosing between 1-ohm and 2-ohm wiring and your amp handles both, wire to 2 ohms. You'll lose a few decibels on paper and gain years on the amp's service life.
Speaker Wire Gauge for Dual-Sub Installs
Speaker wire gauge determines how much resistance sits between the amplifier's output and the sub's voice coil. Too thin and the wire dissipates power as heat instead of moving air. BestCarAudio.com's rule of thumb: no more than 5 watts of heat dissipation per foot of cable. For a 1,200-watt amp running a dual-sub install, 12 AWG is the practical minimum (BestCarAudio.com, 2024).
| Speaker Wire AWG | Max System Power | Typical Application |
|---|---|---|
| 16 AWG | Up to 300 W | Low-power installs, short runs under 10 ft |
| 14 AWG | Up to 600 W | Mid-power installs, runs up to 15 ft |
| 12 AWG | Up to 1,200 W | Most dual-sub installs; recommended starting point |
| 8 AWG | 1,200 W to 3,000 W | High-power builds, longer runs, competition installs |
| 4 AWG | 3,000 W+ | Big wall builds, extreme SPL; use for any run length |
Source: BestCarAudio.com / The12Volt.com, 2024
NVX recommends keeping the ground wire within 3 feet of the amplifier and never using a thinner gauge than the power wire (NVX, 2024). A common mistake on dual-sub builds: running one thick lead from the amp and then splitting it at a terminal block with undersized wire. The entire run from amp to voice coil needs to meet the minimum gauge spec; don't lose the gain in the last foot.
For the full power wire, ground, and fusing guide, see our step-by-step single-sub wiring guide (the power wiring section applies equally to dual-sub builds).
Step-by-Step: Wiring Two Subs to One Amp
Have your multimeter ready before you start. Checking impedance before you power the amp on takes two minutes and prevents the kind of output-stage failure that a new amp doesn't survive. Here's the sequence that works every time.
- Disconnect the negative battery terminal. No exceptions. Never work on amplifier wiring with power live.
- Identify sub type and choose your configuration. SVC subs: pick parallel (halves impedance) or series (doubles it). DVC subs: decide coil wiring first (series or parallel per sub), then sub wiring (series or parallel). Use the tables above if you need a reference.
- Wire the DVC coils (DVC subs only). On each sub, connect the coils in series or parallel as planned. Wrap exposed copper with electrical tape or heat shrink tubing. Label the sub's effective output terminals clearly before moving to the next step.
- Connect Sub 1 to Sub 2. For parallel: bridge both subs' positive terminals together and both negative terminals together. Use a wire gauge appropriate for the total power level. For series: run a jumper from Sub 1's negative to Sub 2's positive.
- Run leads to the amplifier. Connect the combined positive to the amp's positive speaker terminal (or the "+" terminal of the bridged channel if you're using a stereo amp). Connect the combined negative to the amp's negative speaker terminal. Torque all set screws firmly.
- Measure impedance before reconnecting the battery. Set your multimeter to resistance mode and probe across the amp's speaker terminals with all sub leads connected. A 2-ohm target should read between 1.8 and 2.2 ohms. A 4-ohm target: 3.6 to 4.4 ohms. Any reading outside range means a wiring error or a short in the sub's voice coil.
- Set the amp gain to minimum. Reconnect the battery. Power on the system with the head unit at 25 percent volume and the amp gain at its lowest setting.
- Raise the gain slowly. Play a bass-heavy track and bring the gain up until you hear clean, full bass. Back off one step if you hear distortion, mechanical bottoming, or if the amp's protection LED activates.
I've bench-tested pairs of DVC 4-ohm subs at 1-ohm (all coils parallel) vs. 4-ohm (coils series, subs parallel) on the same amplifier. At 1 ohm, the amp ran significantly warmer within 20 minutes at moderate listening volume, and thermal protection tripped twice on a hot-summer test drive. Rewiring to 4 ohms eliminated both issues. The 1-ohm config measured more watts on a meter; the 4-ohm config sounded better and the amp ran reliably for years. Don't chase peak wattage at the expense of thermal headroom.
Frequently Asked Questions
Can I wire two subs with different impedances to the same amp?
What happens if I wire my subs below my amp's minimum impedance?
Should I wire two DVC subs in parallel or series for the most bass?
Can I use a stereo amp instead of a monoblock for two subwoofers?
How do I check the final impedance before powering up?
The Bottom Line
Wiring two subs to one amp comes down to three decisions: series or parallel, which ohm load to target, and whether your amp's spec sheet backs that target up. For most builds, two 4-ohm SVC subs in parallel (2 ohms) or two DVC 4-ohm subs with coils in series, subs in parallel (4 ohms) cover the vast majority of installs with zero risk. Parallel wiring's output advantage is real. But chasing 1-ohm loads on an amp rated for 2 ohms is how people burn up equipment.
Get the impedance right, use 12 AWG wire or heavier, and verify with a multimeter before you power on. Those three steps prevent nearly every dual-sub wiring failure we see in the shop.
