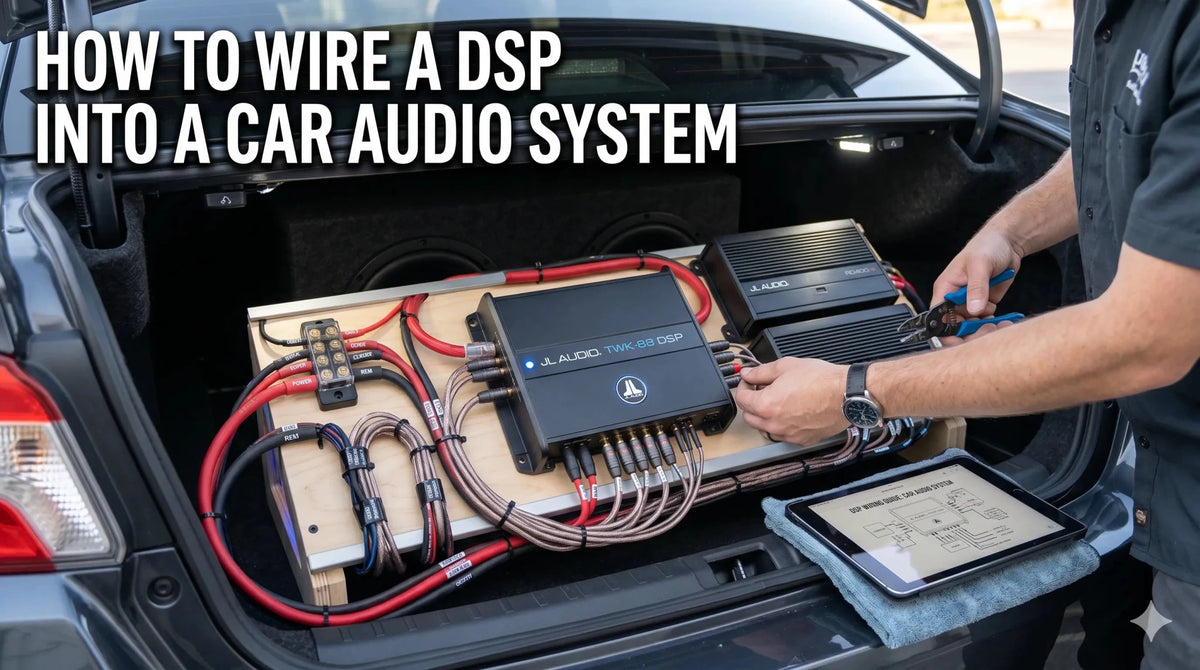

A DSP, or Digital Signal Processor, is the single biggest sound quality upgrade in a car audio system, but only when it's wired correctly. The actual wiring isn't complicated once you understand the signal flow: the DSP sits between your source unit and your amplifiers, shaping every signal before it reaches a speaker. This guide covers every wire, from input connections at the head unit to power and ground at the battery.
The vehicle acoustic DSP chips market was valued at USD 867.1 million in 2025 and is projected to reach USD 1,754.2 million by 2035 at a 7.3% annual growth rate (Future Market Insights, 2025). That growth is happening because builders keep discovering that a properly wired, properly tuned DSP does more for sound quality than almost any hardware swap. If you're wiring one for the first time, here's exactly how to do it.
- The DSP sits between your head unit and your amplifiers; every audio signal passes through it before reaching a speaker
- Use low-level (RCA) inputs when your head unit has preamp outputs; use high-level speaker-wire inputs only for factory head units with no RCA jacks
- DSP power wiring needs 14-16 gauge wire with a 5-15A inline fuse within 18 inches of the battery
- Ground the DSP at the same chassis bolt as your amplifiers to prevent ground-loop hum
- The car audio aftermarket is growing at 11.5% CAGR through 2031, with DSP adoption driving much of that growth (Cognitive Market Research, 2024)
Where Does a DSP Fit in the Car Audio Signal Chain?
The DSP processes every audio signal between your source unit and your power amplifiers. In a DSP-equipped system the signal path goes: head unit preamp outputs (or speaker outputs) to DSP inputs, then DSP RCA outputs to each amplifier's RCA inputs, then amplifier outputs to the speakers. Nothing reaches an amp that hasn't passed through the DSP first. That position gives the DSP full control over crossover frequencies, time alignment delays, equalization, and channel levels for every driver in the system. (audiointensity.com)
Getting the wiring order right matters because input clipping and gain mismatches happen before the DSP runs any of its processing. Fix the signal path first, then tune.
What Do You Need to Wire a DSP Into a Car?
Wired audio connections hold 59.5% of the car audio market because copper wire delivers lower noise floors and zero latency compared to wireless alternatives (Market.us, 2025). The parts list for a DSP install isn't long. Most builds need fewer than a dozen items, and the tools are the same ones used for any amplifier installation.
Parts Checklist
- RCA cables for inputs (from head unit preamp outputs to DSP inputs, if using low-level)
- RCA cables for outputs (one pair per DSP output zone: sub, front, rear)
- 16-14 gauge power wire (same gauge as ground)
- Inline fuse holder plus a 5A-15A fuse matched to DSP spec
- 16-14 gauge ground wire
- 18 gauge remote turn-on wire
- Butt connectors or terminal blocks
- High-level input adapter (only if your DSP has no built-in high-level inputs and your head unit has no RCA outputs)
Tools Required
- Wire stripper and crimping tool
- Digital multimeter (to verify voltage and ground quality)
- Panel removal tools (to route wires without damage)
- Electrical tape or adhesive heat shrink
- Laptop or phone with your DSP's configuration app for initial setup after wiring
Check the wire gauge that came with your DSP before buying replacements. Some entry-level units ship with 18-gauge power leads, which is undersized for the fuse and the run length involved. Upgrade to 16-gauge minimum for both power and ground on any DSP install.
How Do You Connect DSP Inputs: High-Level vs. Low-Level?
DSP inputs come in two types, and using the wrong one is the most common cause of clipping in a new install. Low-level inputs accept a line-level signal from head unit RCA preamp outputs. High-level inputs accept a full-amplitude speaker-level signal directly from head unit speaker wire outputs. If your head unit has RCA output jacks, always use them. The signal-to-noise ratio is better and there's no conversion loss. (Crutchfield)
Option A: Low-Level (RCA) Inputs
Low-level is always the preferred method. The head unit's digital-to-analog converter handles the signal conversion before any amplification occurs, so what arrives at the DSP input is a clean, low-voltage line signal. Use this whenever your head unit has preamp outputs.
- Locate the head unit preamp outputs. These are RCA jacks on the rear of the unit, usually labeled Front, Rear, and Sub (or Bass). Not all head units include all three zones.
- Run an RCA cable from each head unit output to the matching DSP input. Match channels carefully: front left to front left input, front right to front right.
- Set the head unit volume to reference level before touching the DSP input gain. Reference level is typically 75-80% of maximum. Gain structure starts at the source, not the DSP.
- Verify signal at the DSP input. Most DSP software shows an input meter. Confirm the signal is present and not showing any clipping indicator before connecting anything downstream.
Option B: High-Level (Speaker Wire) Inputs
High-level inputs are the answer for factory head units with no RCA outputs. The DSP samples the speaker signal directly at the head unit output and converts it to line level internally. Most modern DSPs handle this conversion well. Entry-level units vary in how much noise they introduce in the process. If your budget allows, a unit with built-in high-level inputs (rather than a separate line output converter) produces cleaner results.
- Tap the speaker output wires at the head unit harness, not at the speaker end. Shorter runs near the source pick up less interference from other vehicle electronics.
- Connect to the DSP high-level input terminals. Most DSPs use labeled +/- terminal pairs per channel. Polarity matters: positive to positive, negative to negative. Reversed polarity causes partial phase cancellation between speakers.
- Do not also connect RCA cables to the low-level inputs at the same time. Both connection types on the same channel will combine signals with unpredictable results.
- Set head unit to reference level and verify signal at the DSP input before wiring any amplifiers downstream.
Never connect both high-level and low-level inputs to the same DSP channel simultaneously. Even if the unit physically accepts both, the summed signal will clip at the input stage before any processing corrects it.
How Do You Wire DSP Outputs to Your Amplifiers?
DSP outputs are standard RCA jacks, identical in connector type to the inputs. Each output connects via RCA cable to the corresponding amplifier input. The number of output pairs depends on the DSP model: a basic 2-in/4-out unit gives you front and sub channels; a 6-out or 8-out unit adds rear fill and supports a full multi-amplifier system. Most aftermarket amplifiers accept input voltages between 200 mV and 4V, which sits comfortably within any DSP's output range. (audiointensity.com)
Common Output Channel Assignments
| DSP Output | Connects To | Typical Amp Type |
|---|---|---|
| Sub L/R (or Mono Sub) | Mono subwoofer amplifier | Class D monoblock |
| Front L/R | Front channel amplifier | 2-channel or 4-channel |
| Rear L/R | Rear fill amplifier | 2-channel |
| Center (if present) | Center channel amp or passive crossover | Mono or single channel |
Step-by-Step: Wiring DSP Outputs
- Run RCA cables from DSP outputs toward the amplifier rack. Route along the passenger side of the vehicle, away from the main power cable on the driver side. Keep at least 18 inches of separation from any power run at all points.
- Connect each RCA to the matching amplifier input. Check the amplifier's sensitivity spec in the manual. Most amps accept 200 mV to 4V line-level input, and a DSP output sits comfortably in that range.
- Leave unused DSP outputs disconnected. If your DSP has 6 outputs and the system only uses 4 channels, the unused outputs can stay open without harming the unit.
- Twist each RCA pair loosely together when routing multiple pairs alongside each other. Keeping a pair together reduces crosstalk between adjacent channels during the configuration stage.
When running three or more RCA pairs from a DSP to separate amplifiers, label both ends of each cable before feeding anything through the trim panels. Once carpet and kick panels go back in, unlabeled cables turn a ten-minute output assignment check into an hour of pulling apart the interior. One piece of tape per cable end at install time saves that entirely.
How Do You Power a DSP in a Car?
A DSP needs three wires to run: a 12-volt constant power wire, a chassis ground, and a remote turn-on wire. The power draw is modest compared to an amplifier. Most standalone DSPs consume between 0.5A and 3A at 12V, a fraction of the 20-100A running through the amp power cables nearby. That low draw doesn't mean you can skip fusing or cut corners on ground quality. It means those jobs are quick and there's no excuse not to do them right. (BestCarAudio.com)
12V Constant Power
- Run 16-gauge or 14-gauge wire from the battery positive terminal to the DSP mounting location. You can share a firewall grommet with your amplifier power runs if the opening has room and the wire is properly protected through the pass-through.
- Install an inline fuse holder within 18 inches of the battery terminal. A 10A blade fuse covers most standalone DSPs. Check the manufacturer's spec in the DSP manual before selecting fuse amperage; don't estimate.
- Connect to the DSP's B+ or 12V constant terminal. Some units use a removable terminal block; others use bare lead wires. Follow the printed label exactly. Reversing polarity on a DSP typically destroys the internal power supply immediately.
Chassis Ground
- Run the ground wire to the same chassis bolt used by your main amplifier ground, or to another bare-metal bolt within 12 inches of it. Sharing the same ground point eliminates the voltage difference between components that causes audible hum.
- Scrape paint from the contact surface down to bare metal. Sand the area bright, torque the bolt firmly, and apply a light coat of dielectric grease over the completed connection to resist corrosion.
- Verify ground quality with a multimeter set to DC millivolts. Measure between the DSP ground terminal and a known good battery negative. A reading under 50 mV at idle means the ground path is solid. Higher than that points to resistance in the path that will cause noise.
Remote Turn-On Wire
The remote wire tells the DSP to power up when the system activates. Connect it to the same switched 12V source feeding your amplifier REM terminals. On an aftermarket head unit, that's the blue/white striped wire in the wiring harness. On a factory head unit with no proper remote output, a switched 12V fuse tap from the fuse box works reliably. For the full breakdown on remote wire sourcing, our guide to amplifier remote turn-on wiring covers every scenario including factory radios and relay setups for multiple components.
USB and Tuning Interface
Most DSPs use a USB cable to connect to a laptop for software configuration. That USB cable is for tuning only; it doesn't need to be permanently routed with the wiring harness. Some units add Bluetooth or a dedicated remote knob cable for in-car level adjustments after tuning is done. Both can be added after the core three-wire power system is complete and verified working. For the tuning process itself, see our step-by-step DSP tuning guide.
What Are the Five Most Common DSP Wiring Mistakes?
Most wiring problems in DSP installs aren't random failures. They're repeatable errors that show up constantly in forums and shop diagnostics. Here's where the majority of first-time DSP builds go wrong, and what to do instead.
1. Grounding the DSP and Amplifiers at Different Chassis Points
This is the most common source of hum. When the DSP and amplifiers connect to the chassis at different locations, a small voltage difference exists between those two ground points. That difference appears in the audio signal as a constant 60 Hz or 120 Hz tone. The fix is a shared chassis bolt or a star ground block for every component in the system. Before checking any DSP settings or cable routing, verify all grounds land at the same point.
2. Input Clipping from Excessive Head Unit Volume During Gain Setup
If the head unit volume is too high when you're setting DSP input gain, the signal clips before reaching the DSP's gain control. No EQ or processing downstream will fix a clipped signal. Set the head unit to reference level (75-80% of maximum) before touching any DSP gain setting. Don't set the head unit to max and compensate by reducing DSP gain. Those aren't the same thing.
Maximum head unit volume clips the analog output stage of most head units before the signal reaches the DSP input. Running the head unit at full volume and reducing DSP input gain does not prevent this clipping; it only reduces it after the damage is already done upstream.
3. Running RCA Cables Parallel to Power Cables
RCA cables pick up interference from nearby current-carrying wires. An amplifier power cable pulling 40A of pulsed DC generates an electromagnetic field that induces noise into any unshielded RCA running within a few inches of it. The solution is simple: route power cables on the driver side of the vehicle, RCA cables on the passenger side. Never run them in the same conduit or bundle them with the same cable ties.
4. No Inline Fuse on the DSP Power Wire
A DSP draws only 1-3A, which won't trip the car's main electrical fuses in a fault condition. The inline fuse within 18 inches of the battery is the protection that matters for the DSP's specific wire run. Skip it and a chafed wire can melt insulation behind a door panel or under carpet without triggering any other fuse in the vehicle. It's a five-minute install that protects against a real fire risk.
5. Connecting Both High-Level and Low-Level Inputs Simultaneously
Some DSPs physically accept connections at both high-level and low-level input terminals at the same time. Using both creates a combined signal at the input that's nearly impossible to gain-match and will clip at levels well below what either input alone would trigger. Choose one input type, connect it properly, and leave the other terminals unused.
Ground loop hum accounts for roughly 80% of the troubleshooting questions we see after DSP installs. Most builders spend time checking DSP software settings and swapping RCA cables when the actual problem is a two-inch stretch of ground wire connected to the wrong chassis location. Check the ground first, every single time, before anything else.
For a complete breakdown of DSP settings and how to optimize them after installation, see our guide to DSP settings for sound quality. For the full wiring process when connecting your amplifiers and subwoofer, our step-by-step amplifier and subwoofer wiring guide covers everything from power wire gauge selection to final signal verification.
Frequently Asked Questions
Does a DSP need its own dedicated amplifier?
Can I wire a DSP into a factory stereo without replacing the head unit?
What wire gauge does a DSP power connection need?
Why does my DSP cause a humming noise through the speakers?
Do I need new RCA cables when adding a DSP to an existing system?
Wiring a DSP correctly comes down to three decisions: which input type matches your head unit, how to route the RCA outputs to each amplifier, and where to ground the unit relative to everything else in the system. Get those three right and the DSP handles the rest. Once the wiring is verified and the unit powers on cleanly, the next step is tuning, and our step-by-step DSP tuning guide picks up exactly where this one ends.
